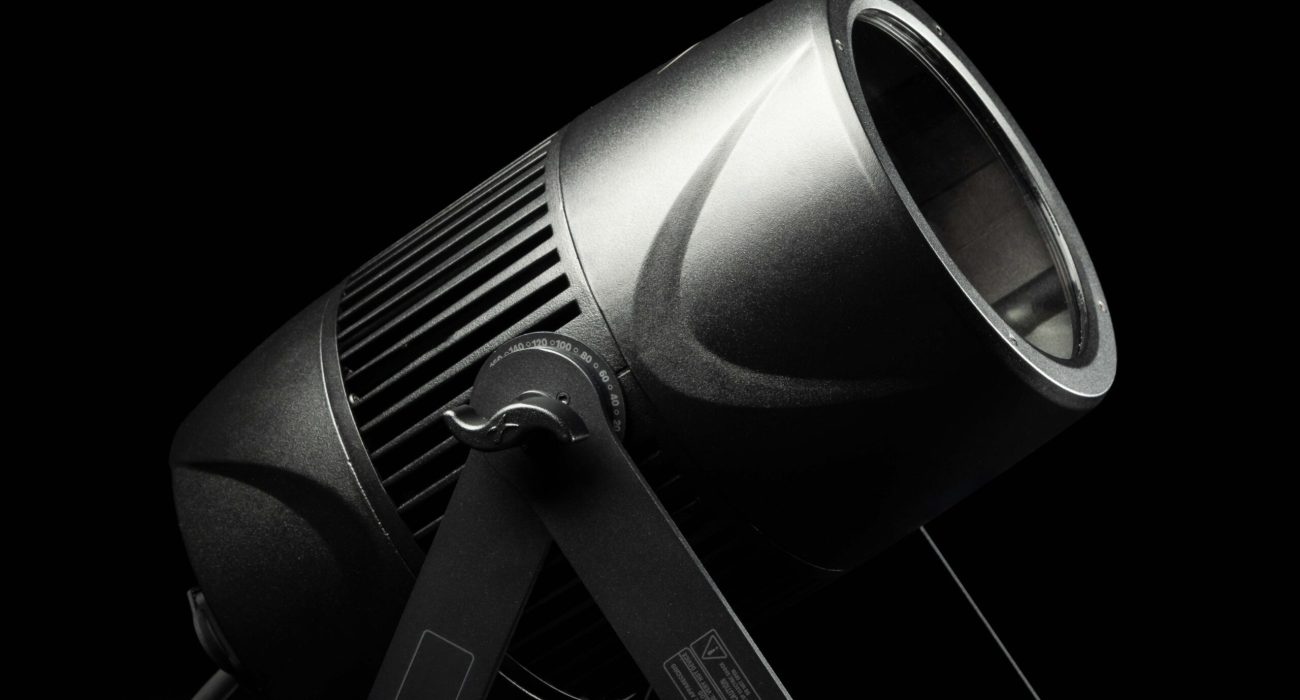

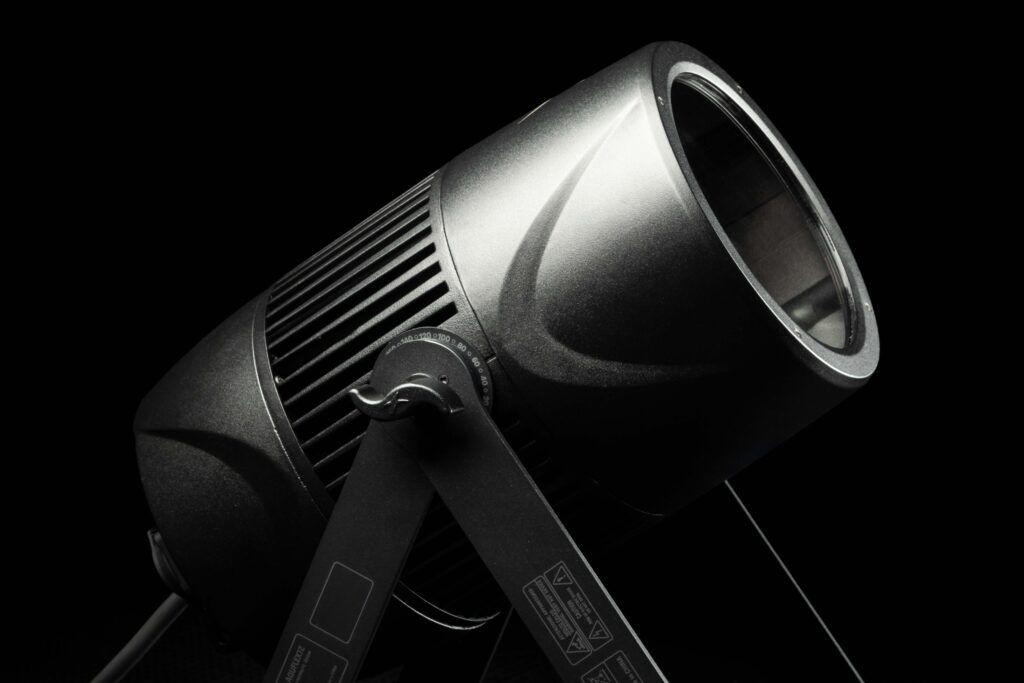

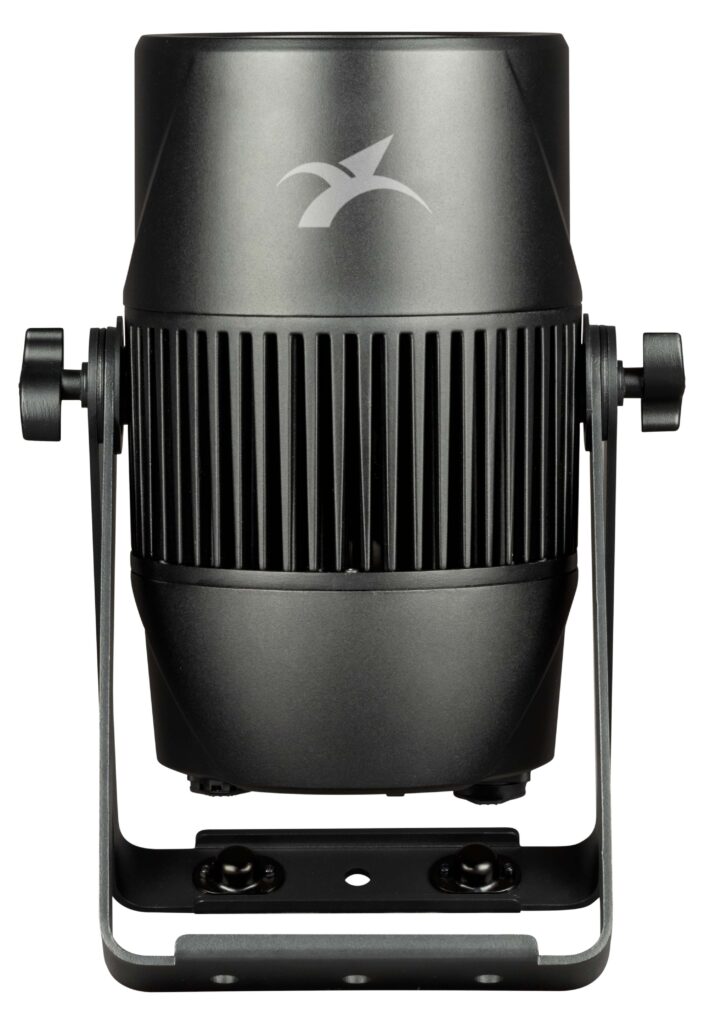

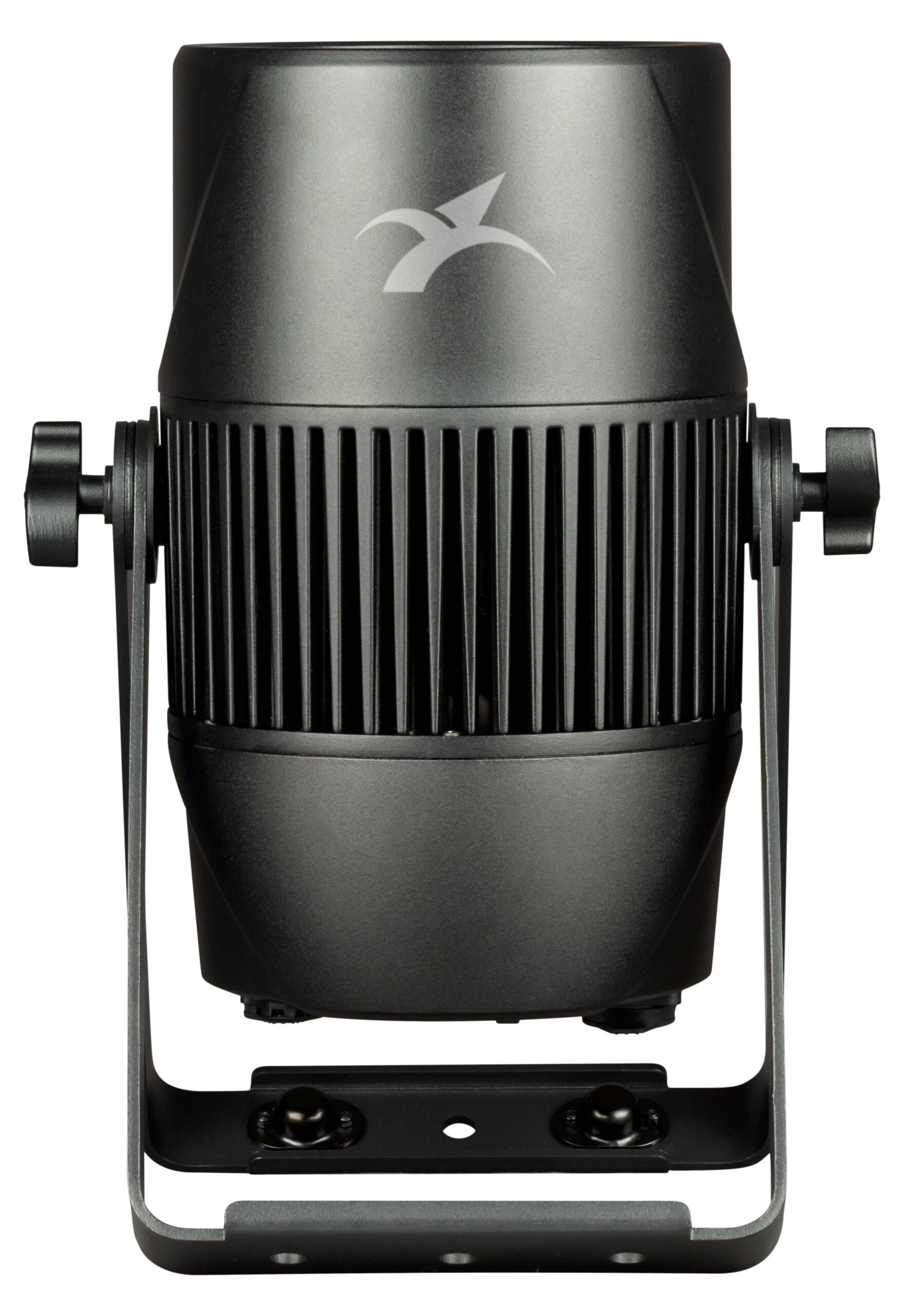

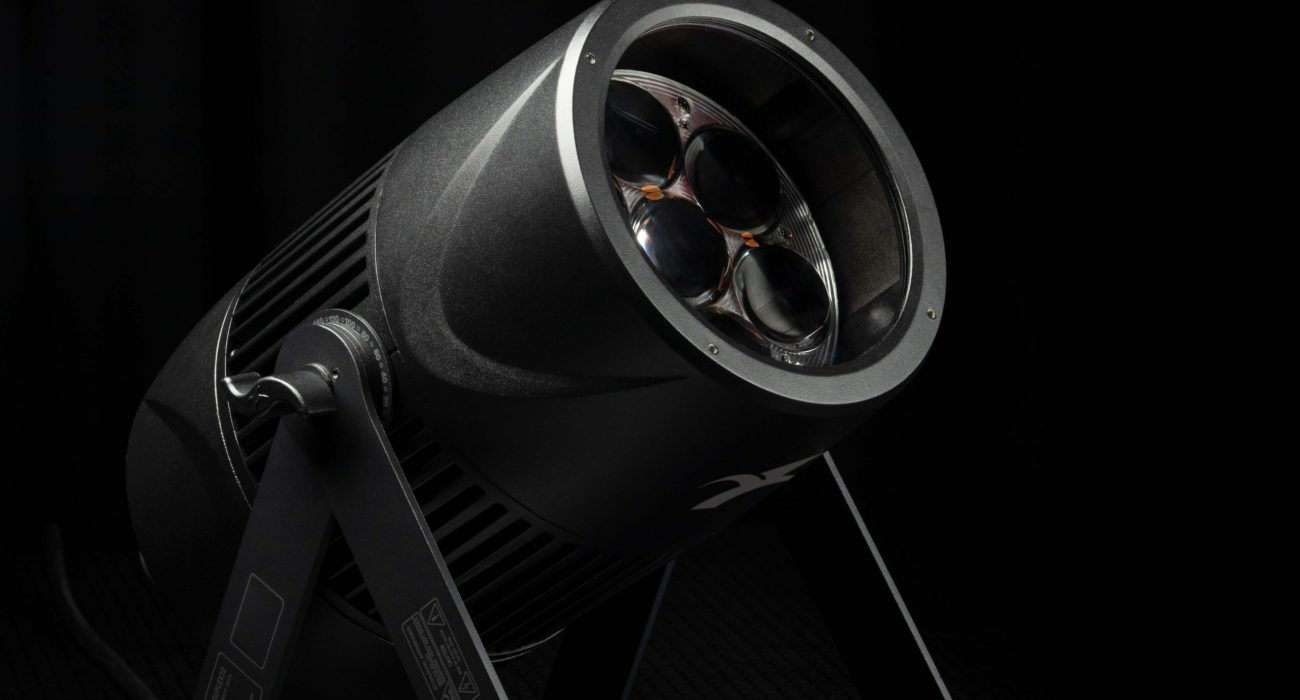

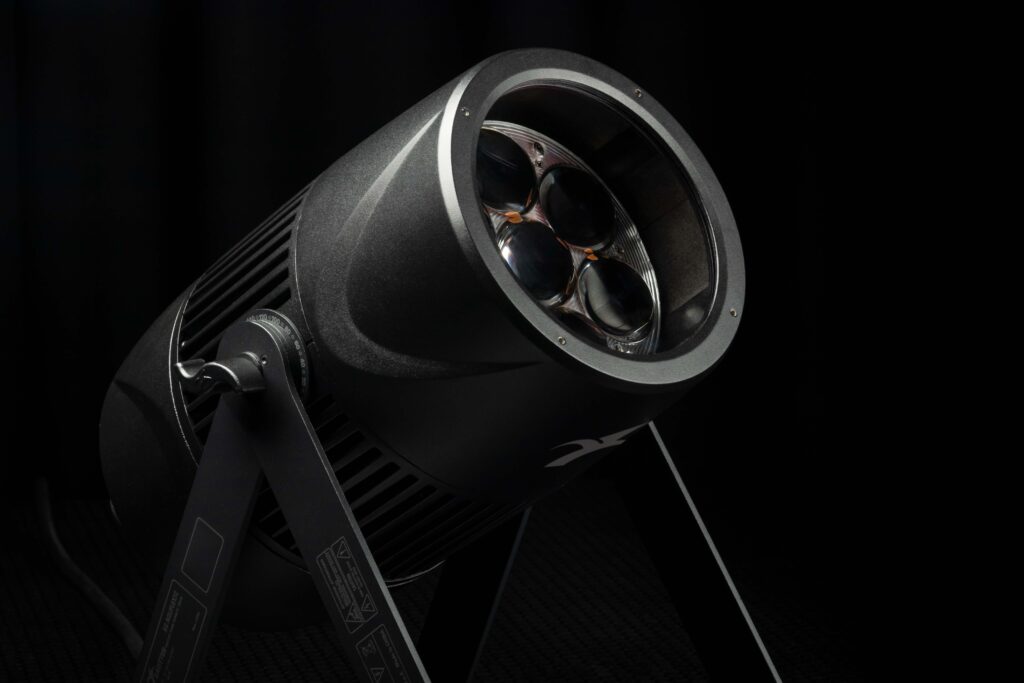

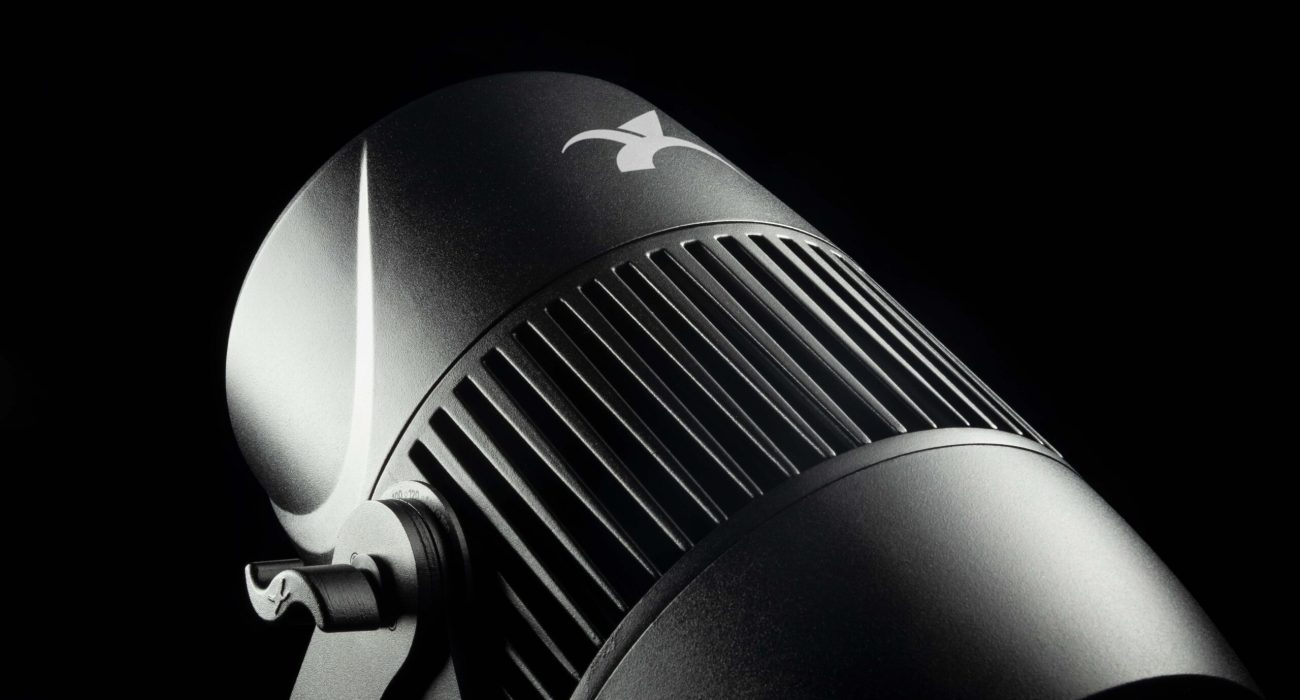

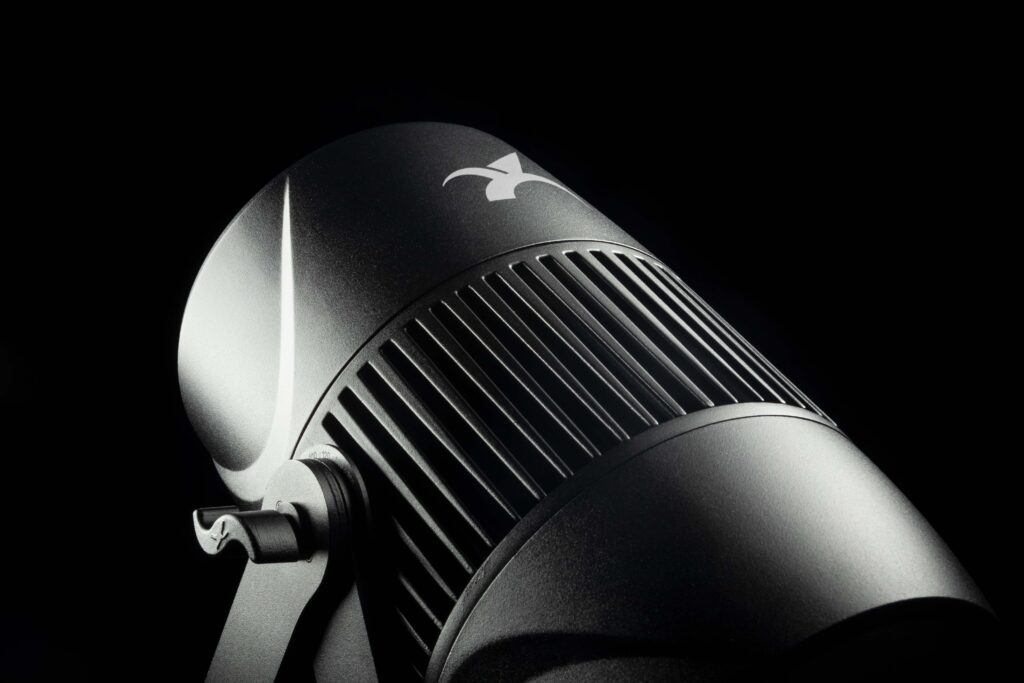

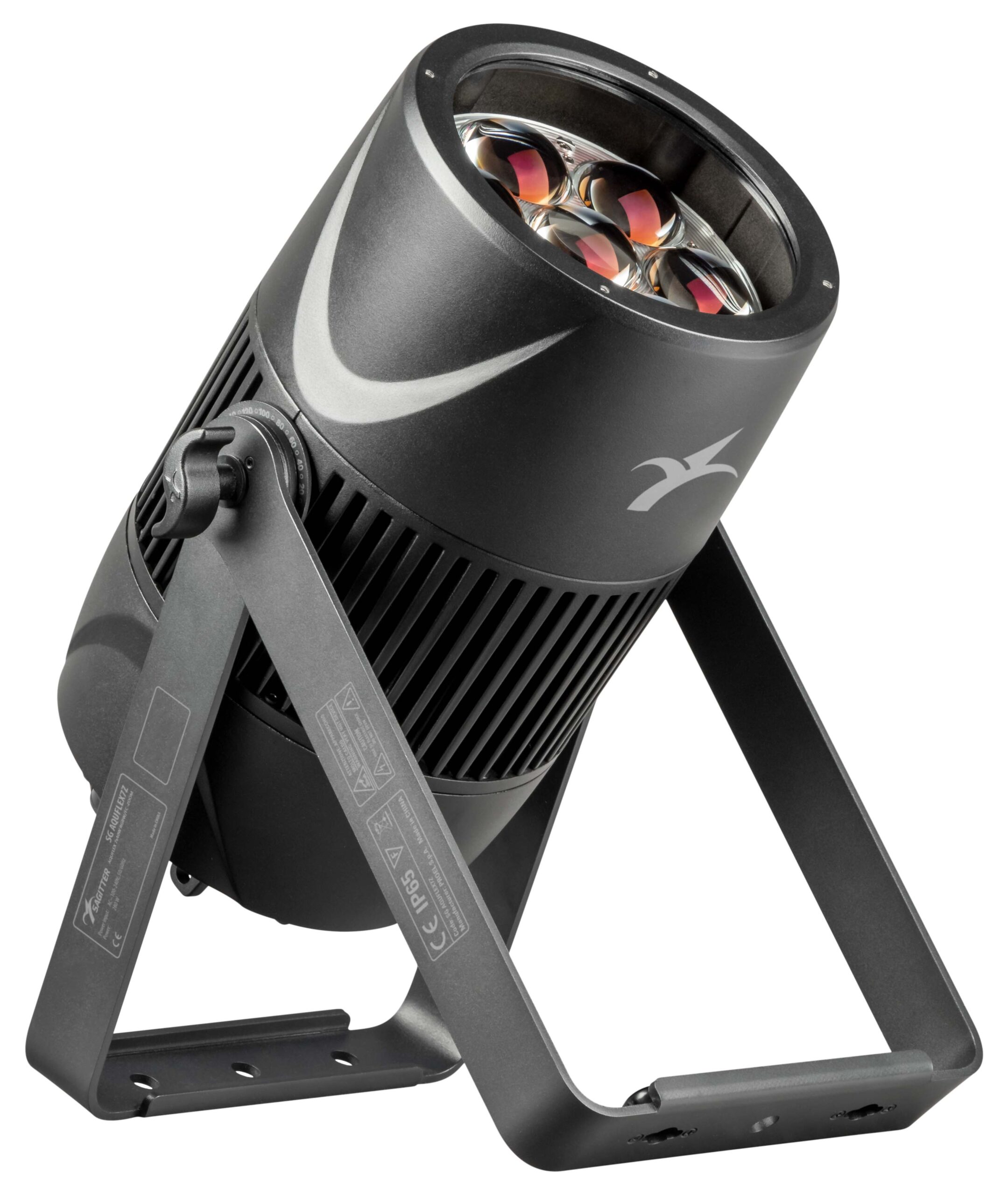

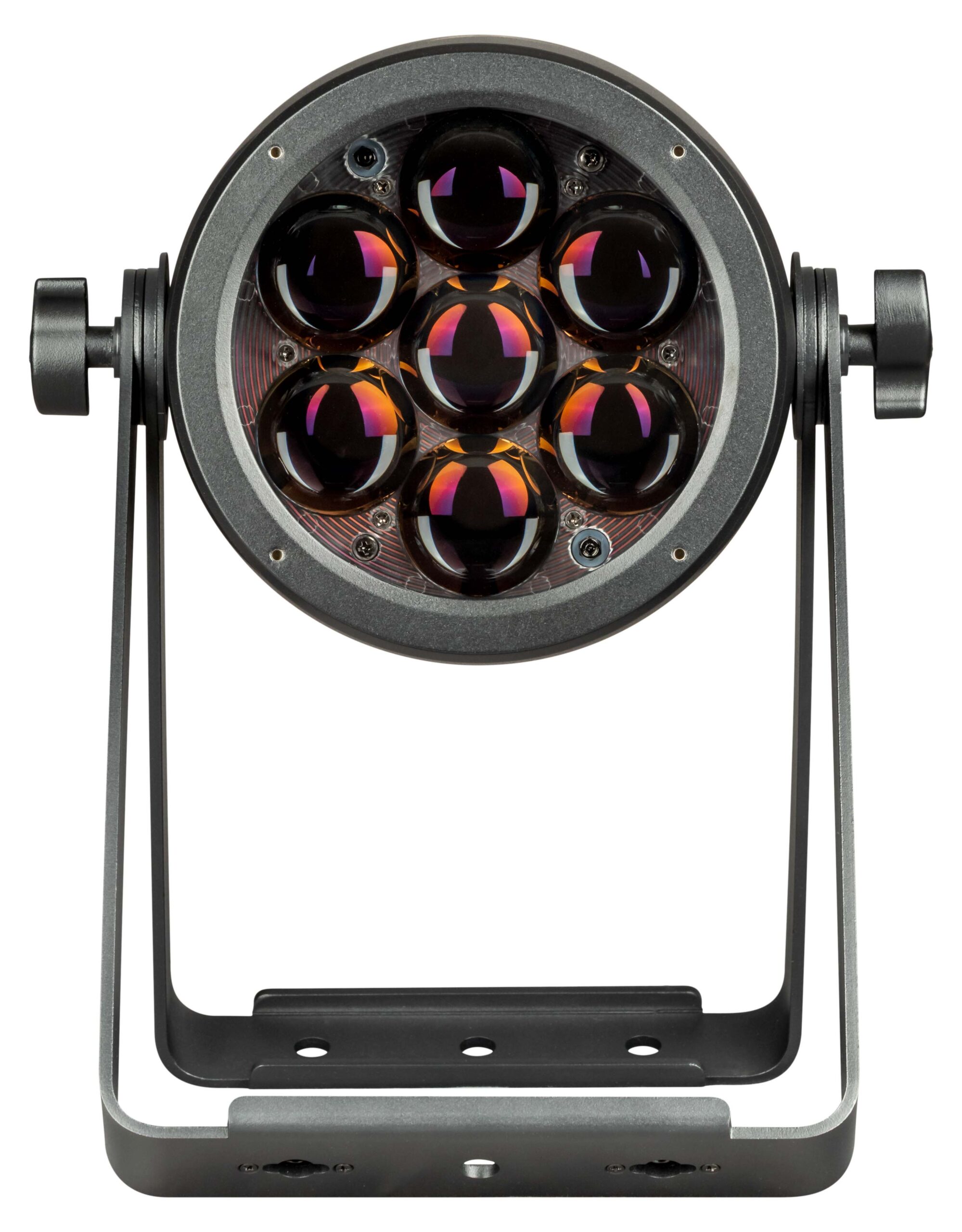

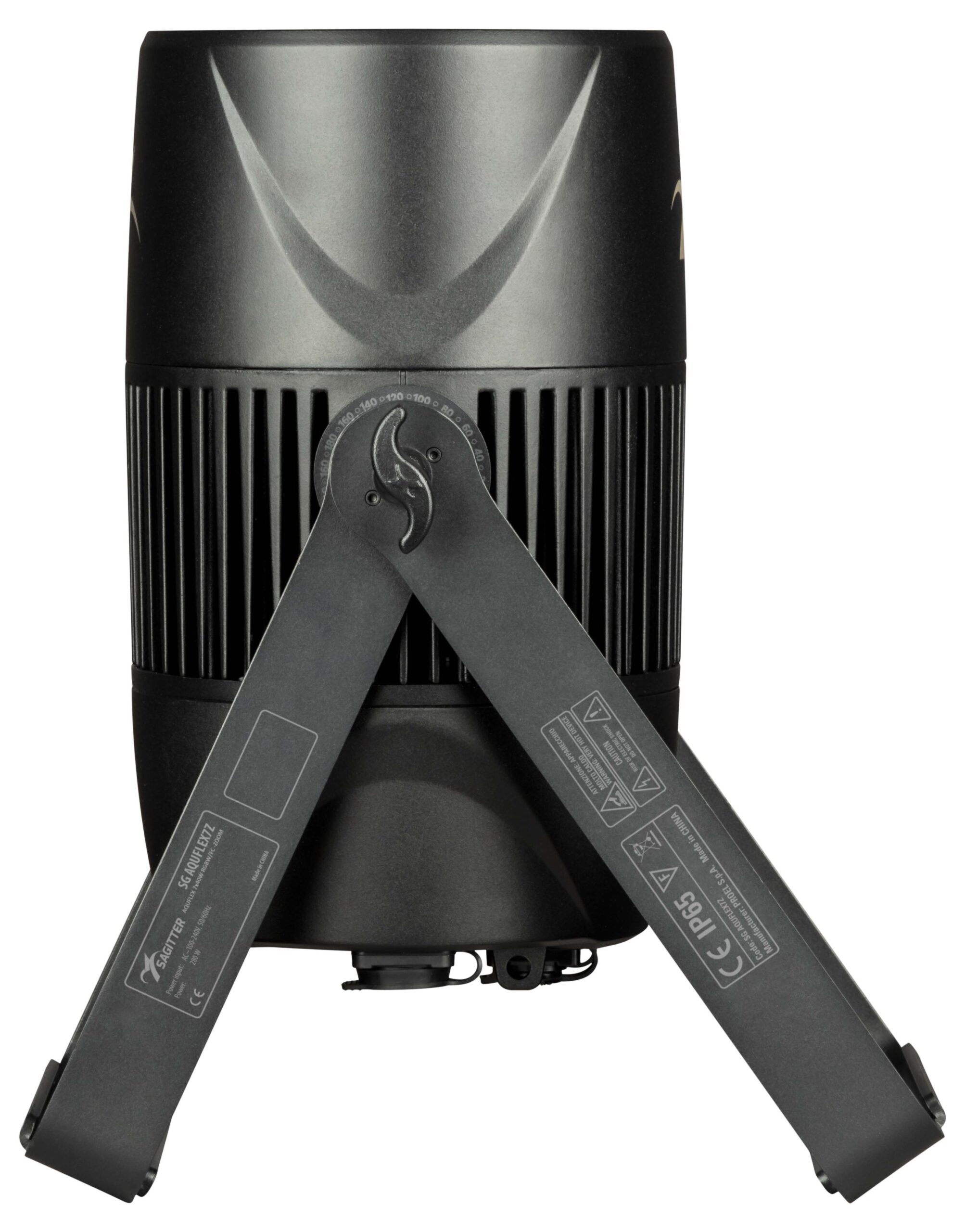

AQUFLEX7Z is the latest evolution in Sagitter’s range of outdoor projectors. This innovative product represents a cutting-edge solution as it combines excellent performance, versatility, and durability.
AQUFLEX7Z is designed to adapt to various applications, offering the flexibility needed to excel in different indoor and outdoor contexts: whether for concerts, live events, theatrical performances, or architectural lighting, it stands out for its superior performance.
Among its main features are:
| Light source | 7x40W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > 600Hz a 15 KHz flicker-free |

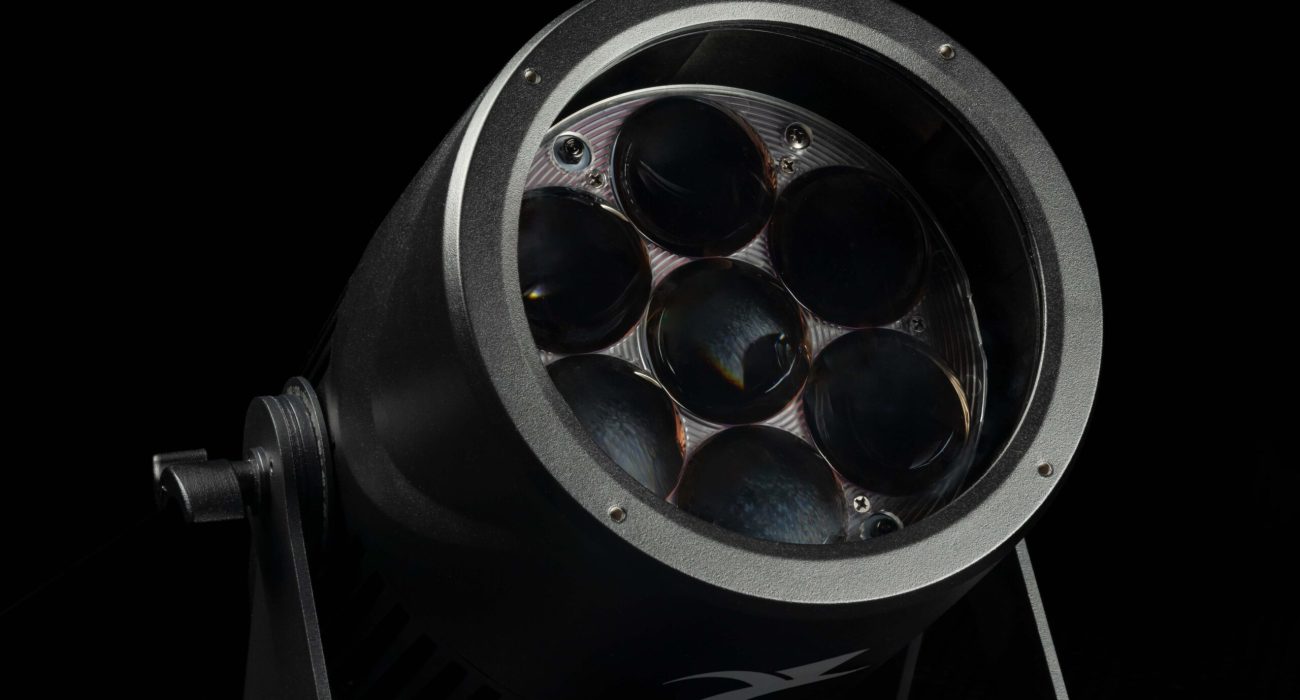

| Optic system | Projection angle: zoom from 4° to 45° Luminous flux: 22.000lux @ 5m (full on – 4.3°) PMMA plano-convex optics 42mm |
| Color system | RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX Motorized zoom |
| Control and programming | 5 DMX configurations available: 4/5/7/13/17 channels Key lock password for display lock Protocol USITT DMX 512 Built-in wireless DMX transceiver Master/Slave mode Static Color mode Auto mode with 15 programs selectable from the display Color mode with 50 color macros Virtual white wheel with 11 macros Color calibration system 4 different dimming curves available |

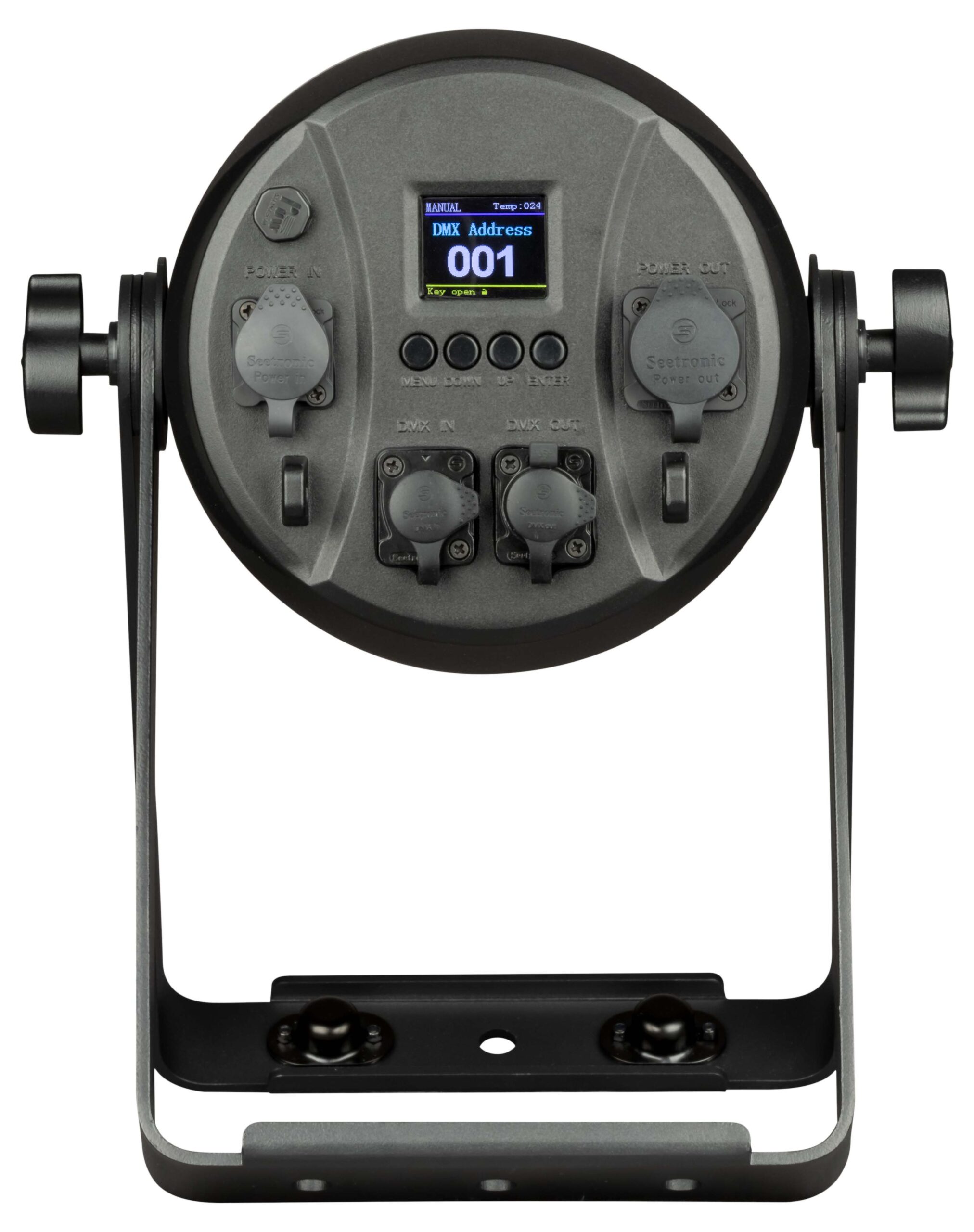

| Structure and cabinet | High resistance die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle IP65 rating DMX 3-poles XLR IN/OUT IP65 connectors Mounting points: 1 pair of 1/4-turn locks omega older Low-noise controlled cooling system |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 280W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1mt included |
| Weight and dimensions | Net weight: 7,5 kg Dimensions: 297x450x200 mm |
