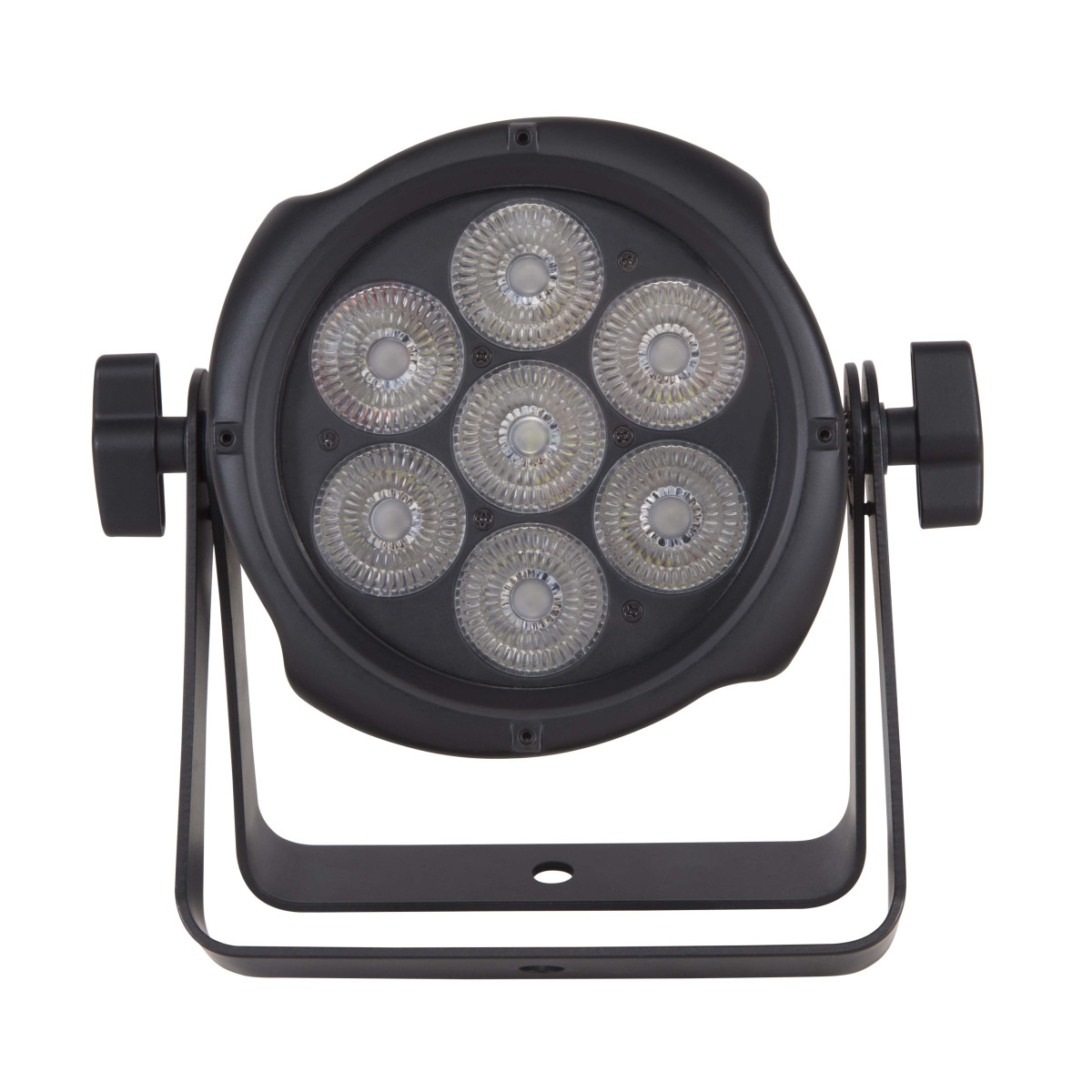

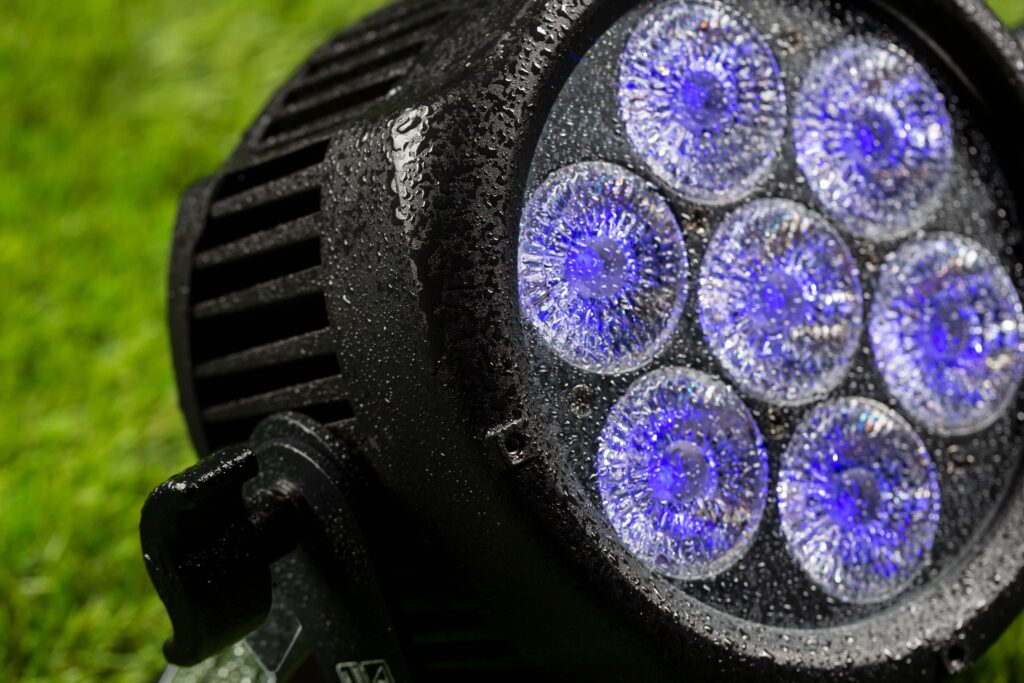

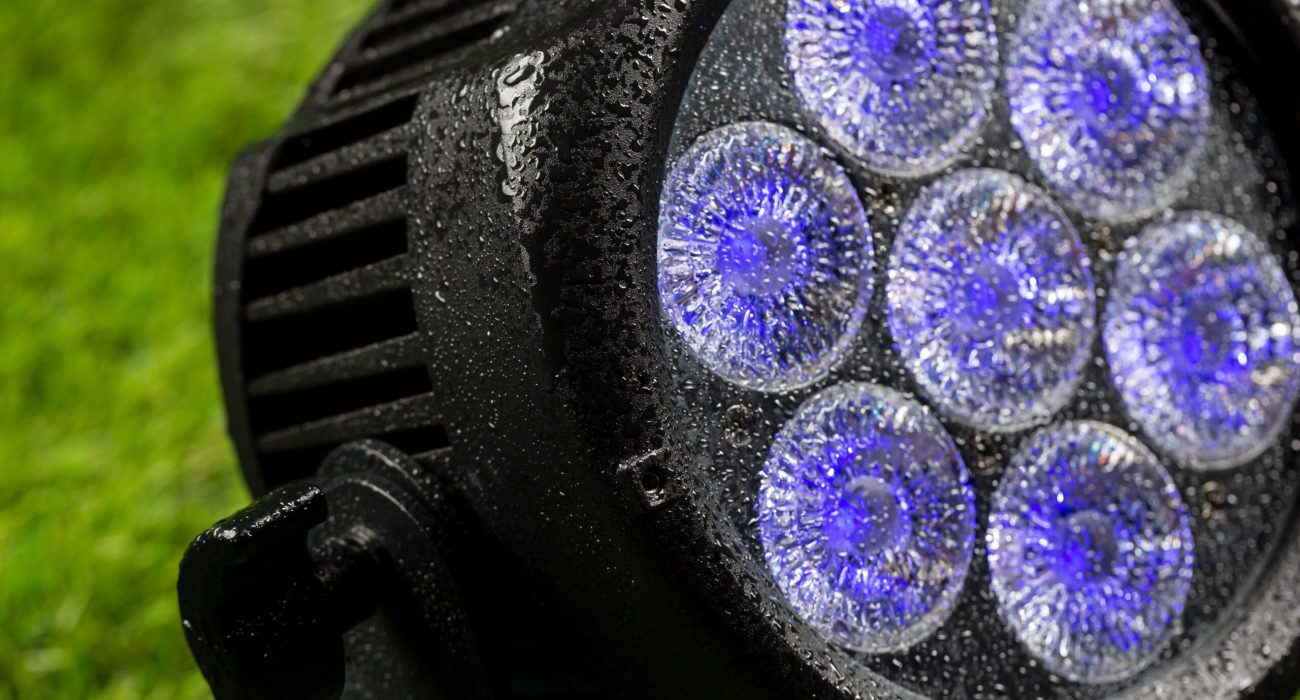

| Light source | 7x12W RGBWA-UV led LED lifespan: >50.000h LED refresh frequency: >400Hz flicker free |
| Optic system | Beam angle: 25° |
| Color system | RGBWA-UV full color mixing Infinite chromatic possibilities and color temperature control |
| Effects | Linear Dimmer 0-100% Electronic strobe: 1-20 flashes/s with adjustable speed Color macros selectable via DMX |
| Control and programming | 4 DMX configurations available: 3/6/8/13 channels Key lock password for display lock Master / Slave mode Automatic mode with 21 different programs selectable from the display with independent adjustment of the speed and strobe Color mode with independent adjustment of single color with 70 different selections 11 white balance selections 4 dimmer curves |

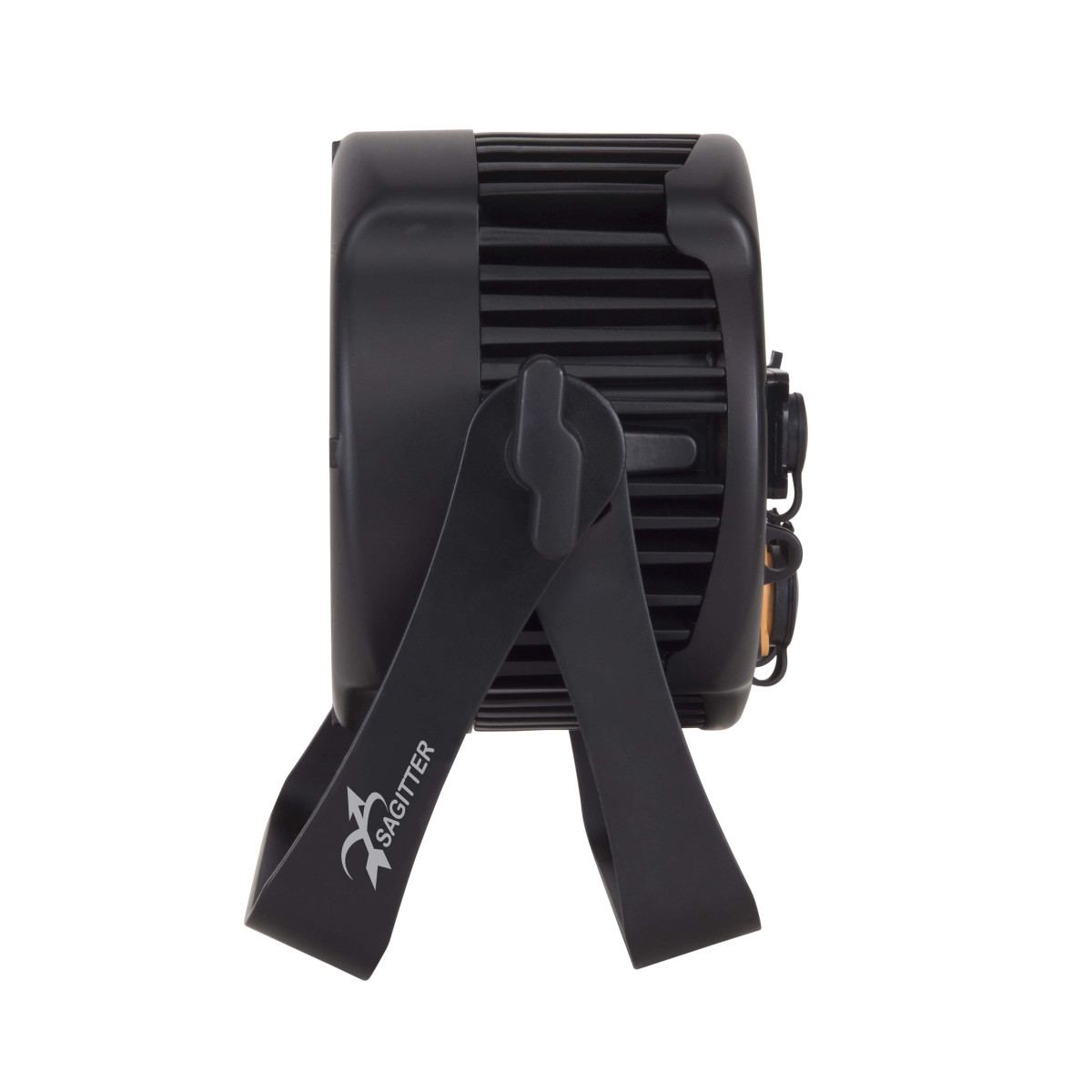

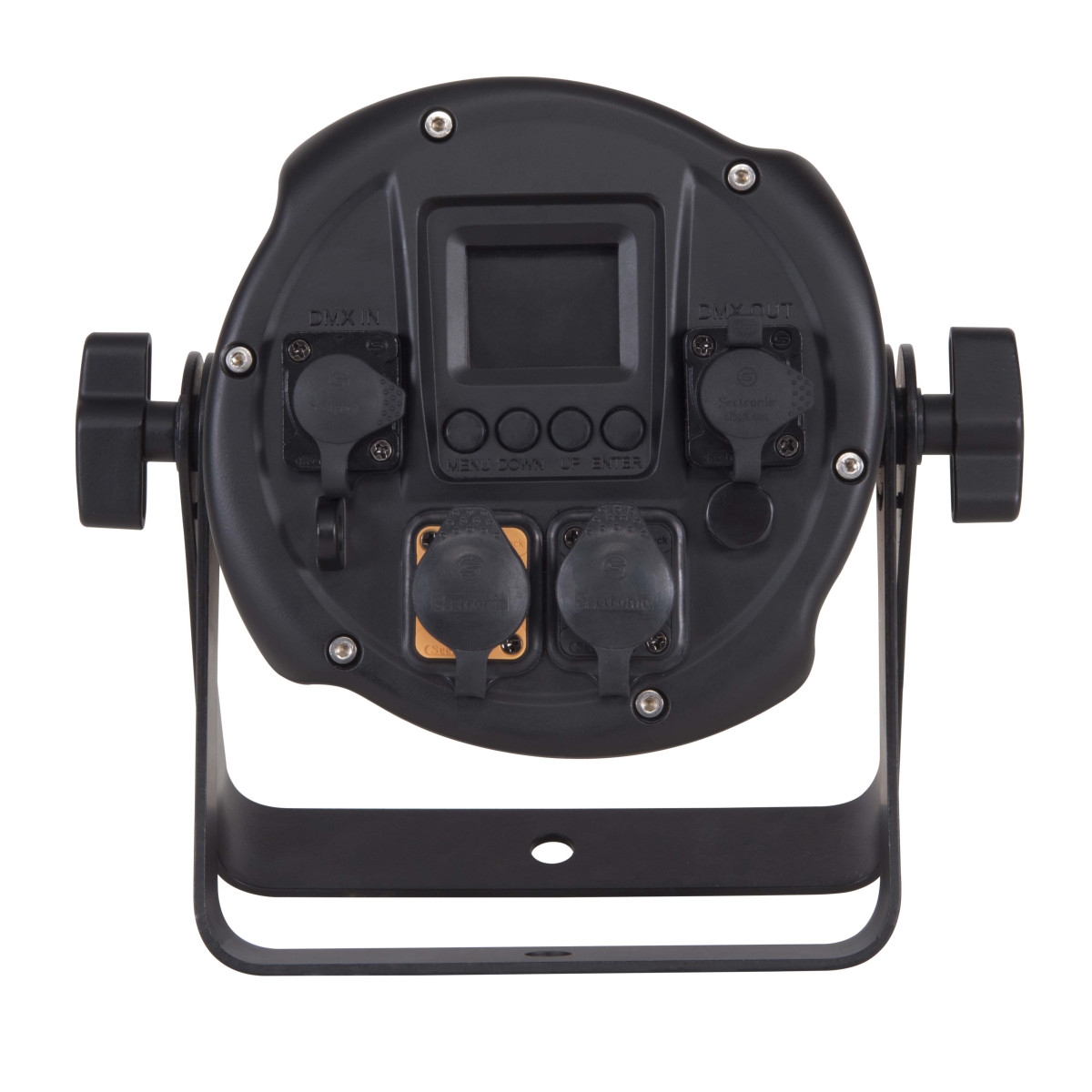

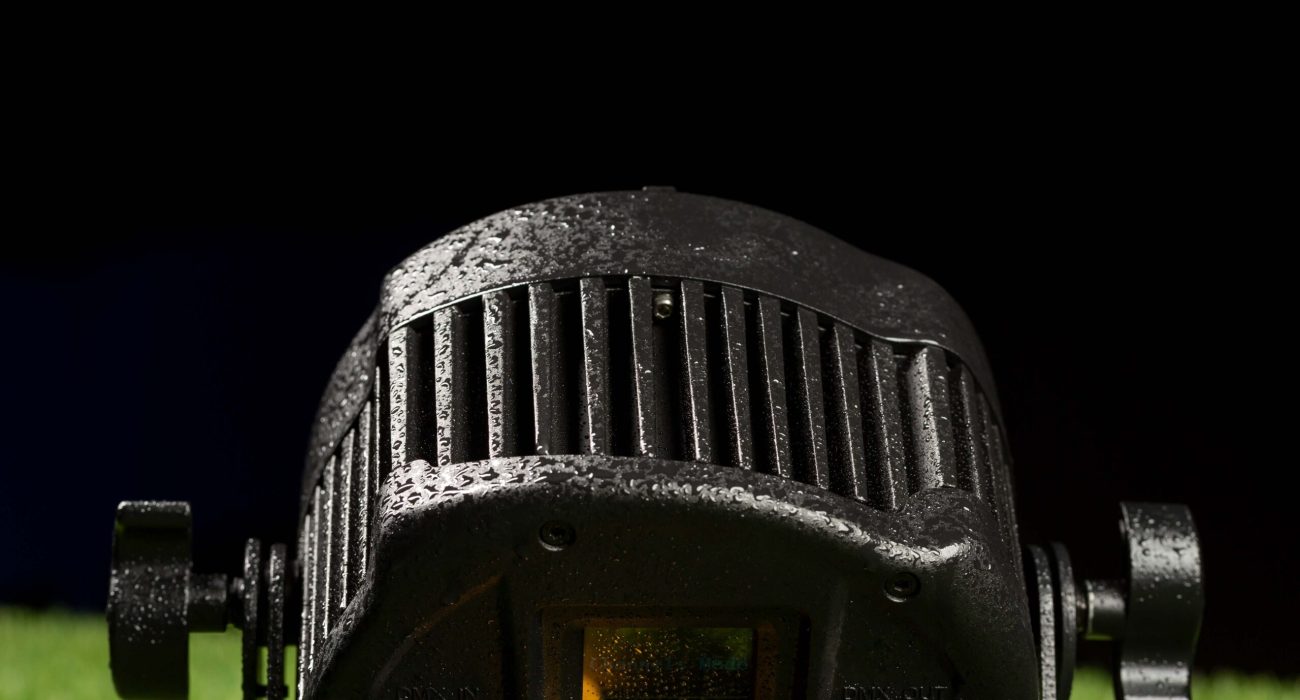

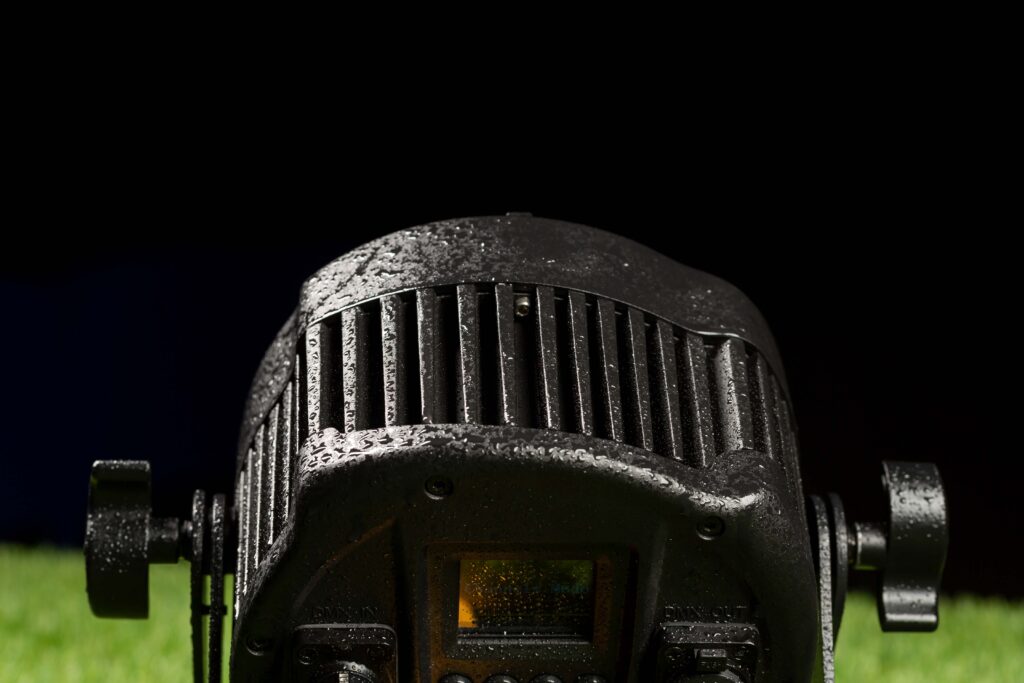

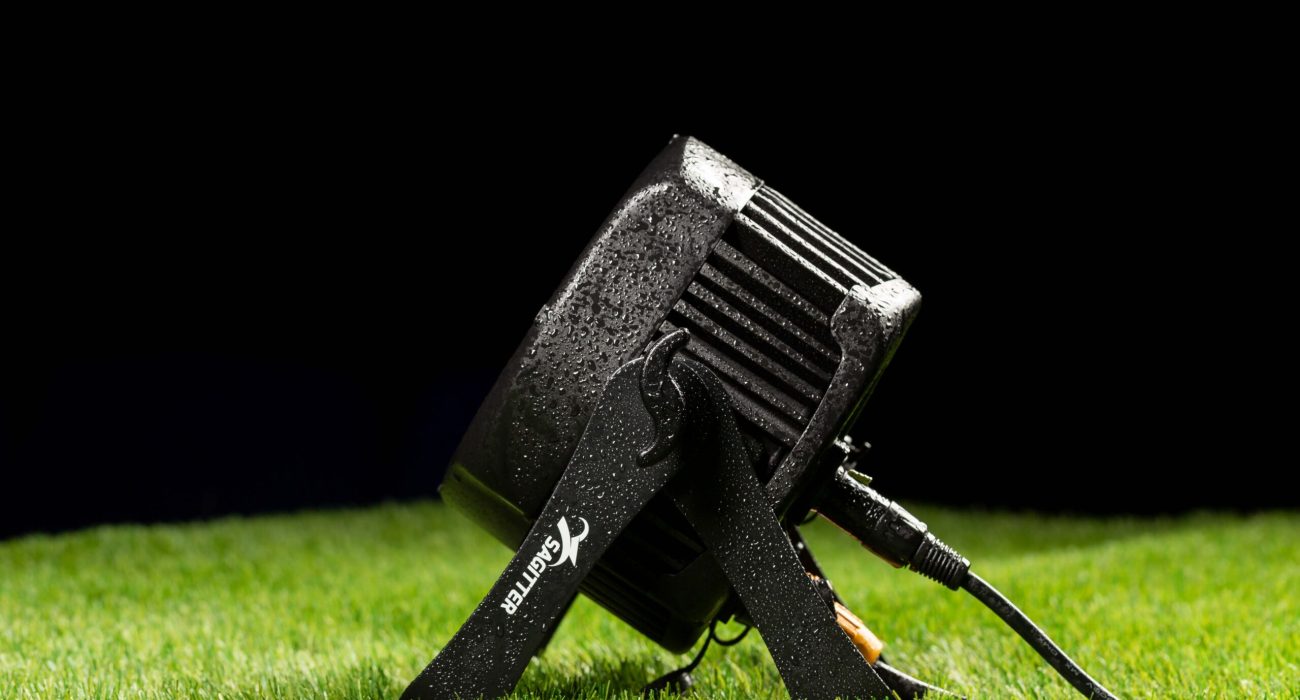

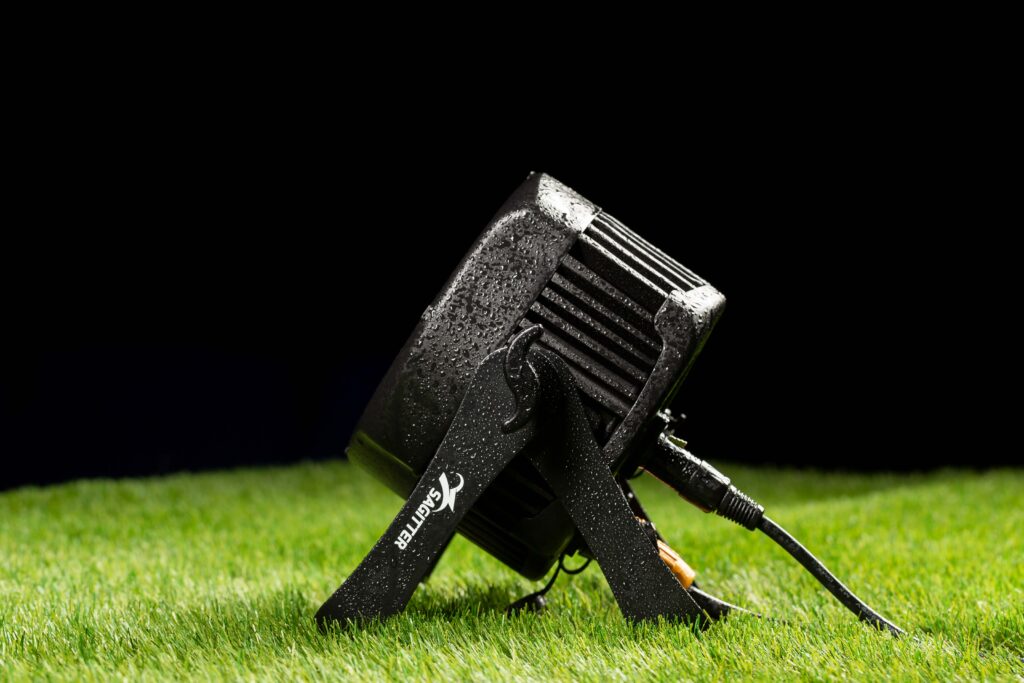

| Structure and cabinet | Die cast aluminum housing, black color Color LCD display Front tempered glass Mounting points: double bracket for suspension or floor support IP rating: IP65 3-poles XLR in/out DMX connection IP65 Convection cooling system without fans |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 85W @ 230VAC Power IN/OUT connection IP65 |
| Weight and dimensions | Net weight: 3,2 kg Dimensions: 250x175x230 mm |
| Light source | 7x12W RGBWA-UV led LED lifespan: >50.000h LED refresh frequency: >400Hz flicker free |
| Optic system | Beam angle: 25° |
| Color system | RGBWA-UV full color mixing Infinite chromatic possibilities and color temperature control |
| Effects | Linear Dimmer 0-100% Electronic strobe: 1-20 flashes/s with adjustable speed Color macros selectable via DMX |
| Control and programming | 4 DMX configurations available: 3/6/8/13 channels Key lock password for display lock Master / Slave mode Automatic mode with 21 different programs selectable from the display with independent adjustment of the speed and strobe Color mode with independent adjustment of single color with 70 different selections 11 white balance selections 4 dimmer curves |
| Structure and cabinet | Die cast aluminum housing, black color Color LCD display Front tempered glass Mounting points: double bracket for suspension or floor support IP rating: IP65 3-poles XLR in/out DMX connection IP65 Convection cooling system without fans |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 85W @ 230VAC Power IN/OUT connection IP65 |
| Weight and dimensions | Net weight: 3,2 kg Dimensions: 250x175x230 mm |
