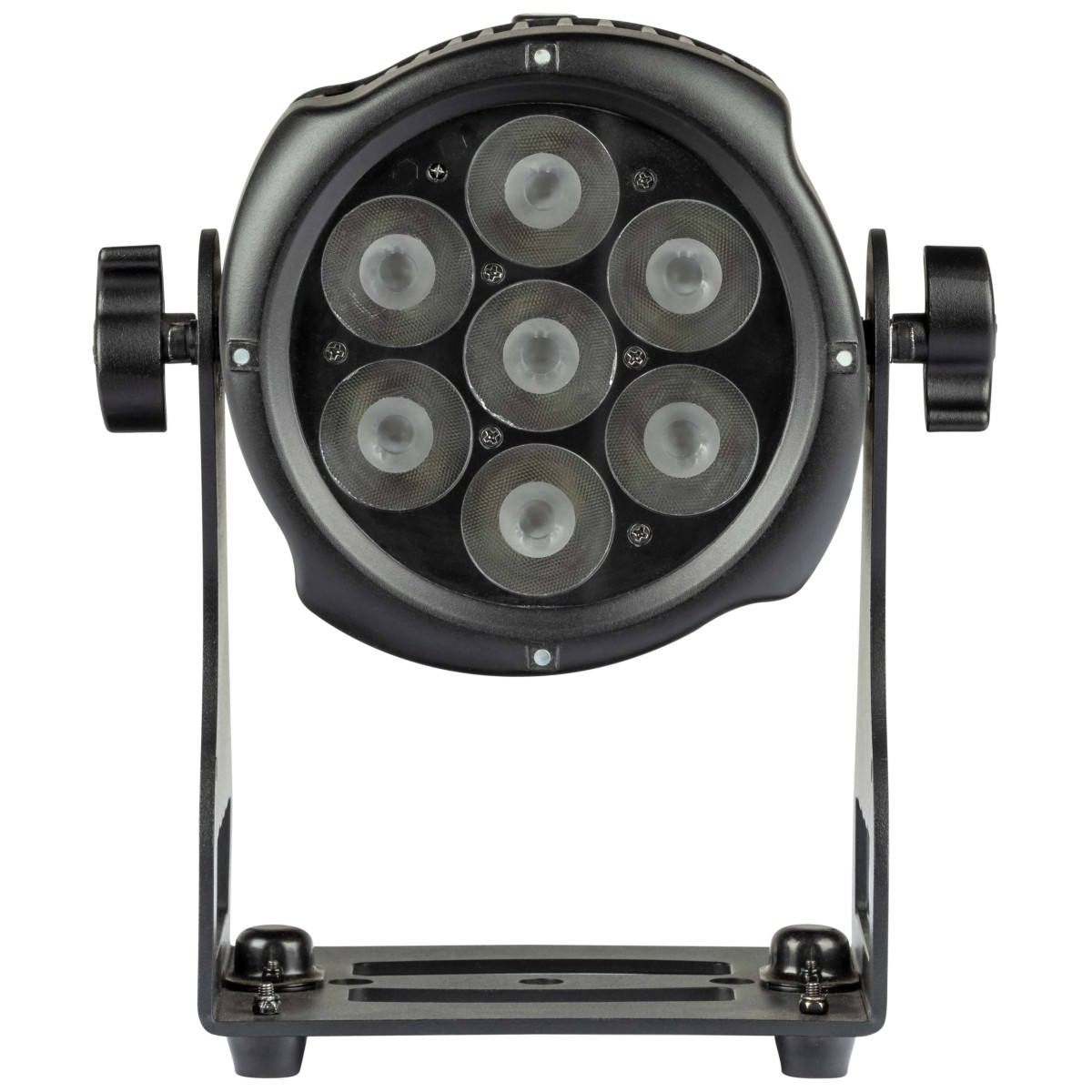

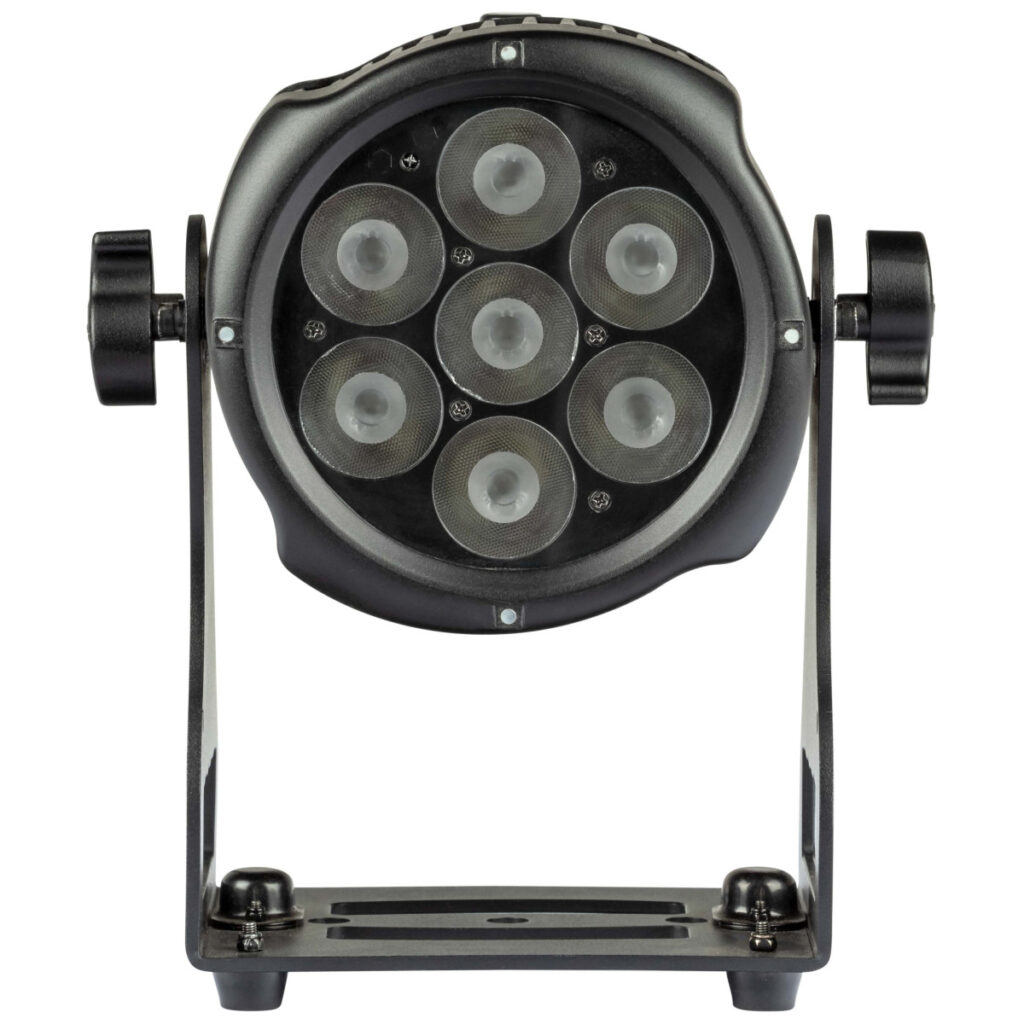

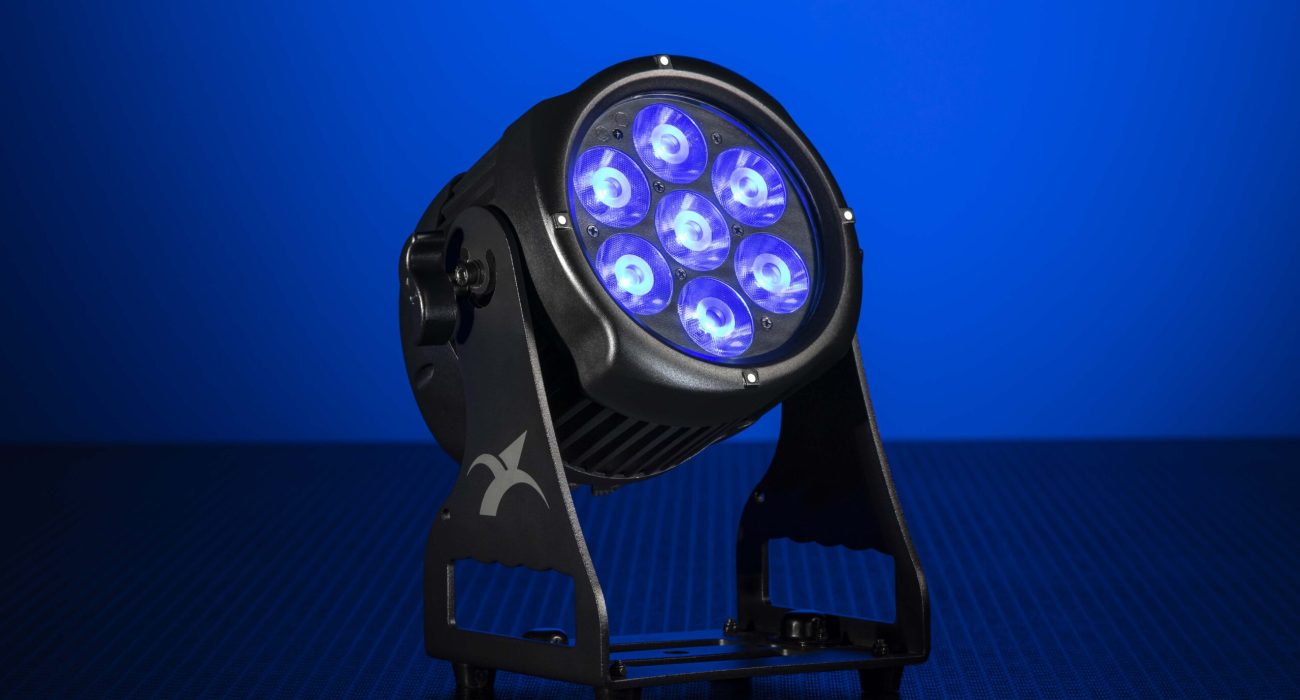

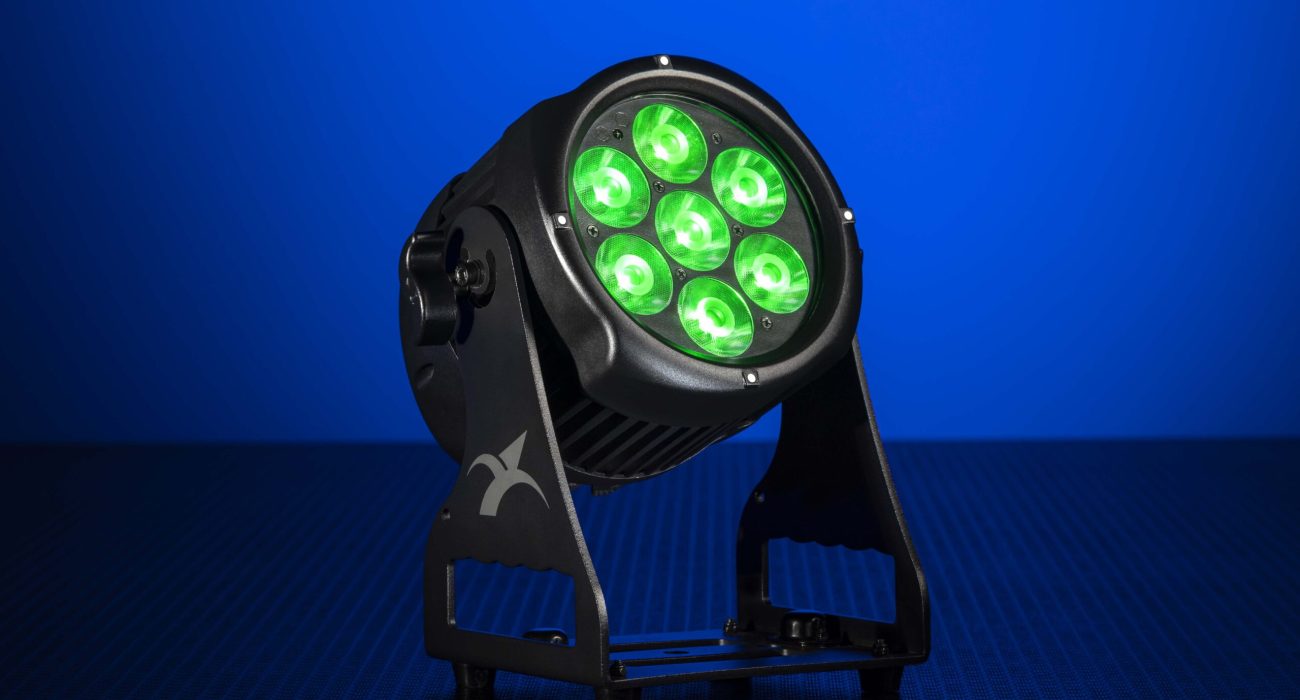

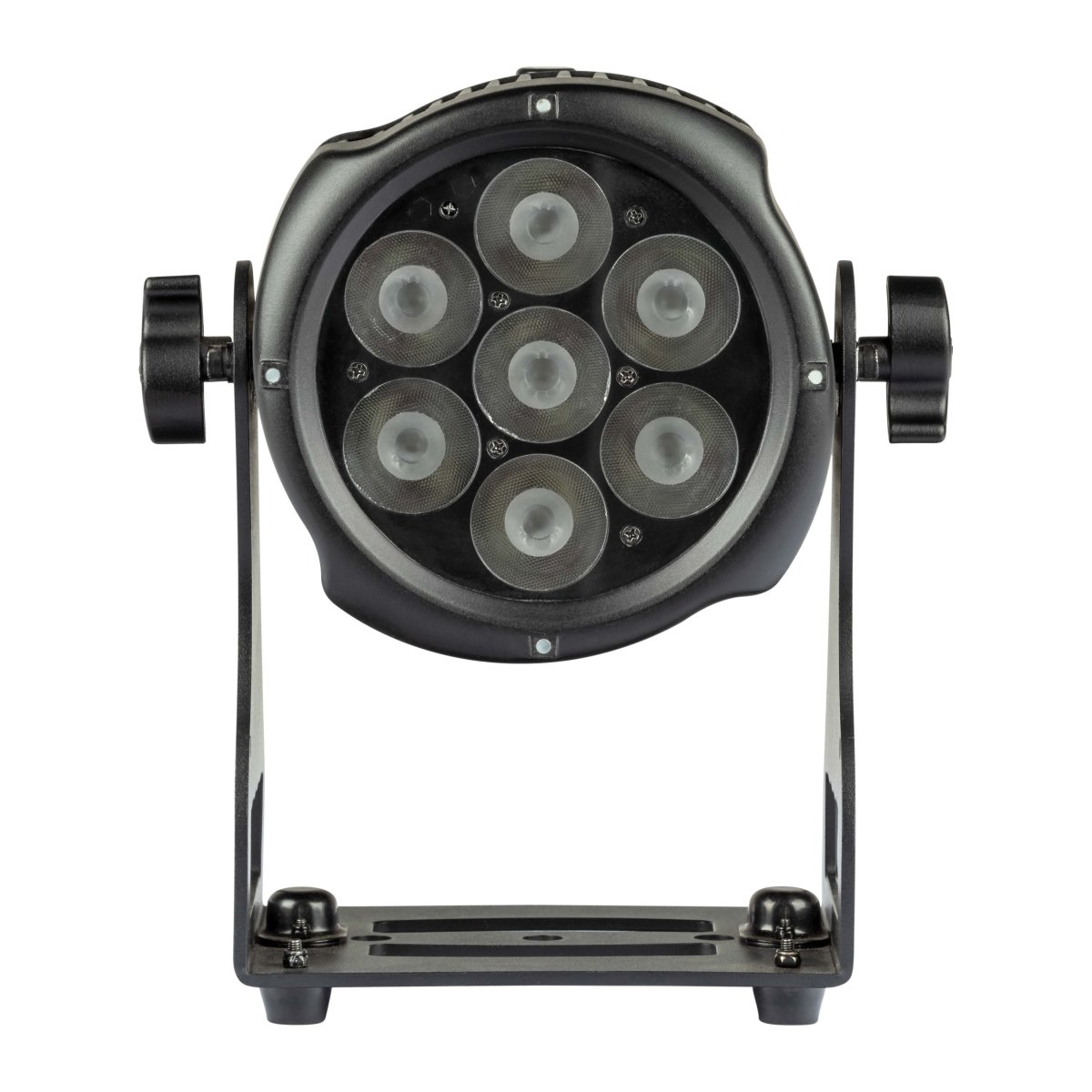

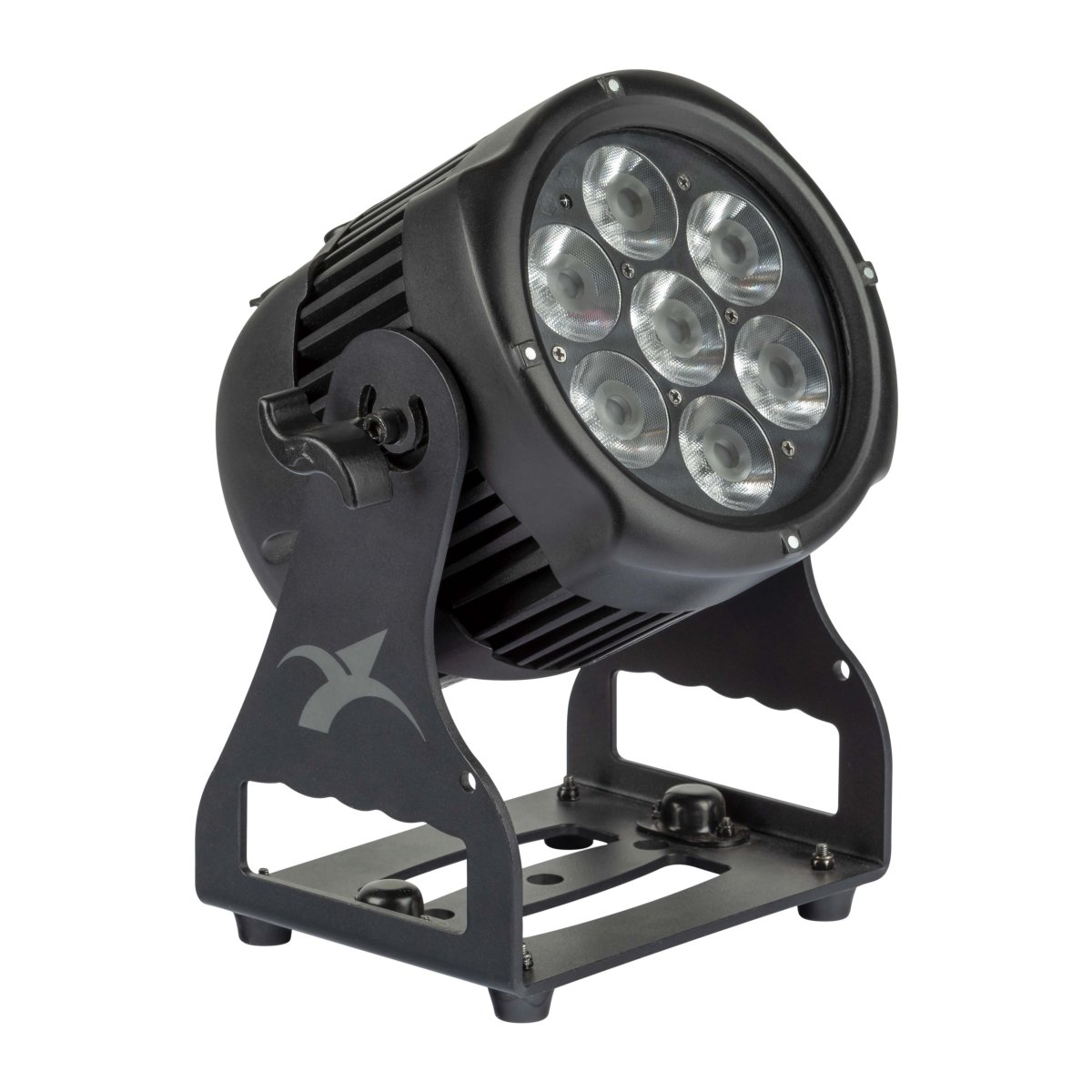

| Light source | 7x10W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 10/22° Illuminance: 1300lux @ 5m (full on) |
| Color system | RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX |
| Control and programming | 5 DMX configurations available: 2/3/5/8/11 channels Key lock password for display lock rotocol USITT DMX 512 Built-in wireless DMX transceiver Master/Slave mode Static Color mode Auto mode with 15 programs selectable from the display, with speed adjustment Color mode with 50 color macros and 11 white macros Color calibration system Power management system 4 different dimming curves available Emergency light function |

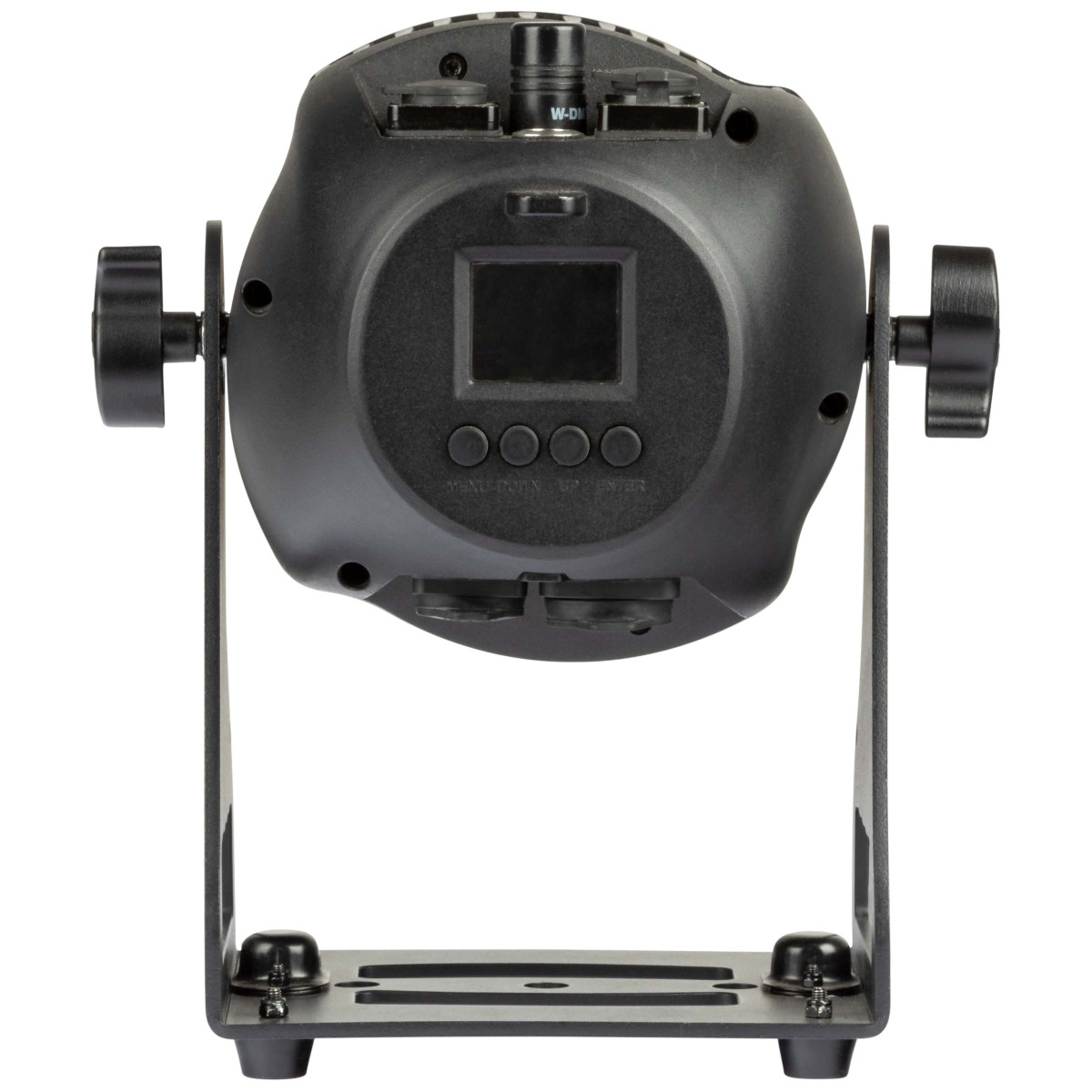

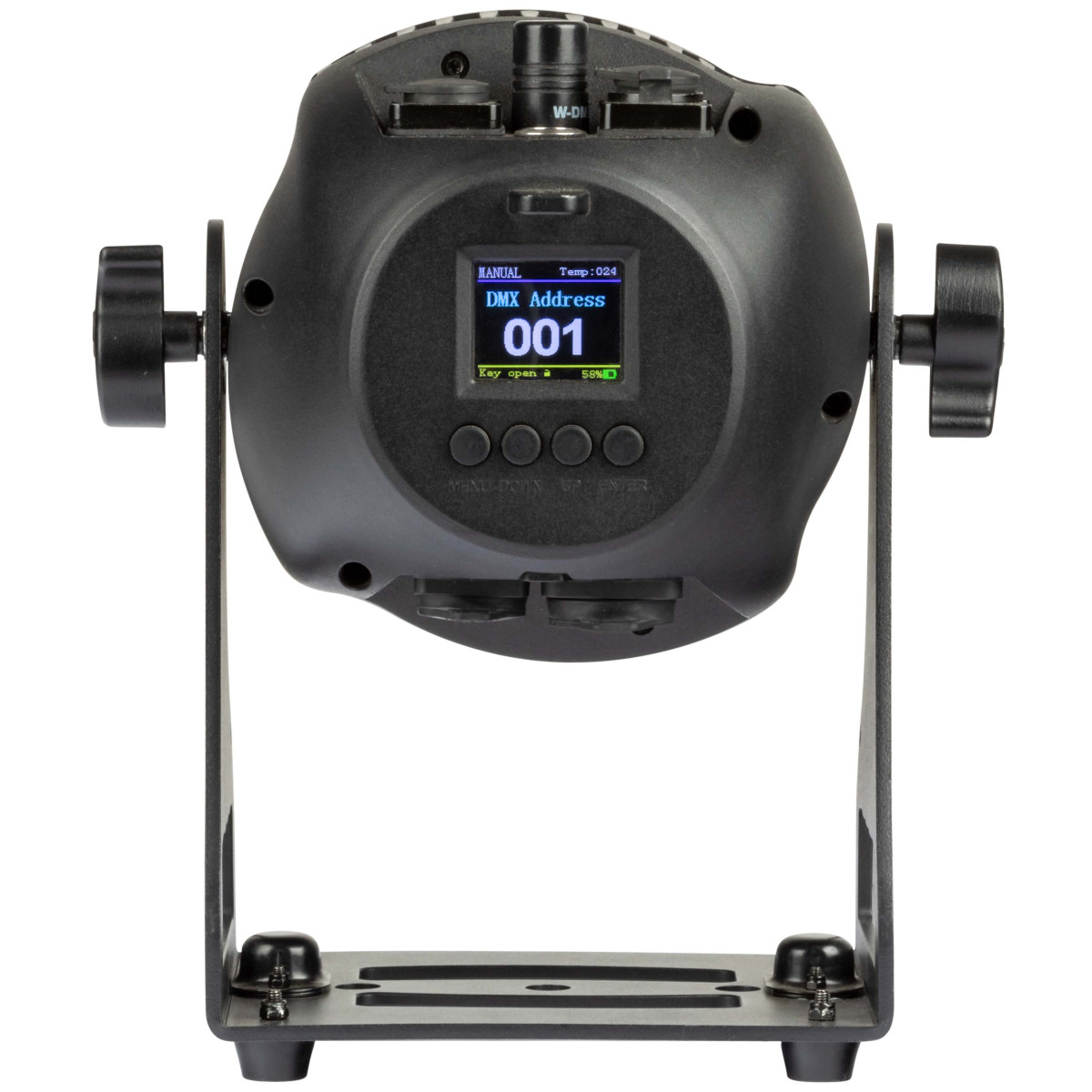

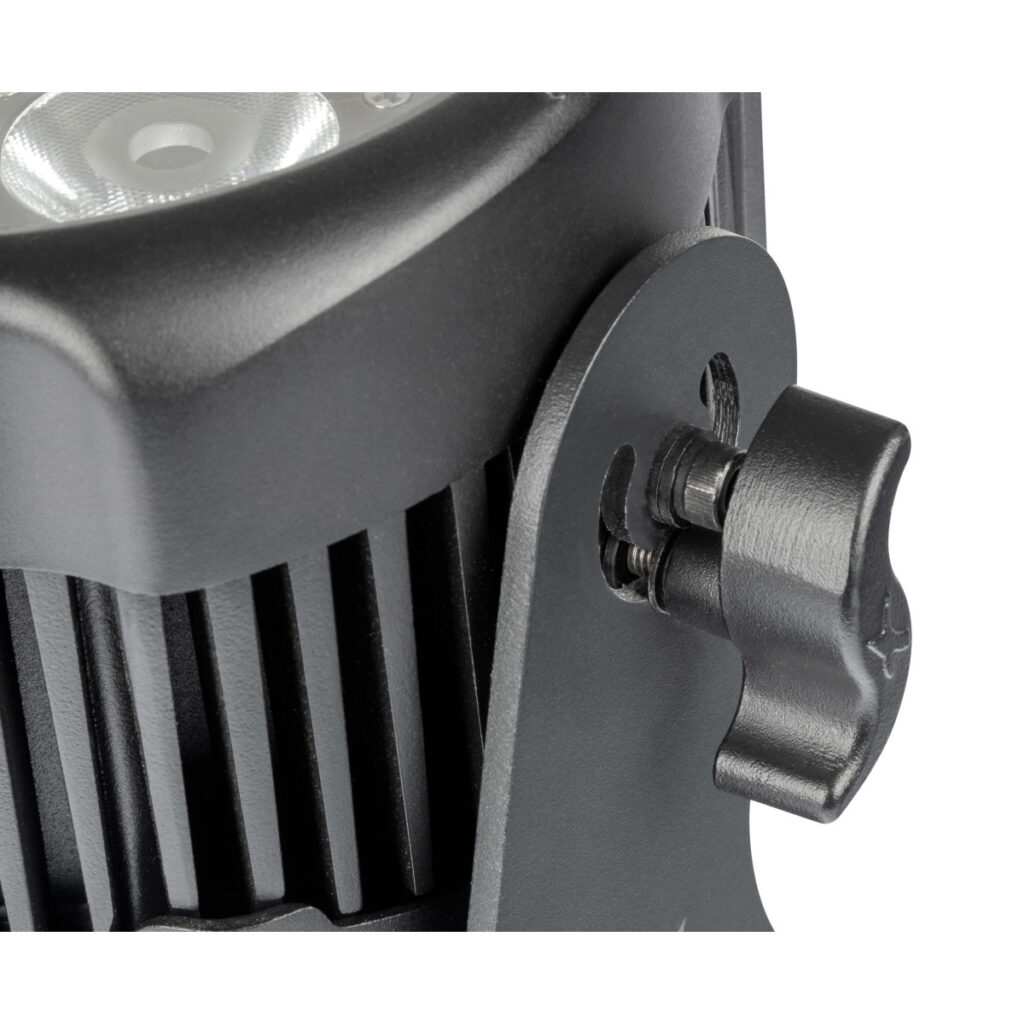

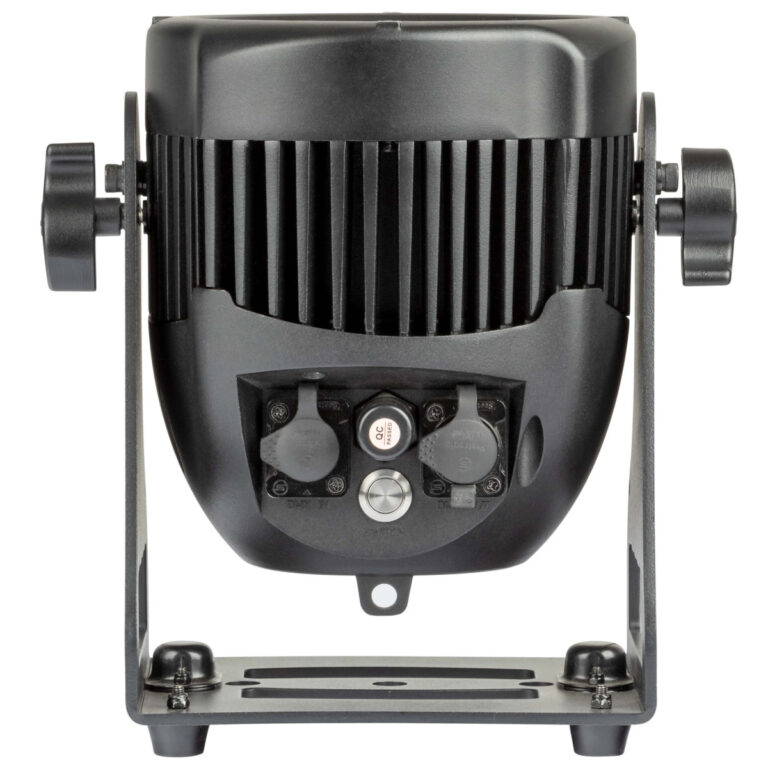

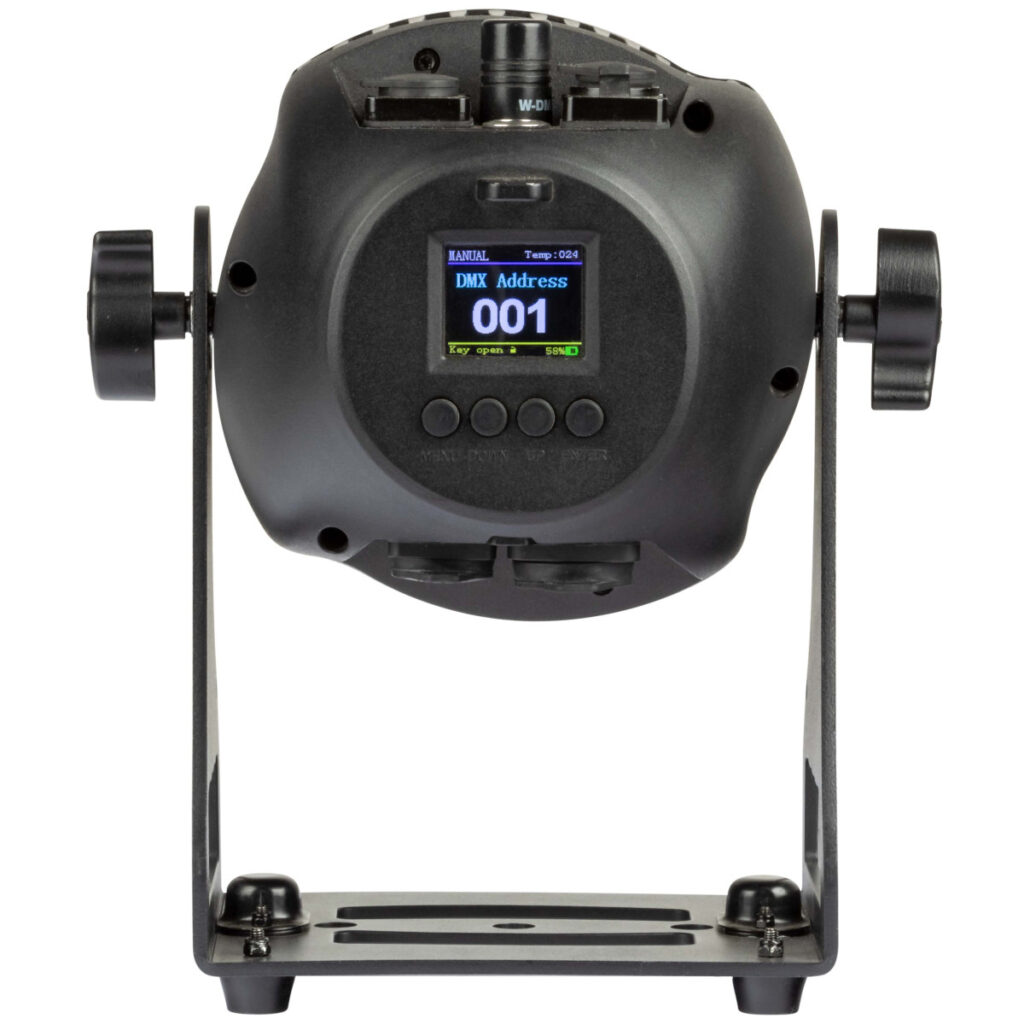

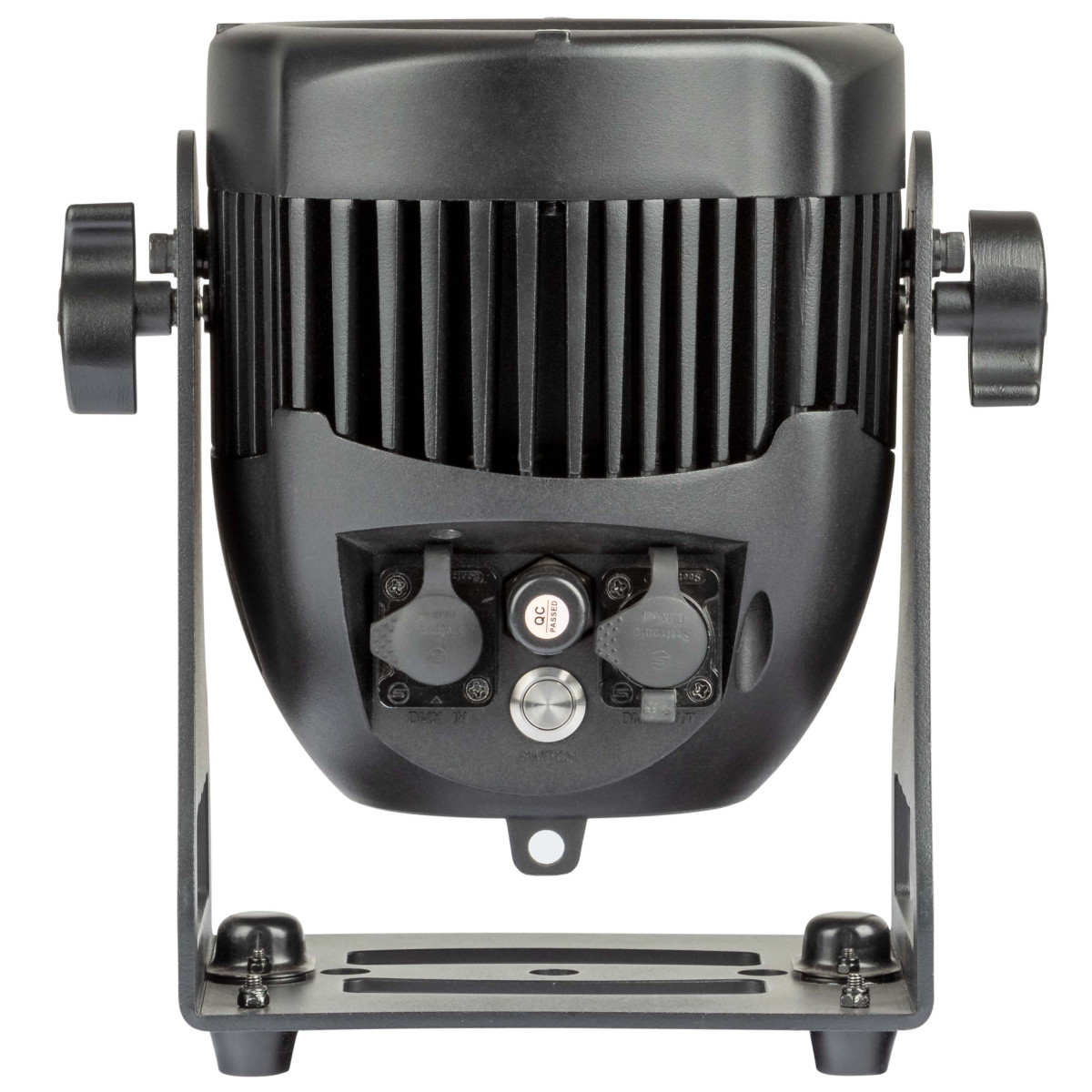

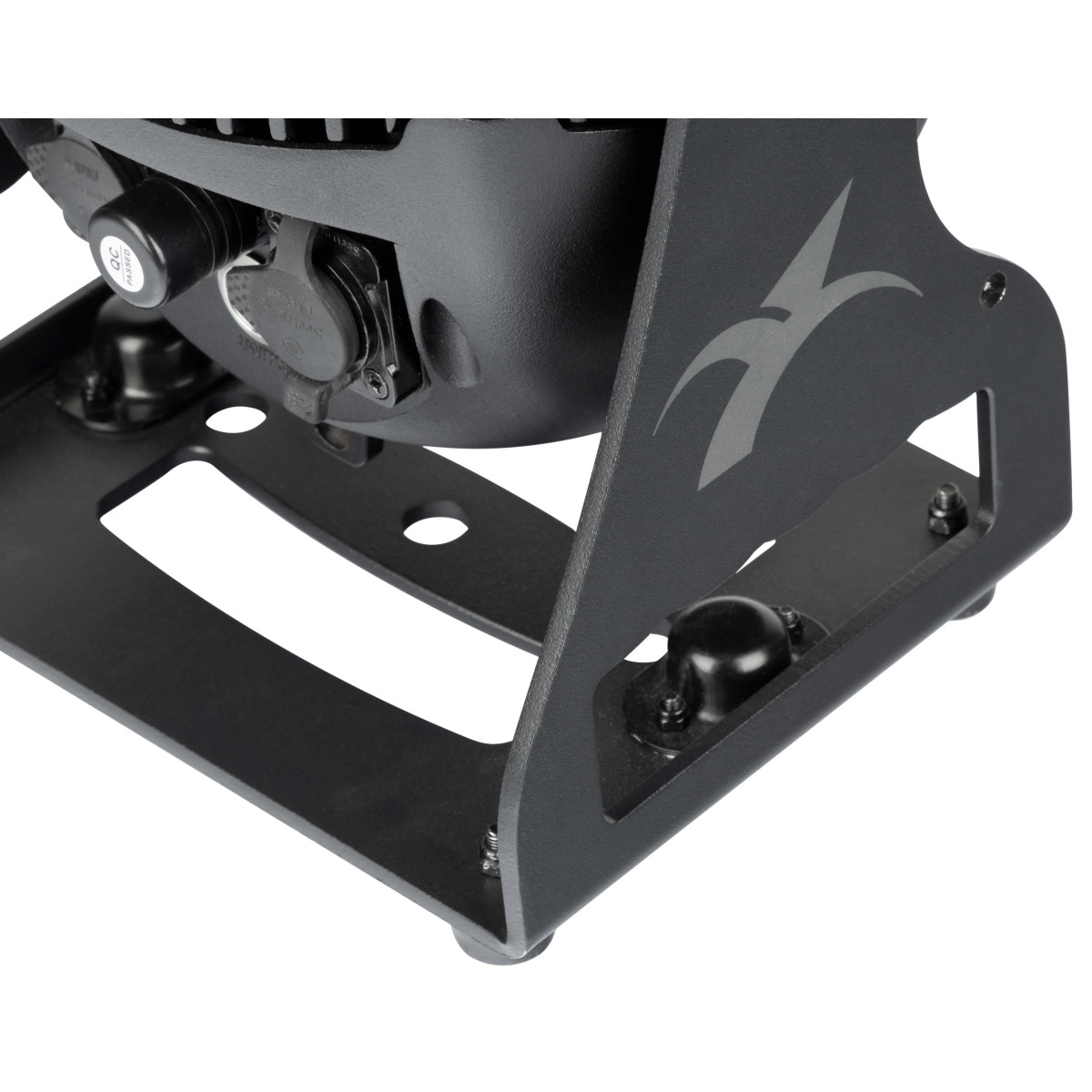

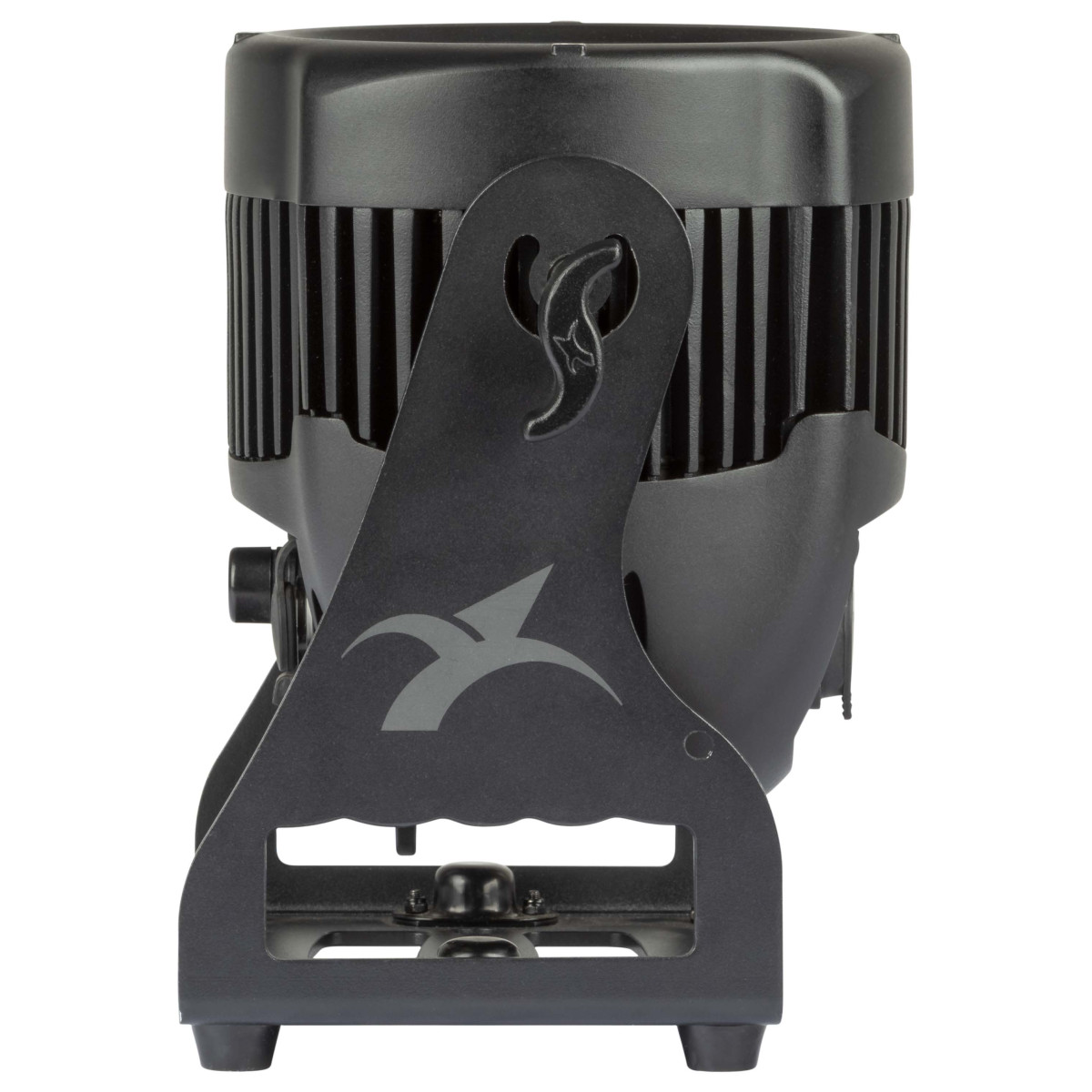

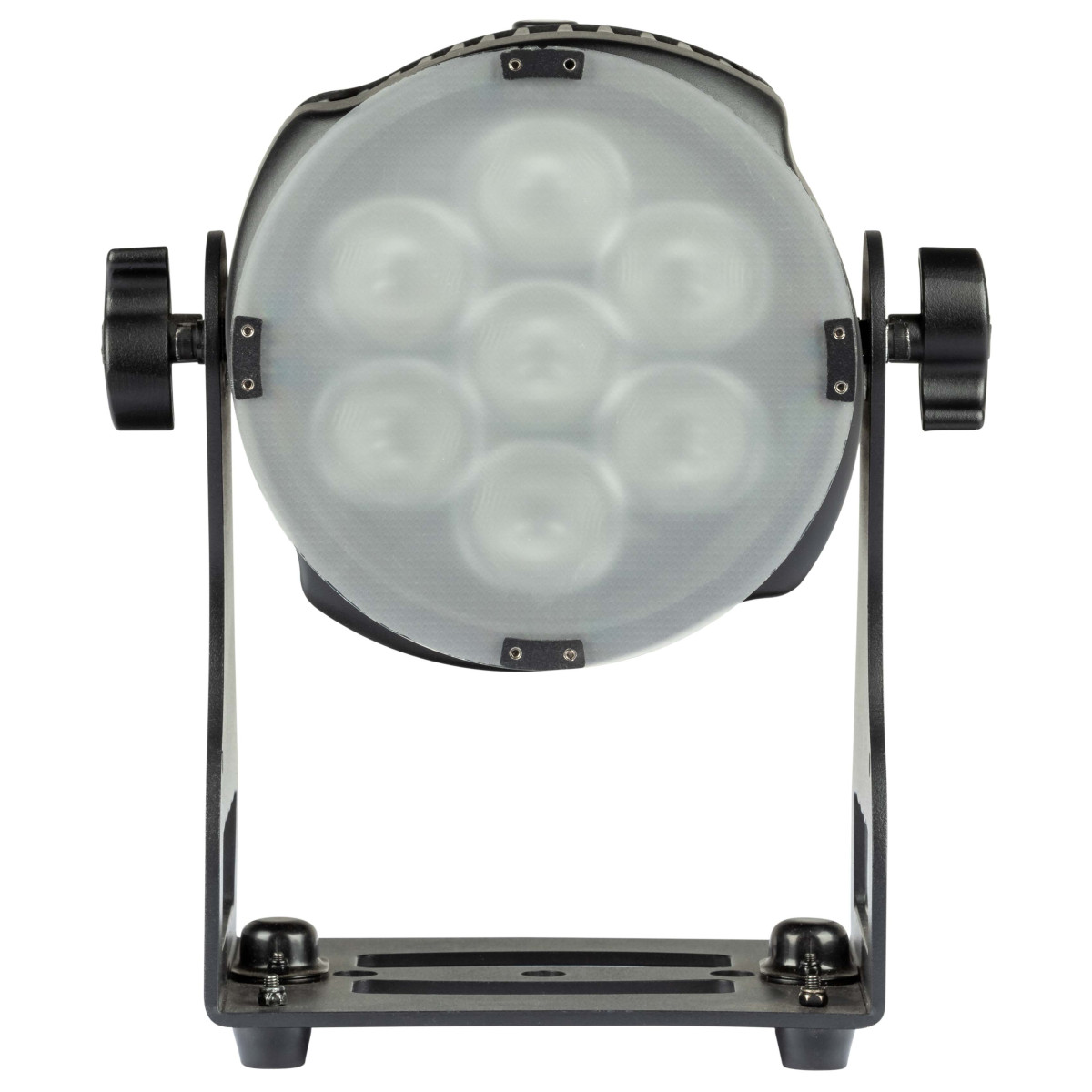

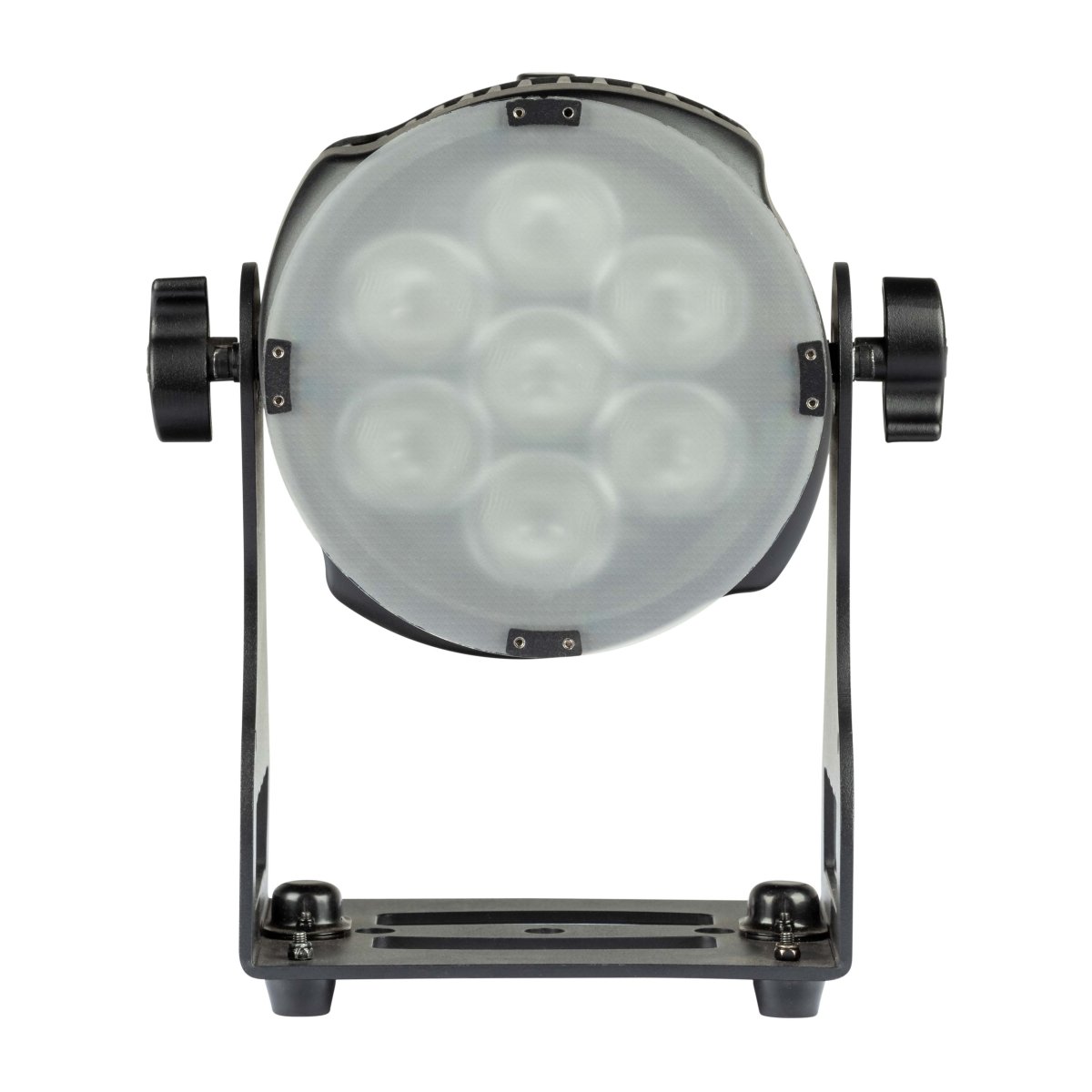

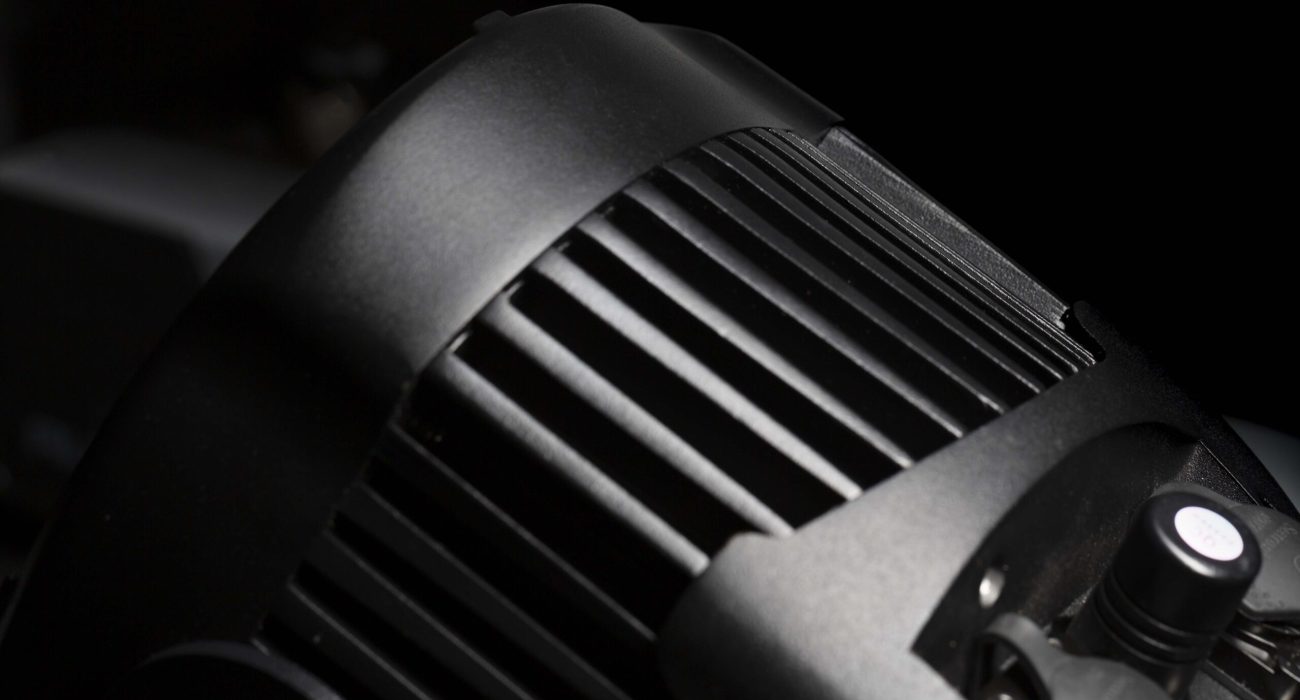

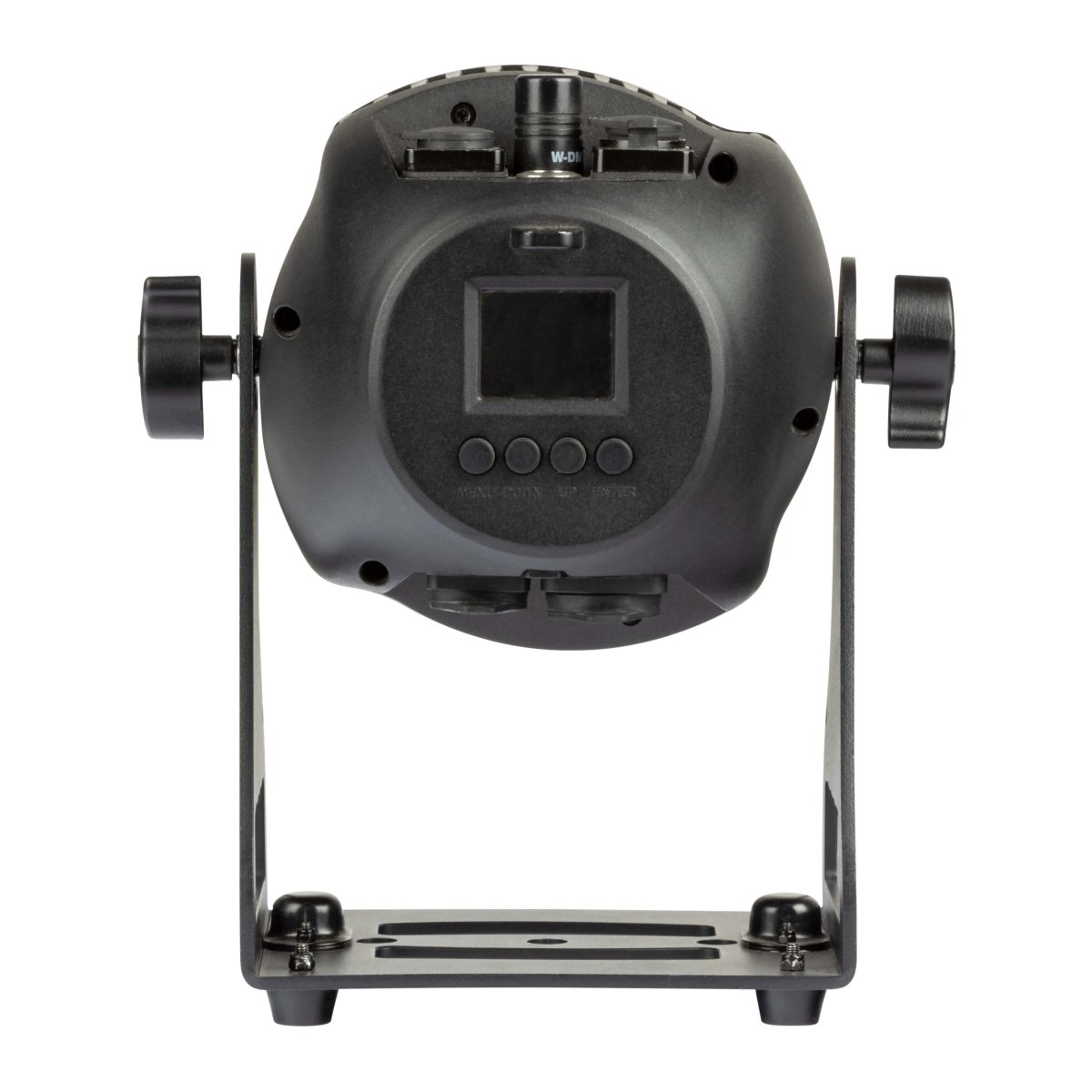

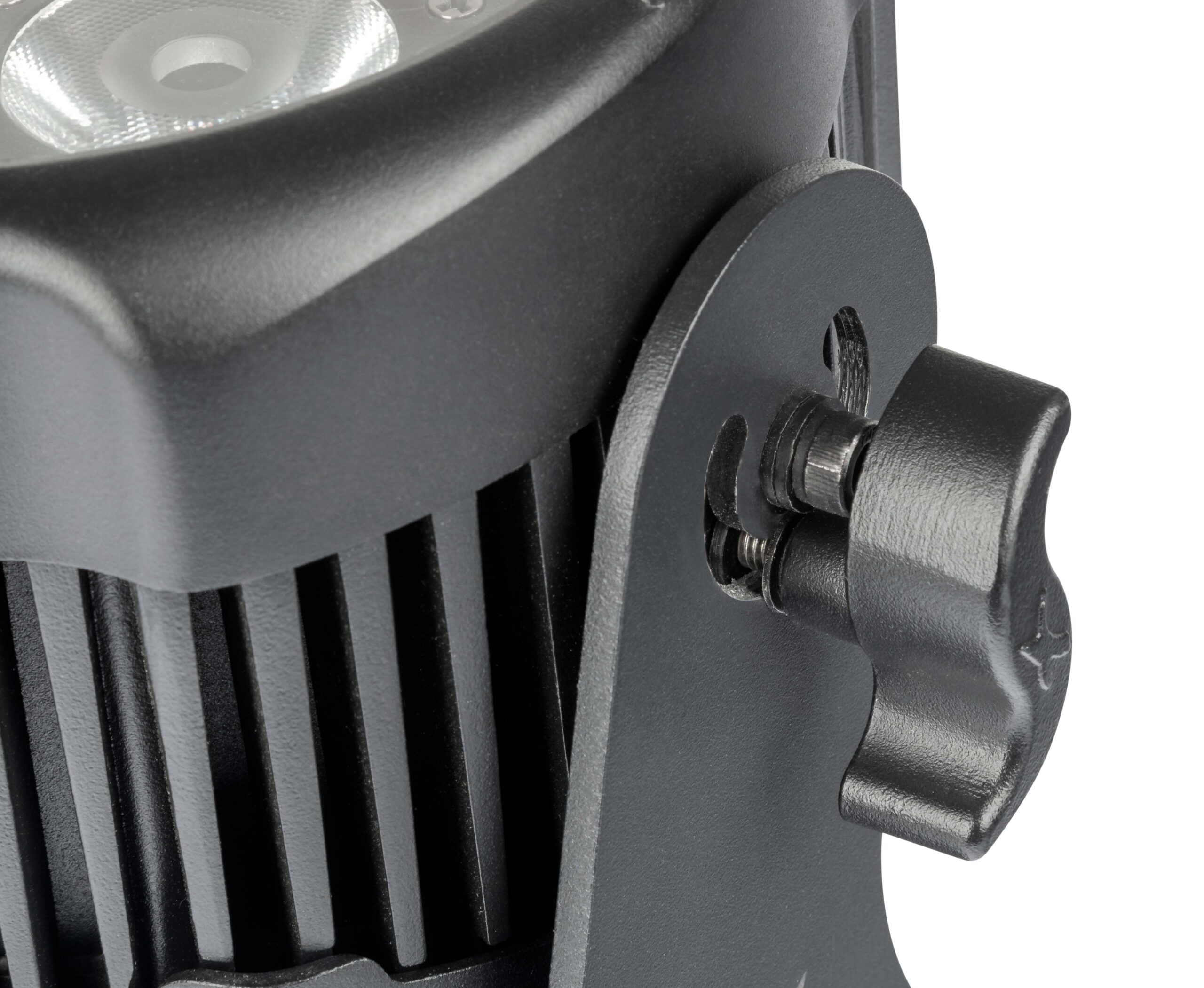

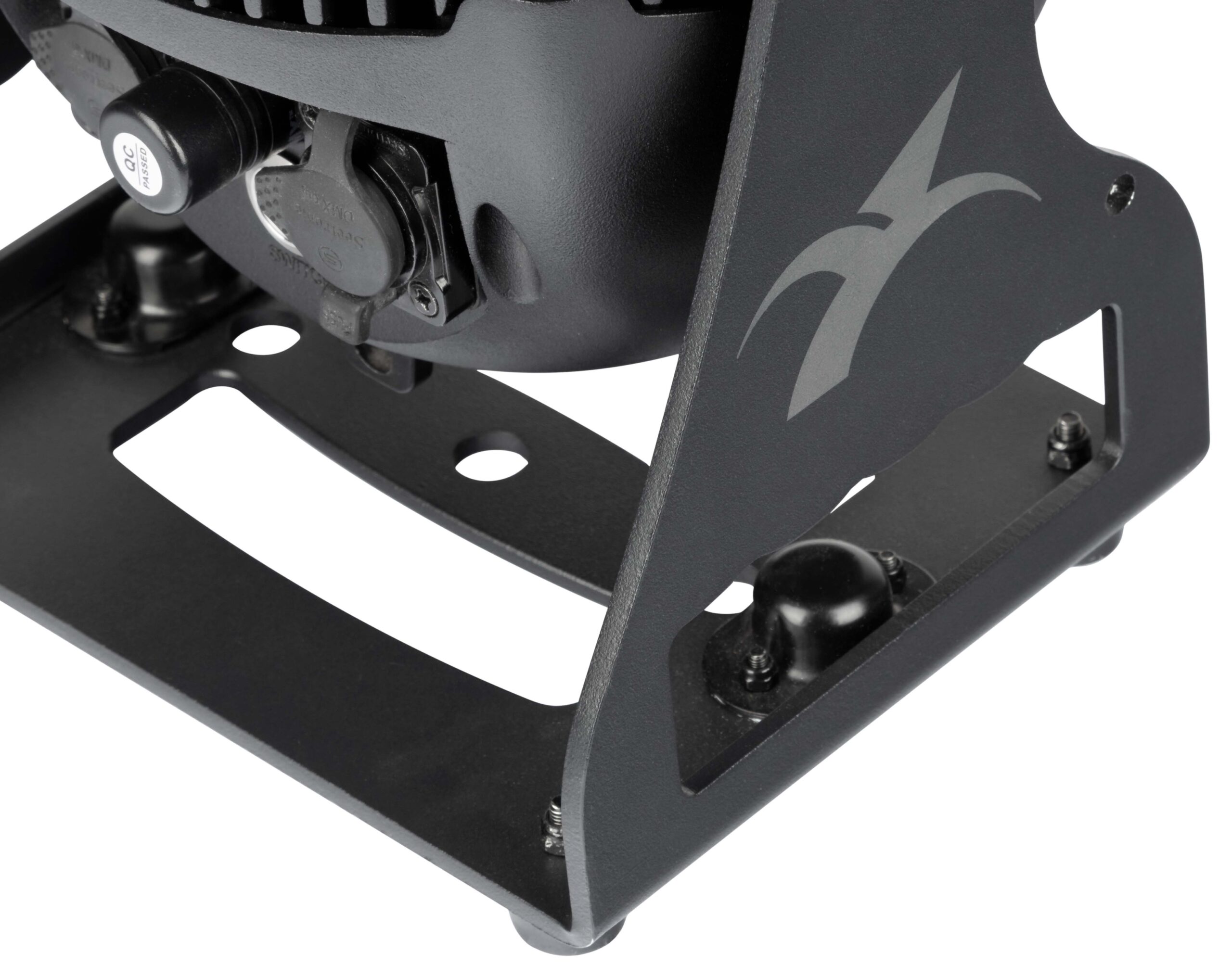

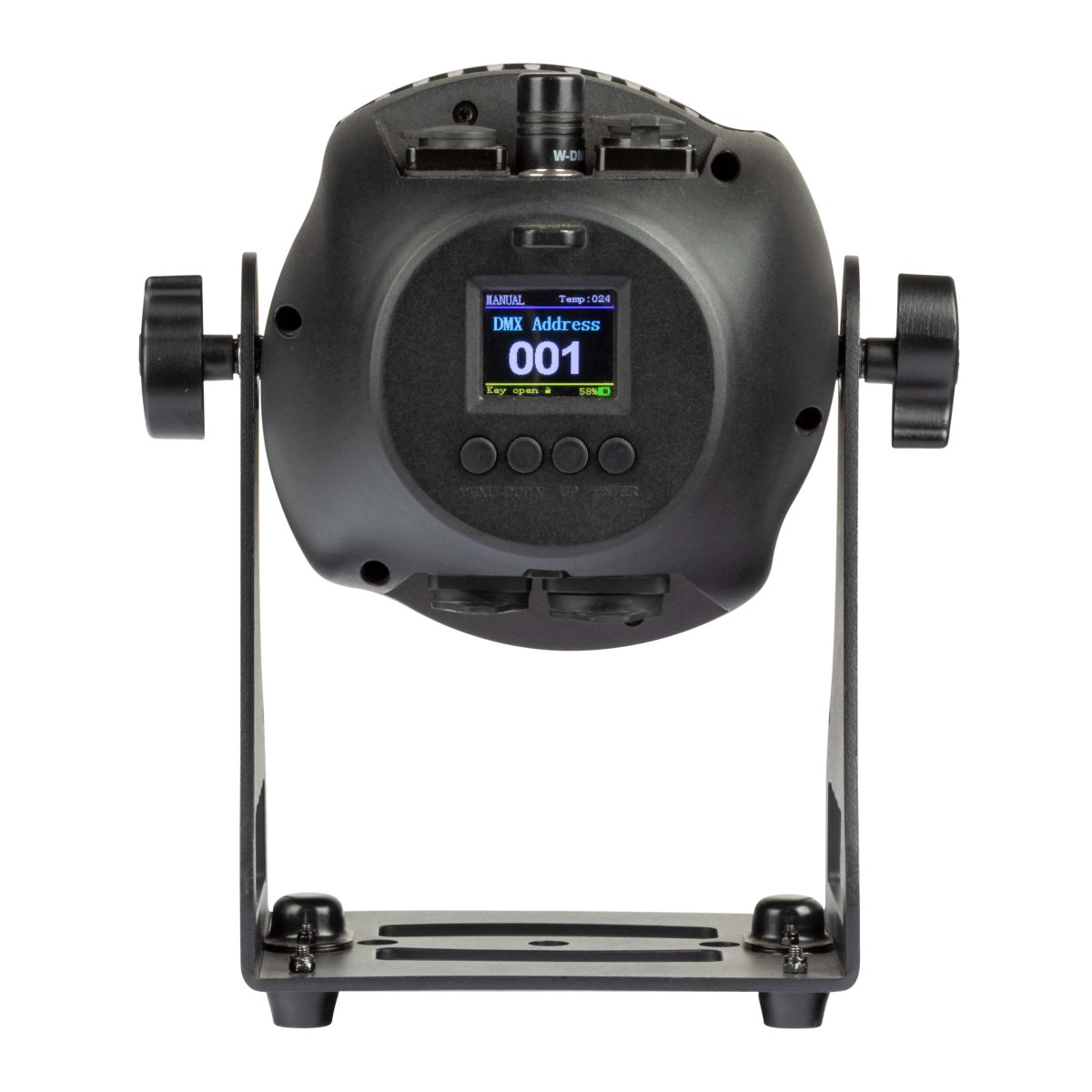

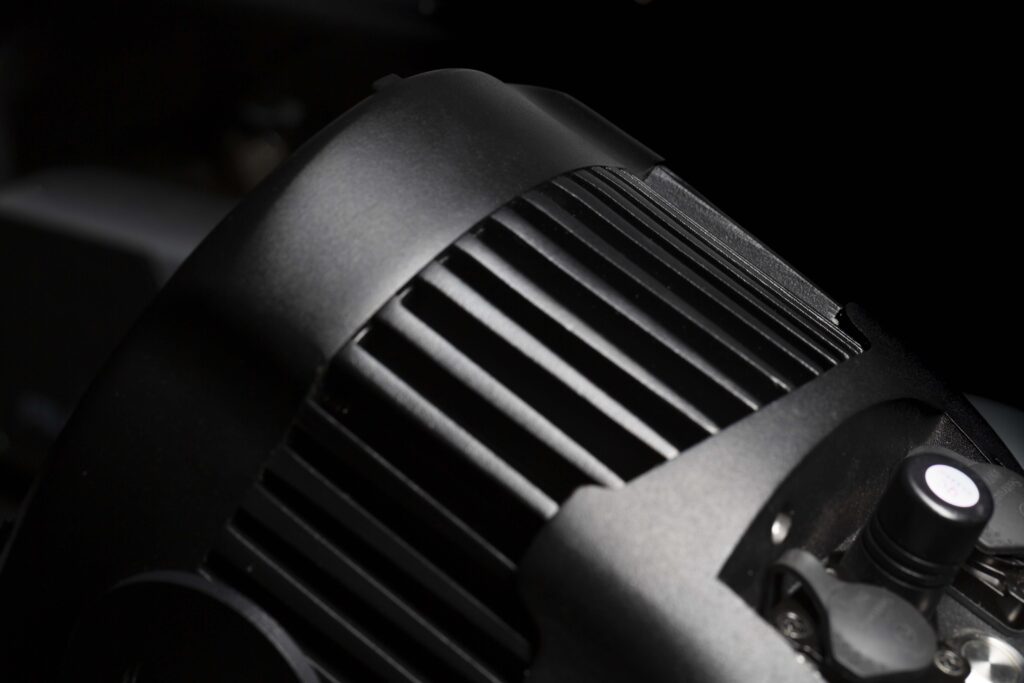

| Structure and cabinet | High corrosion resistance 5052 die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle +/- 140° IP65 rating DMX 3-poles XLR IN/OUT IP65 connectors DMX IN/OUT IP65 PG cables (optional kit) Convection cooling system without fans Frost filter included: 40°- 60°x10° |

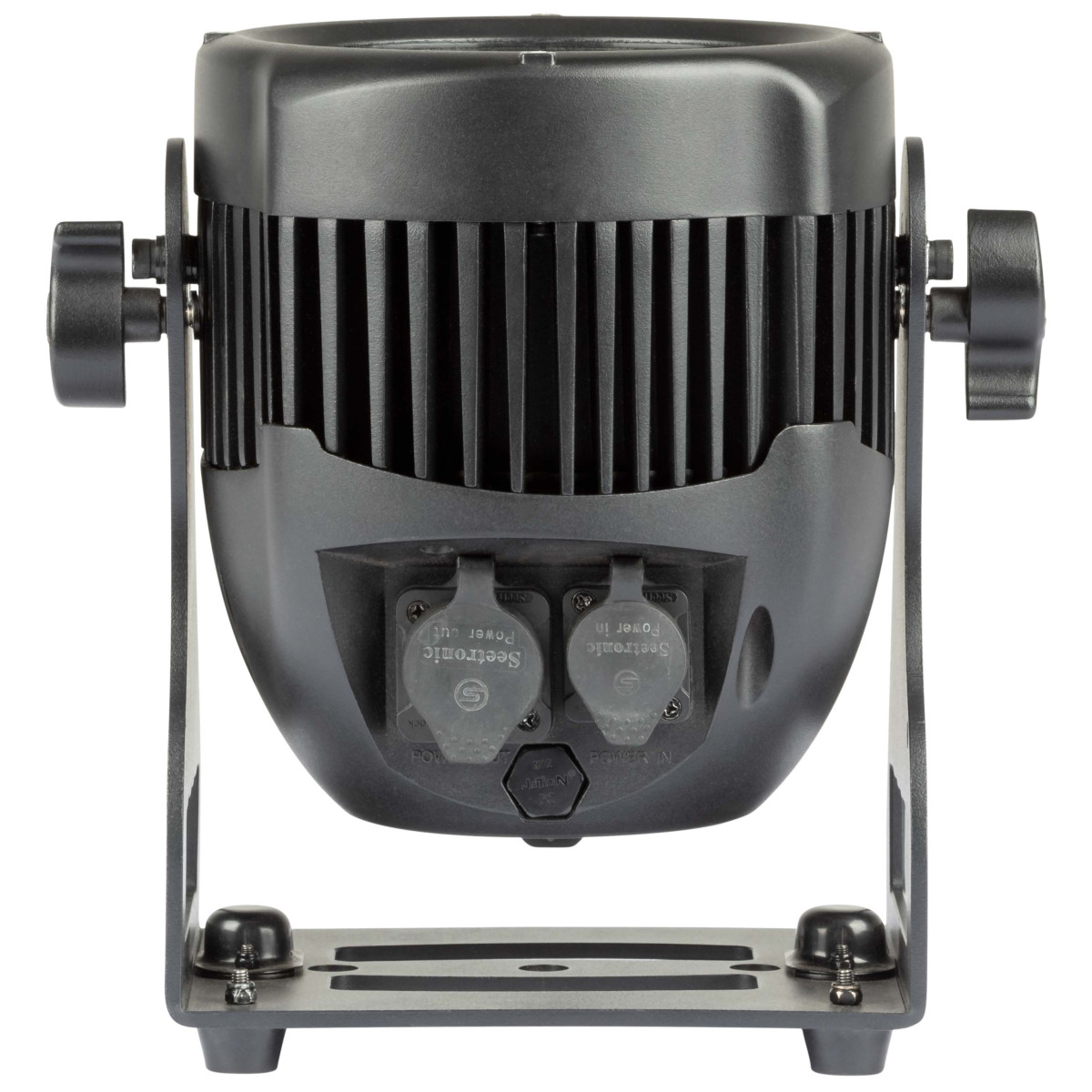

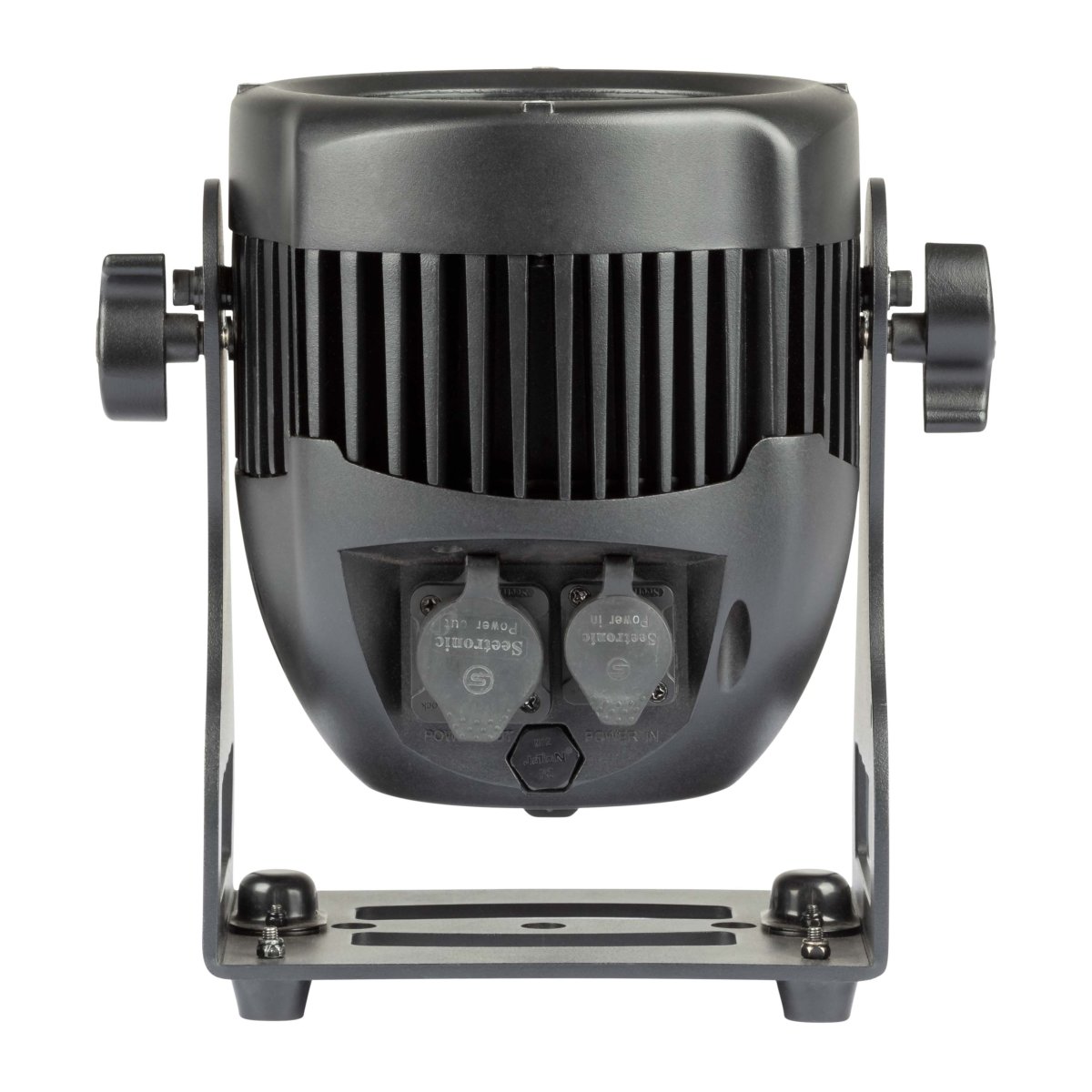

| Power supply | Input Voltage: AC~100-240V, 50/60 Hz for standard use and battery recharge Switching power supply unit Rechargeable internal Li-Ion battery: 14,8VDC 12Ah Runtime battery: ~ 4 hrs (full ON – Boost power mode) Runtime battery: ~ 12 hrs (Color change – Boost power mode) Charging cycle: ~ 8 hrs (Projector turned off) Max power: 70W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT IN/OUT IP65 PG cables (optional kit) |
| Weight and dimensions | Net weight: 4,8 kg Dimensions: 240x200x270 mm |
| Light source | 7x10W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 10/22° Illuminance: 1300lux @ 5m (full on) |
| Color system | RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX |
| Control and programming | 5 DMX configurations available: 2/3/5/8/11 channels Key lock password for display lock rotocol USITT DMX 512 Built-in wireless DMX transceiver Master/Slave mode Static Color mode Auto mode with 15 programs selectable from the display, with speed adjustment Color mode with 50 color macros and 11 white macros Color calibration system Power management system 4 different dimming curves available Emergency light function |

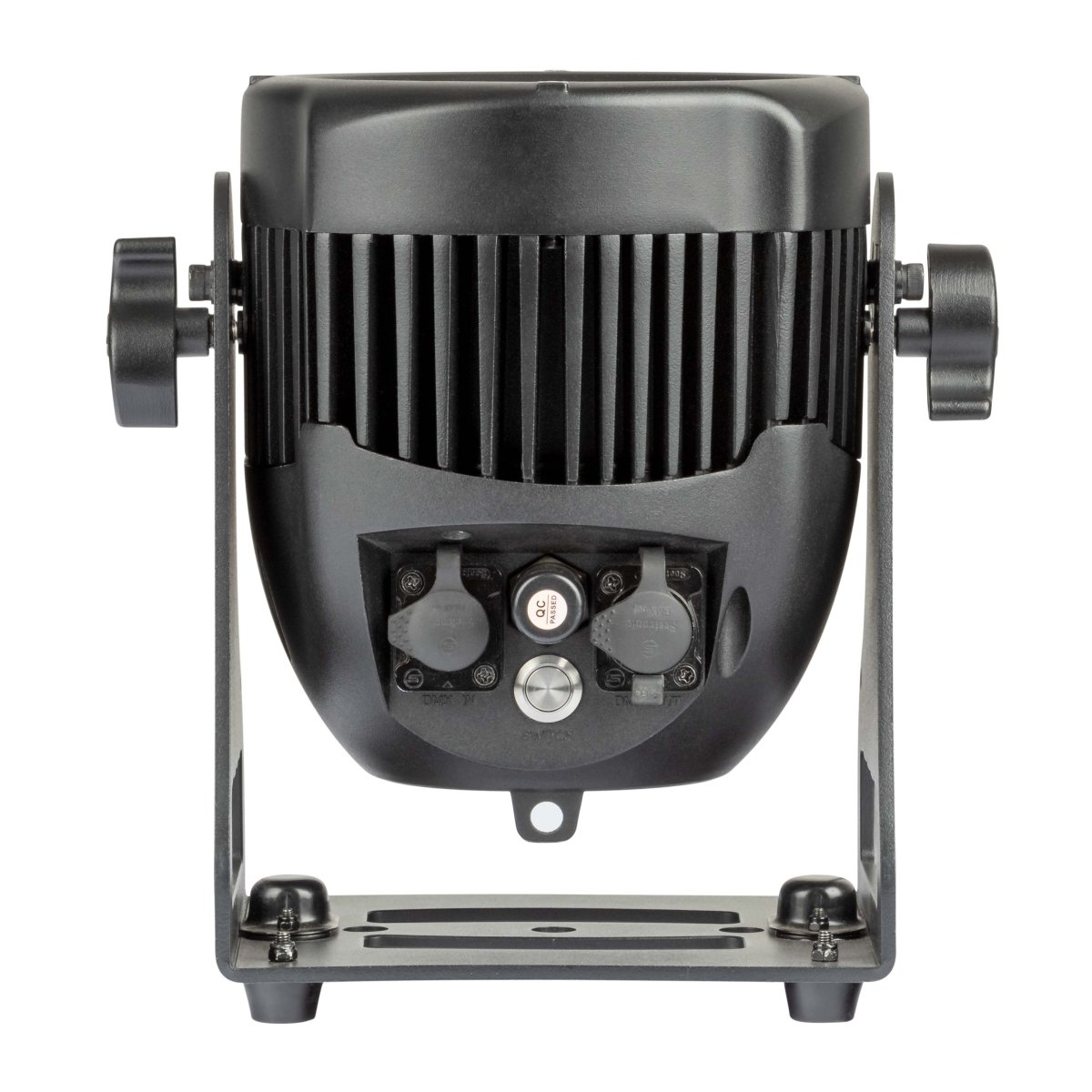

| Structure and cabinet | High corrosion resistance 5052 die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle +/- 140° IP65 rating DMX 3-poles XLR IN/OUT IP65 connectors DMX IN/OUT IP65 PG cables (optional kit) Convection cooling system without fans Frost filter included: 40°- 60°x10° |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz for standard use and battery recharge Switching power supply unit Rechargeable internal Li-Ion battery: 14,8VDC 12Ah Runtime battery: ~ 4 hrs (full ON – Boost power mode) Runtime battery: ~ 12 hrs (Color change – Boost power mode) Charging cycle: ~ 8 hrs (Projector turned off) Max power: 70W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT IN/OUT IP65 PG cables (optional kit) |
| Weight and dimensions | Net weight: 4,8 kg Dimensions: 240x200x270 mm |
