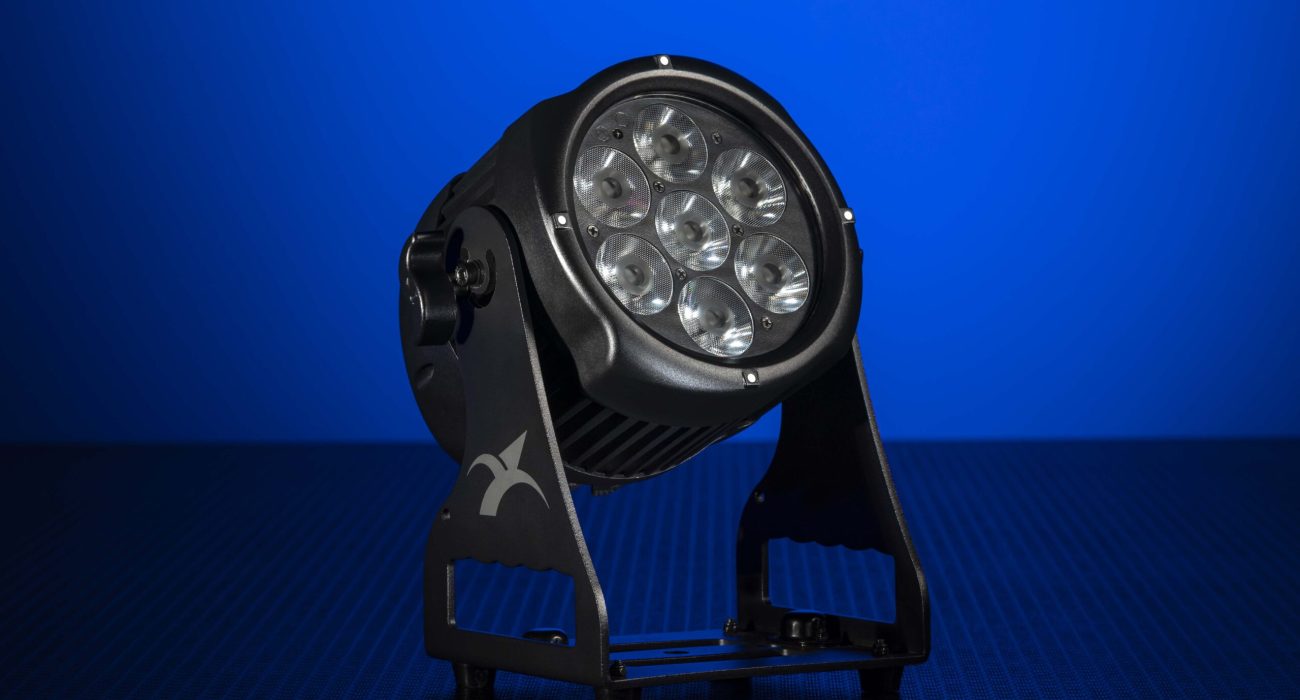

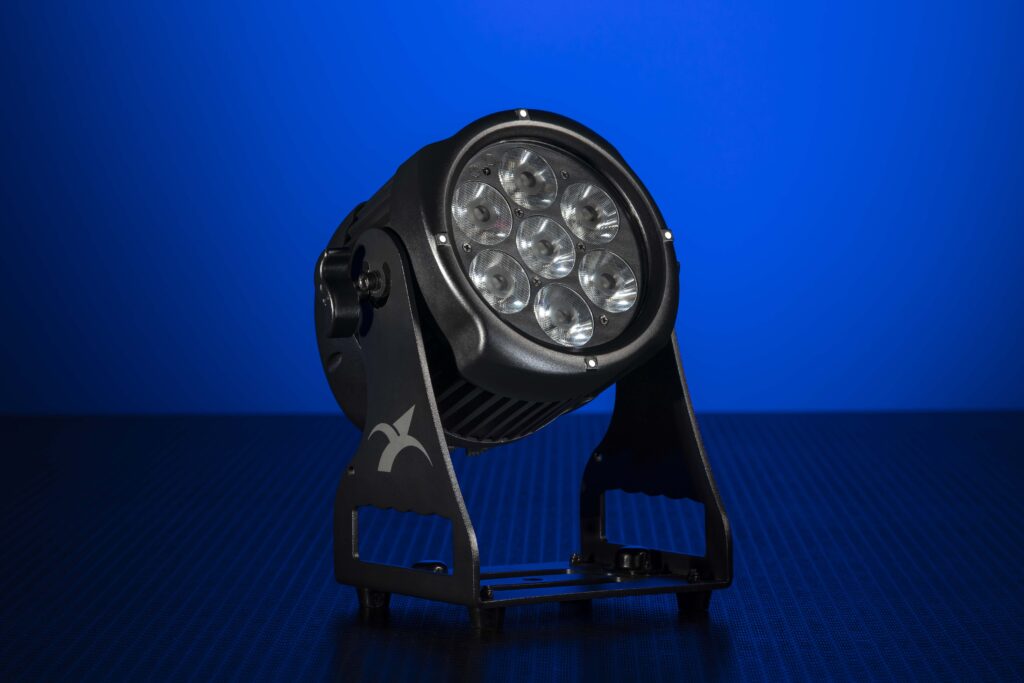

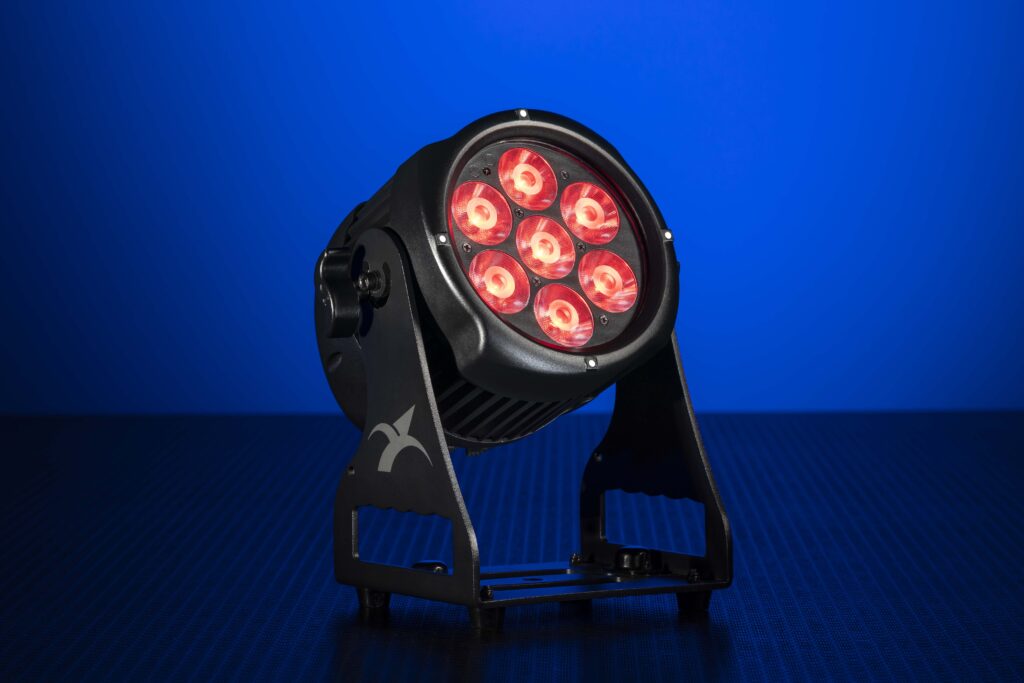

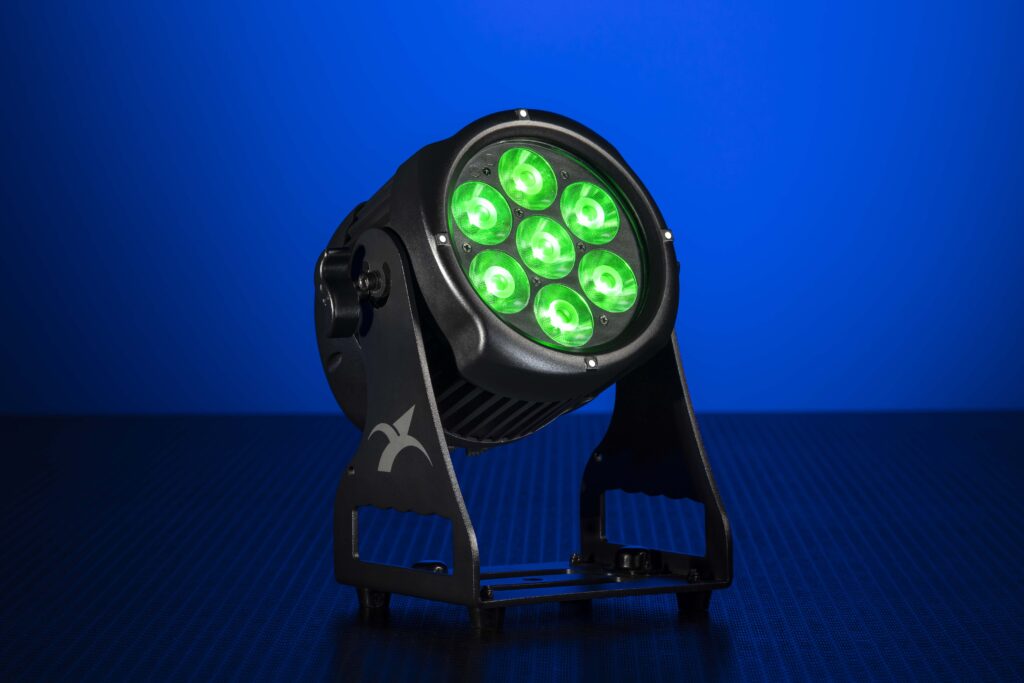

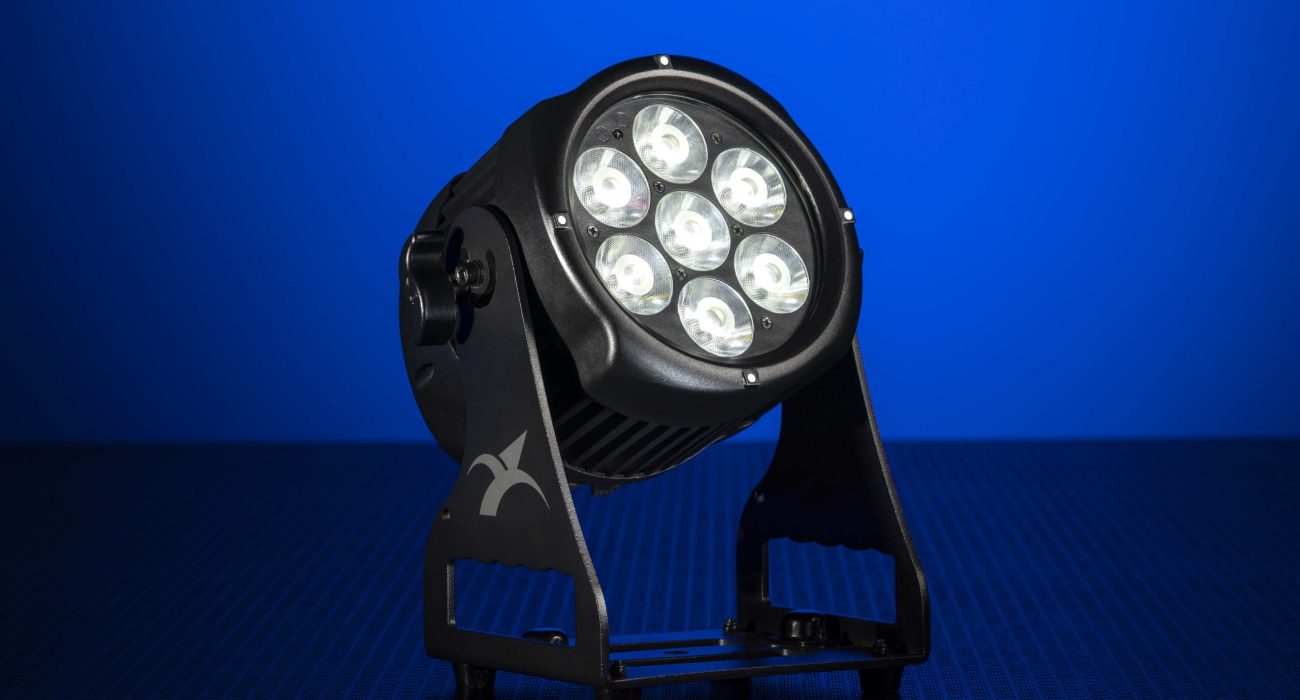

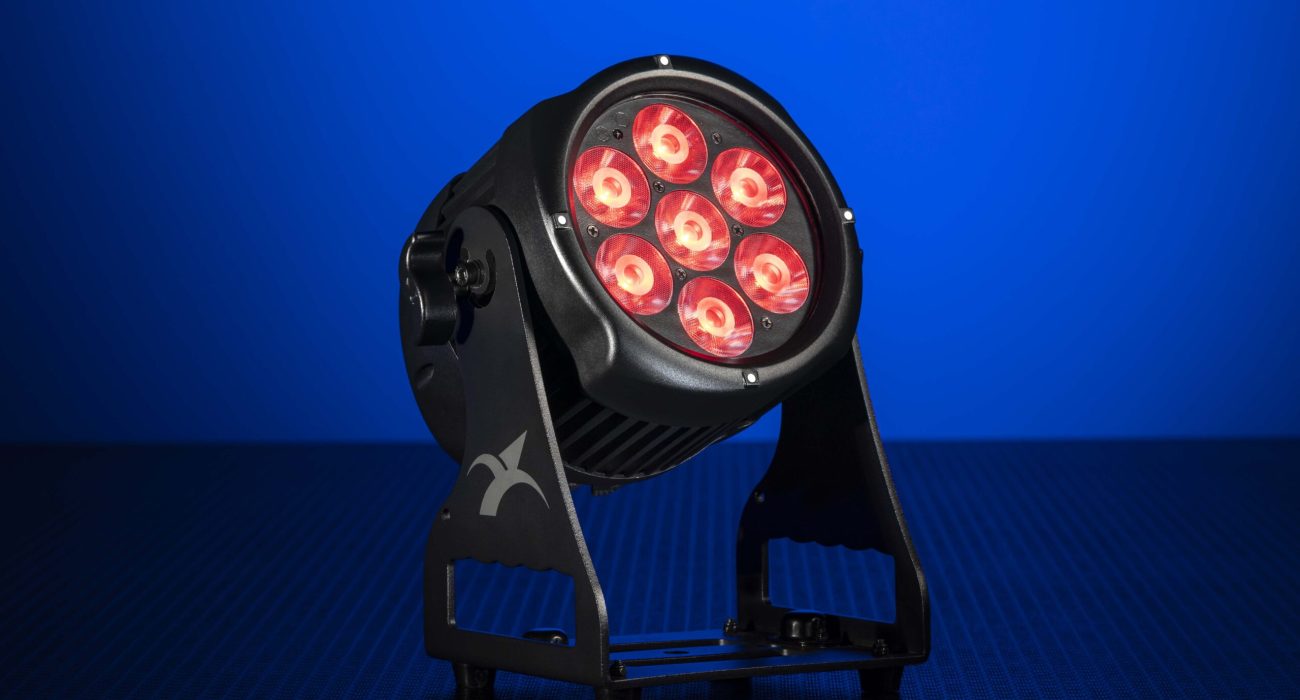

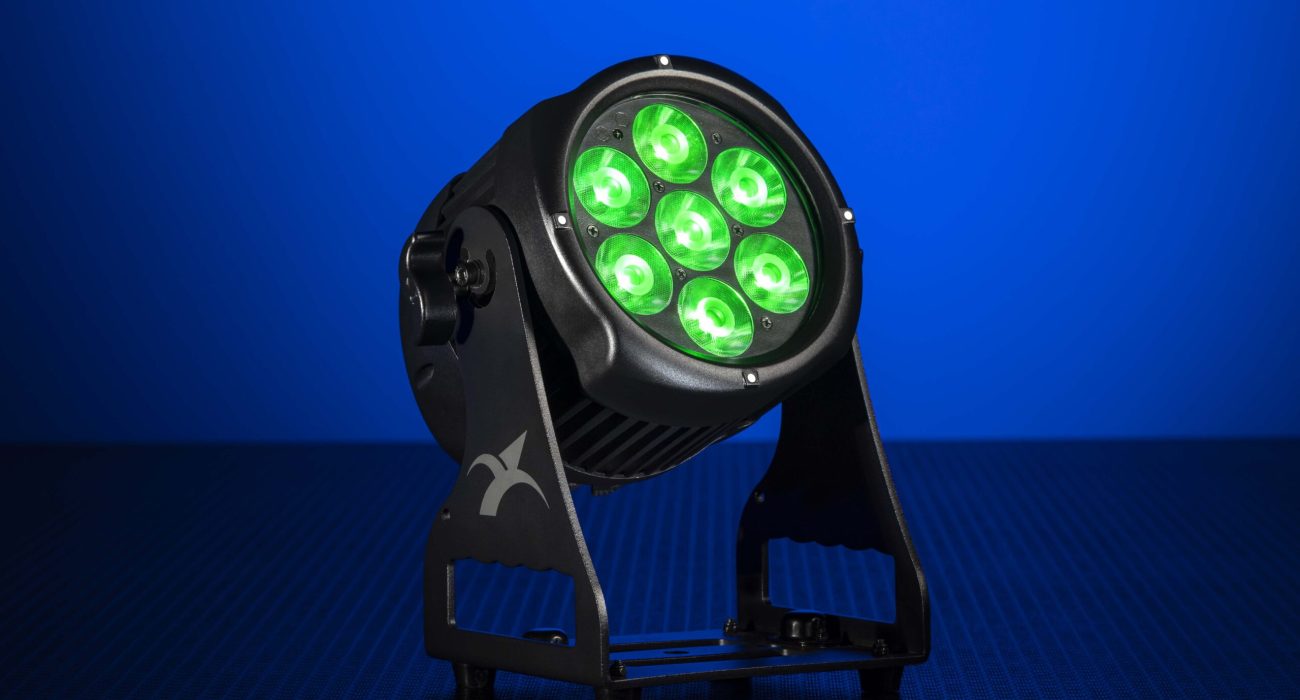

| Light source | 7x10W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 10/22° Illuminance: 1300lux @ 5m (full on) |
| Color system | RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX |
| Control and programming | 5 DMX configurations available: 2/3/5/8/11 channels Vision APP control |
| Structure and cabinet | High corrosion resistance 5052 die cast aluminum housing Color LCD display Front tempered glass “Light up” positioning with adjustable angle +/- 140° IP65 rating DMX 3-poles XLR IN/OUT IP65 connectors DMX IN/OUT IP65 PG cables (optional kit) Convection cooling system without fans Frost filter included: 40°- 60°x10° |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz for standard use and battery recharge Switching power supply unit Rechargeable internal Li-Ion battery: 14,8VDC 12Ah Runtime battery: ~ 4 hrs (full ON – Boost power mode) Runtime battery: ~ 12 hrs (Color change – Boost power mode) Charging cycle: ~ 8 hrs (Projector turned off) Max power: 70W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT IN/OUT IP65 PG cables (optional kit) |
| Weight and dimensions | Net weight: 4,8 kg Dimensions: 240x200x270 mm |
