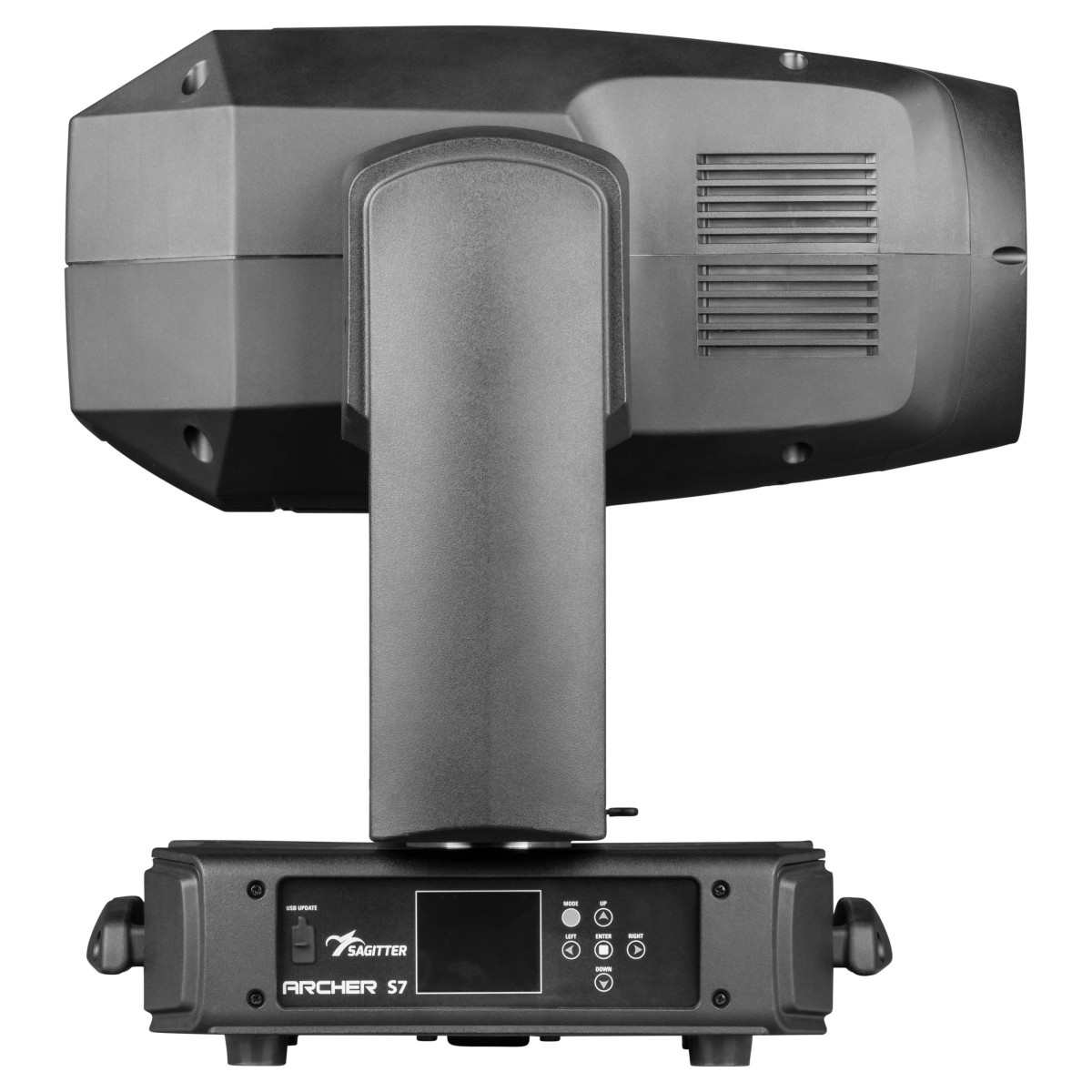

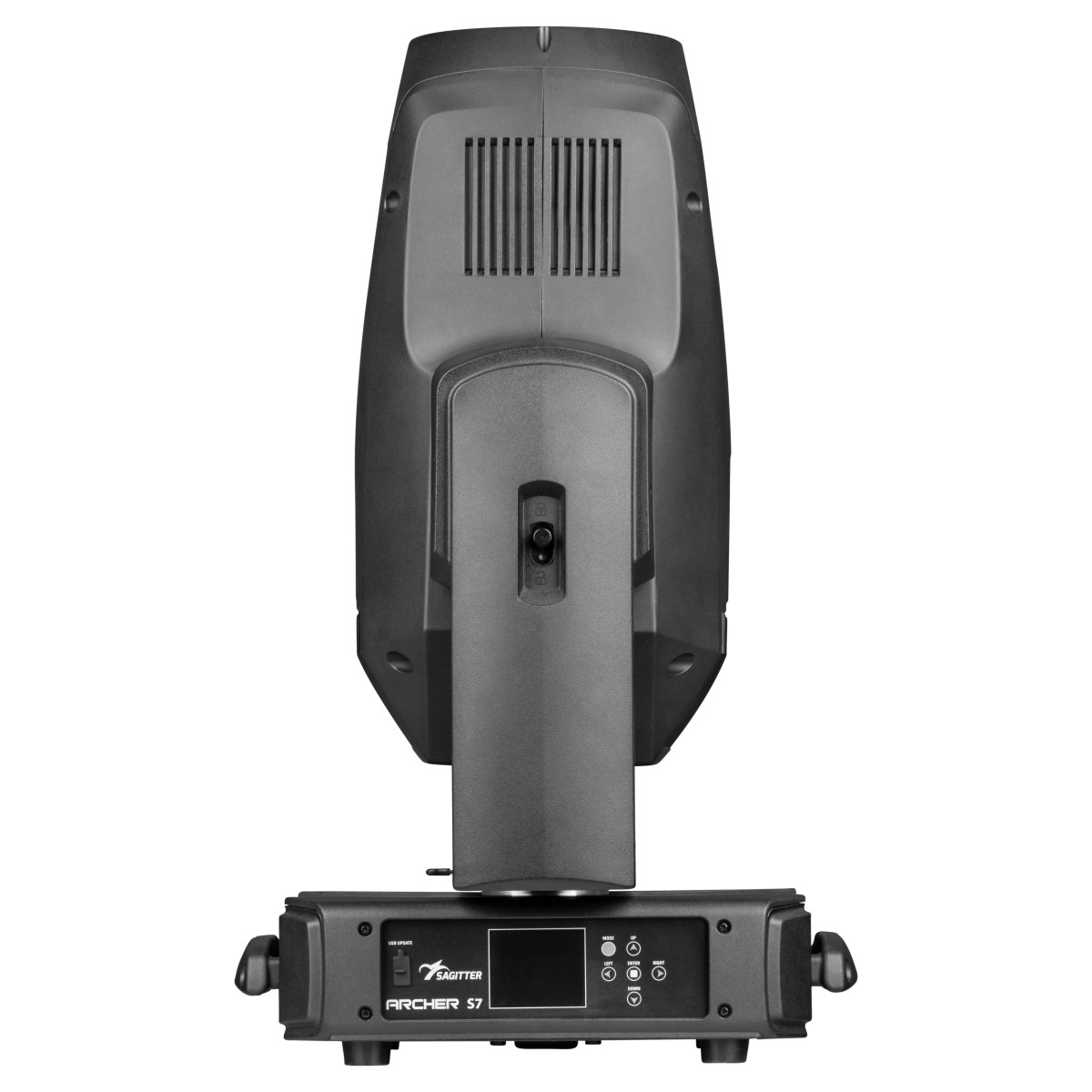

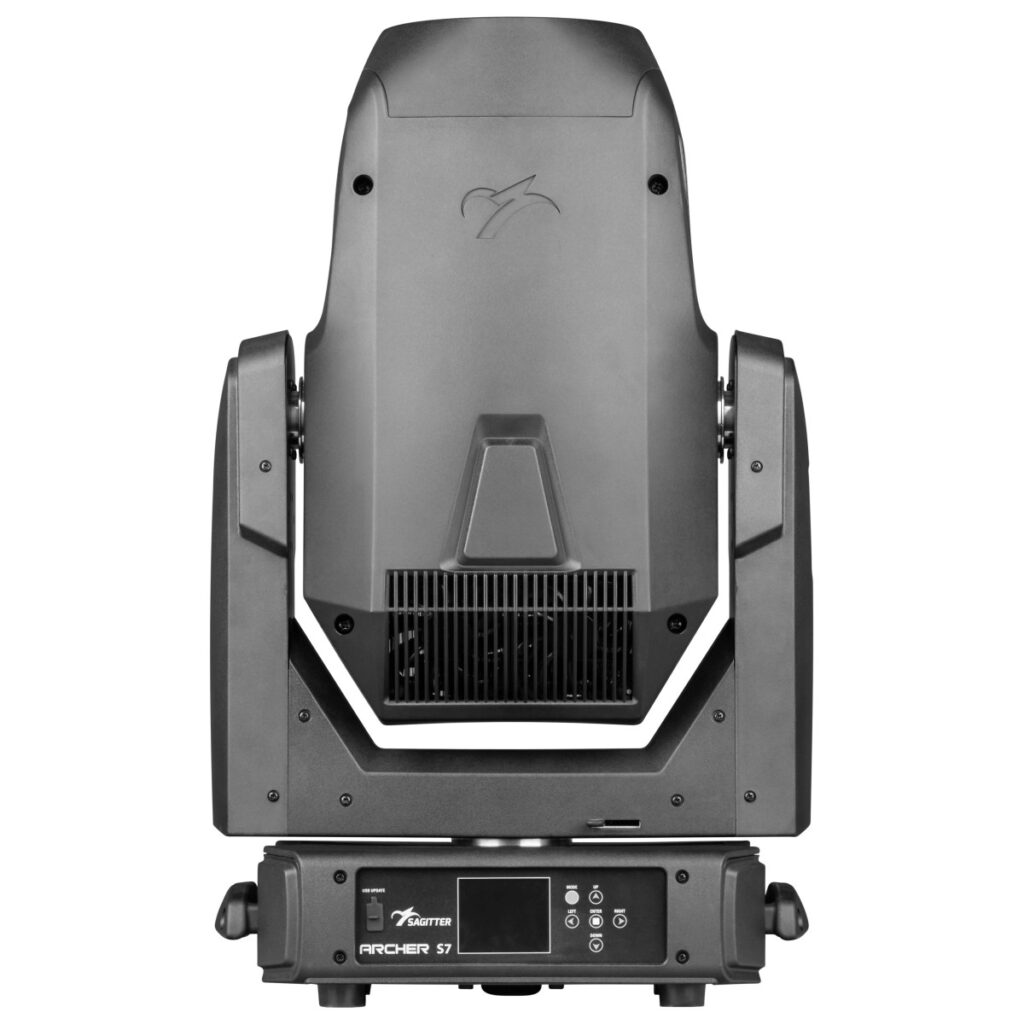

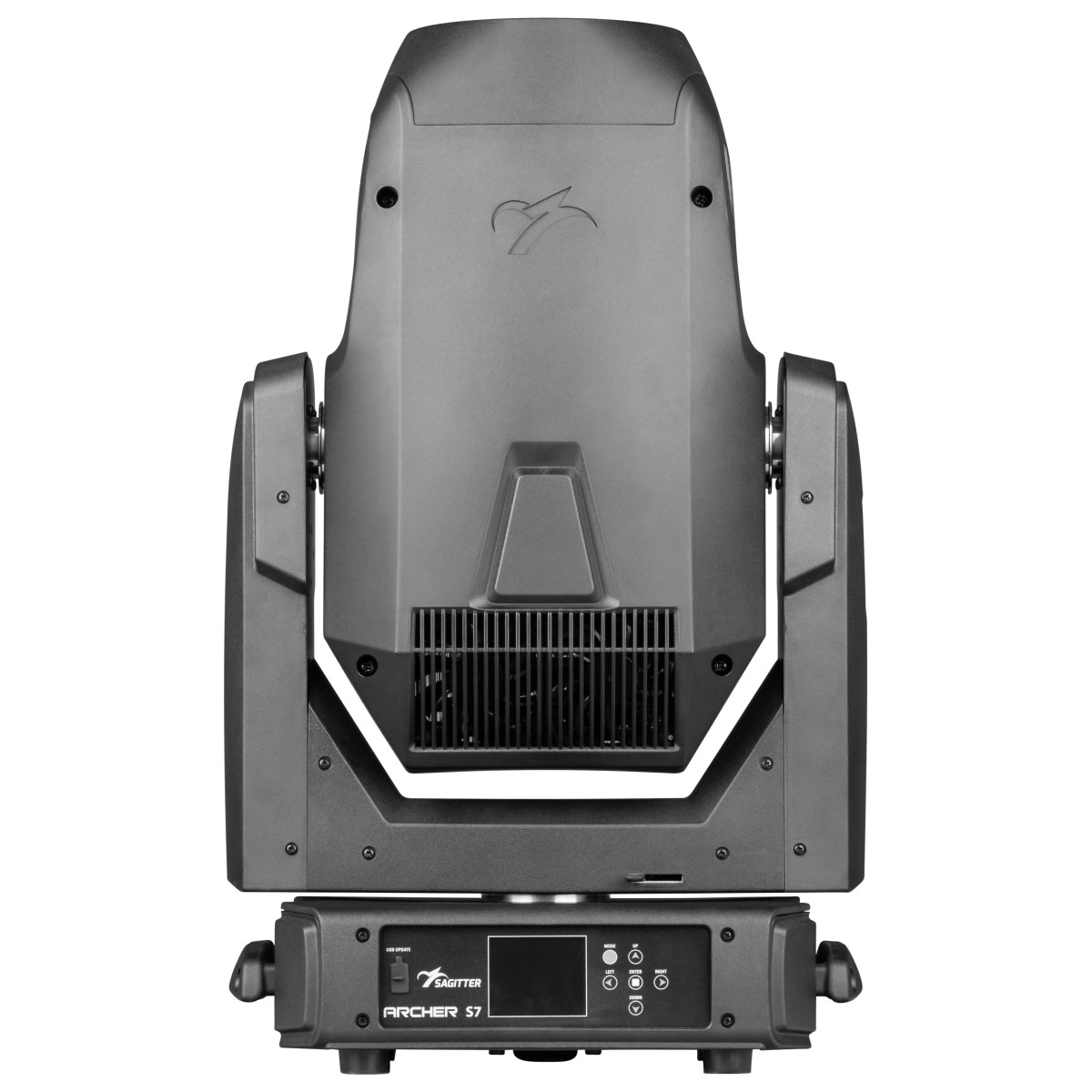

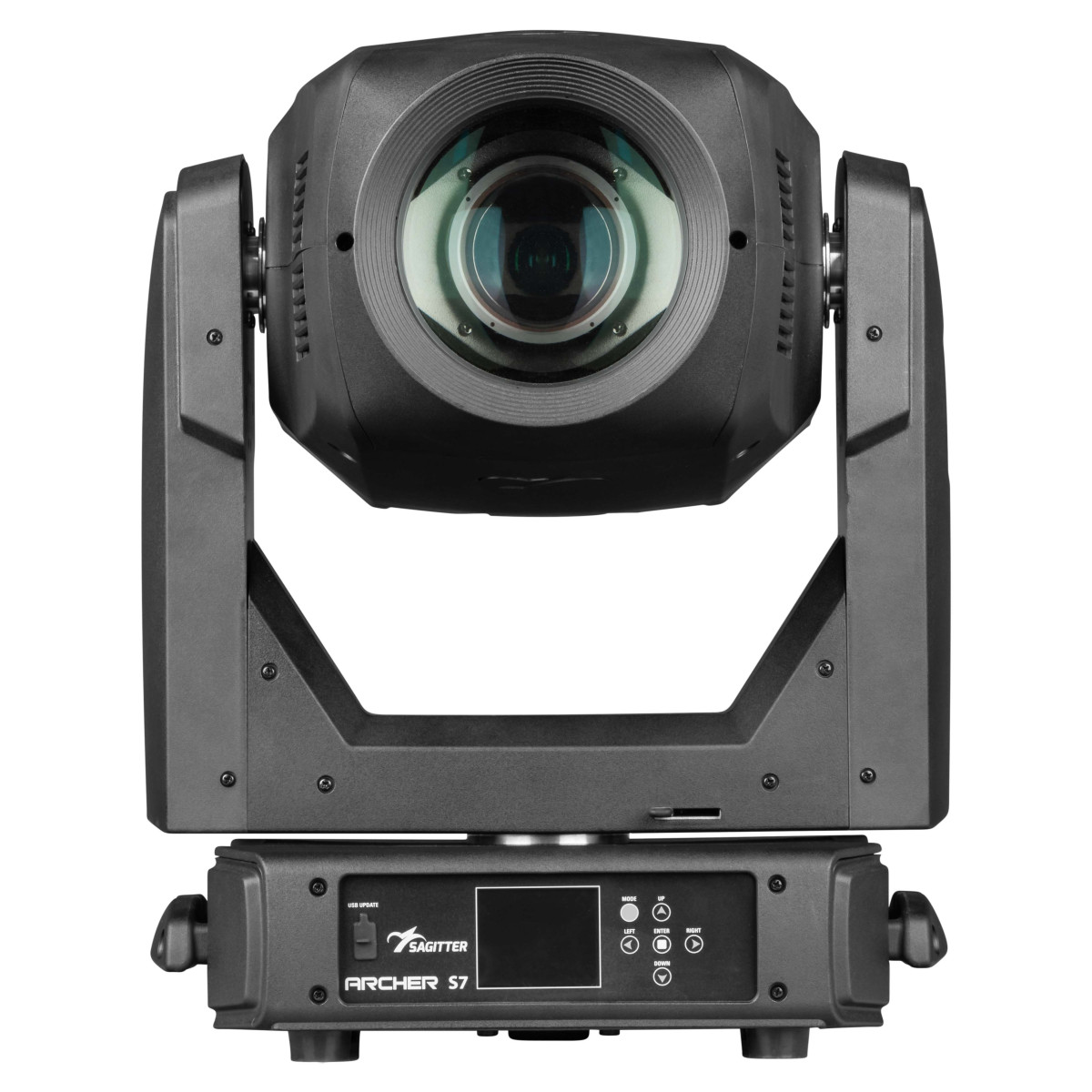

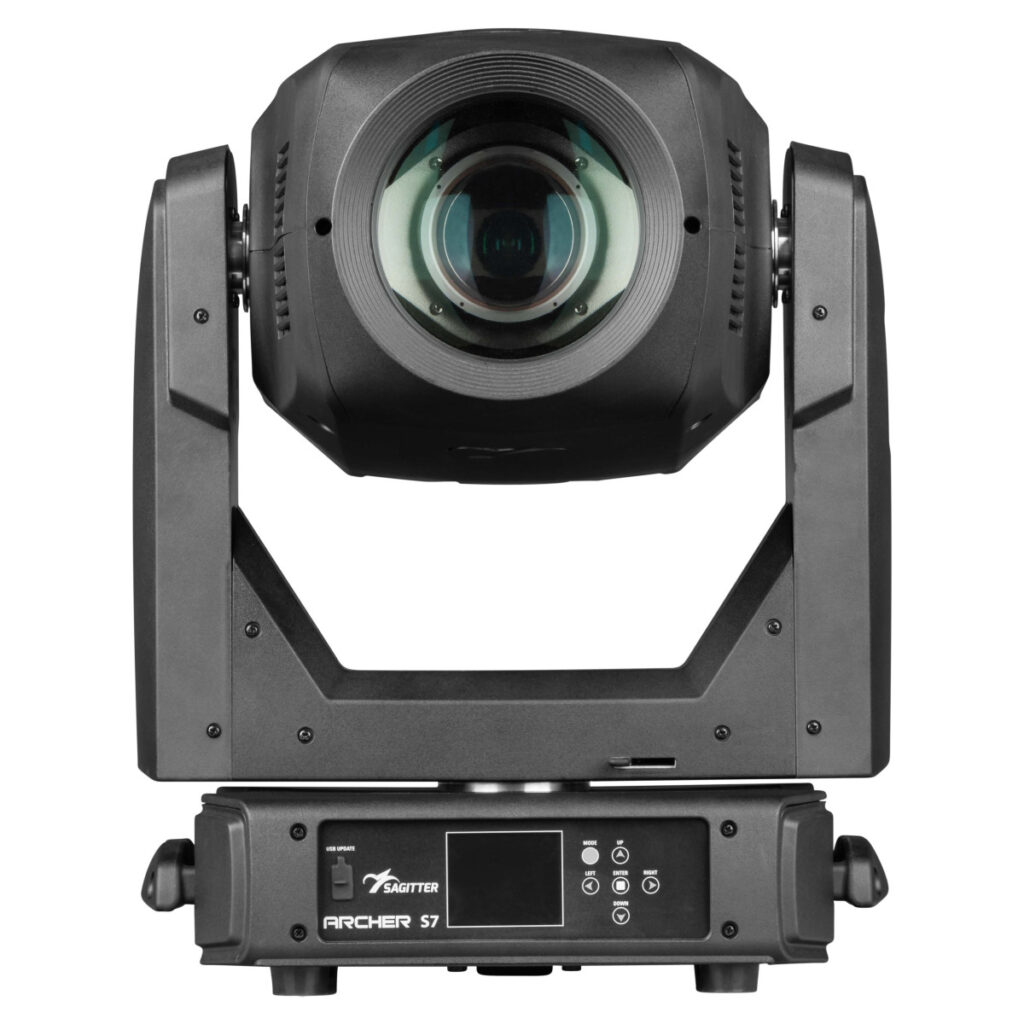

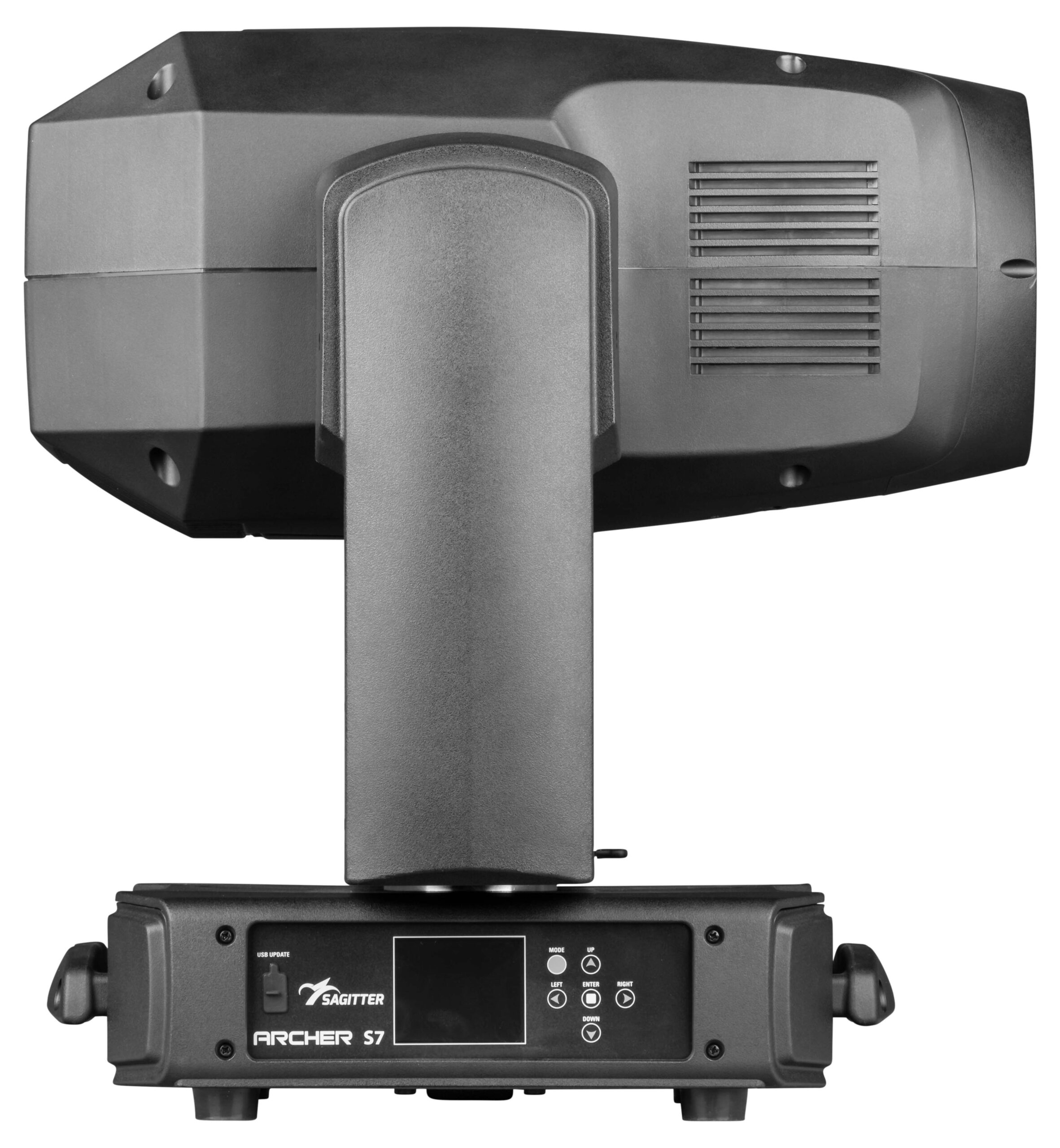

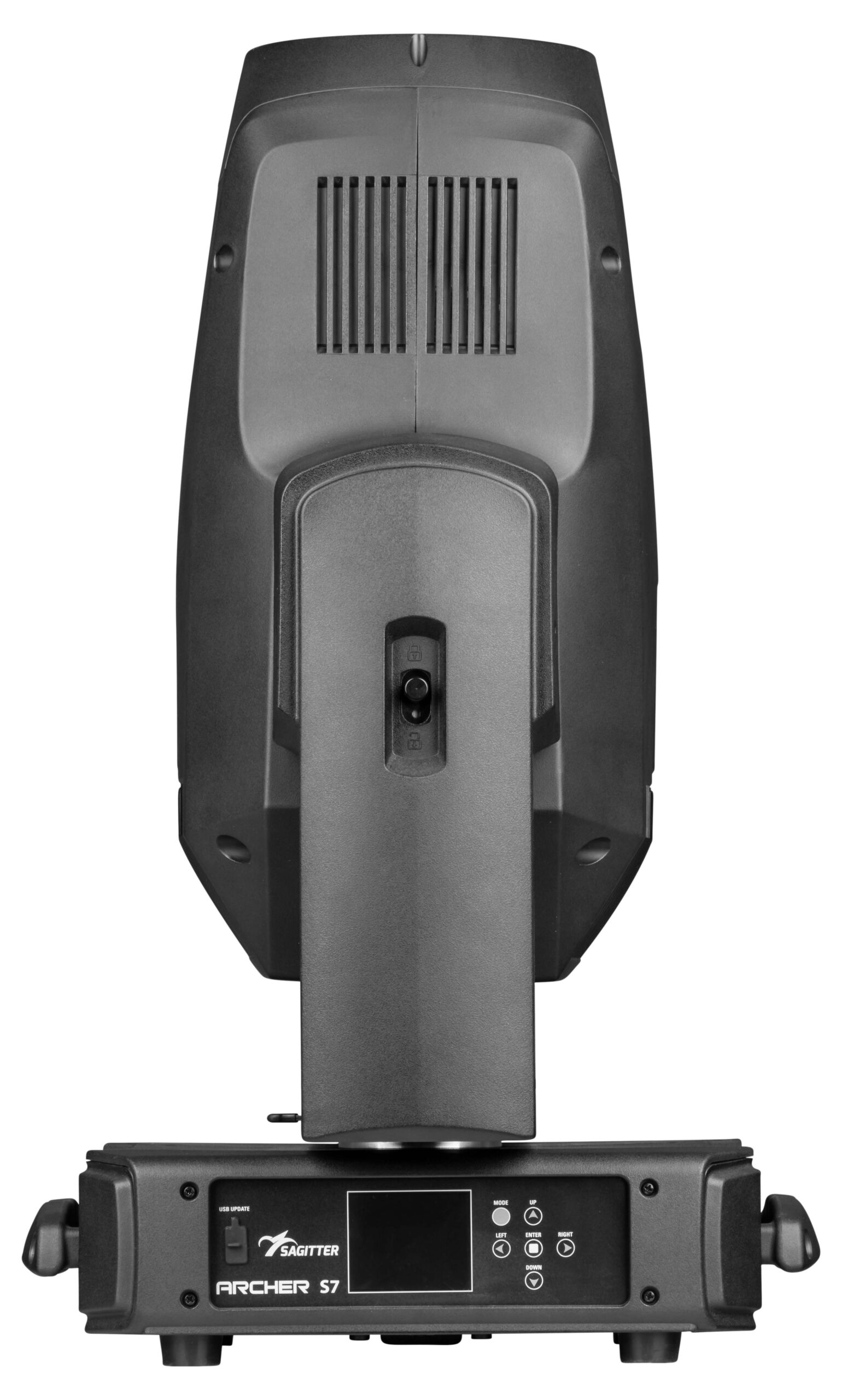

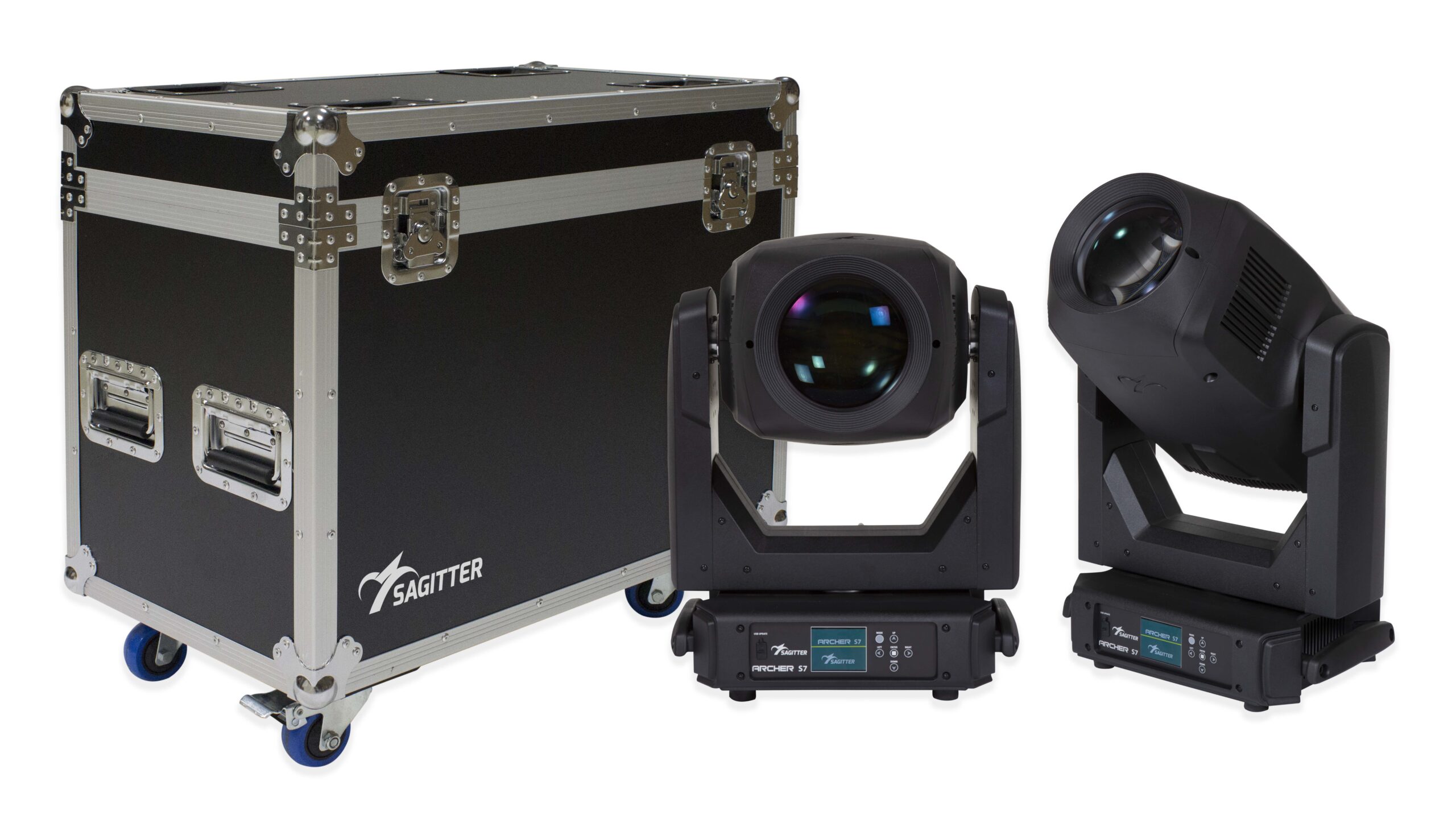

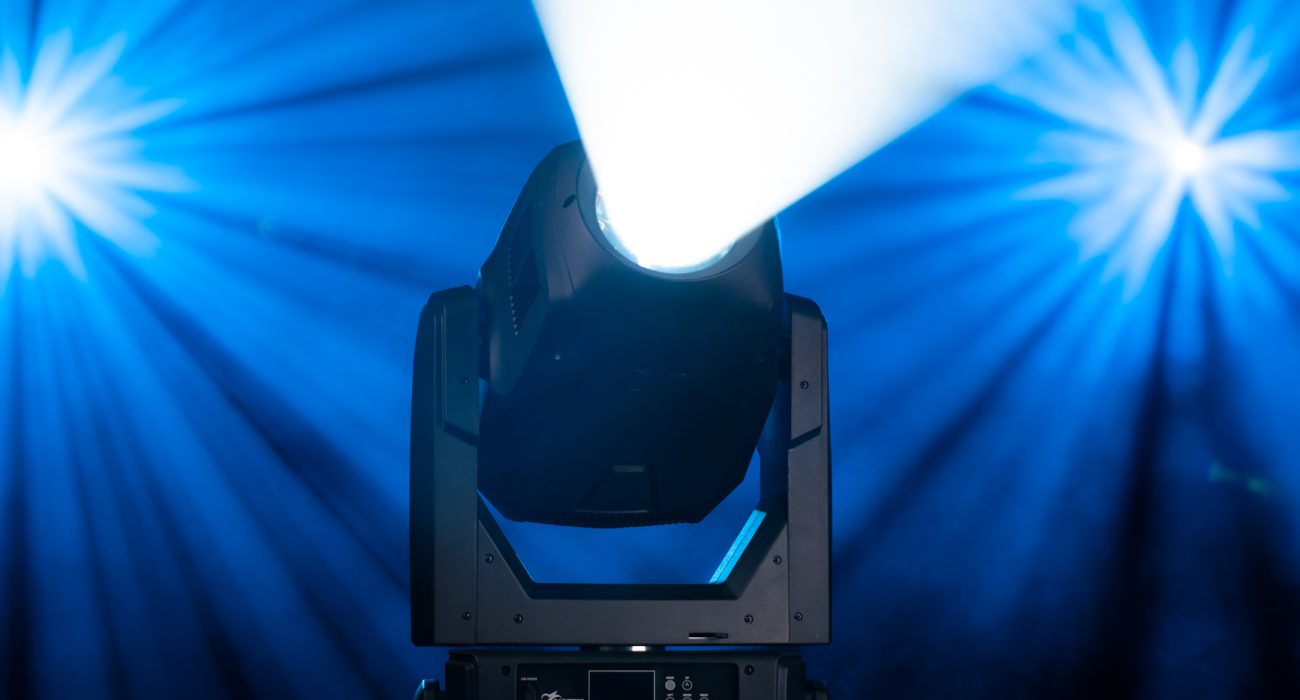

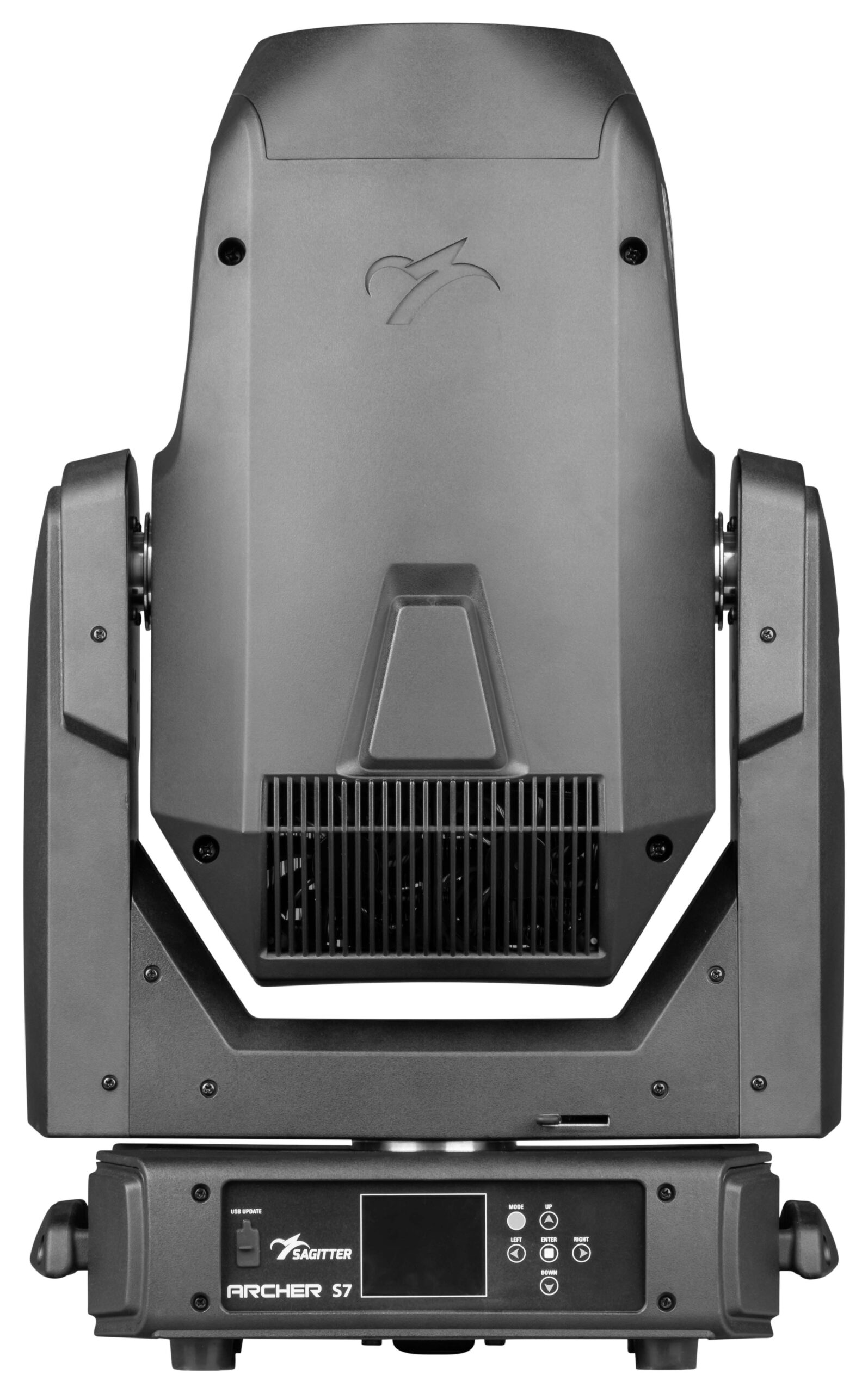

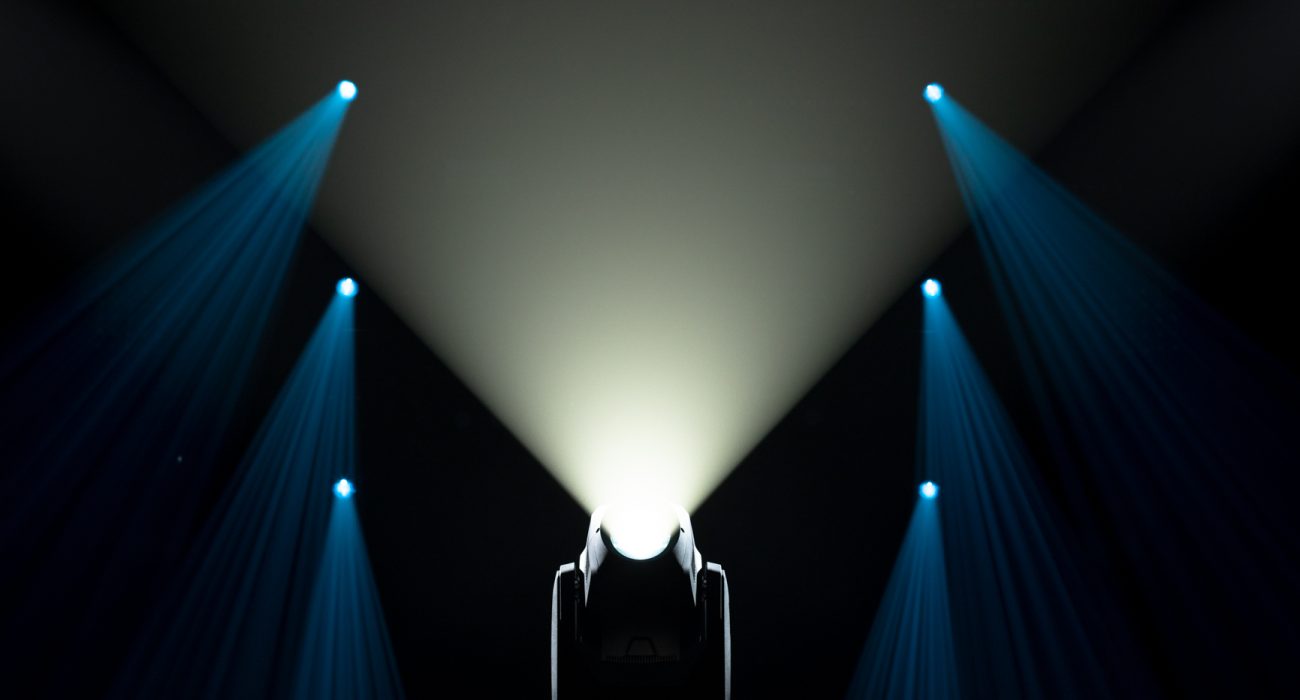

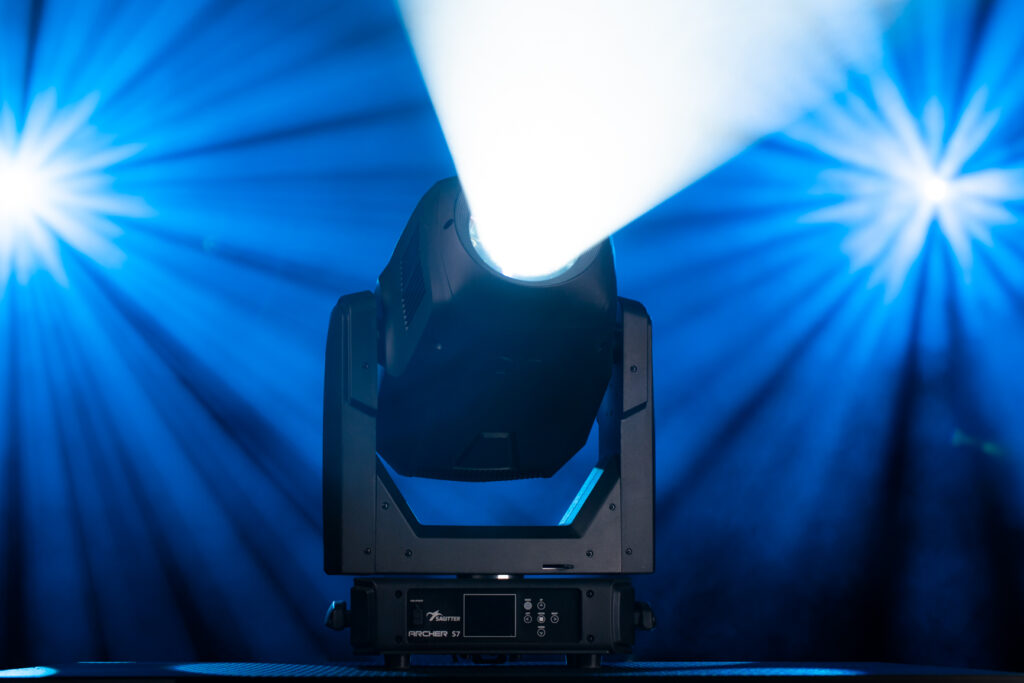

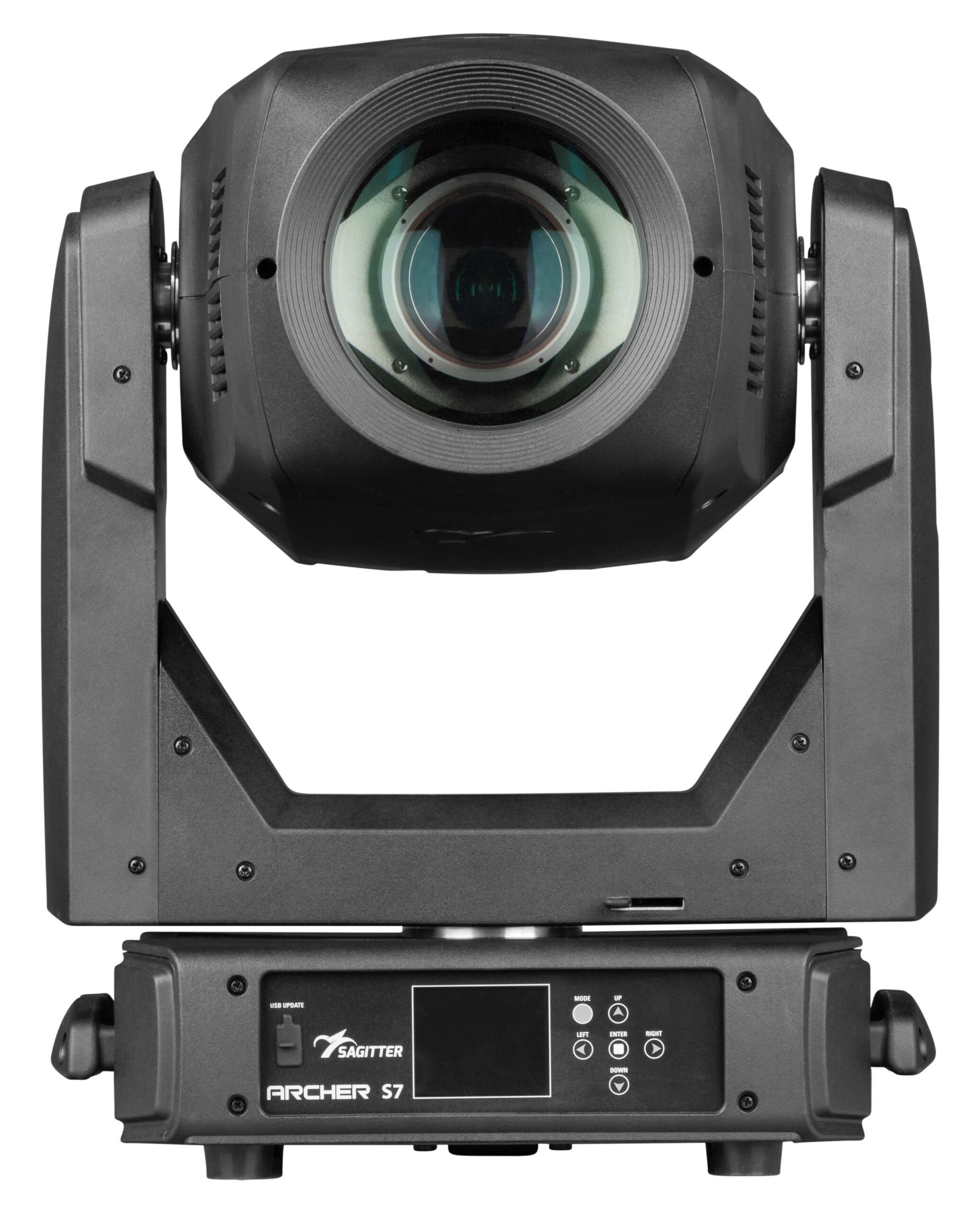

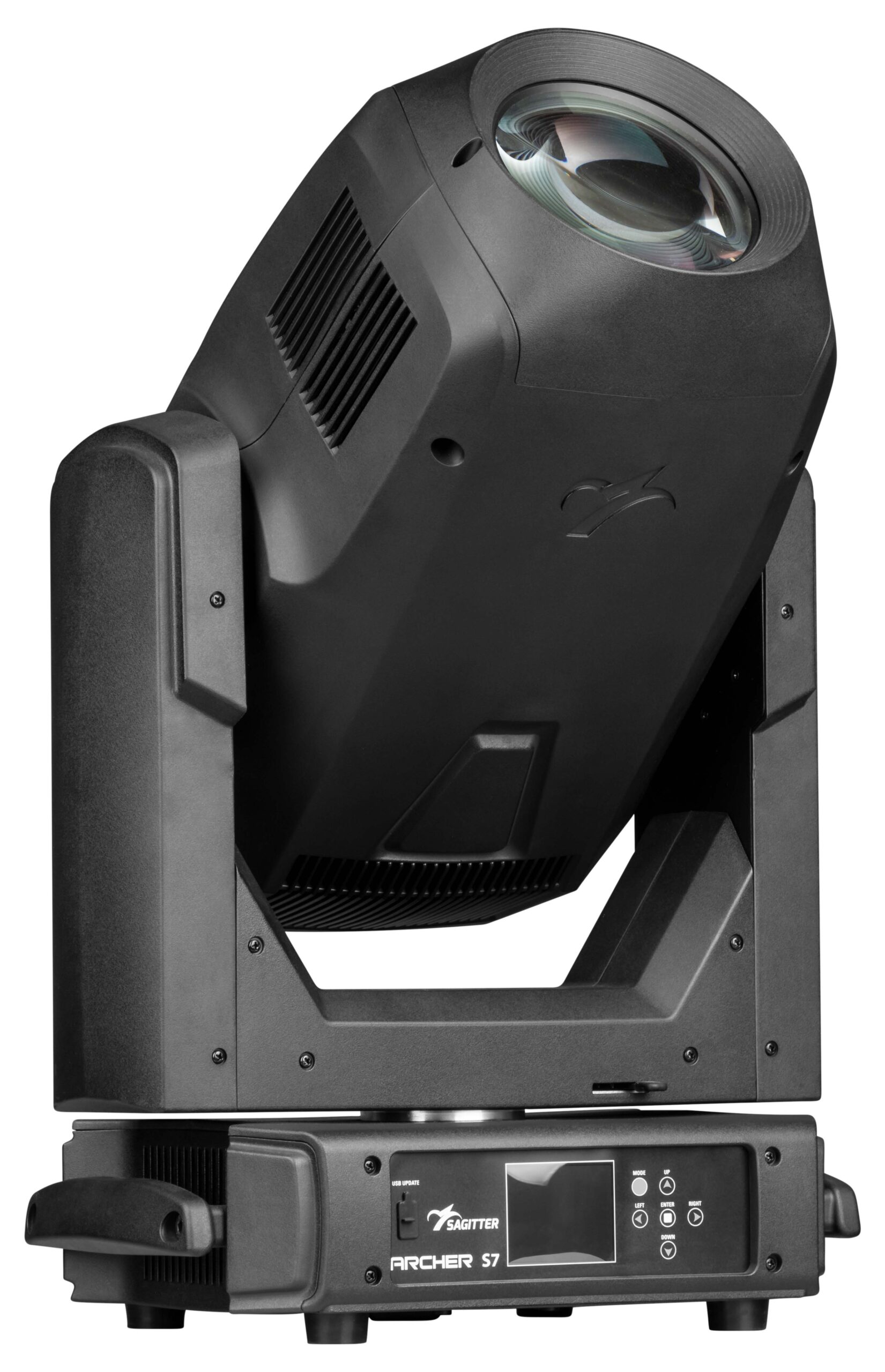

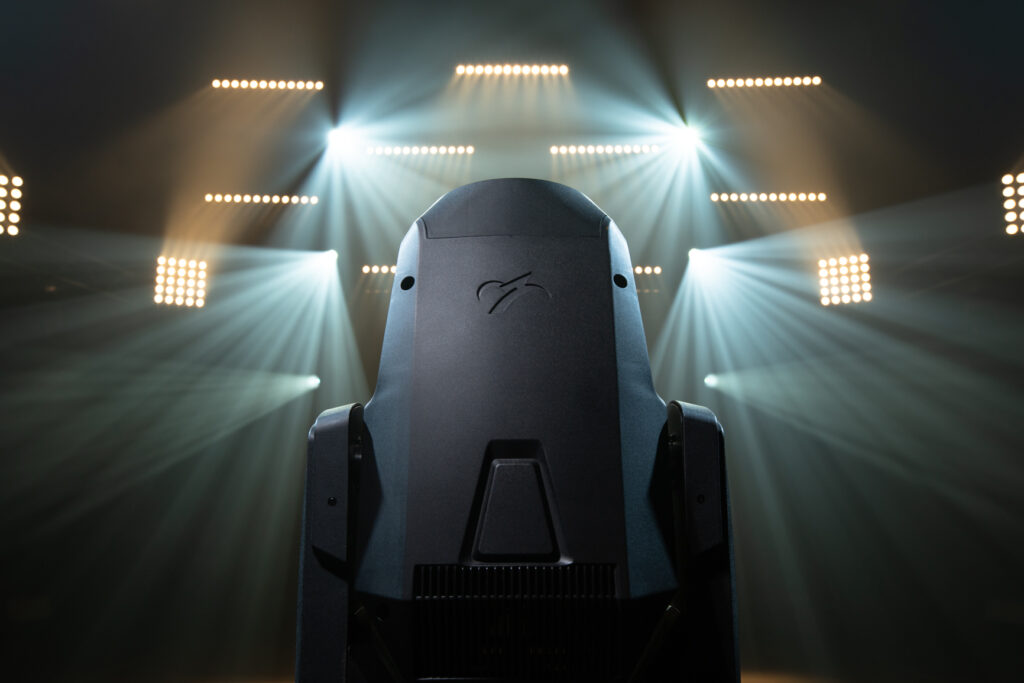

Archer Spot S7, offers power and definition inside one of the most compact motorized projectors. No limits AIRFX, a complete effects set that guarantees clear and endless graphic combinations. An effective CMY system – to create precise and balanced chromatic mix – crossed by a powerful luminous flux of 18,500 lumens supplied by the latest-generation 6800K white LED source.
| Light source | 1x380W high brightness white led Color temperature: 6500K Led frequency adjustable up to 25.000 Hz |

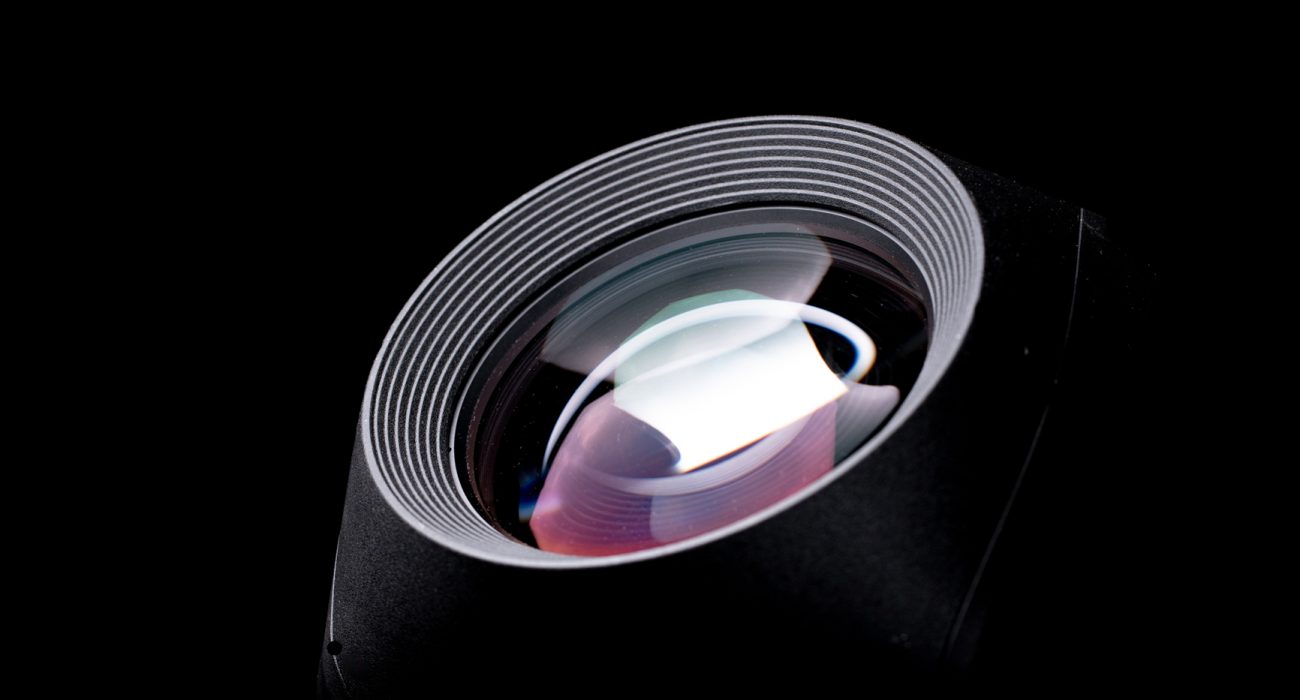

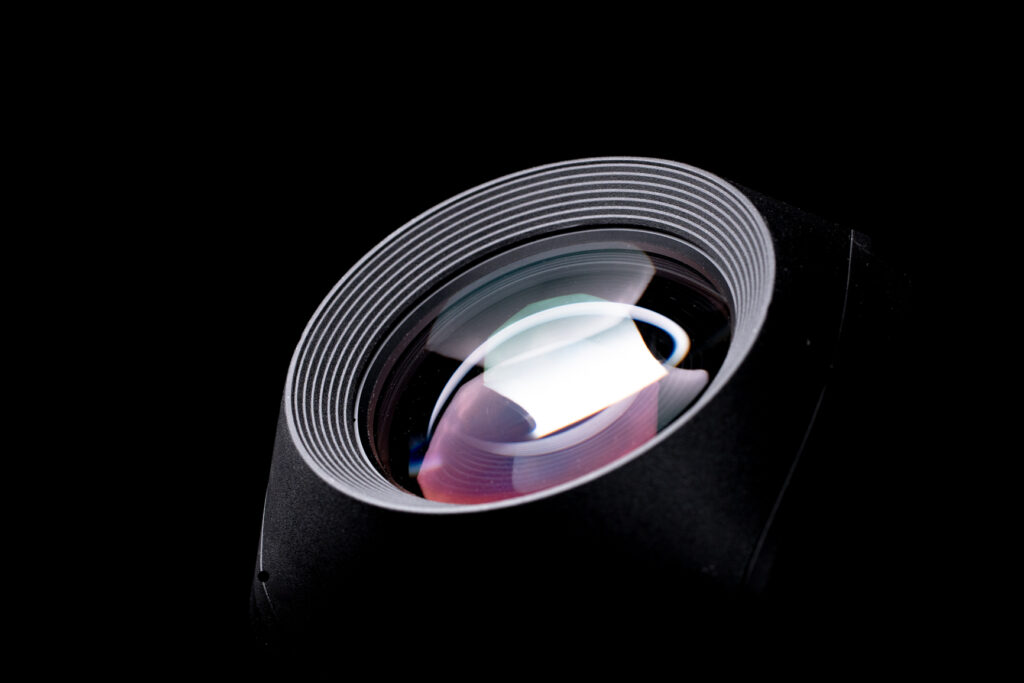

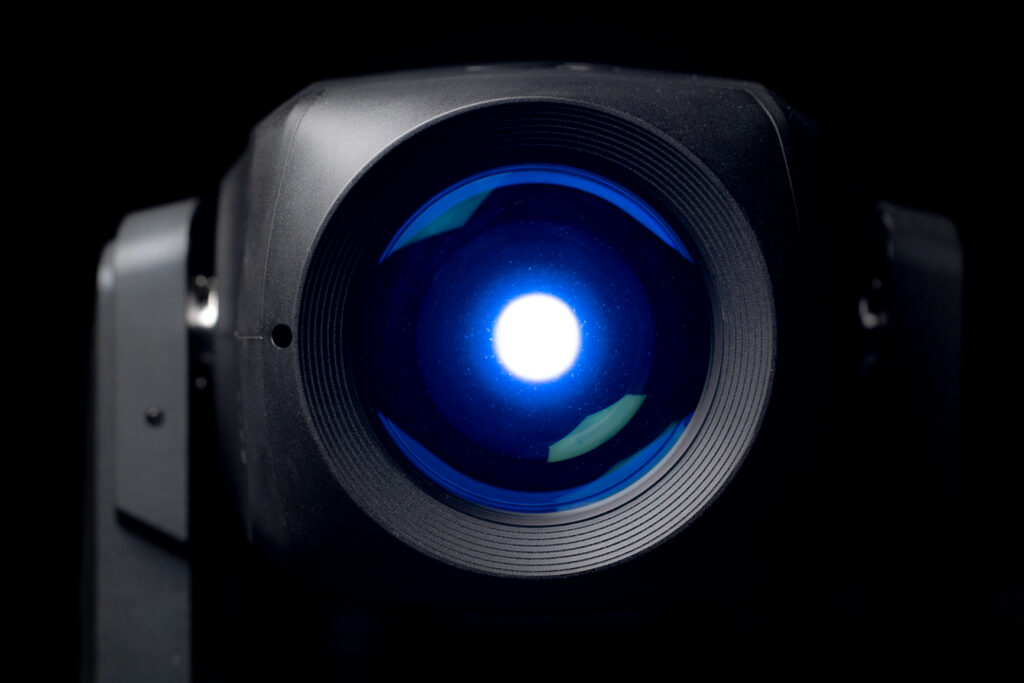

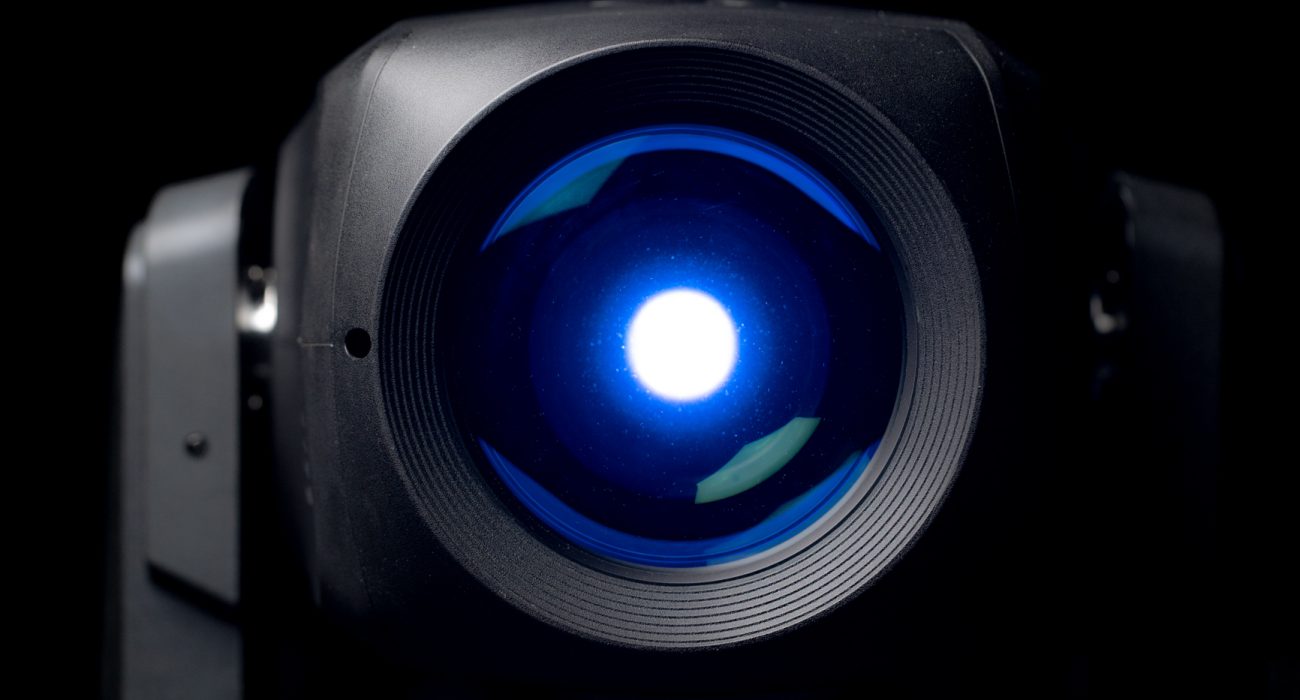

| Optic system | Projection angle zoom from 7 ° to 43 ° Electronic focus Brightness: 44600 LUX@5m (7° Min Zoom) – 1800 LUX@5m (43°Max Zoom) |
| Color system | CMY linear color mixing system CTO linear correction 6500-2700K Color wheel 7 dichroic filters + white |
| Effects | Fixed gobo wheel with 8 static and interchangeable gobos Rotating gobos wheel with 7 rotating gobos, interchangeable and indexable Gobo scroll effects at variable speed Animation wheel with continuous and bidirectional rotation Circular prism 3 facet with bidirectional rotation and indexable Linear prism 5 facet with bidirectional rotation and indexable Motorized iris Linear frost filter Linear dimmer from 0 to 100 Electronic shutter up to 25 Hz Random strobo effect and pulse dimmer with variable speed |
| Control and programming | 3 DMX configurations available: 24/29/34 channels Protocols: DMX512, RDM, Art-Net, sACN Transceiver wireless DMX by Wireless Solution (integrated) Selectable 8/16bit Pan & Tilt resolution Selectable Master/Slave mode Function reset controlled by DMX control USB interface for software update |

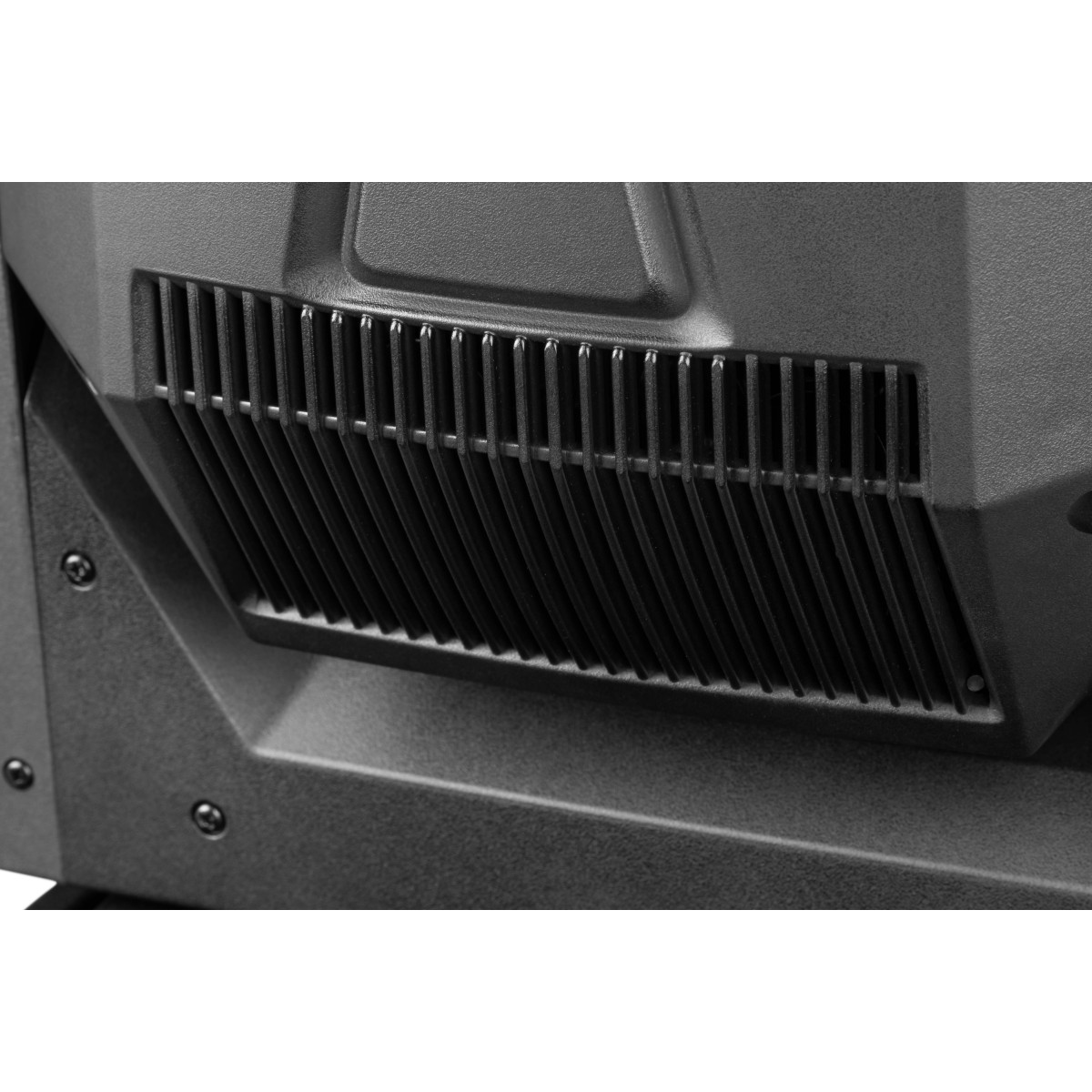

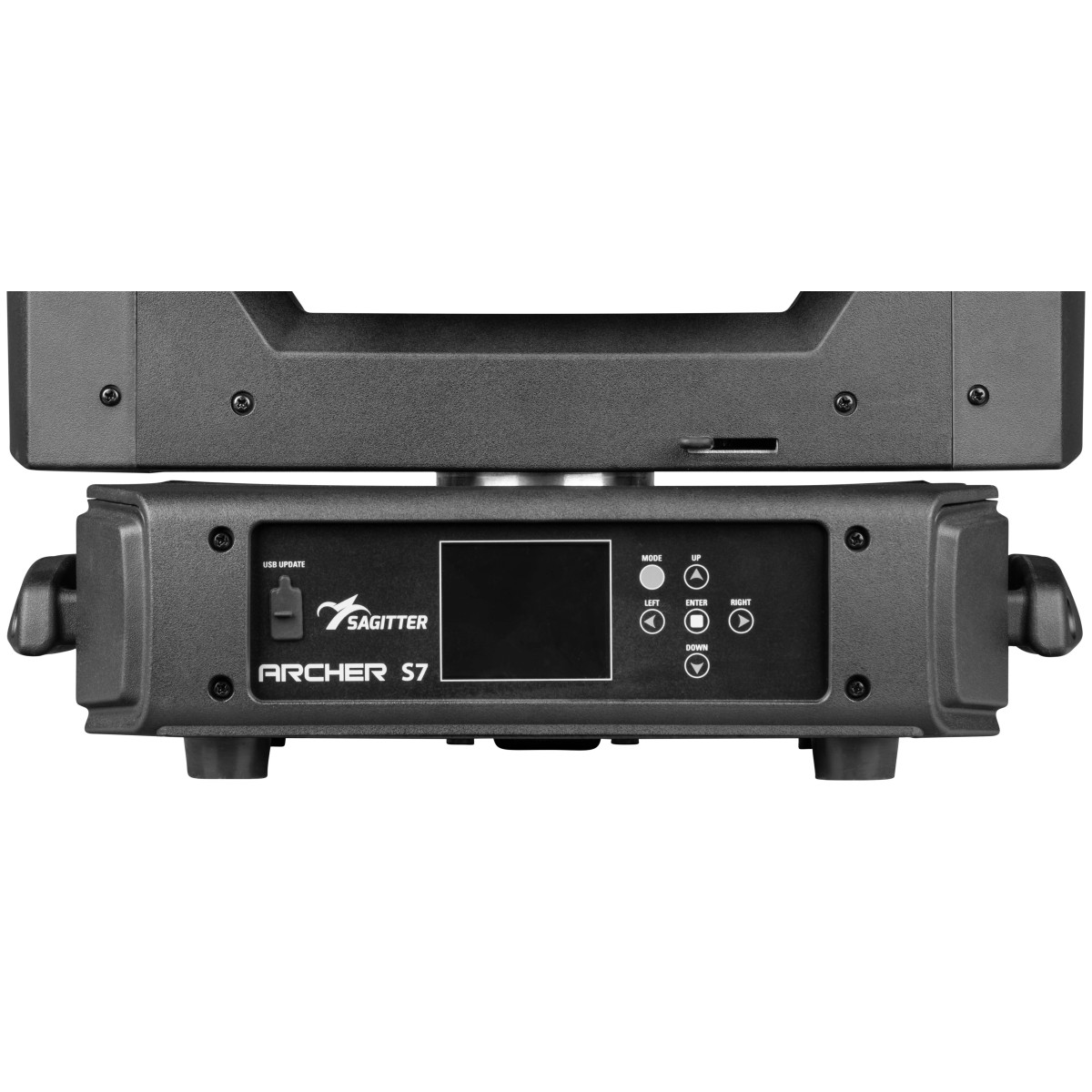

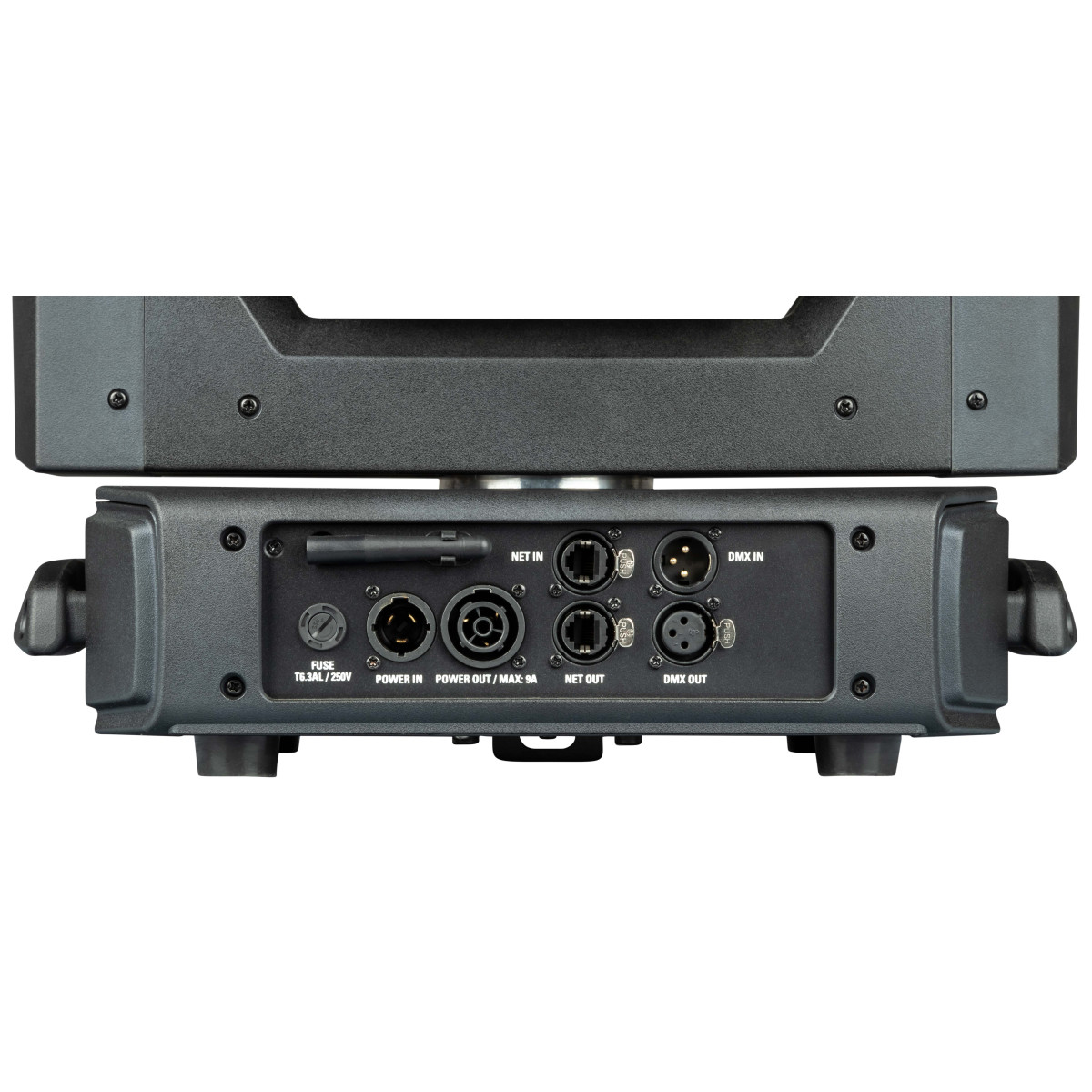

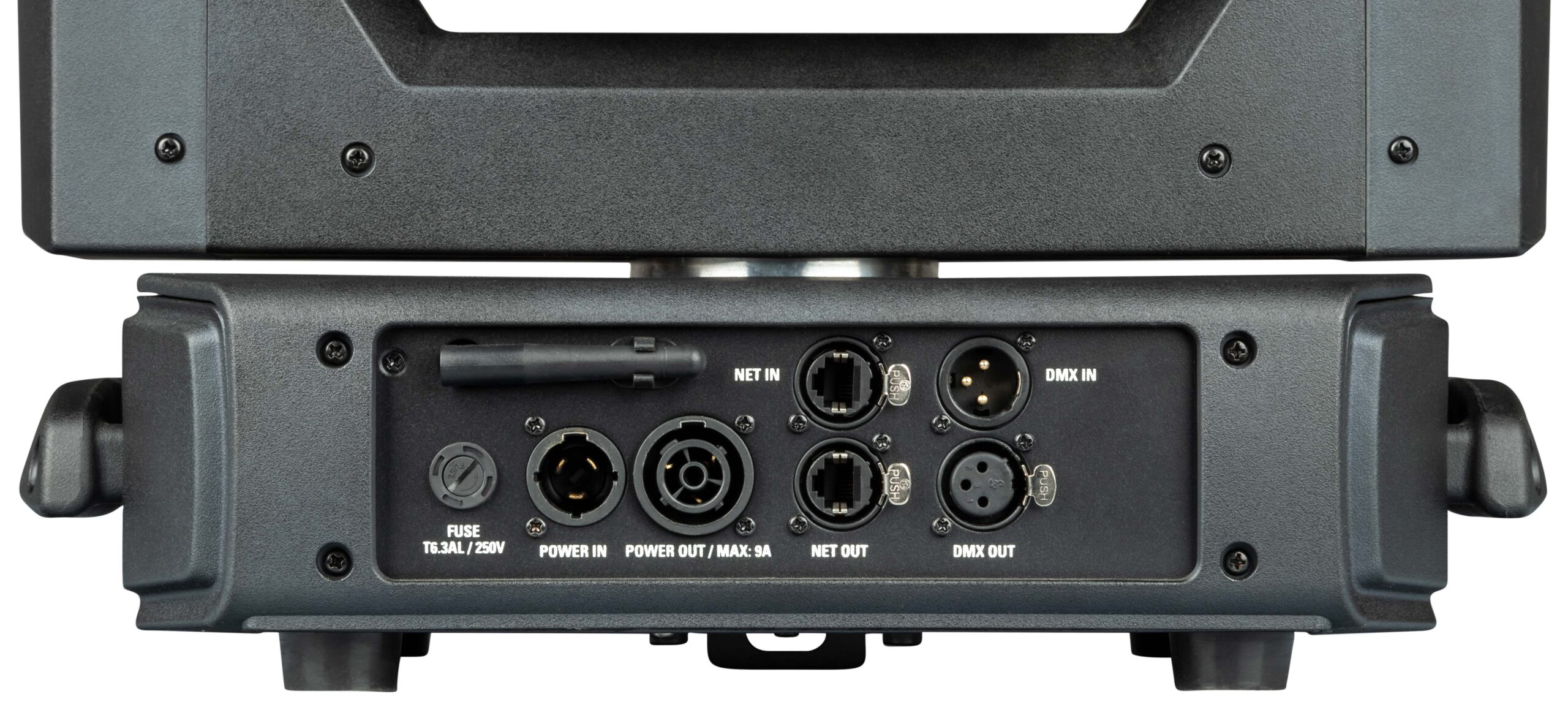

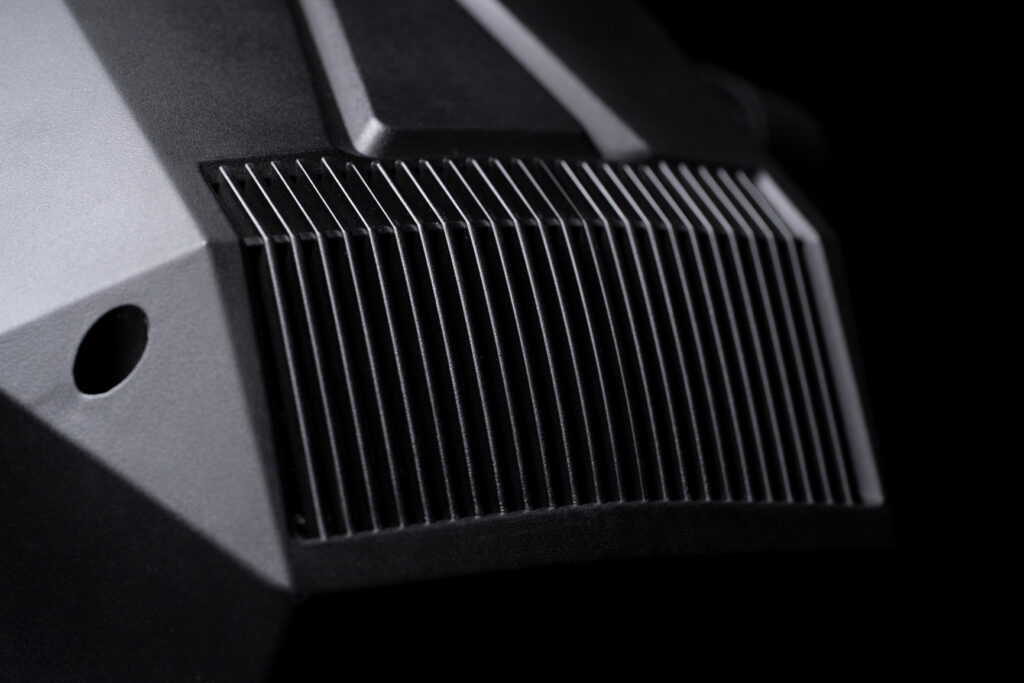

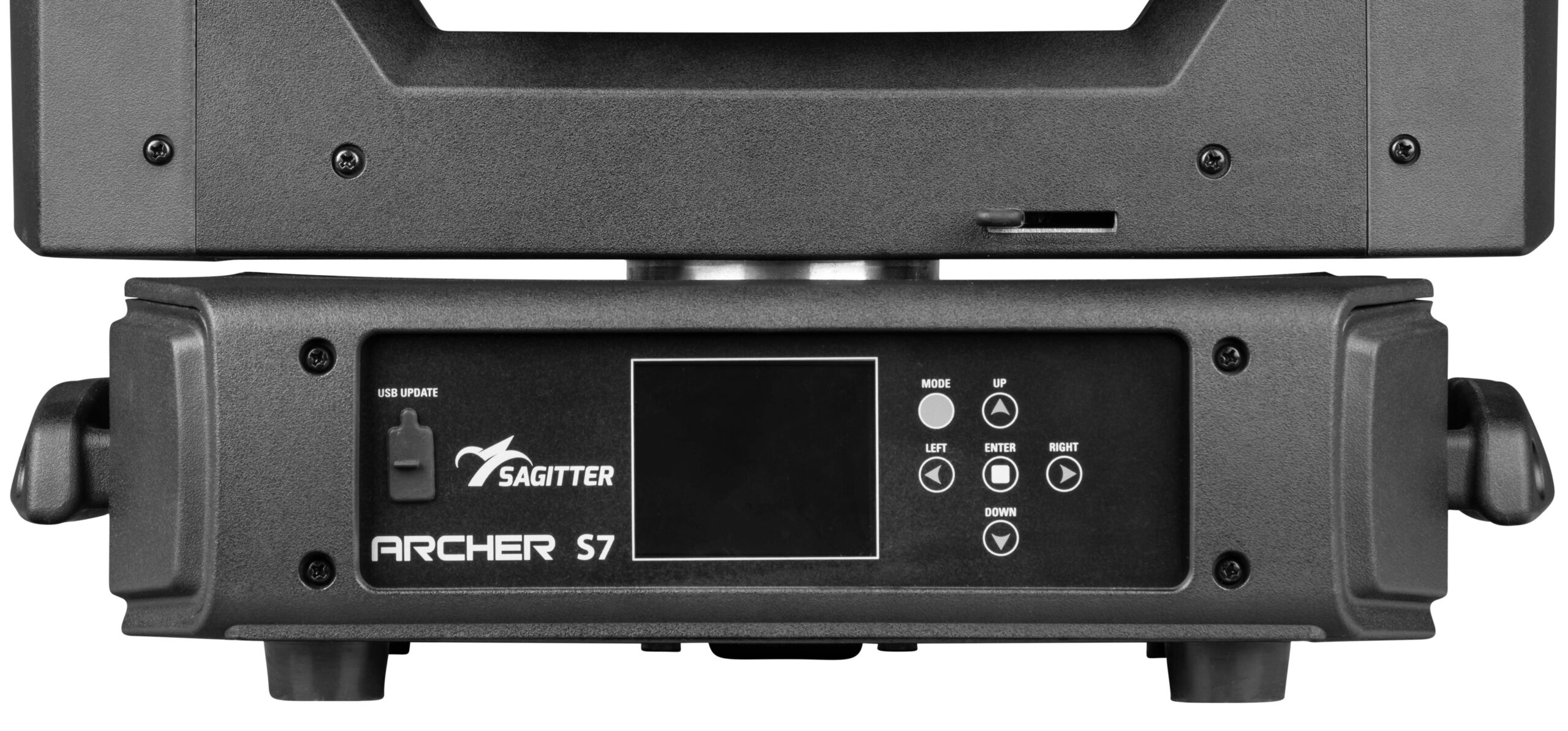

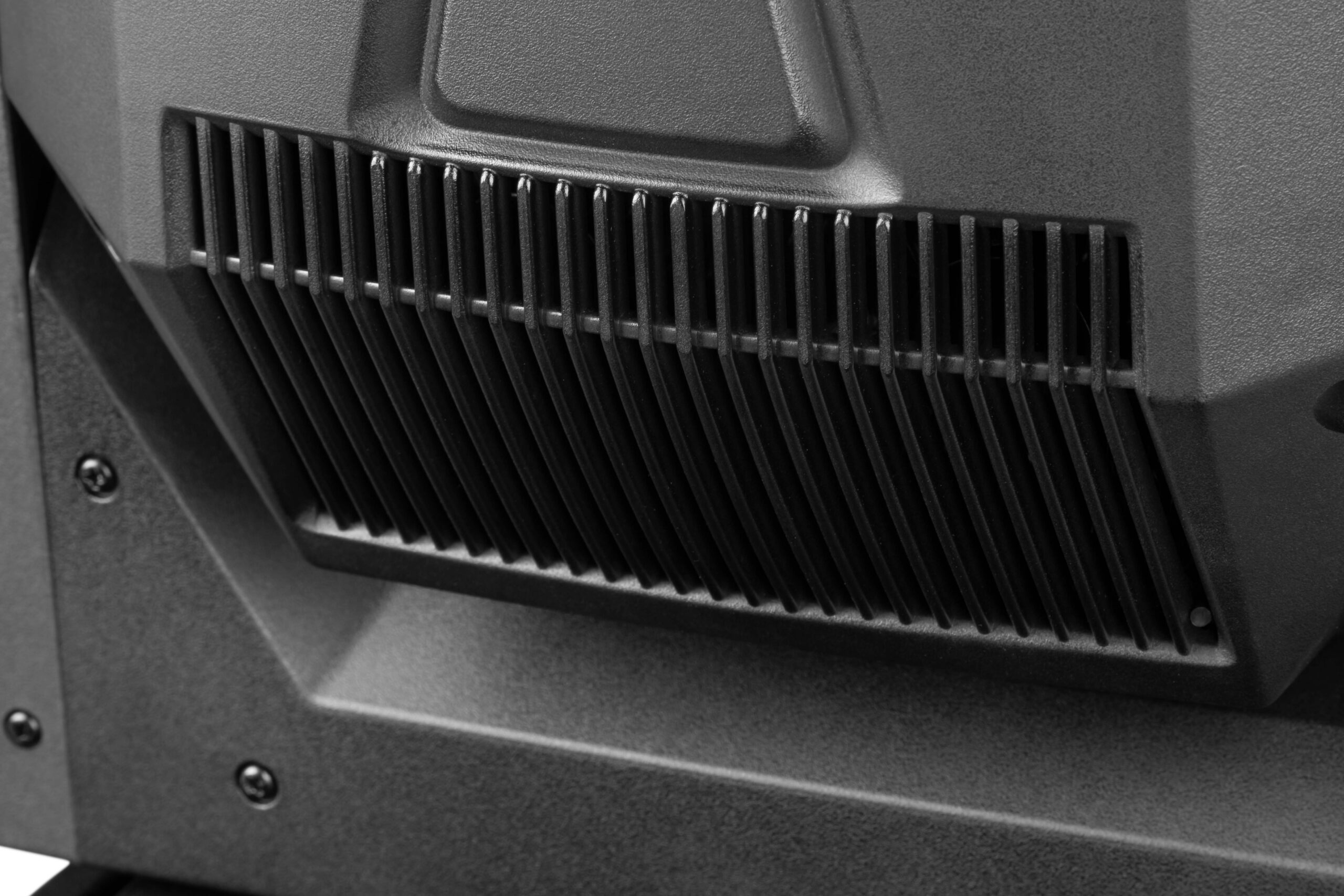

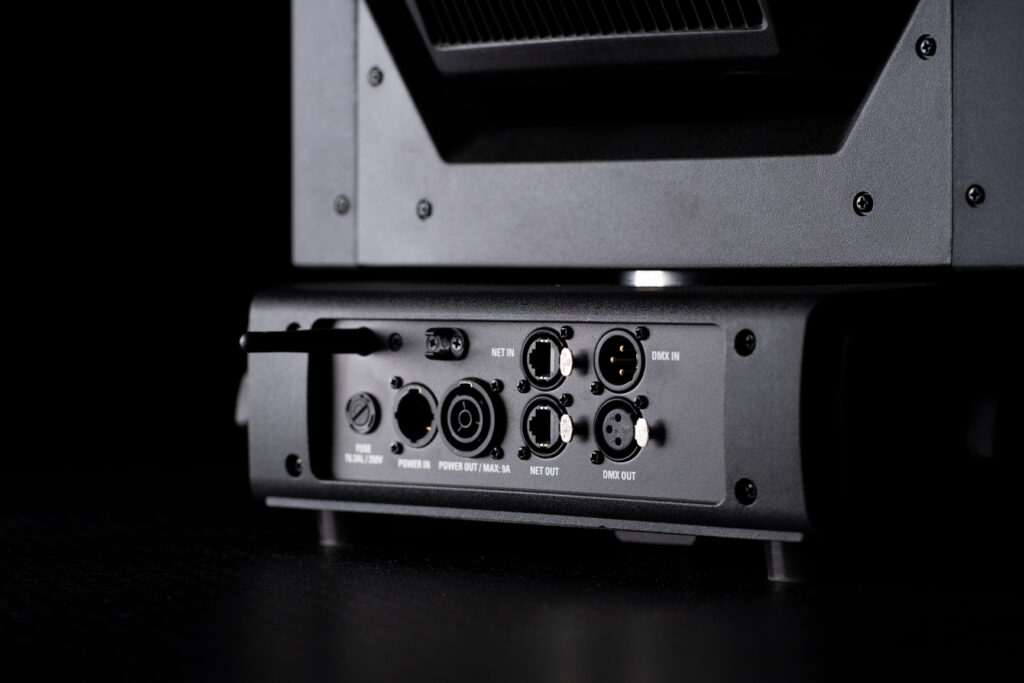

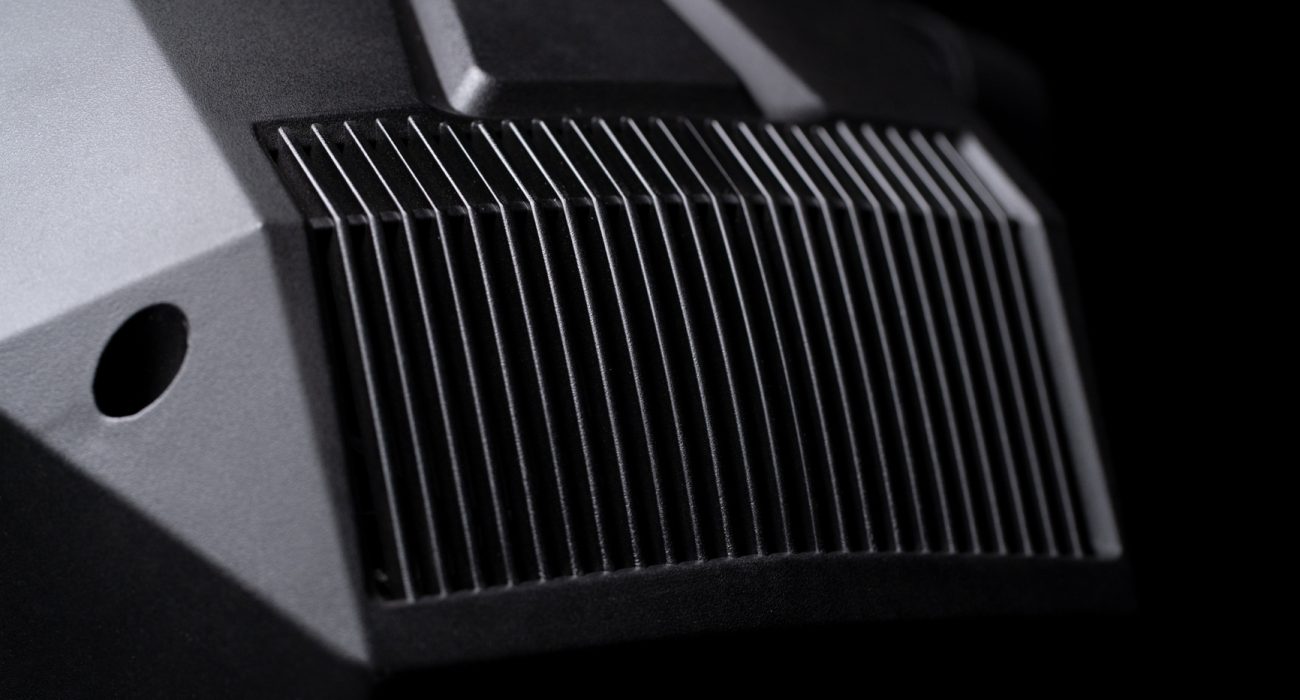

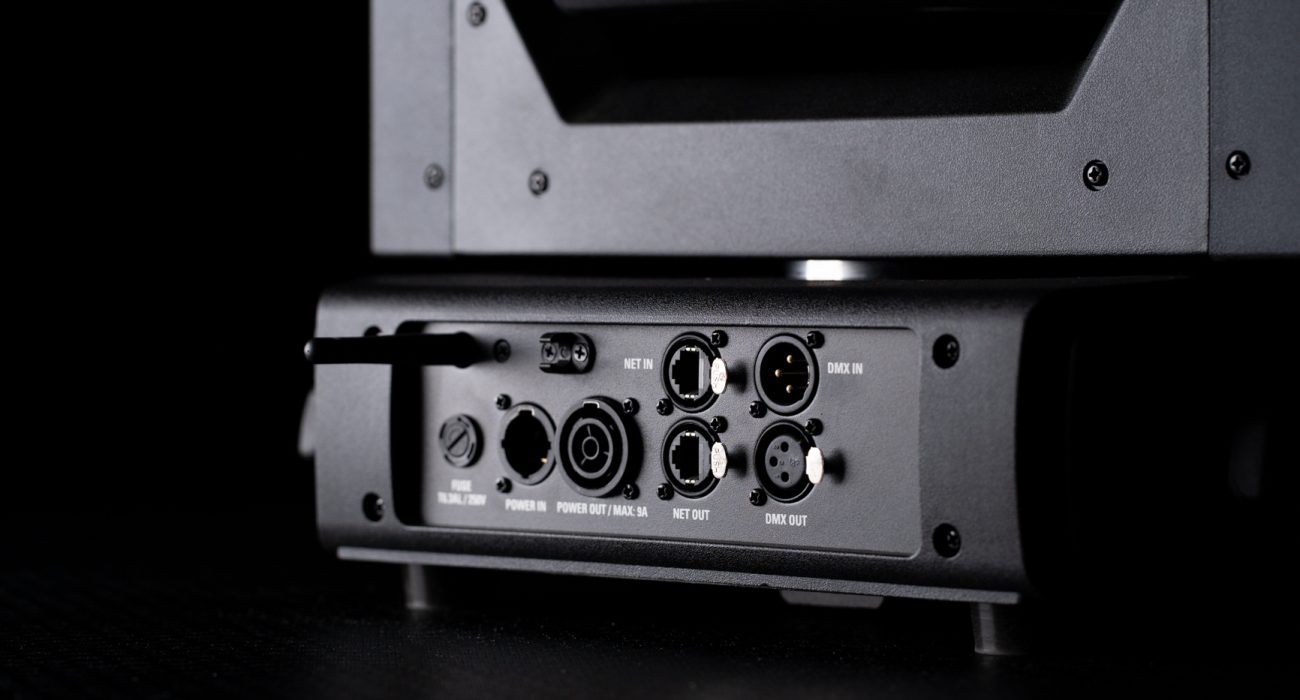

| Structure and cabinet | Aluminum internal structure with hi-resistance ABS cover High resolution LCD colour display Pan & Tilt three-phase motion motors Pan angle 540°/630° selectable Tilt angle 270° Mounting points 1 pairs of 1/4-turn locks omega older Automatic repositioning of Pan and Tilt Pan&Tilt movement lock system XLR 3-poles DMX IN/OUT connection RJ45 EtherCON data connectors IN/OUT IP rating 20 Low-noise controlled cooling system Noise levels @1m: Fan AUTO 46.0dB(A), Fan HIGH 48dB(A), Fan LOW 42dB(A) Backup battery for user menu access without connecting to the main power |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 497W @ 230VAC Power connection with TRUE ONE IN/OUT connectors |
| Weight and dimensions | Net weight: 25 kg Dimensions (L x A x P): mm. 390x633x255 |
Archer Spot S7, offers power and definition inside one of the most compact motorized projectors. No limits AIRFX, a complete effects set that guarantees clear and endless graphic combinations. An effective CMY system – to create precise and balanced chromatic mix – crossed by a powerful luminous flux of 18,500 lumens supplied by the latest-generation 6800K white LED source.
| Light source | 1x380W high brightness white led Color temperature: 6500K Led frequency adjustable up to 25.000 Hz |
| Optic system | Projection angle zoom from 7 ° to 43 ° Electronic focus Brightness: 44600 LUX@5m (7° Min Zoom) – 1800 LUX@5m (43°Max Zoom) |
| Color system | CMY linear color mixing system CTO linear correction 6500-2700K Color wheel 7 dichroic filters + white |
| Effects | Fixed gobo wheel with 8 static and interchangeable gobos Rotating gobos wheel with 7 rotating gobos, interchangeable and indexable Gobo scroll effects at variable speed Animation wheel with continuous and bidirectional rotation Circular prism 3 facet with bidirectional rotation and indexable Linear prism 5 facet with bidirectional rotation and indexable Motorized iris Linear frost filter Linear dimmer from 0 to 100 Electronic shutter up to 25 Hz Random strobo effect and pulse dimmer with variable speed |
| Control and programming | 3 DMX configurations available: 24/29/34 channels Protocols: DMX512, RDM, Art-Net, sACN Transceiver wireless DMX by Wireless Solution (integrated) Selectable 8/16bit Pan & Tilt resolution Selectable Master/Slave mode Function reset controlled by DMX control USB interface for software update |
| Structure and cabinet | Aluminum internal structure with hi-resistance ABS cover High resolution LCD colour display Pan & Tilt three-phase motion motors Pan angle 540°/630° selectable Tilt angle 270° Mounting points 1 pairs of 1/4-turn locks omega older Automatic repositioning of Pan and Tilt Pan&Tilt movement lock system XLR 3-poles DMX IN/OUT connection RJ45 EtherCON data connectors IN/OUT IP rating 20 Low-noise controlled cooling system Noise levels @1m: Fan AUTO 46.0dB(A), Fan HIGH 48dB(A), Fan LOW 42dB(A) Backup battery for user menu access without connecting to the main power |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 497W @ 230VAC Power connection with TRUE ONE IN/OUT connectors |
| Weight and dimensions | Net weight: 25 kg Dimensions (L x A x P): mm. 390x633x255 |
