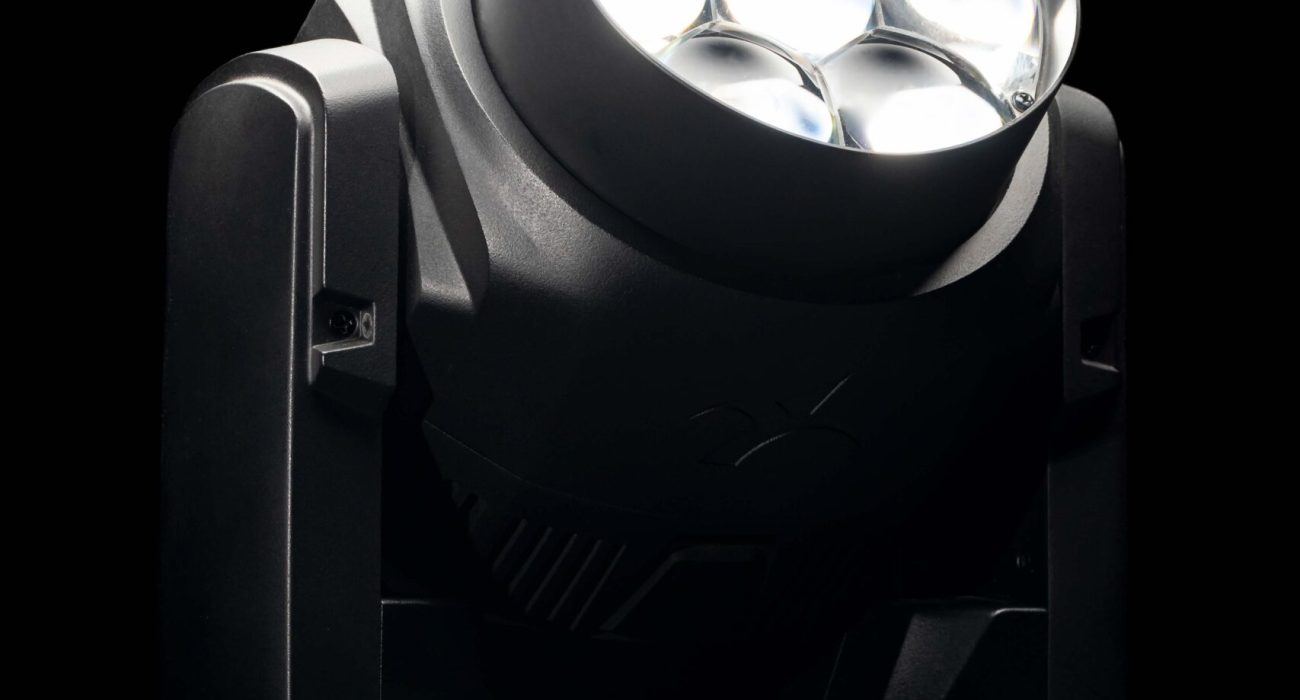

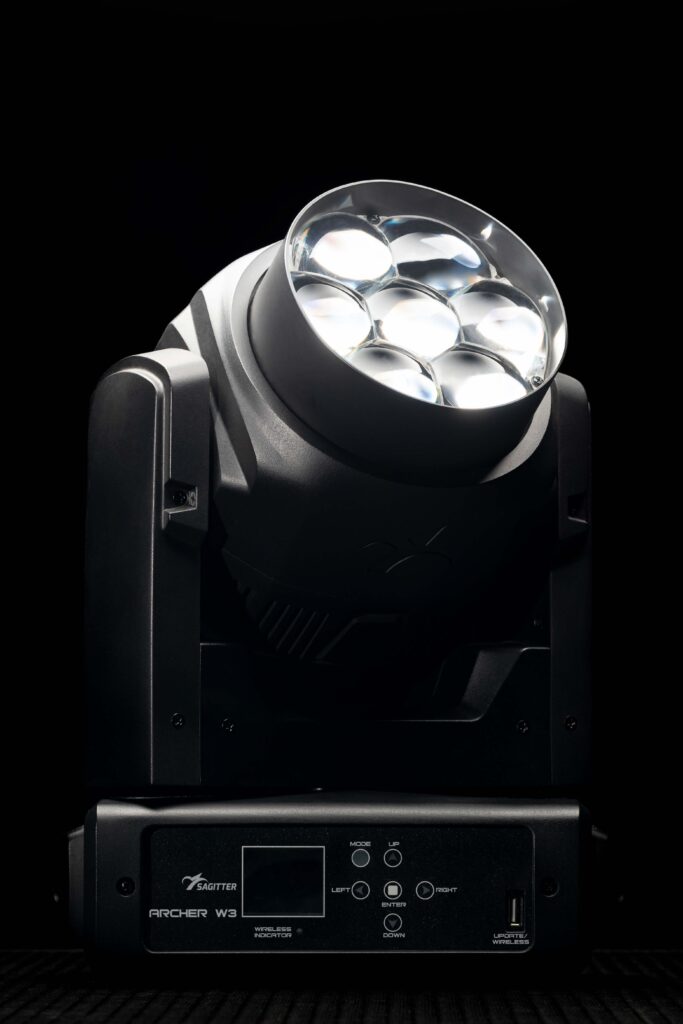

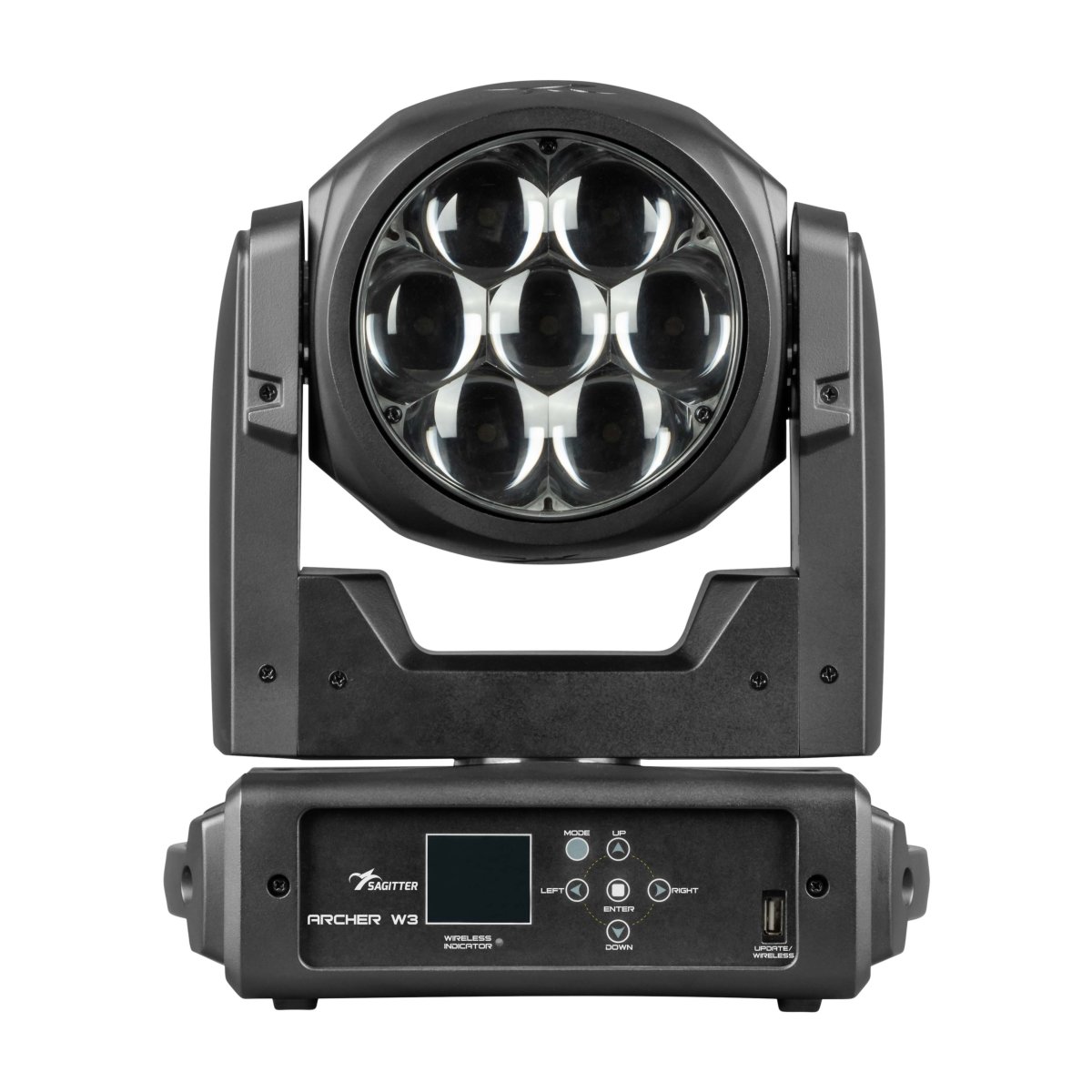

The Archer family by Sagitter is growing and, starting from today, it can also count on two new latest generation motorized wash/beam projectors.

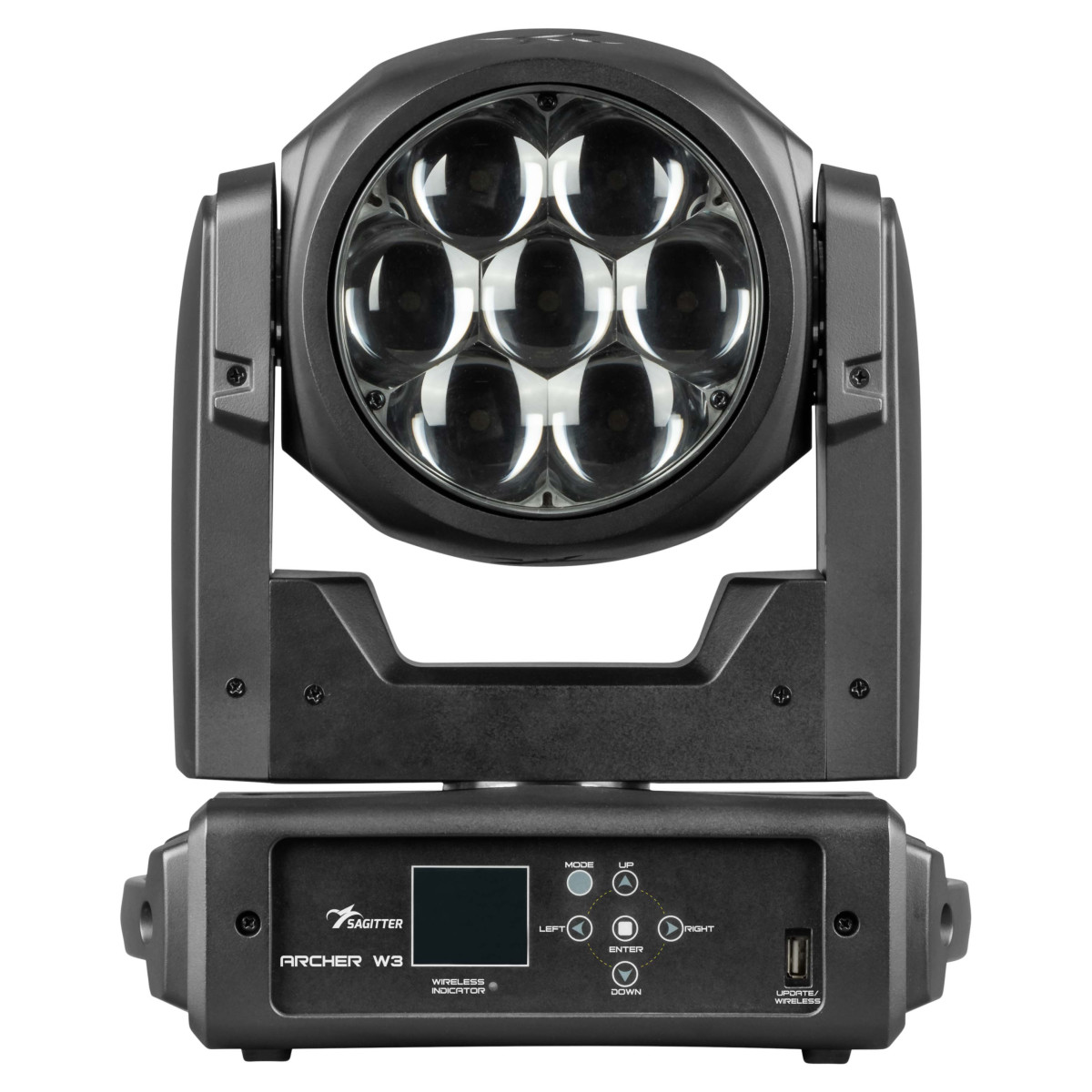

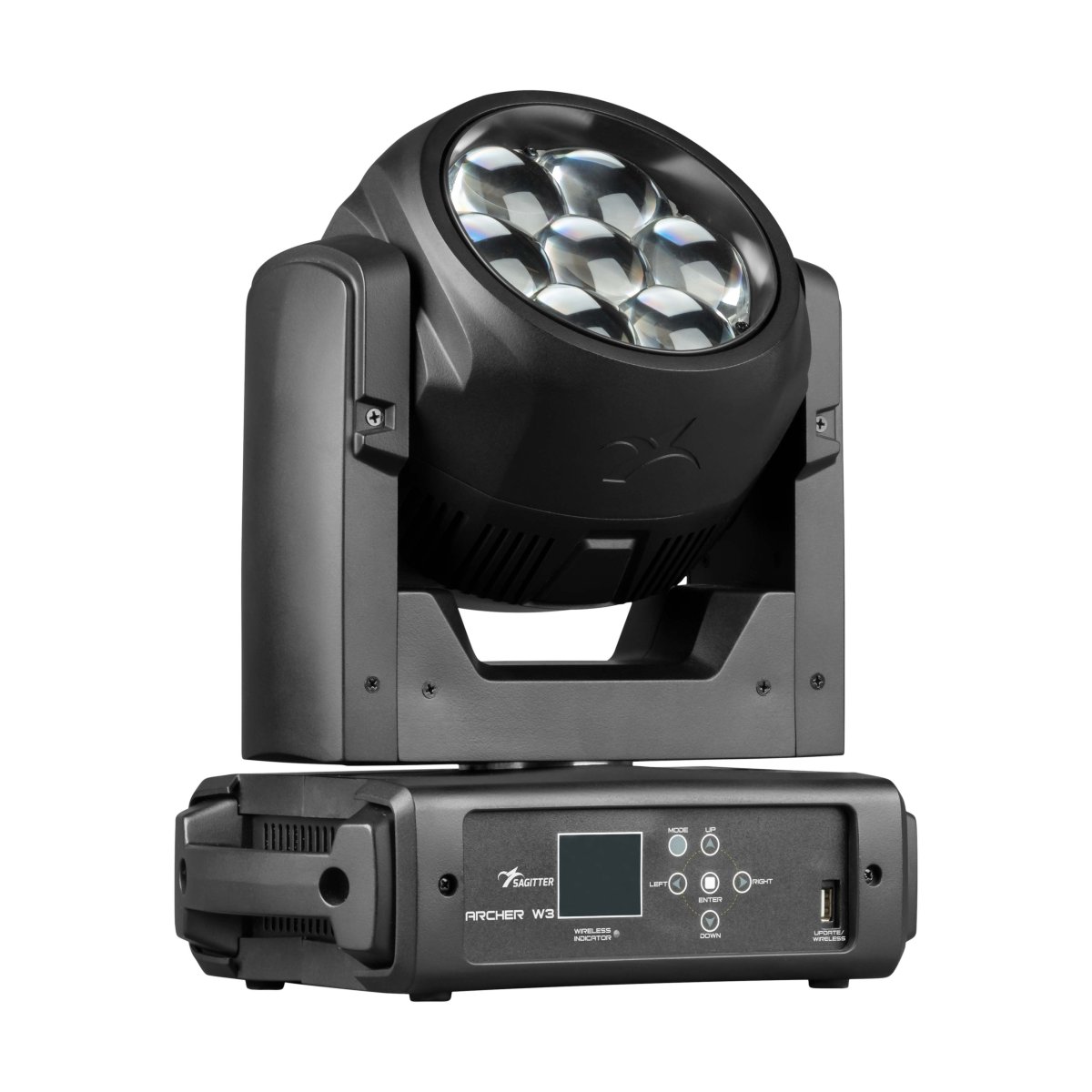

The new models are: Archer W3, the smaller, versatile, compact and powerful, suitable for any kind of entertainment or installation; Archer W8, the largest, designed for medium and large events where performance and light coverage are important and required factors.
Both models share numerous features, in order to guarantee the user homogeneity in the control and chromatic rendering of the show.
The choice for the light source of both models fell on Osram, a recently built LED that is part of the Ostar stage series by the famous German manufacturer, dedicated to the world of entertainment.

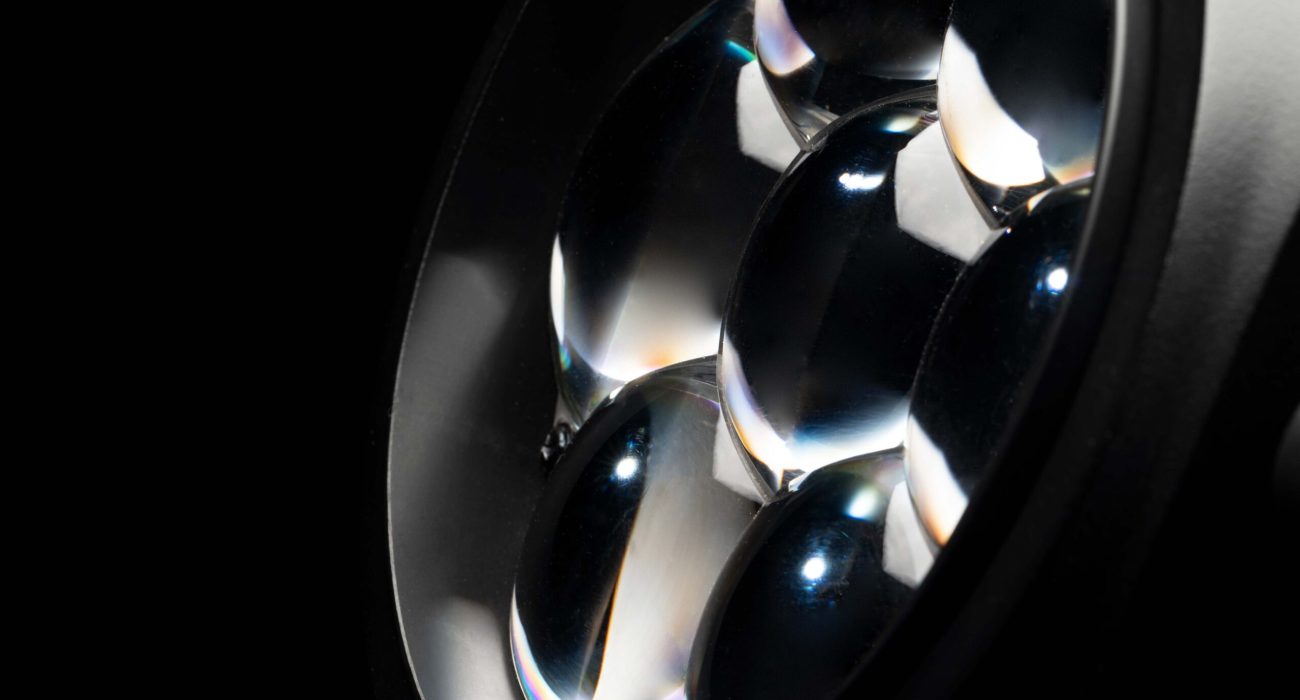

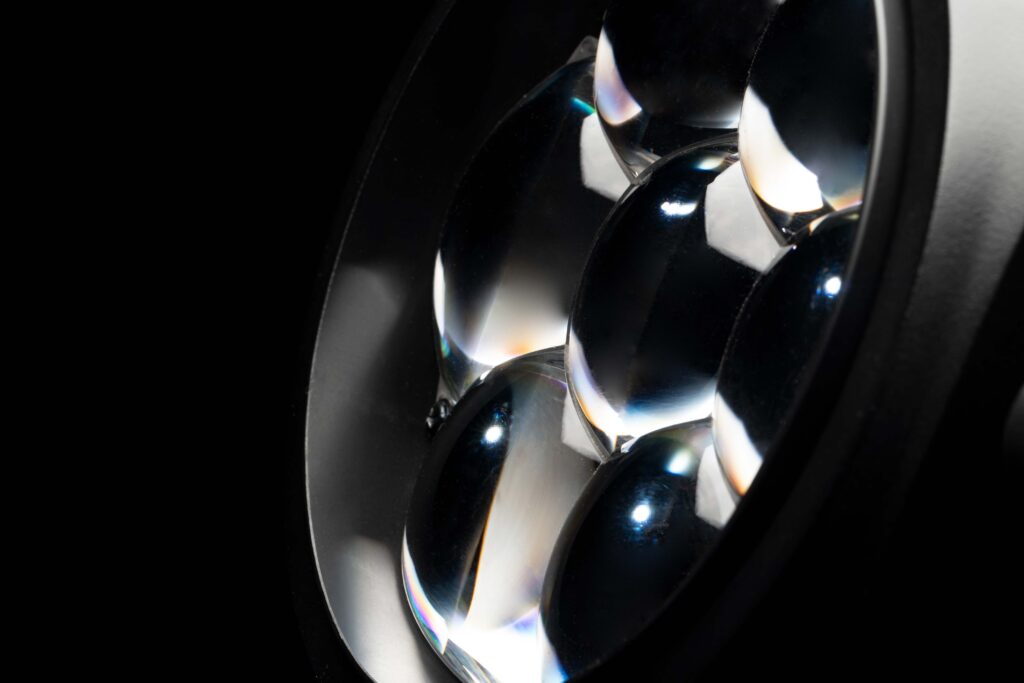

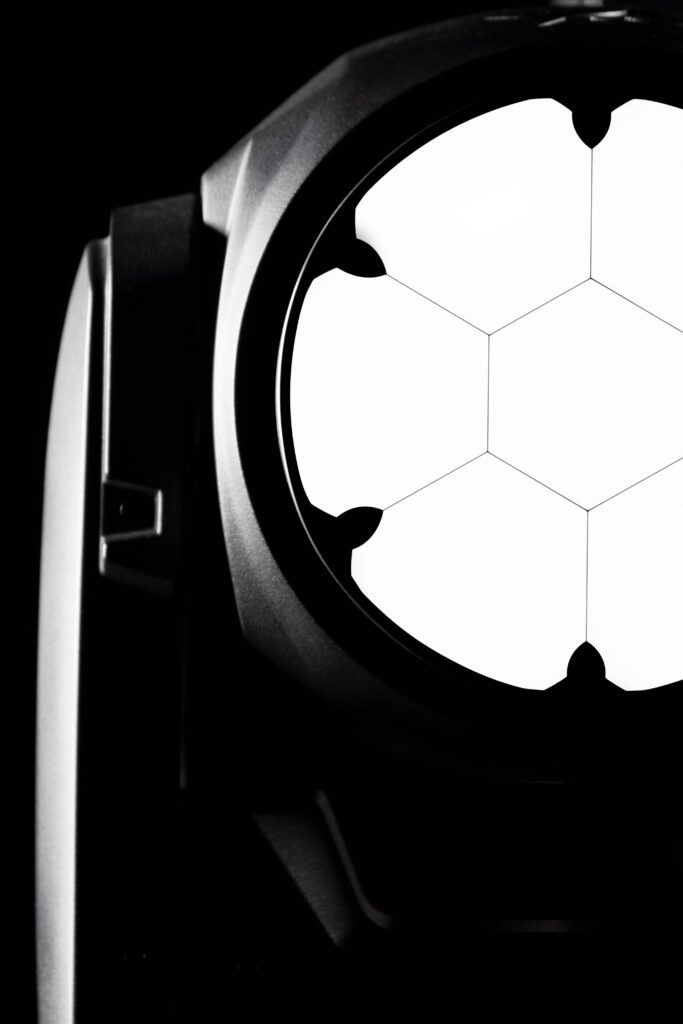

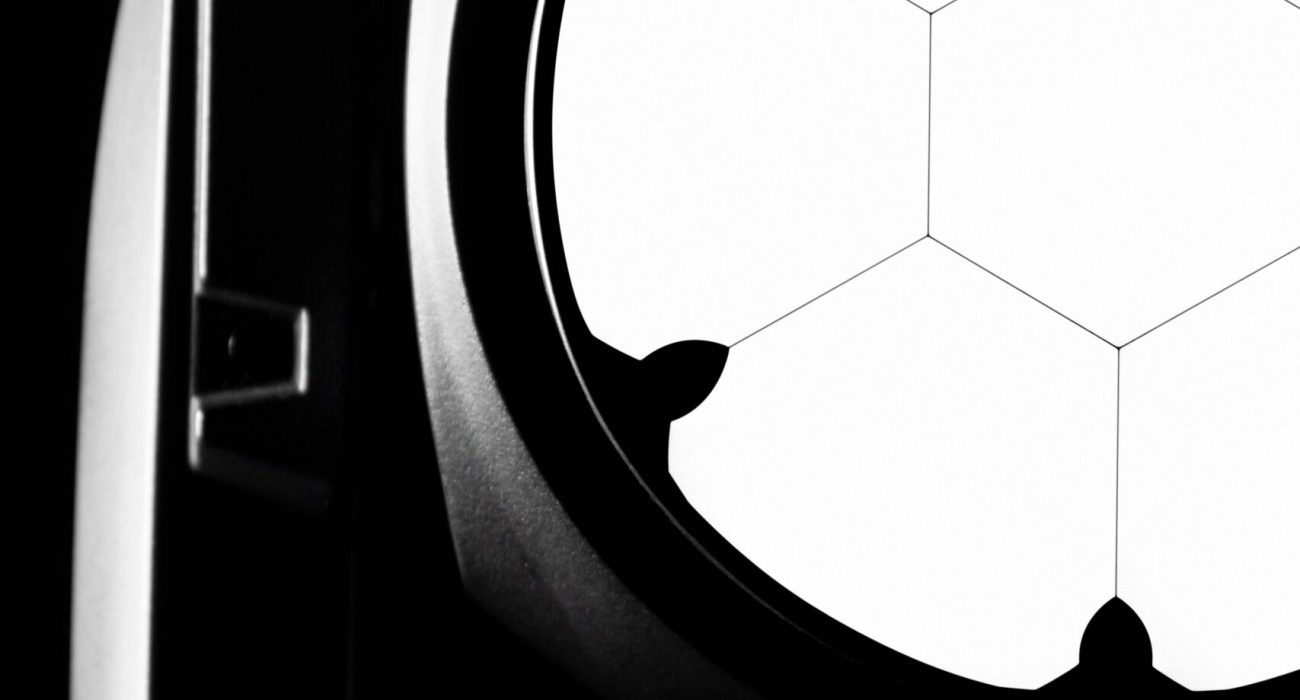

The optical system has been designed to guide and contain the powerful light beam generated by the LED sources as much as possible, while the high density and definition of the front lenses offer a sharp and concentrated beam, making the projector close to the visual performance of the most common beam moving heads with discharge source.
Both projectors offer extreme accuracy in the control of the light sources and the colors generated, the numerous advanced functions such as the simulation of the CMY system and dynamic white, the single pixel control with dedicated patterns and ready-to-use effects without having to recall complex and bulky DMX working methods, make the projectors close to the requests of the most demanding users.
| Light source | 7x40W Osram Ostar™ led RGBW Full Color CRI ≥ 83 Ra LED refresh frequency: adjustable from 900 Hz to 25 KHz. |

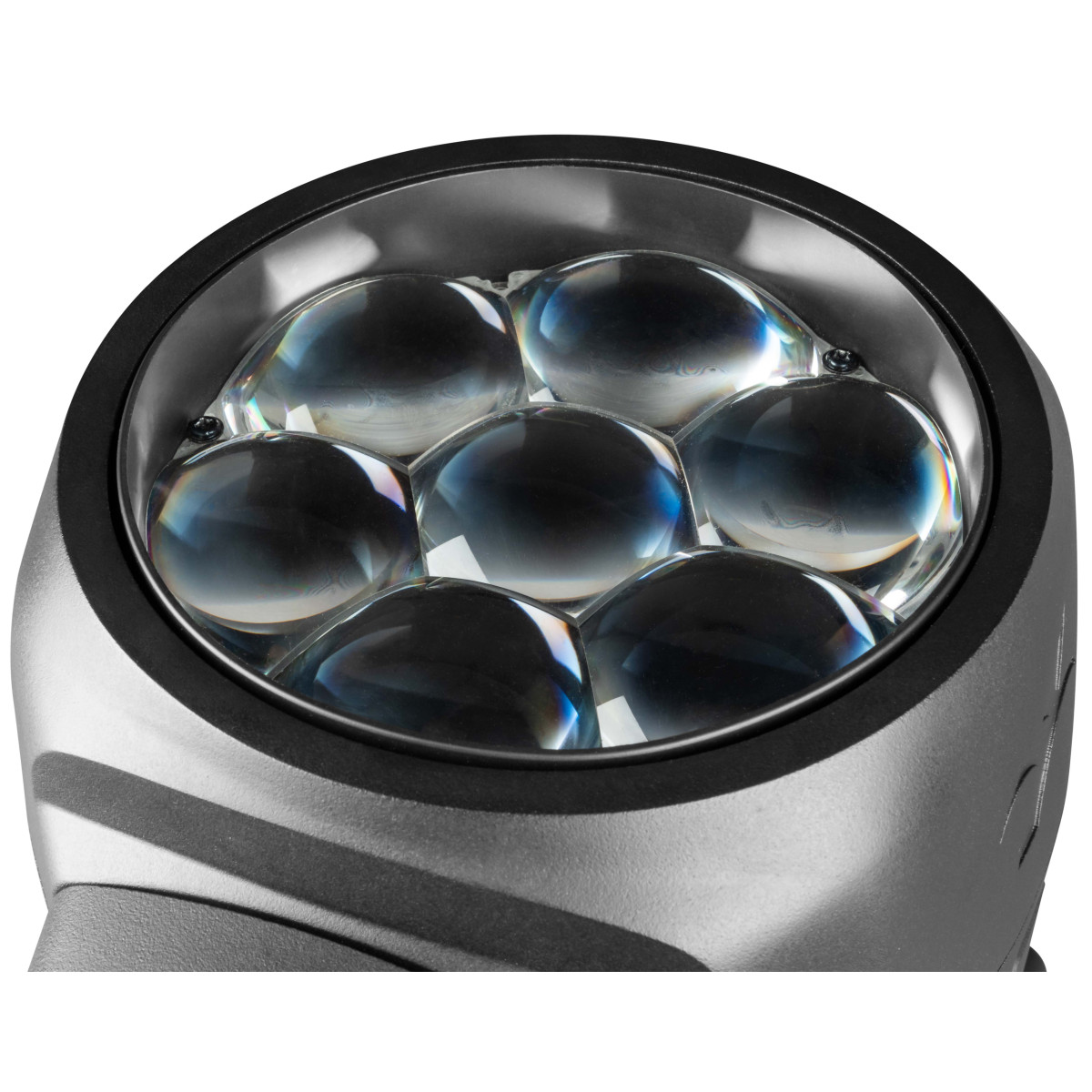

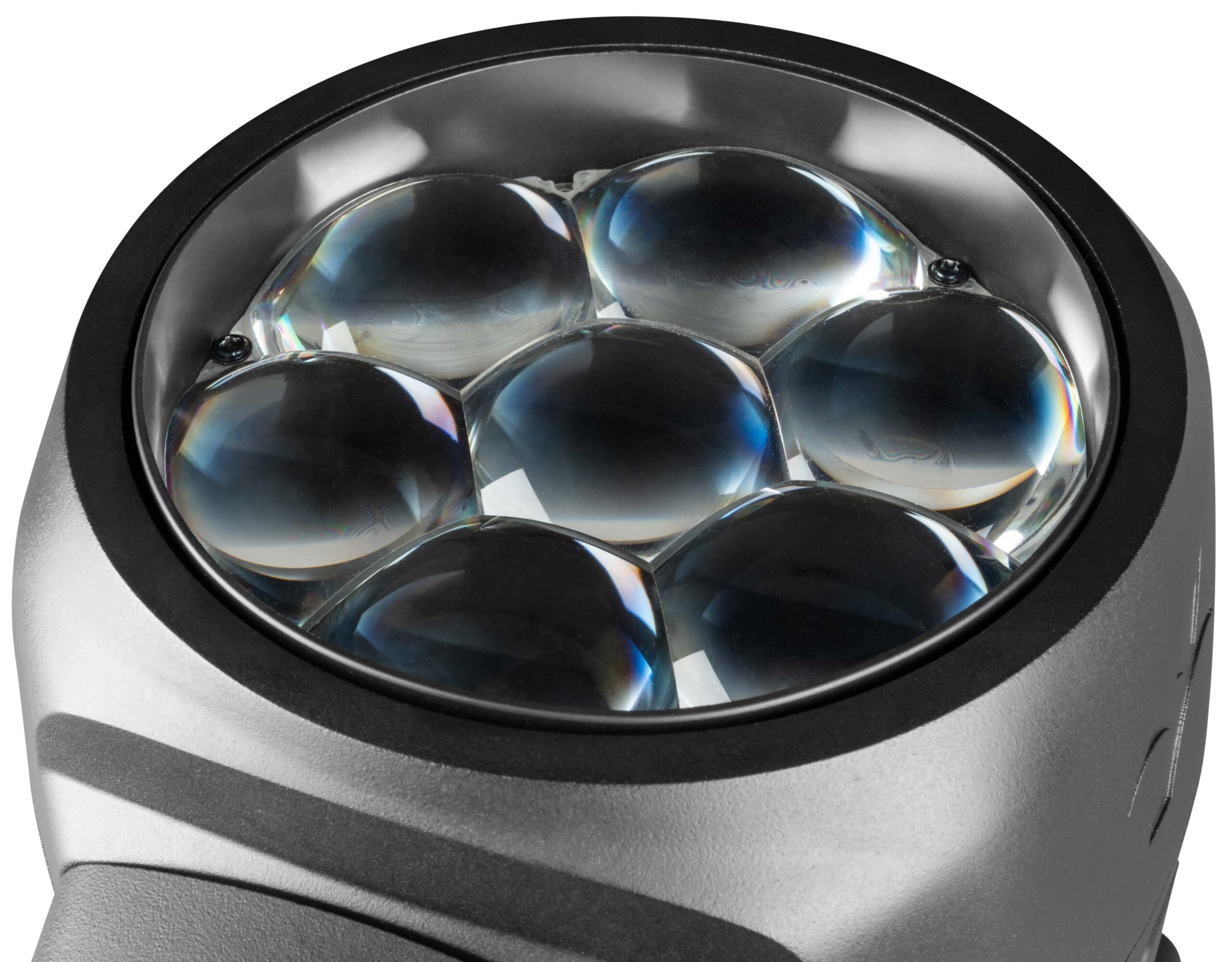

| Optic system | Projection angle: zoom from 6 ° to 55 ° Illuminance: 18000lux @5m (full ON – 6°) / 505lux @5m (full ON – 55°) Lens type: honeycomb gapless plano-convex optics |
| Color system | LED source RGBW Full color Infinite chromatic possibilities Calibrated led sources |
| Effects | Electronic dimmer 0-100% Motorized zoom Electronic strobo, pulse, random, single pixel Single Pixel control Pre-programmed dynamic and static patterns with programmable fades Virtual colour wheels: foreground, background with programmable fades CCT: CCT control, +/- green correction |

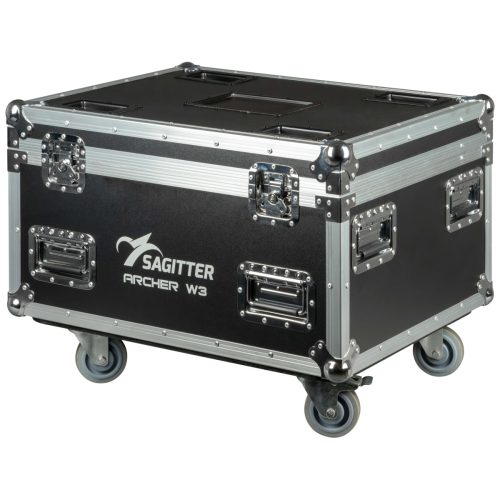

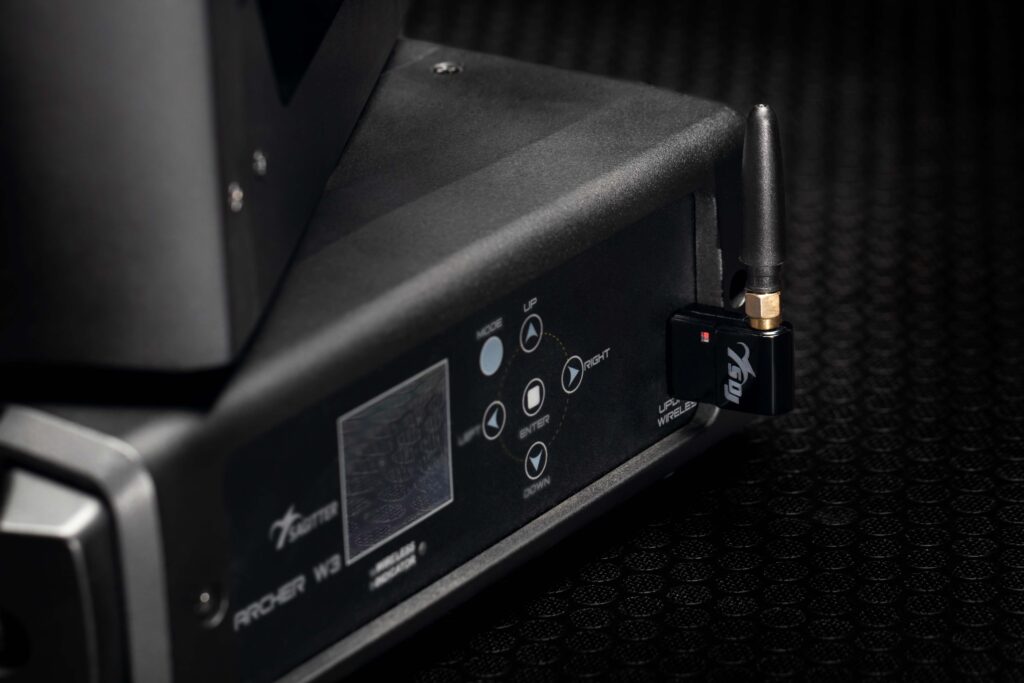

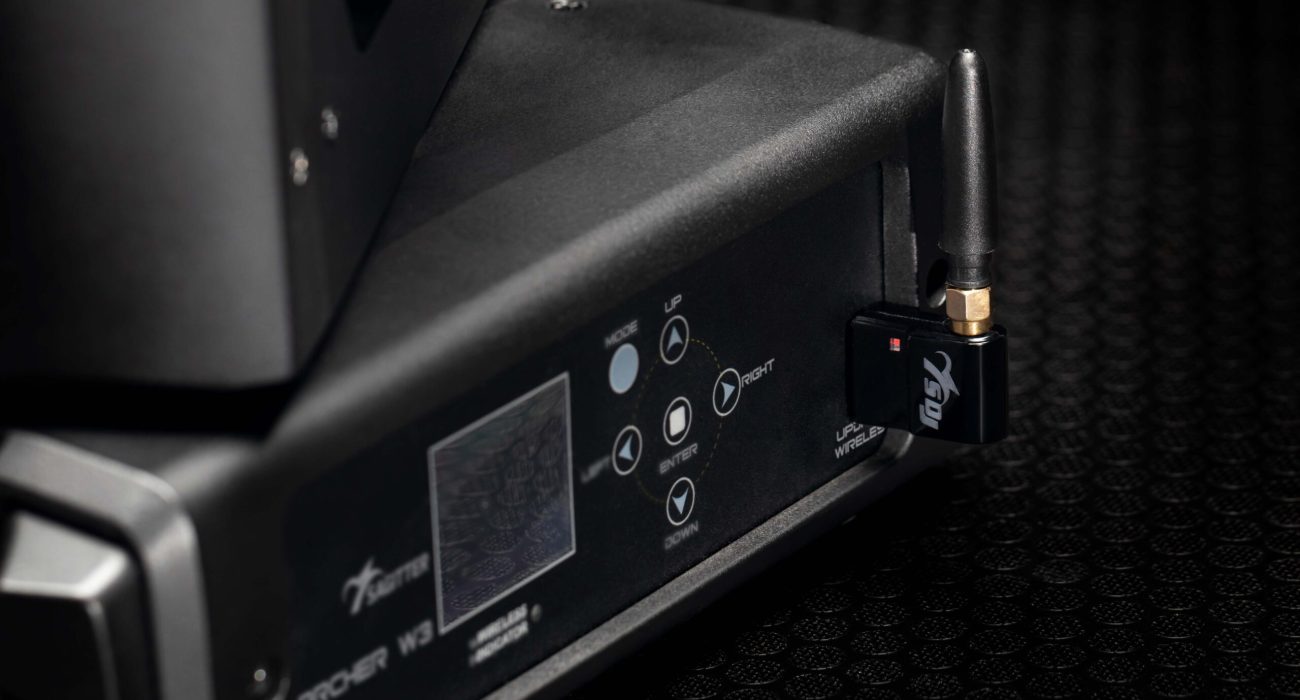

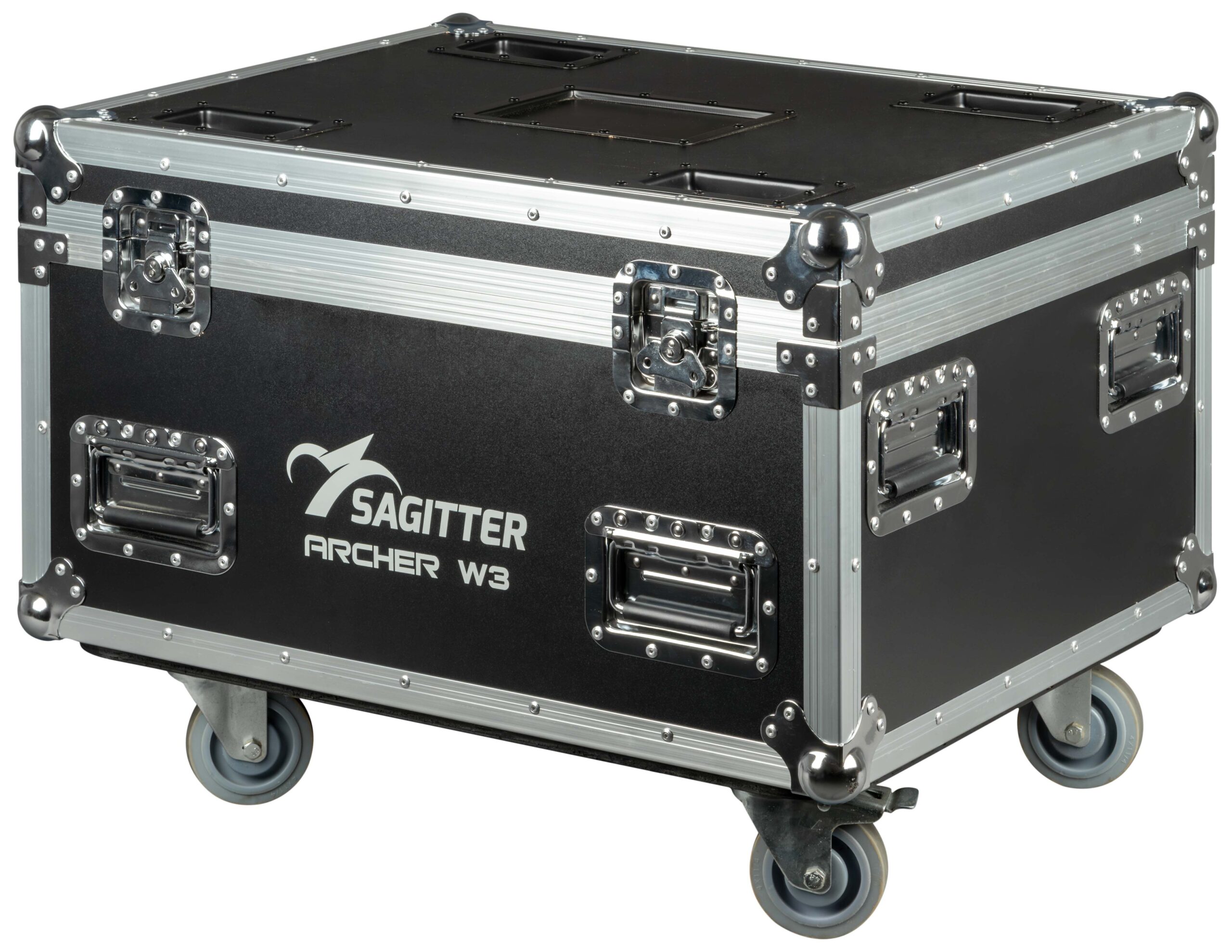

| Control and programming | 5 DMX configurations available: 15/16/24/25/51 channels Protocols: DMX 512, RDM Optional wireless DMX receiver (order code SG WECONUSB) 8/16bit Pan & Tilt resolution Master/Slave mode Reset function via DMX 3 Custom Program modes with 5 scenes Virtual color wheel with 62 colors White presets with 10 macros Virtual linear color wheel from 2.700 K to 10.000K Customizable color calibration system 4 Dimmer curves: Linear, Square, I-Square, S-Curve 5 Dimmer modes: Standard, Stage, TV, Architectural, Theatre Flightcase mode to protect the zoom |

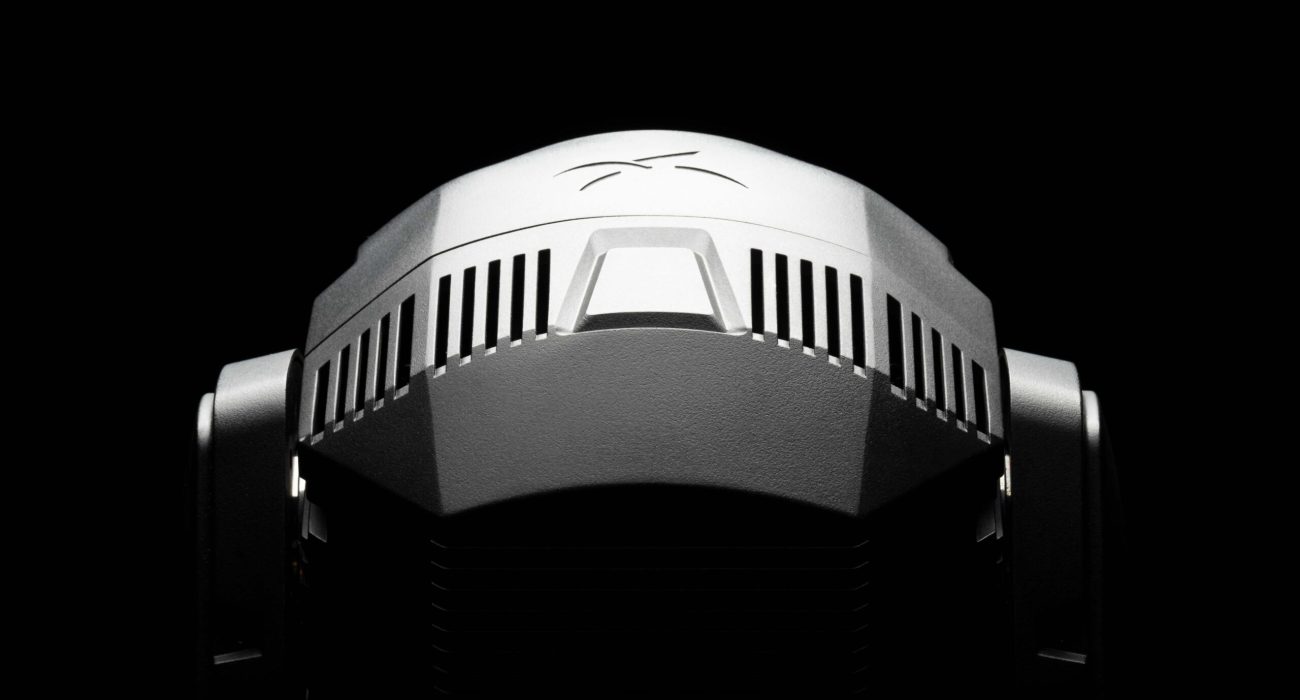

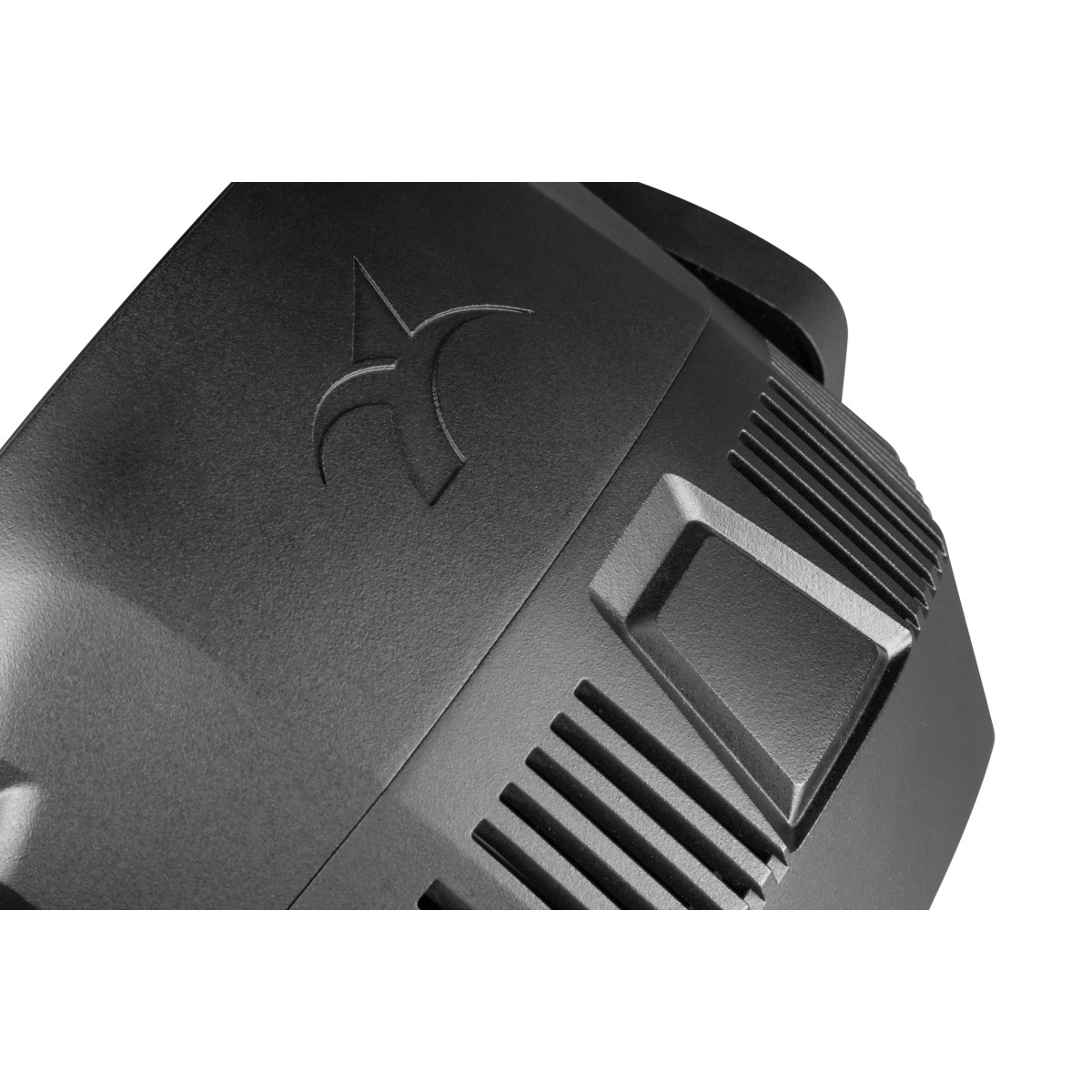

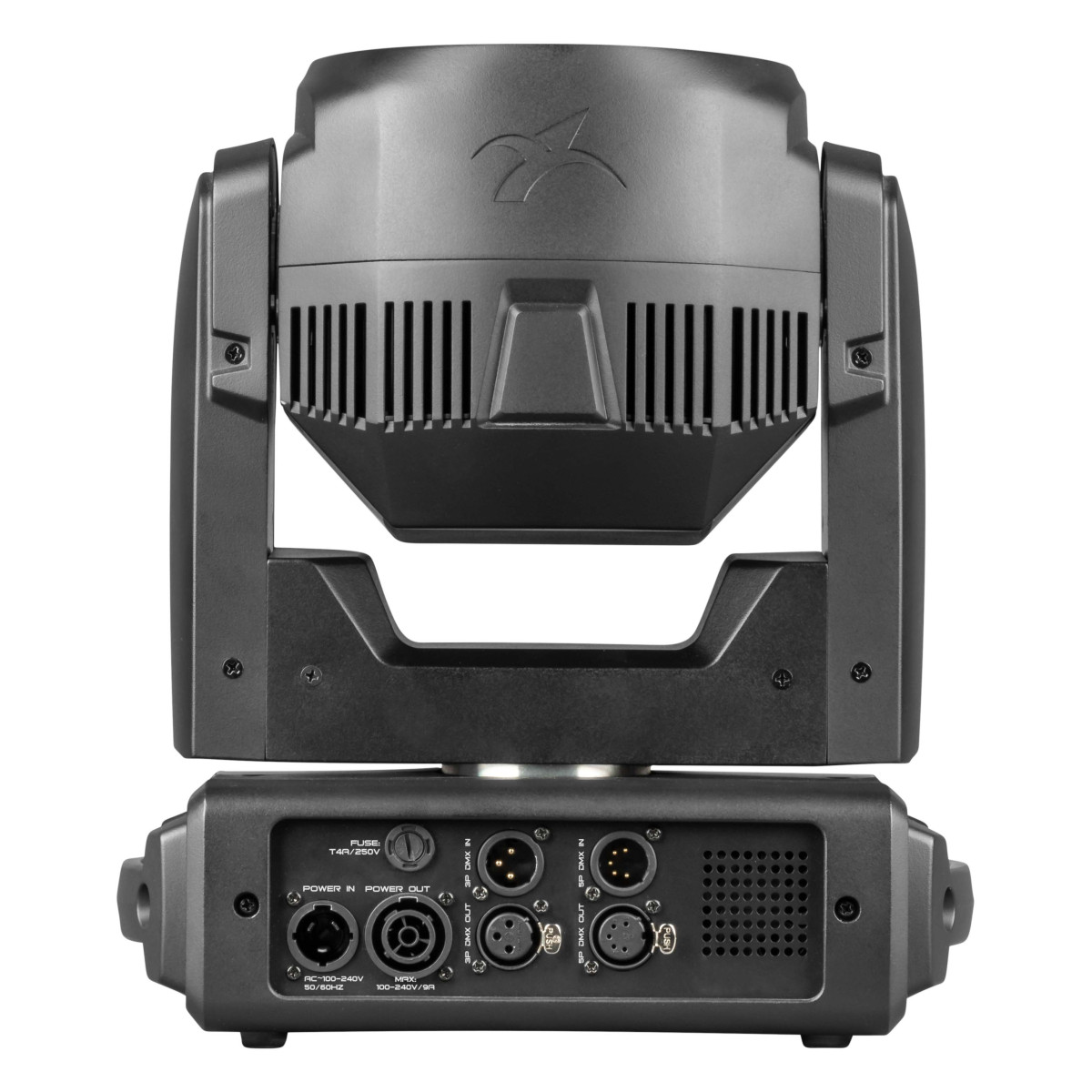

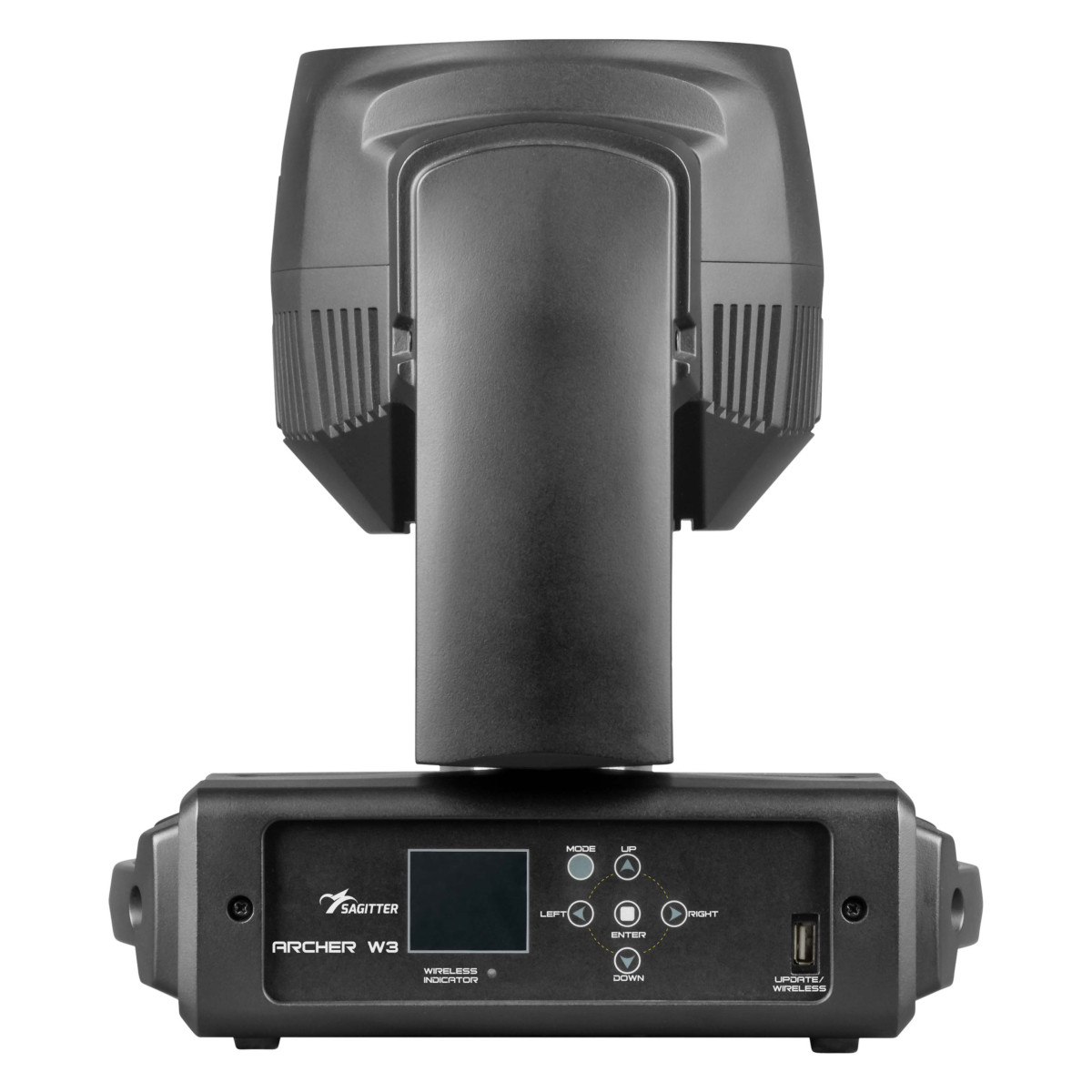

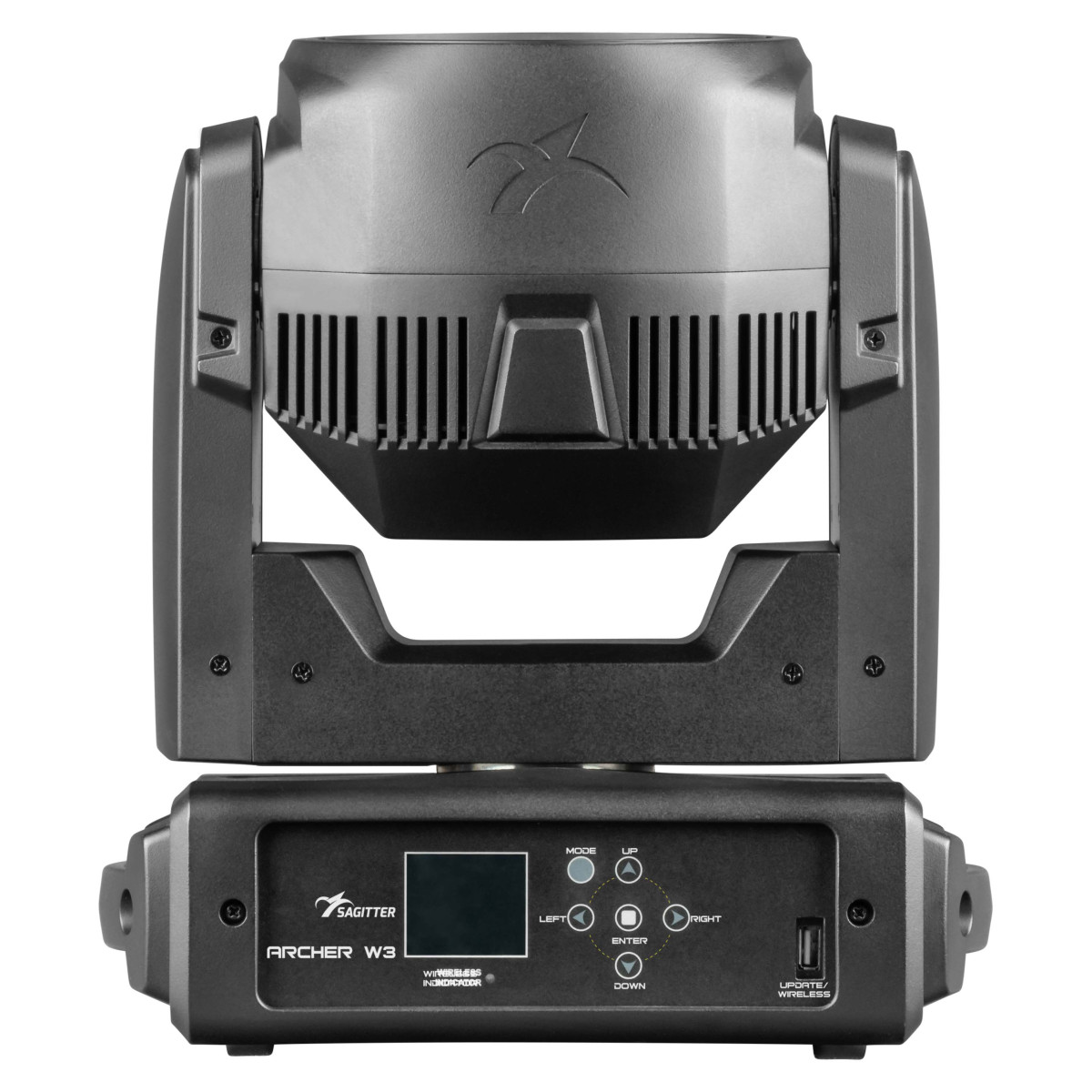

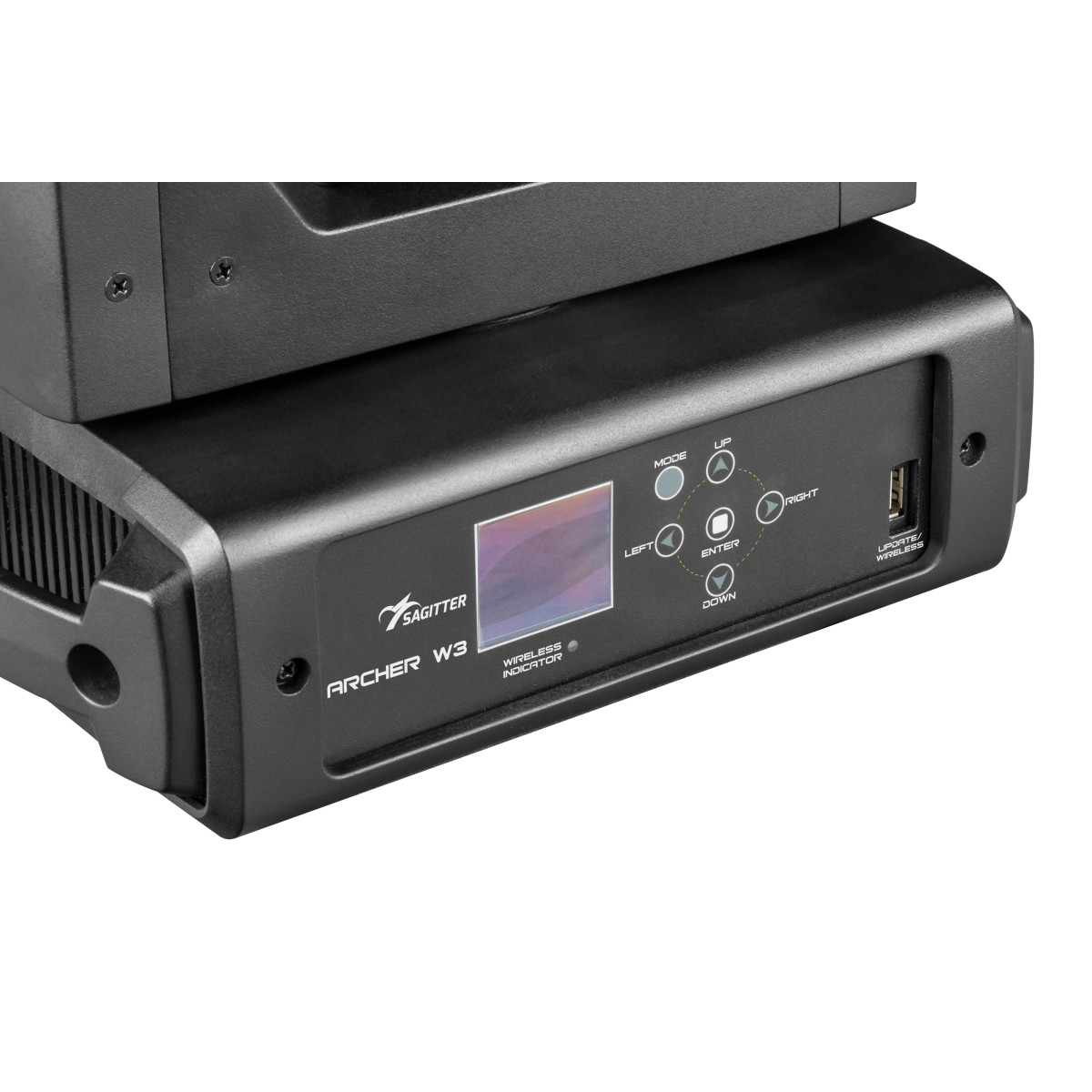

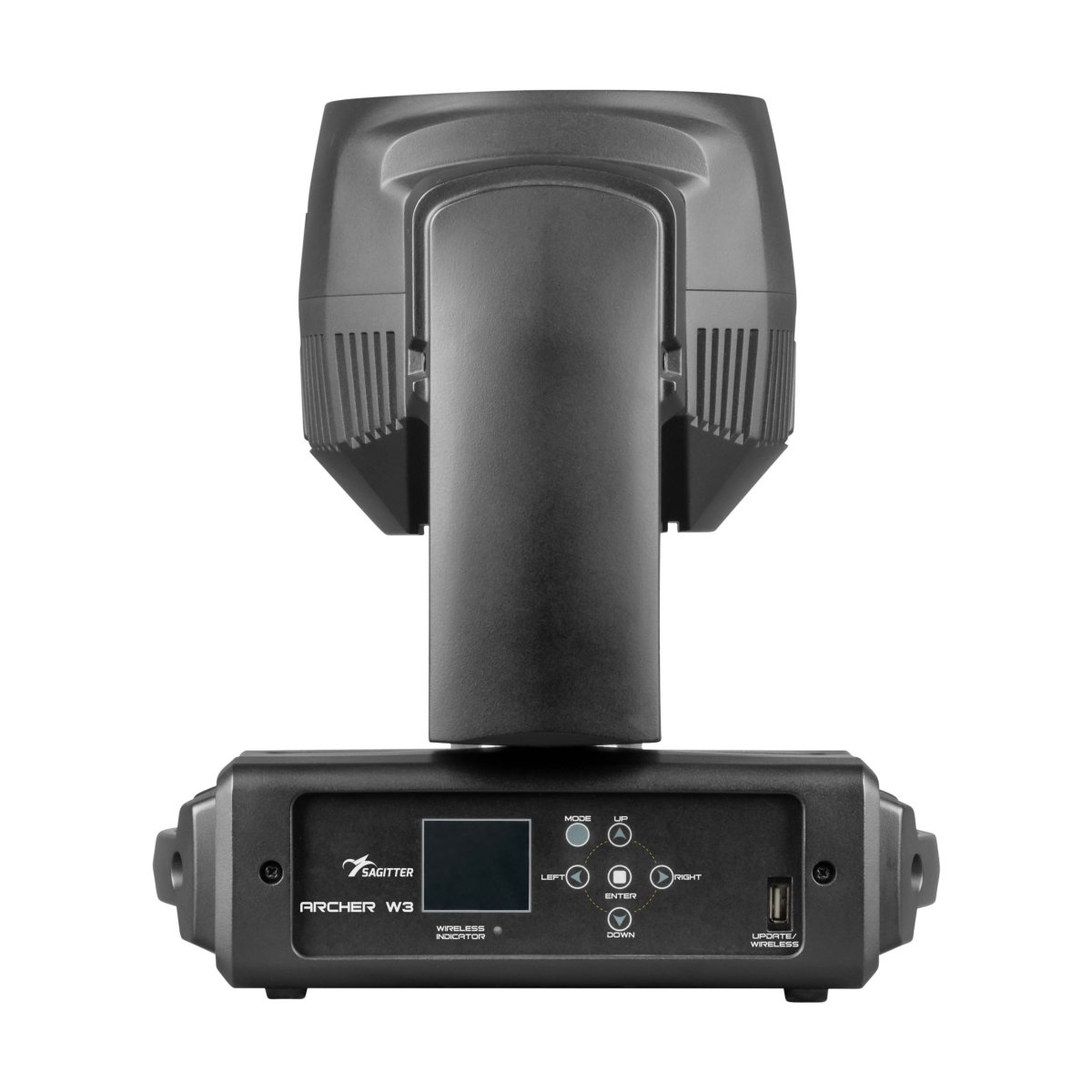

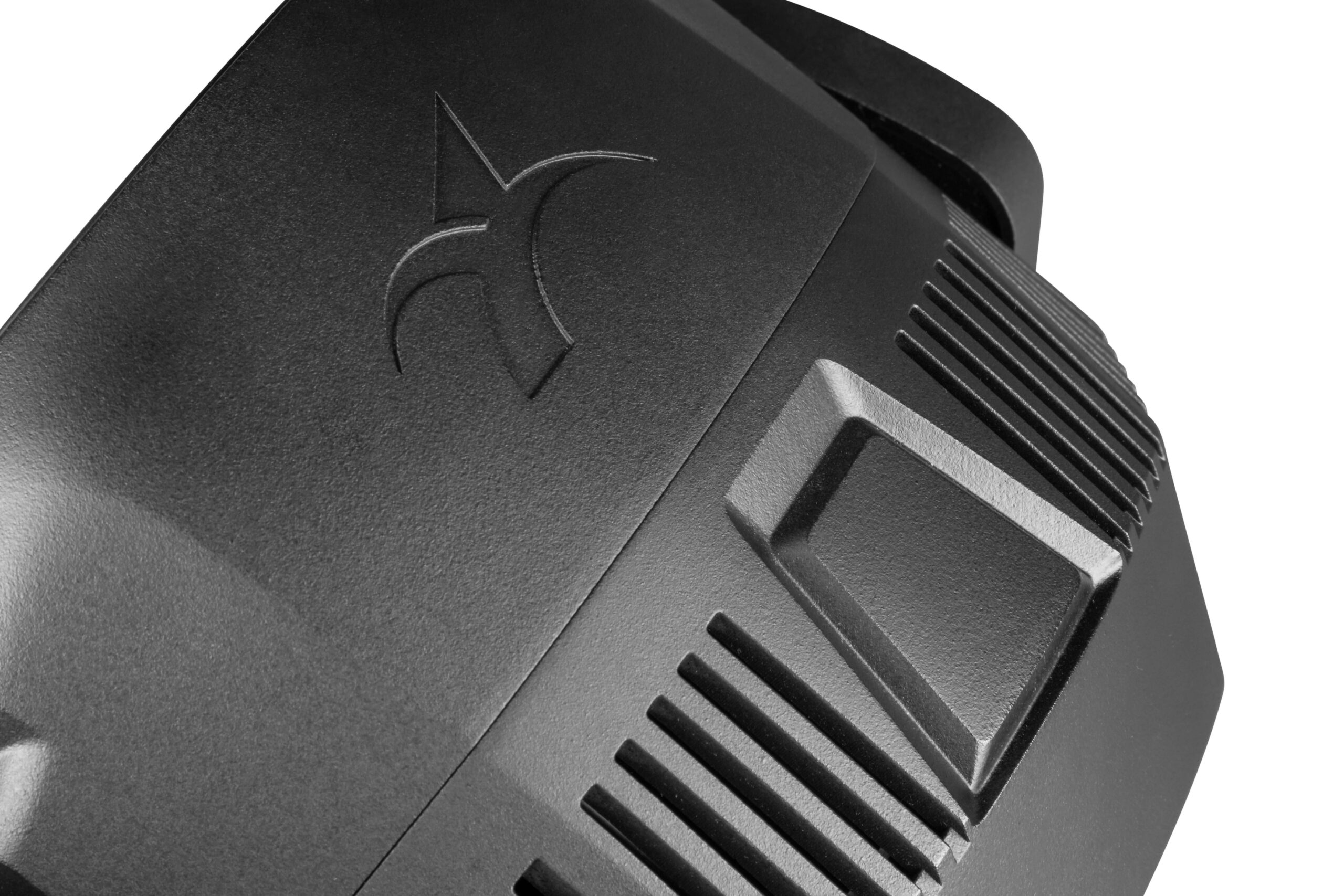

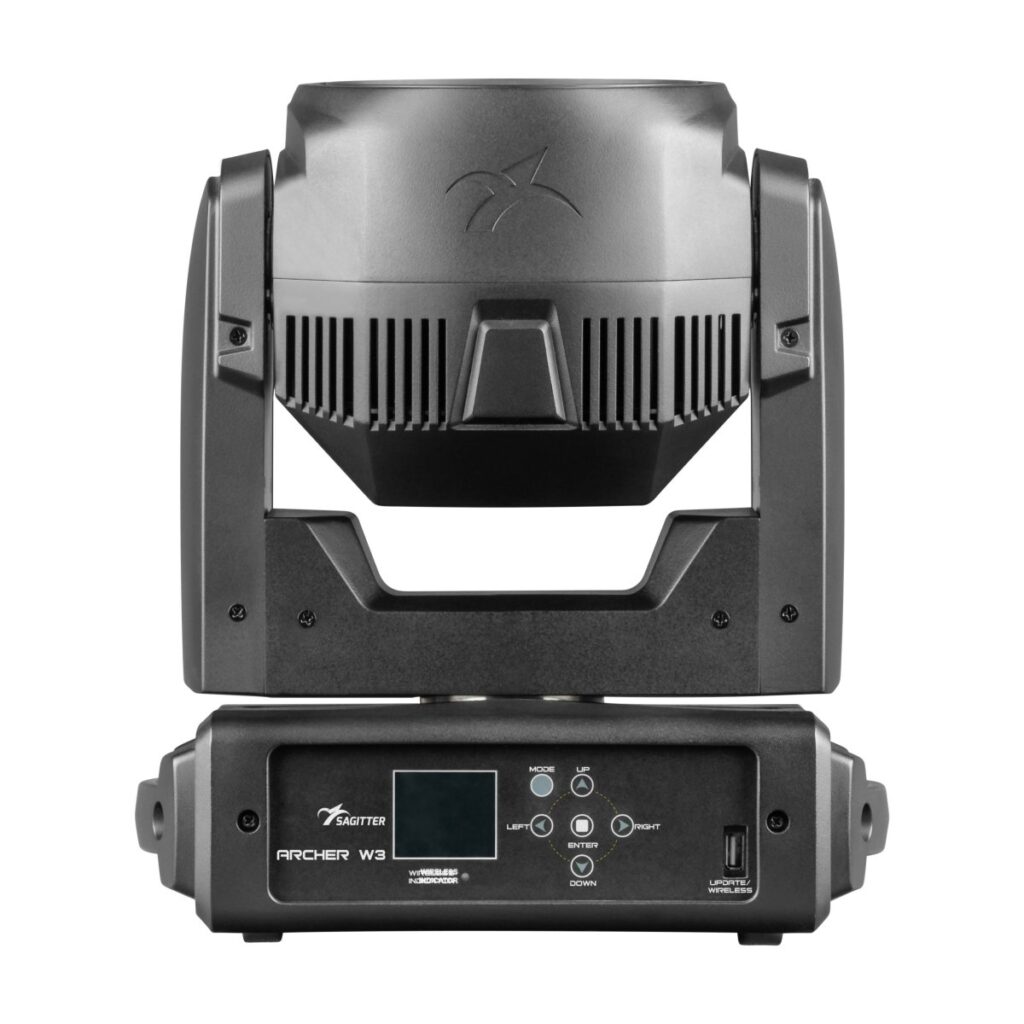

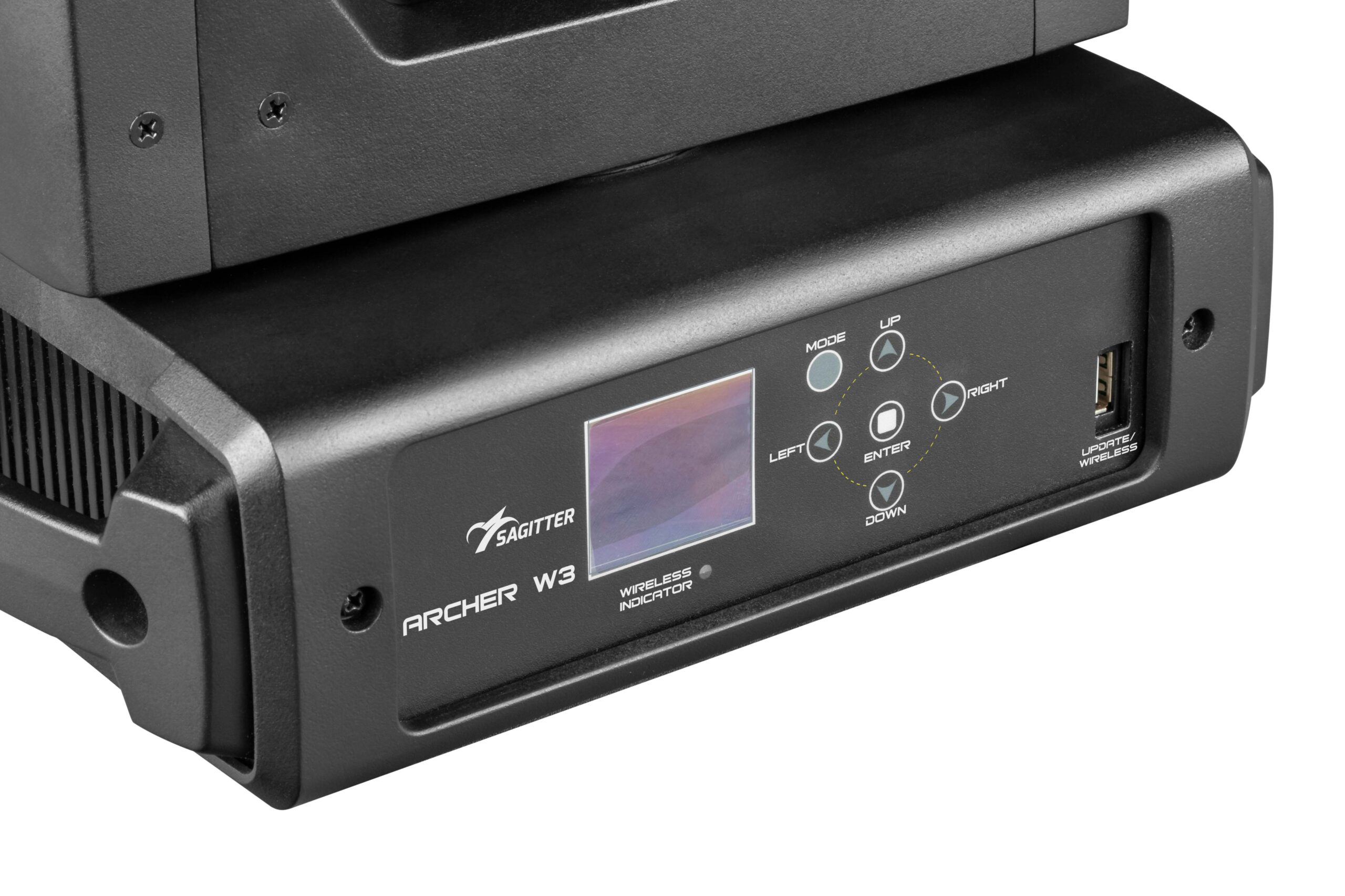

| Structure and cabinet | Aluminum internal structure with hi-resistance ABS cover High resolution LCD colour display with touch buttons Pan angle: 540°/630° Tilt angle: 270° Mounting points: 1 pairs of 1/4-turn locks omega older Automatic repositioning of Pan & Tilt XLR 3-5 poles DMX IN/OUT connection USB port for software update and wireless DMX receiver IP rating: 20 Low-noise controlled cooling system Noise levels @1m: Fan AUTO 47dB(A), Fan HIGH 49dB(A), Fan LOW 40dB(A) Backup battery for user menu access without connecting to the main power |

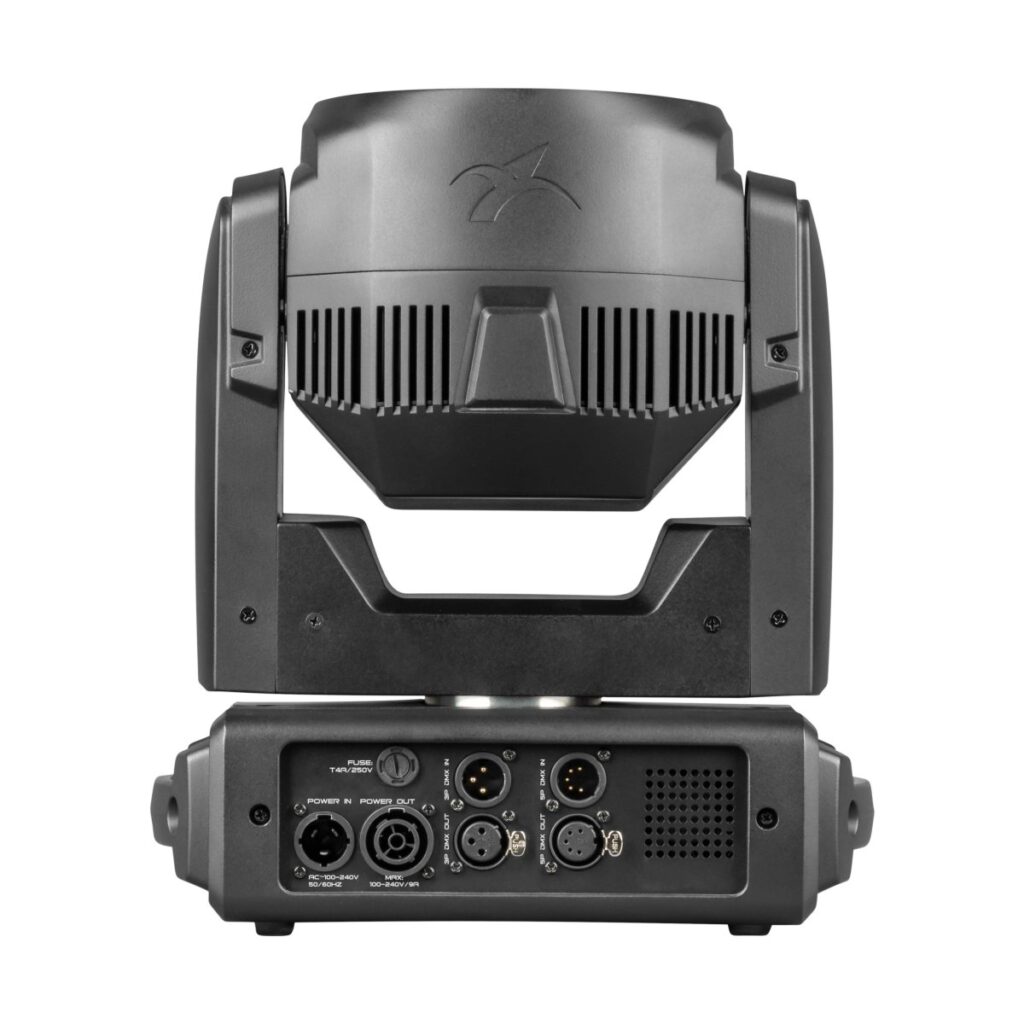

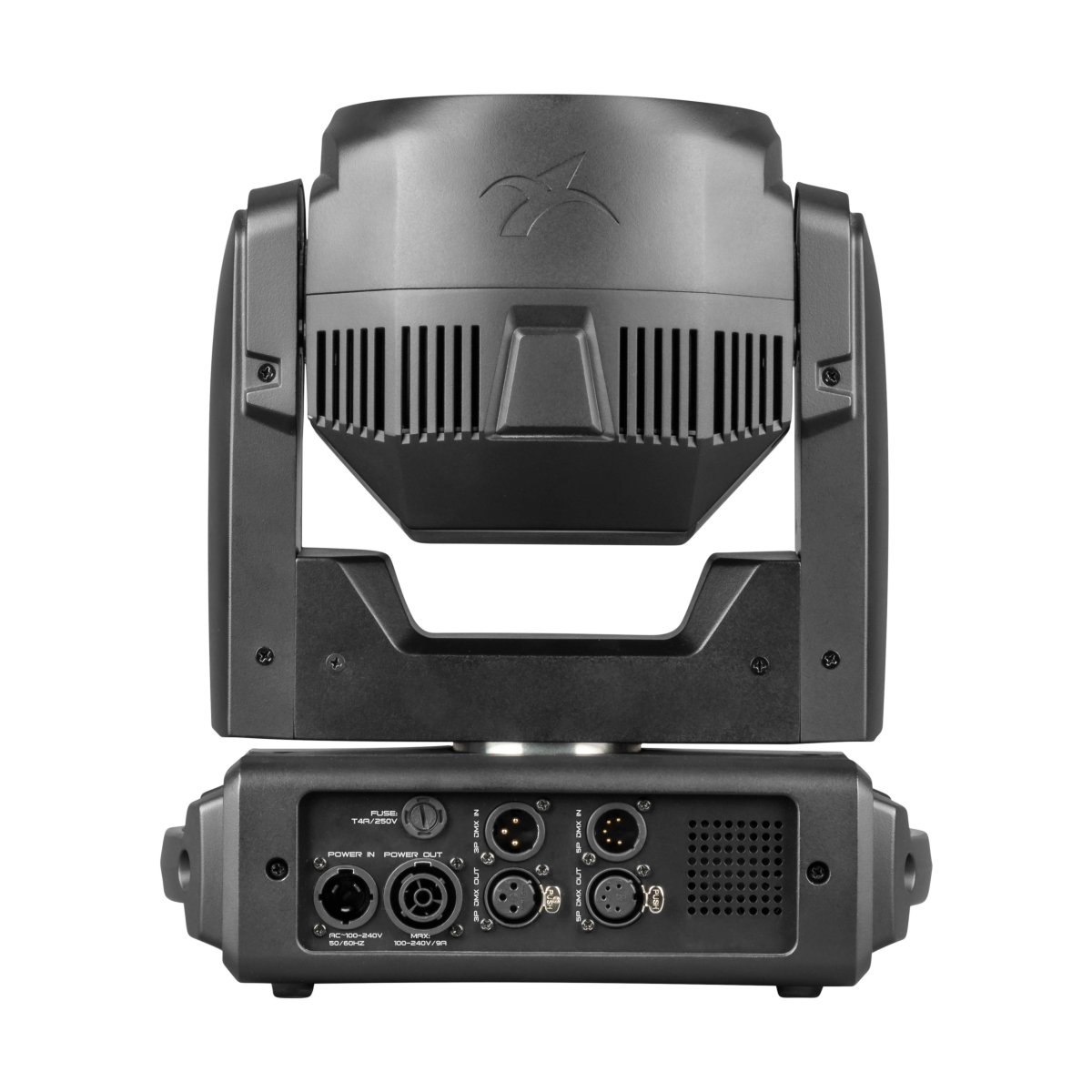

| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Output Voltage: AC~100-240V, 50/60 Hz – Max 9A Switching power supply unit Max power: 340W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT |
| Weight and dimensions | Net weight: 7,5 kg Dimensions (LxAxP): 296x351x180 mm |
