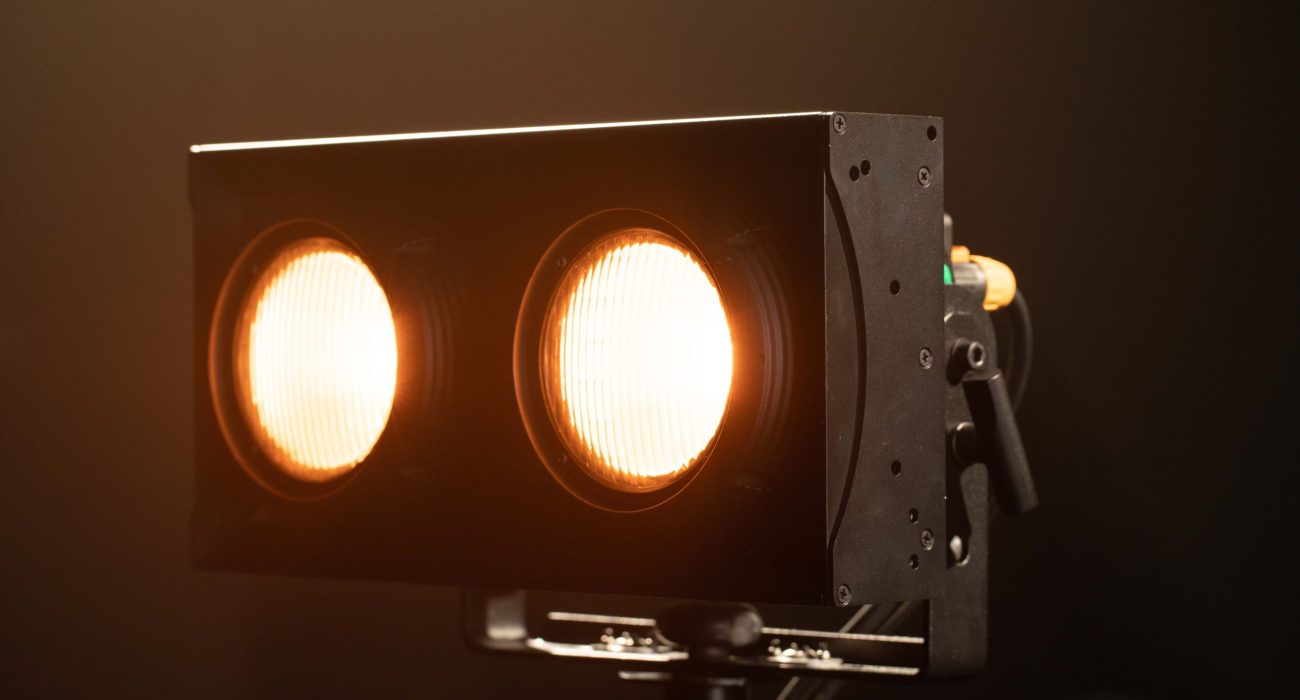

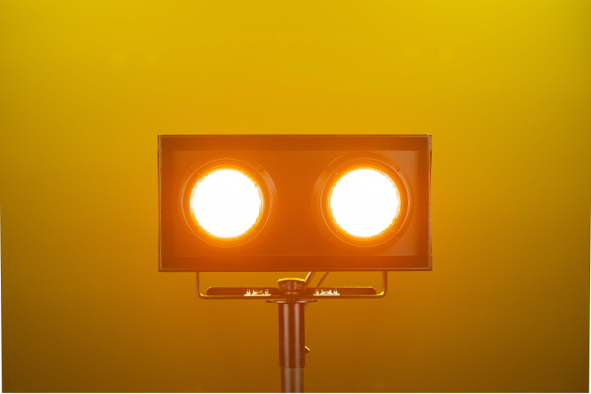

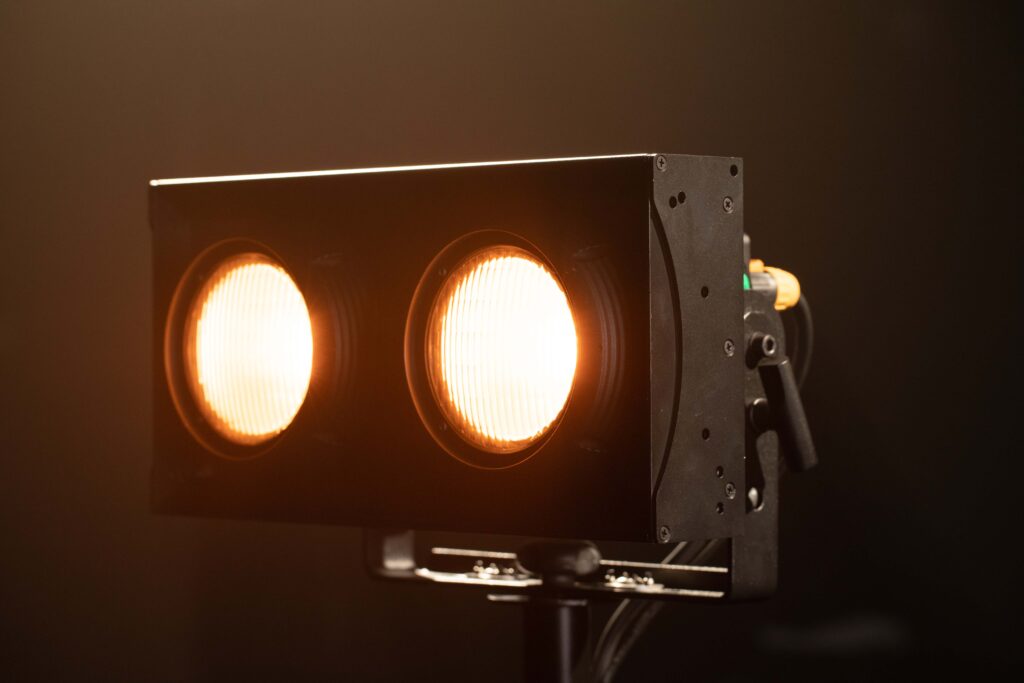

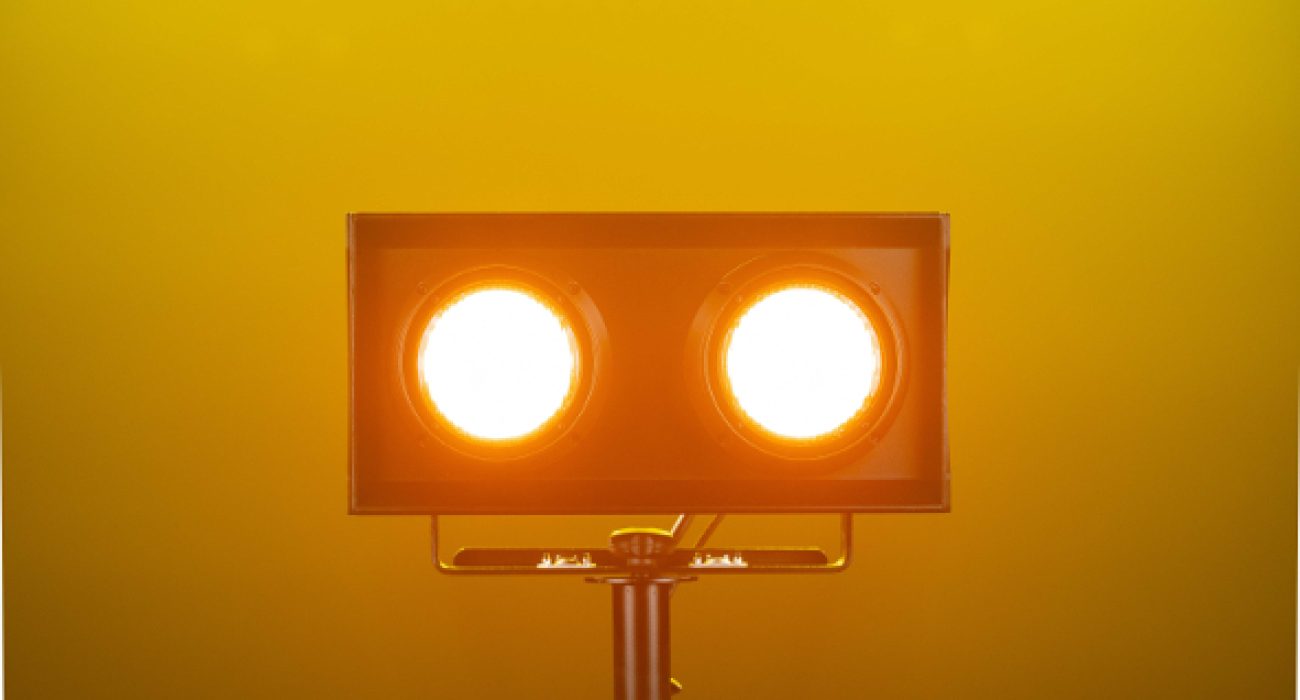

| Light source | 2x100W led COB Warm White 3200K CRI≥85Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz anti-flicker |
| Optic system | Beam Angle: 94° |
| Color system | Led COB Warm White 3200K |
| Effects | Linear dimmer 0-100% Adjustable strobe effect RED-Shift effect for Halogen blinder simulation Single eye control |
| Control and programming | 6 DMX configurations available: 1/4/6/2/6/10 channels Key lock password for display lock Protocol USITT DMX 512 |

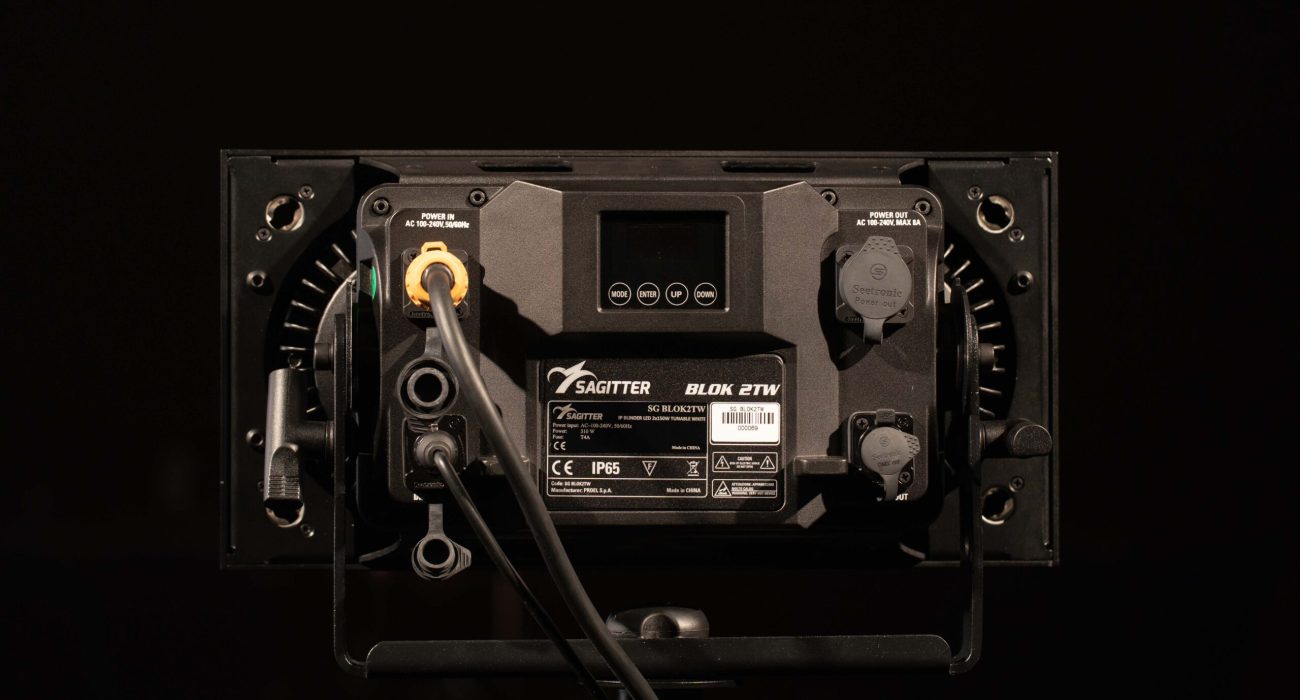

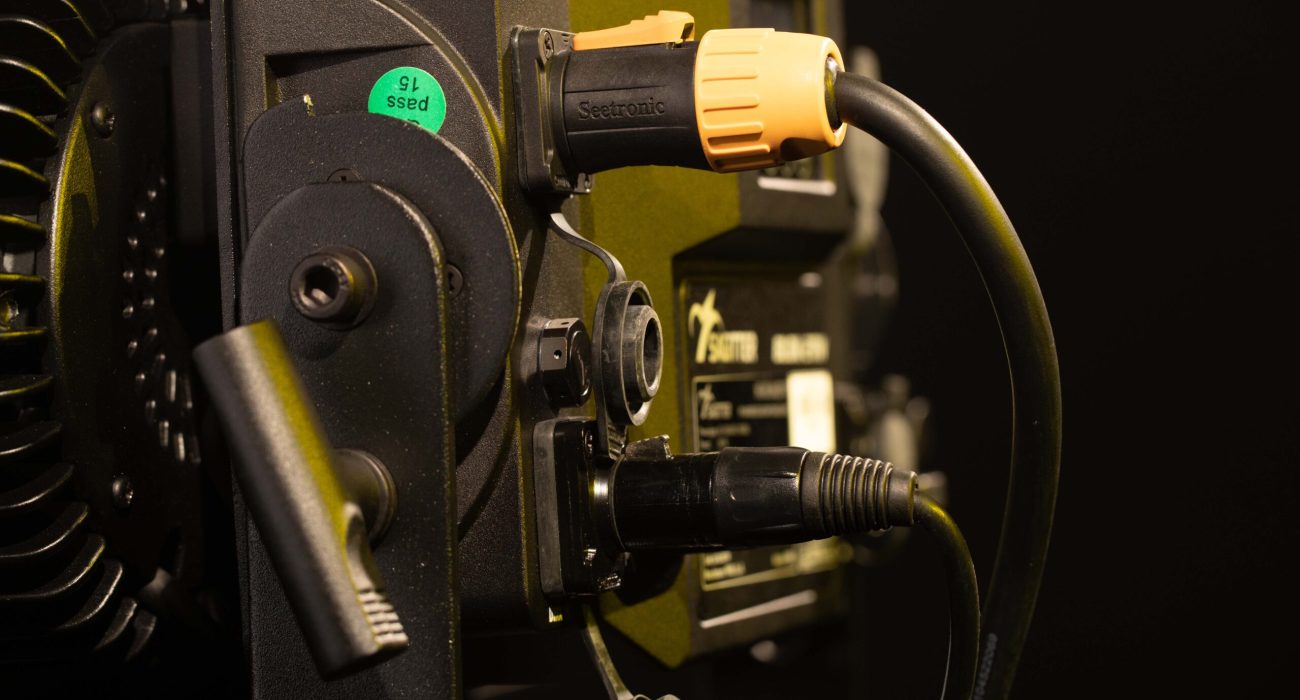

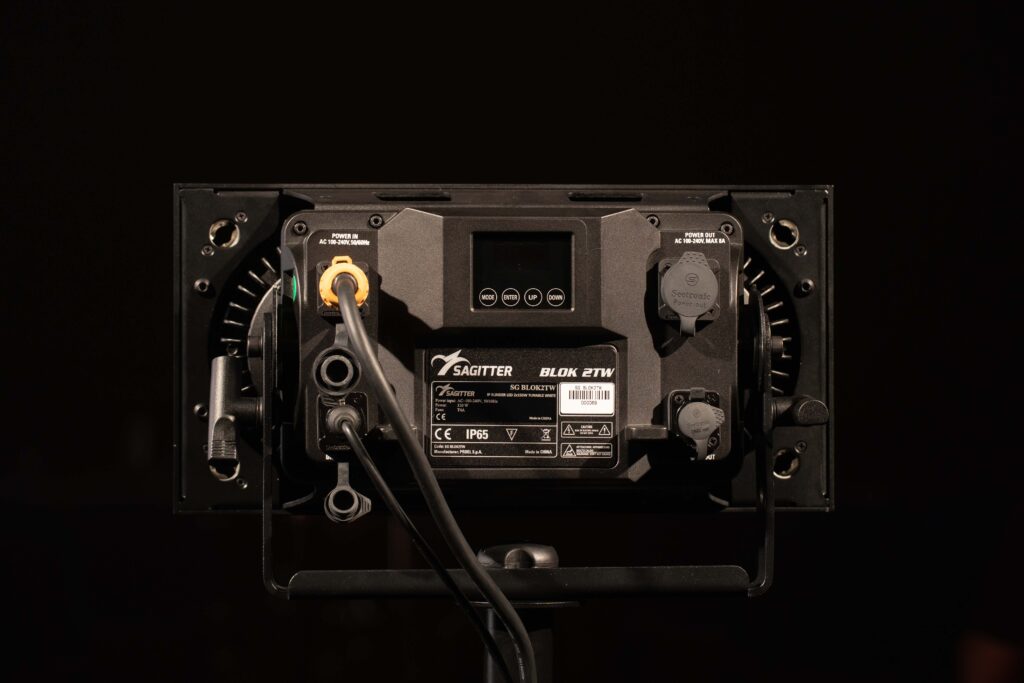

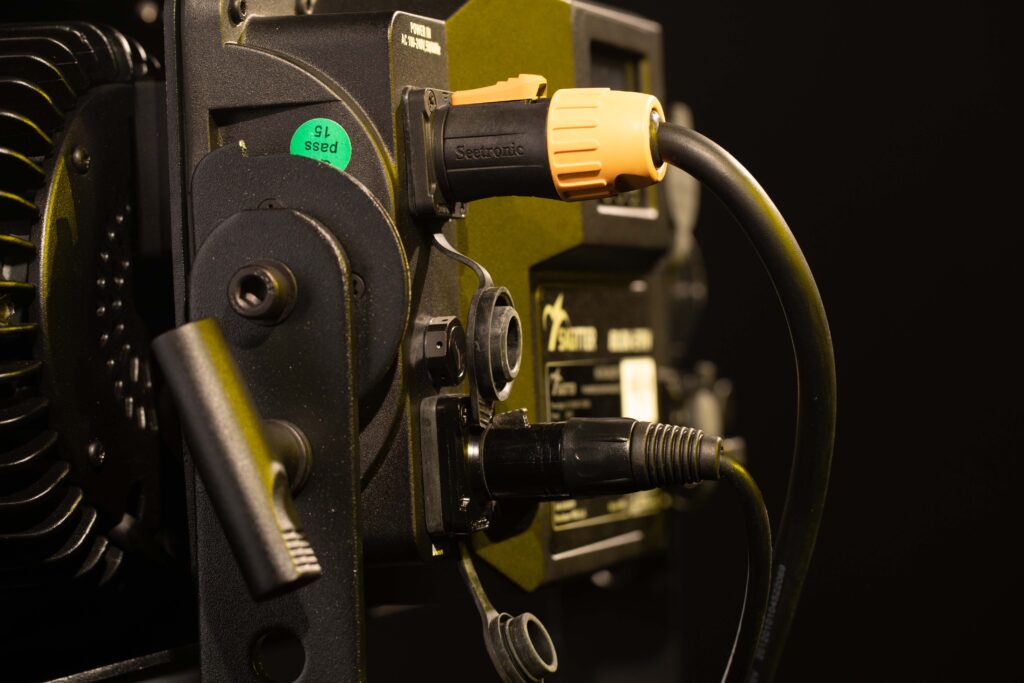

| Structure and cabinet | Die cast aluminium housing Hardware system connection for multiple projectors stack (SG BLOK2TWH sold separately) LCD graphic display “Light up” positioning with adjustable angle IP rating: IP65 DMX 3-poles XLR IP65 IN/OUT connectors Low Noise controlled forced ventilation cooling system Noise levels @1m: Fan AUTO 43.0dB(A) |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max Power: 315W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT |
| Weight and dimensions | Net weight: 8,2 kg Dimensions: 400x240x230 mm |
| Light source | 2x100W led COB Warm White 3200K CRI≥85Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz anti-flicker |
| Optic system | Beam Angle: 94° |
| Color system | Led COB Warm White 3200K |
| Effects | Linear dimmer 0-100% Adjustable strobe effect RED-Shift effect for Halogen blinder simulation Single eye control |
| Control and programming | 6 DMX configurations available: 1/4/6/2/6/10 channels Key lock password for display lock Protocol USITT DMX 512 |
| Structure and cabinet | Die cast aluminium housing Hardware system connection for multiple projectors stack (SG BLOK2TWH sold separately) LCD graphic display “Light up” positioning with adjustable angle IP rating: IP65 DMX 3-poles XLR IP65 IN/OUT connectors Low Noise controlled forced ventilation cooling system Noise levels @1m: Fan AUTO 43.0dB(A) |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max Power: 315W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT |
| Weight and dimensions | Net weight: 8,2 kg Dimensions: 400x240x230 mm |
