| Light source | 1 × 400 W RGBAL COB LED CRI≥84Ra |
| Optic system | Beam angle: 80° without lenses – 33° Fresnel lens – 63° frost lens Luminous flux of FULL ON: 460 lx @ 5m without lenses Luminous flux of FULL ON: 1182 lx @ 5m with 33° Fresnel lens Luminous flux of FULL ON: 318 lux @ 5m with 63° frost lens |
| Color system | RGBAL LEDs |
| Effects | 16-bit dimmer Dimmer curves: 4 selectable dimming curves available Halogen dimming speed emulation Red Shift function (tungsten dim-to-warm emulation) High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate Virtual color wheel with 109 numeric gel filters presets CTC from 1750K to 20000K Selectable PWM: adjustable from 1000 Hz to 25 KHz Emergency mode: editable dimmer level, color or color temperature when DMX signal is lost |
| Control and programming | 8 x DMX channel modes Protocol USITT DMX 512, RDM Master/Slave mode |

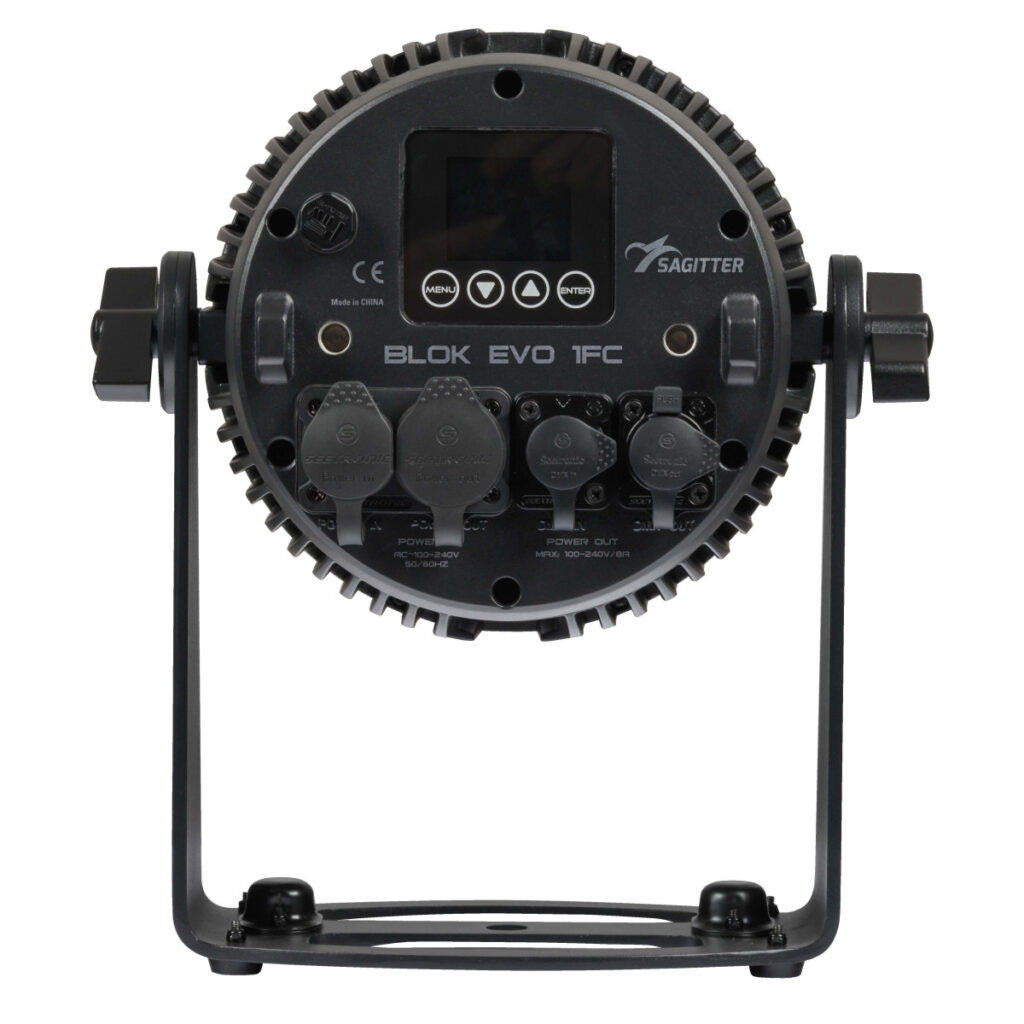

| Structure and cabinet | Die cast aluminium housing LCD graphic display Quick-release anchor points, on-board mechanics for stacking multiple devices “Light up” positioning with adjustable angle Mounting points: 2 pairs of 1/4-turn locks omega bracket IP rating: IP65 DMX 5-poles XLR IN/OUT IP65 connectors Low-noise controlled cooling system |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 430W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1,0 mt included |
| Weight and dimensions | Net weight: 4,5 kg Dimensions: 190x190x223 mm (without bracket) |
