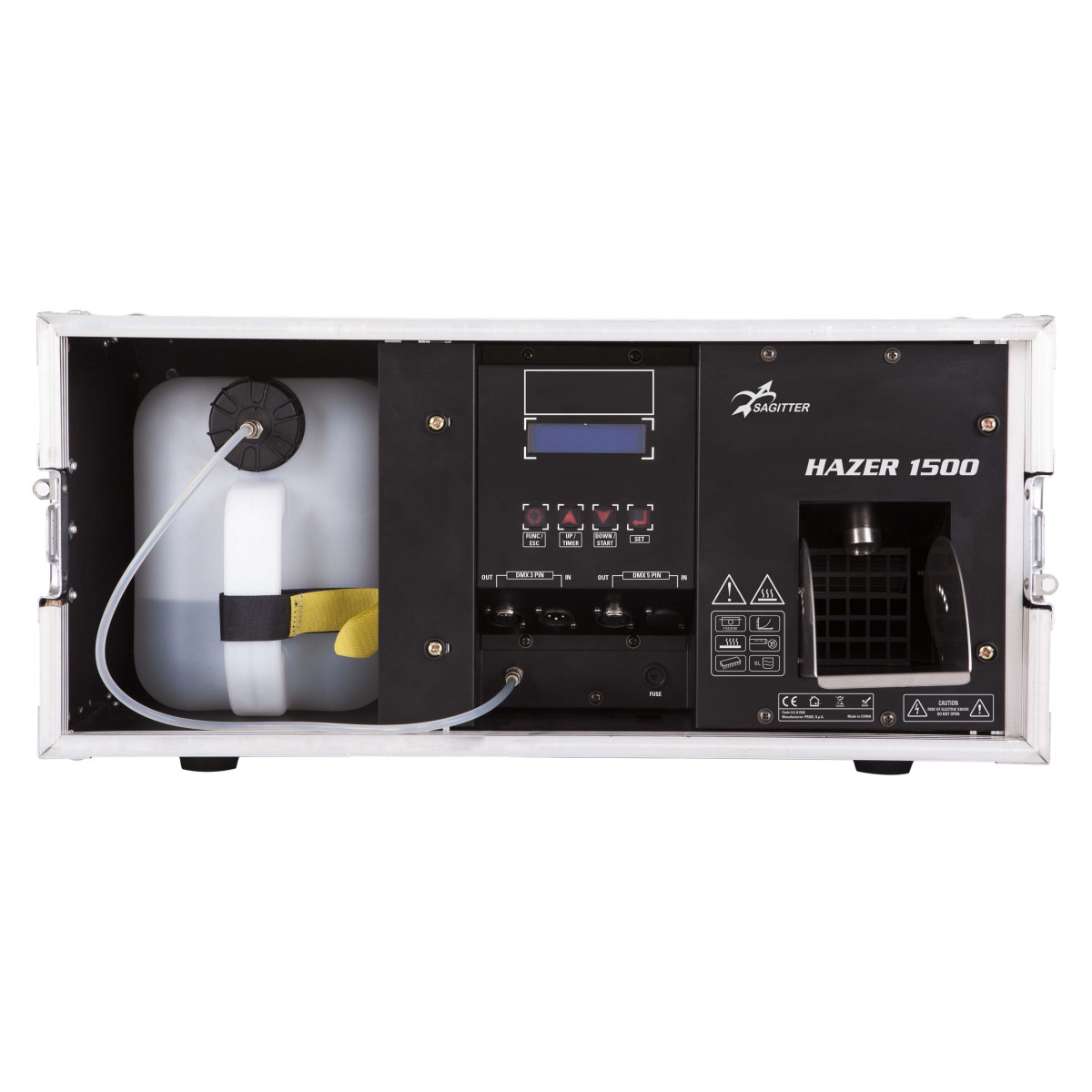

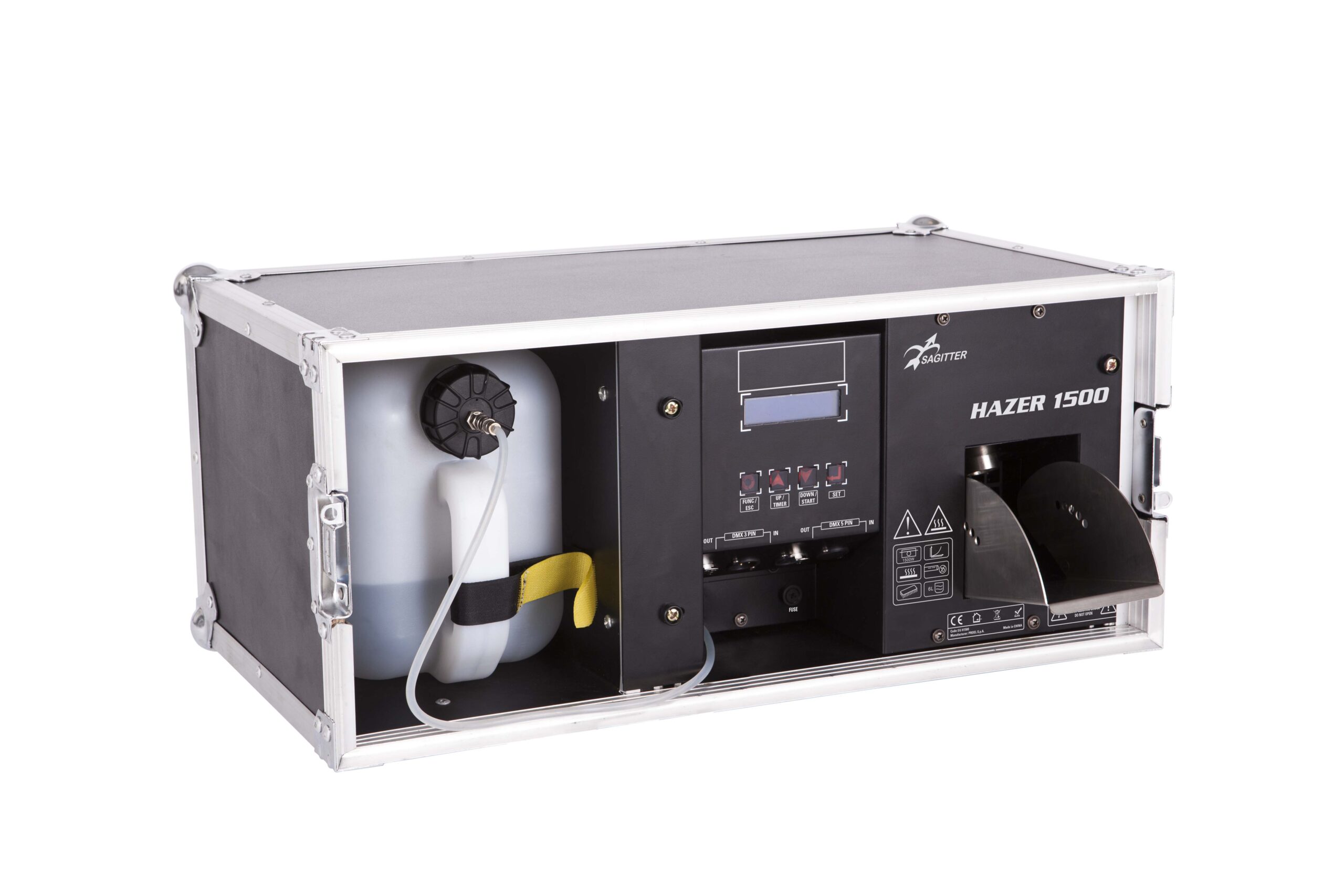

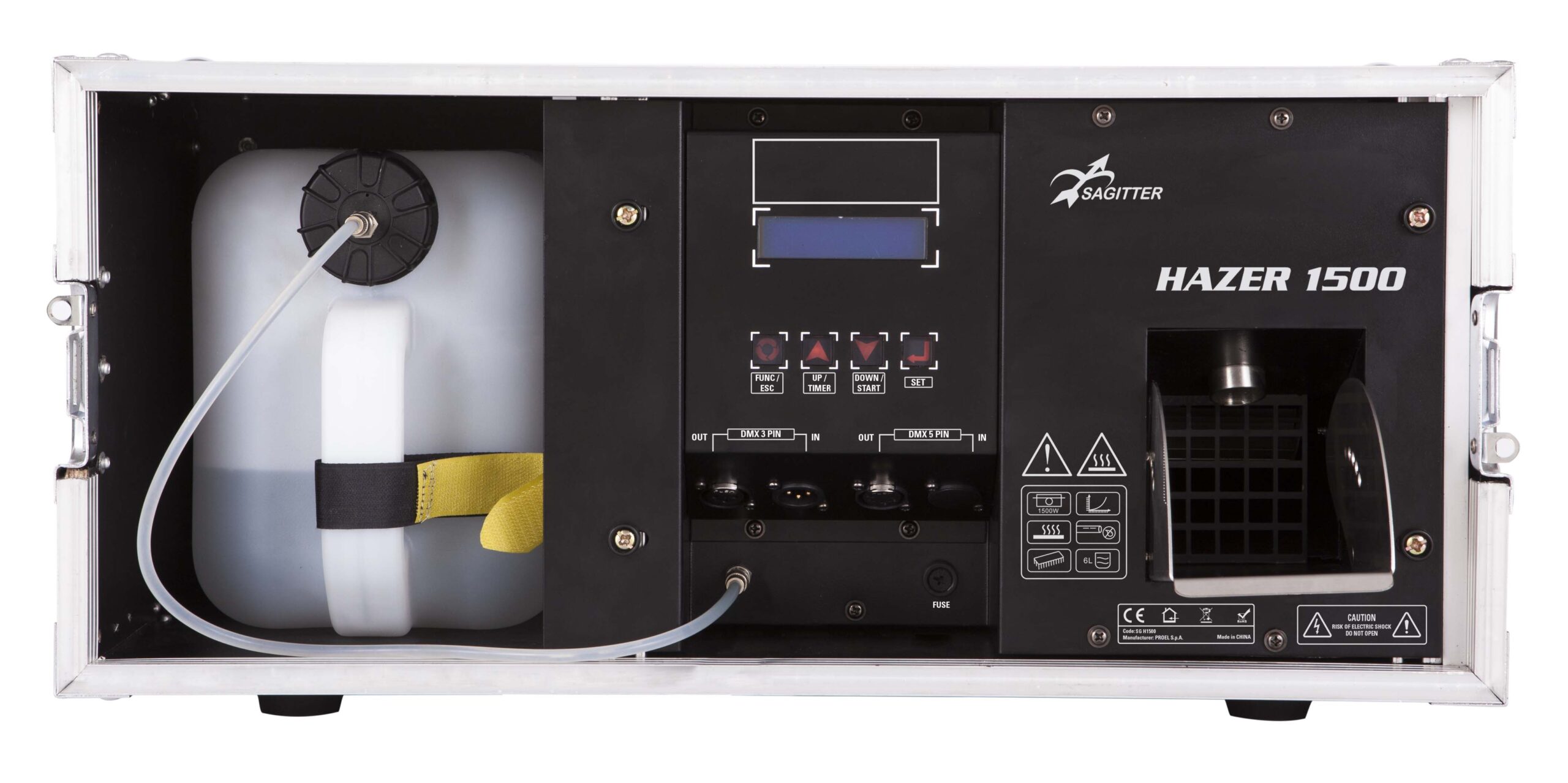

H type smoke machine designed for the professional world of entertainment. H 1500 ensures perfect coverage of medium and large indoor and even outdoor environments; its new technology uses an air pump that as well as ensuring optimal smoke and air mixing, also guarantees extreme cleanliness of the heating duct, preventing troublesome blockages resulting from normal limescale deposits. The fog effect generated is dry and fine, it does not obstruct the viewer’s vision and thanks to a powerful internal fan with controllable speed it can saturate the environment very quickly. The machine is equipped with a dual-channel DMX control, with a manual mode that can be controlled from the control panel, freely programmable with customised operation intervals in terms of duration, volume and fan speed.
| Effects | Hazer effect |
| Control and programming | 2 different DMX channels configurations Fan’s speed adjustable via software and via DMX Protocol USITT DMX 512 Automatic safety shutdown circuit for pump prevention in case of finished liquid in the circuit Heating time: 4 mins Smoke output: 1700cuft Continue output Manual mode adjustable via display |
| Structure and cabinet | Metal black housing LCD blue graphic display Flight case included, for easy transportation Confortable handle for transportation High performance pump for optimal emission High speed axial fan External tank: 6 litres 3/5 poles XLR in/out connection IP rating: IP20 For best applications and correct function we recommend using Sagitter fluids |
| Power supply | Input Voltage: AC~230V 50Hz Power consumption 1500W IN power connection with powerCON sockets Power supply cable 1,5 mt included |
| Weight and dimensions | Net weight: 18 kg Dimensions: 570x415x270 mm |
H type smoke machine designed for the professional world of entertainment. H 1500 ensures perfect coverage of medium and large indoor and even outdoor environments; its new technology uses an air pump that as well as ensuring optimal smoke and air mixing, also guarantees extreme cleanliness of the heating duct, preventing troublesome blockages resulting from normal limescale deposits. The fog effect generated is dry and fine, it does not obstruct the viewer’s vision and thanks to a powerful internal fan with controllable speed it can saturate the environment very quickly. The machine is equipped with a dual-channel DMX control, with a manual mode that can be controlled from the control panel, freely programmable with customised operation intervals in terms of duration, volume and fan speed.
| Effects | Hazer effect |
| Control and programming | 2 different DMX channels configurations Fan’s speed adjustable via software and via DMX Protocol USITT DMX 512 Automatic safety shutdown circuit for pump prevention in case of finished liquid in the circuit Heating time: 4 mins Smoke output: 1700cuft Continue output Manual mode adjustable via display |
| Structure and cabinet | Metal black housing LCD blue graphic display Flight case included, for easy transportation Confortable handle for transportation High performance pump for optimal emission High speed axial fan External tank: 6 litres 3/5 poles XLR in/out connection IP rating: IP20 For best applications and correct function we recommend using Sagitter fluids |
| Power supply | Input Voltage: AC~230V 50Hz Power consumption 1500W IN power connection with powerCON sockets Power supply cable 1,5 mt included |
| Weight and dimensions | Net weight: 18 kg Dimensions: 570x415x270 mm |
