HALFPAR 12

HALFPAR 12X10W LED RGBWA/FC

Description

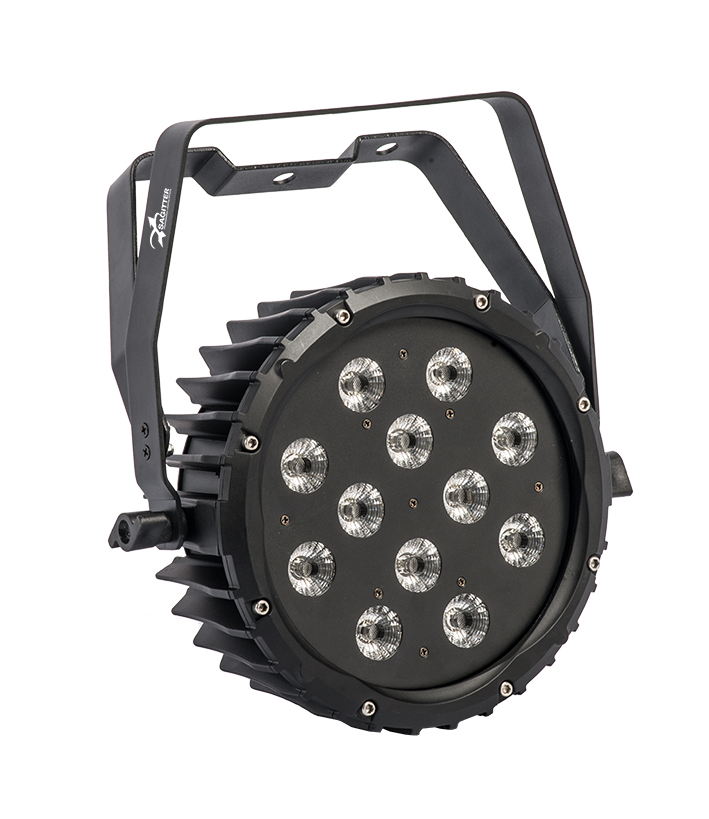

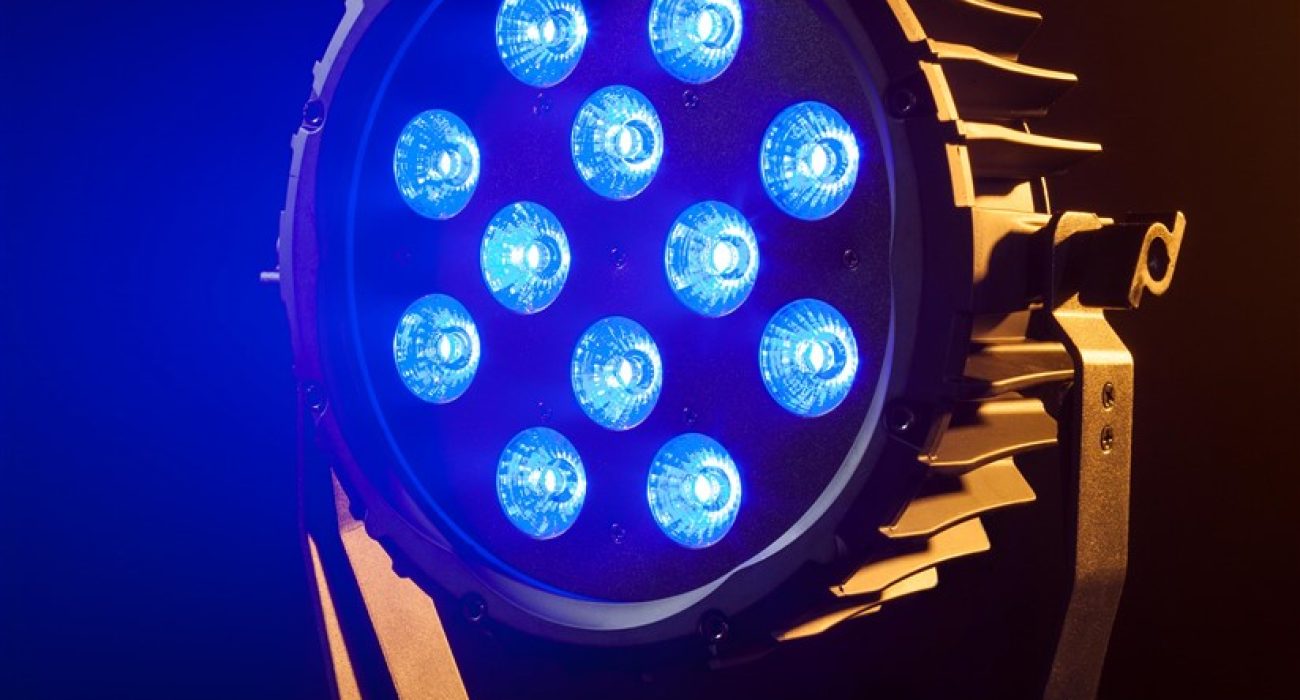

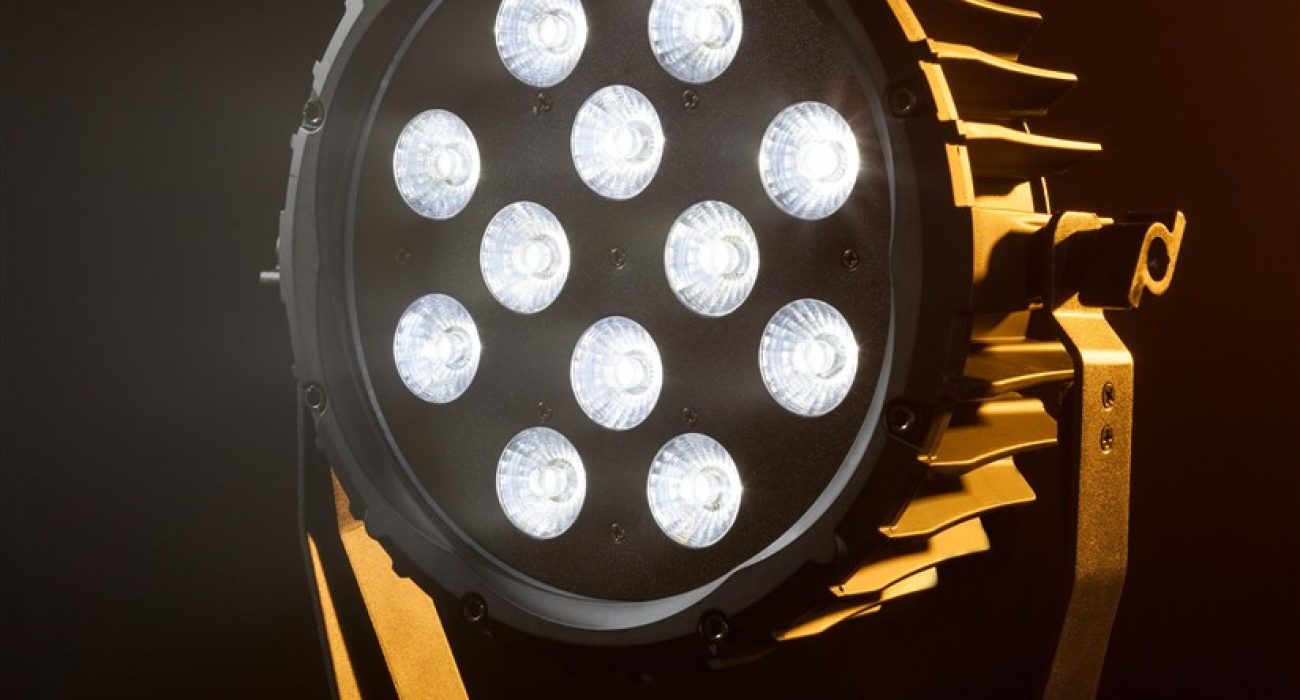

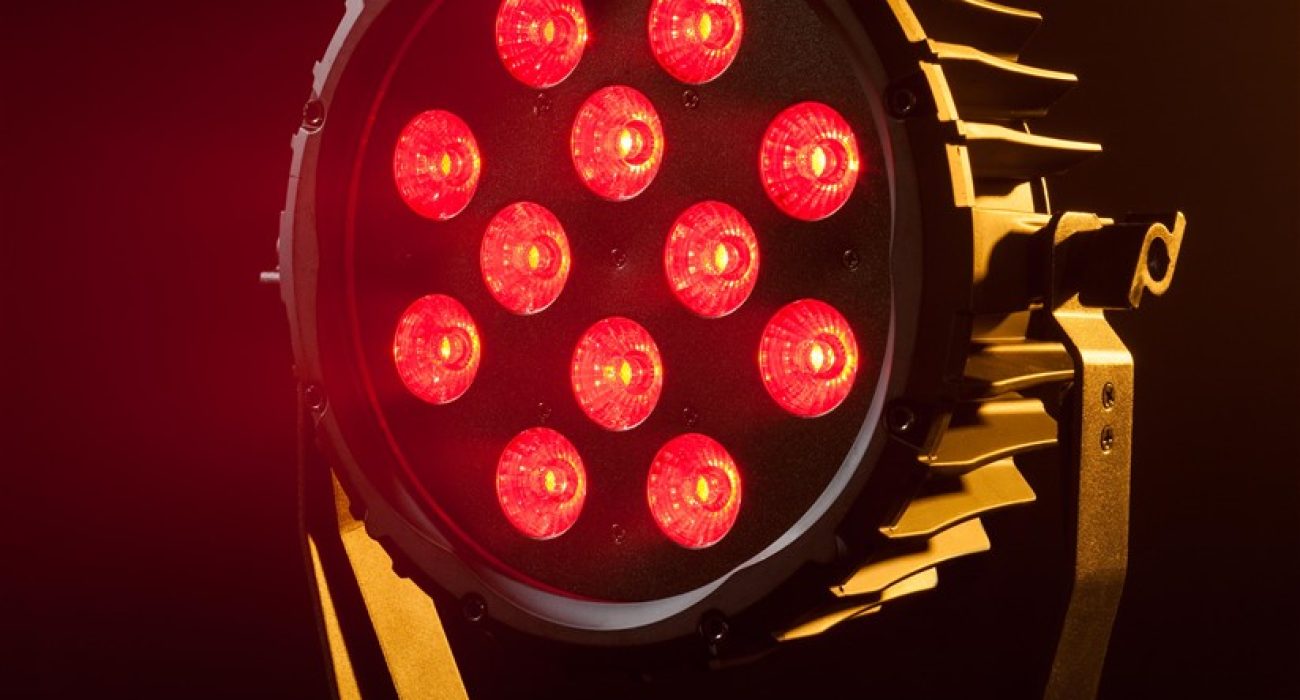

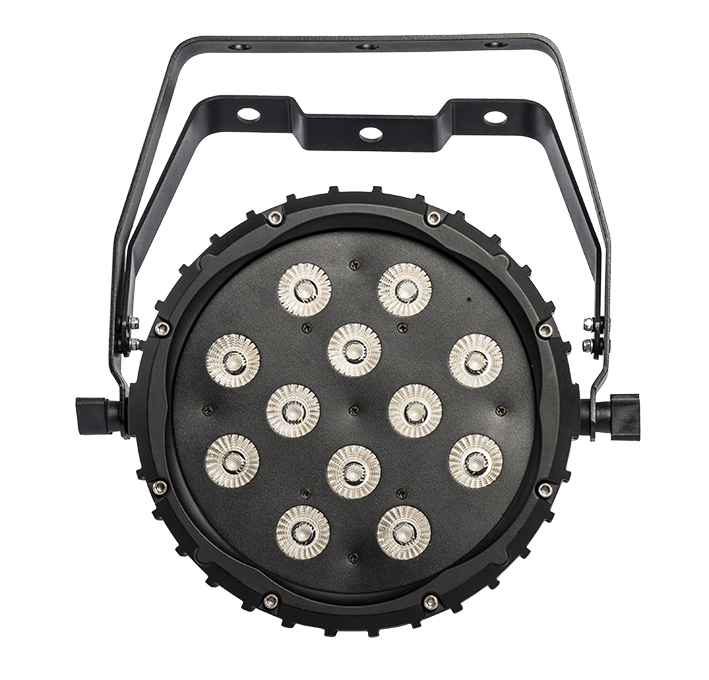

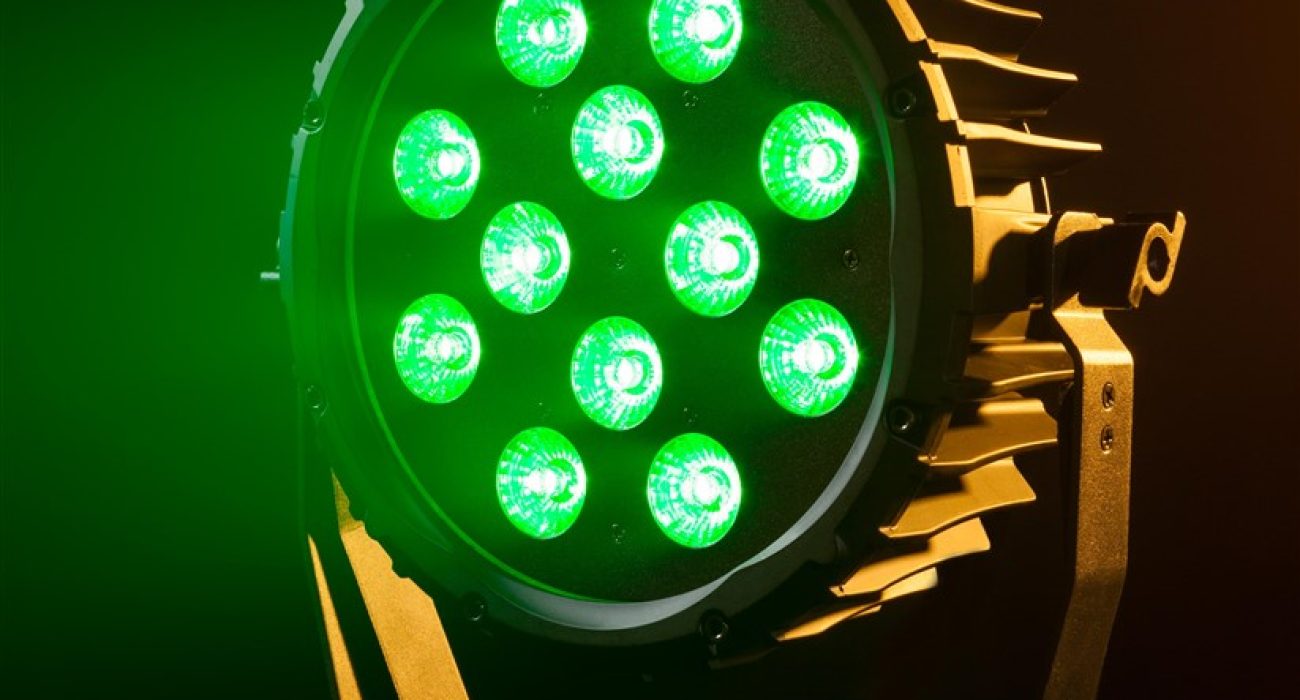

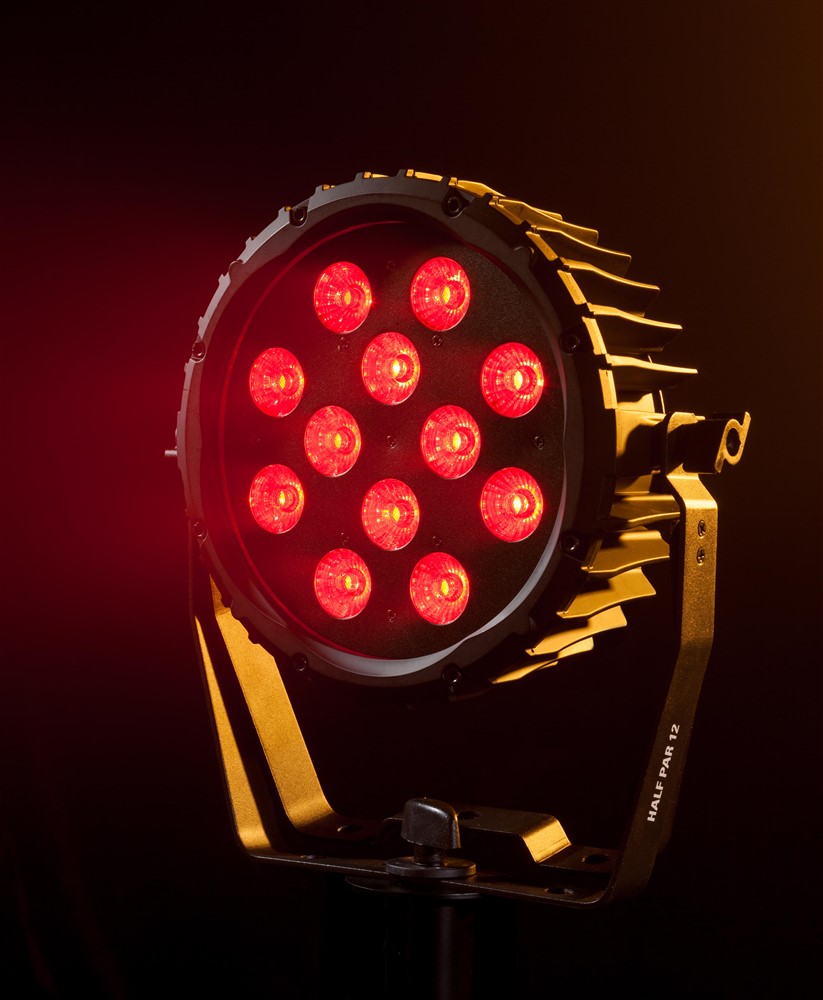

HALFPAR 12 is part of an innovative line of high-power LED projectors that integrate the colour management of a show with the ability to manage the normal mixing of RGB colours with the correction of the colour temperature through the use of specially designed LED such as Cold White and Warm Amber, guaranteeing excellent colour brilliance. The large frontal lenses perform perfect mixing without creating outward chromatic aberration. The aluminium “cabinet” is designed to ensure maximum heat dissipation without the use of noisy cooling fans; this feature makes the whole series usable in any type of show and environment such as theatres, live performance venues etc. The light source consists of 12 10W 5 in 1 RGBWA/FC LED.

SG HALFPAR12

Technical Specifications

Light source

  • 12X10W RGBWA Full Color
  • LED lifespan: >50.000h
  • LED refresh frequency: >400Hz flicker free

Optic system

  • Beam angle: 25°
  • Luminous flux: 2980 lux @2mt (25°)

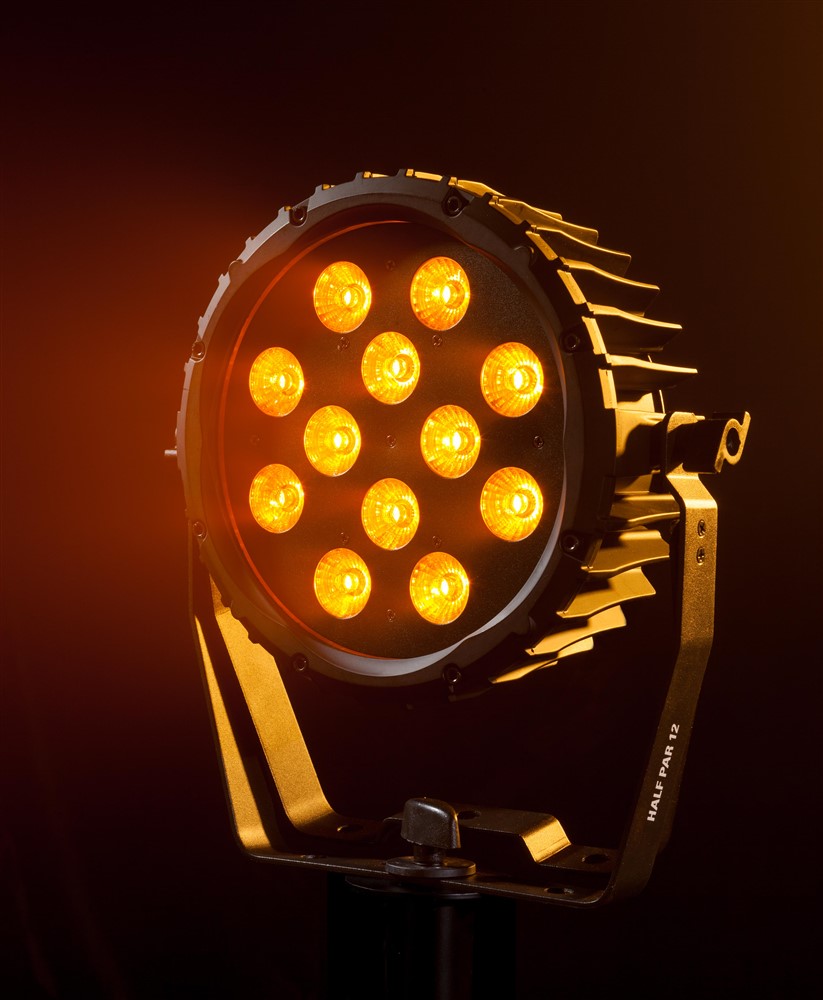

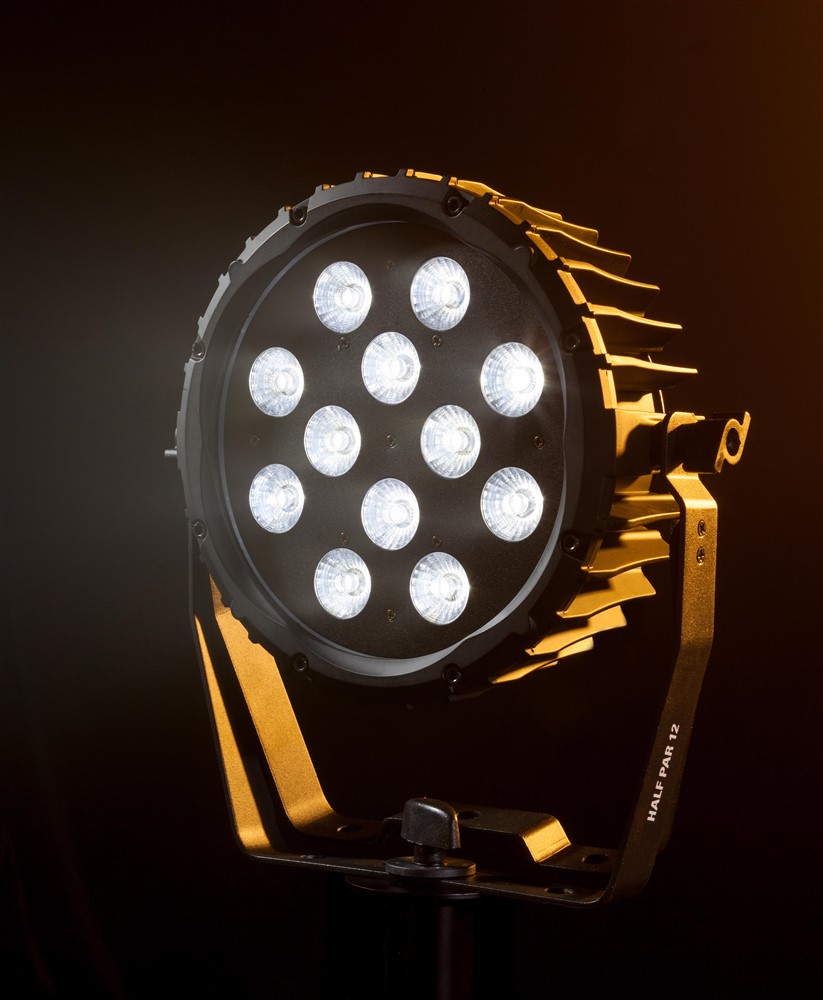

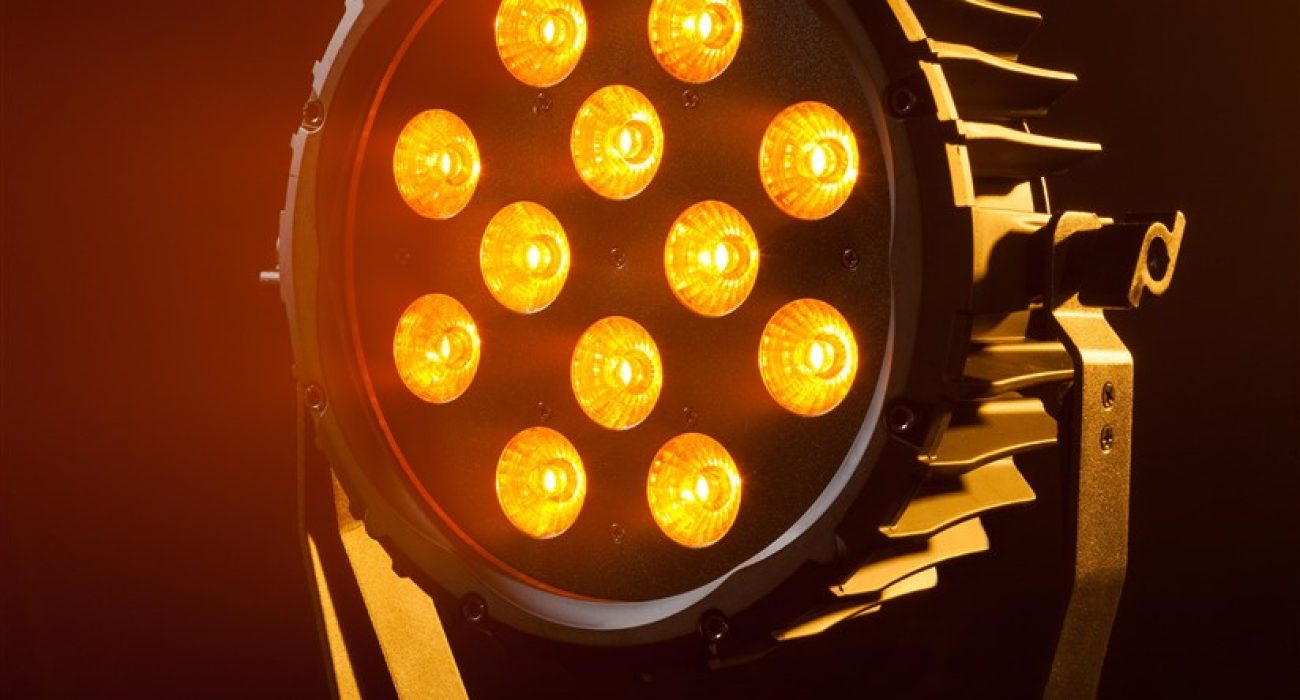

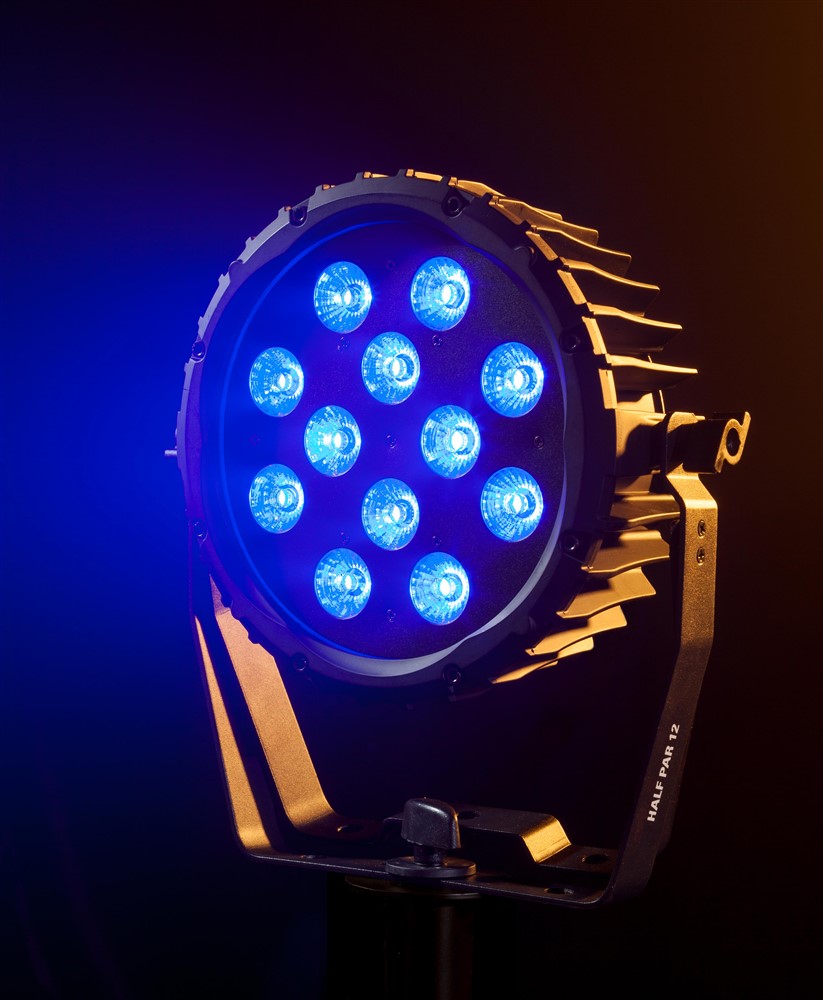

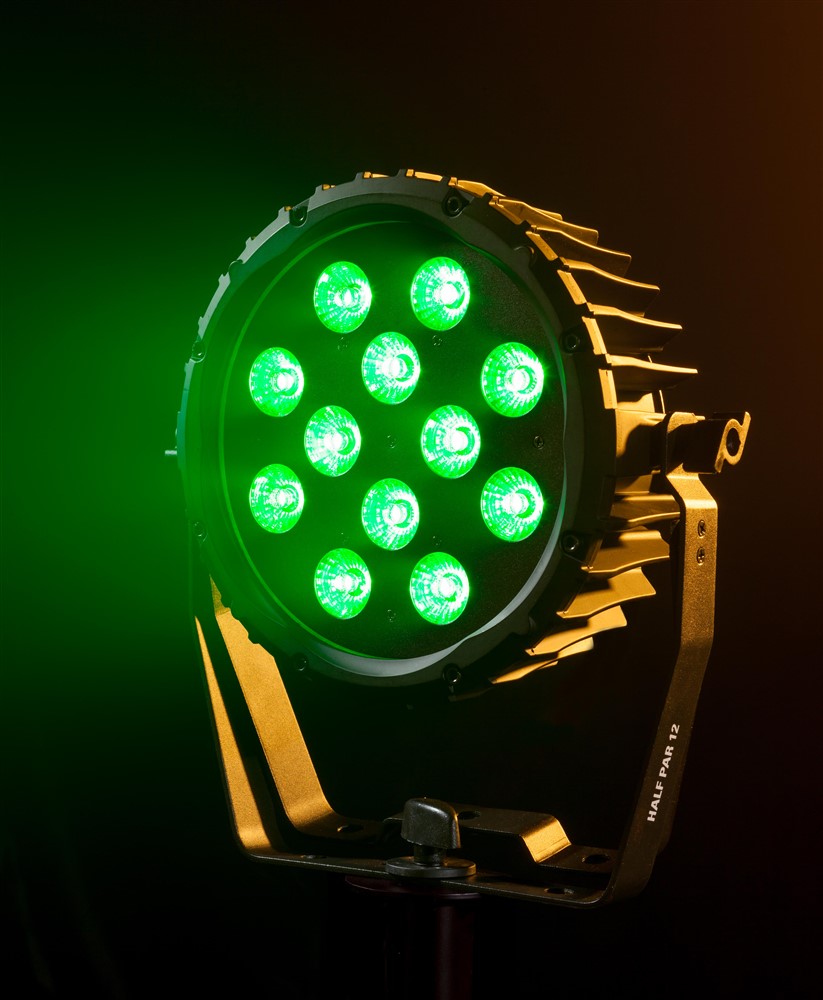

Color system

  • LED source 5 in 1 RGBWA Full Color
  • Infinite chromatic possibilities and colour temperature control

Effects

  • Linear Dimmer 0-100%
  • Electronic strobe: 1-20 flashes/s with adjustable speed

Control and programming

  • 3 DMX configurations available: 5/7/9 channels
  • Protocol USITT DMX 512
  • Master / Slave mode
  • Sound mode with adjustable mic sensitivity
  • Color mode with independent adjustment of single color
  • Automatic mode with 11 different programs selectable from the display with independent adjustment of the speed and strobe

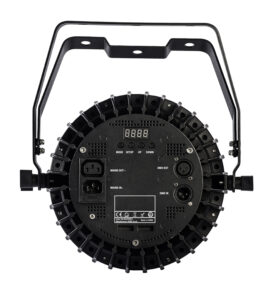

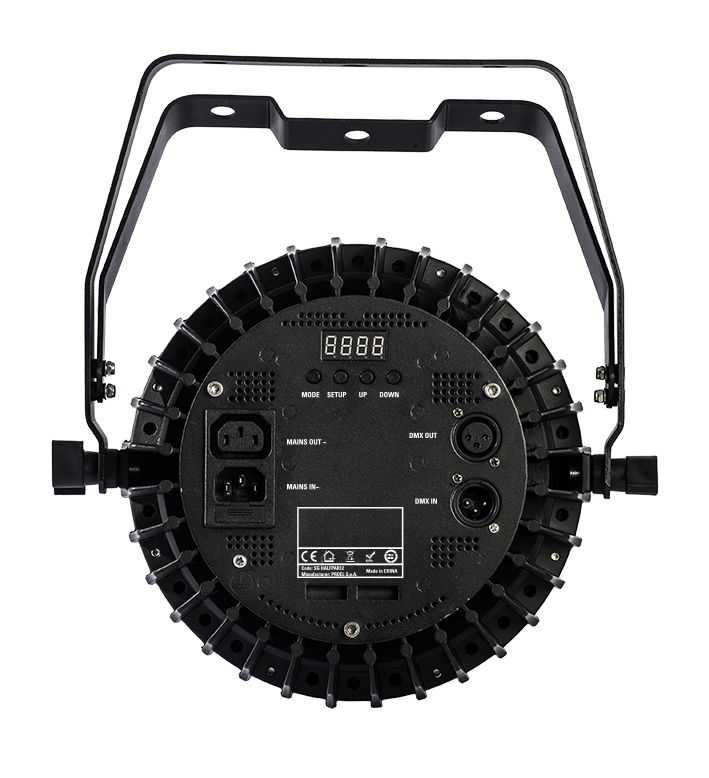

Structure and cabinet

  • Die cast aluminum housing, black color
  • Red LED graphic display
  • Mounting points: double bracket for suspension or floor support
  • 3-poles XLR in/out connection
  • IP rating: IP 20
  • Convection cooling system without fans

Power supply

  • Input Voltage: AC~100-240V 50/60Hz
  • Switching power supply unit
  • Power consumption 125W
  • Power IN/OUT connection with VDE socket
  • Power supply cable 1,5 mt included
  • Max 8 pcs linkable @240V

Weight and dimensions

  • Net weight: 4 kg
  • Dimensions: 310x119x327 mm
