SG HALFPAR18

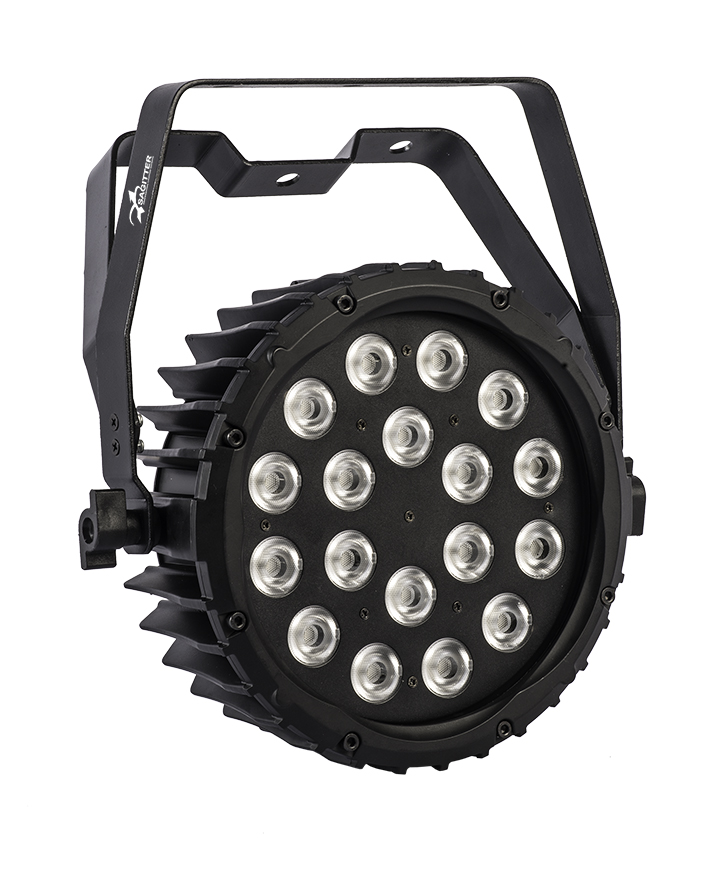

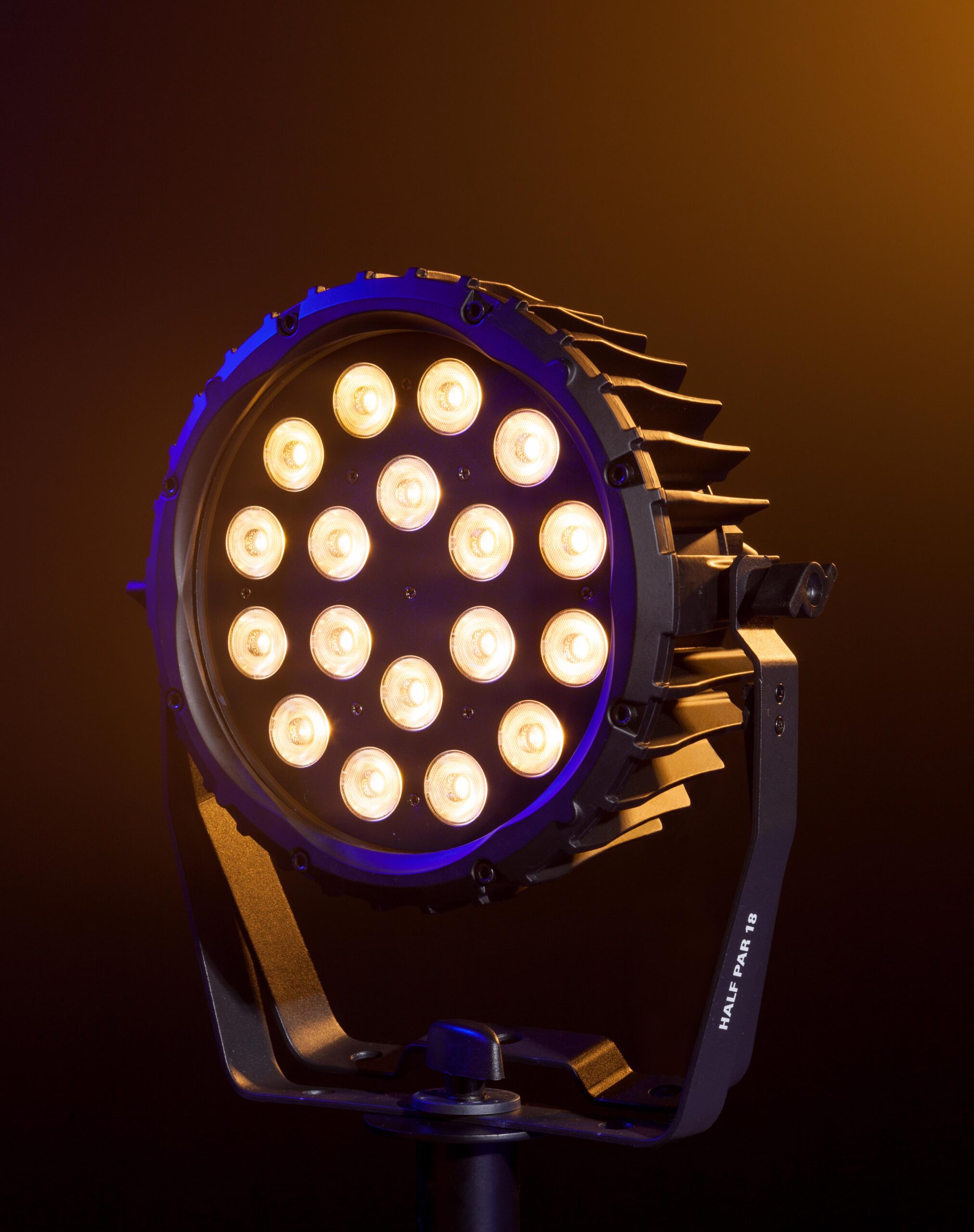

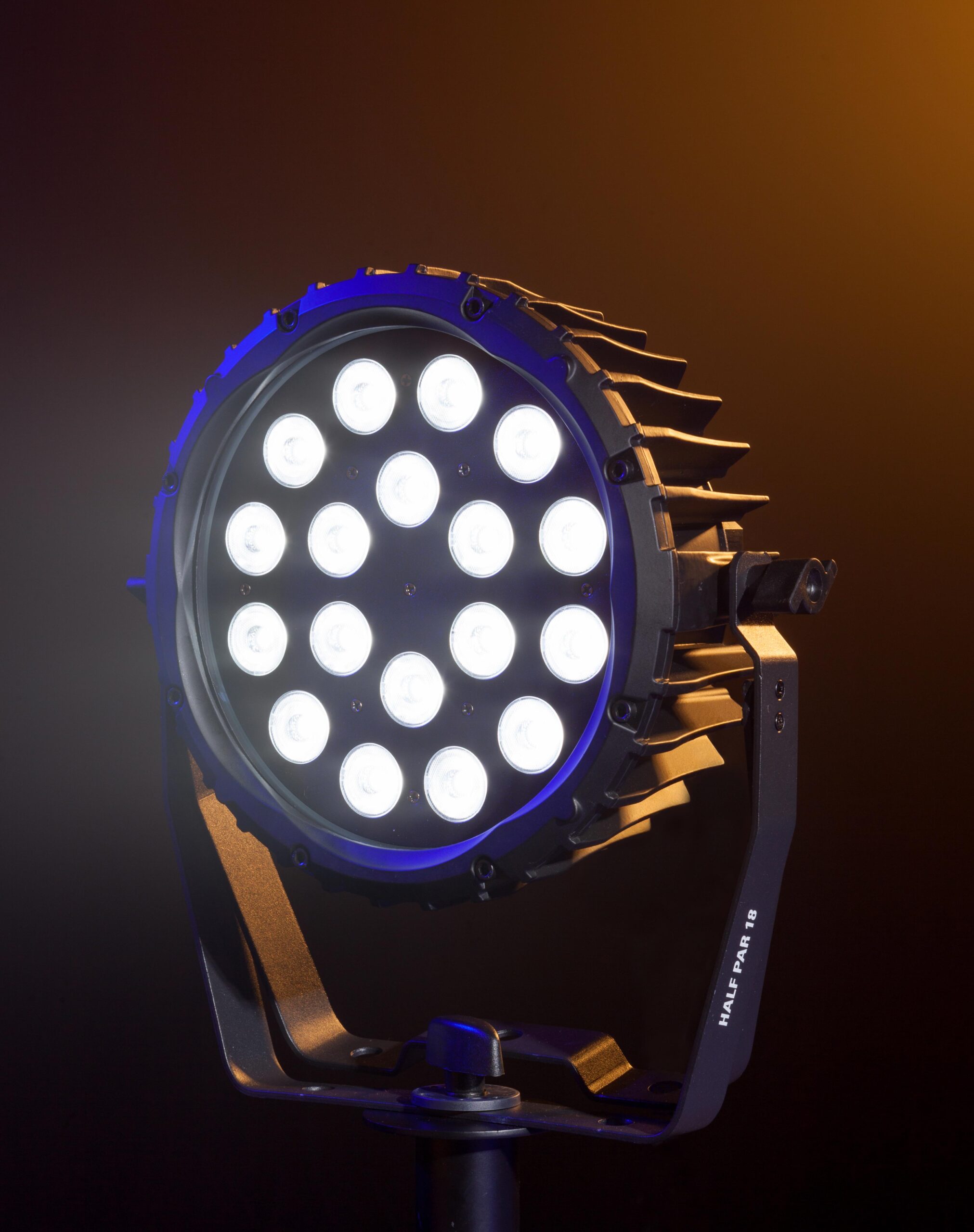

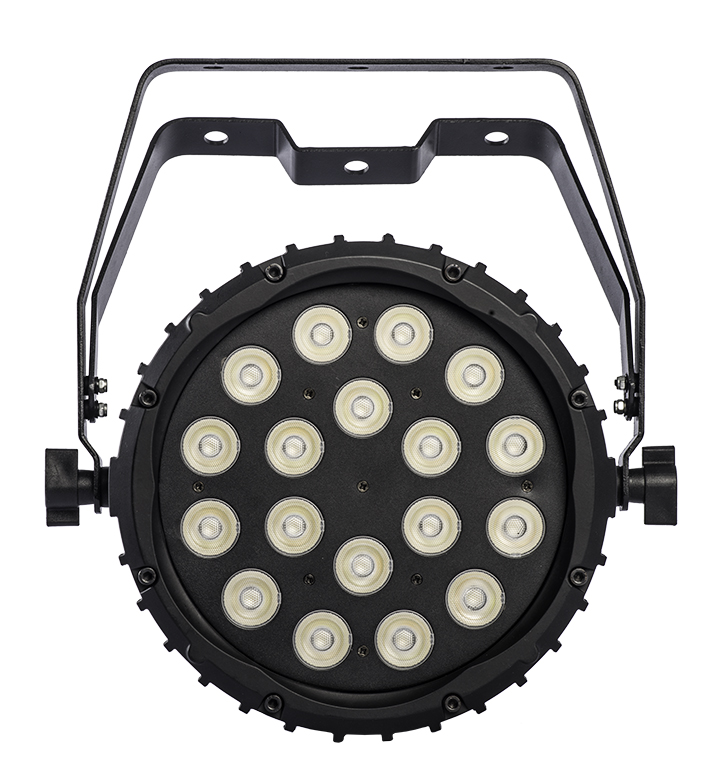

HALFPAR 18X4W LED CW/WW FC

Description

HALFPAR 18 is part of an innovative line of high-power LED projectors that, thanks to white colour modern light sources ensure luminous intensity with excellent digital control of colour temperature that can range from 3200°K (Warm White) to 6000°K (Cold White). The main feature of this projector which uses “full colour” technology, is the homogeneity of the colour temperature change throughout the light beam, simulating the behaviour of a classic halogen lamp. The aluminium “cabinet” is designed to ensure maximum heat dissipation without the use of noisy cooling fans; this feature makes the whole series usable in any type of show and environment such as theatres, live performance venues etc. The light source consists of 18 4W 2 in 1 CW/WW LED.

SG HALFPAR18

Technical Specifications

Light source

  • 18X4W led Full Color Variable White (2800K – 7000K)
  • LED lifespan: >50.000h
  • LED refresh frequency: >400Hz flicker free

Optic system

  • Beam angle: 25°
  • Luminous flux: 2150 lux @2mt (25°)

Color system

  • LED source 2 in 1 Full Color Variable White
  • Color temperature control

Effects

  • Linear Dimmer 0-100%
  • Electronic strobe: 1-20 flashes/s with adjustable speed

Control and programming

  • 3 DMX configurations available: 2/4/6 channels
  • Protocol USITT DMX 512
  • Master / Slave mode
  • Sound mode with adjustable mic sensitivity
  • Color mode with independent adjustment of white color tones
  • Automatic mode with 6 different color variations and independent adjustment of the strobe and of the step’s change

Structure and cabinet

  • Die cast aluminum housing, black color
  • Red LED graphic display
  • Mounting points: double bracket for suspension or floor support

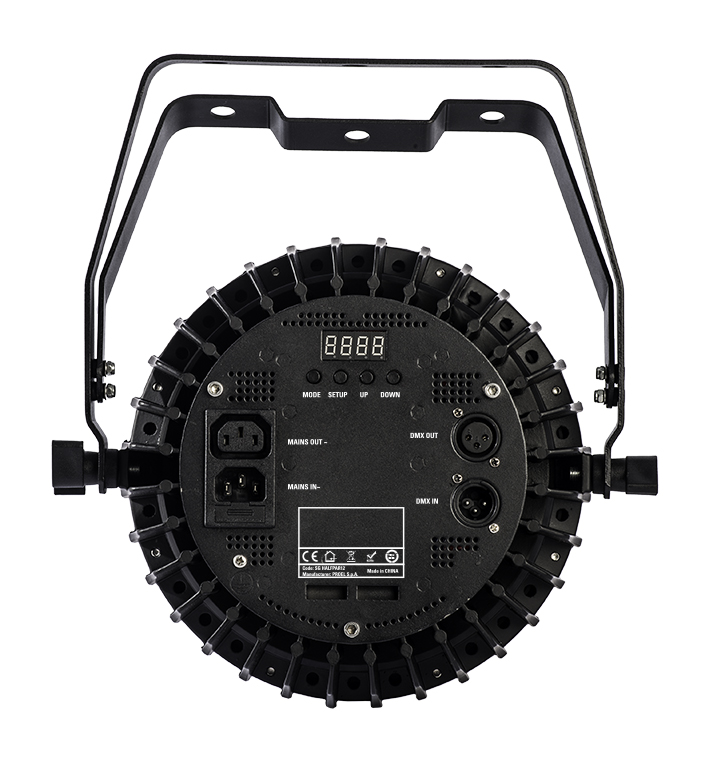

  • 3-poles XLR in/out connection
  • IP rating: IP 20
  • Convection cooling system without fans

Power supply

  • Input Voltage: AC~100-240V 50/60Hz
  • Switching power supply unit
  • Power consumption 80W
  • Power IN/OUT connection with VDE socket
  • Power supply cable 1,5 mt included
  • Max 10 pcs linkable @240V

Weight and dimensions

  • Net weight: 3,7 kg
  • Dimensions: 310x119x327mm
