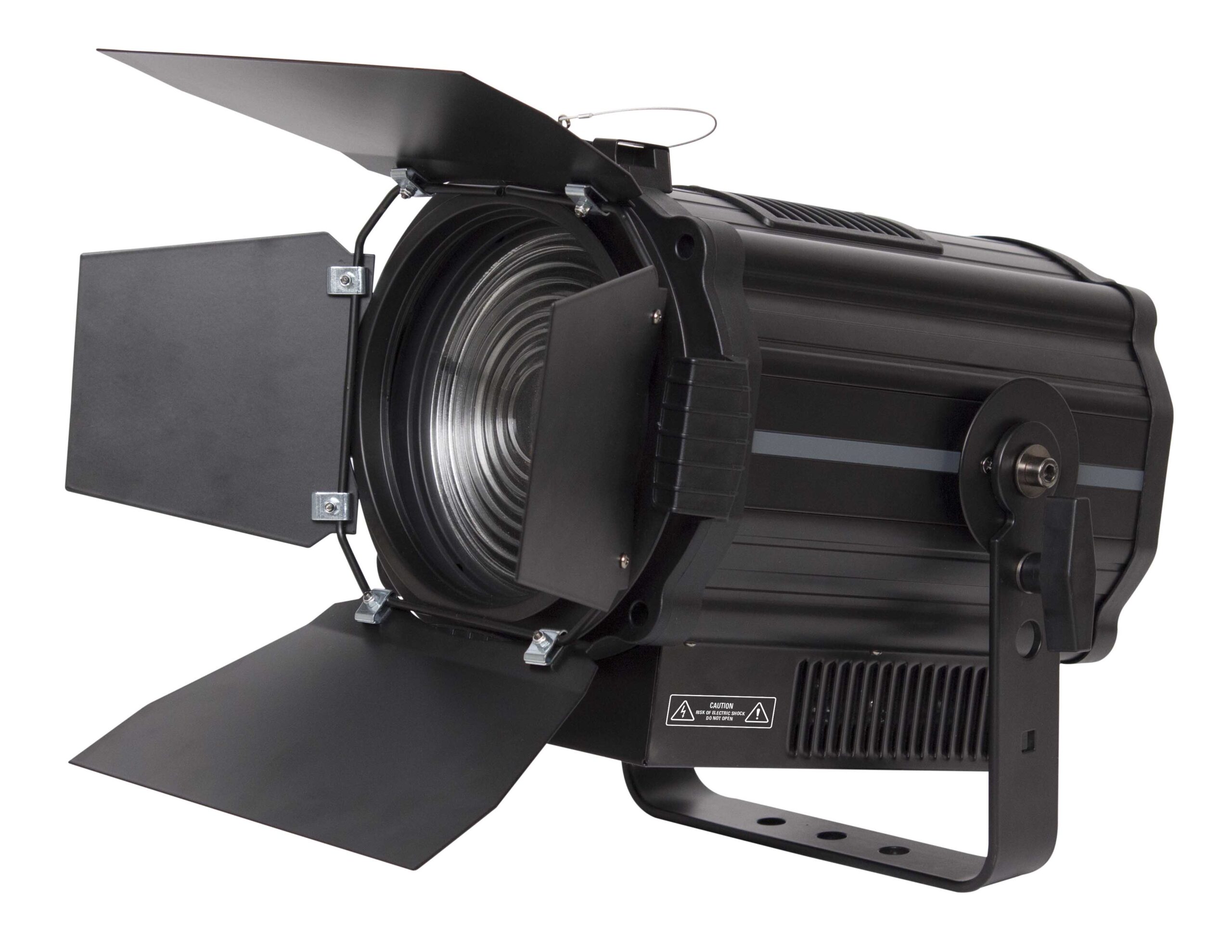

Halo Fresnel 100W 3200K

Theather projector Fresnel COB 100W 3200K

Description

HALO LED MINI as well as HALO LED is the result of a Sagitter project, which can replace the most common incandescent theatre projectors with a product boasting low power consumption and the same lighting efficiency as the most common incandescent sources. The combination of a cutting edge power supply system and a next generation 3200K white COB LED source, makes the projector suitable for stages of any size. The optics equipment features the ability to manually modify the projection angle with a high precision zoom system.

SG HALOFWWM

Technical Specifications

Light Source

  • 1x100W Led COB Warm white 3200K
  • CRI ≥ 85Ra
  • LED lifespan: > 50.000h
  • LED refresh frequency: > 400Hz flicker-free

Optic system

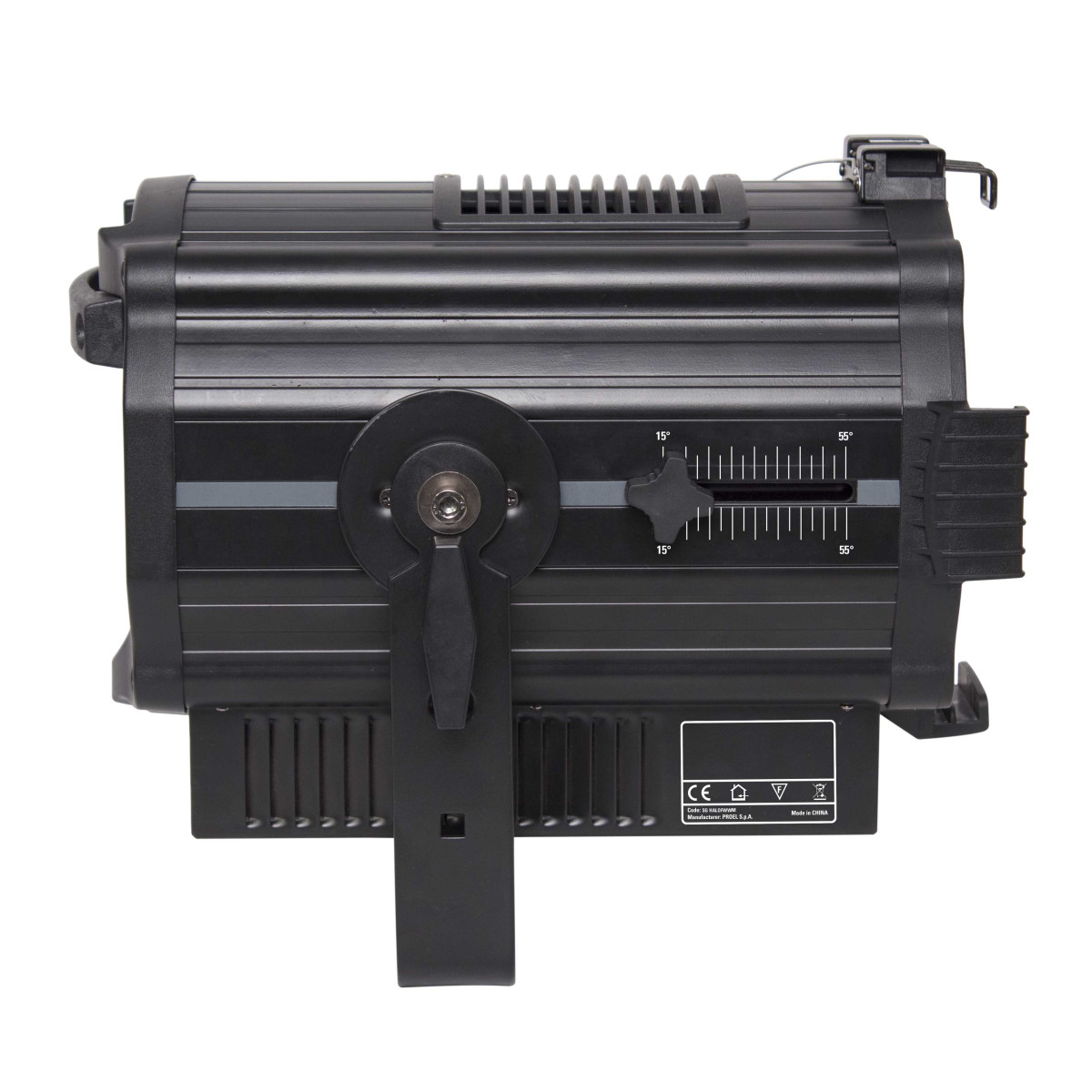

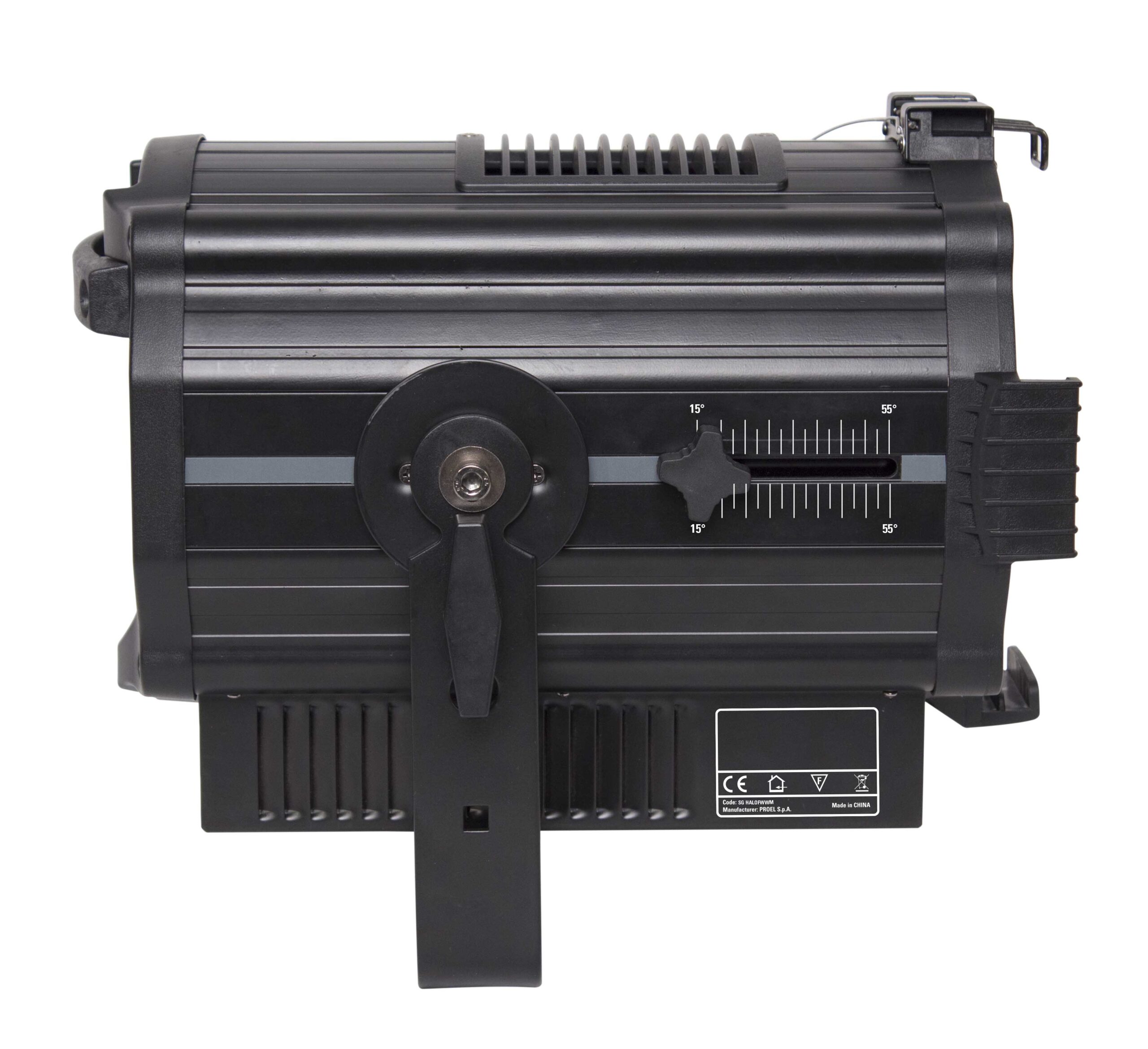

  • Beam Angle: manual zoom from 15° to 55°
  • Luminous flux: 1683lux @ 5mt (15°)
  • Luminous flux: 886lux @ 5mt (55°)

Color system

  • LED source COB warm white 3200K

Effects

  • Linear dimmer 0-100%
  • Strobe: electronic 1-20 flashes/s with adjustable speed

Control and programming

  • 2 DMX configurations available: 1/2 channels
  • Protocol USITT DMX 512
  • Manual dimmer mode

Structure and cabinet

  • Aluminium housing black color
  • LCD blue graphic display
  • Mounting points:  single bracket
  • Rotating barndoor with “safety cable” included

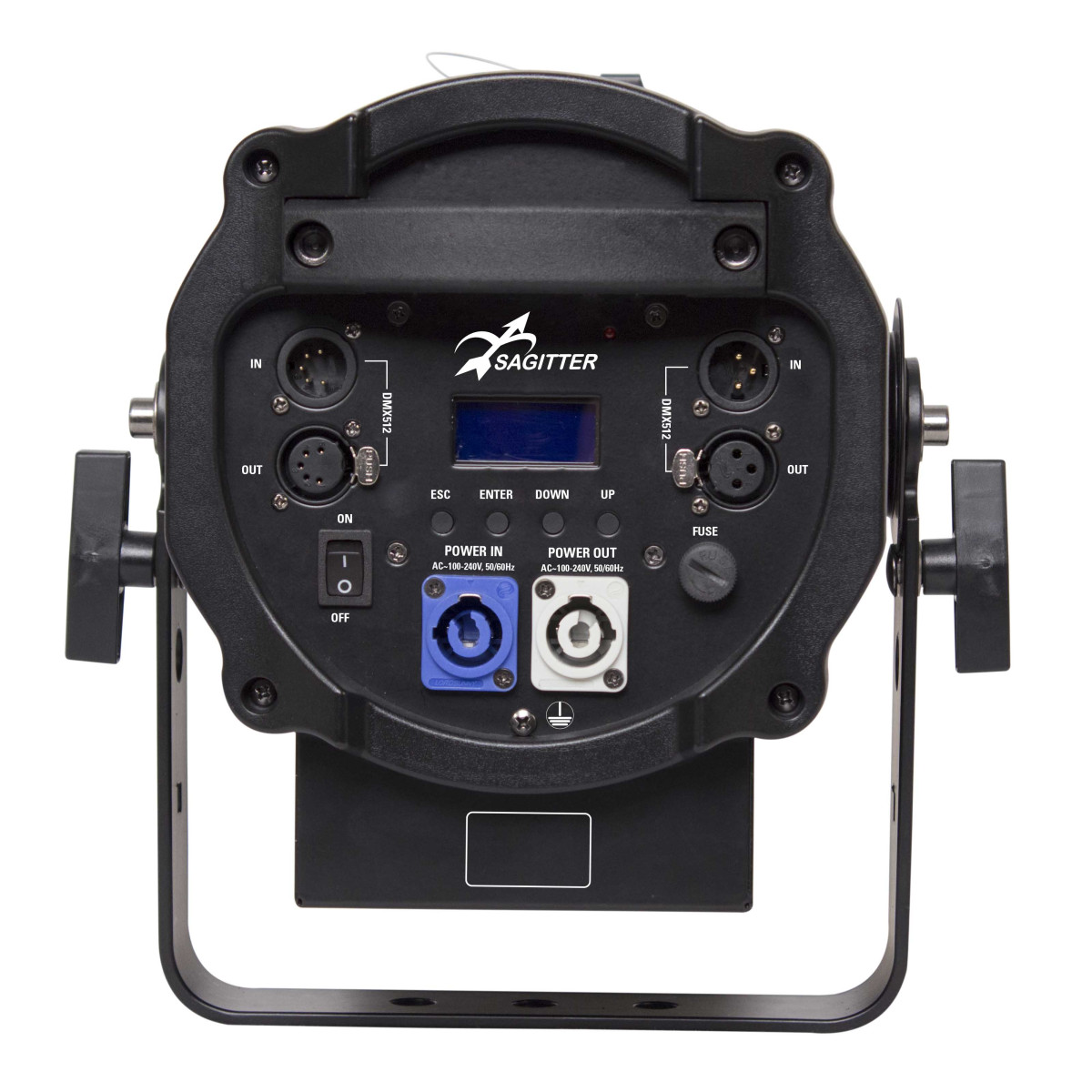

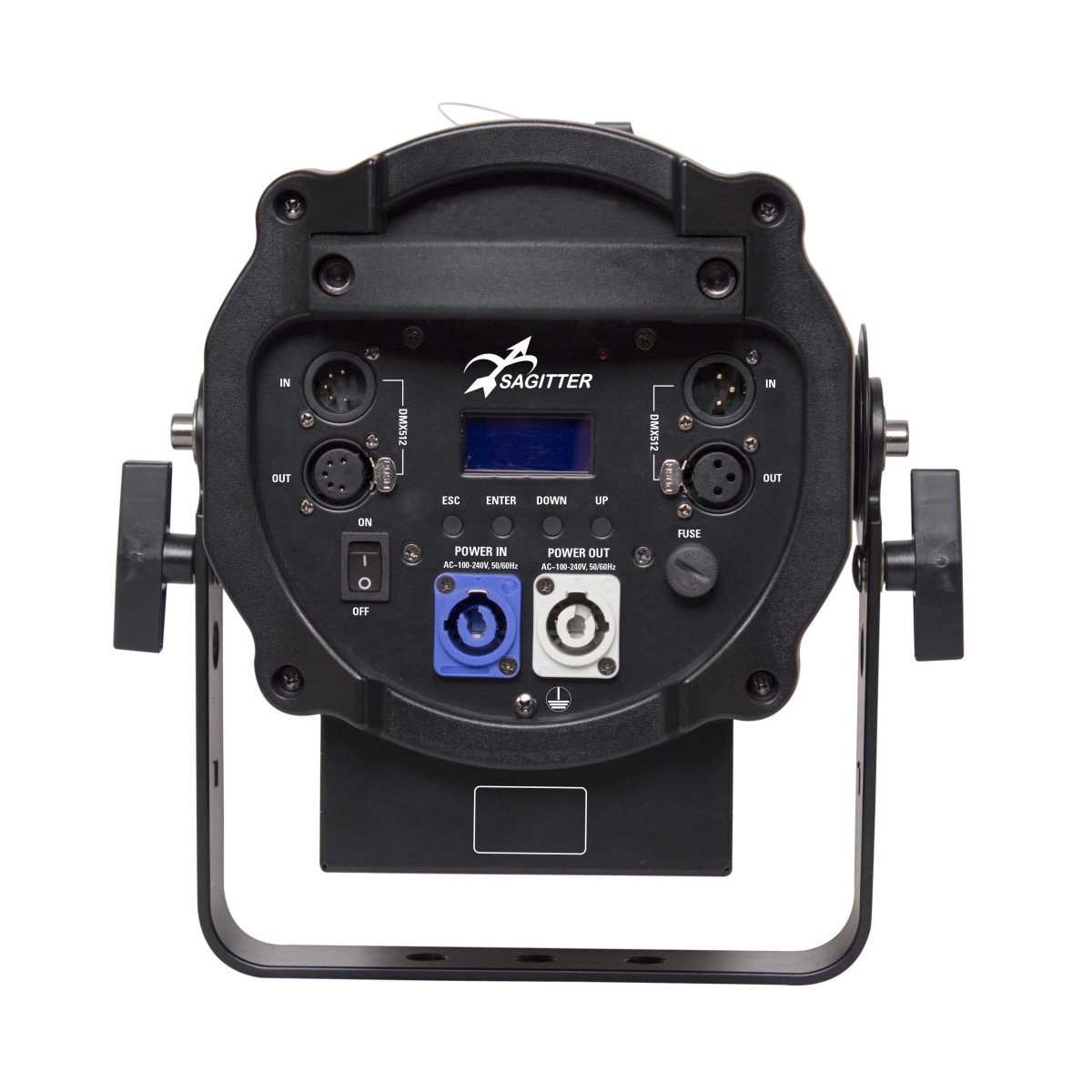

  • XLR 3/5-poles DMX IN/OUT connection
  • IP rating: IP20
  • Controlled forced air fan cooling system “low noise”

Power supply

  • Input Voltage: AC~100-240V, 50/60 Hz
  • Switching power supply unit
  • Power consumption: 150W
  • IN/OUT power connection with PowerCON sockets
  • Power supply cable 1mt included
  • Max 4 pcs linkable @ 240V

Weight and Dimensions:

  • Net weight: 7 kg
  • Dimensions: 260x330x310 mm (without barndoor)
