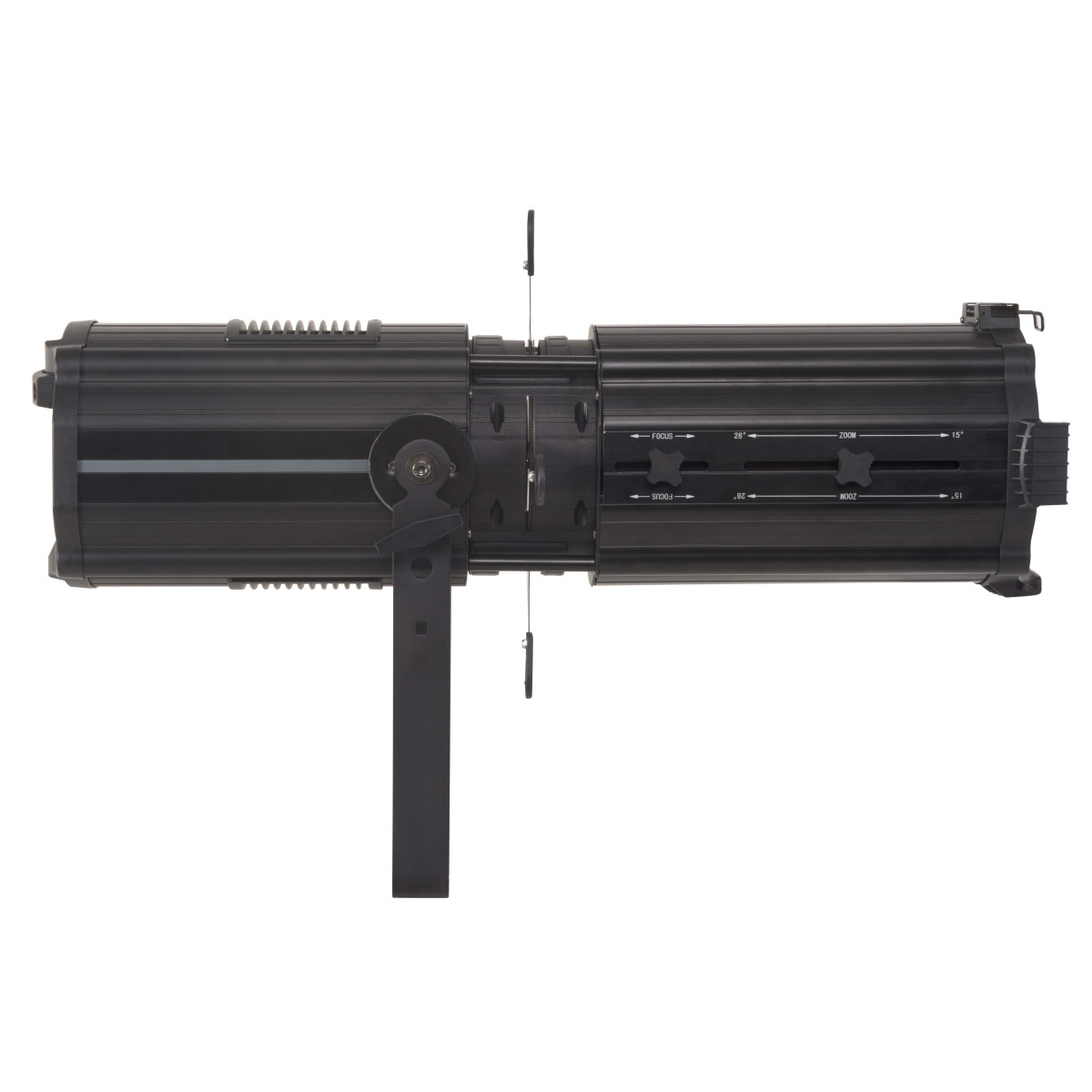

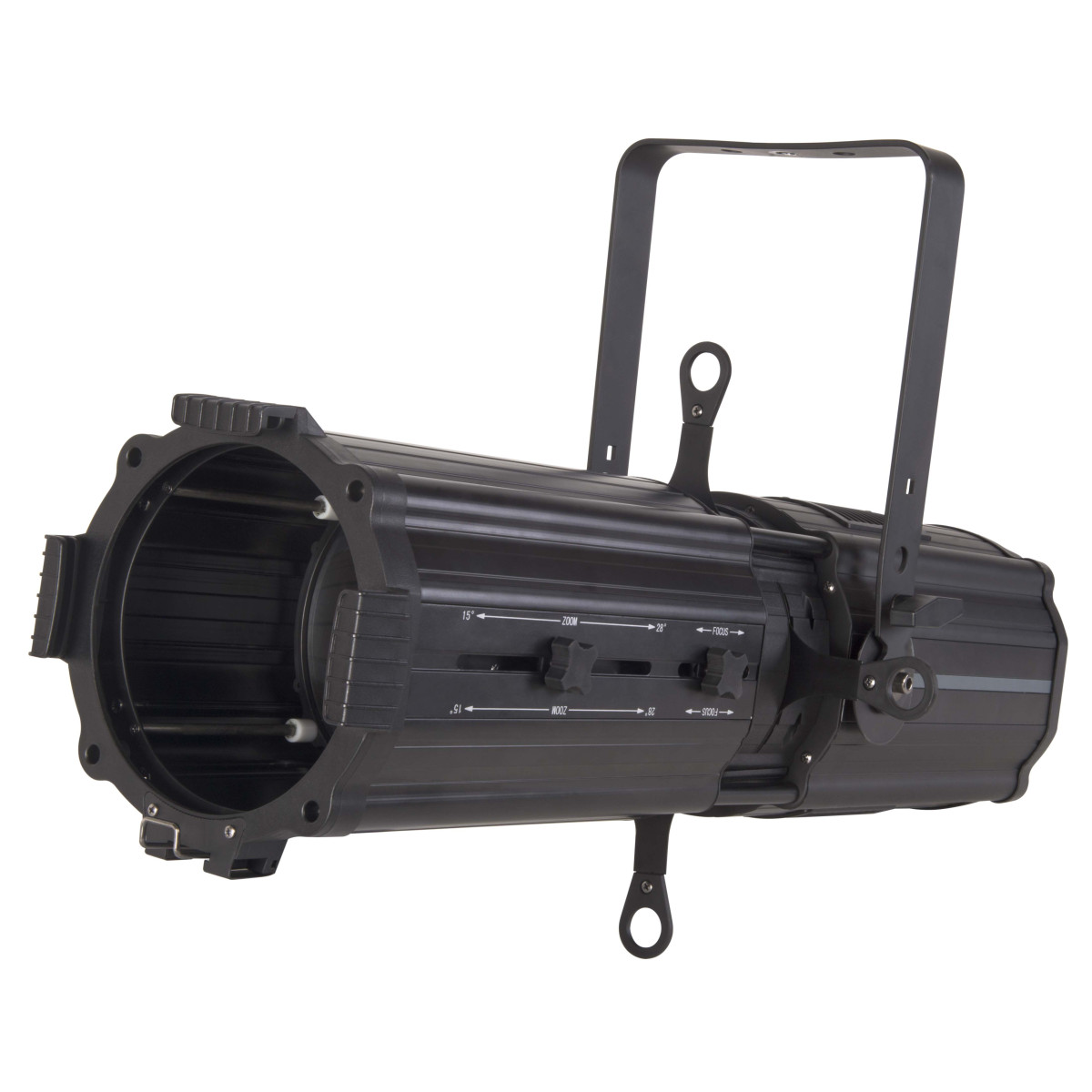

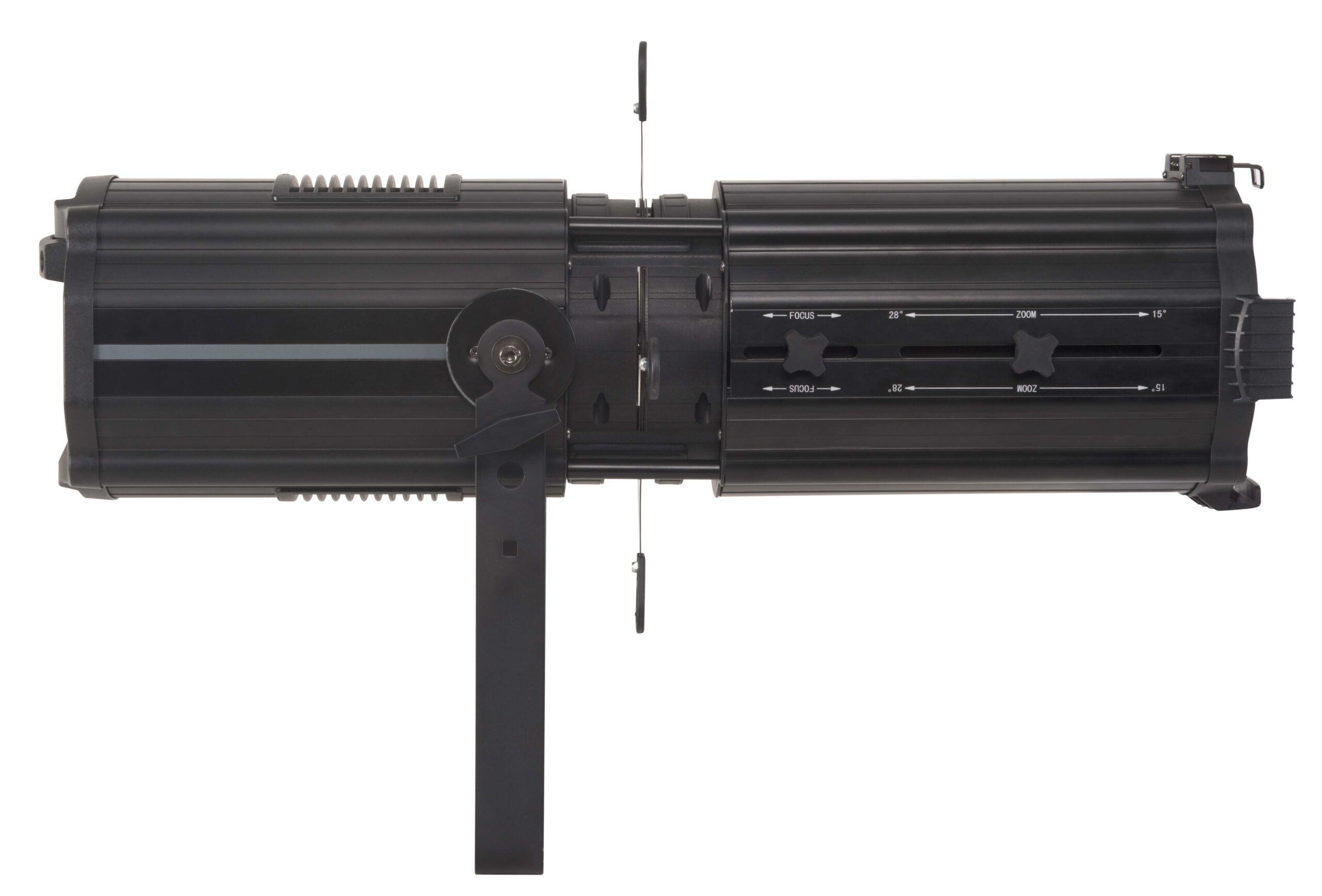

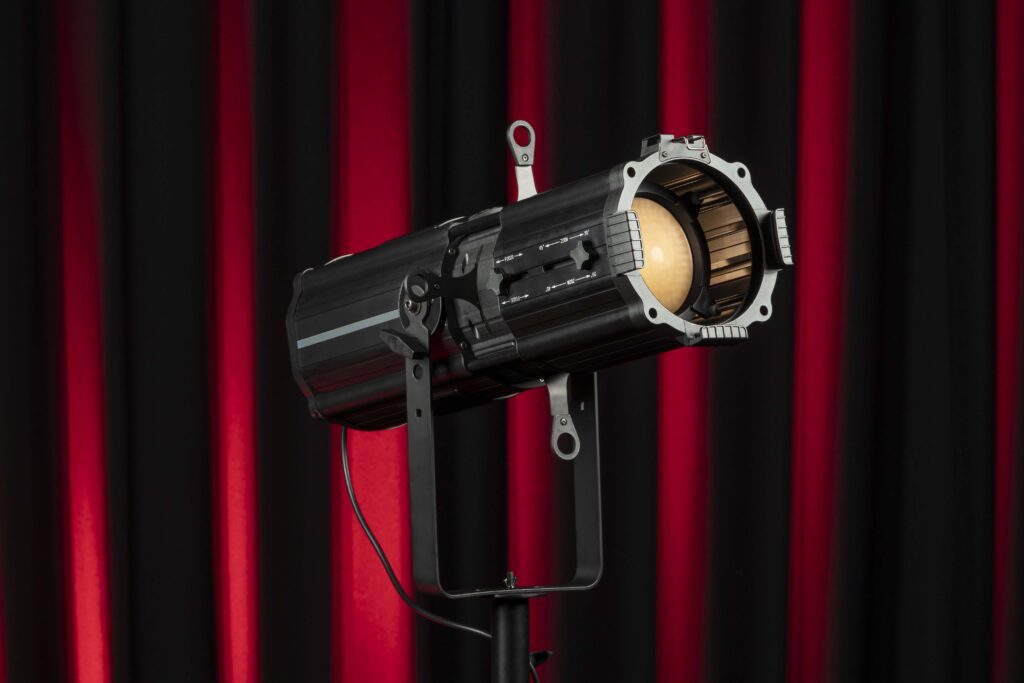

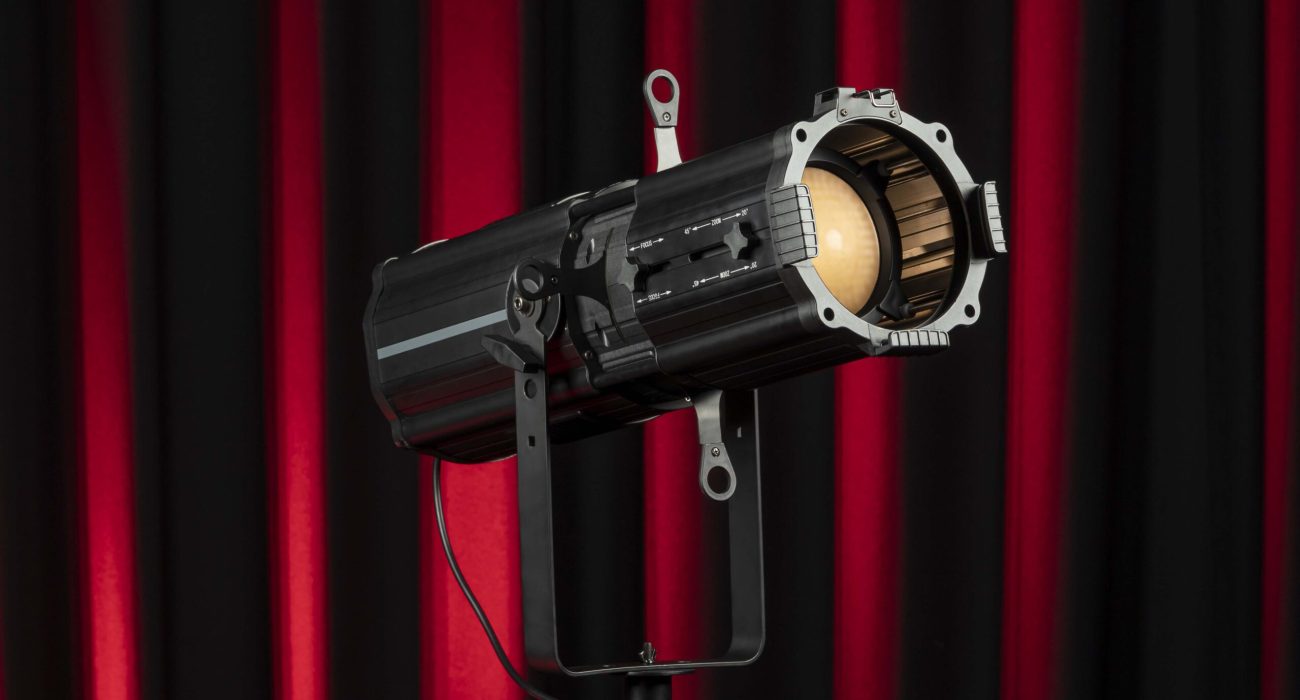

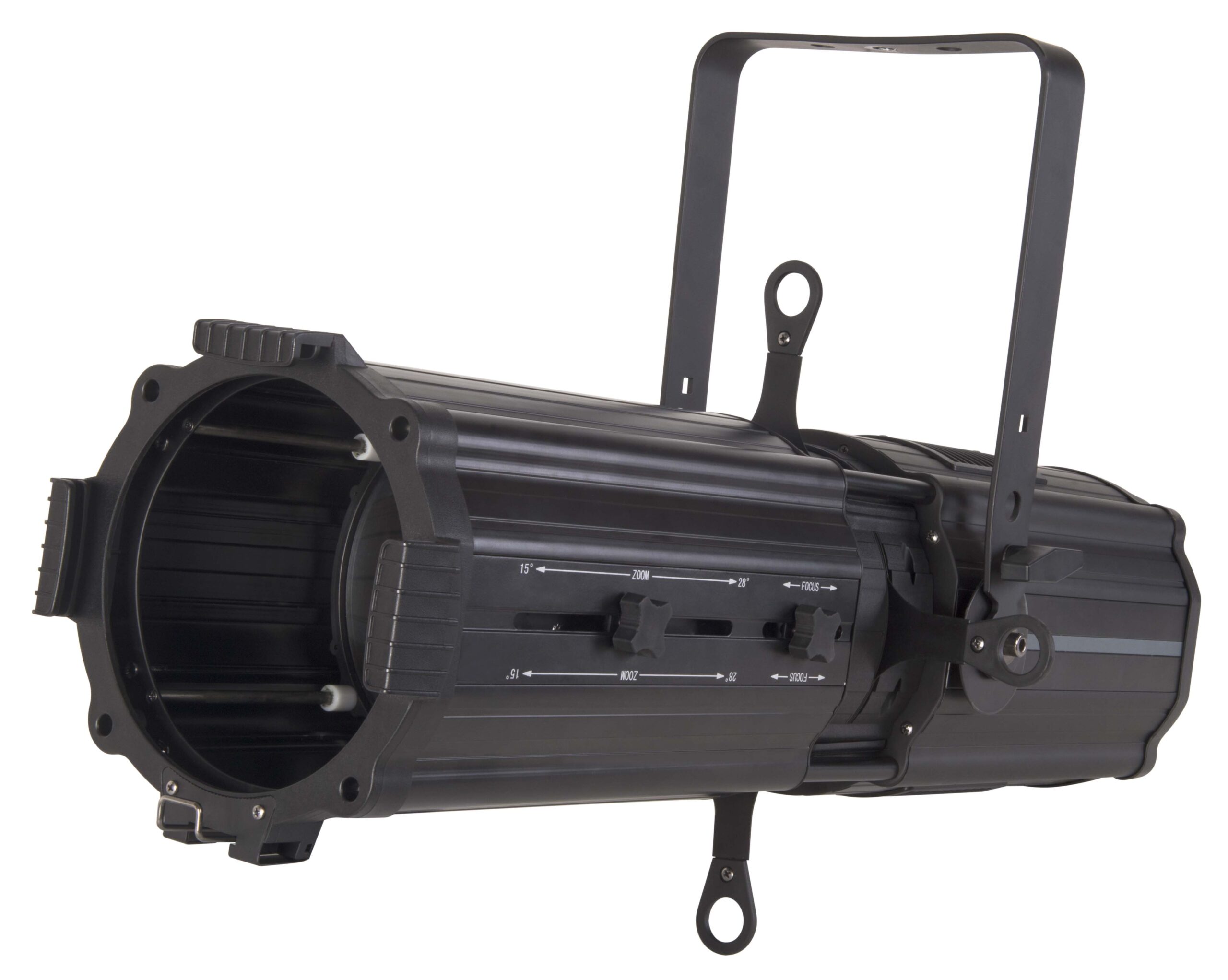

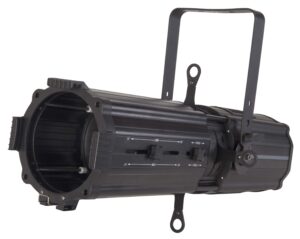

Halo profile led zoom is the result of a Sagitter project which can replace the most common incandescent profile projectors with a product featuring low consumption and the same luminous efficiency of the most common incandescent. The combination of a cutting edge power supply and a next generation 3200K white COB LED source, makes the projector suitable for stage of any size. This new profile projector is equipped with a variable zoom system able to modify its projection angle from 15° to 28°.
| Light source | 1X200W COB Led warm white 3200K CRI ≥85Ra LED lifespan: >50.000h LED refresh frequency: >400Hz flicker-free |

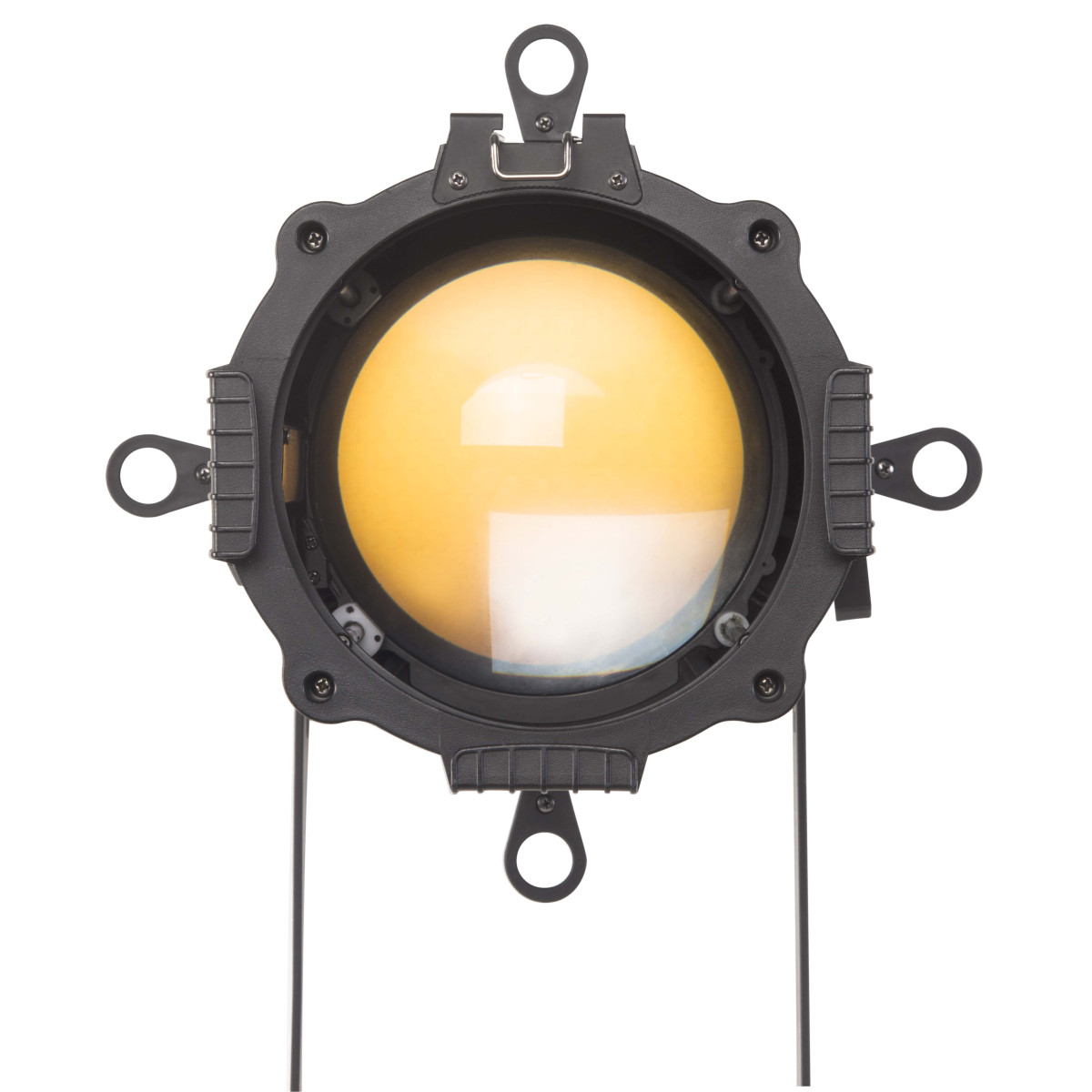

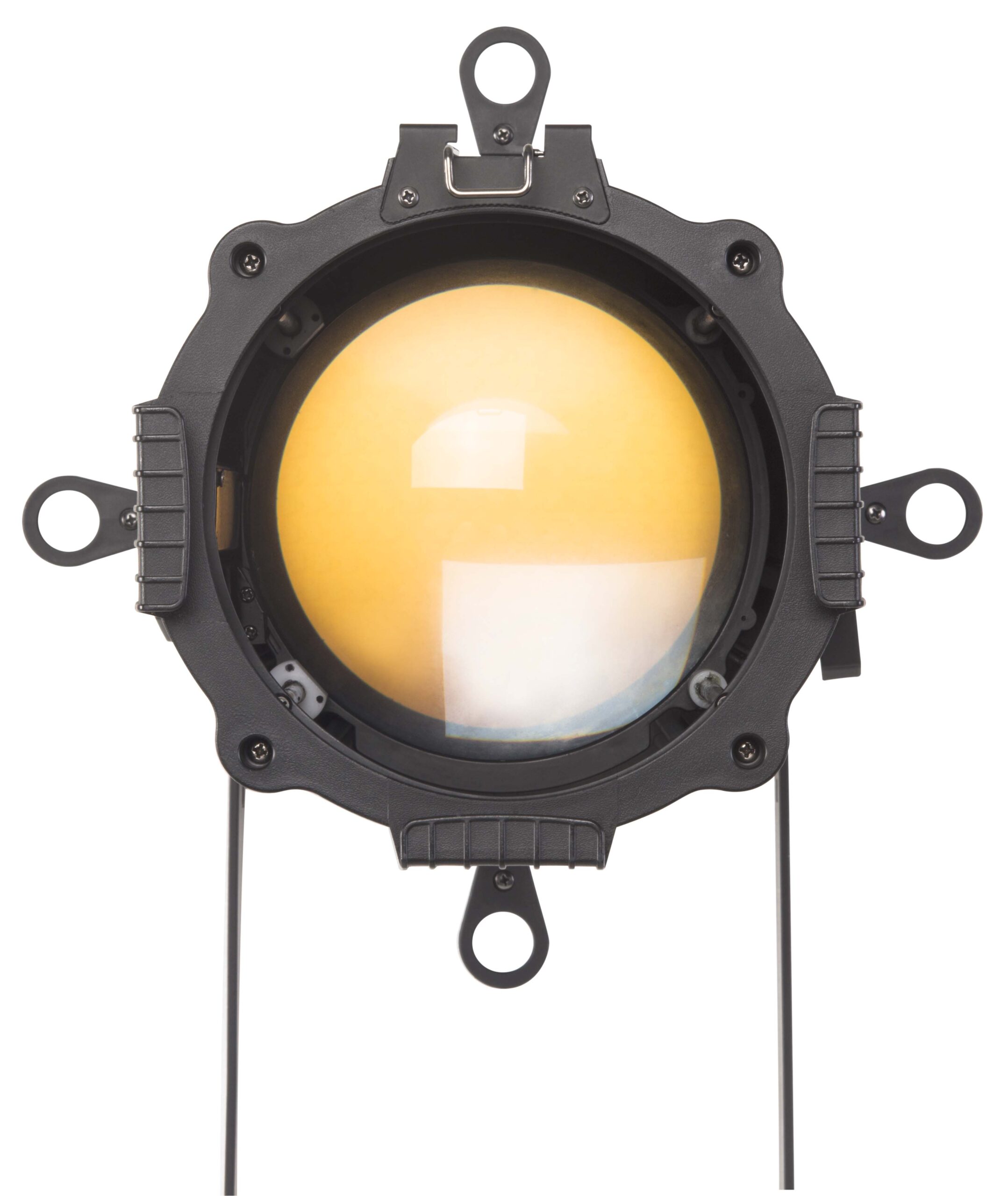

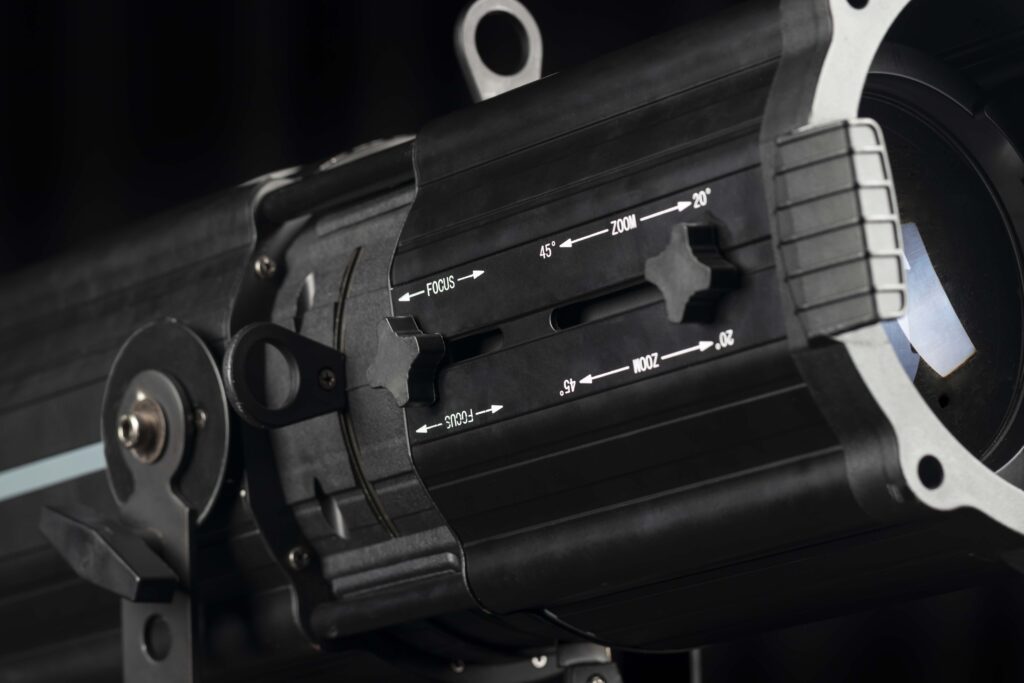

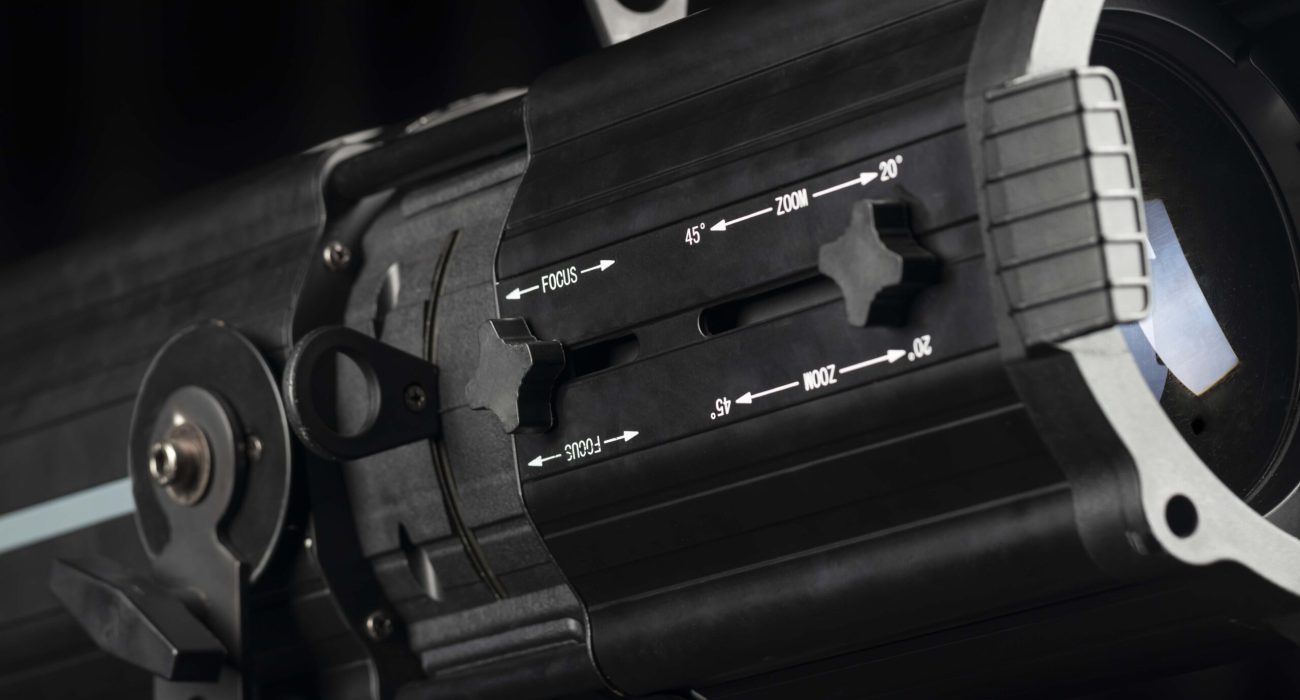

| Optic system | Beam angle: zoom from 15° to 28° Illuminance: 4090lux @5mt (15°) / 1800lux @5mt (28°) |
| Color system | Warm white 3200K COB Led |
| Effects | Linear dimmer 0-100% Strobe: electronic 1-20 flashes/s with adjustable speed |
| Control and programming | 2 different DMX channels configurations: 1/2 channels Protocol USITT DMX 512 |

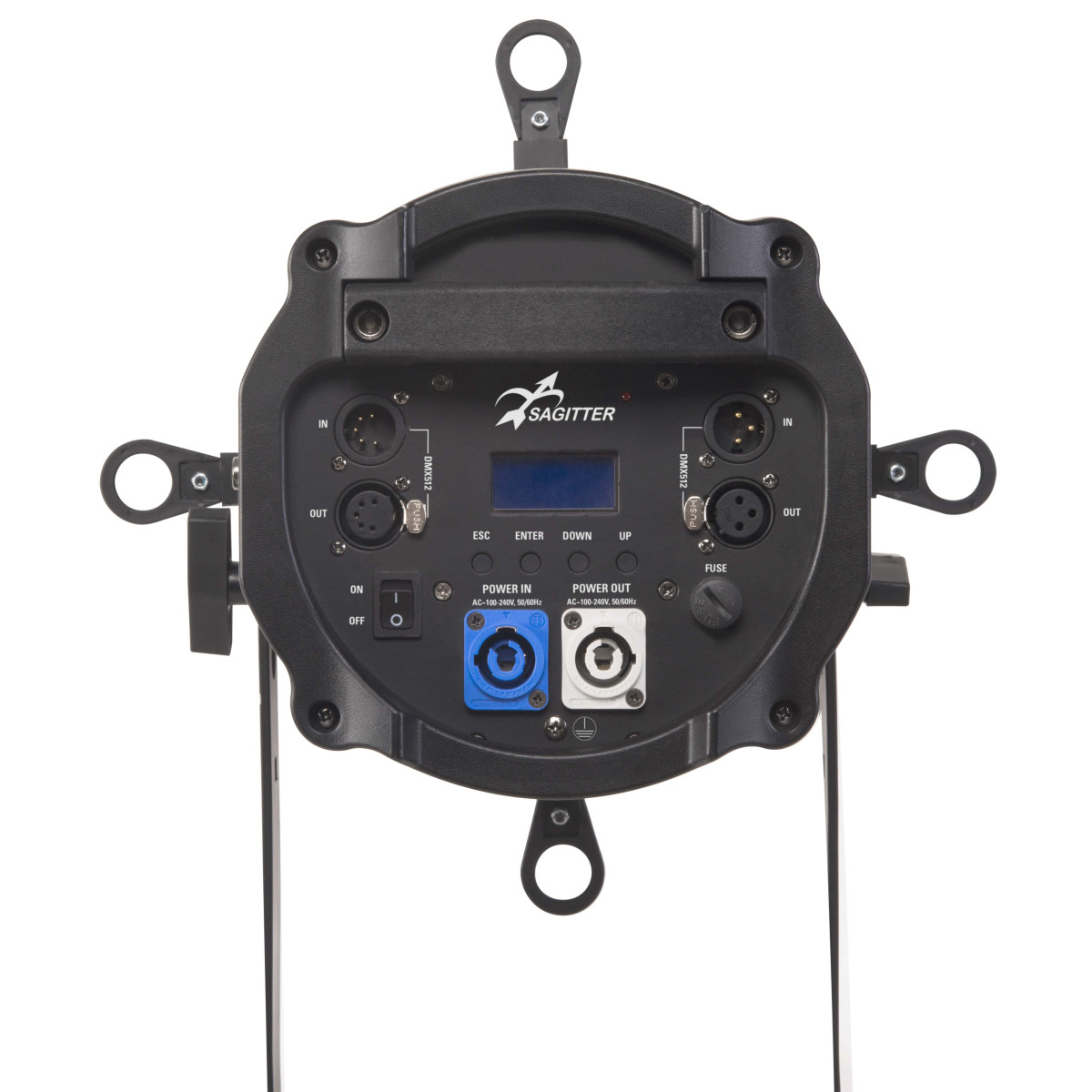

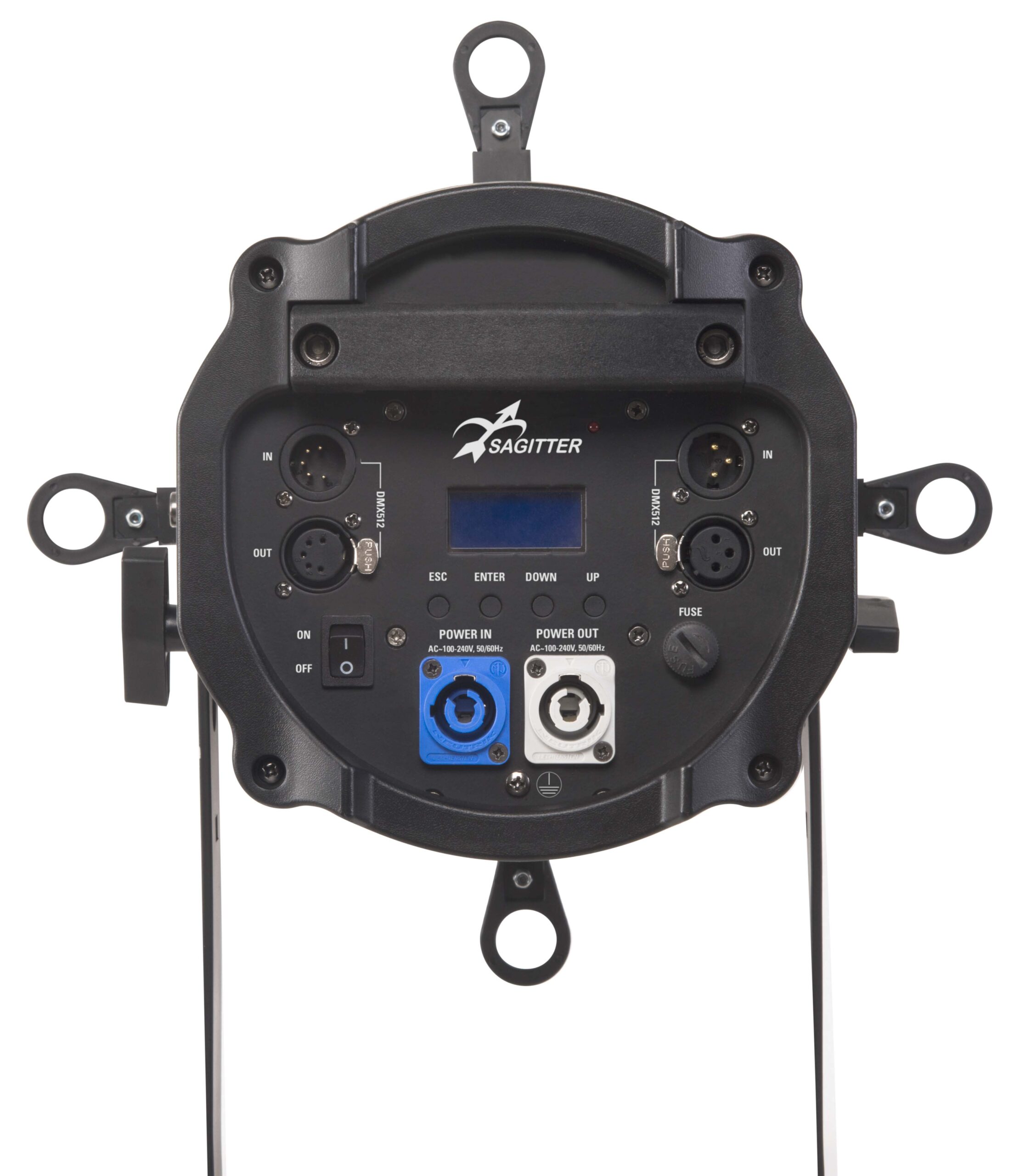

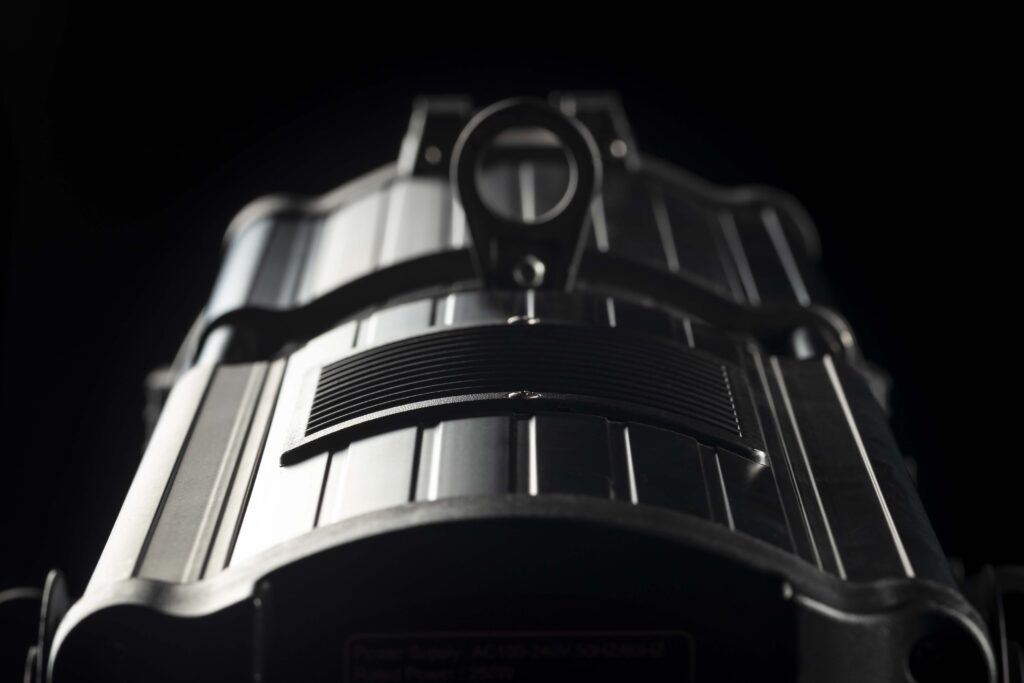

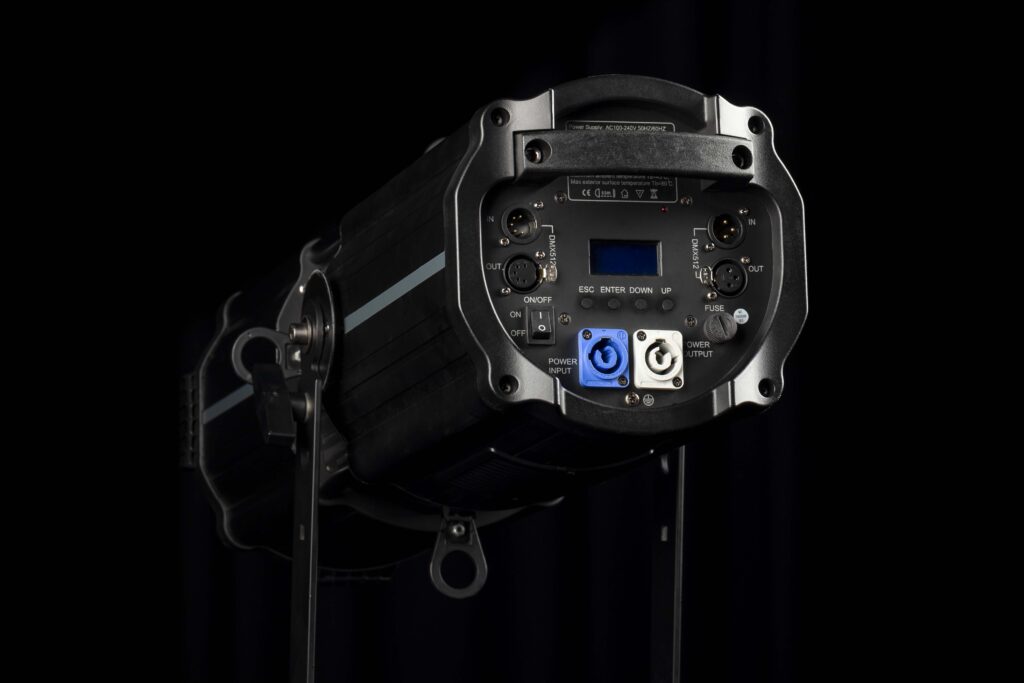

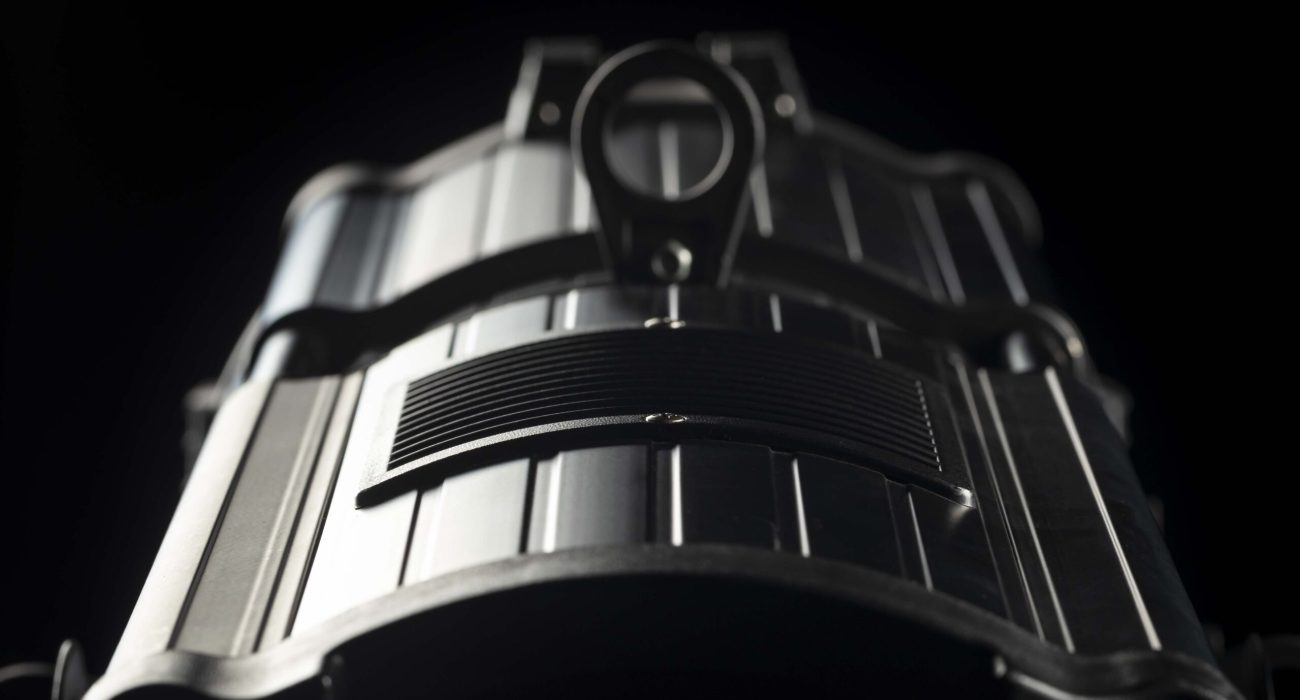

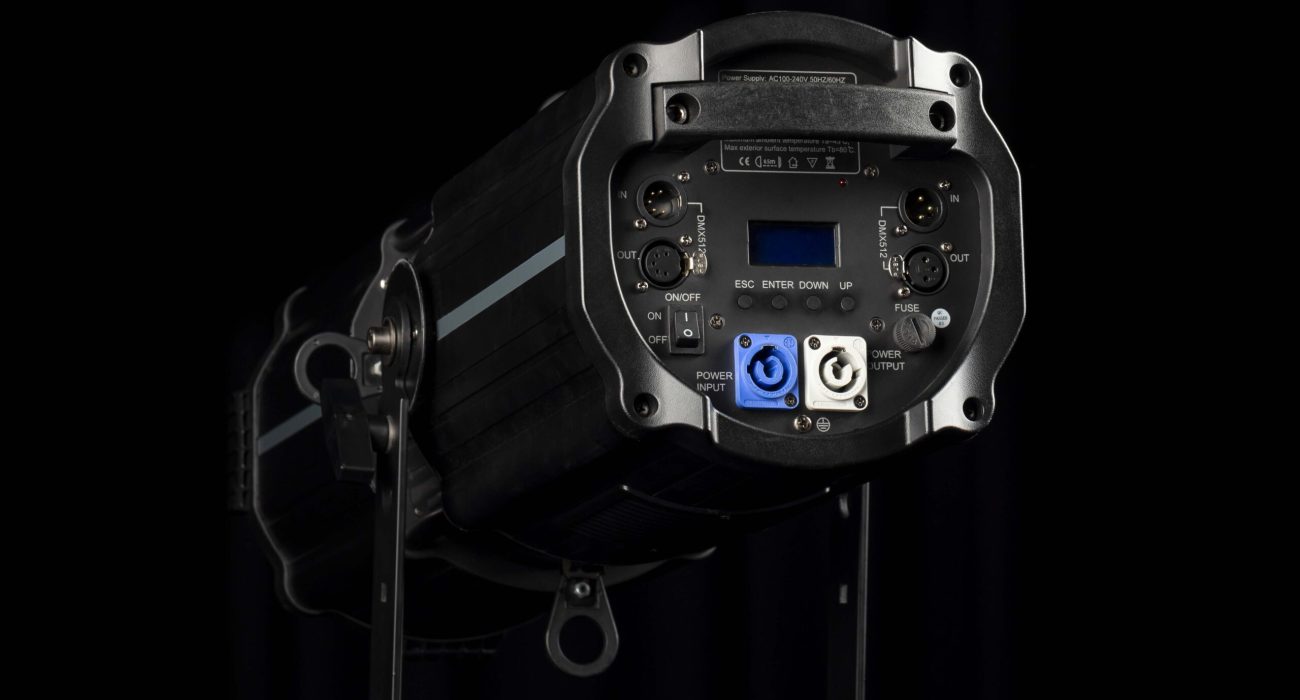

| Structure and cabinet | Black aluminum housing LCD blue graphic display Mounting points: single bracket for suspension Single handle in the rear side for easy transportation 3/5-poles XLR in/out connection IP rating: IP 20 Forced air cooling system “low noise” with fans for high efficiency and very low noise |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 250W IN / OUT power connection with powercon sockets Power supply cable 1,5 mt included Max 4 pcs linkable @240V |
| Weight and dimensions | Net Weight: 10kg Dimensions: 275x745x410 mm |
Halo profile led zoom is the result of a Sagitter project which can replace the most common incandescent profile projectors with a product featuring low consumption and the same luminous efficiency of the most common incandescent. The combination of a cutting edge power supply and a next generation 3200K white COB LED source, makes the projector suitable for stage of any size. This new profile projector is equipped with a variable zoom system able to modify its projection angle from 15° to 28°.
| Light source | 1X200W COB Led warm white 3200K CRI ≥85Ra LED lifespan: >50.000h LED refresh frequency: >400Hz flicker-free |
| Optic system | Beam angle: zoom from 15° to 28° Illuminance: 4090lux @5mt (15°) / 1800lux @5mt (28°) |
| Color system | Warm white 3200K COB Led |
| Effects | Linear dimmer 0-100% Strobe: electronic 1-20 flashes/s with adjustable speed |
| Control and programming | 2 different DMX channels configurations: 1/2 channels Protocol USITT DMX 512 |
| Structure and cabinet | Black aluminum housing LCD blue graphic display Mounting points: single bracket for suspension Single handle in the rear side for easy transportation 3/5-poles XLR in/out connection IP rating: IP 20 Forced air cooling system “low noise” with fans for high efficiency and very low noise |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 250W IN / OUT power connection with powercon sockets Power supply cable 1,5 mt included Max 4 pcs linkable @240V |
| Weight and dimensions | Net Weight: 10kg Dimensions: 275x745x410 mm |
