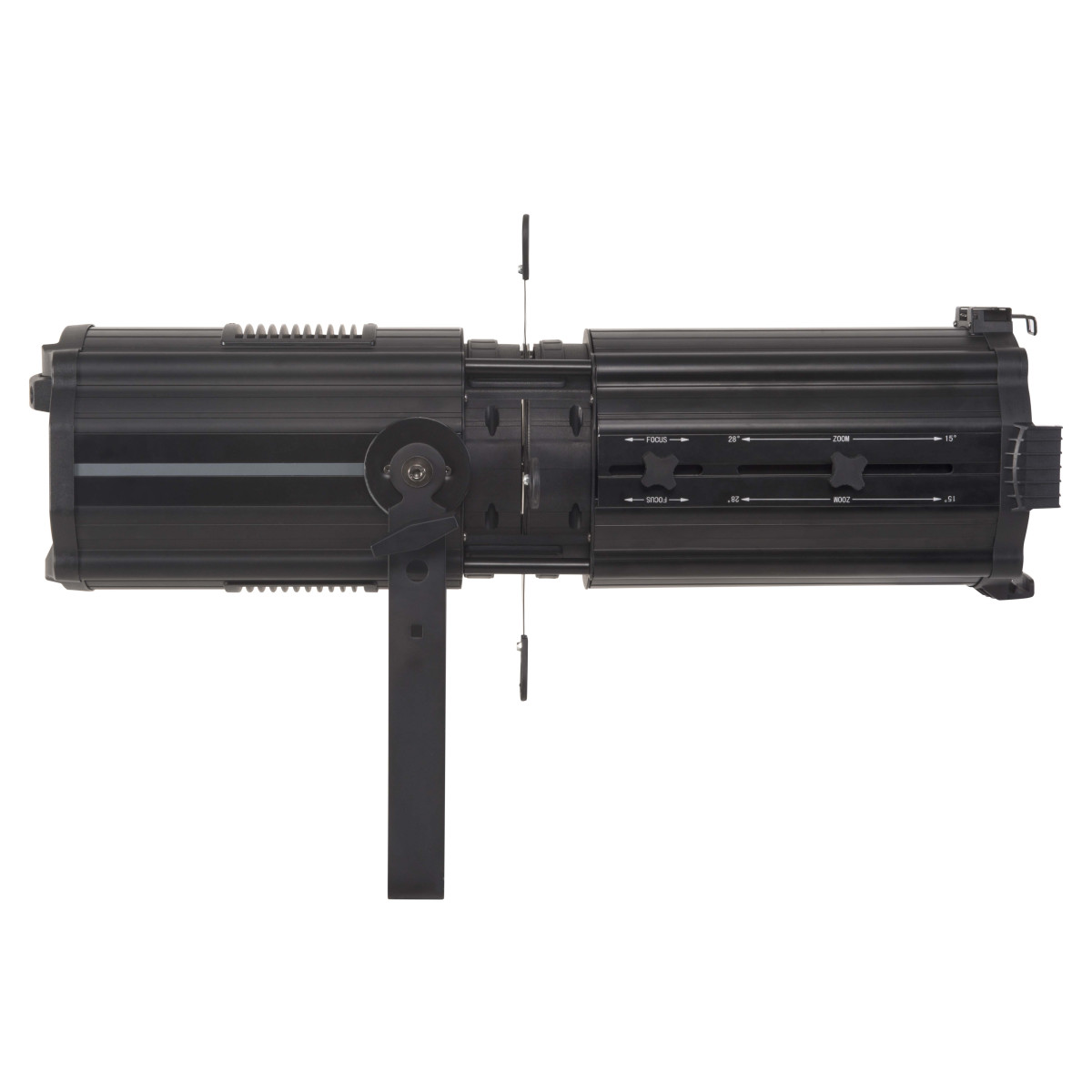

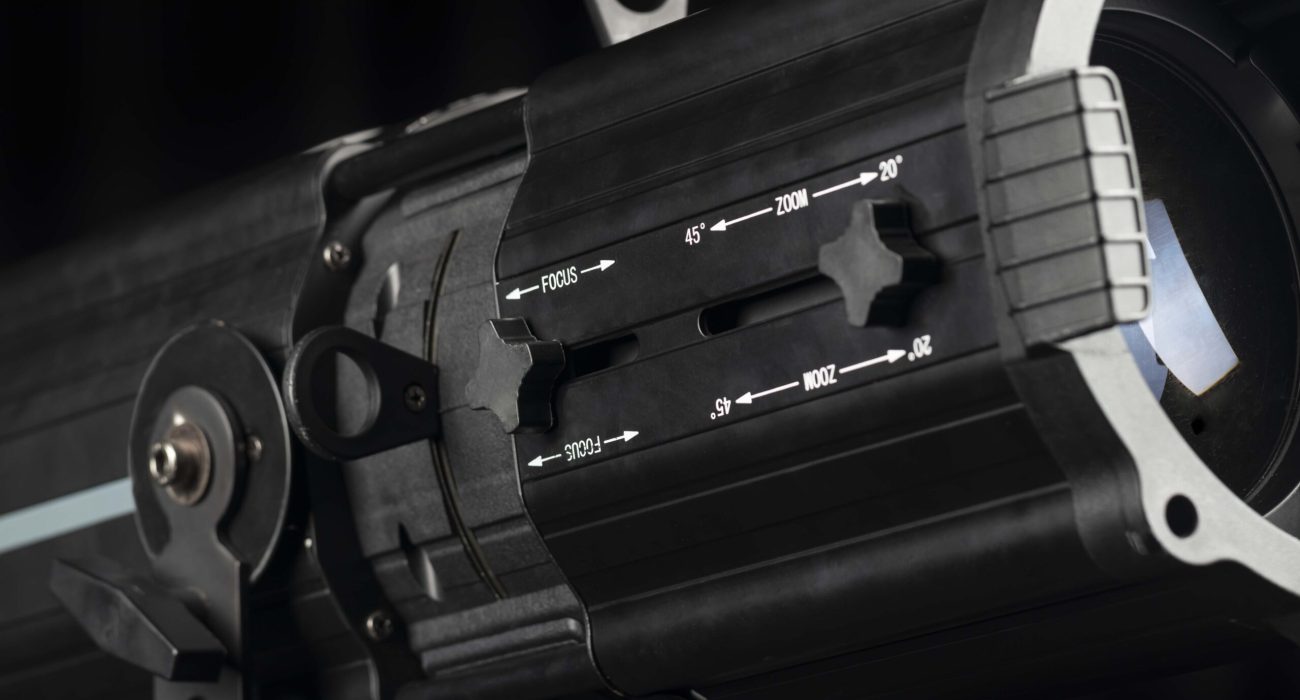

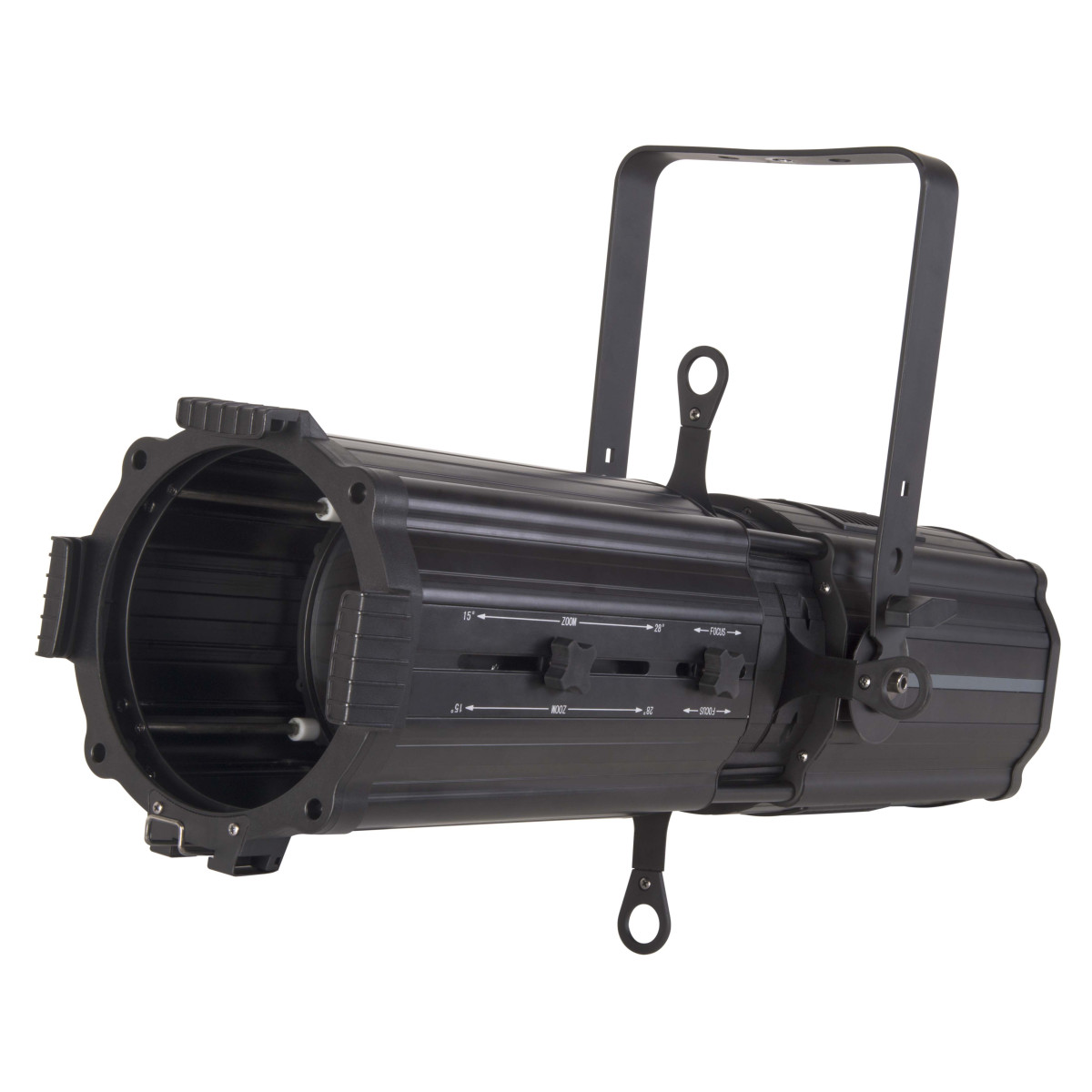

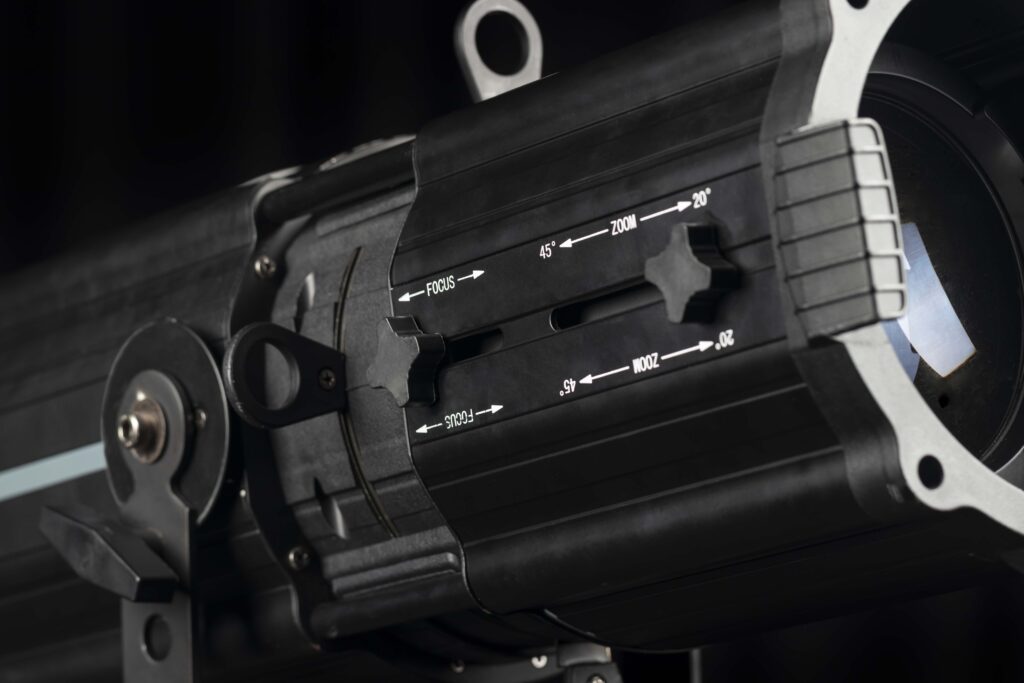

Halo profile led zoom is the result of a Sagitter project which can replace the most common incandescent profile projectors with a product featuring low consumption and the same luminous efficiency of the most common incandescent. The combination of a cutting edge power supply and a next generation 3200K white COB LED source, makes the projector suitable for stage of any size. This new profile projector is equipped with a variable zoom system able to modify its projection angle from 20° to 45°.
| Light source | 1X200W COB Led warm white 3200K CR ≥85Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker free |

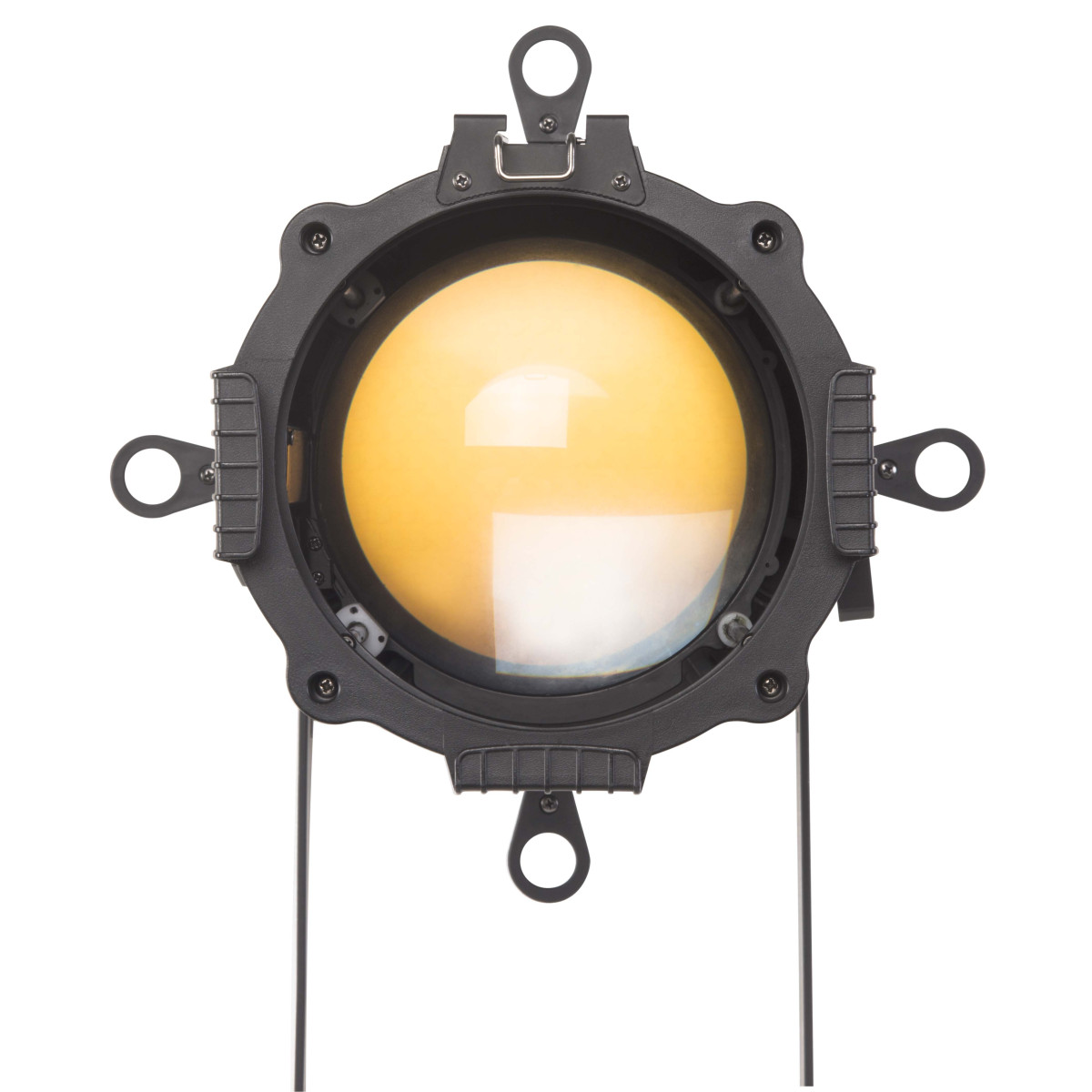

| Optic system | Beam angle: zoom from 20° to 45° Illuminance: 2950lux @5mt (20°) / 1550lux @5mt (45°) |
| Color system | Warm white 3200K COB Led |
| Effects | Linear dimmer 0-100% Adjustable strobe effect |
| Control and programming | 2 different DMX channels configurations: 1/2 channels Protocol USITT DMX 512 Master/Slave mode |

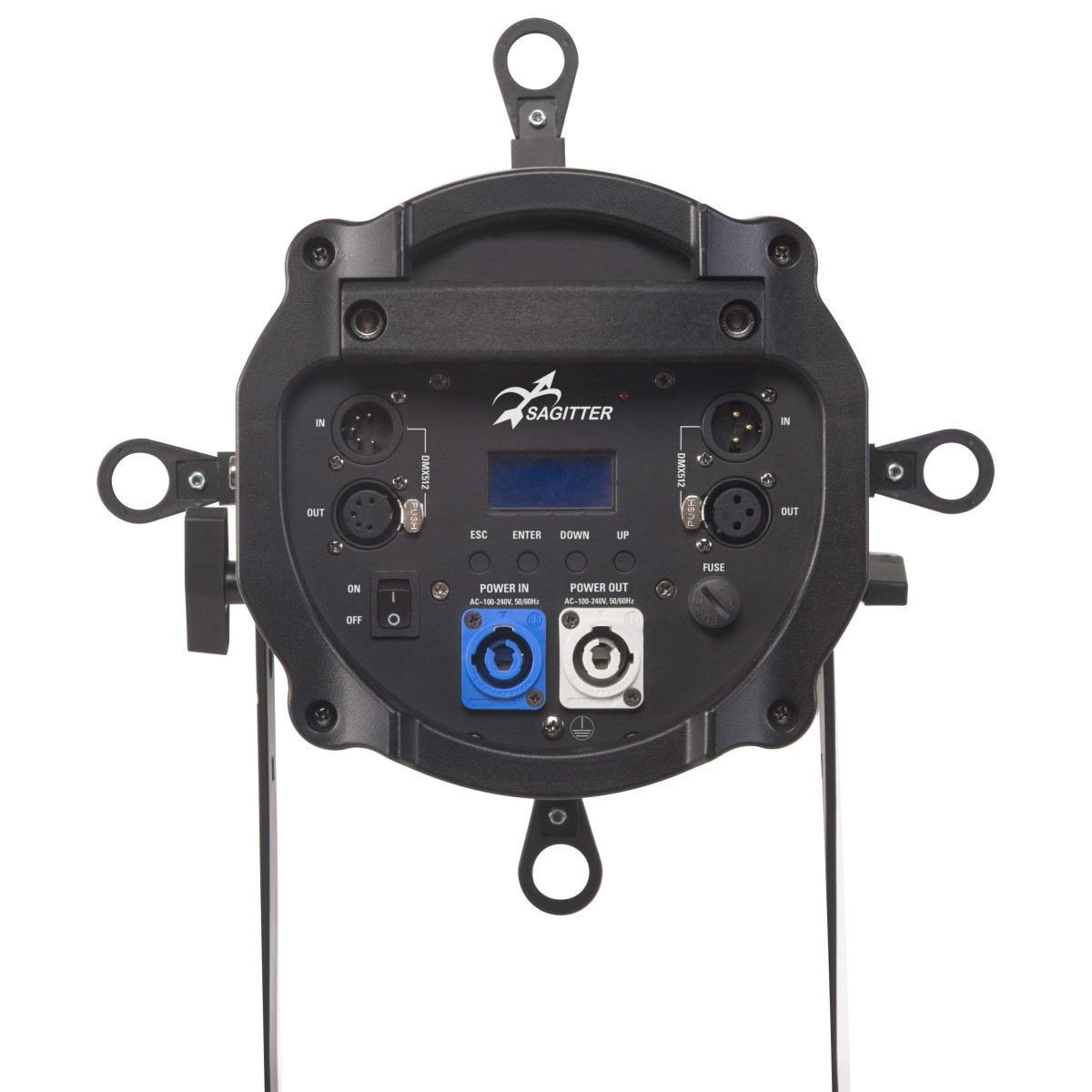

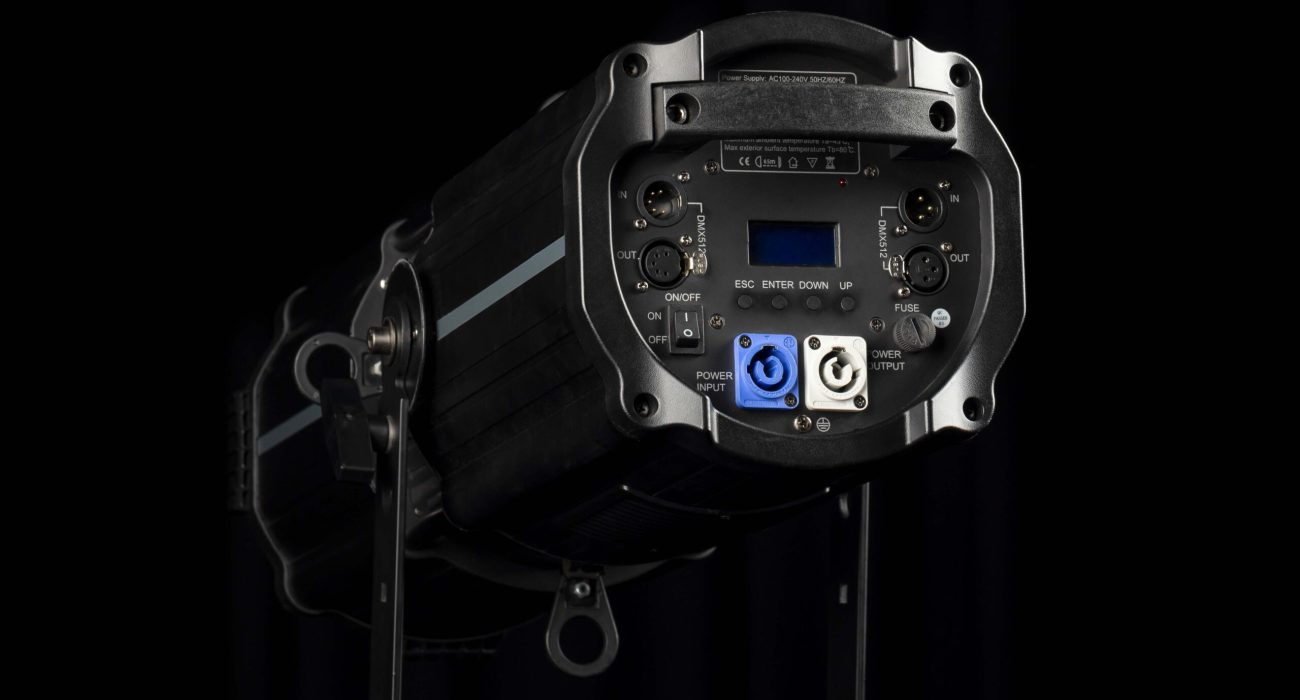

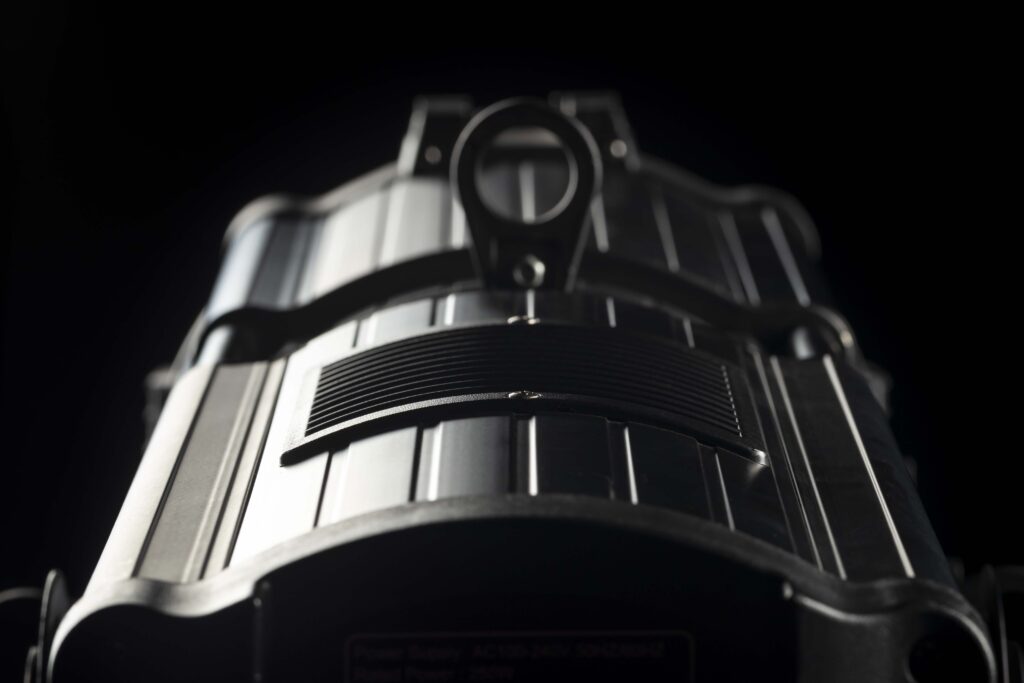

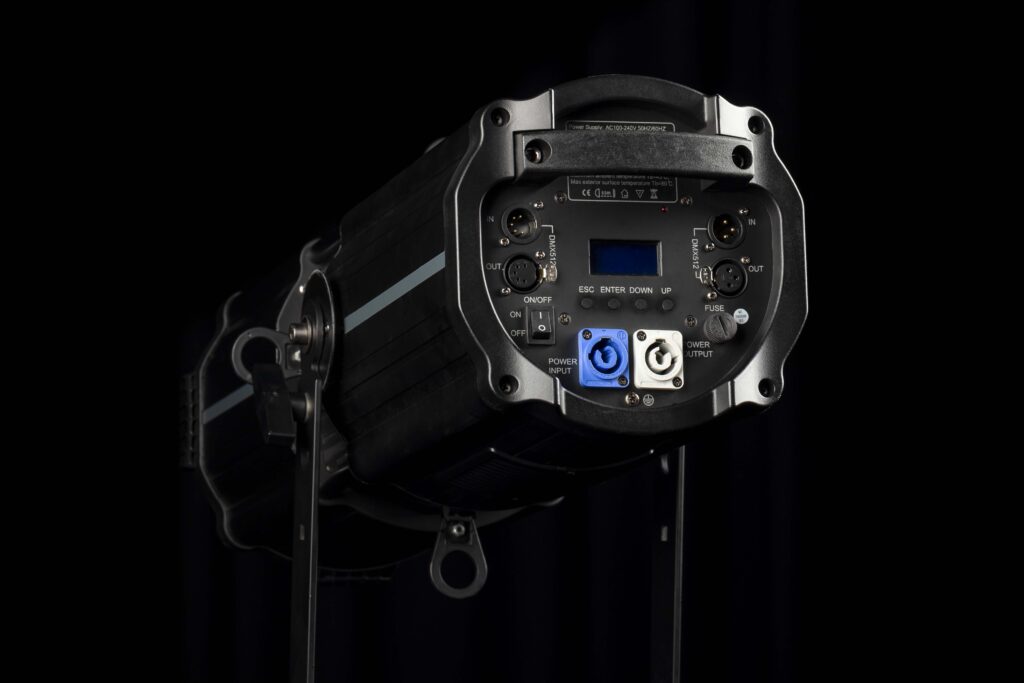

| Structure and cabinet | Black aluminium housing LCD blue graphic display Fixing system with adjustable bracket Single handle in the rear side of the projector for easy transportation DMX control signal input and output XLR 3 poles IP rating: IP 20 “low noise” controlled forced ventilation cooling system |
| Power supply | Input voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 250W IN/OUT power connection with powercon sockets Power supply cable 1,5 mt included Max 4 pcs linkable@240V |
| Weight and dimensions | Net weight: 10 kg Dimensions: 275x645x410 mm |
Halo profile led zoom is the result of a Sagitter project which can replace the most common incandescent profile projectors with a product featuring low consumption and the same luminous efficiency of the most common incandescent. The combination of a cutting edge power supply and a next generation 3200K white COB LED source, makes the projector suitable for stage of any size. This new profile projector is equipped with a variable zoom system able to modify its projection angle from 20° to 45°.
| Light source | 1X200W COB Led warm white 3200K CR ≥85Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker free |
| Optic system | Beam angle: zoom from 20° to 45° Illuminance: 2950lux @5mt (20°) / 1550lux @5mt (45°) |
| Color system | Warm white 3200K COB Led |
| Effects | Linear dimmer 0-100% Adjustable strobe effect |
| Control and programming | 2 different DMX channels configurations: 1/2 channels Protocol USITT DMX 512 Master/Slave mode |
| Structure and cabinet | Black aluminium housing LCD blue graphic display Fixing system with adjustable bracket Single handle in the rear side of the projector for easy transportation DMX control signal input and output XLR 3 poles IP rating: IP 20 “low noise” controlled forced ventilation cooling system |
| Power supply | Input voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 250W IN/OUT power connection with powercon sockets Power supply cable 1,5 mt included Max 4 pcs linkable@240V |
| Weight and dimensions | Net weight: 10 kg Dimensions: 275x645x410 mm |
