| Light source | 1x130W COB Led cold white 5700K CRI = 95 Ra LED lifespan: > 50.000h LED refresh frequency: adjustable from 900 Hz to 20 KHz. Anti flicker |
| Optic system | Beam Angle: manual zoom from 13° to 36° Field Angle: manual zoom from 20° to 47° Illuminance: 5560lux @ 5mt (14°) / 1203lux @ 5mt (36°) |
| Color system | Cold white 5700K COB Led |
| Effects | Linear dimmer 0-100% Independent adjustment of dimmer with external knob Adjustable Strobe 4 Dimmer curves available (Linear / Square / I-Square / S-Curve) 2 Dimmer mode selectable (LED / Halogen) |
| Control and programming | 5 DMX configurations available: 1/2/2/4/5 channels Protocols: DMX 512, RDM Manual dimmer mode controlled by independent knob or by display |

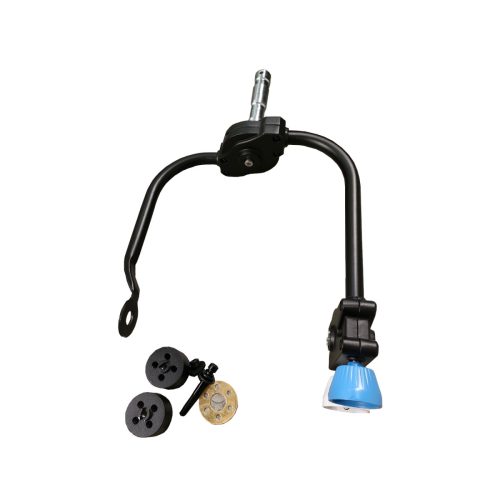

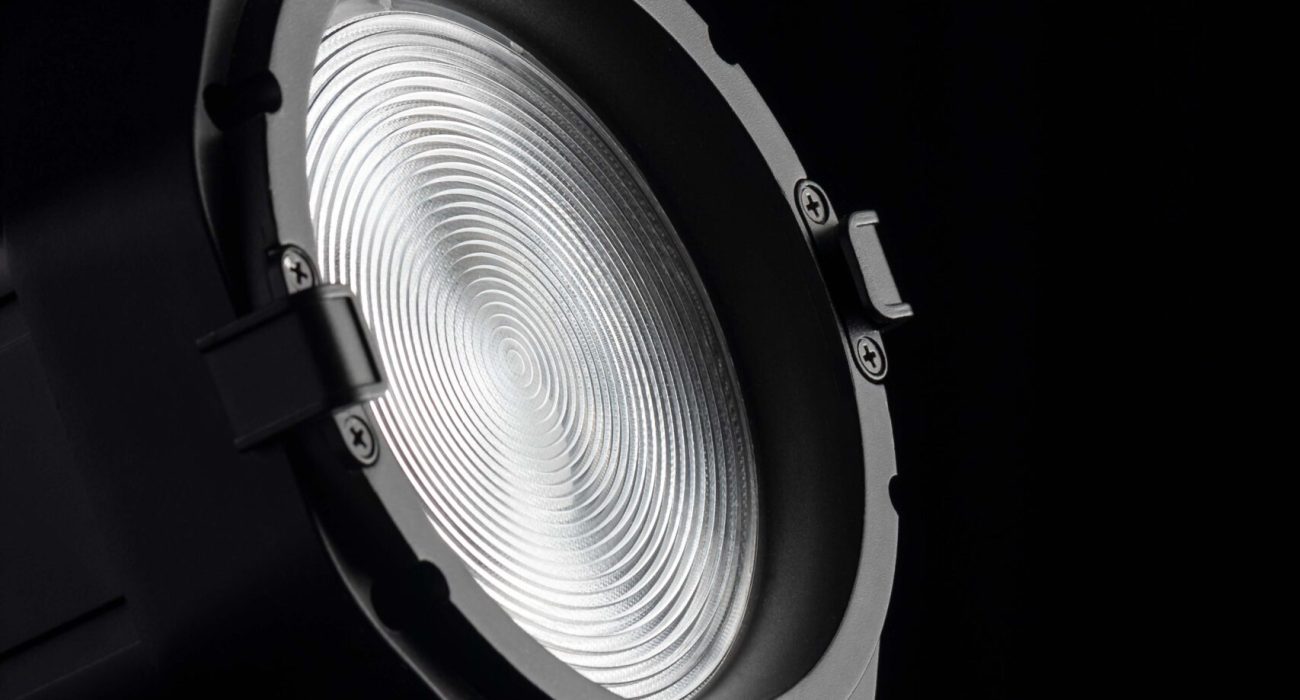

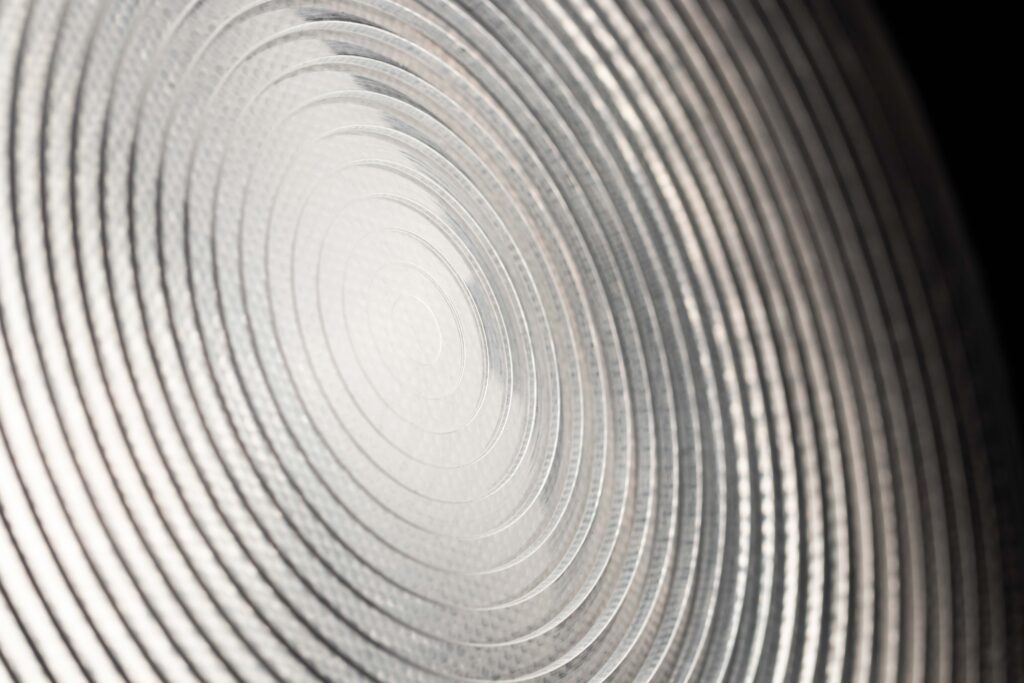

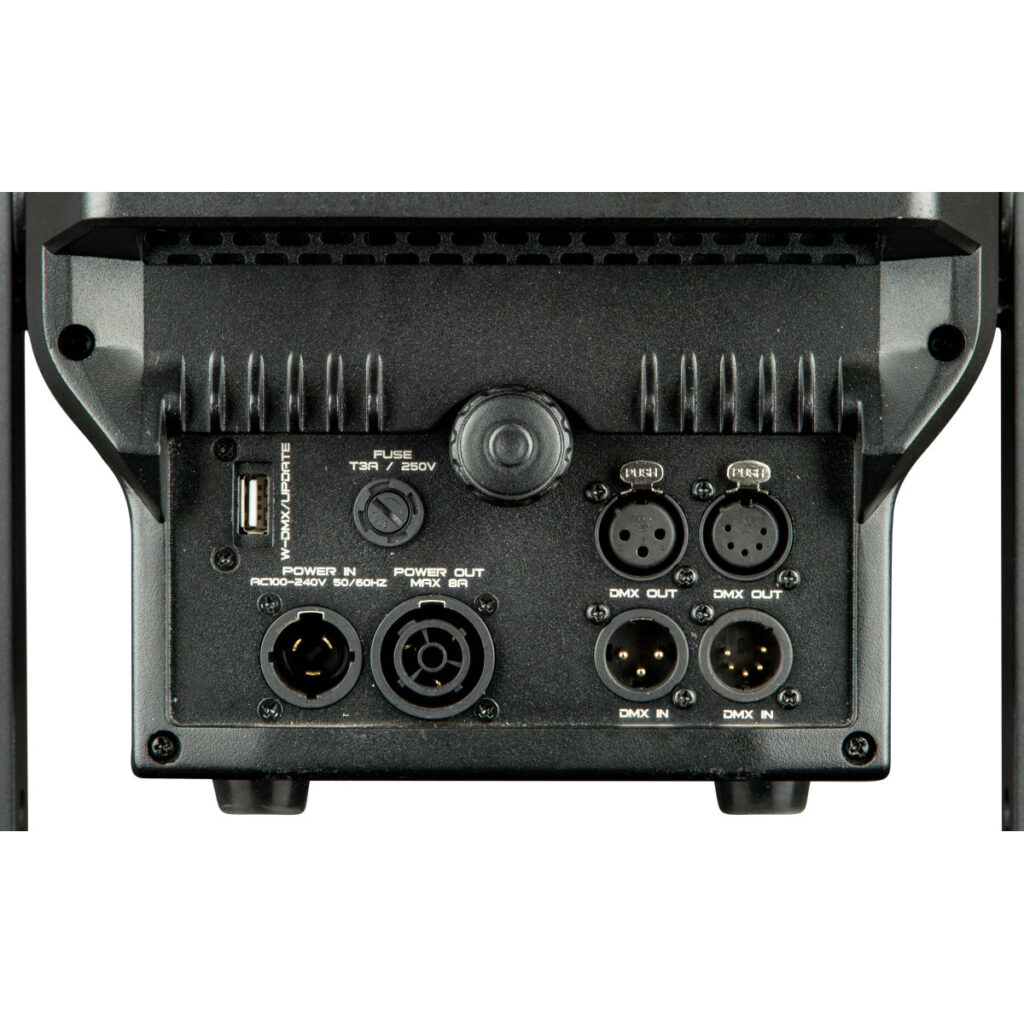

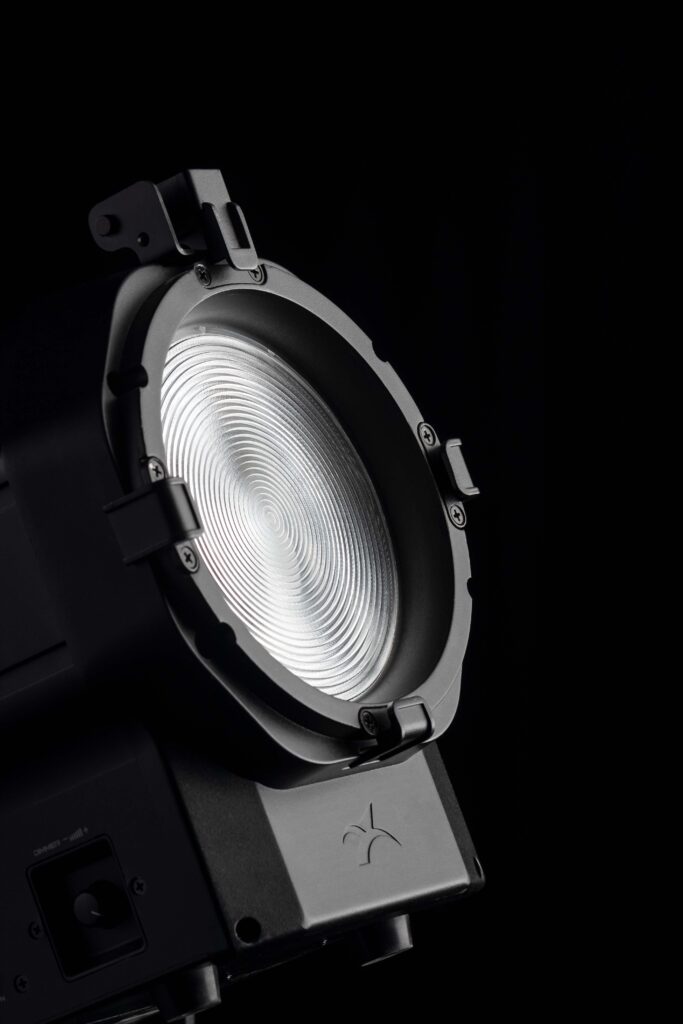

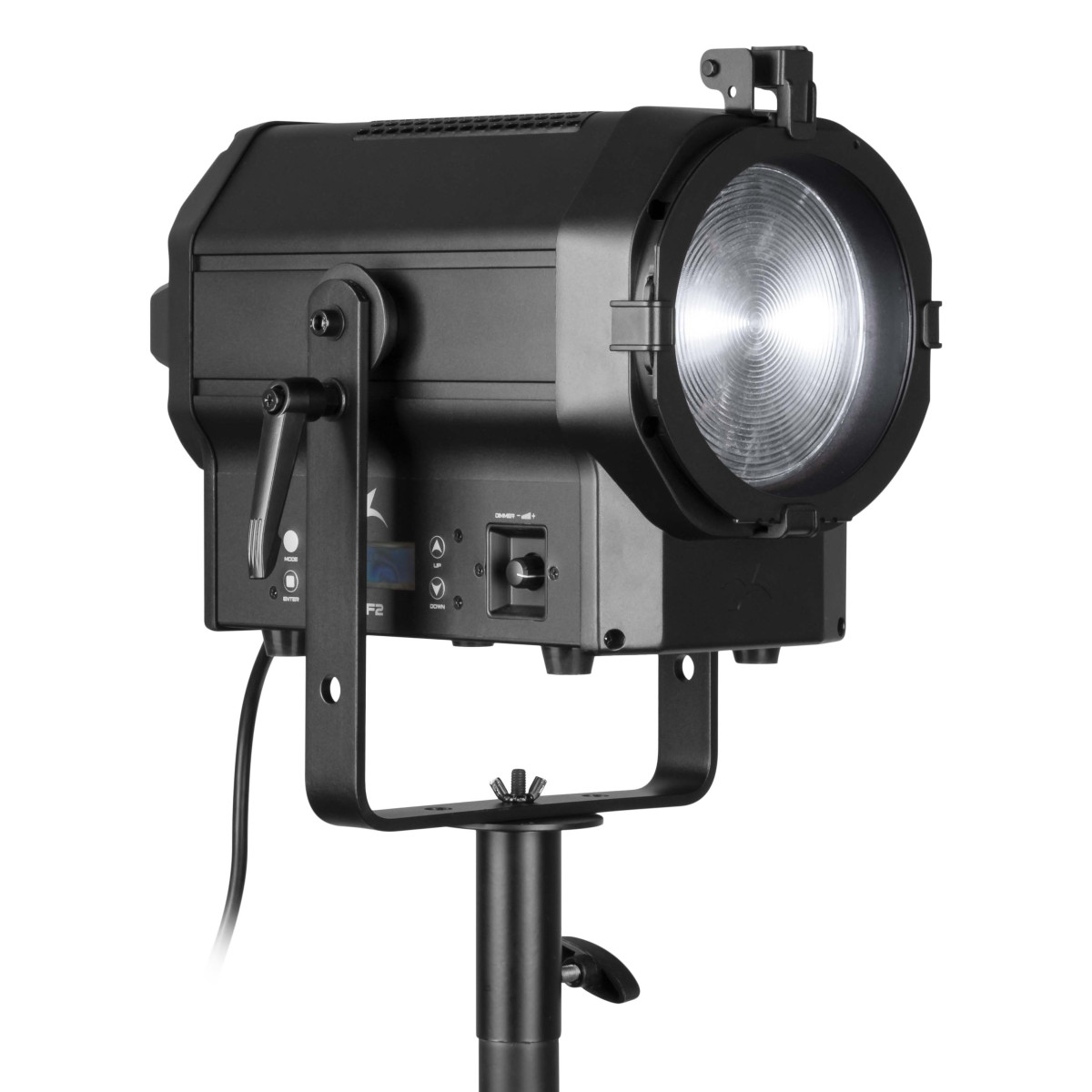

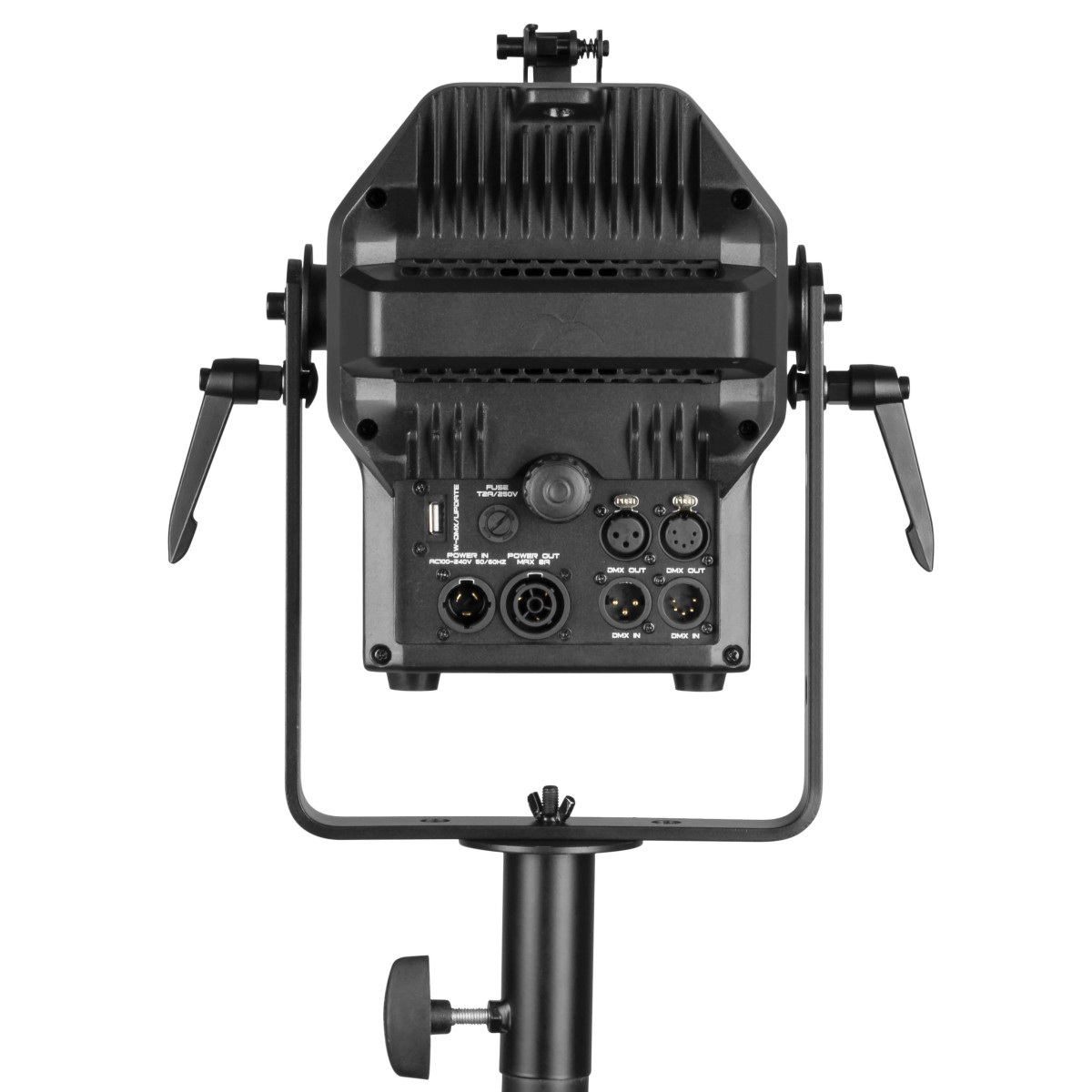

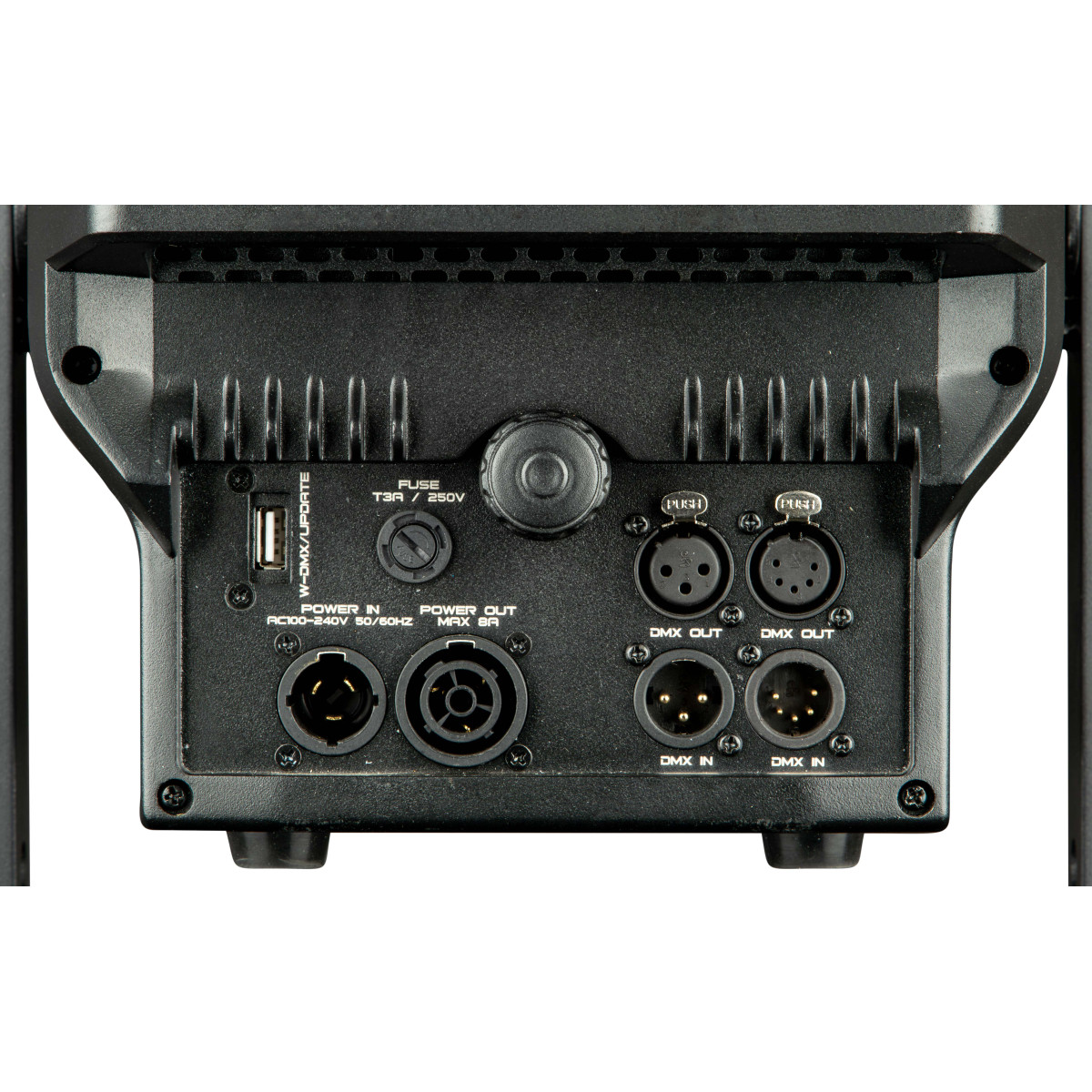

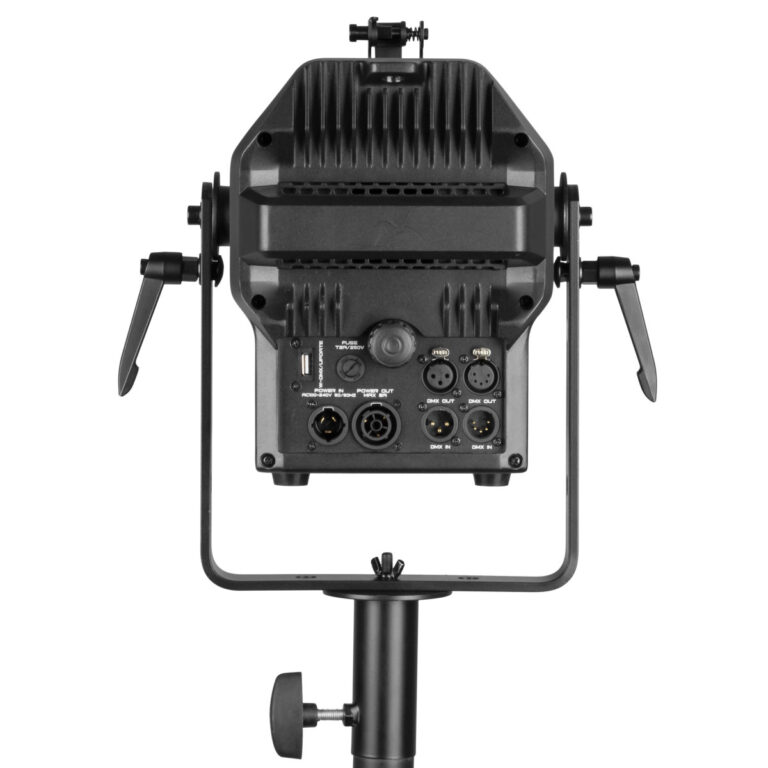

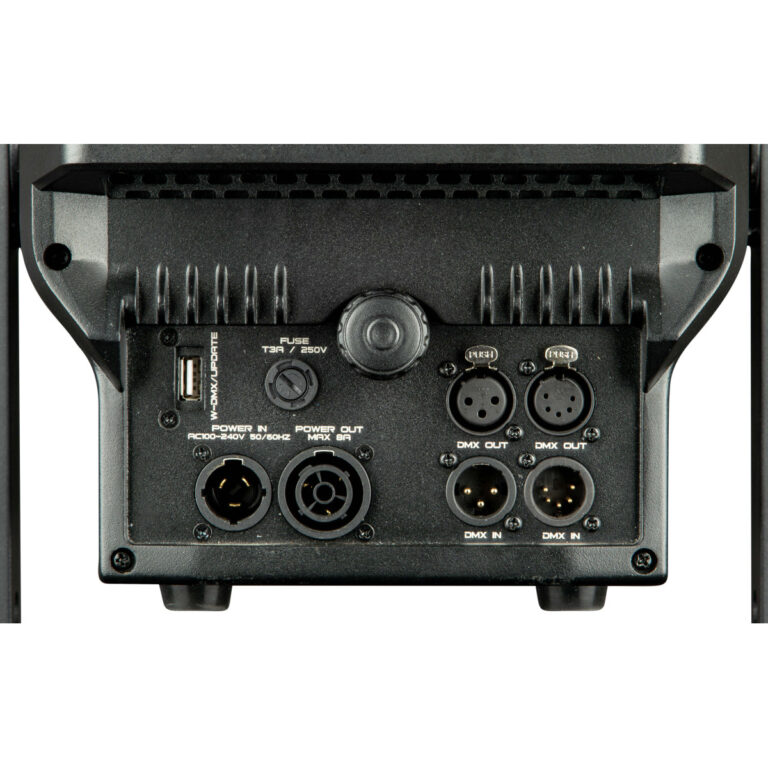

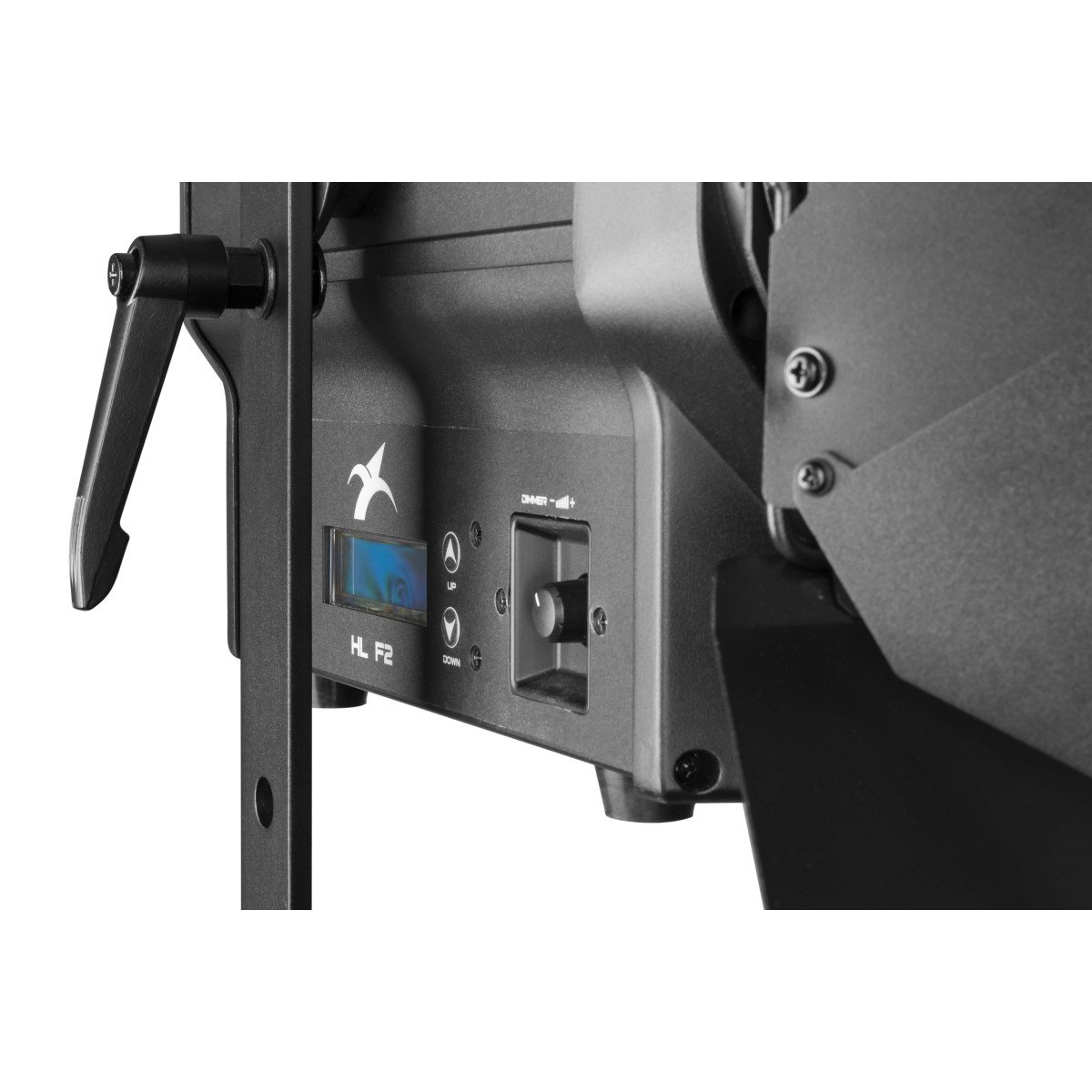

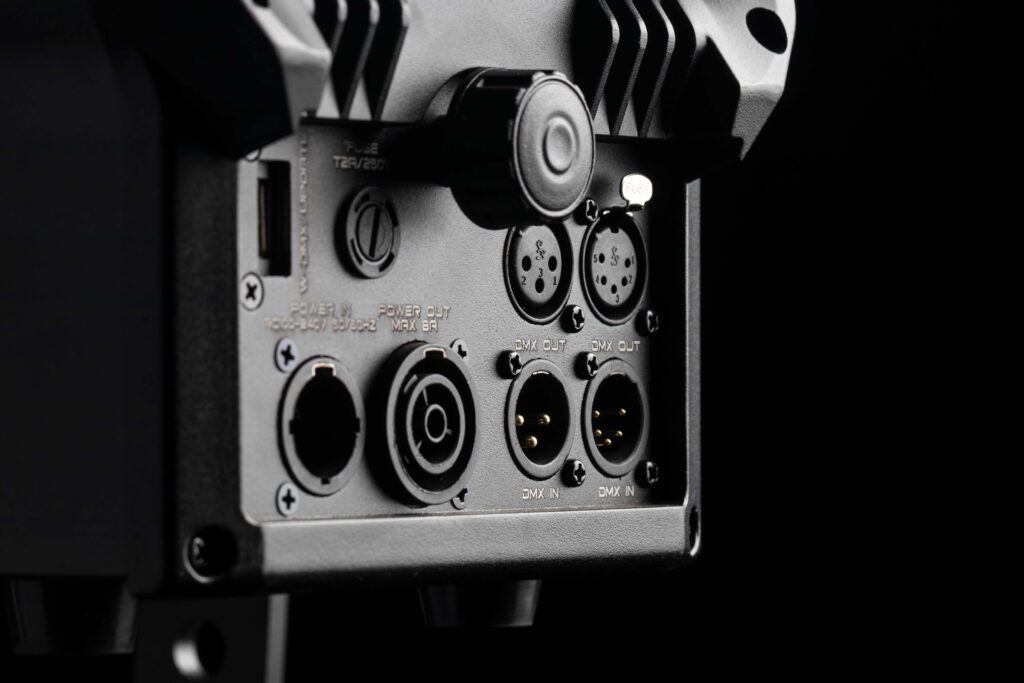

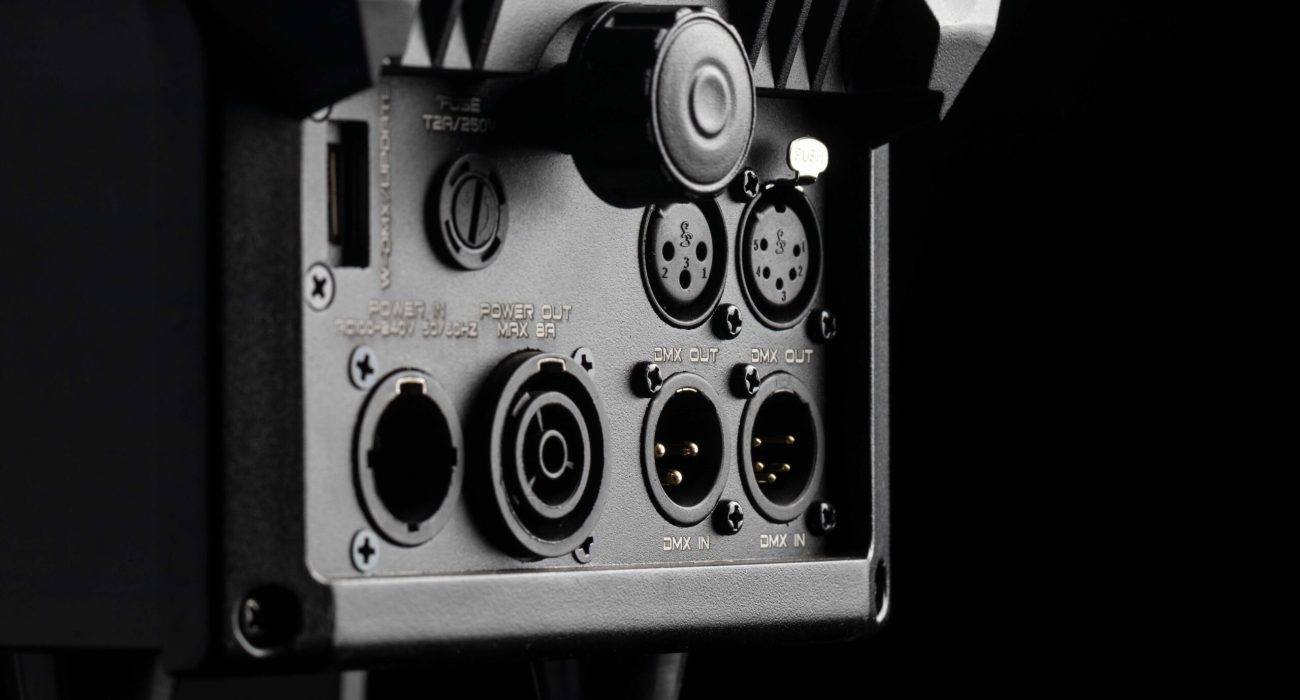

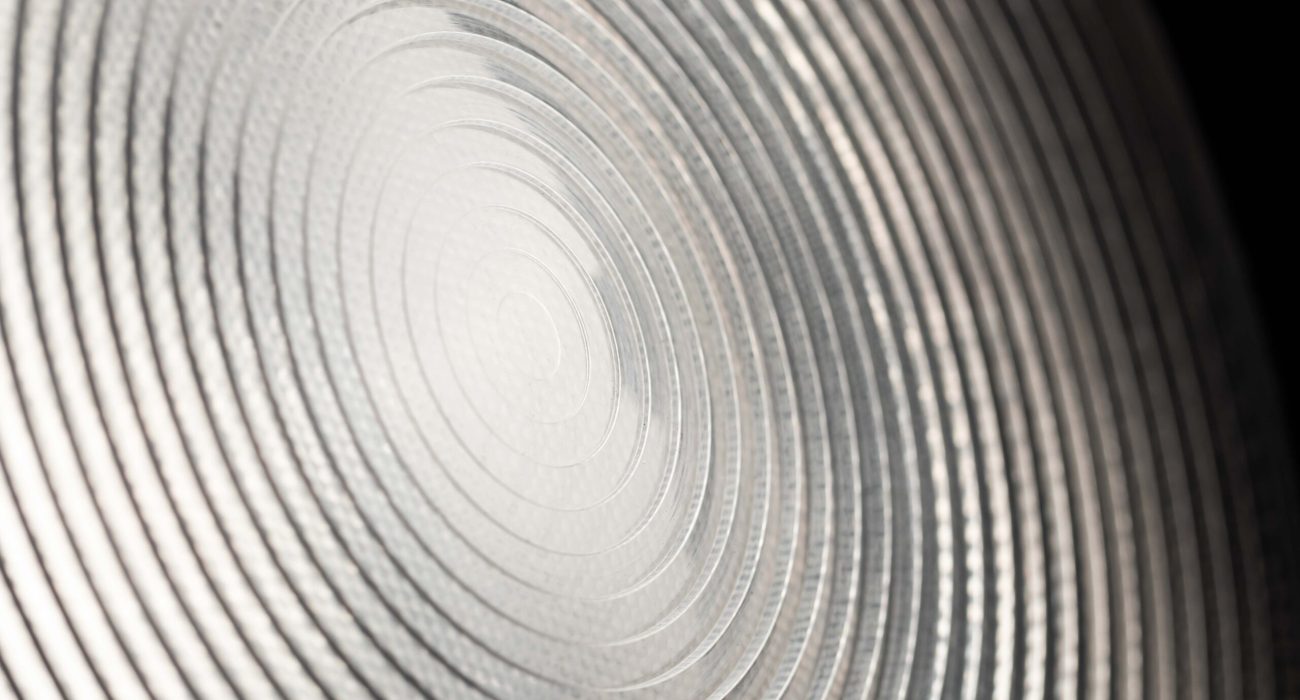

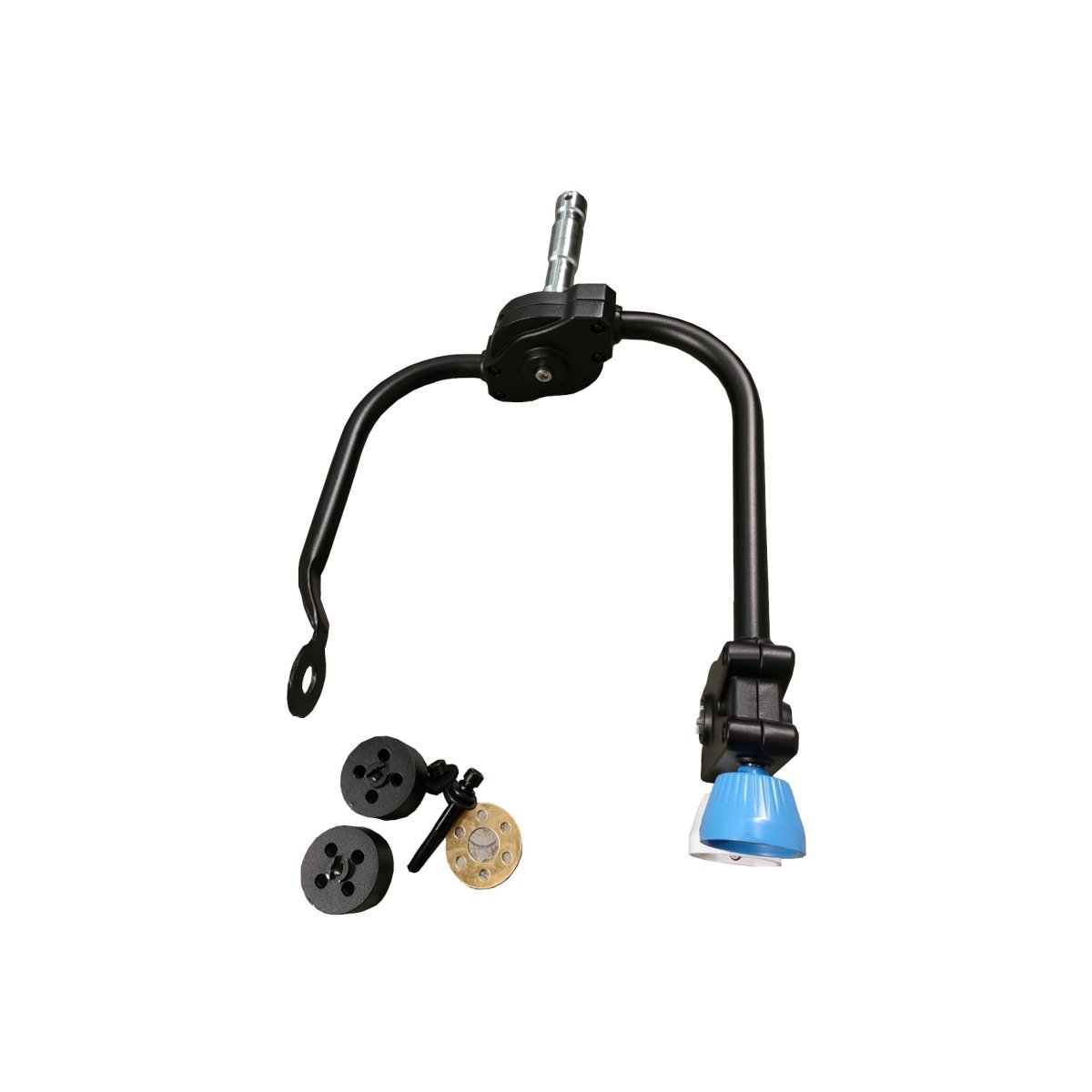

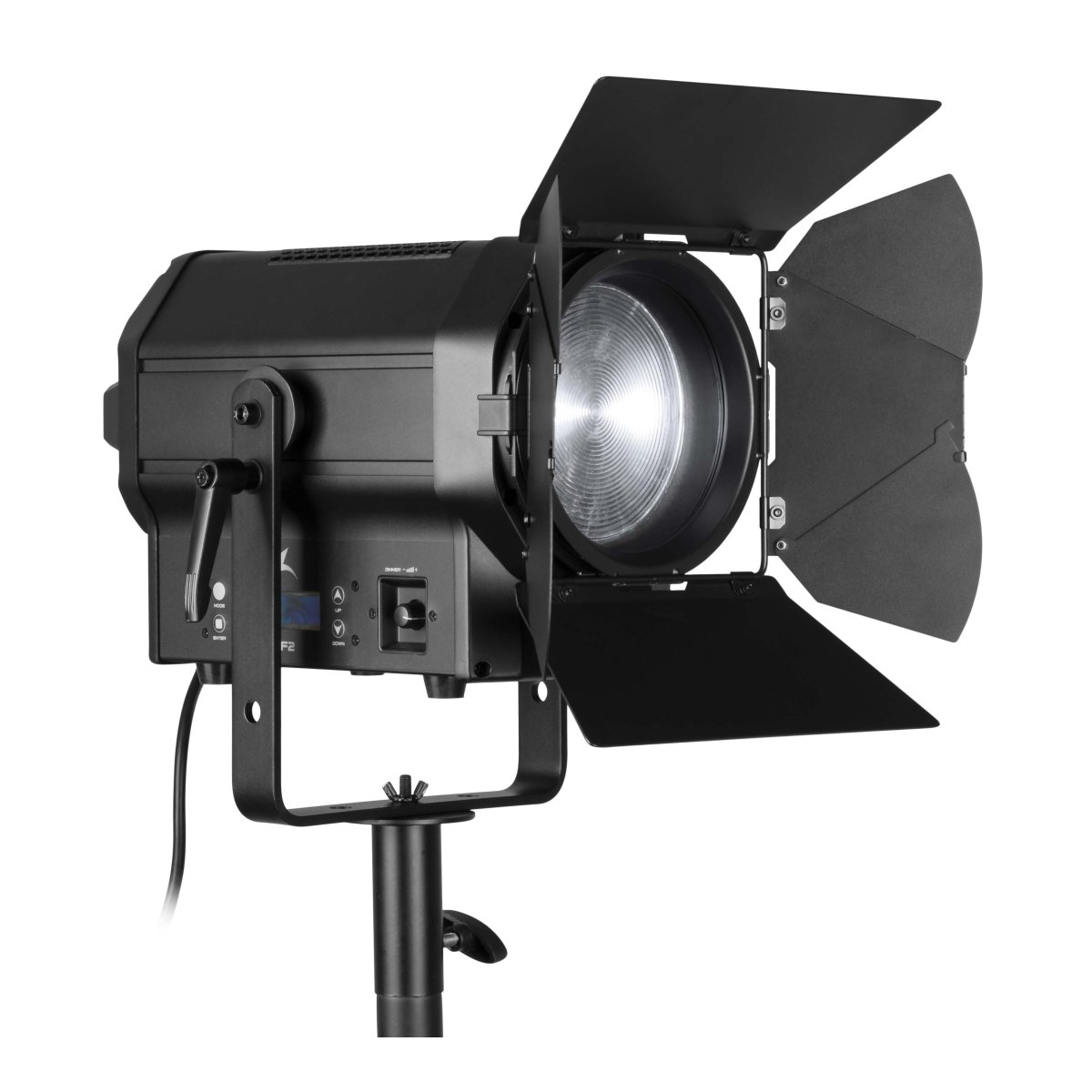

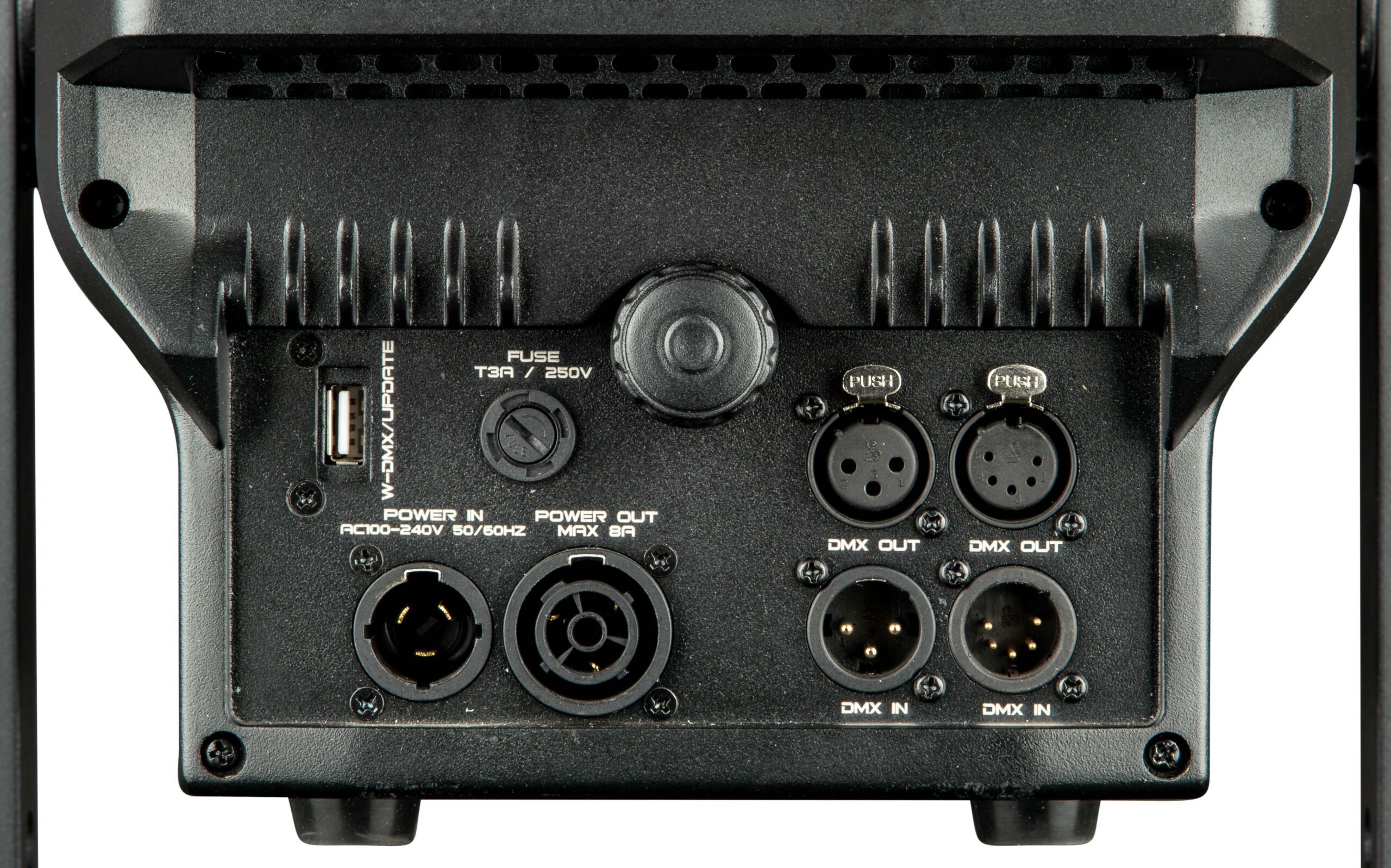

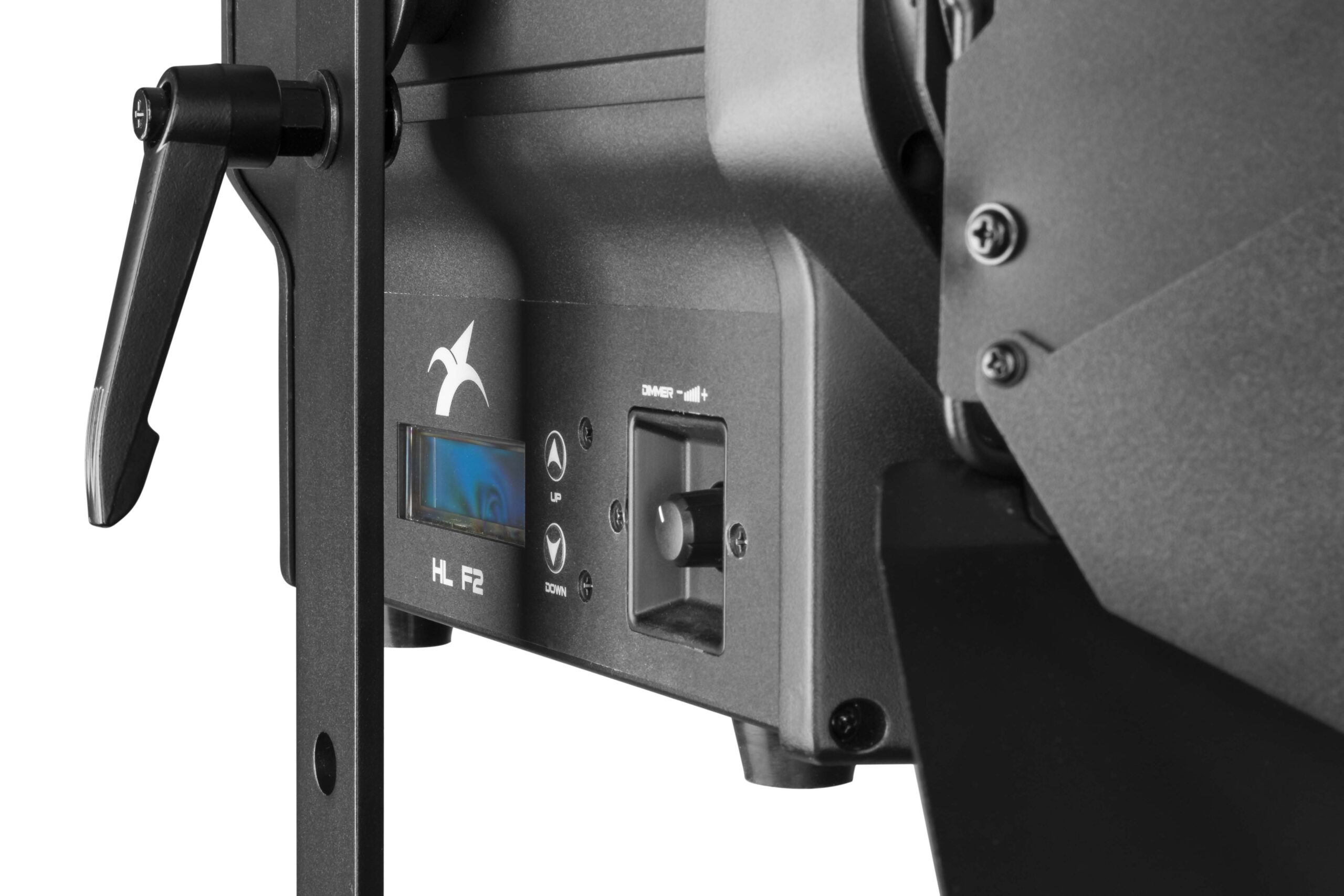

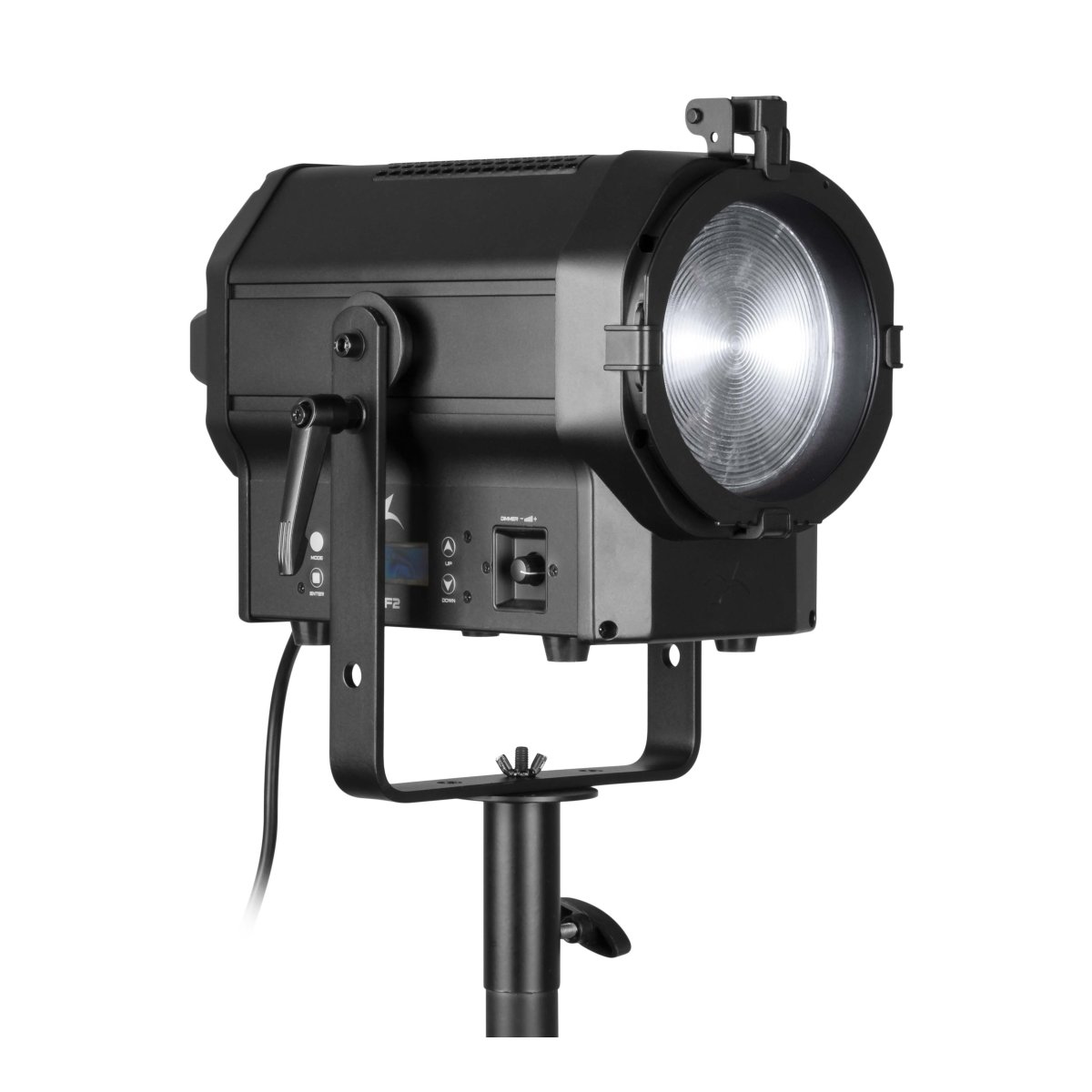

| Structure and cabinet | Aluminium housing black color New PMMA fresnel lens diameter 150 mm LCD blue graphic display Mounting points: single bracket Rotating barndoor included XLR 3/5-poles DMX IN/OUT connection USB connection for software upgrade and wireless control (order code SG WECONUSB) IP rating: IP20 Electronic controlled forced air fan cooling system “low noise” 3 selectable fan modes Noise levels @1m: Fan AUTO: 39dB(A), Fan HIGH: 48dB(A), Fan LOW: 38dB(A) Pan / Tilt bracket for pole control (sold separately – order code SG HLF2PLBR) |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 150W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1mt included Max 8 pcs linkable @ 230VAC |
| Weight and dimensions | Net weight: 7 kg Dimensions: 320x383x386(h) mm (barndoors included) |
| Light source | 1x130W COB Led cold white 5700K CRI = 95 Ra LED lifespan: > 50.000h LED refresh frequency: adjustable from 900 Hz to 20 KHz. Anti flicker |
| Optic system | Beam Angle: manual zoom from 13° to 36° Field Angle: manual zoom from 20° to 47° Illuminance: 5560lux @ 5mt (14°) / 1203lux @ 5mt (36°) |
| Color system | Cold white 5700K COB Led |
| Effects | Linear dimmer 0-100% Independent adjustment of dimmer with external knob Adjustable Strobe 4 Dimmer curves available (Linear / Square / I-Square / S-Curve) 2 Dimmer mode selectable (LED / Halogen) |
| Control and programming | 5 DMX configurations available: 1/2/2/4/5 channels Protocols: DMX 512, RDM Manual dimmer mode controlled by independent knob or by display |
| Structure and cabinet | Aluminium housing black color New PMMA fresnel lens diameter 150 mm LCD blue graphic display Mounting points: single bracket Rotating barndoor included XLR 3/5-poles DMX IN/OUT connection USB connection for software upgrade and wireless control (order code SG WECONUSB) IP rating: IP20 Electronic controlled forced air fan cooling system “low noise” 3 selectable fan modes Noise levels @1m: Fan AUTO: 39dB(A), Fan HIGH: 48dB(A), Fan LOW: 38dB(A) Pan / Tilt bracket for pole control (sold separately – order code SG HLF2PLBR) |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 150W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1mt included Max 8 pcs linkable @ 230VAC |
| Weight and dimensions | Net weight: 7 kg Dimensions: 320x383x386(h) mm (barndoors included) |
