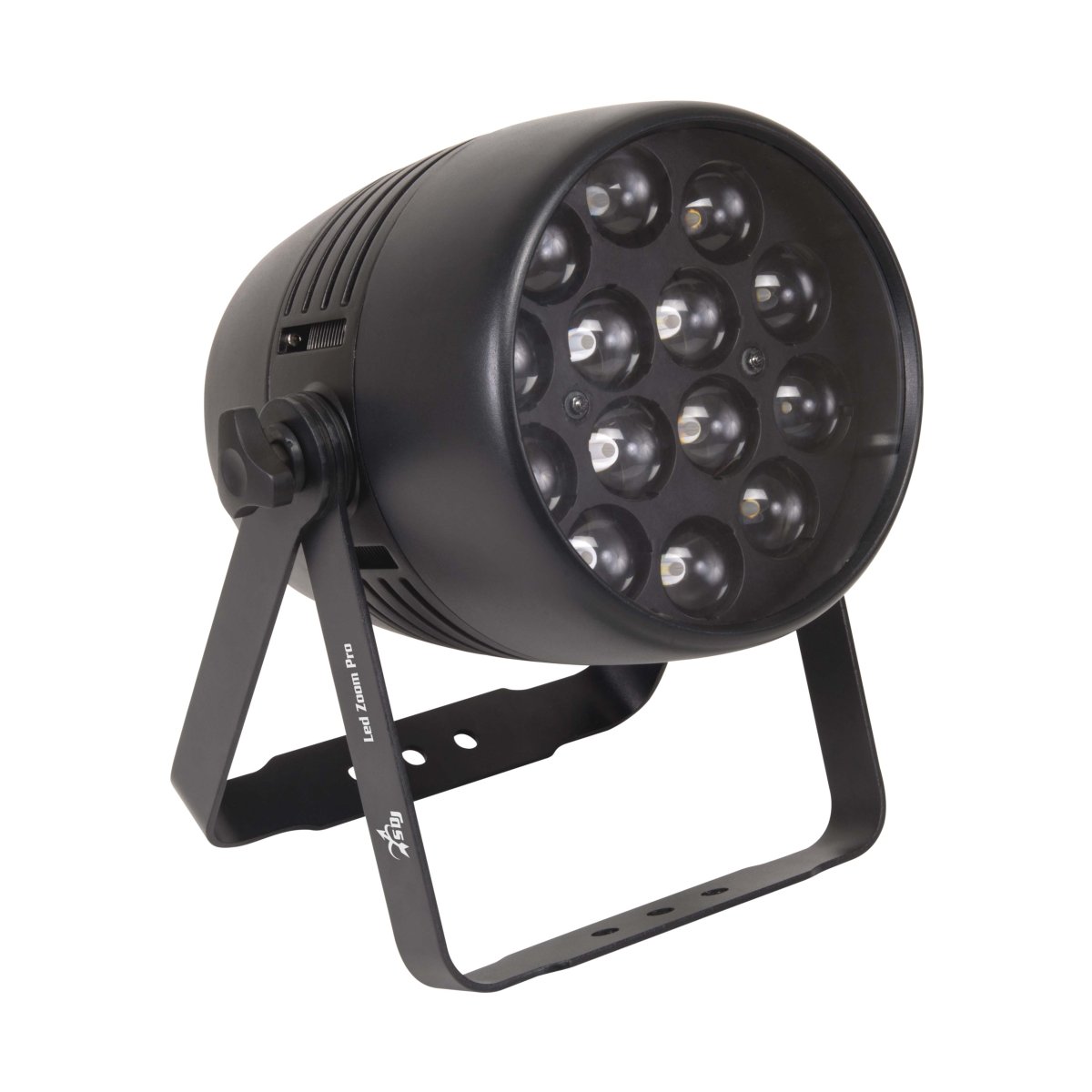

HTZ PRO completes the SDJ led zoom projectors series, offering the users outstanding performaces. This new projector uses 14 high power led sources RGBW full color able to illuminate any kind of stage. The innovative zoom system, designed to make the most of the real luminous efficiency of the projector, allows to work accurately on the light beam, switching very fastly from beam emission to wash emission keeping brilliant and bright colors.
Light source

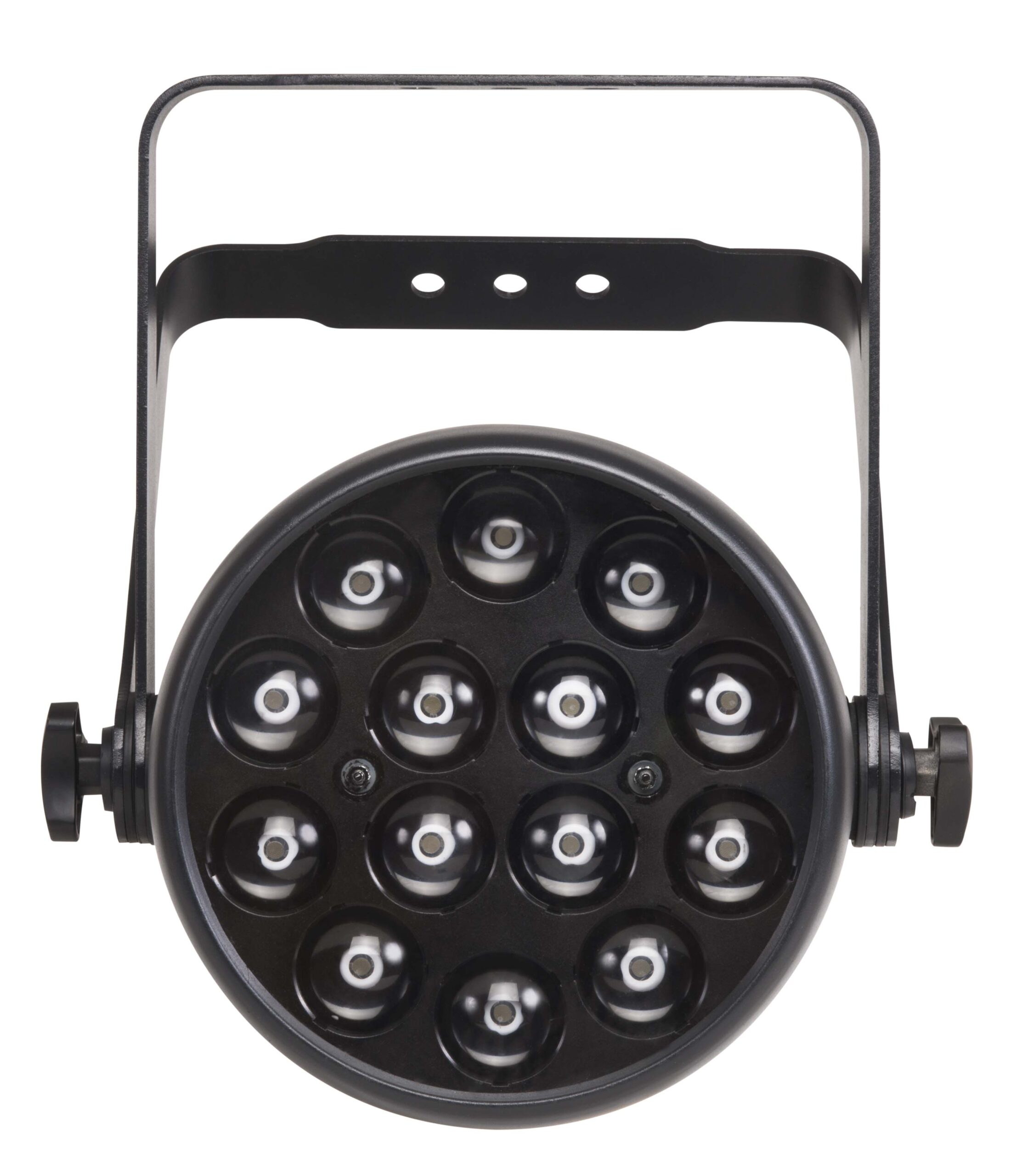

• 14x15W led RGBW Full Color
• LED lifespan: >50.000h
• LED refresh frequency: >400Hz flicker free
Optic system
• Beam angle: zoom from 8° to 40°
• Luminous flux: 13900Lux (4m – full ON – 8°) / 495Lux (4m – full ON – 40°)
• Color system
• LED source 4 in 1 RGBW Full Color
• Infinite chromatic possibilities and colour temperature control
• Color macros can be recalled by DMX
Effects
• Linear Dimmer 0-100%
• Electronic strobe: 1-25 flashes/s with adjustable speed
Control and programming
• 3 DMX configurations available: 5/9/15 channels
• 4 selectable dimmer curves
• Protocol USITT DMX 512
• Master / Slave mode
• Sound mode with adjustable mic sensitivity
• Static color mode with independent adjustment of strobe
• Automatic mode with different built-in programs selectable from the display with independent adjustment of the speed and strobe
• Color mode with different pre-programmed color macros
Structure and cabinet
• Die cast aluminium black color
• LCD color graphic display

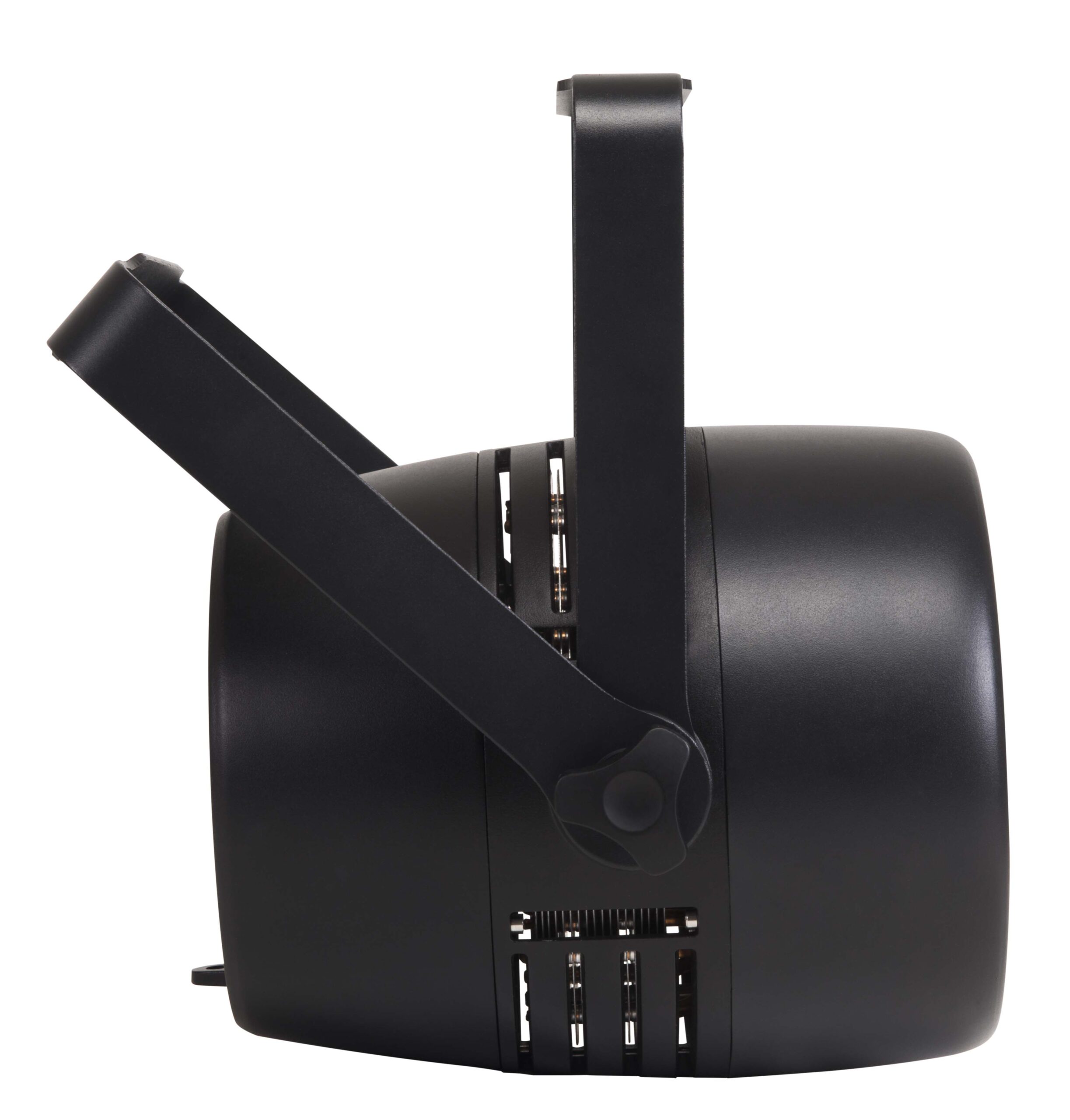

• Mounting points: double adjustable bracket

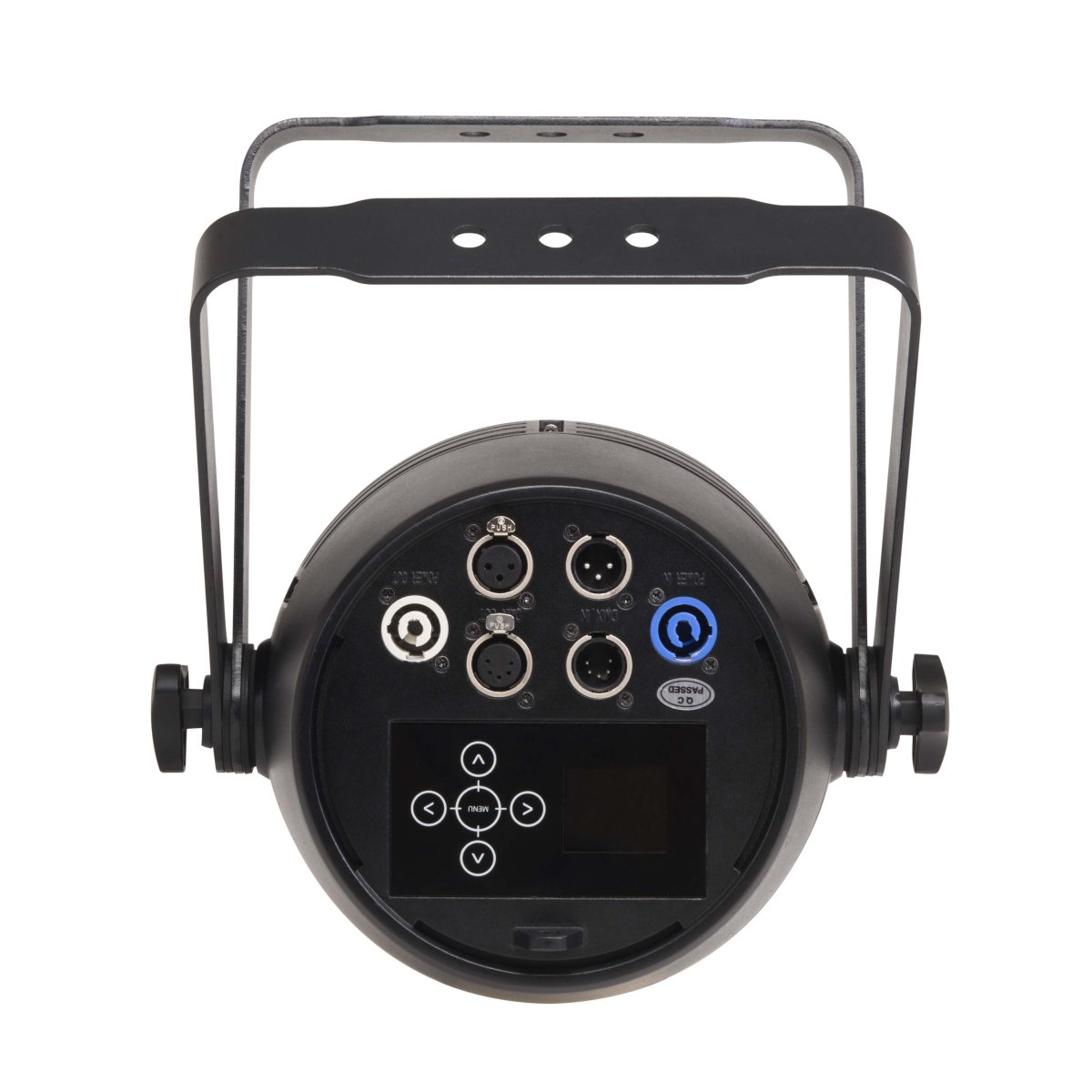

• 3/5-poles XLR in/out connection
• IP rating: IP 20
• Forced air fan cooling system, with electronic control of fan’s speed
Power supply
• Input Voltage: AC~100-240V 50/60Hz
• Switching power supply unit
• Power consumption 250W
• Power IN/OUT connection with powerCON
Weight and dimensions
• Net weight: 6,3 kg
• Dimensions: 295x270x356 mm
