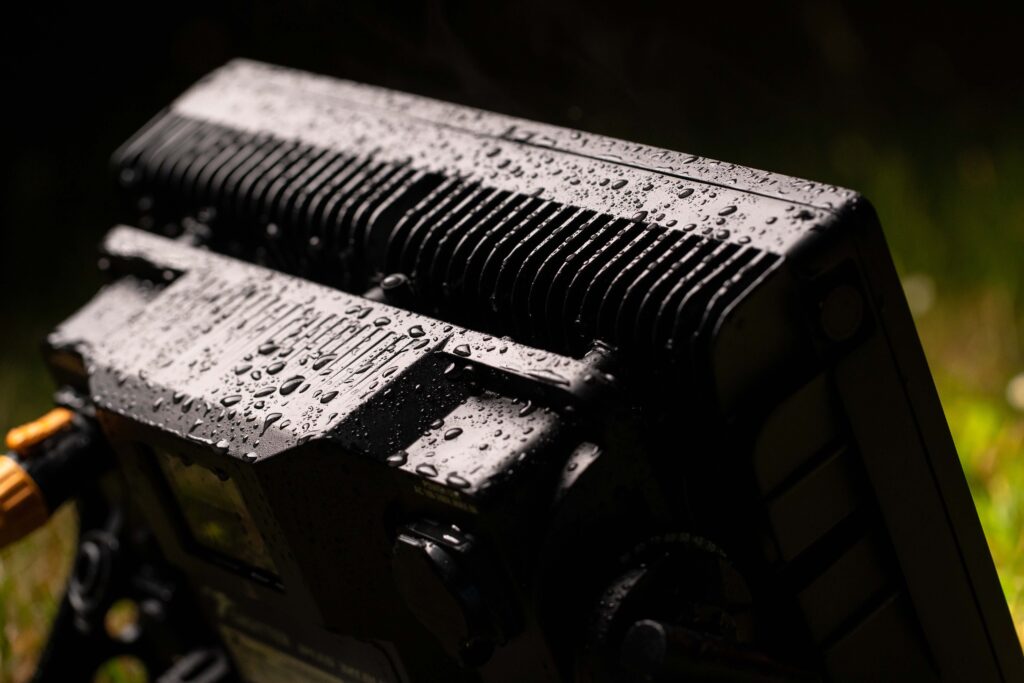

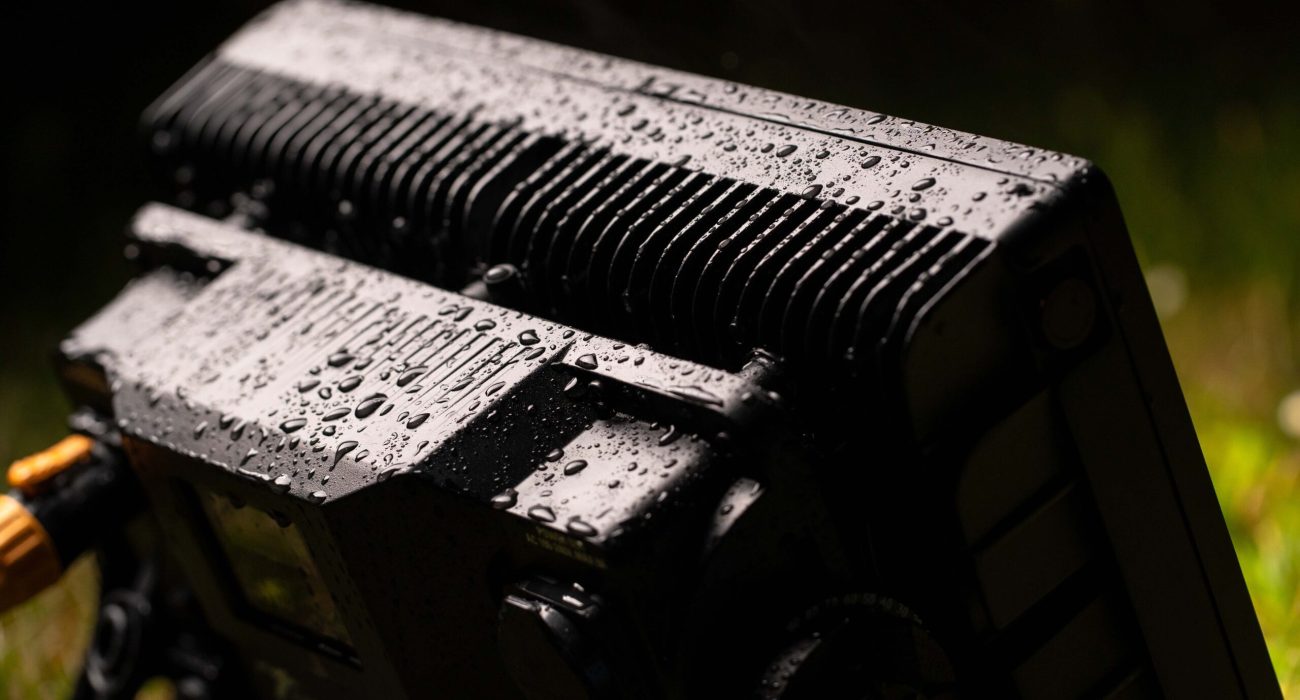

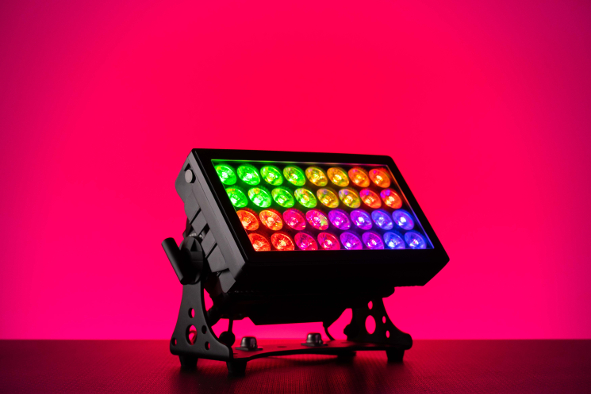

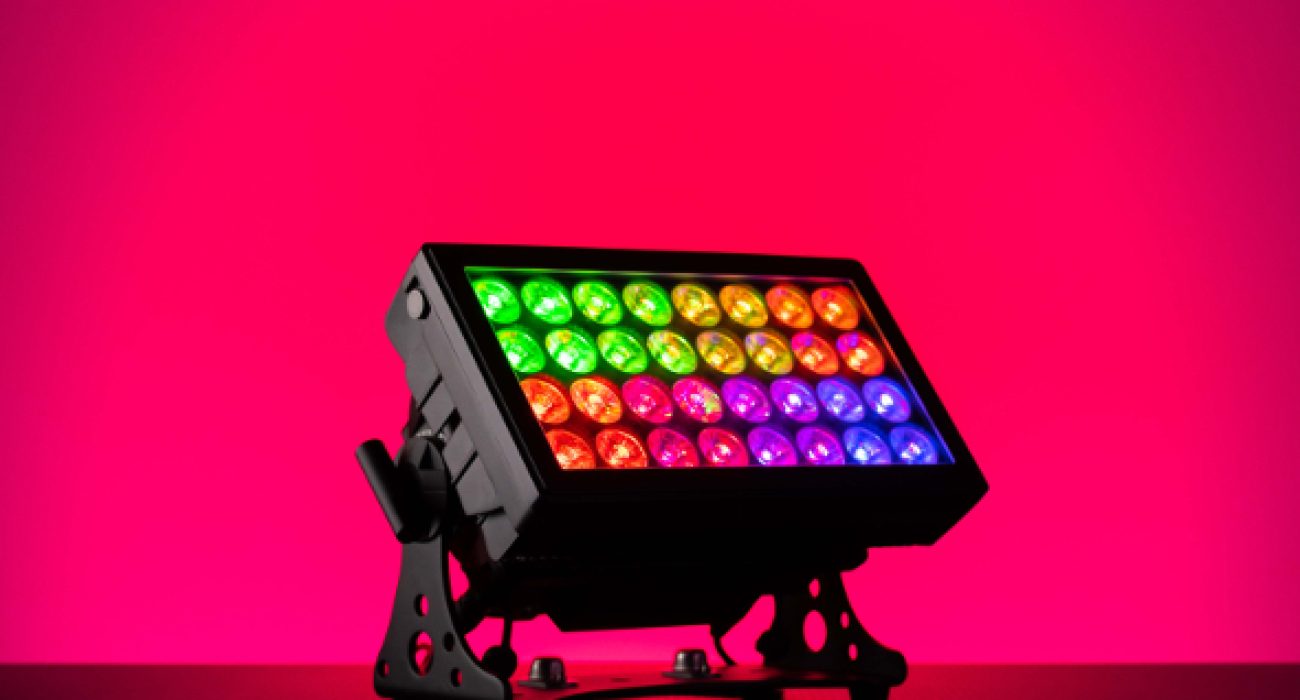

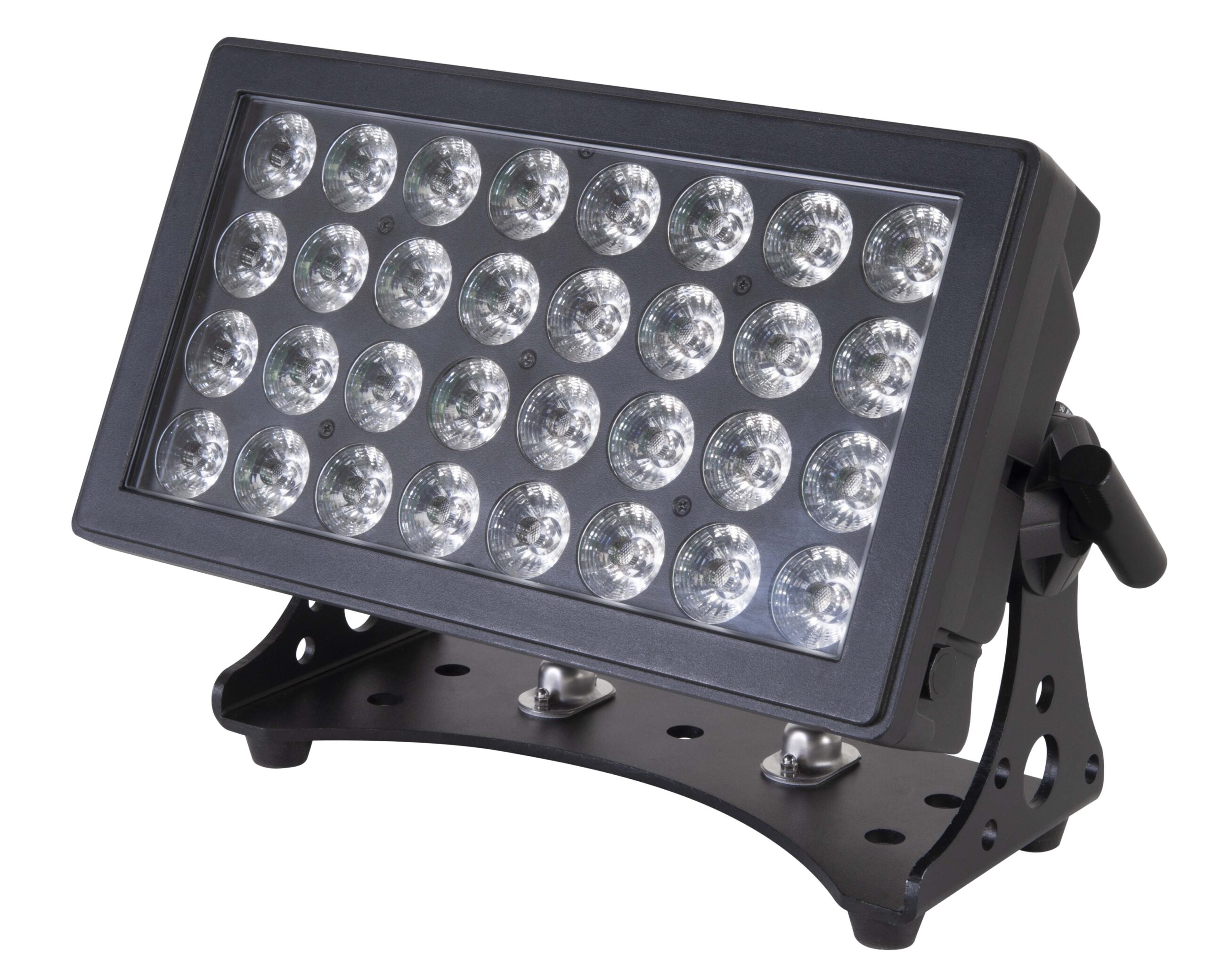

The contained measures of the body made entirely of aluminum, allow its use in any type of context, be it INDOOR or OUTDOOR, ensuring practicality in transport and installation, as well as discretion and camouflage in its permanent or temporary use. The 32 6 in 1 LED sources offer unlimited chromatic possibilities without losing color mixing, thus satisfying even the most demanding light designers. The implementation of the recent DL “dark light” technology allows you to create various scenographic possibilities whether they are on stage or architecture, while amber sources guarantee the creation of warm colors thanks to a control on their chromatic saturation.

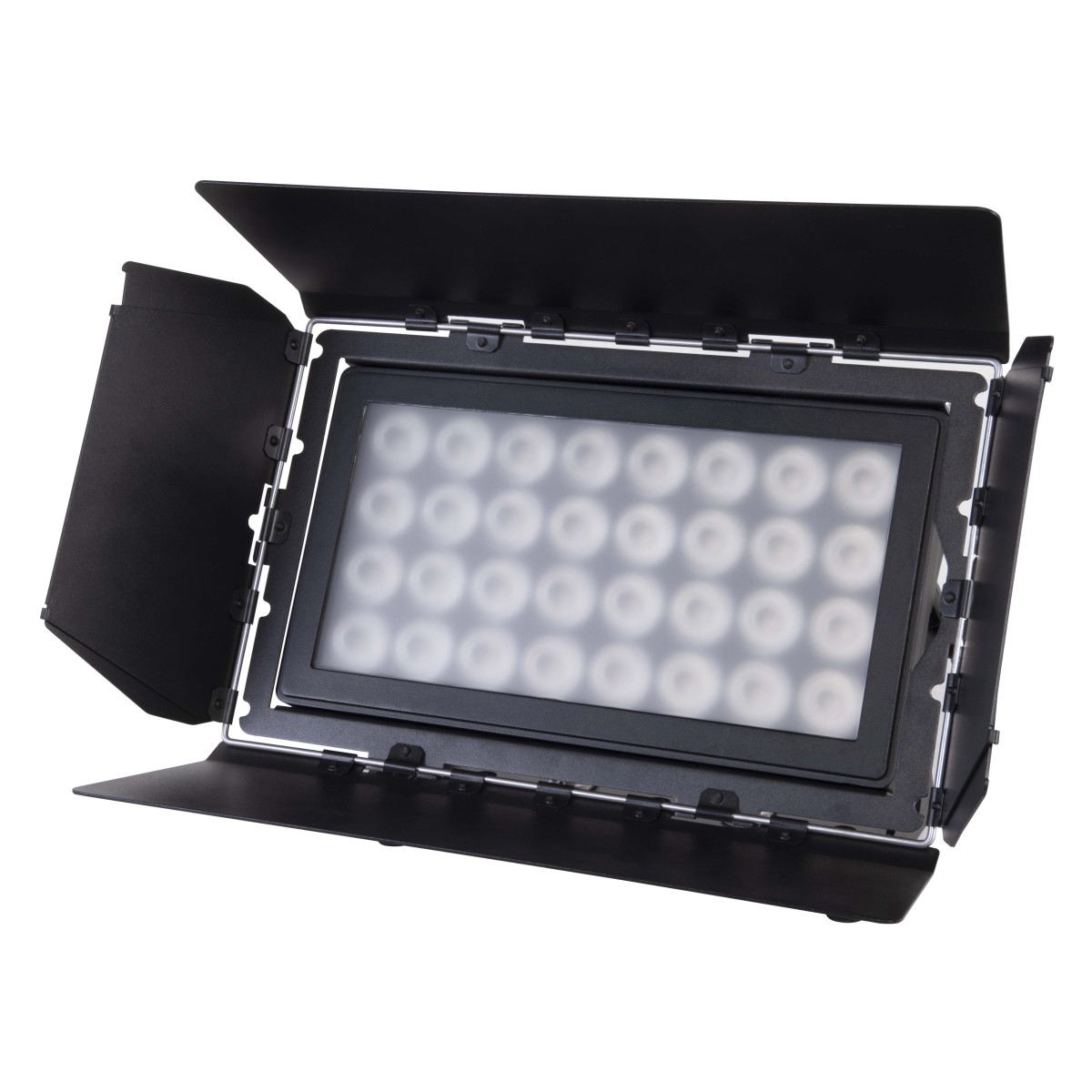

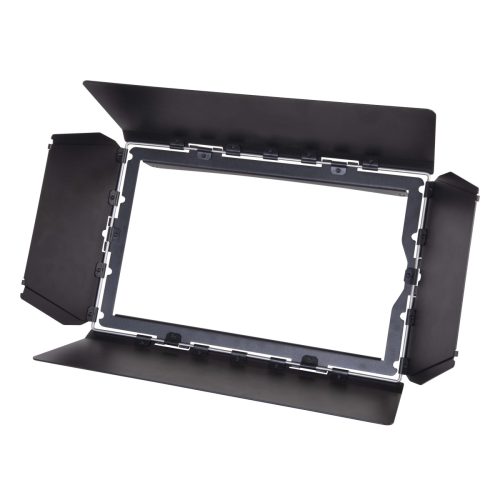

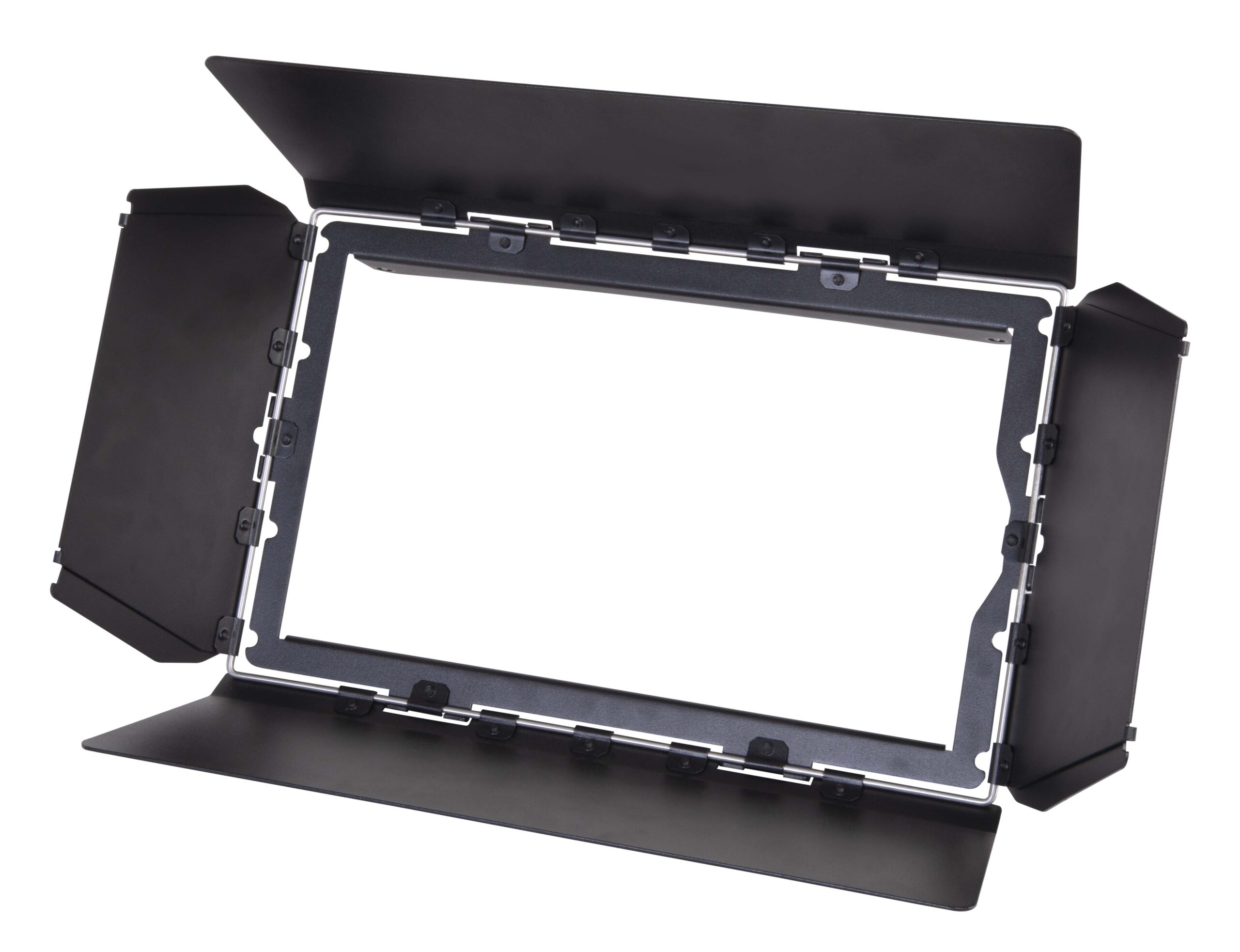

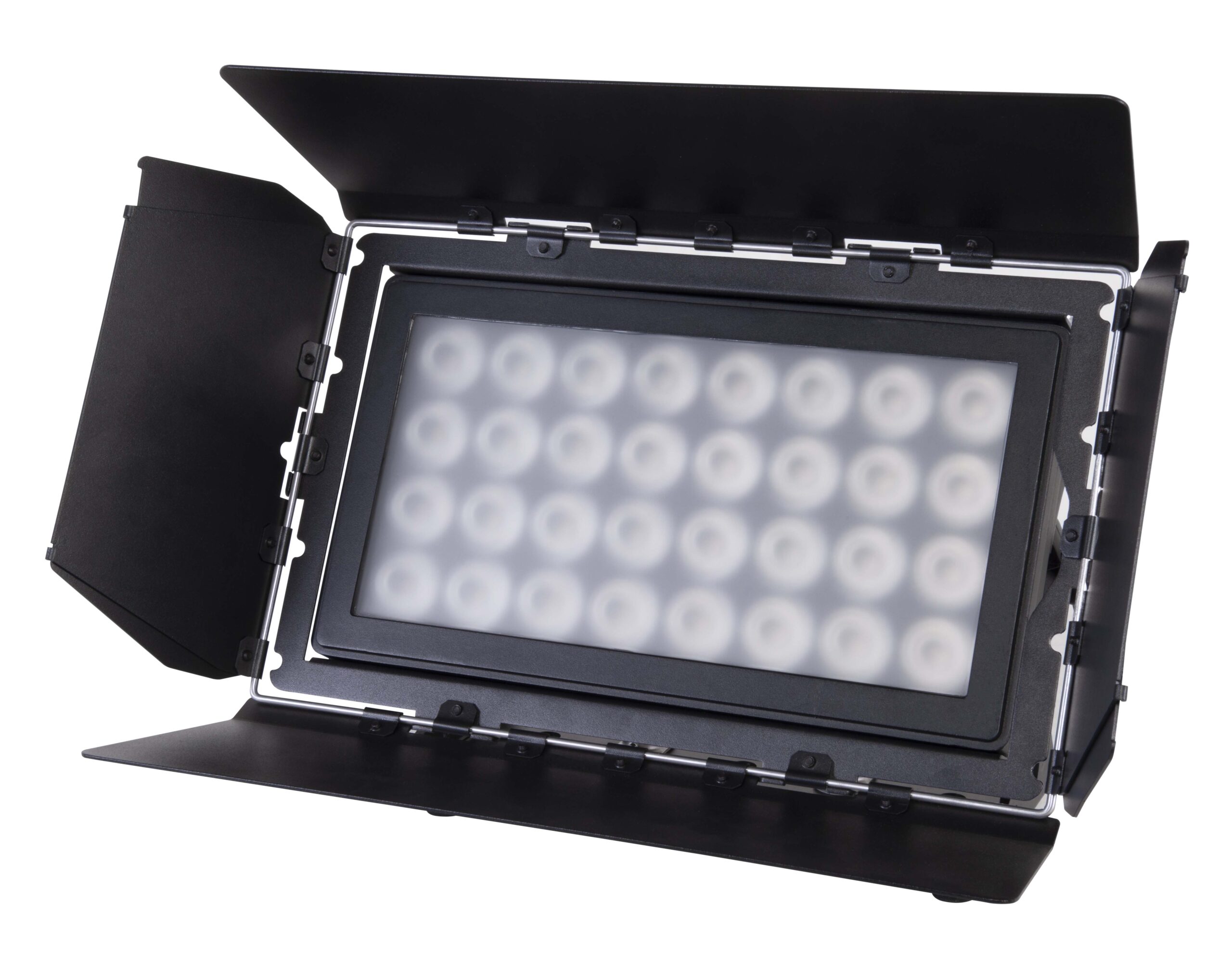

The projector control protocol is entrusted to one of the most current technologies in the field of wireless DMX transmission: inside it works a “G5 transceiver” chipset, produced by the well-known Swedish brand Wireless Solution. This new technology not only allows you to control the projector remotely without the use of signal cables, but allows you to use the convenient master / slave function without the use of DMX control platforms.The division of the light sources into 8 sectors that can be controlled separately, together with an advanced and powerful pixel function, allow the use of the IP Color 32CDL also in live and disco entertainment. Its hardware system has also been designed to house special optical filters in a simple and fast way, guaranteeing different covers, limiting yield loss to a minimum. Furthermore, where the control of the light beam is a determining aspect, it is possible to install a system of directional flags useful for controlling the flow

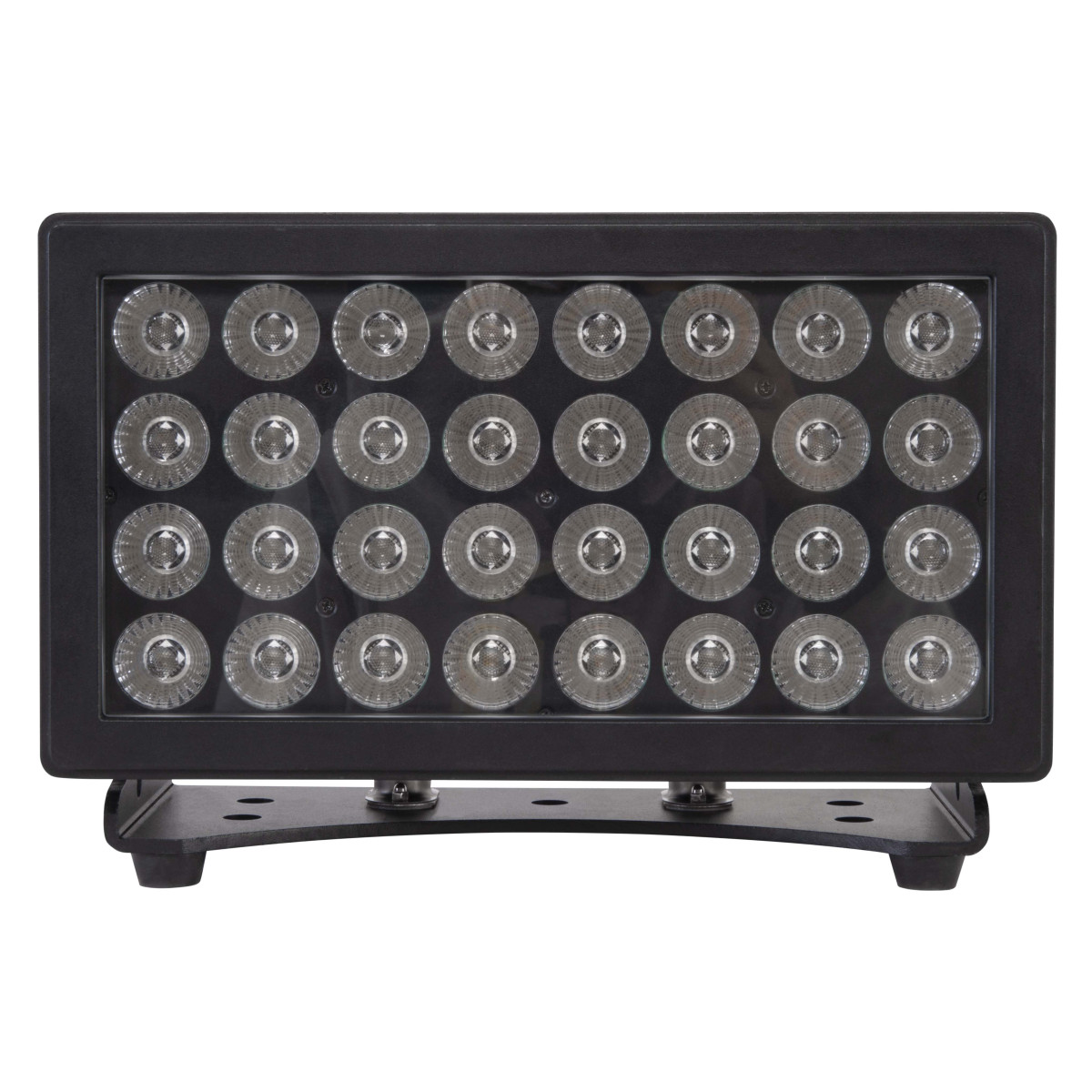

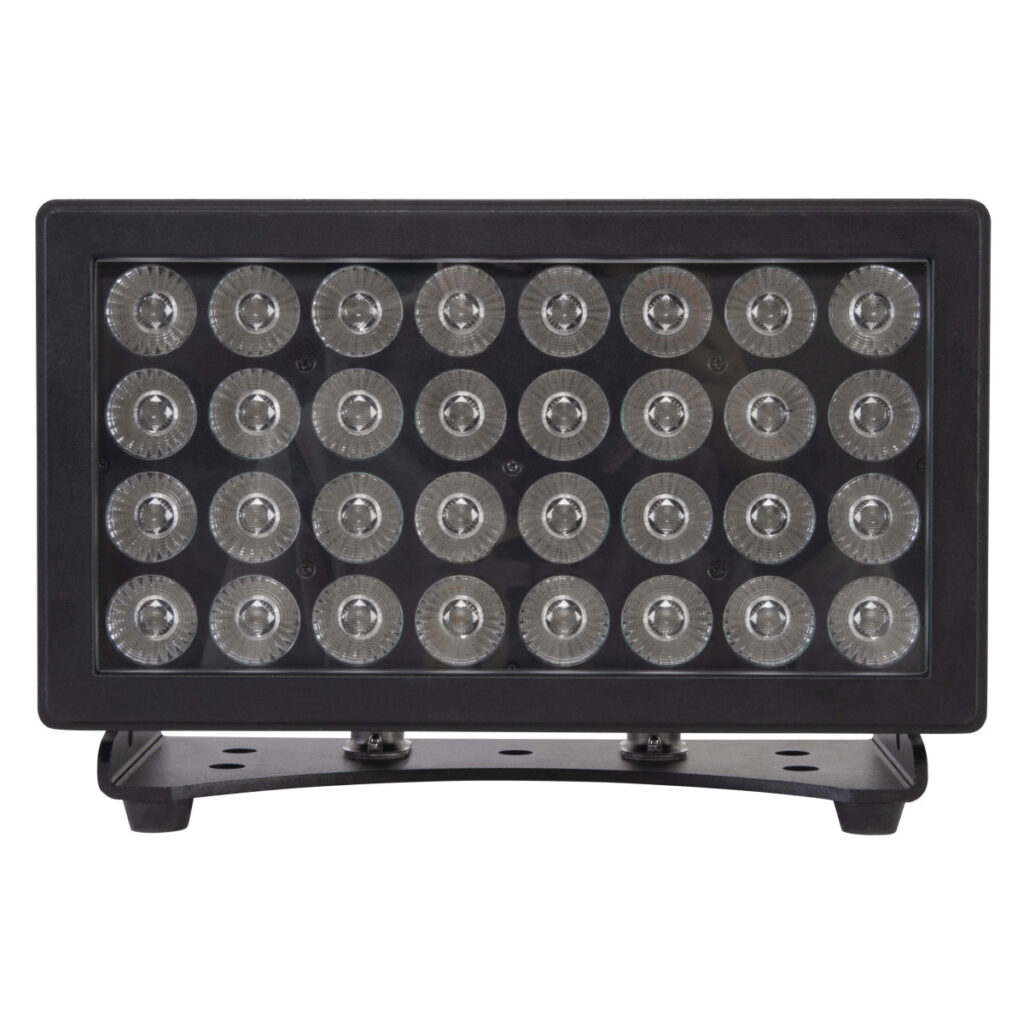

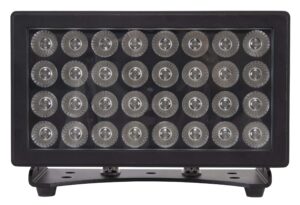

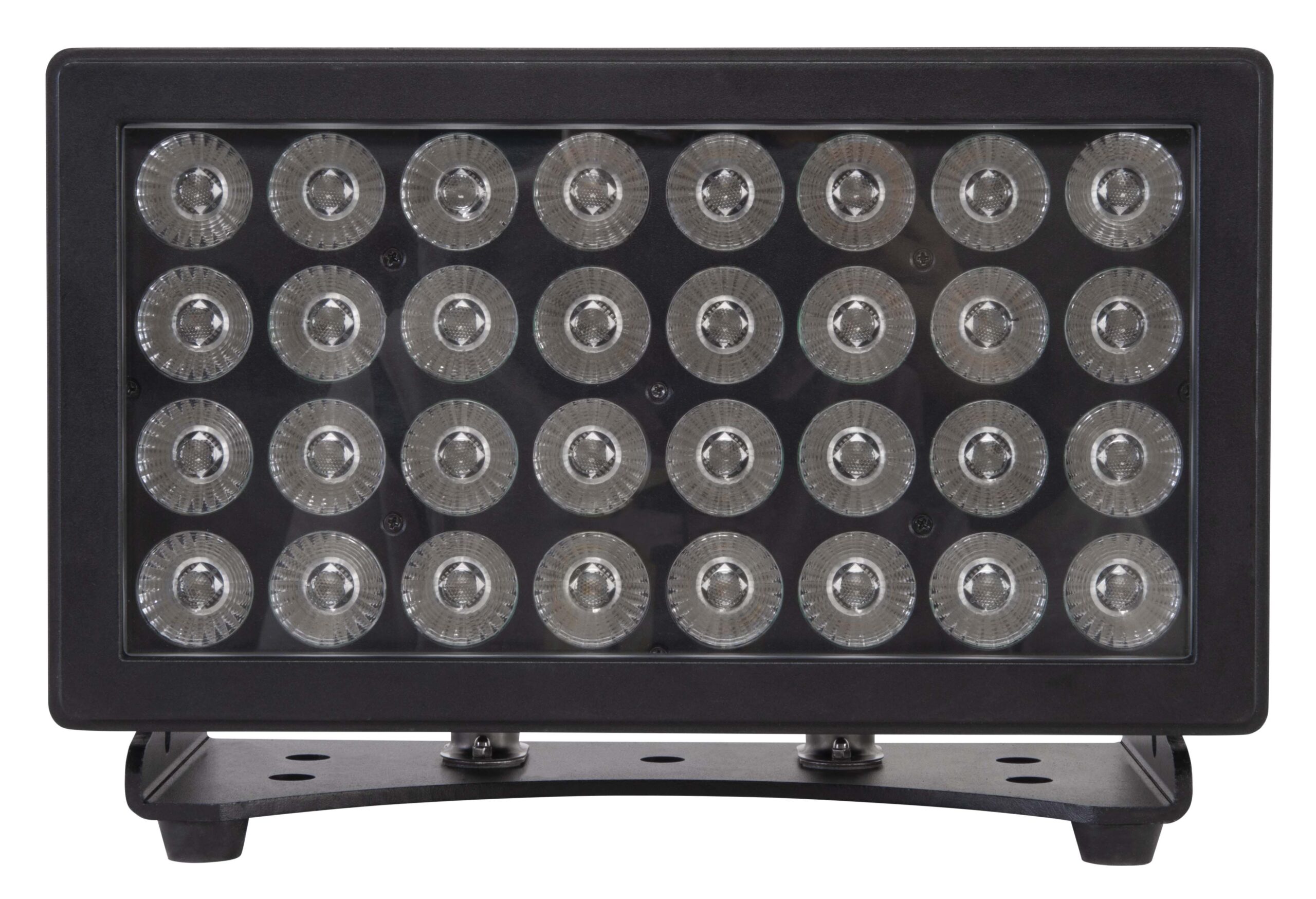

| Light source | 32x12W led RGBWA-UV Full Color LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 25° Illuminance: 2500lux @ 5m (full on) |
| Color system | Led RGBWA-UV Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX 8 sectors control |
| Control and programming | 6 DMX configurations available: 6/10/11/16/48/96 channels Key lock password for display lock Protocols: DMX 512, RDM Built-in DMX wireless transceiver by Wireless Solution Master/Slave mode Static color mode Auto mode with 4 different programs selectable from the display, with speed adjustment Color mode with 63 different pre-programmed color macros White balance control |

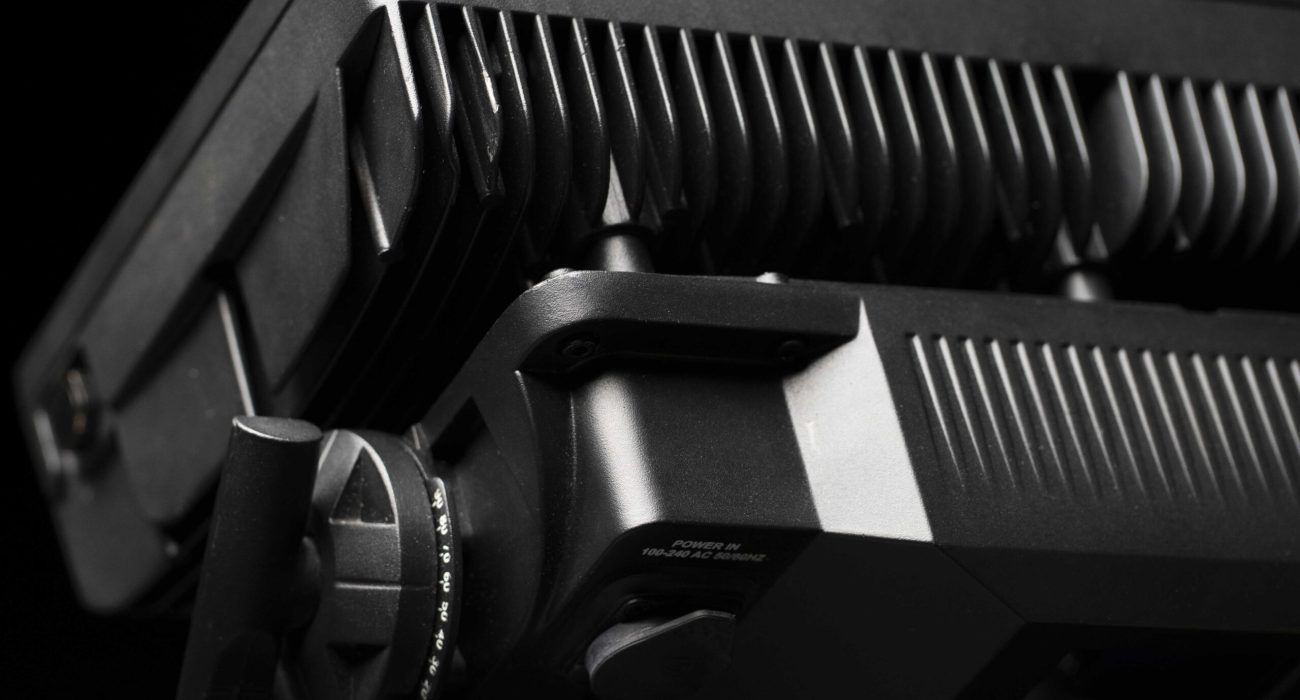

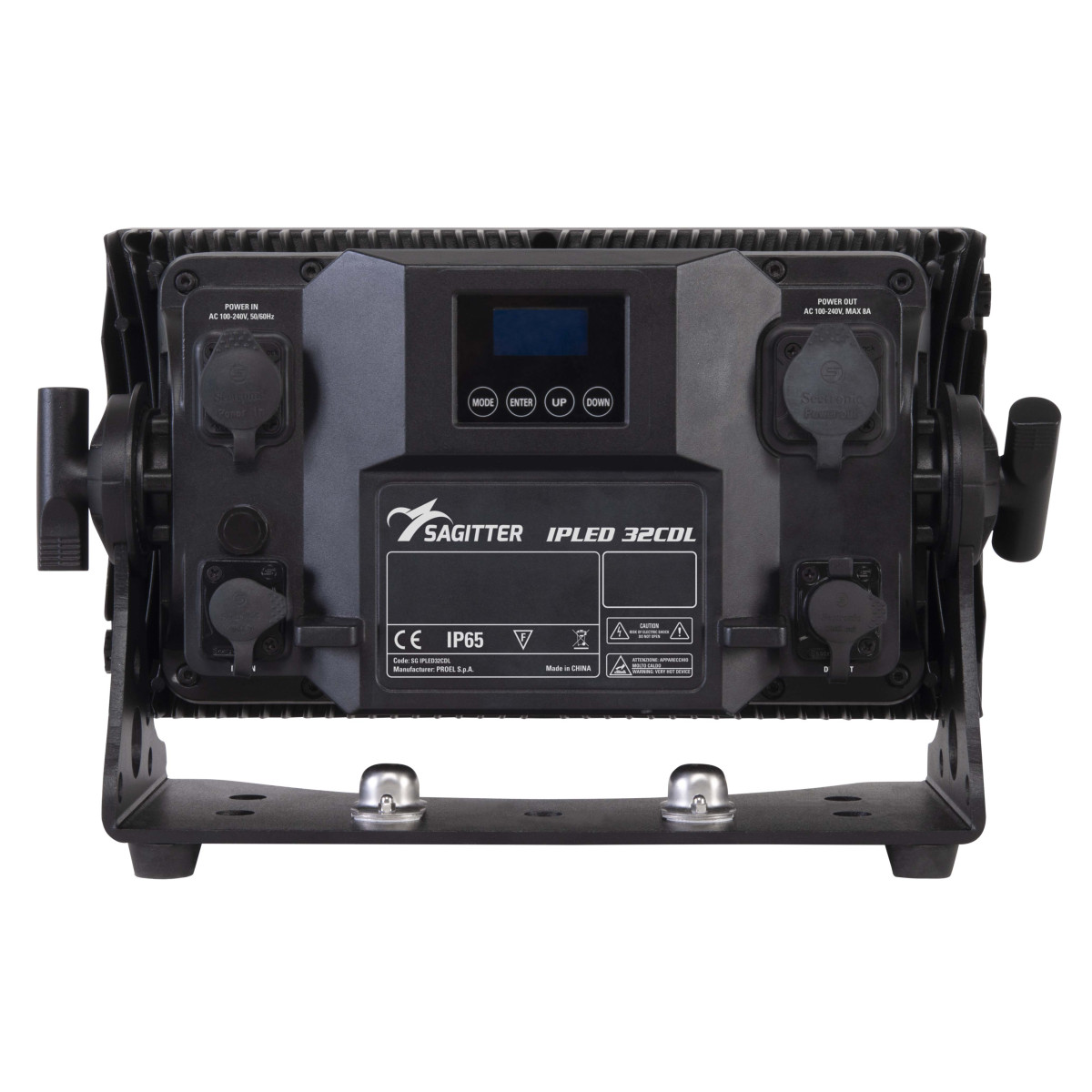

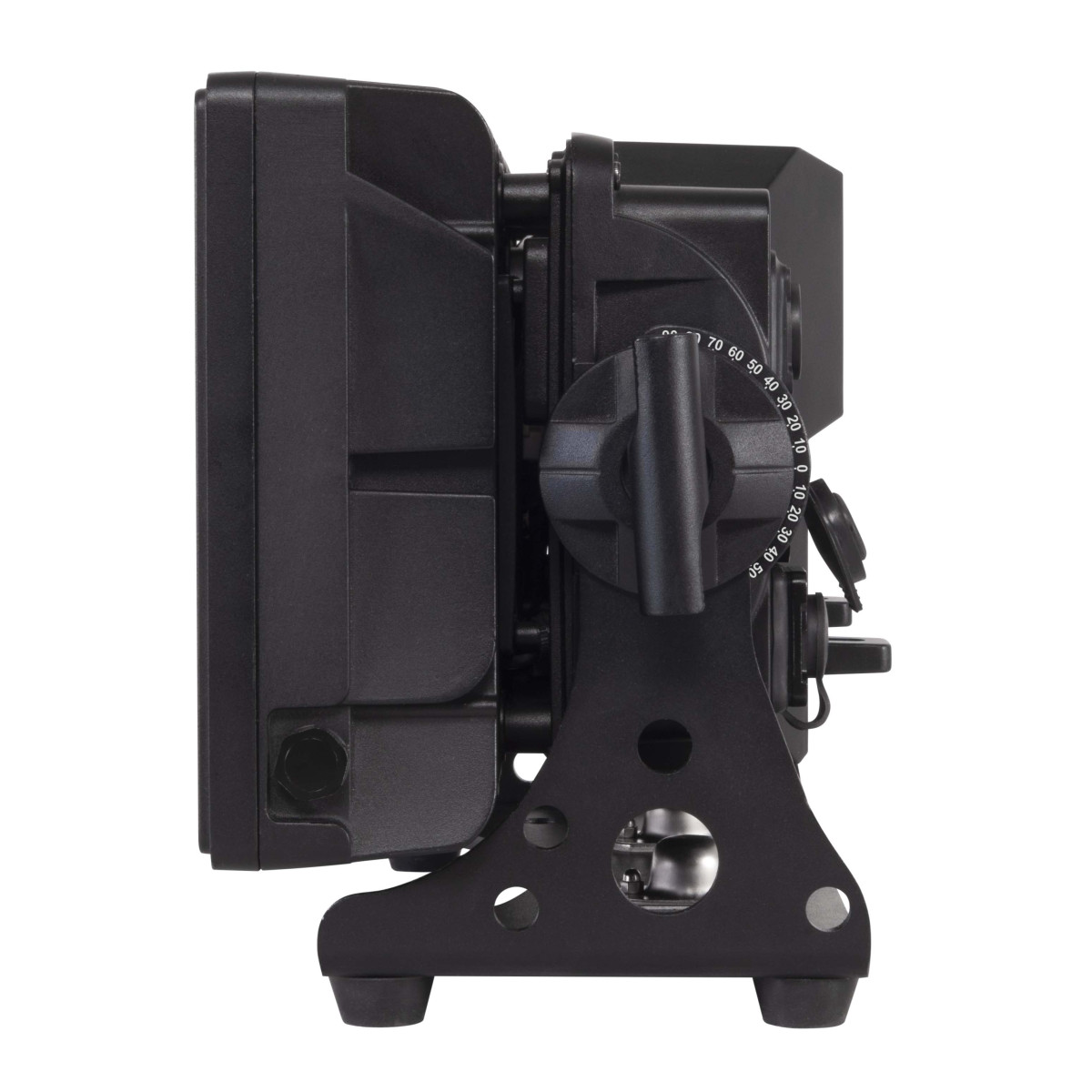

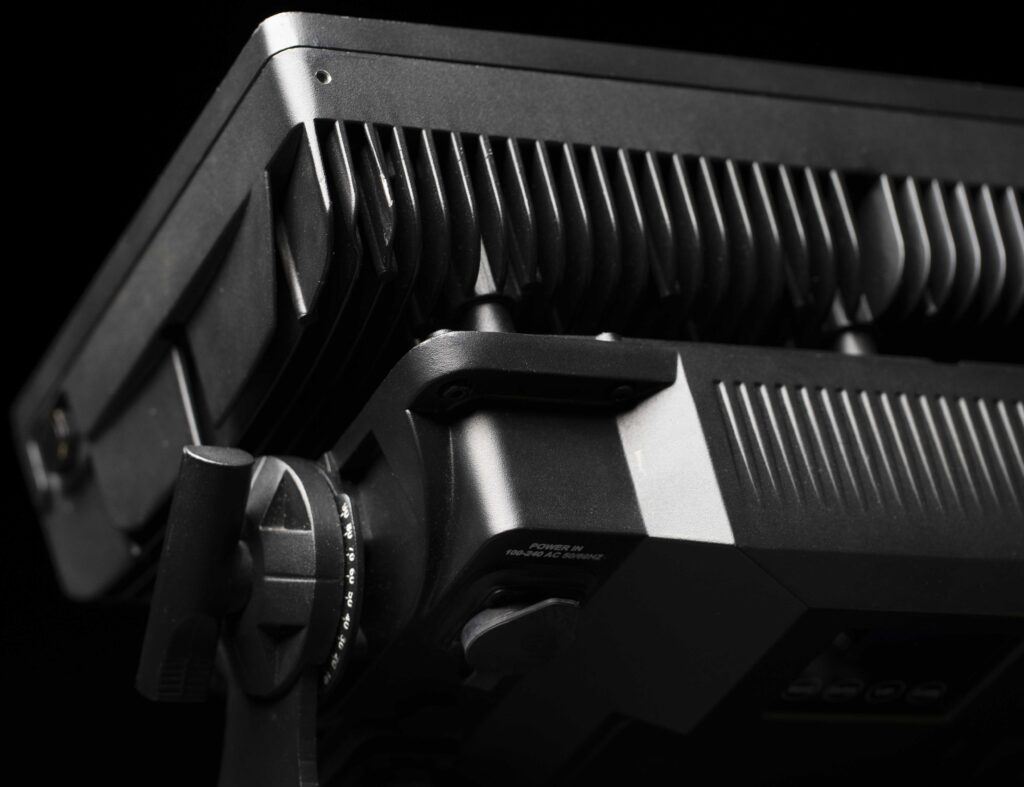

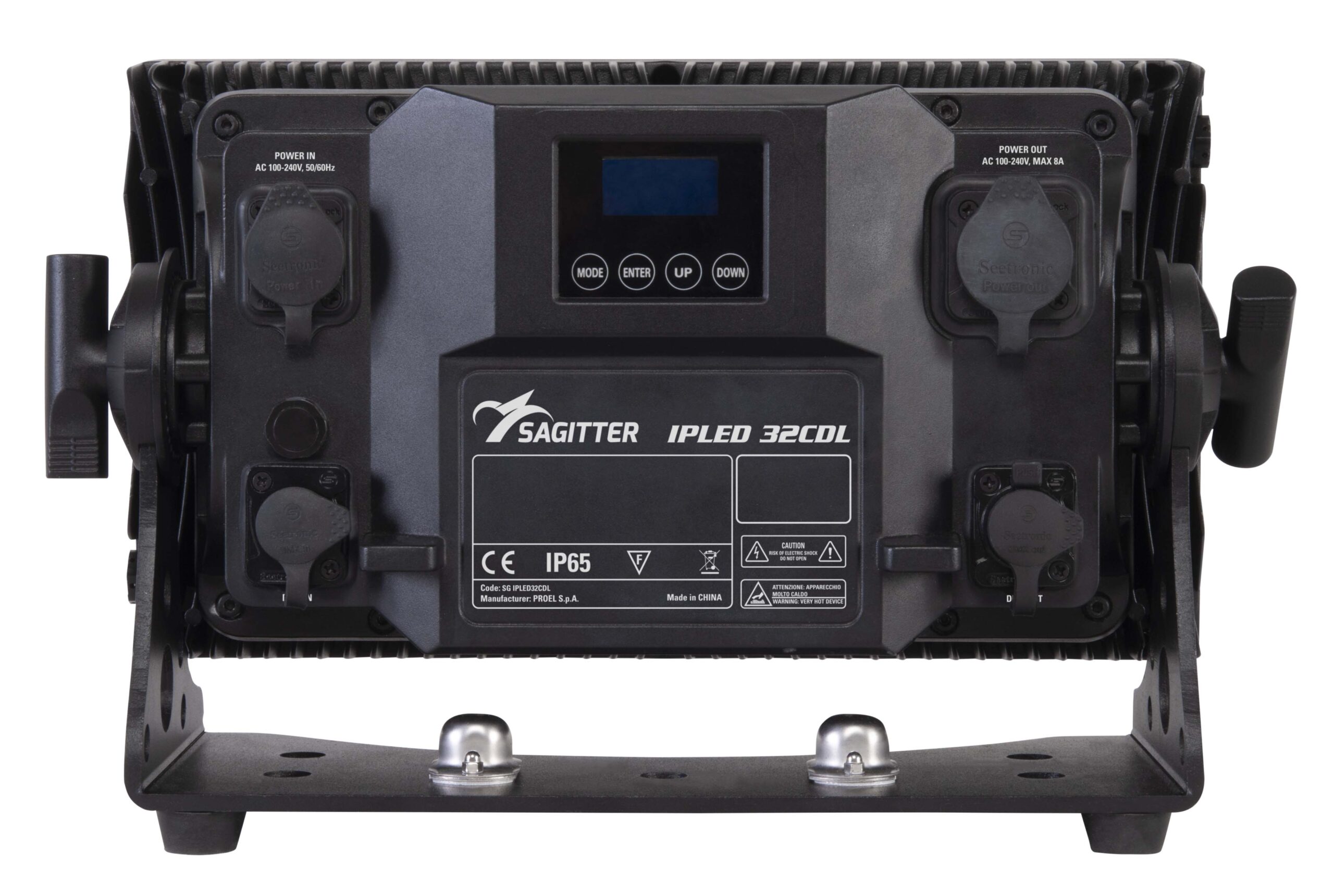

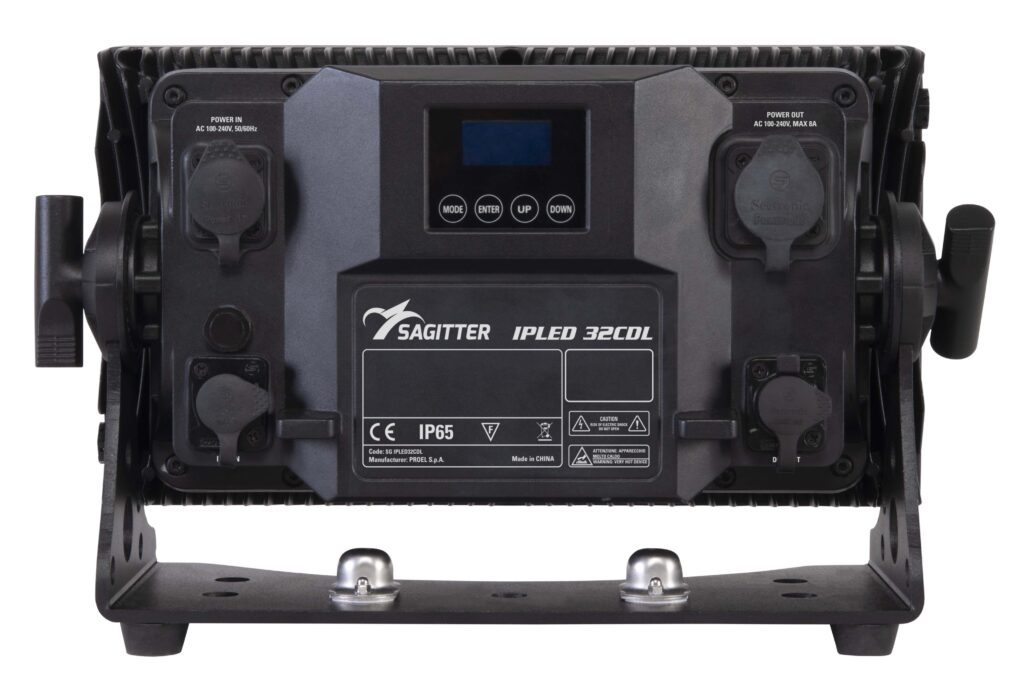

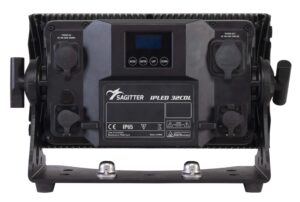

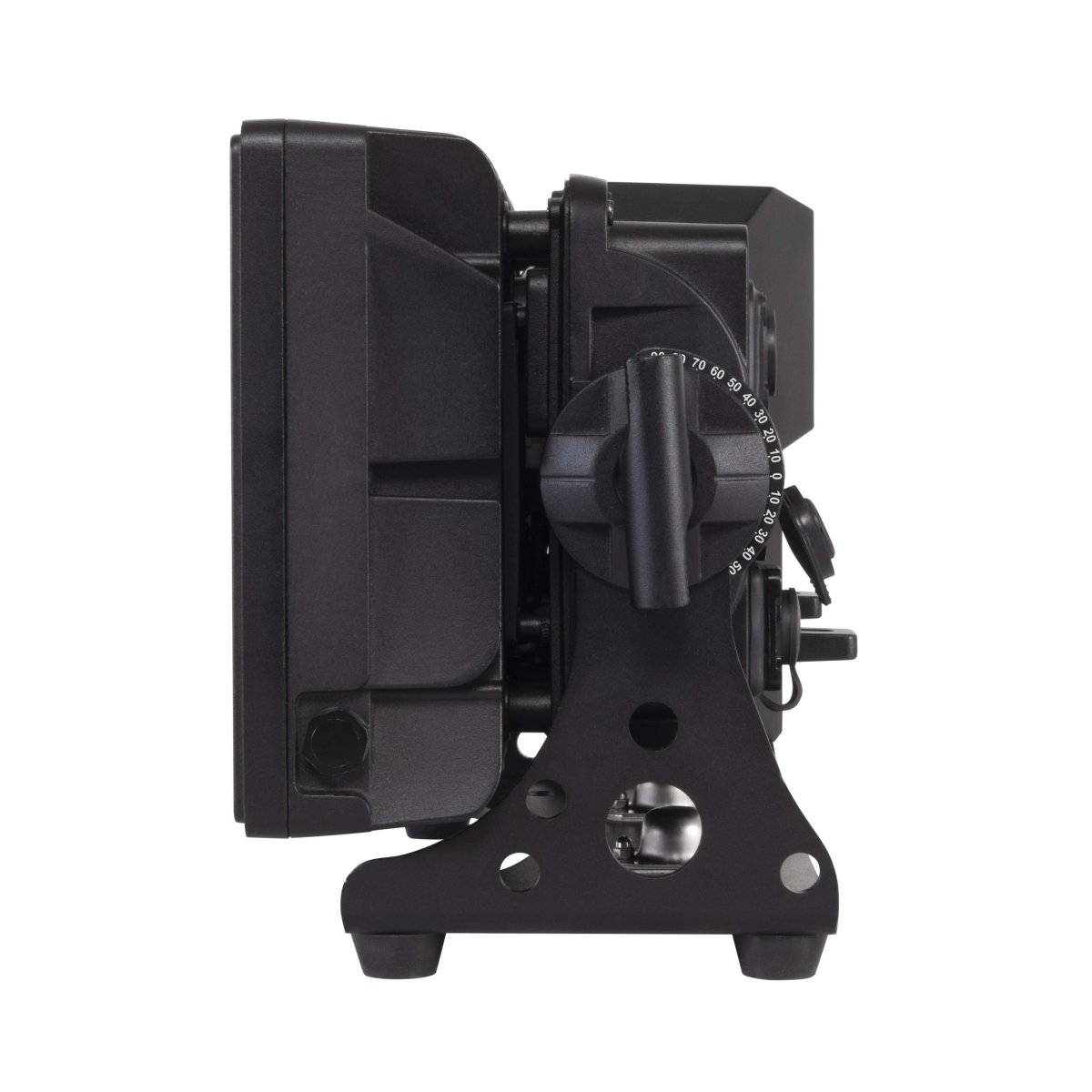

| Structure and cabinet | Die cast aluminium housing Blue LCD graphic display Front tempered glass “Light up” positioning with adjustable angle IP rating: IP65 DMX 3-poles XLR IP65 IN/OUT connectors Low Noise controlled forced ventilation cooling system Noise levels @1m: Fan HIGH 43dB(A), Fan LOW 38dB(A) Frost filter included: 40° |

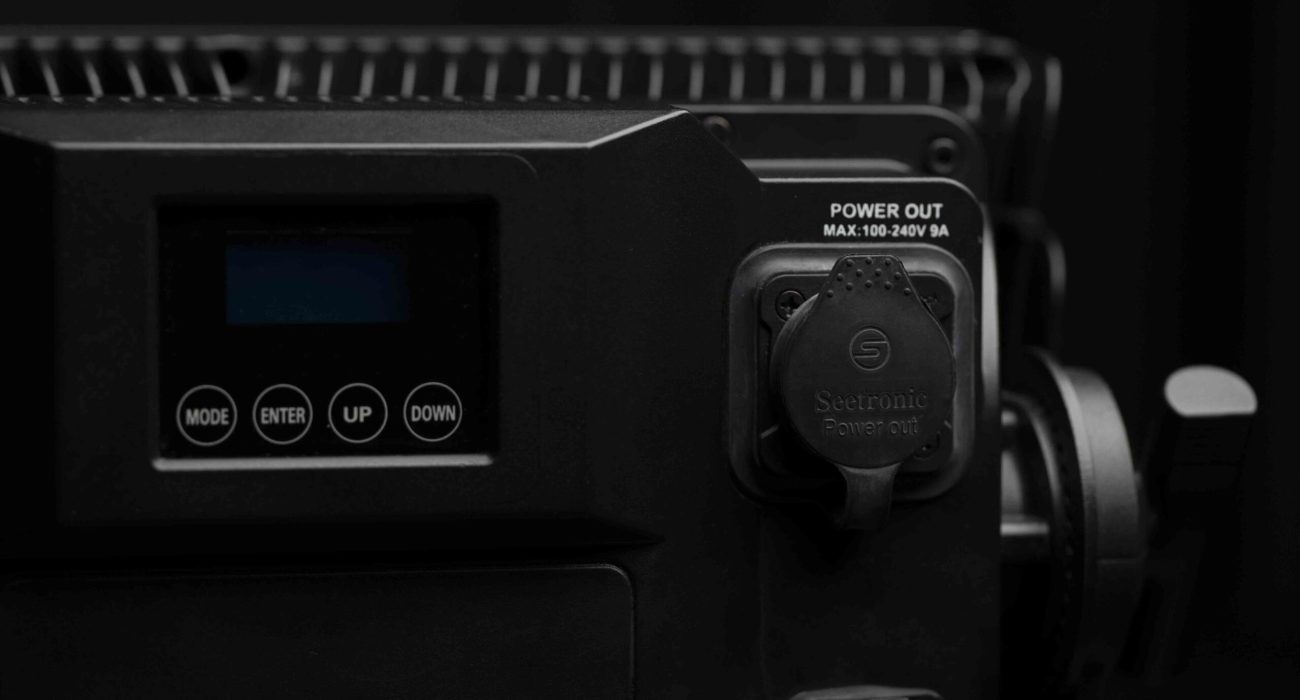

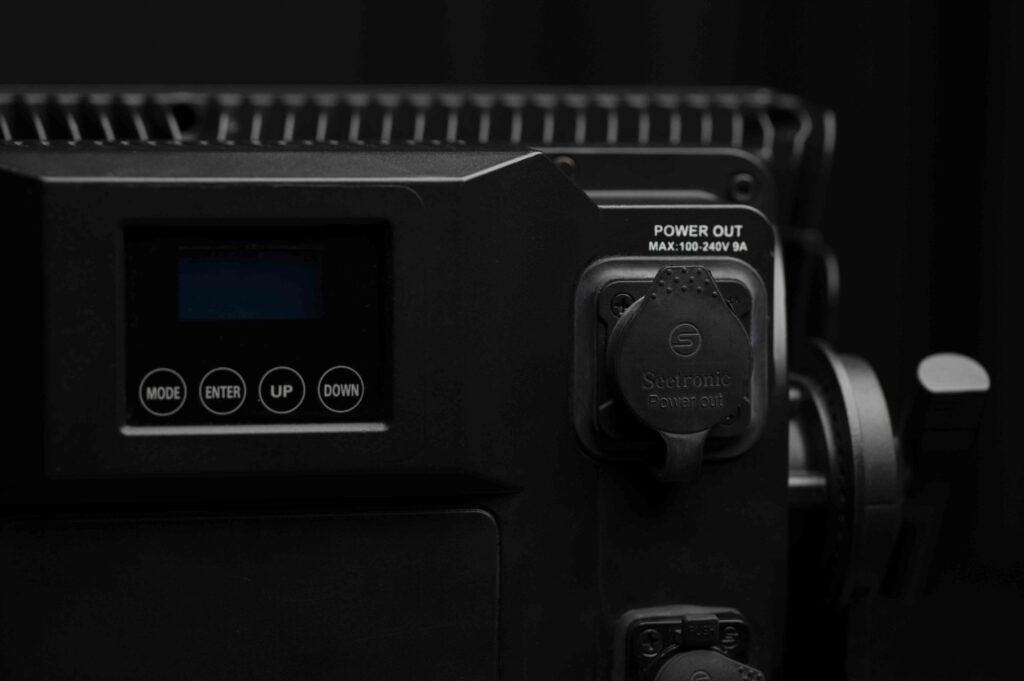

| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max Power: 390W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT |
| Weight and dimensions | Net weight: 8,2 kg Dimensions: 360x170x240 mm |
The contained measures of the body made entirely of aluminum, allow its use in any type of context, be it INDOOR or OUTDOOR, ensuring practicality in transport and installation, as well as discretion and camouflage in its permanent or temporary use. The 32 6 in 1 LED sources offer unlimited chromatic possibilities without losing color mixing, thus satisfying even the most demanding light designers. The implementation of the recent DL “dark light” technology allows you to create various scenographic possibilities whether they are on stage or architecture, while amber sources guarantee the creation of warm colors thanks to a control on their chromatic saturation.
The projector control protocol is entrusted to one of the most current technologies in the field of wireless DMX transmission: inside it works a “G5 transceiver” chipset, produced by the well-known Swedish brand Wireless Solution. This new technology not only allows you to control the projector remotely without the use of signal cables, but allows you to use the convenient master / slave function without the use of DMX control platforms.The division of the light sources into 8 sectors that can be controlled separately, together with an advanced and powerful pixel function, allow the use of the IP Color 32CDL also in live and disco entertainment. Its hardware system has also been designed to house special optical filters in a simple and fast way, guaranteeing different covers, limiting yield loss to a minimum. Furthermore, where the control of the light beam is a determining aspect, it is possible to install a system of directional flags useful for controlling the flow
| Light source | 32x12W led RGBWA-UV Full Color LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 25° Illuminance: 2500lux @ 5m (full on) |
| Color system | Led RGBWA-UV Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX 8 sectors control |
| Control and programming | 6 DMX configurations available: 6/10/11/16/48/96 channels Key lock password for display lock Protocols: DMX 512, RDM Built-in DMX wireless transceiver by Wireless Solution Master/Slave mode Static color mode Auto mode with 4 different programs selectable from the display, with speed adjustment Color mode with 63 different pre-programmed color macros White balance control |
| Structure and cabinet | Die cast aluminium housing Blue LCD graphic display Front tempered glass “Light up” positioning with adjustable angle IP rating: IP65 DMX 3-poles XLR IP65 IN/OUT connectors Low Noise controlled forced ventilation cooling system Noise levels @1m: Fan HIGH 43dB(A), Fan LOW 38dB(A) Frost filter included: 40° |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max Power: 390W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT |
| Weight and dimensions | Net weight: 8,2 kg Dimensions: 360x170x240 mm |
