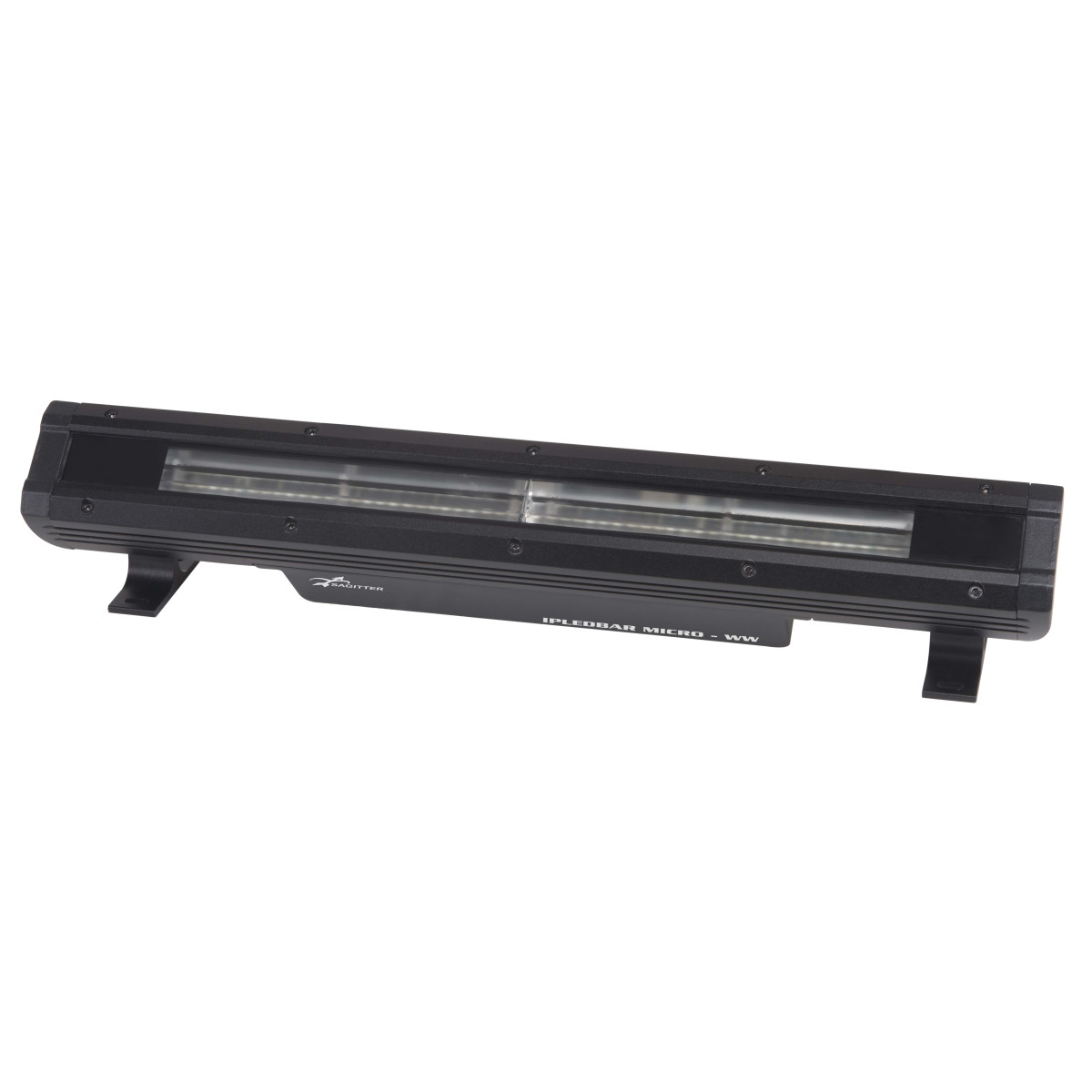

IP Color Micro bar 24 WW

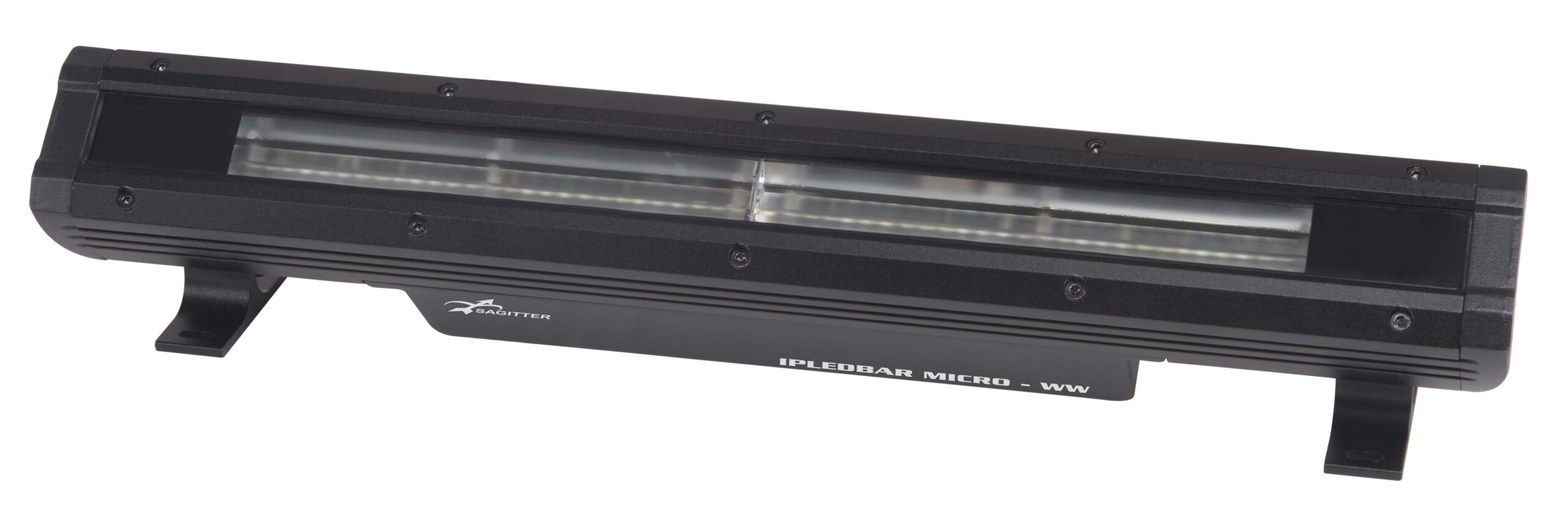

IP 65 architectural led bar 24X3W Warm White 3200K

Description

Micro bar is a brand new bar belonging to the Sagitter IP65 led series, designed for a full range of applications both within the live entertainment and architectural lighting. Micro bar is the result of the miniaturization of the most common led bars for outdoor, due to the increasingly need to hide lighting fixtures for facades or surfaces. The aluminium die cast alloy of its body makes it extremely robust, light and noise free; it’s linear shape and 39 cm body lenght perfectly fits into any modern or traditional architectural installations. Its linear design and the chromatic technology used in the led source of the Warm White 3200K version, make it a projector unique on the market. The special optics has been designed to allow the lighting of big surfaces, simulating the linear emission of the most common fluorescent lamps.

SG IPLEDMCBAR24WW

Technical Specifications

Light source

• 24x3W led Warm White
• LED lifespan: > 50.000h
• LED refresh frequency: > 400Hz flicker-free

Optic system

• Beam Angle: 60×10°

Color system

• LED source Warm White

Effects

• ON/OFF

Structure and cabinet

• Die cast aluminium housing

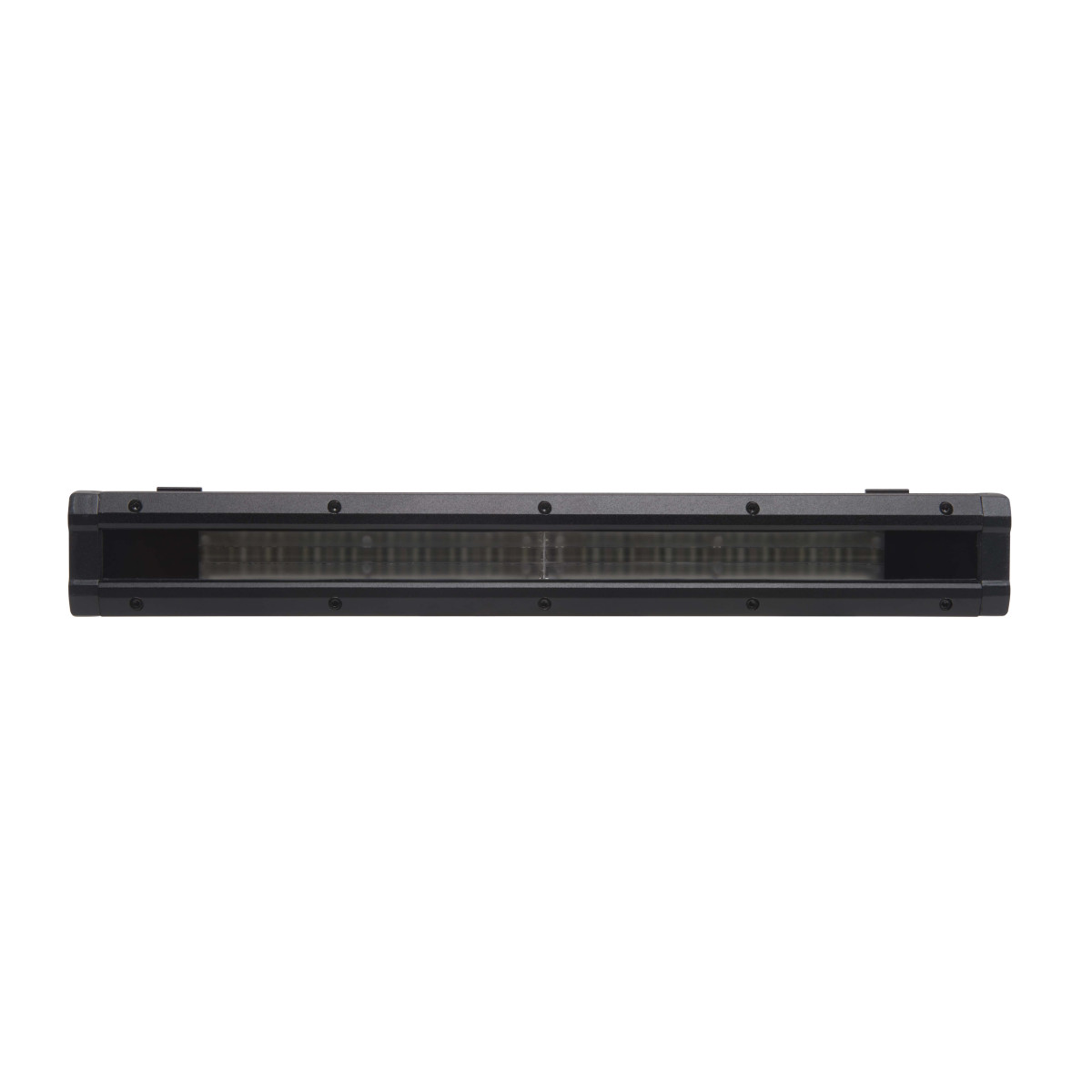

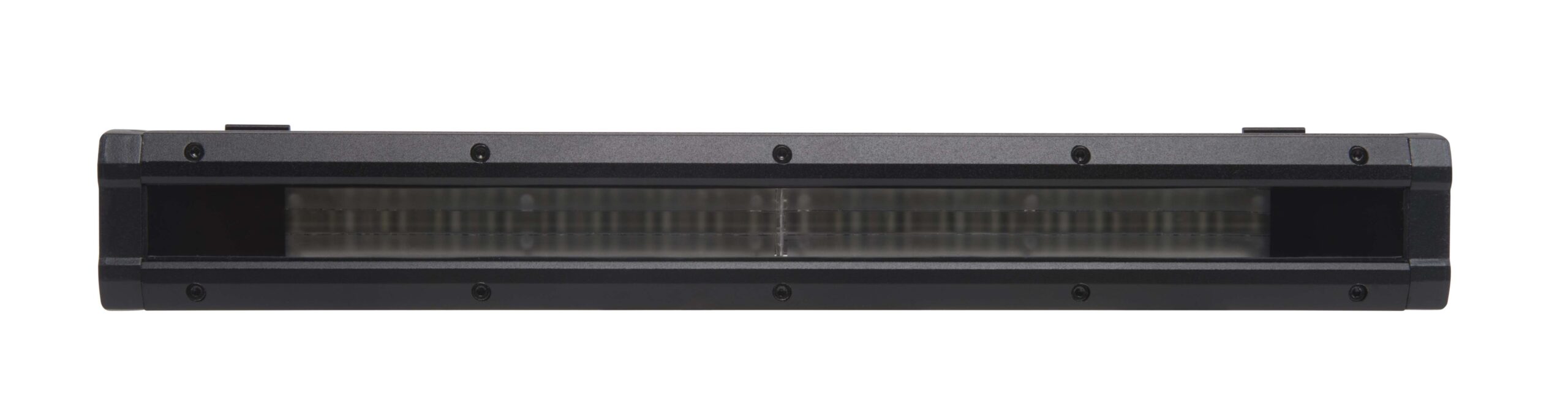

• Front tempered glass

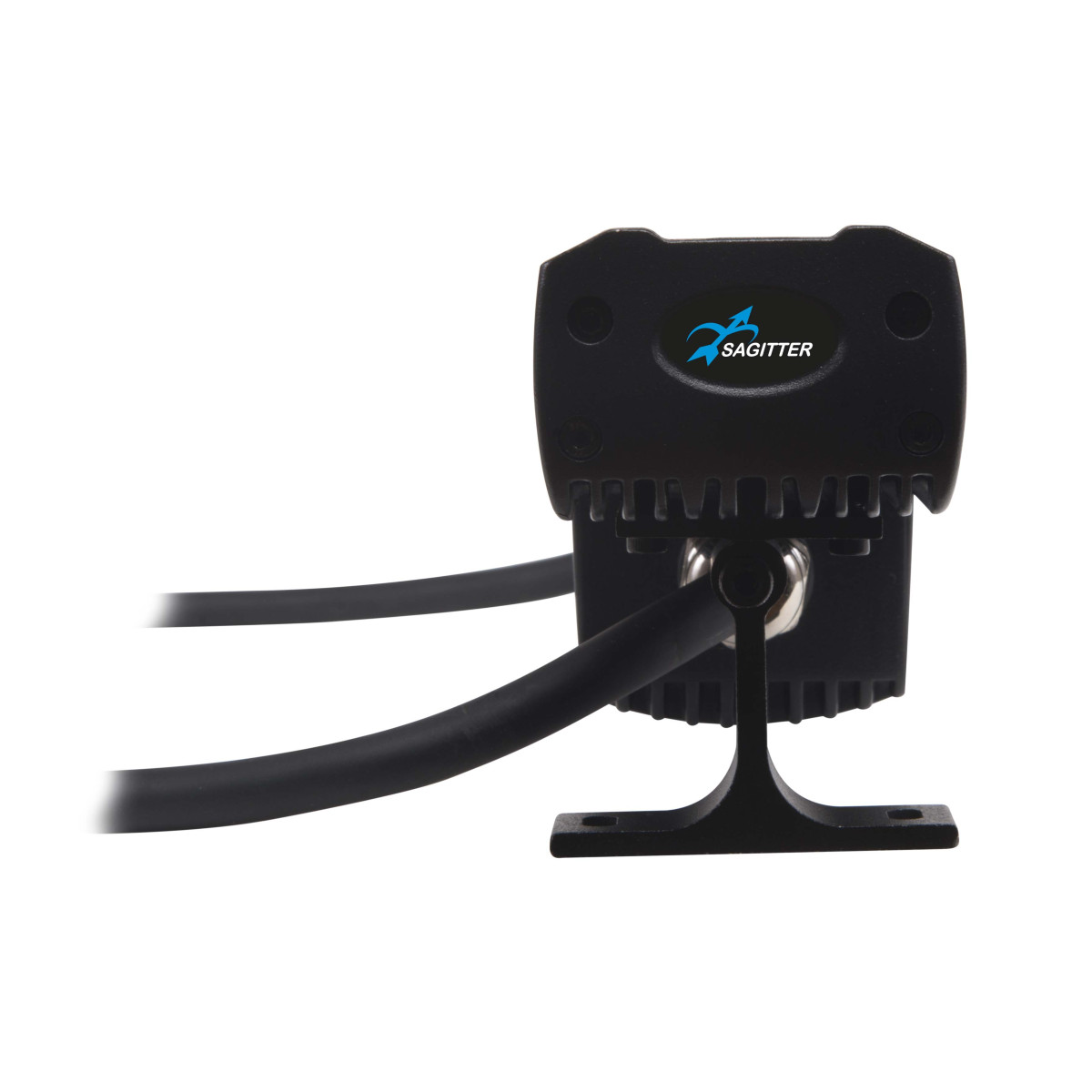

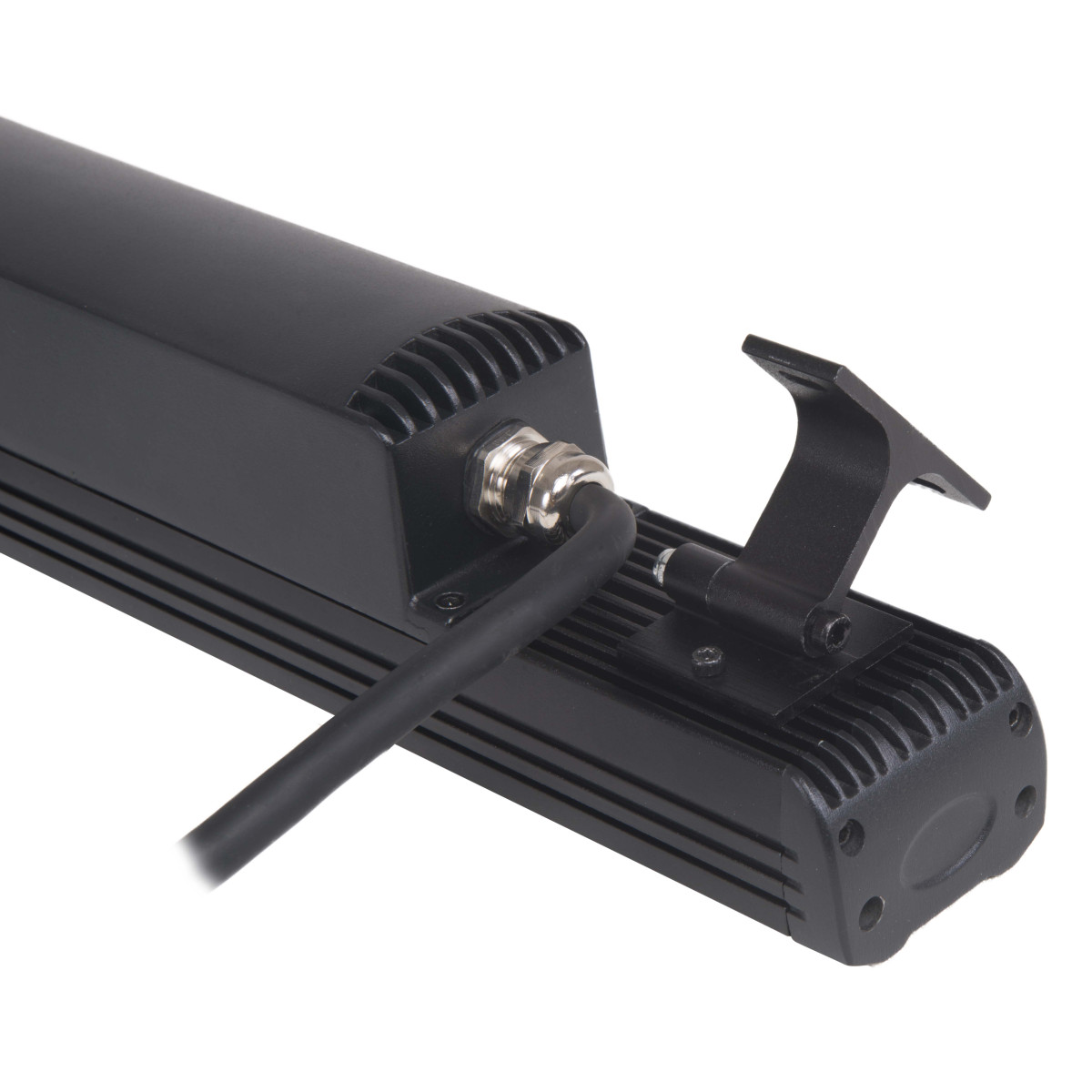

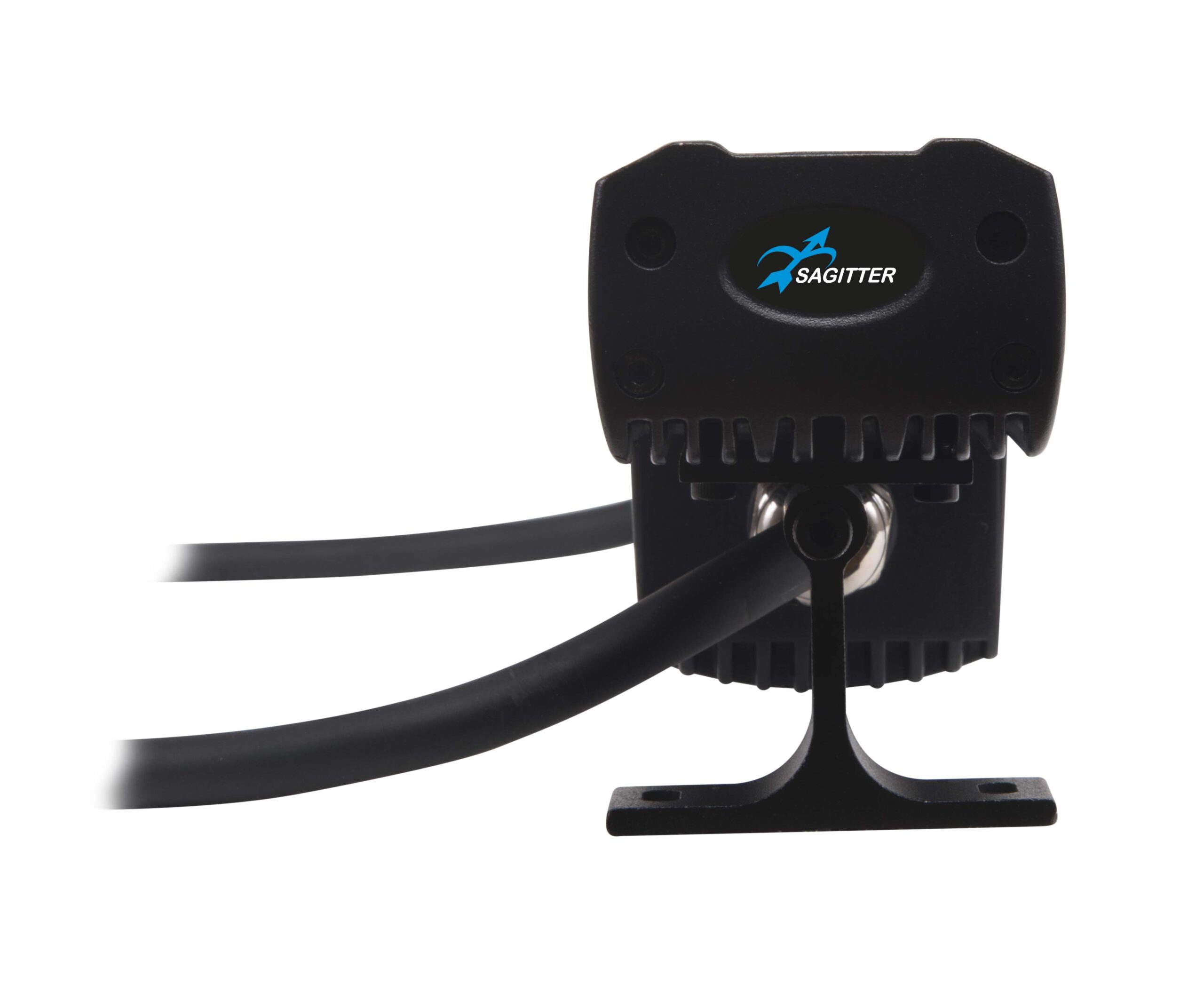

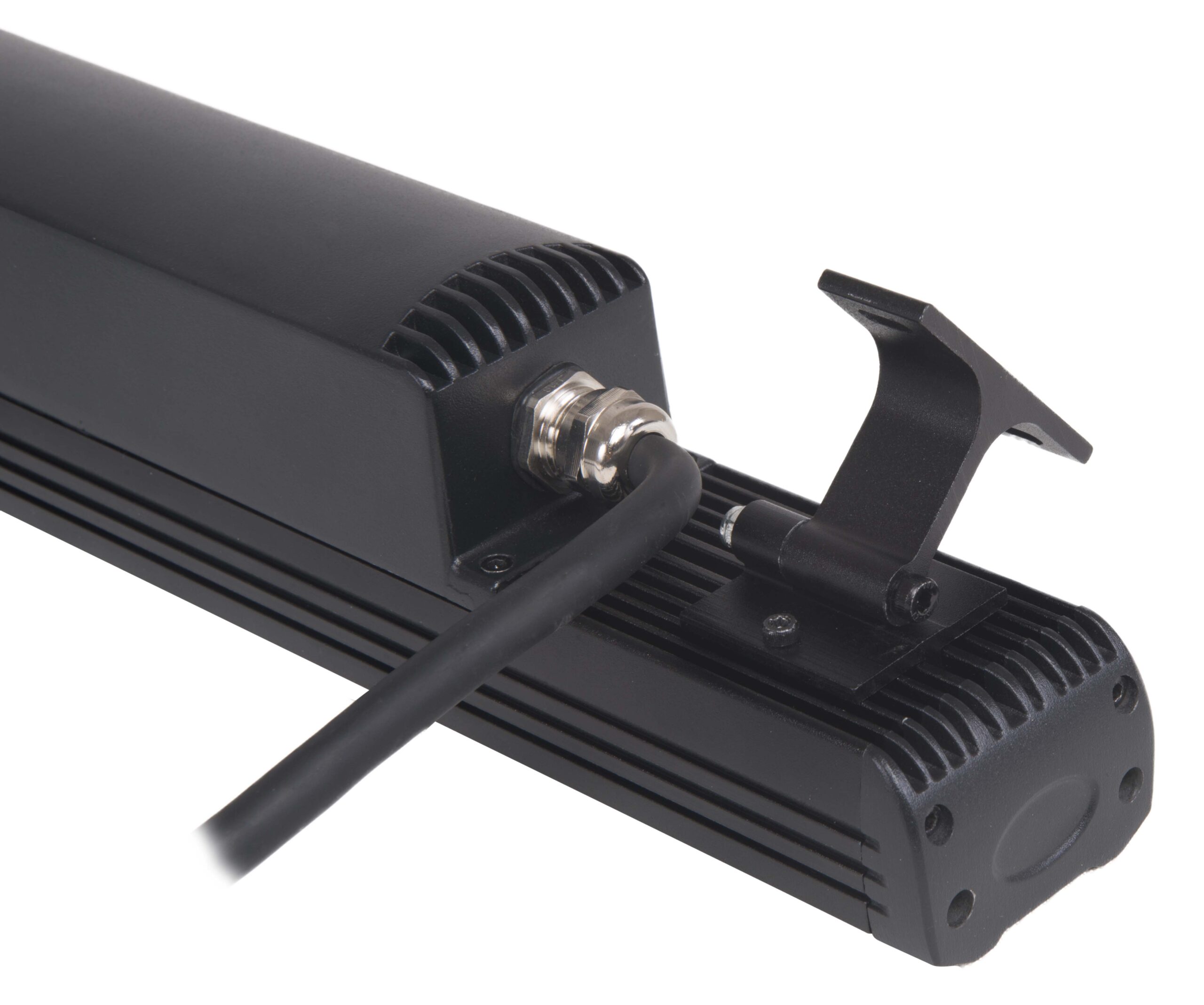

• “Light up” positioning with adjustable angle
• IP rating: IP65

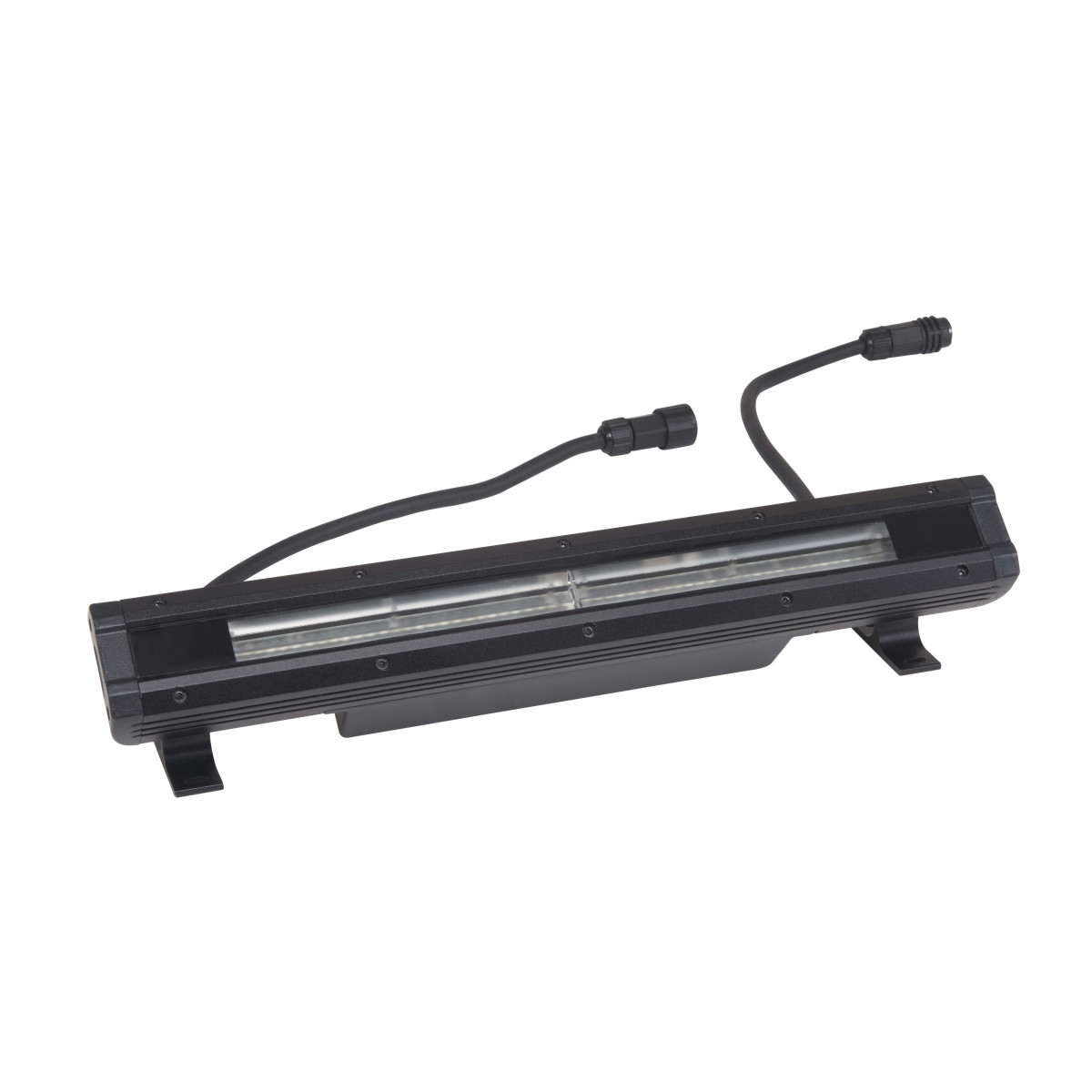

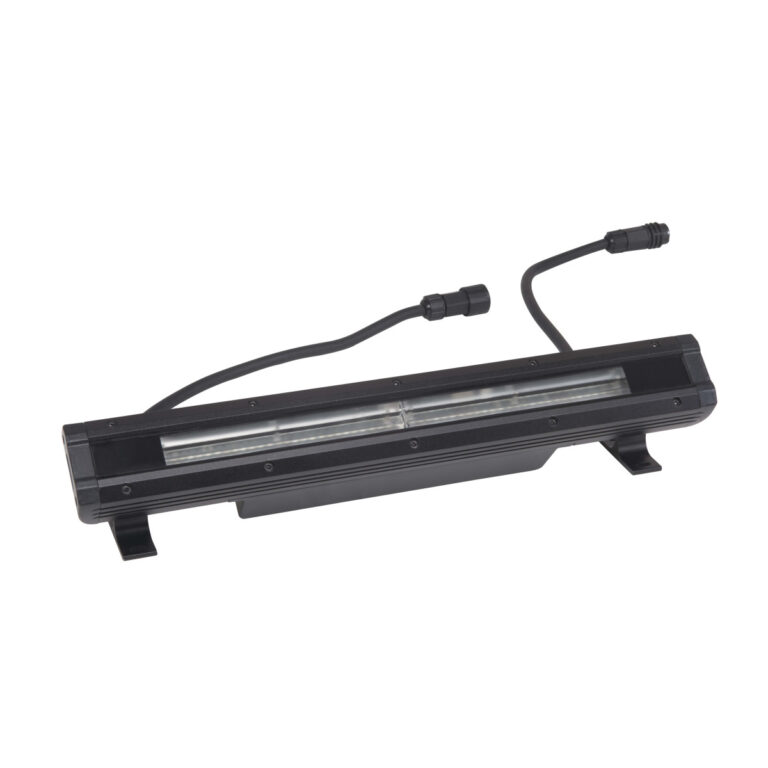

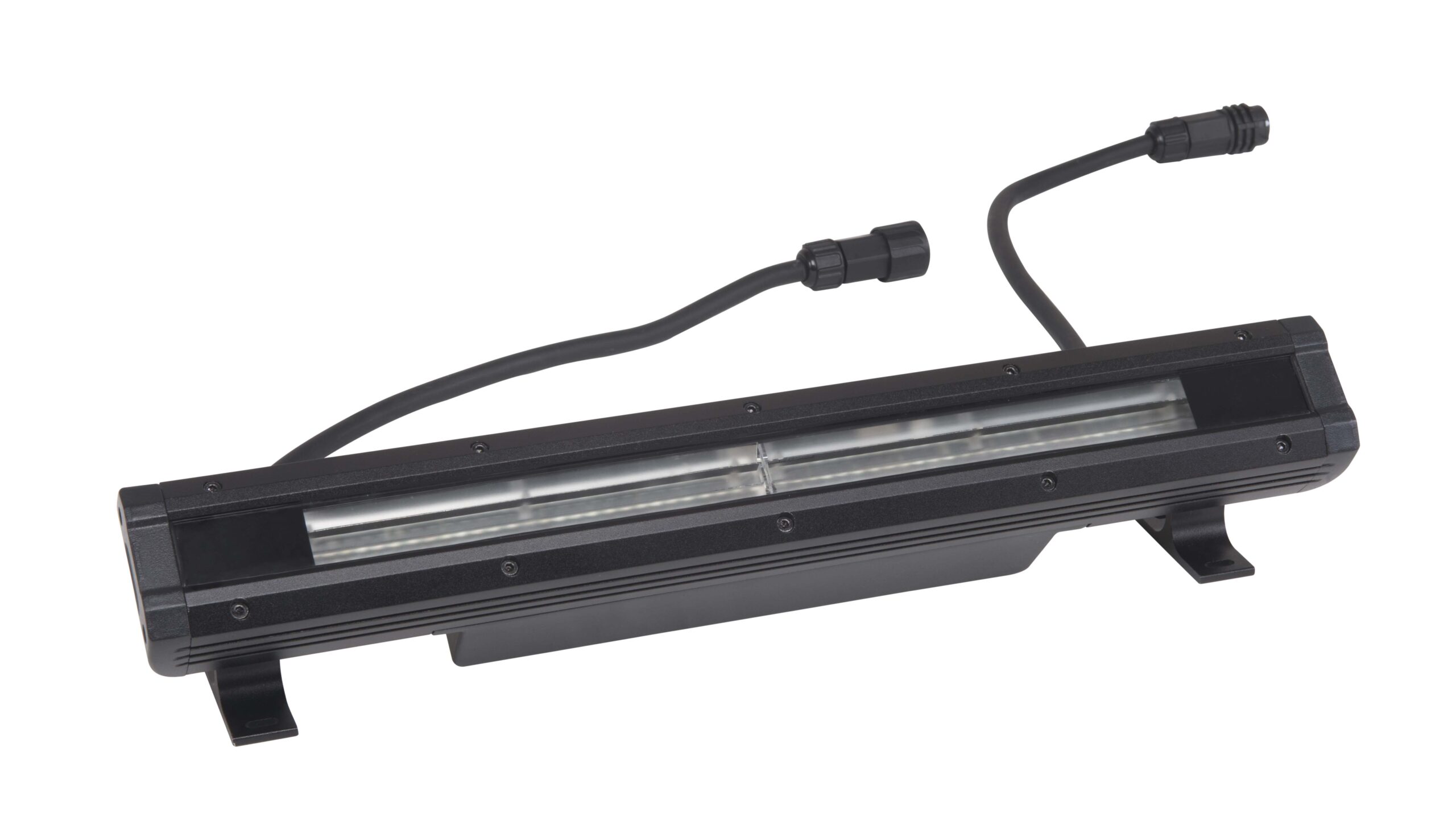

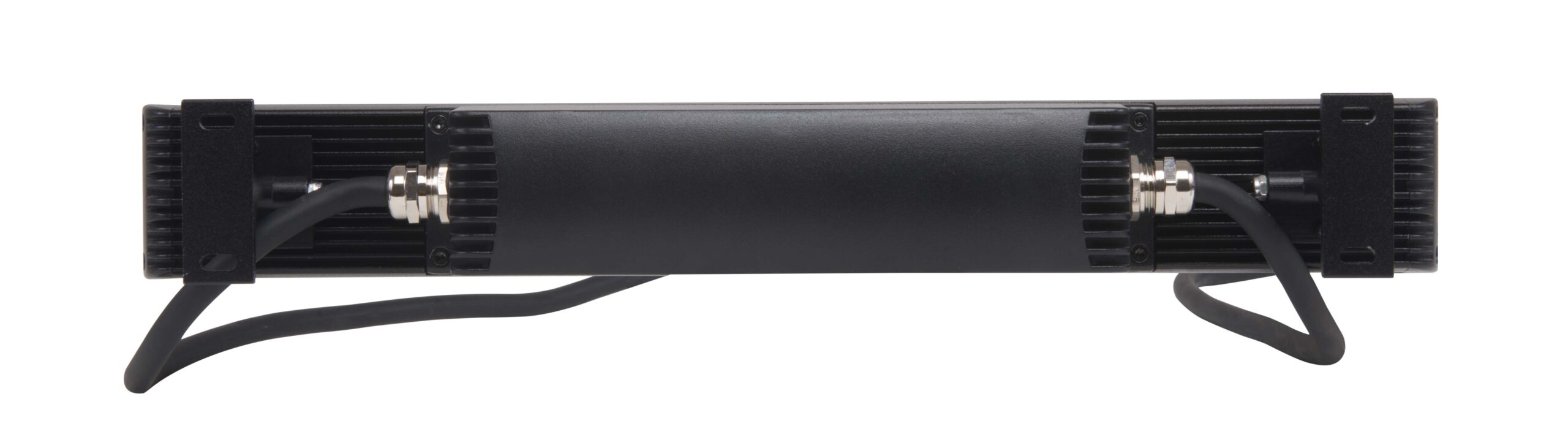

• Power IN/OUT connectors IP65

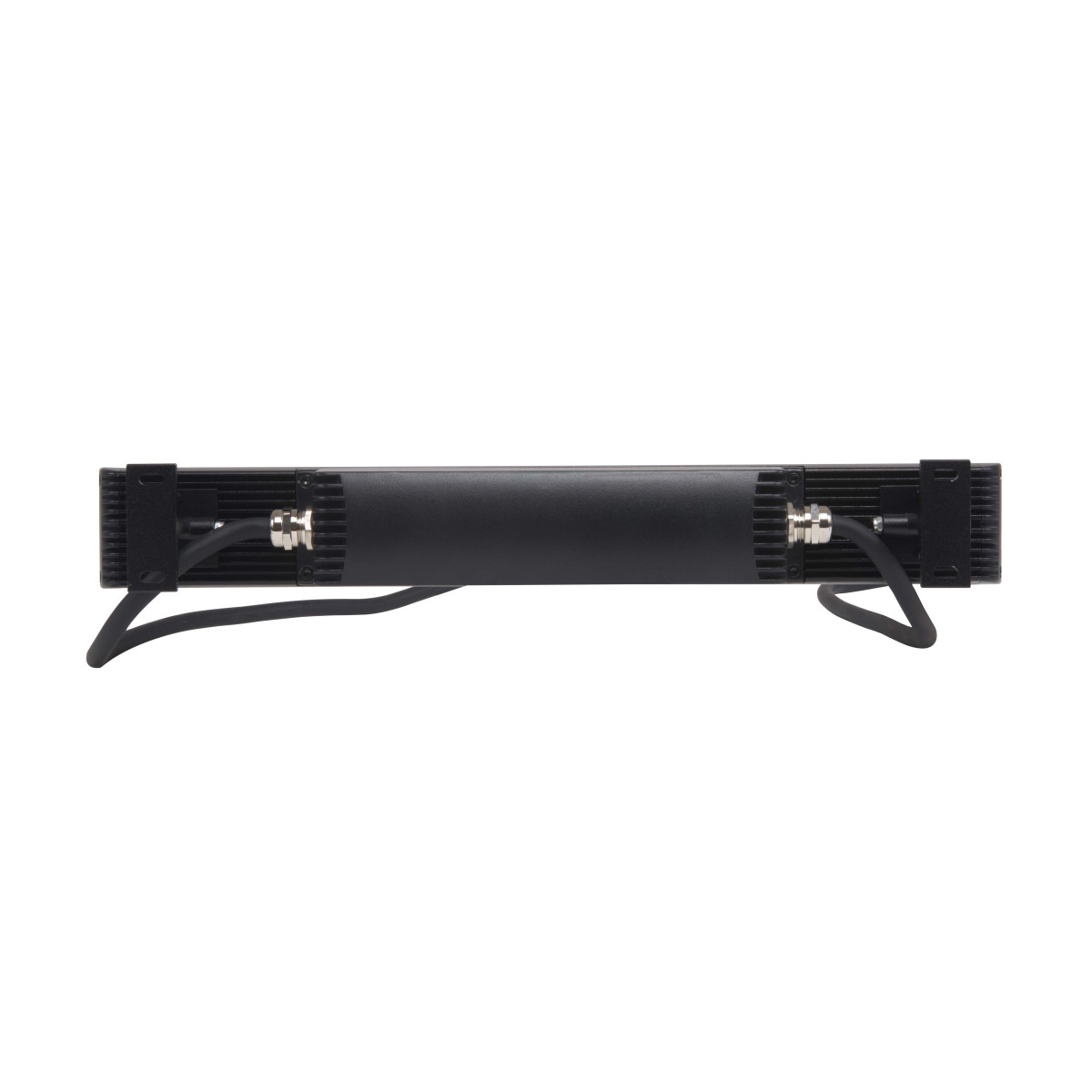

• Convection cooling system without fans

Power supply

• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• IN/OUT power connection IP65

Weight and dimensions

• Net weight: 1,9 kg (bar)
• Dimensions: 395x55x85 mm
