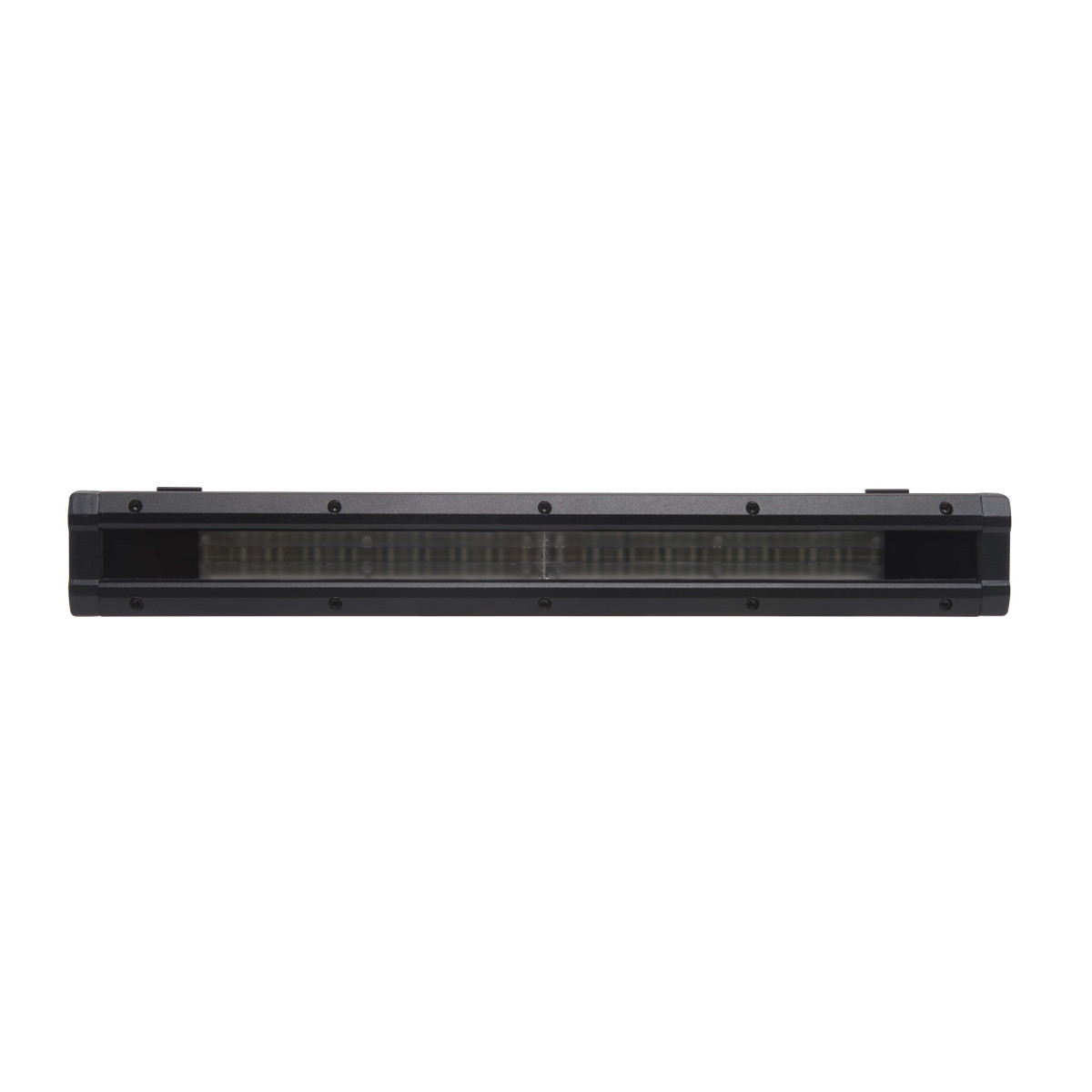

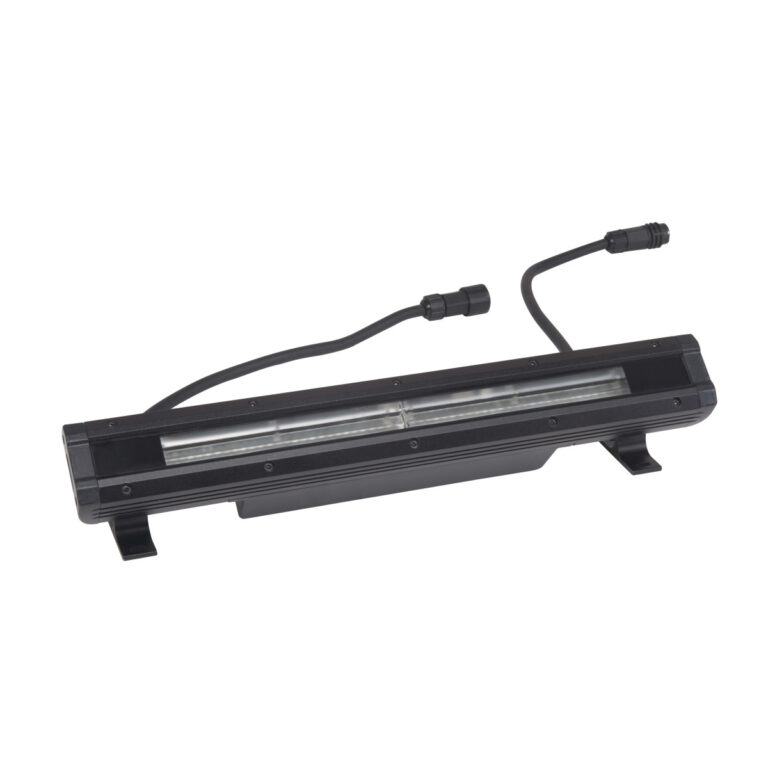

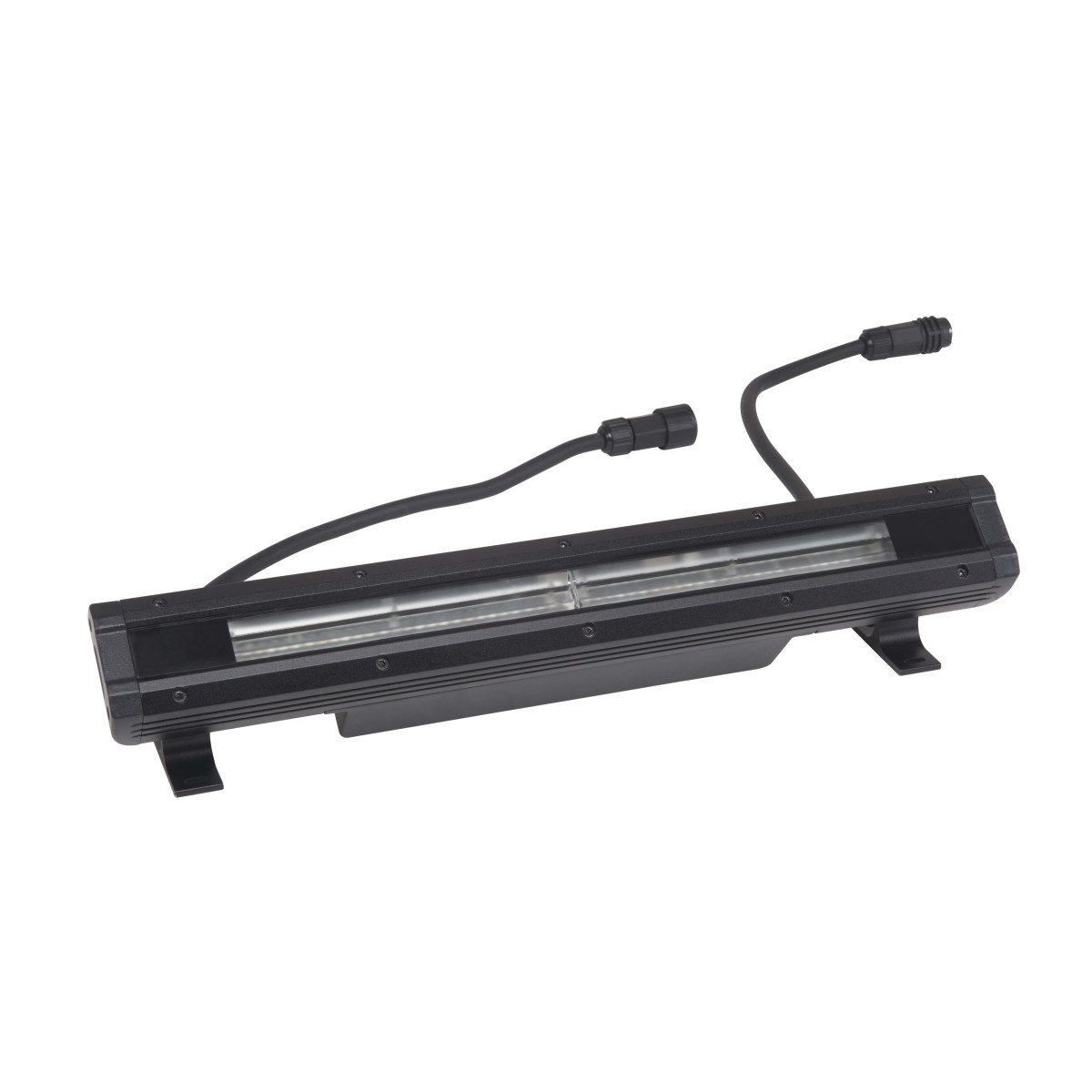

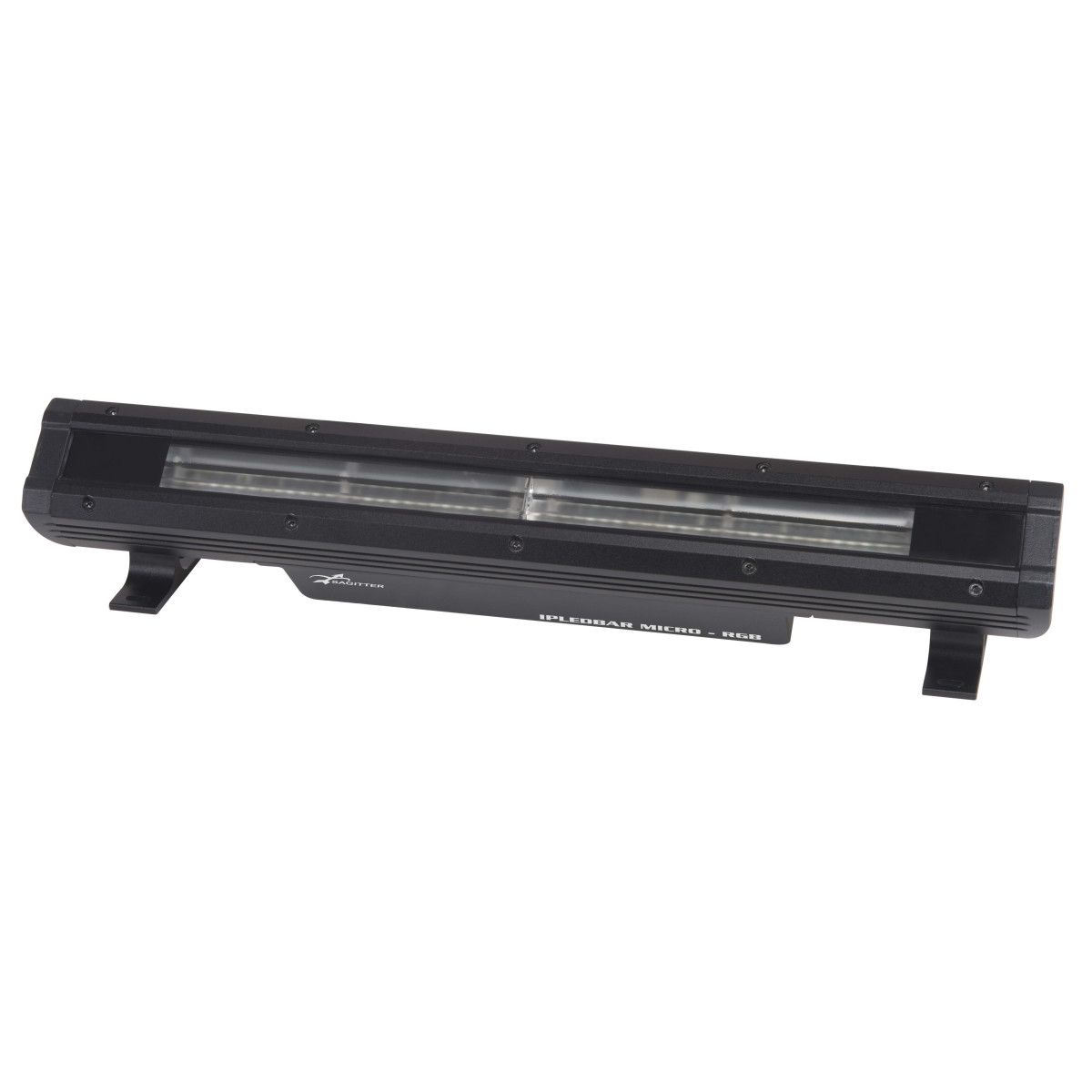

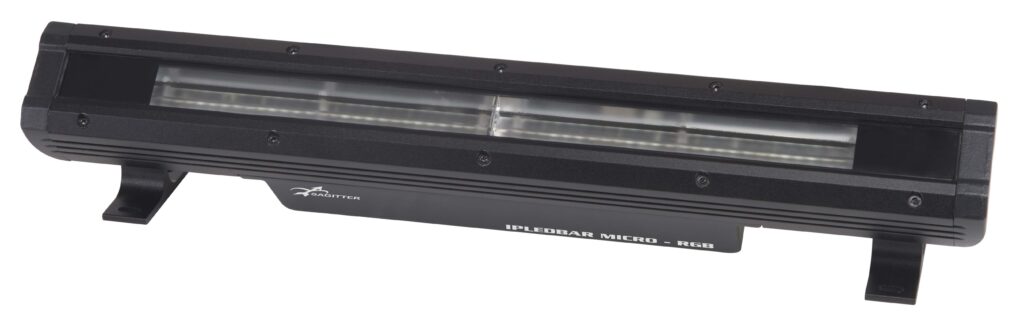

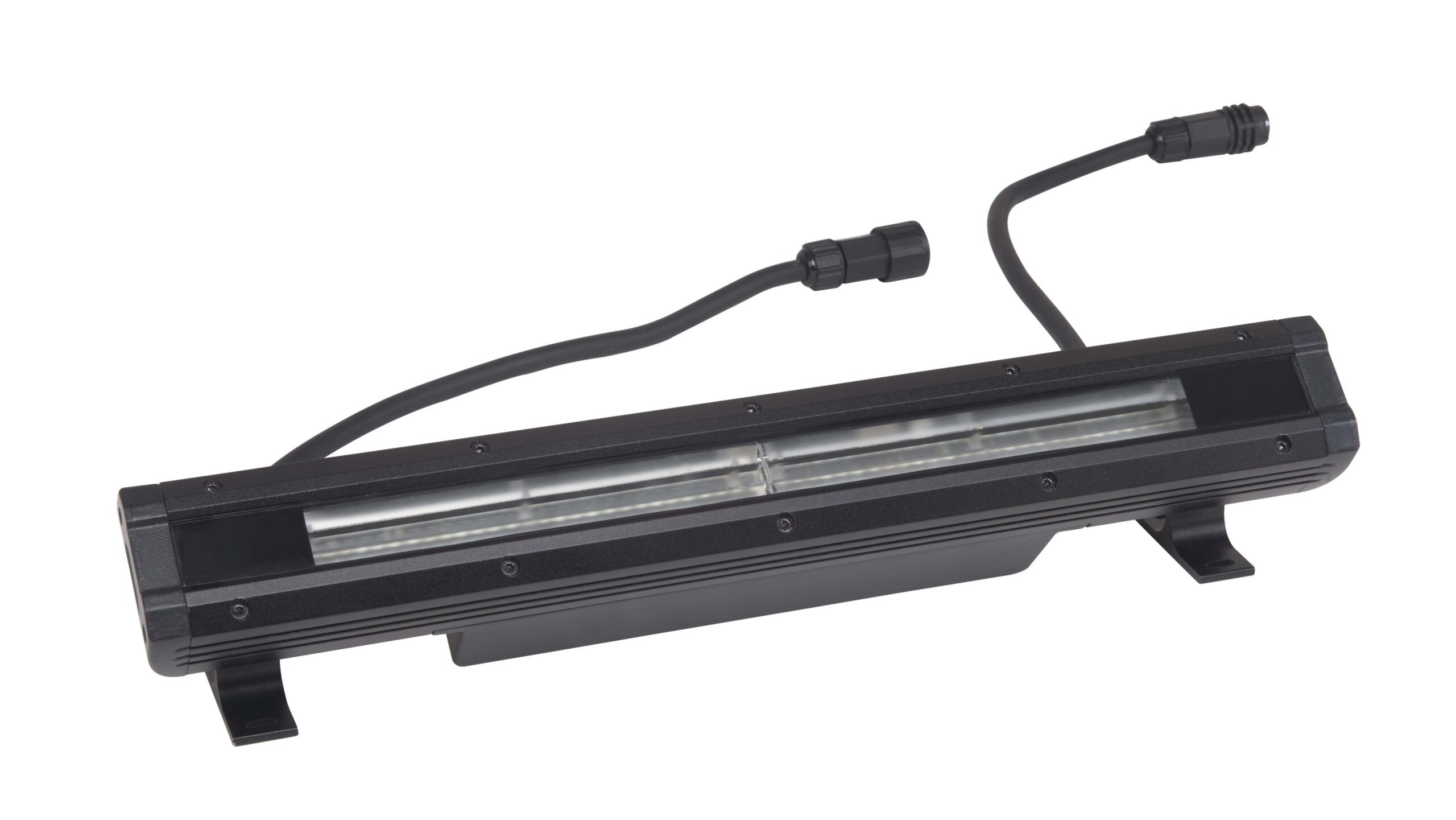

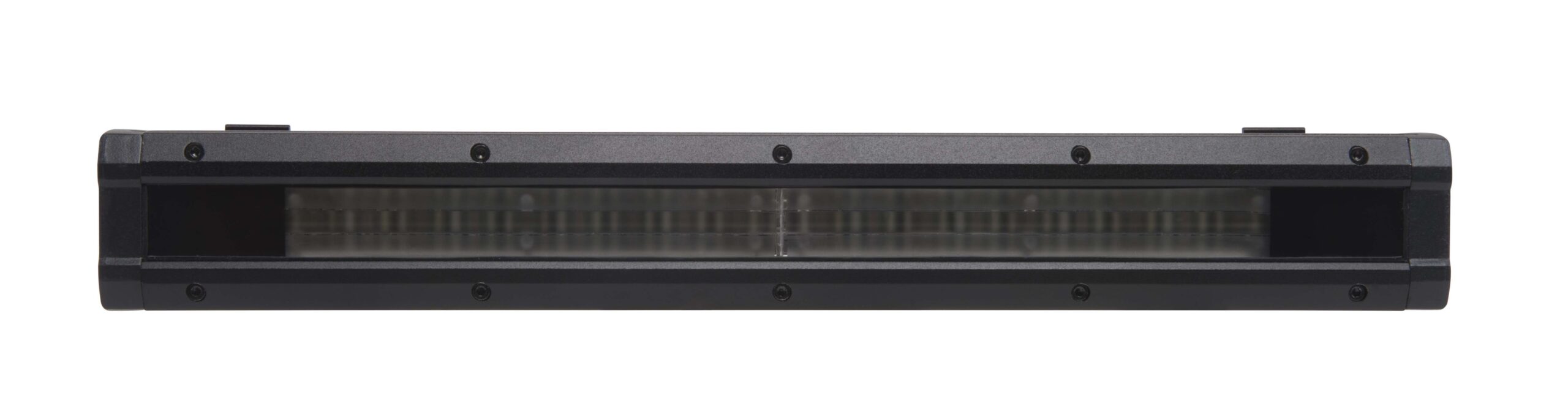

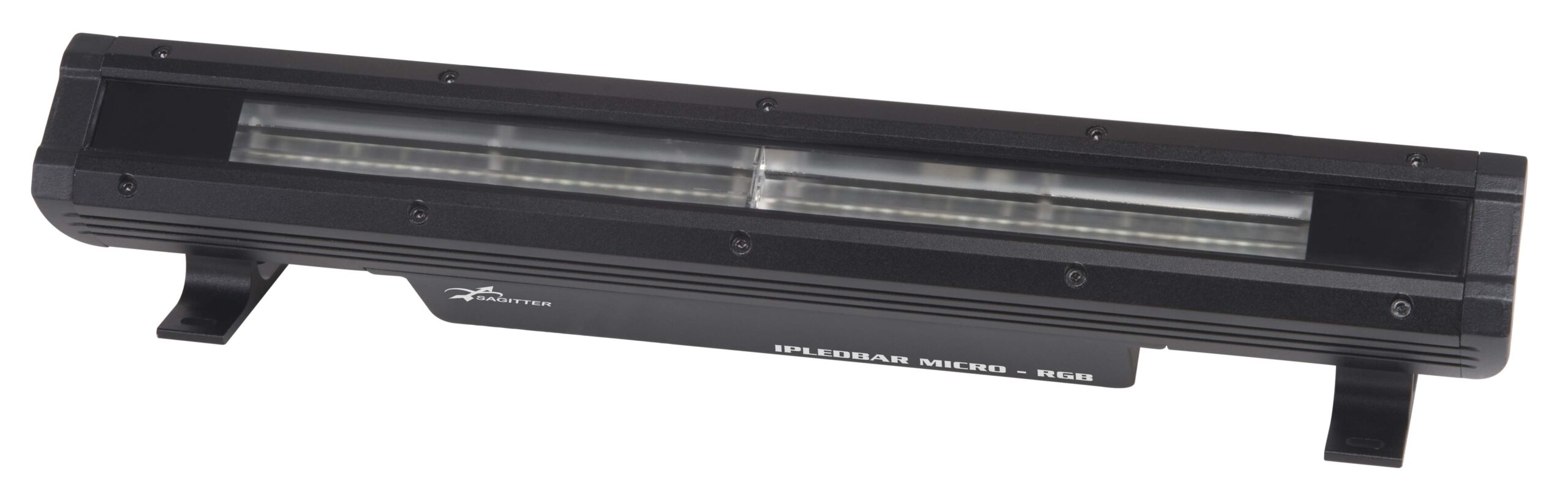

Micro bar is a brand new bar belonging to the Sagitter IP65 led series, designed for a full range of applications both within the live entertainment and architectural lighting. Micro bar is the result of the miniaturization of the most common led bars for outdoor, due to the increasingly need to hide lighting fixtures for facades or surfaces. The aluminium die cast alloy of its body makes it extremely robust, light and noise free; it’s linear shape and 39 cm body lenght perfectly fits into any modern or traditional architectural installations. Its linear design and the chromatic technology used in the led source of the RGB version, make it a projector unique on the market. The special optics has been designed to allow the lighting of big surfaces, simulating the linear emission of the most common fluorescent lamps. The external box controller uses a technology that permit to manage the connected bars, as well as several preset options already on board.
Light source
• 54x3W led RGB
• LED lifespan: > 50.000h
• LED refresh frequency: > 400Hz flicker-free
Optic system
• Beam Angle: 60×10°
Color system
• LED source RGB
• Infinite chromatic possibilities
Effects
(with controller SG IPLEDMCBOX sold separately)
• Linear dimmer 0-100%
• Adjustable strobe effect
• Color macros selectable via DMX
Control and programming
(with controller SG IPLEDMCBOX sold separately)
• 5 DMX configurations available: 1/3/4/7/10 channels
• Protocol USITT DMX 512
• Master/Slave mode
• Auto mode
Structure and cabinet
• Die cast aluminium housing
• Front tempered glass

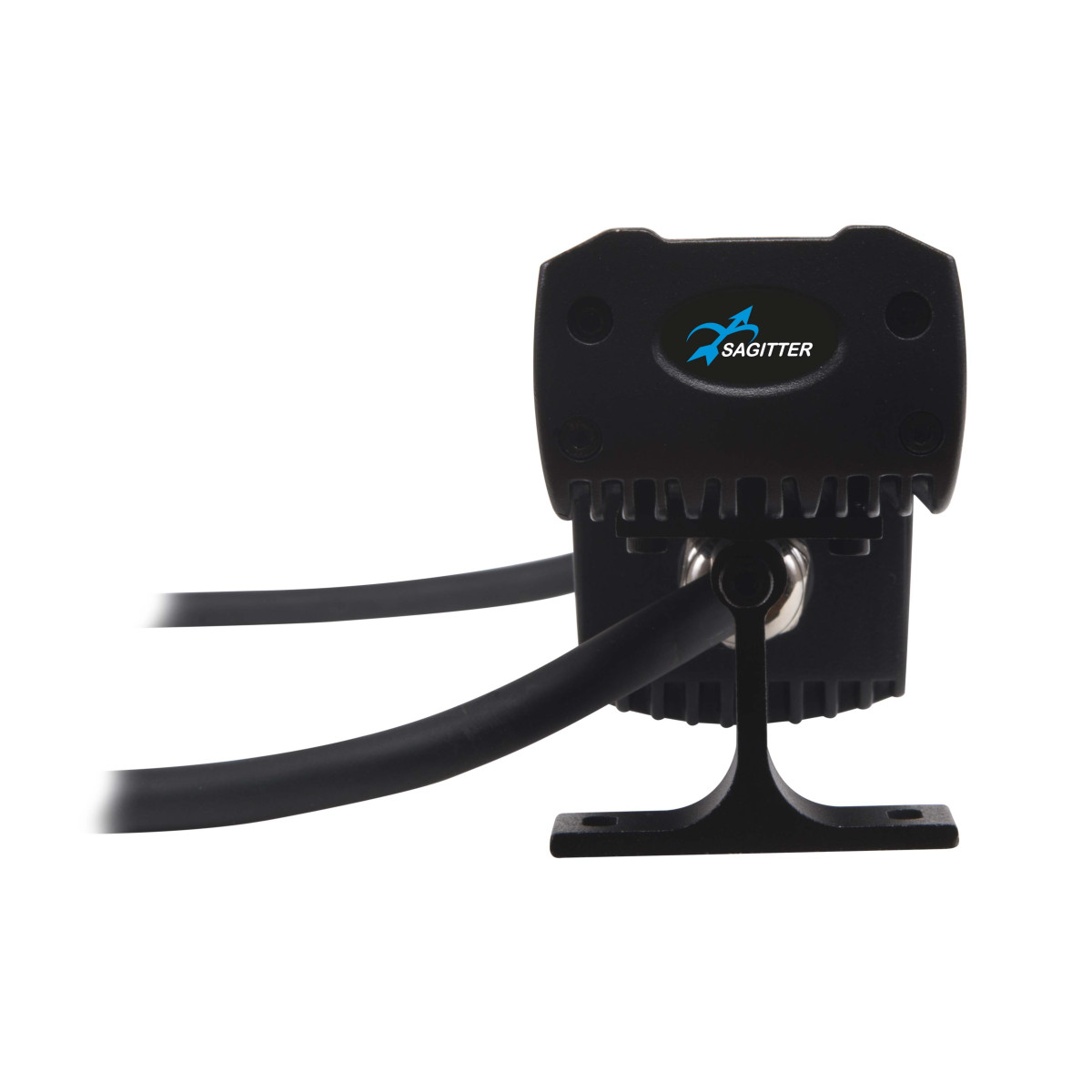

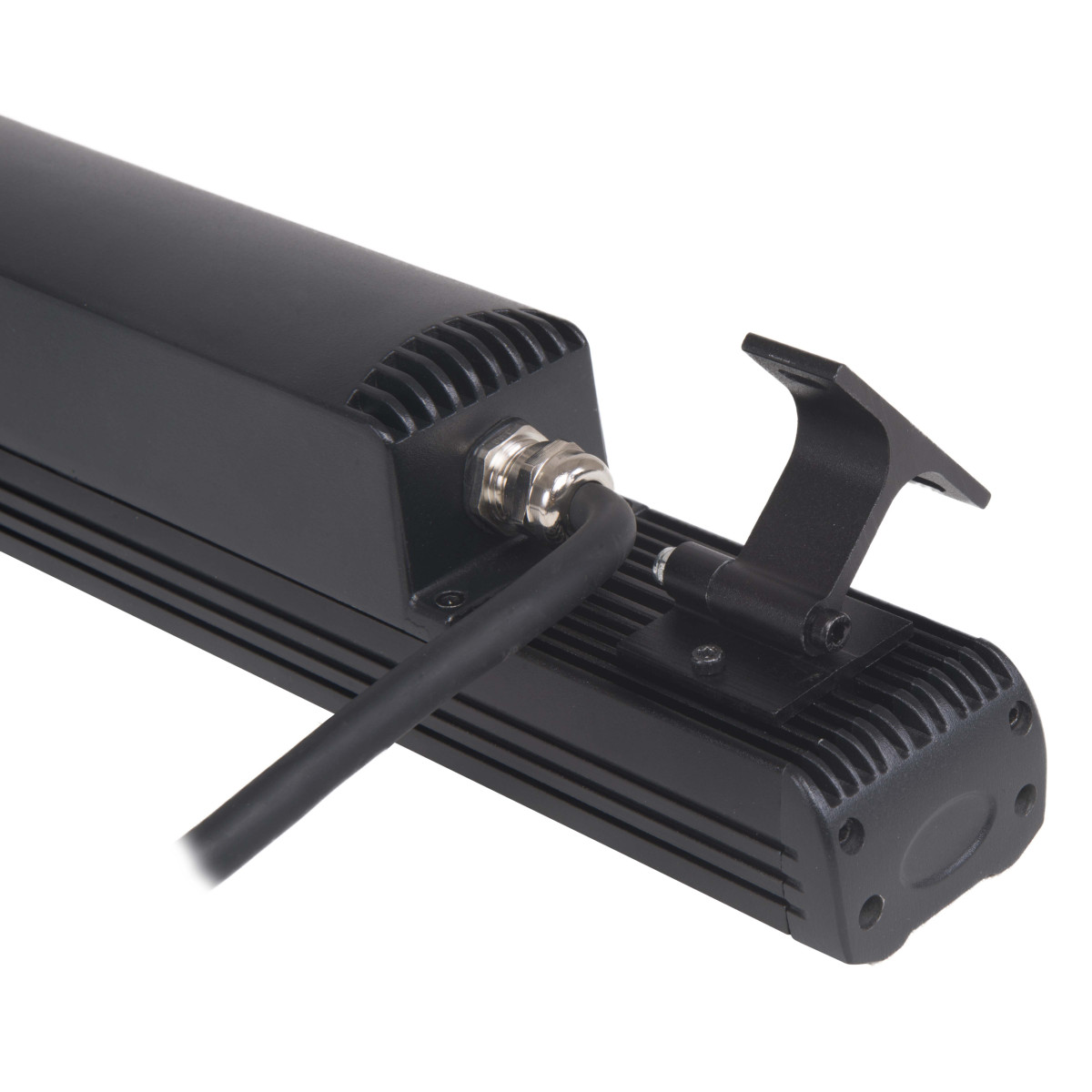

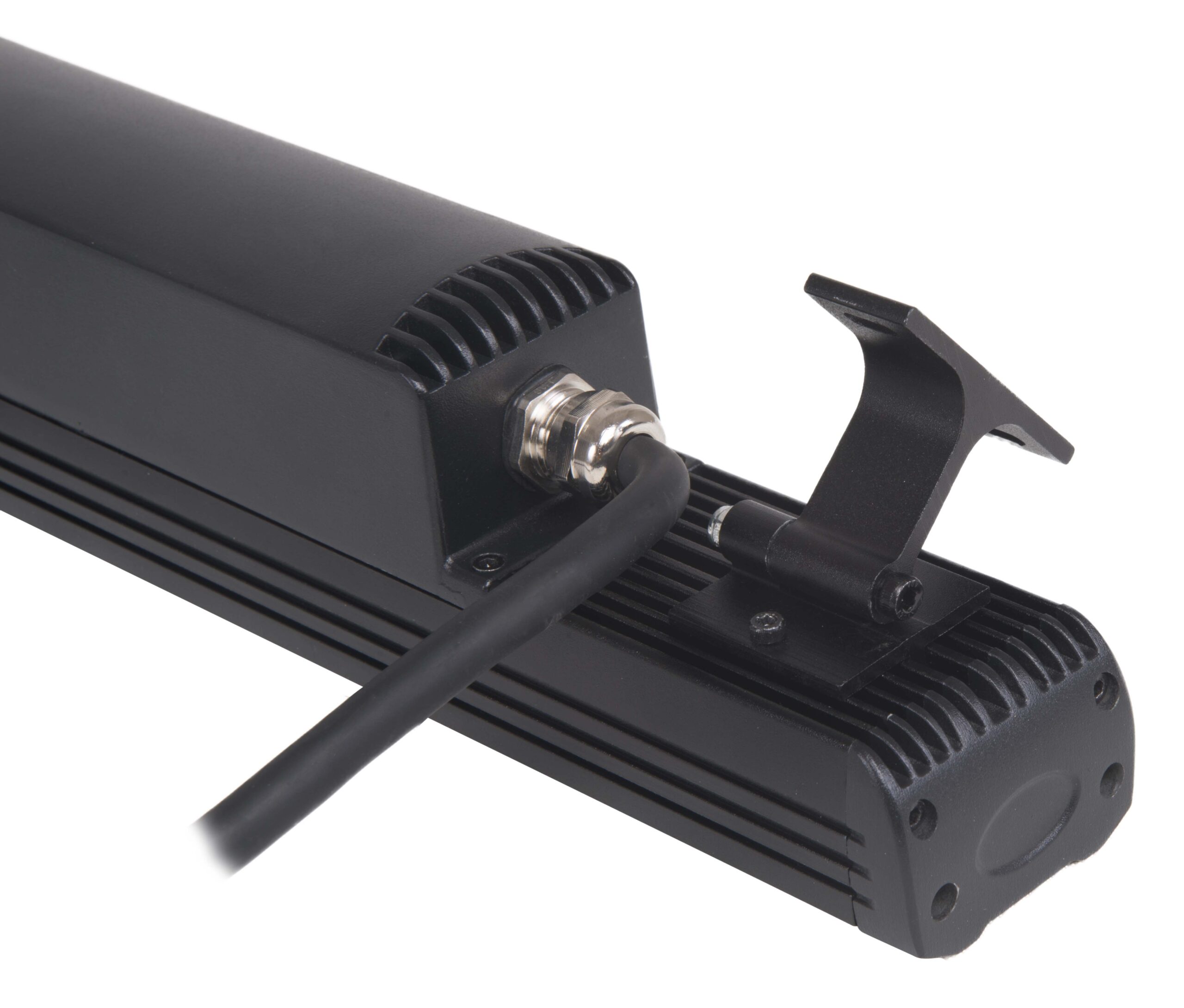

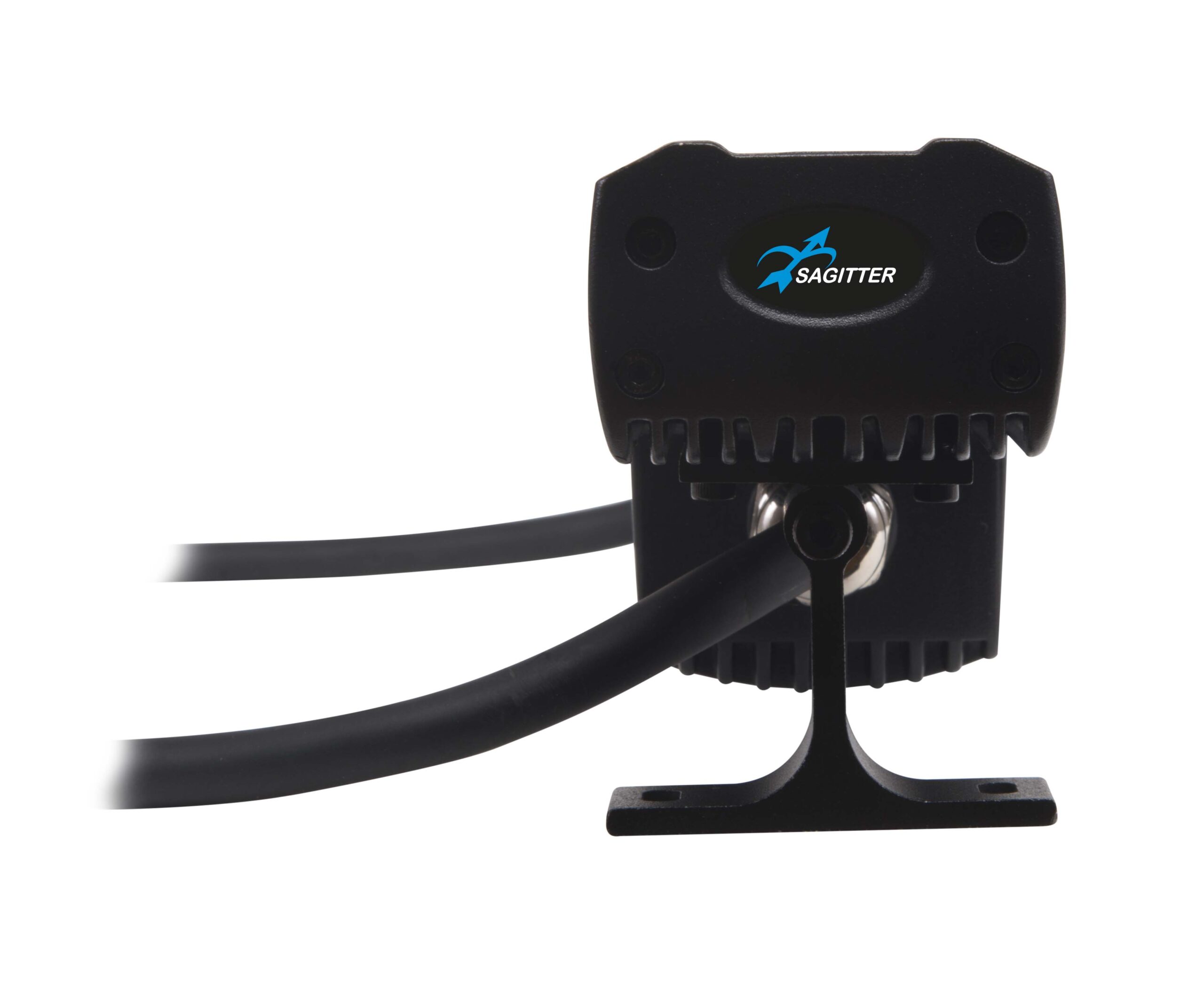

• “Light up” positioning with adjustable angle
• IP rating: IP65

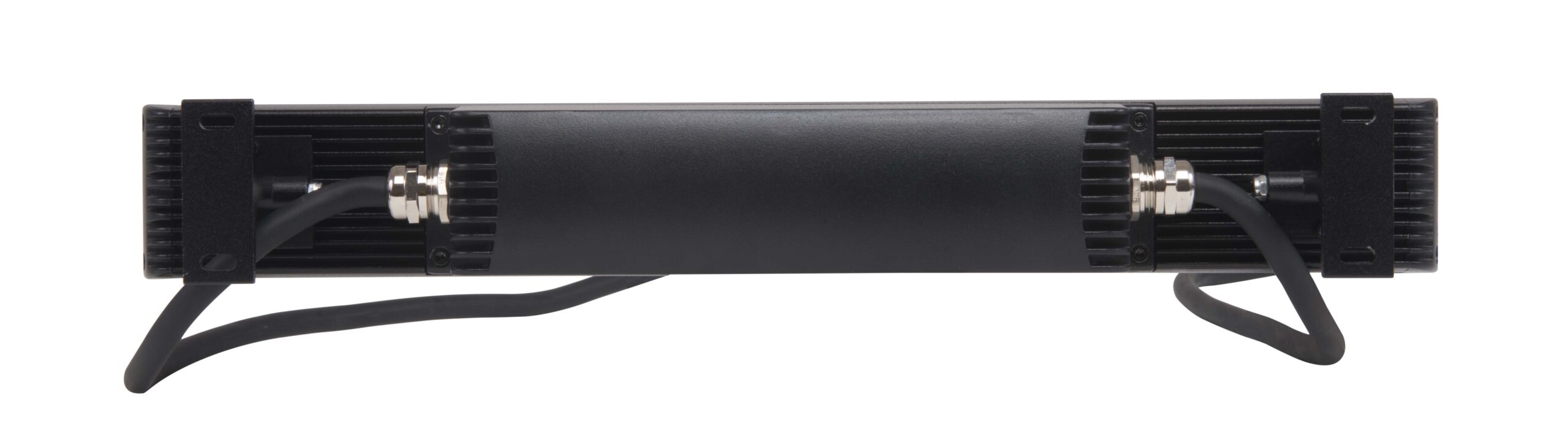

• Power and DMX IN/OUT connector IP65

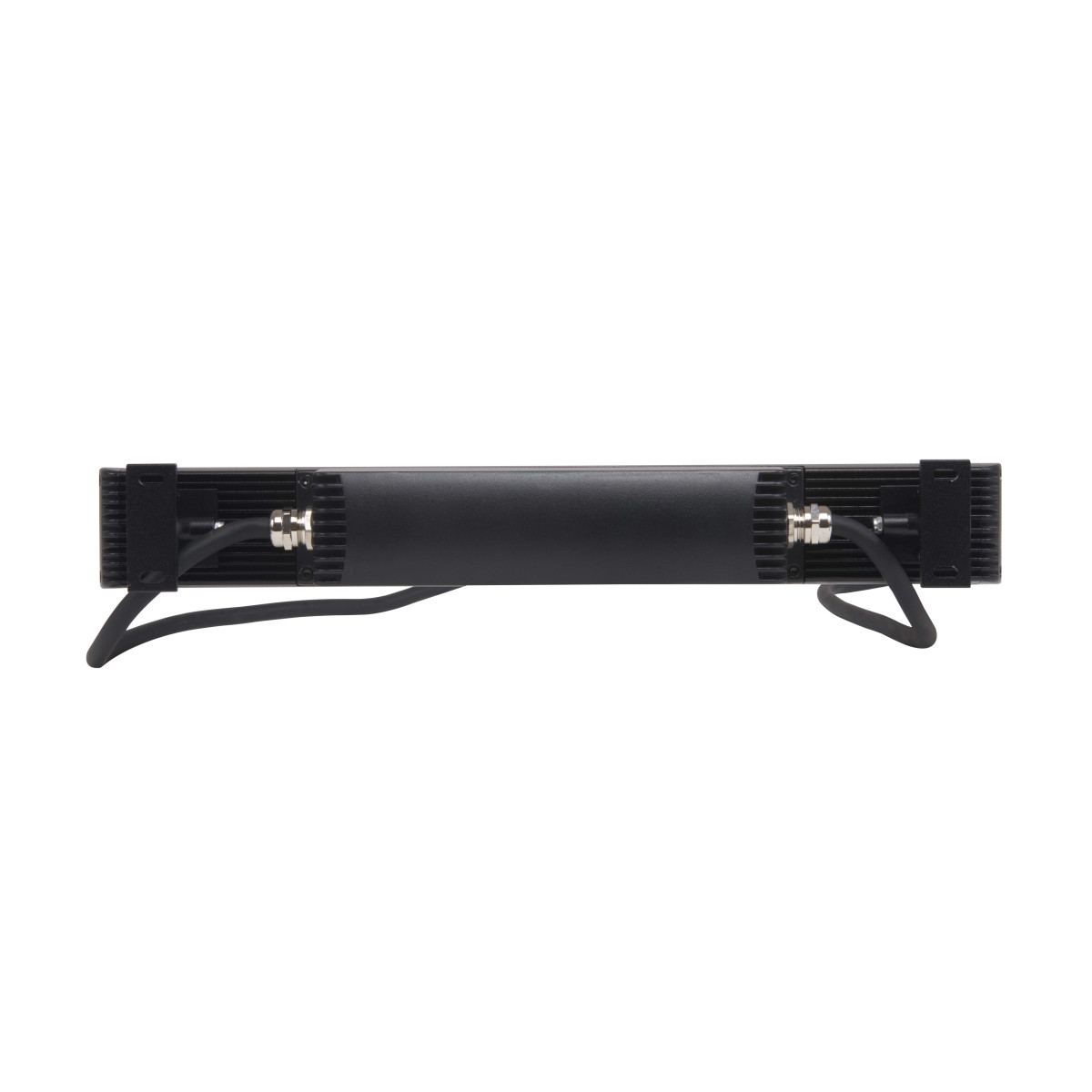

• Convection cooling system without fans
Power supply
• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Power and DMX IN/OUT connector IP65
Weight and dimensions
• Net weight: 1,9 kg (bar) – 0,5 kg (controller)
• Dimensions: 395x55x85 mm (bar) – 195x97x59 mm (controller)
