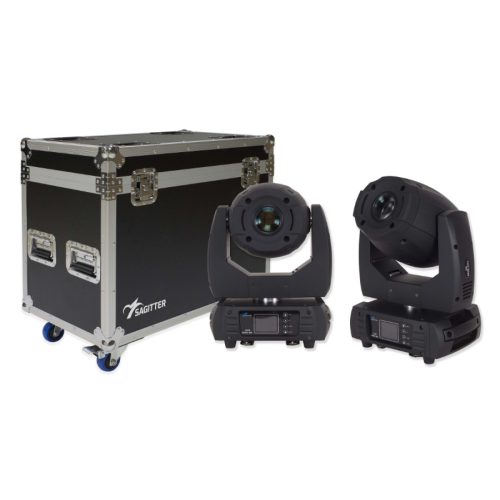

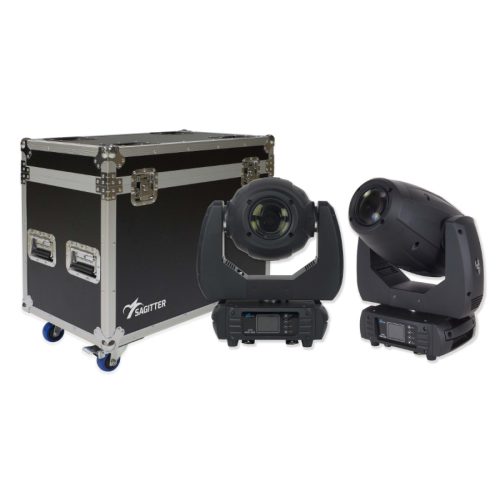

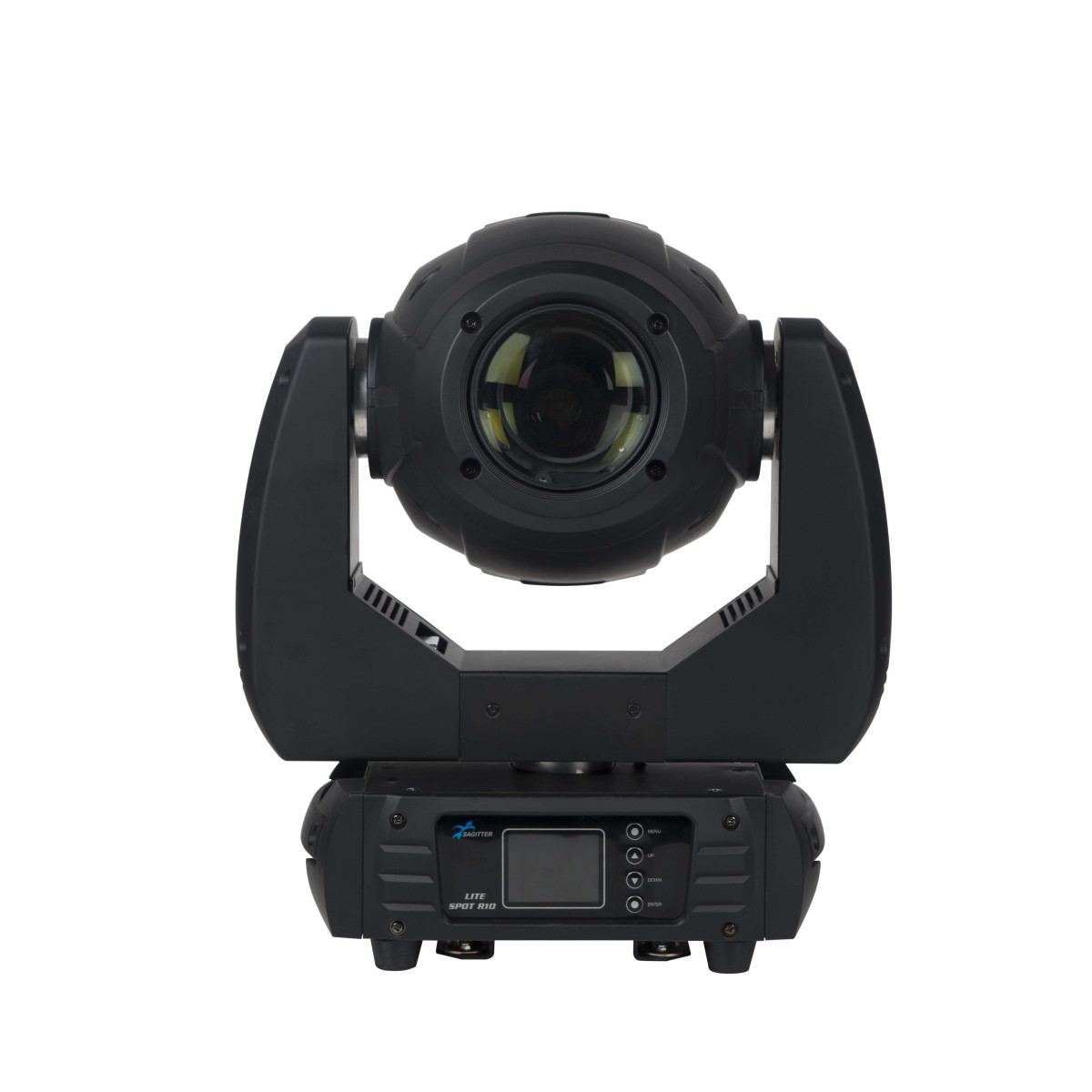

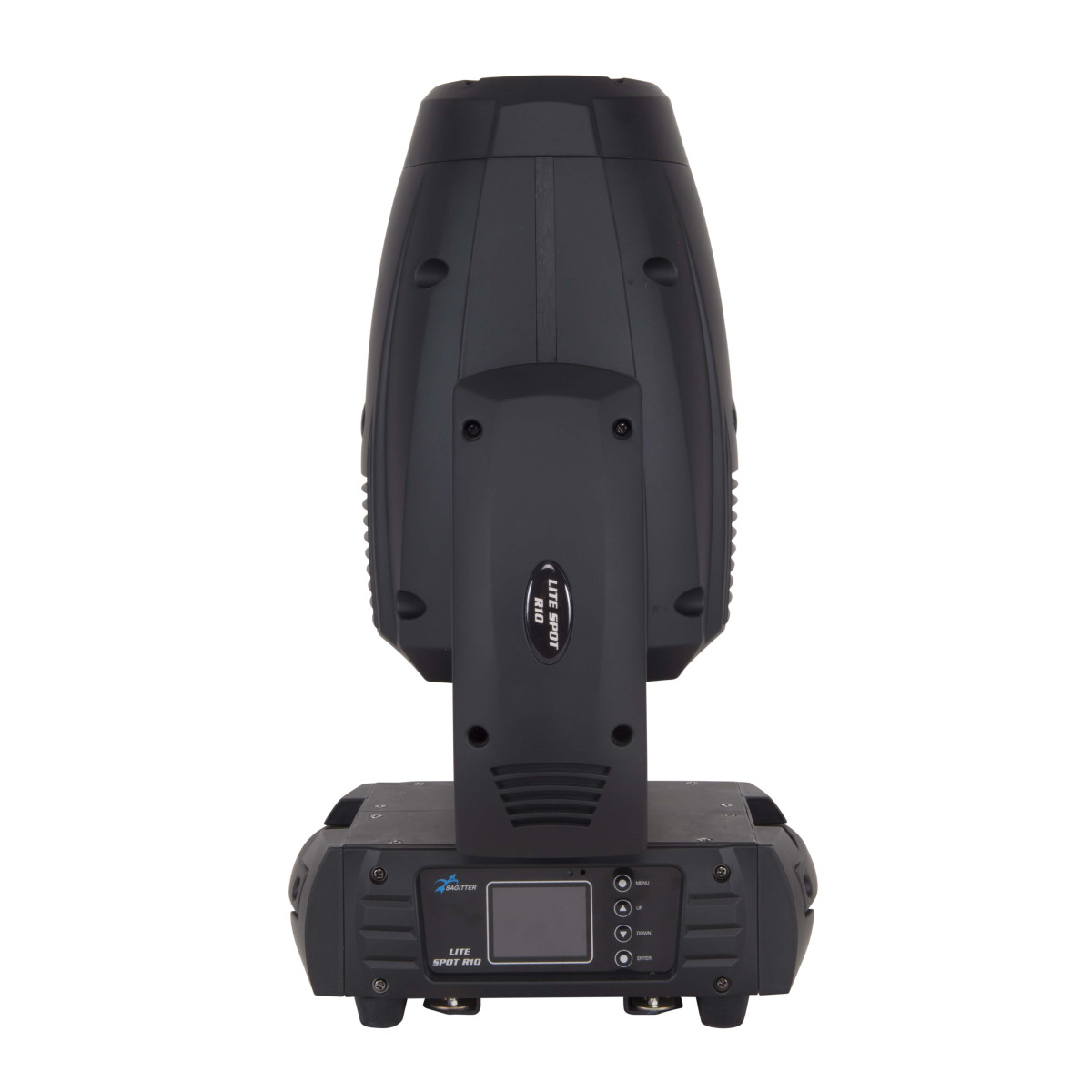

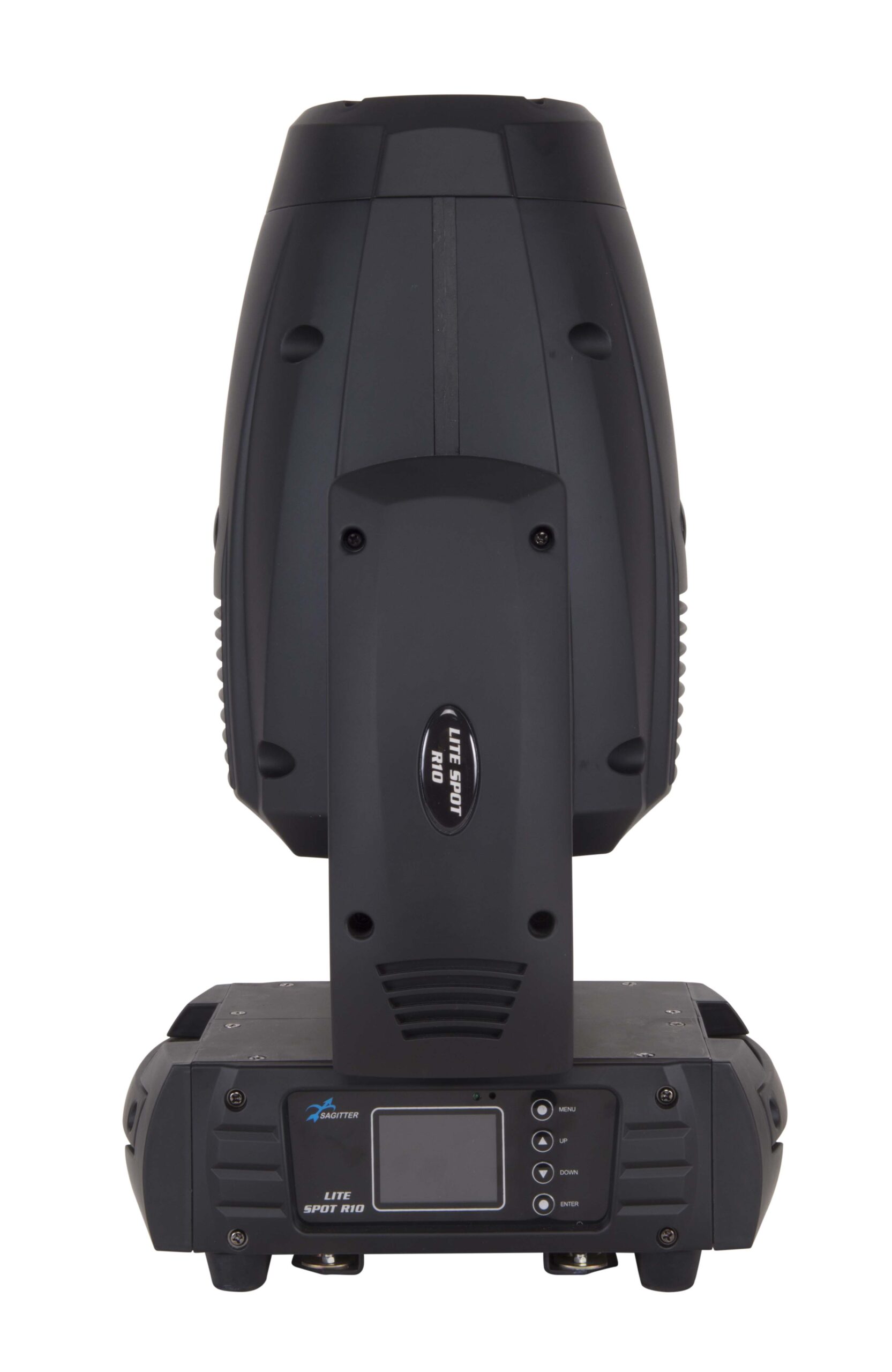

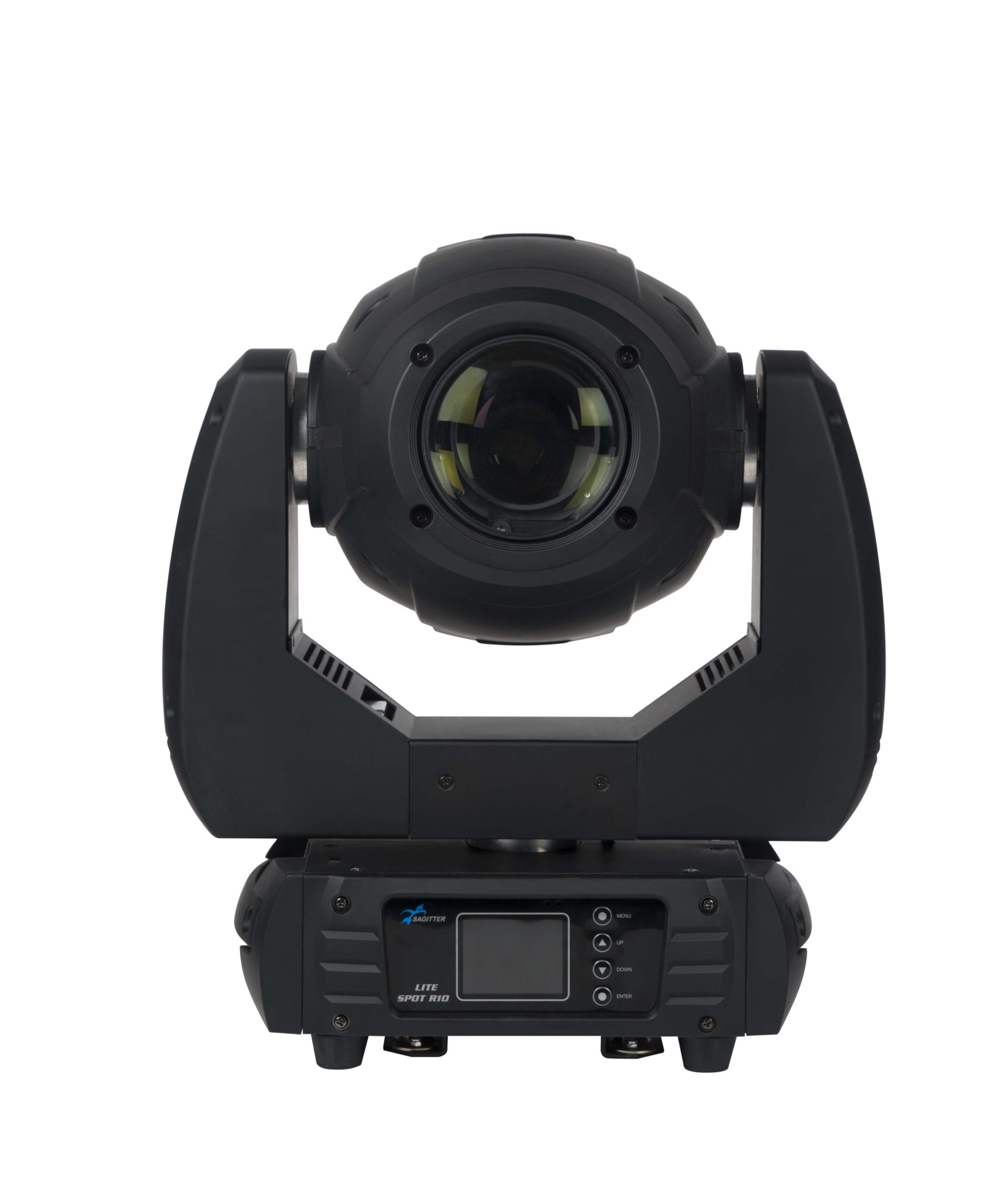

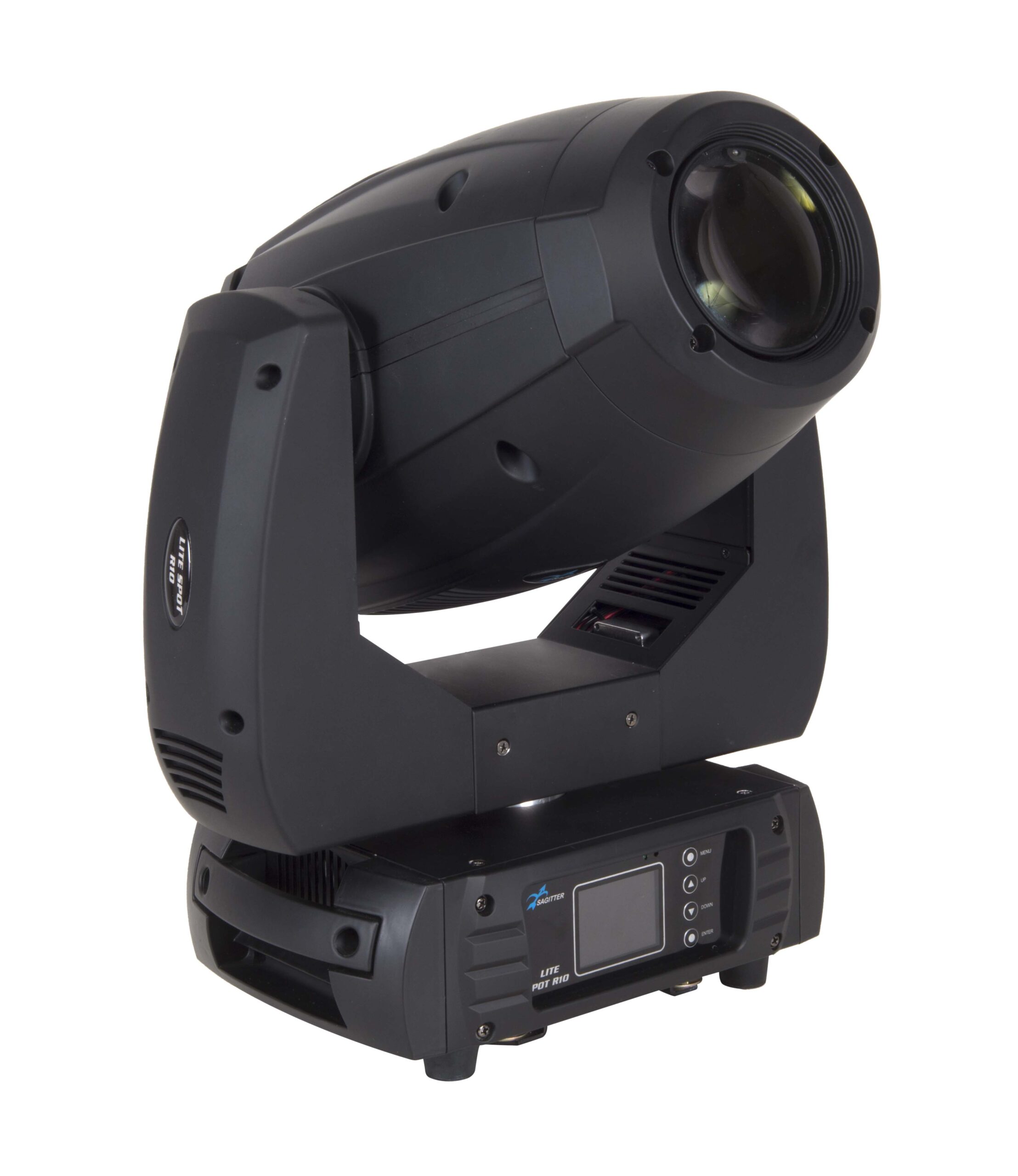

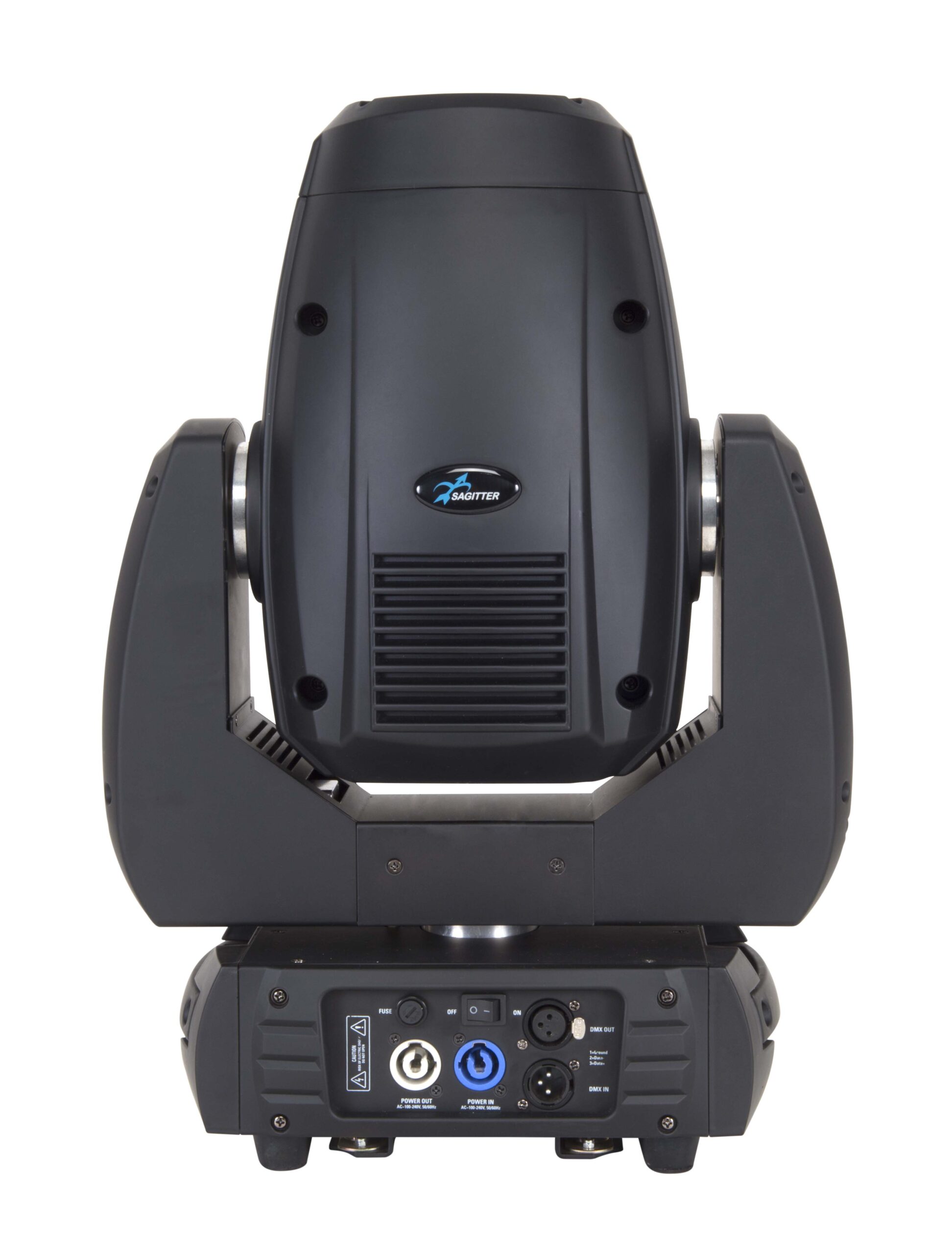

Moving head spot R10 250W zoom

Light aource

• 1x250W white led high brightness
• Color temperature: 7500K
• LED lifespan: > 50.000h
• LED refresh frequency: > 400Hz flicker-free

Optic system

• Beam Angle: zoom from 12° to 32°
• Electronic focus
• Luminous flux: 8650 lux @ 5mt (11°)

Color system

• Color wheel with 7 colors + white

Effects

• 6 dichroic rotating gobos, the gobos are interchangeable with the “plug & play” system. Gobo size 23mm / focus 16mm
• Bidirectional rotating and indexable gobos
• Gobo shacking effect
• Gobo scroll effect with adjustable speed
• Gobo wheel: 8 metal static gobos + white
• 3-facets circular rotating prism with adjustable speed
• Color rainbow effect
• High speed and precision Zoom
• Linear dimmer 0-100%
• High speed electronic strobe max.25 flashes/s, with adjustable speed
• Random strobe and pulse dimmer effects with adjustable speed

Control and programming

• 3 DMX configurations available: 14/16/18 channels
• Protocol USITT DMX 512
• Pan&Tilt 8/16 bit selectable
• Master/Slave mode
• Reset via DMX

Structure and cabinet

• Black metal housing and high resistance plastic ABS materials
• Color LCD display
• Selectable Pan angle 360° / 540° / 630°
• Selectable tilt angle 90° / 180° / 270°
• Mounting points: 1 pairs of 1/4-turn locks omega older
• Automatic repositioning of Pan and Tilt

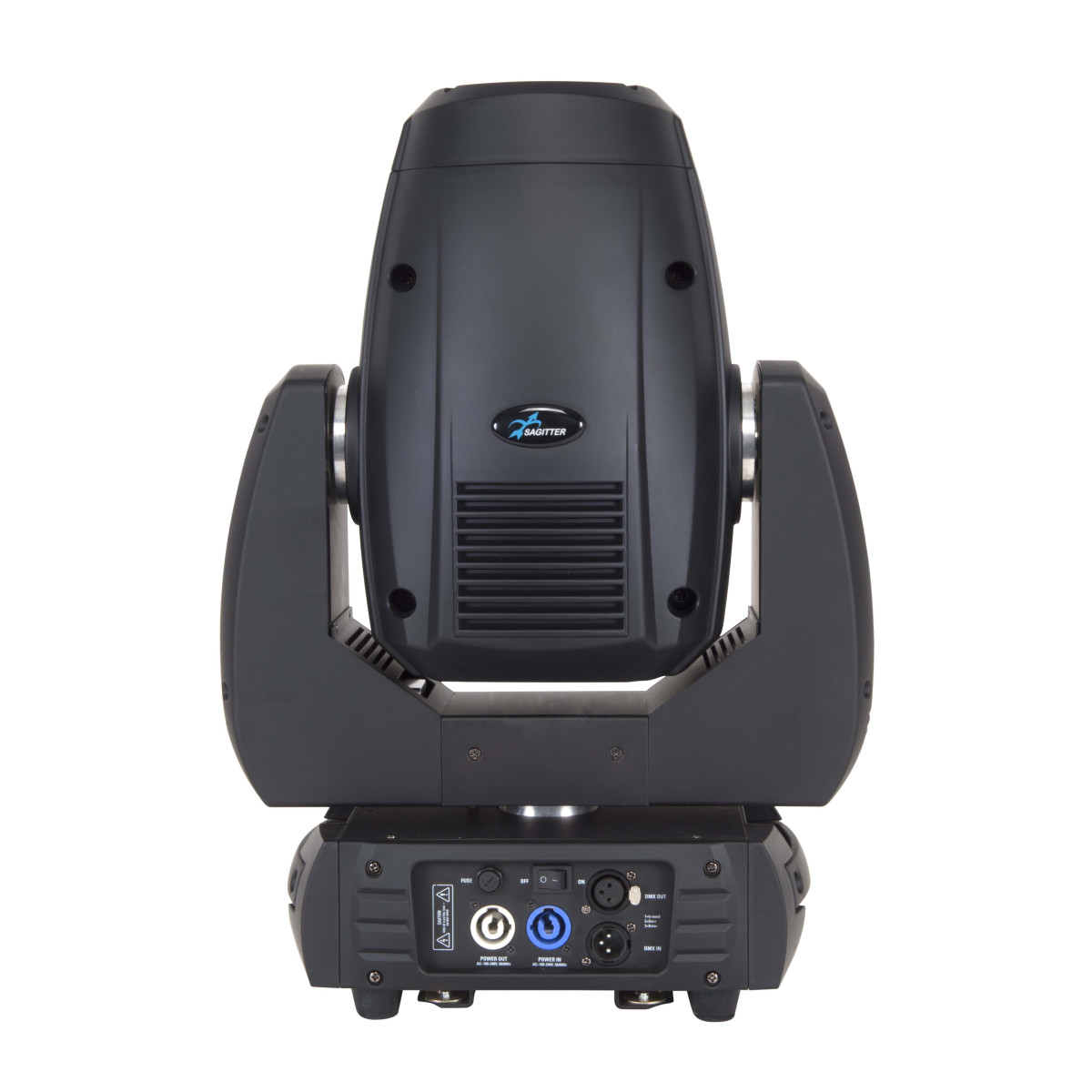

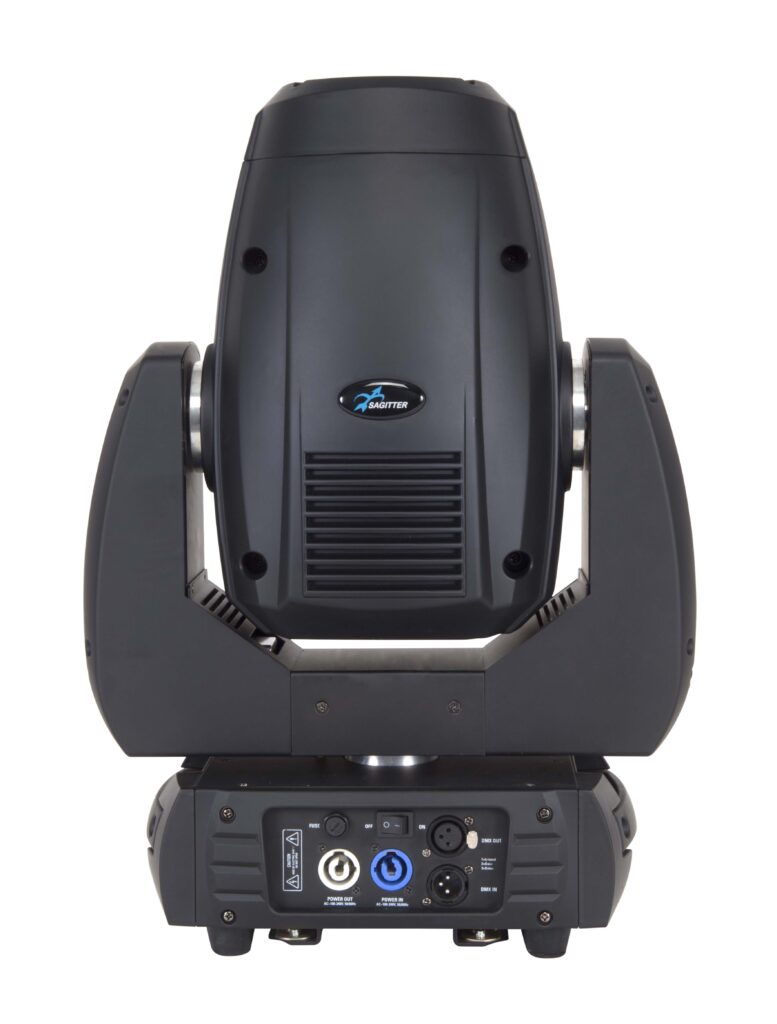

• XLR 3-poles DMX IN/OUT connection
• IP rating: IP20
• Forced air cooling system with electronic control

Power supply

• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Max power: 290W @ 230VAC
• Power input with PowerCON connector
• Power supply cable 1,0 mt included

Weight and dimesions

• Net weight: 14,2 kg
• Dimensions: 360x205x510 mm
