• REGOLO HTZ is a moving head projector that revolutionises the world of entertainment by offering visual effects neverseen before thanks to an innovative optics system based on single lens technology with highly efficient plano convexterminators in the concentration of the light beam and pre-mixing of colours. The light source is composed of 12x10WOsram Ostar RGBW/FC LED. Thanks to the internal reflection system due to the dedicated secondary optics inserted amongthe 12 terminators, the colours are pre-mixed in the optical channels, resulting in a natural colour never before seen inprevious generations of LED source projector. Each colour tone is reproduced faithfully and uniformly, from saturatedcolours to pastel shades including perfect reproductions of all the colour temperatures of white. Additionally, the projectoris equipped with a 11°-58° zoom that can be used to shift from the defined beam of a beam projector to the diffusedprojection of a wash projector.
ELECTRICAL DATA
Supply: AC~100-240V, 50/60Hz
Power consumption: 130W
LIGHT SOURCE
LED: 12X10W Osram Ostar led RGBW/FC
Lux@3m: 7900 LUX (min. zoom)
Beam: eletronic zoom 11°-58°
CONTROL
Control software: LCD Display
Control: Built-in programs, auto running mode, DMX mode, master/slave mode, soundactive mode, and static color
Channels DMX: 10,21 CH
TECHNICAL DATA
Chassis: Die-cast aluminum
Anchorage: Double bracket for anchoring in altitude and ground support

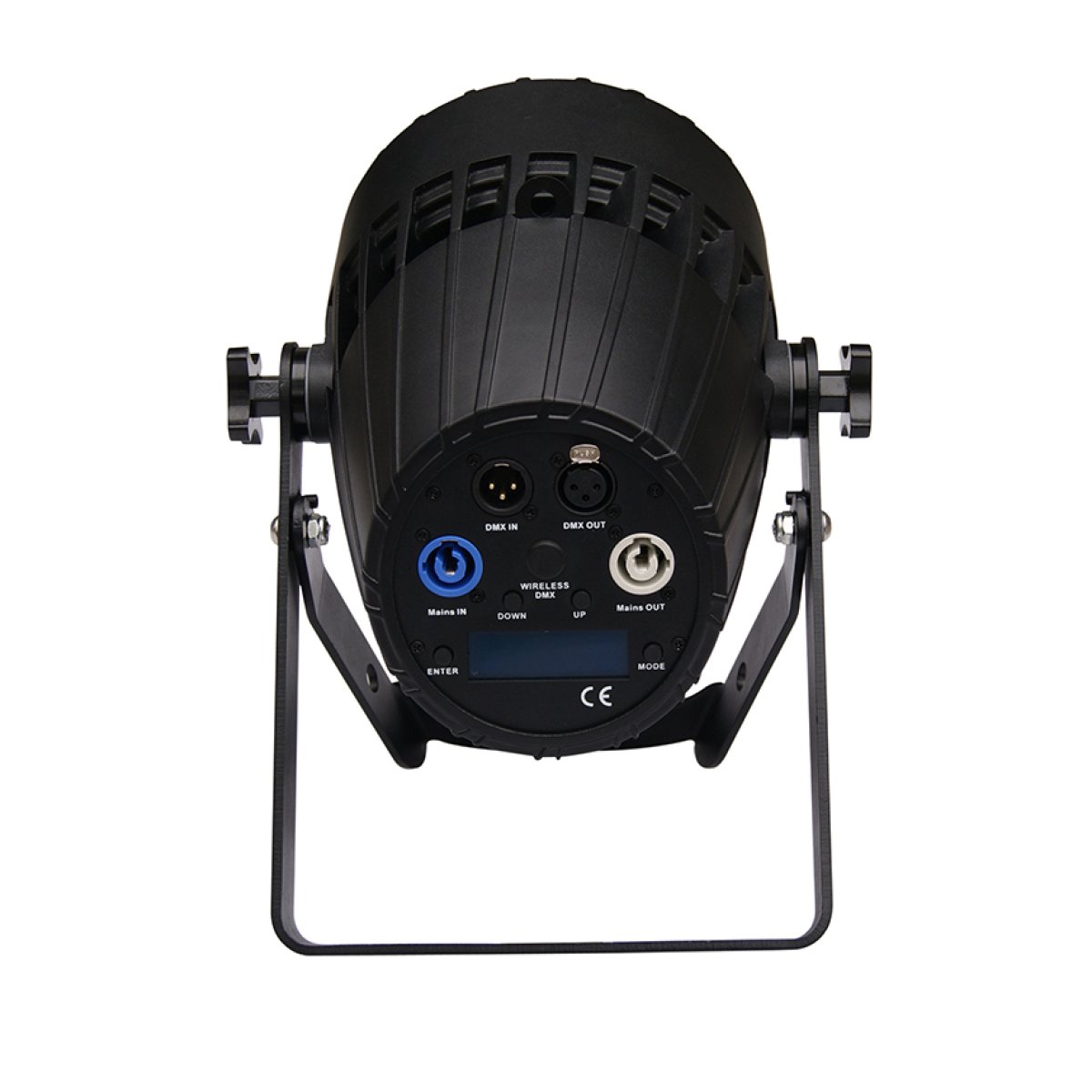

Power IN: POWERCON connector IN/OUT
Power OUT: max. 4 pcs @240V 2 pcs @110V
Weight: 4,8 kg
Dimensions: 260x205x326 mm
DMX connection: XLR 3 poles
Cooling: forced air with electronically controlled fans
IP rating: IP20
• REGOLO HTZ is a moving head projector that revolutionises the world of entertainment by offering visual effects neverseen before thanks to an innovative optics system based on single lens technology with highly efficient plano convexterminators in the concentration of the light beam and pre-mixing of colours. The light source is composed of 12x10WOsram Ostar RGBW/FC LED. Thanks to the internal reflection system due to the dedicated secondary optics inserted amongthe 12 terminators, the colours are pre-mixed in the optical channels, resulting in a natural colour never before seen inprevious generations of LED source projector. Each colour tone is reproduced faithfully and uniformly, from saturatedcolours to pastel shades including perfect reproductions of all the colour temperatures of white. Additionally, the projectoris equipped with a 11°-58° zoom that can be used to shift from the defined beam of a beam projector to the diffusedprojection of a wash projector.
ELECTRICAL DATA
Supply: AC~100-240V, 50/60Hz
Power consumption: 130W
LIGHT SOURCE
LED: 12X10W Osram Ostar led RGBW/FC
Lux@3m: 7900 LUX (min. zoom)
Beam: eletronic zoom 11°-58°
CONTROL
Control software: LCD Display
Control: Built-in programs, auto running mode, DMX mode, master/slave mode, soundactive mode, and static color
Channels DMX: 10,21 CH
TECHNICAL DATA
Chassis: Die-cast aluminum
Anchorage: Double bracket for anchoring in altitude and ground support
Power IN: POWERCON connector IN/OUT
Power OUT: max. 4 pcs @240V 2 pcs @110V
Weight: 4,8 kg
Dimensions: 260x205x326 mm
DMX connection: XLR 3 poles
Cooling: forced air with electronically controlled fans
IP rating: IP20
