PLPT04S

CORNER AND CONNECTIONS Truss TRIO 40 90° 4-way T cross, vertex up/down

Description

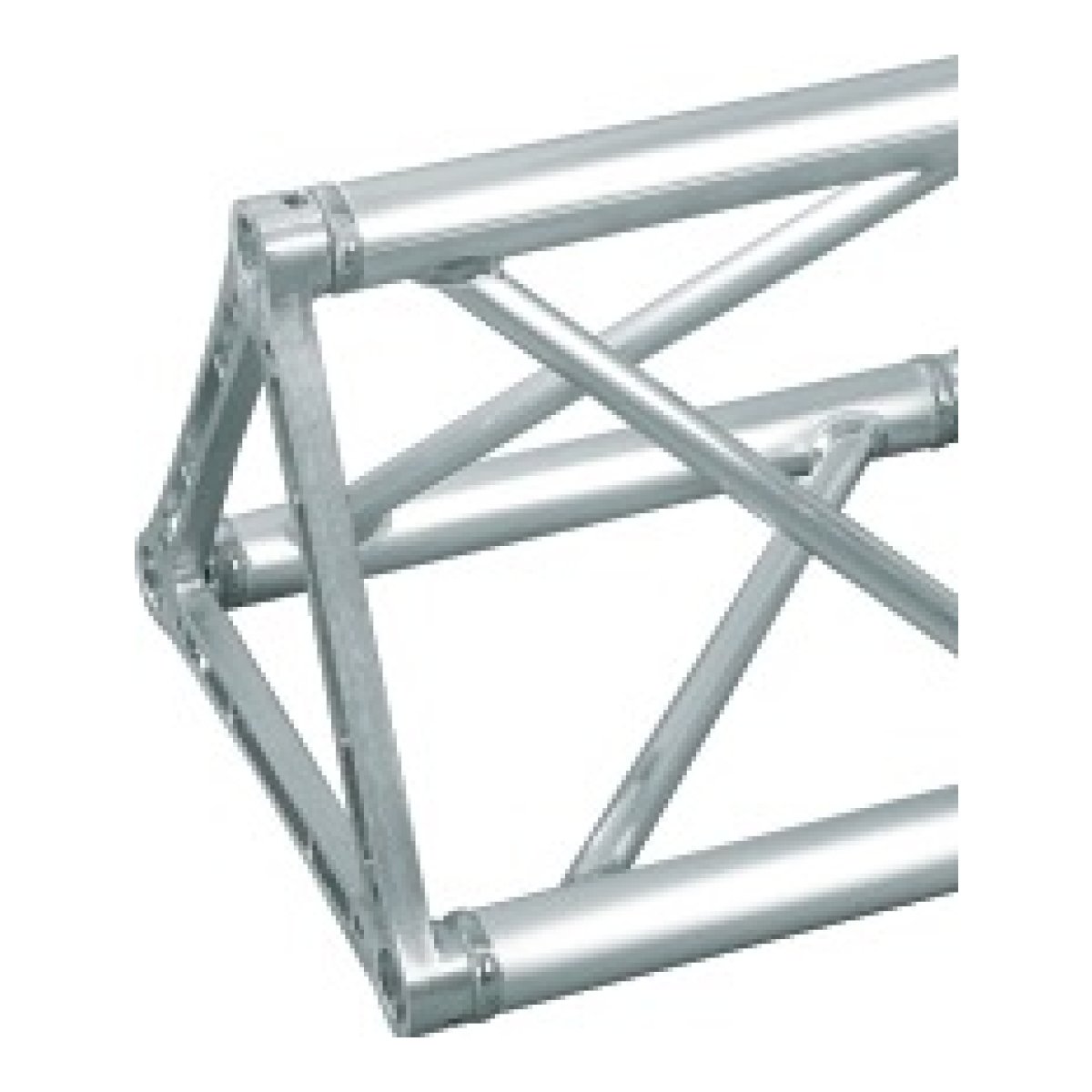

Corners featuring the triangular section configuration are made with extruded aluminium 6082 T6 tubes with a diameter of 50 mm and a thickness of 2 mm. The internal diagonal bracing is made with extruded aluminium 6060 T6 tube with a diameter of 25 mm and a thickness of 2 mm. The end-plates are made of cast aluminium SG AlSi 12. The connections are made with quick fit kit PLTSET02PLUS or with nuts and bolts kit PLTSET01M10.

PLPT04S

Technical Specifications

[Type: 90° 4-way T cross, vertex up/down ]
[Side:40 inch ]
[Dimensions (W x H x D): 100×35,5×100 cm]
[Lenghtways tubes dimension: Ø 50×2 mm]
[Diagonal tubes dimension: Ø 25×2 mm]
