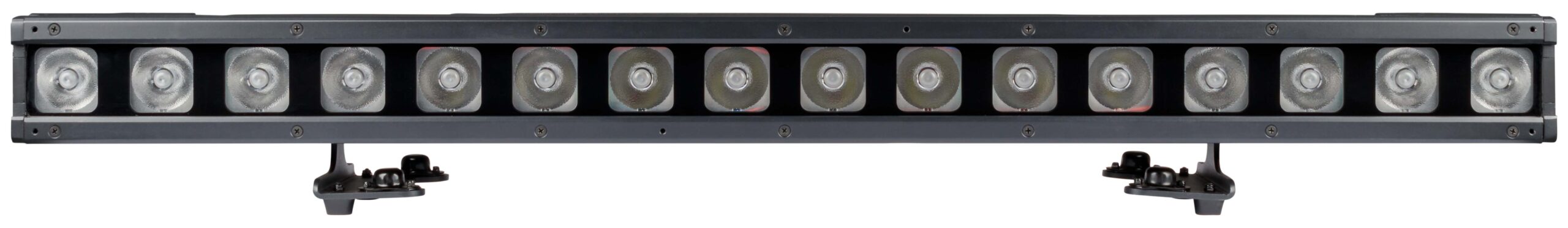

AQU Bar 16P

16x20W RGBW IP65 LED bar with pixel control

SG_AQBAR16P_-1
SG_AQBAR16P_-3
SG_AQBAR16P_-4
SG_AQBAR16P_-5
proel_ec7ed8e361147454862c52f65fbdee60
proel_87cbb20f89773c29c24e7a3392e6afb6
SG_AQBAR16P_-7
SG_AQBAR16P_-10
SG_AQBAR16P_-6
SG_AQBAR16P_-11
gallery
Description
Technical Specifications
download

Description

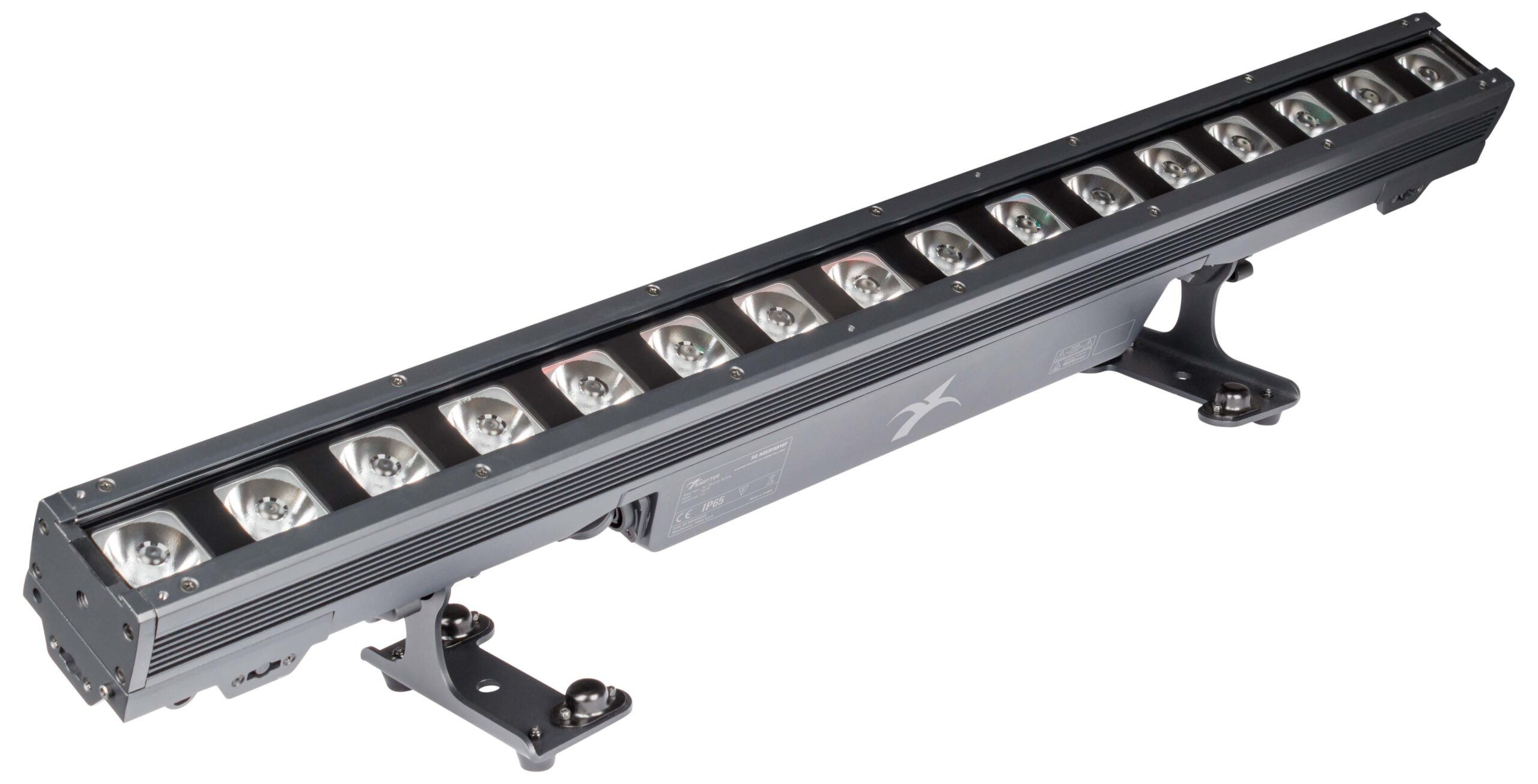

Powerful, precise, and fully designed for professional applications, the AQU Bar16P is a high-performance RGBW LED bar offering exceptional light output and total color control. Featuring 16 20W full-color LEDs, it delivers intense, uniform lighting, making it ideal for live events and outdoor applications thanks to its IP65 rating. Pixel-to-pixel control and CCT with presets from 2700K to 8000K allow for creative and precise color temperature control. Crafted from high-strength die-cast aluminum and featuring a tempered glass front, the AQU Bar 16P combines robustness and design, ensuring excellent long-term reliability.

SG AQUBAR16P

Technical Specifications

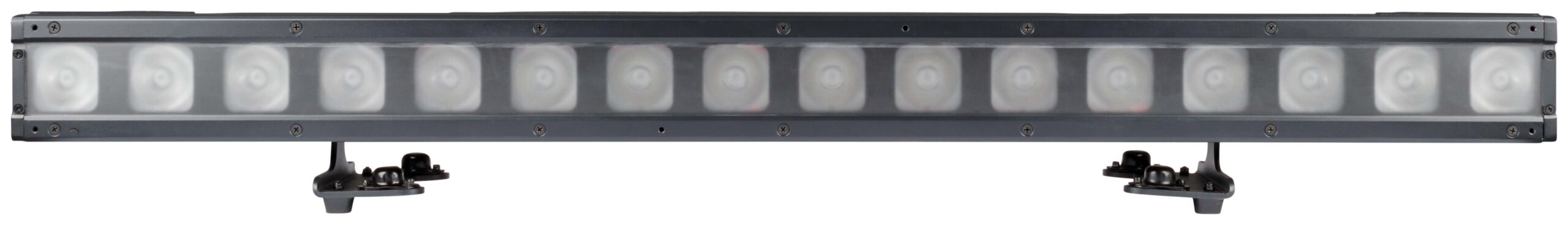

Light source 16x20W led RGBW Full Color
LED lifespan: > 50.000h
LED refresh frequency: adjustable from 600 Hz to 18 KHz. Anti flicker
Optic system Beam Angle: 12°
Illuminance: 22000lux @ 2mt – Full ON
Illuminance: 5000lux @ 5mt – Full ON
Color system RGBW Full color
Infinite chromatic possibilities
Effects Linear dimmer 0-100%
Adjustable strobe effect
Color macros selectable via DMX
Control and programming 8 DMX configurations available: 2/4/9/13/25/32/64/72 channels
Master/Slave mode
Static color mode
Color mode with 51 color macros selectable by DMX
Auto mode with 22 programs
Single pixel control
Color calibration system
CCT control: virtual wheel with 9 macros (from 2700K to 8000K)
4 dimmer curves (Linear – Square – InvSquare – S-Curve)
4 dimmer modes
Protocols: DMX 512, RDM
Structure and cabinet High corrosion resistance 6063 die cast aluminum housing

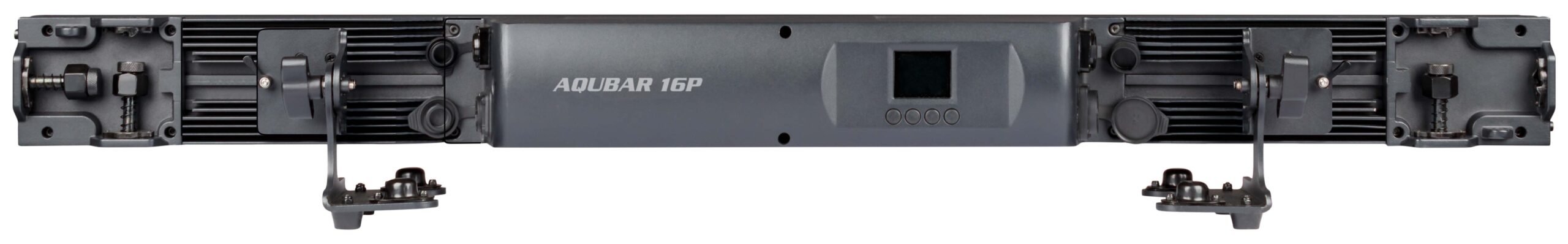

LCD color graphic display

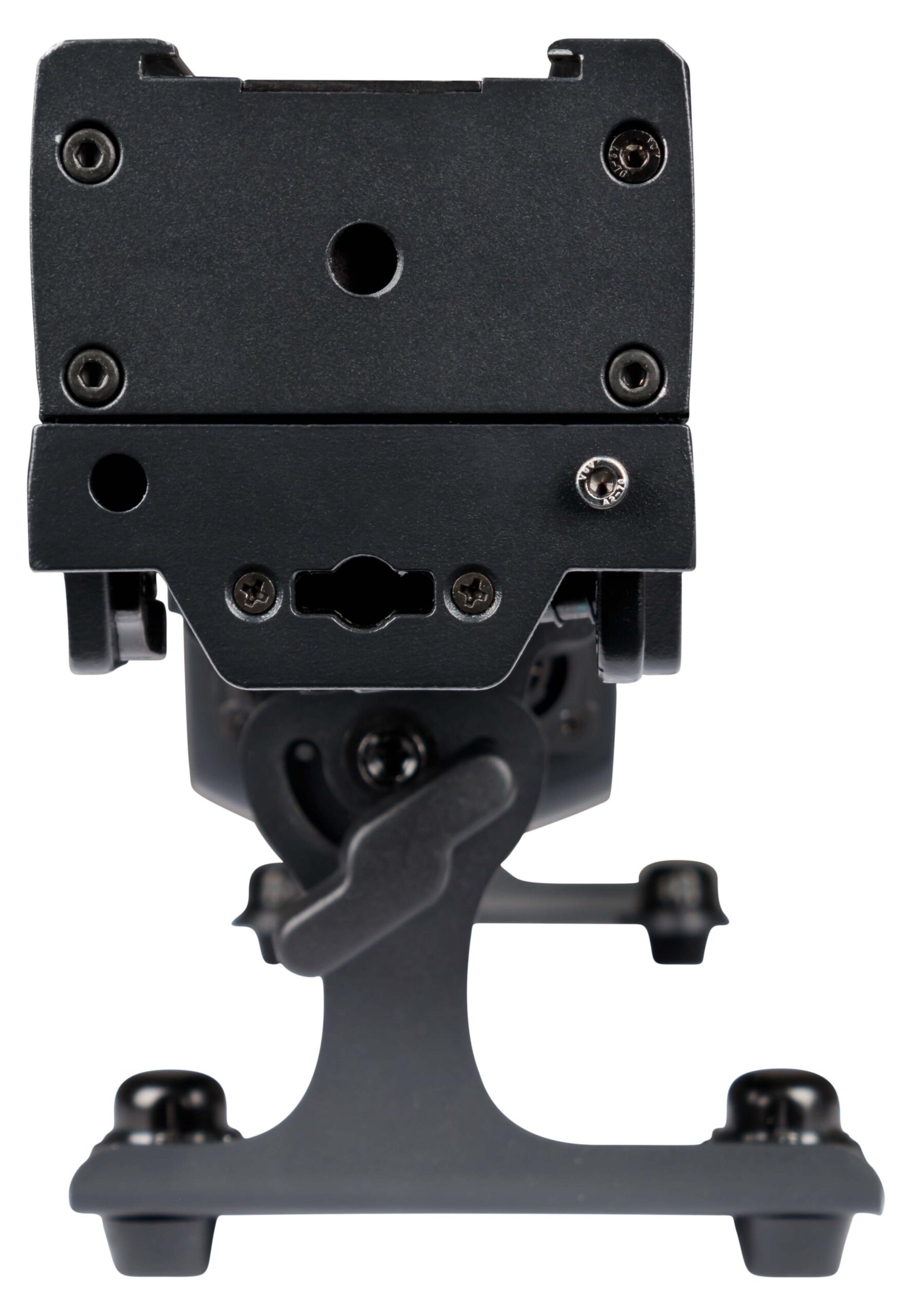

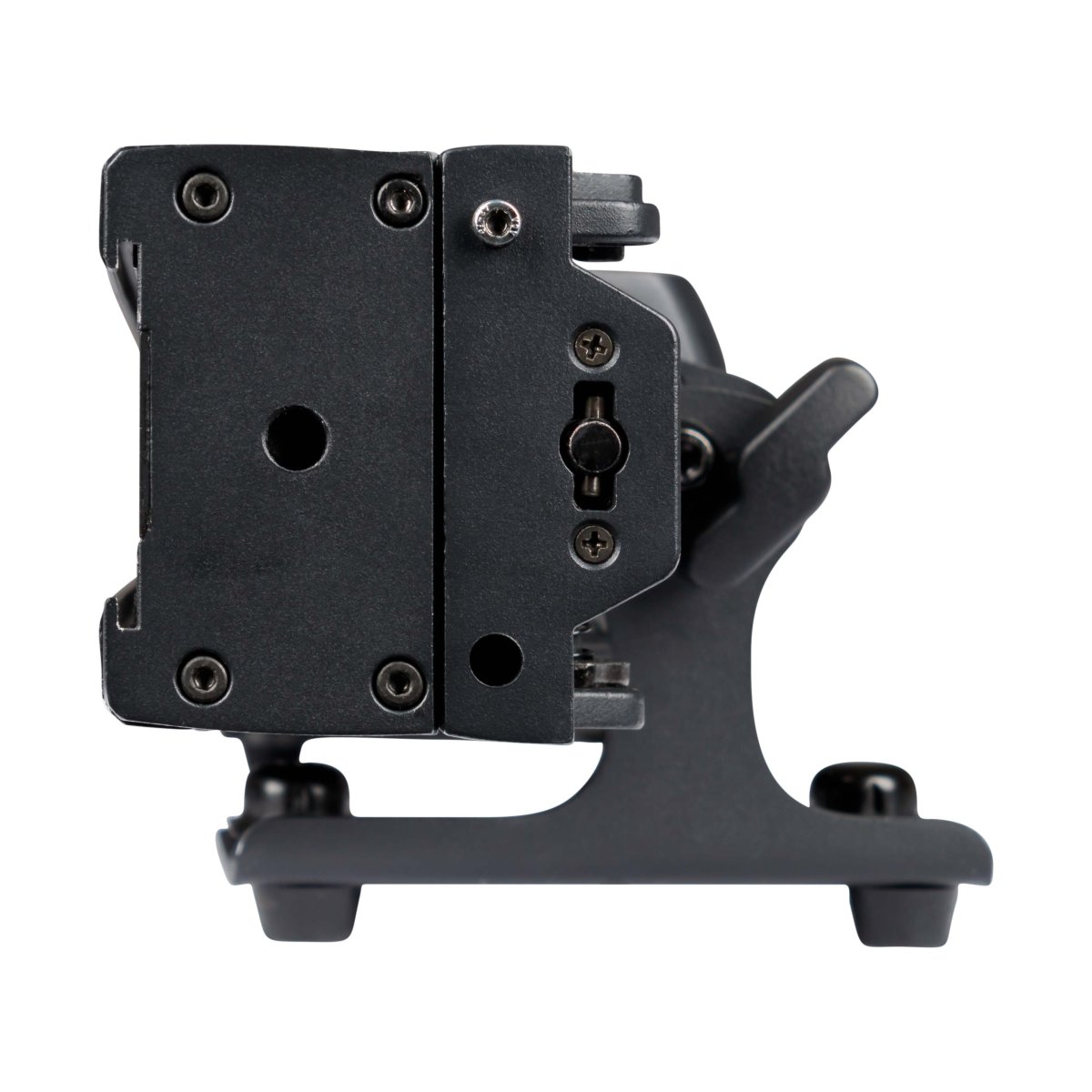

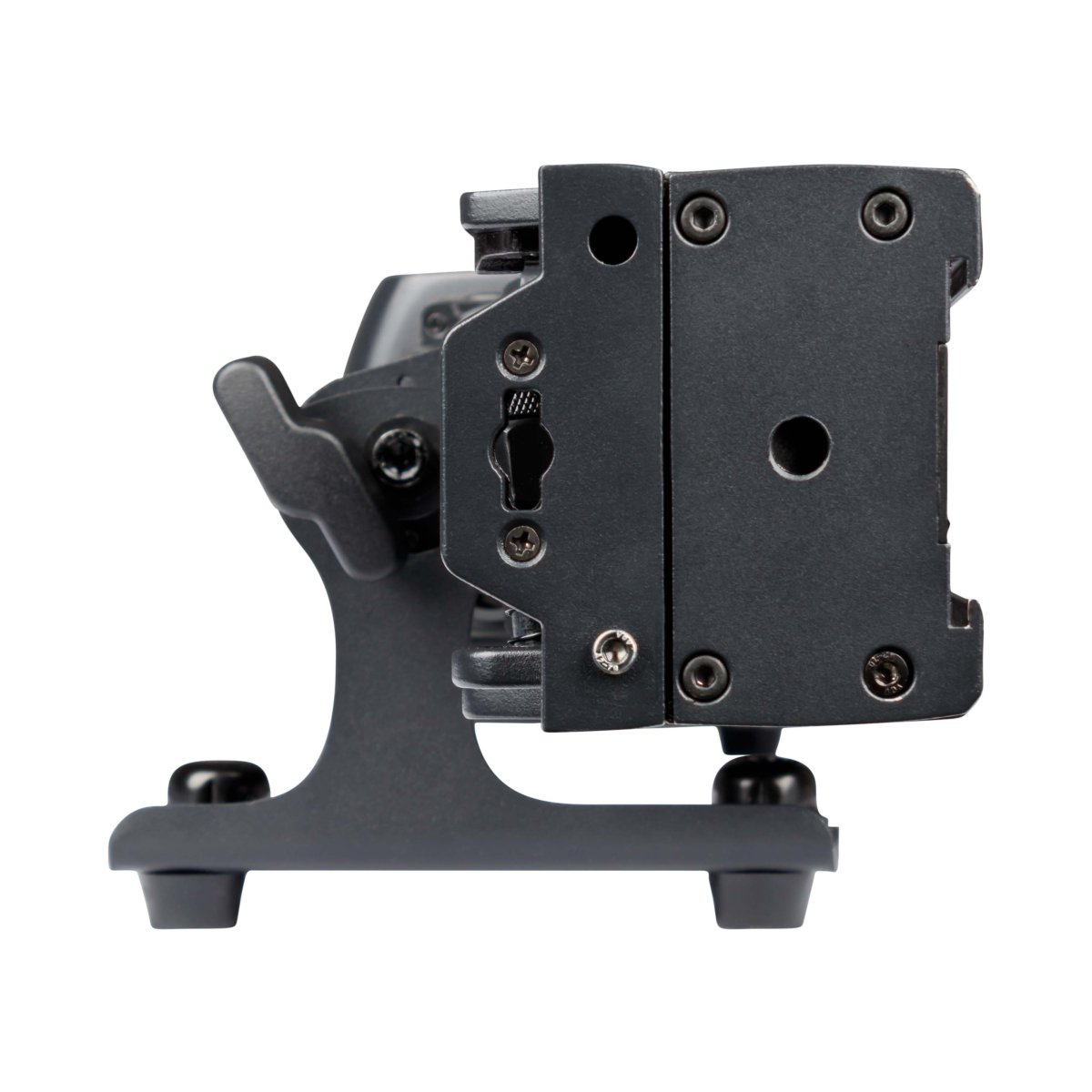

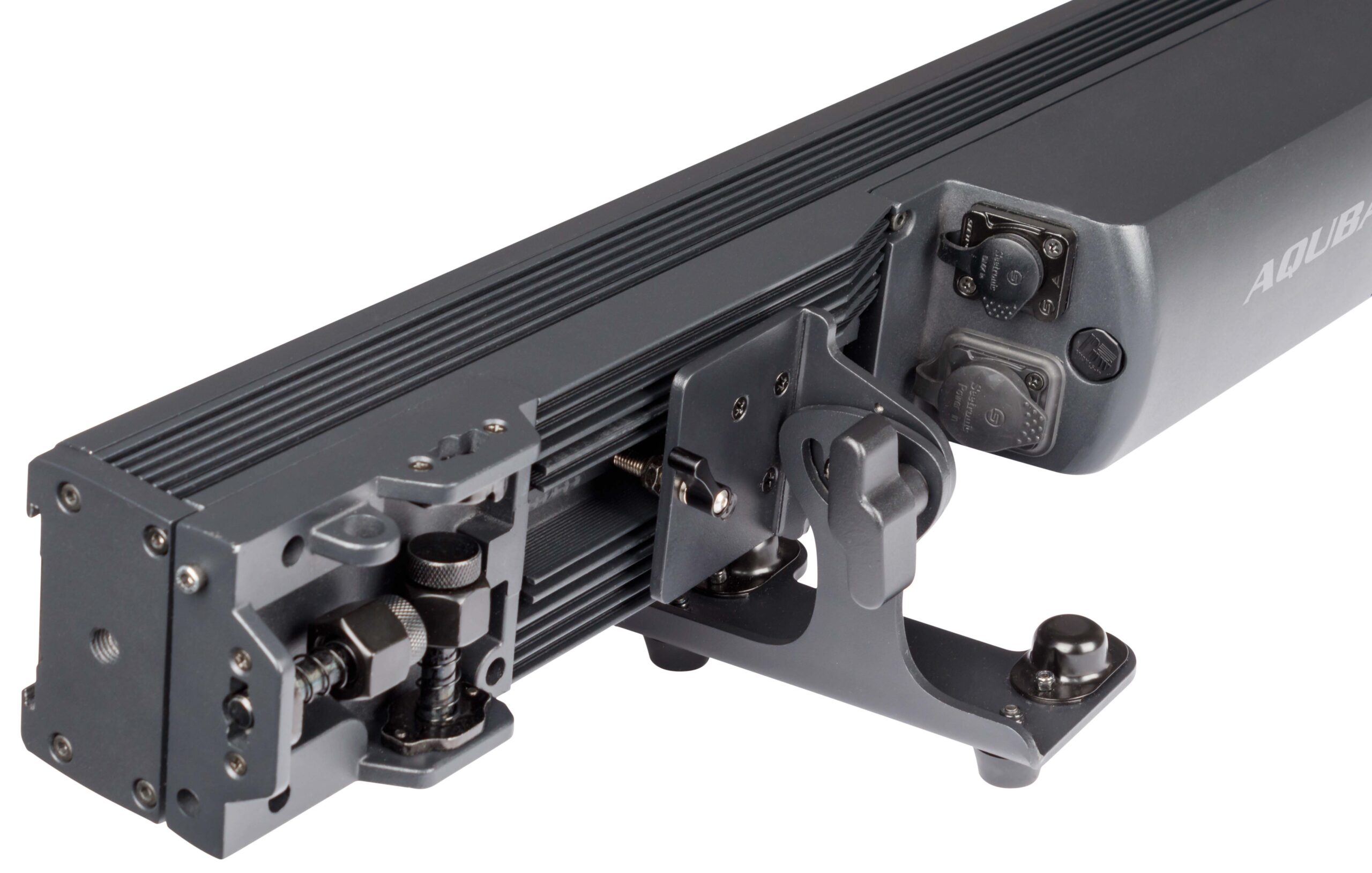

Mounting points: 2 pairs of 1/4-turn locks omega older
Front tempered glass
“Light up” positioning with adjustable angle +/- 180°
IP rating: IP65

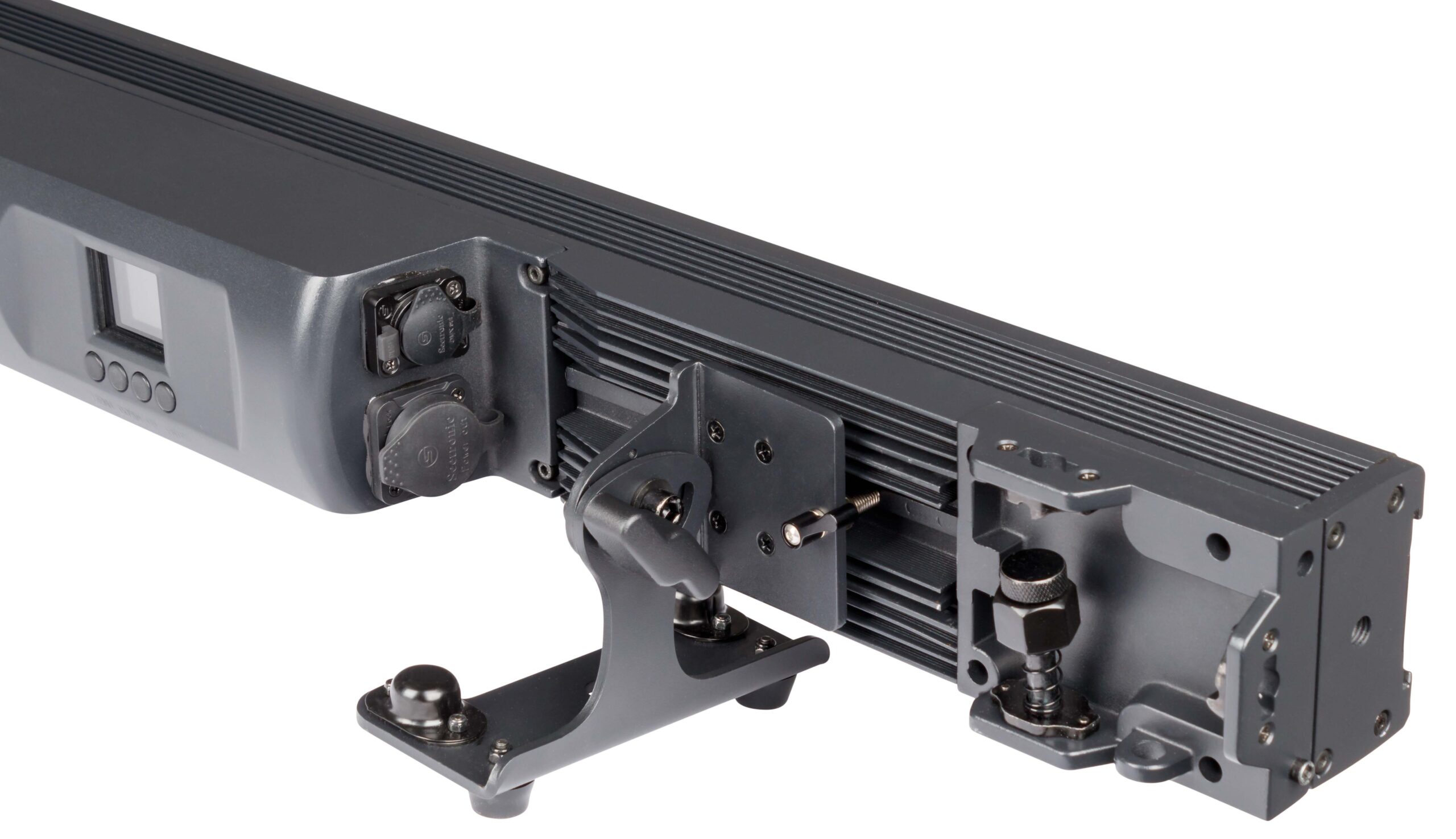

XLR 3-poles DMX IN/OUT connections IP65
Convection cooling system without fans
Power supply Input Voltage: AC~100-240V, 50/60 Hz
Switching power supply unit
Max power: 270W @ 230VAC
Seetronic X Series IP65 Power Connectors IN/OUT
Power supply cable 1mt included
Max current output from Power OUT connector 10A @ 230VAC
Weight and dimensions Net weight: 9,15 kg
Dimensions: 1017x105x140(h) mm

download

DMX chart
User Manual

Share the product

Facebook
Twitter
LinkedIn
WhatsApp
Telegram
Email
Skype

Releted Products

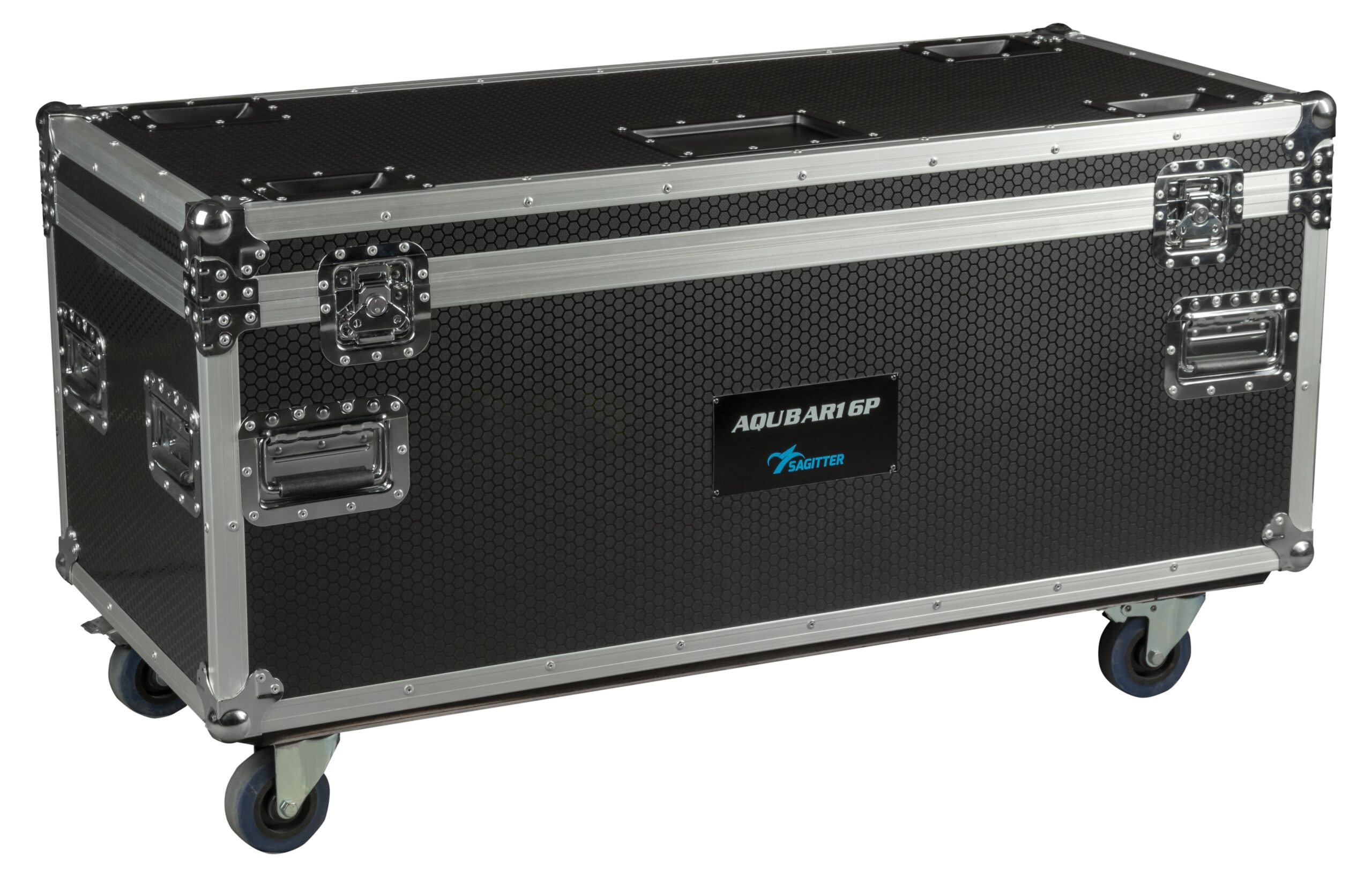

SG CASEAQUBAR

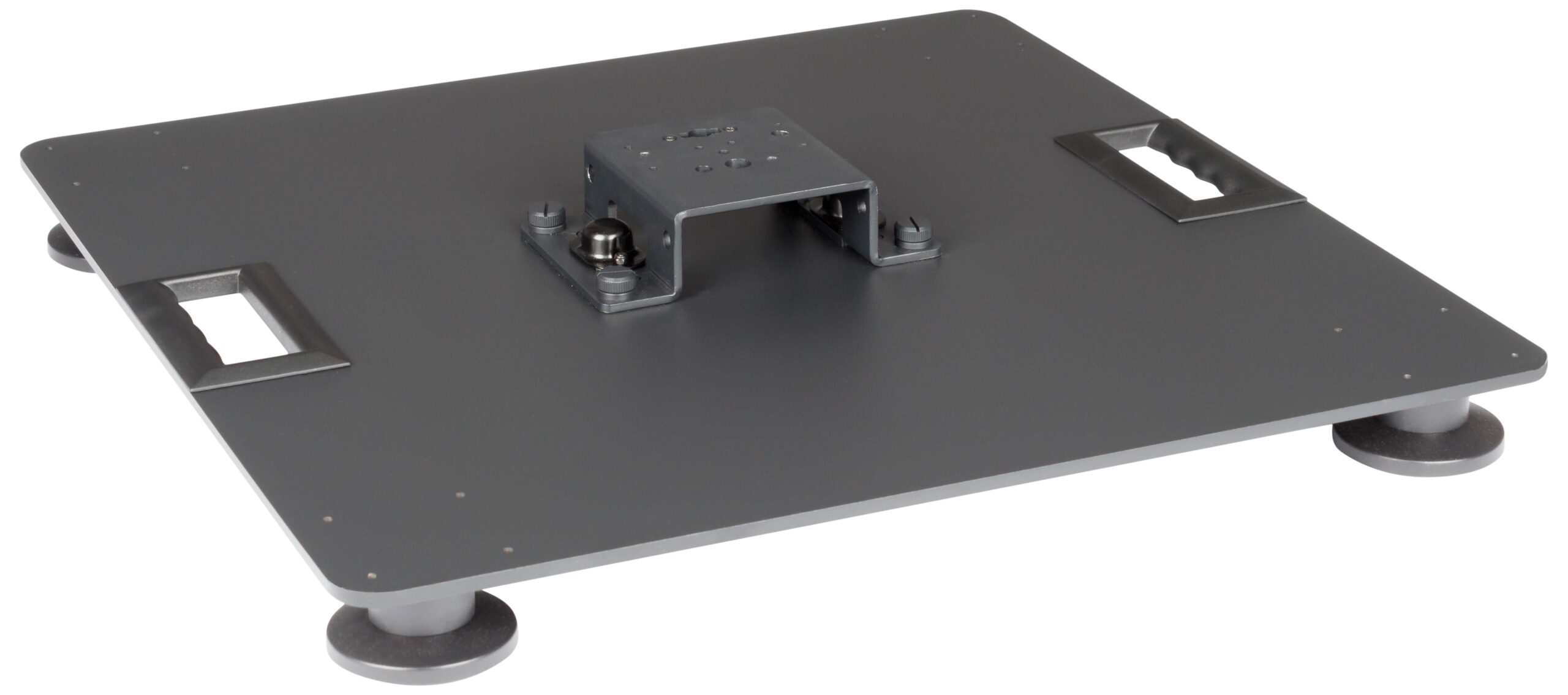

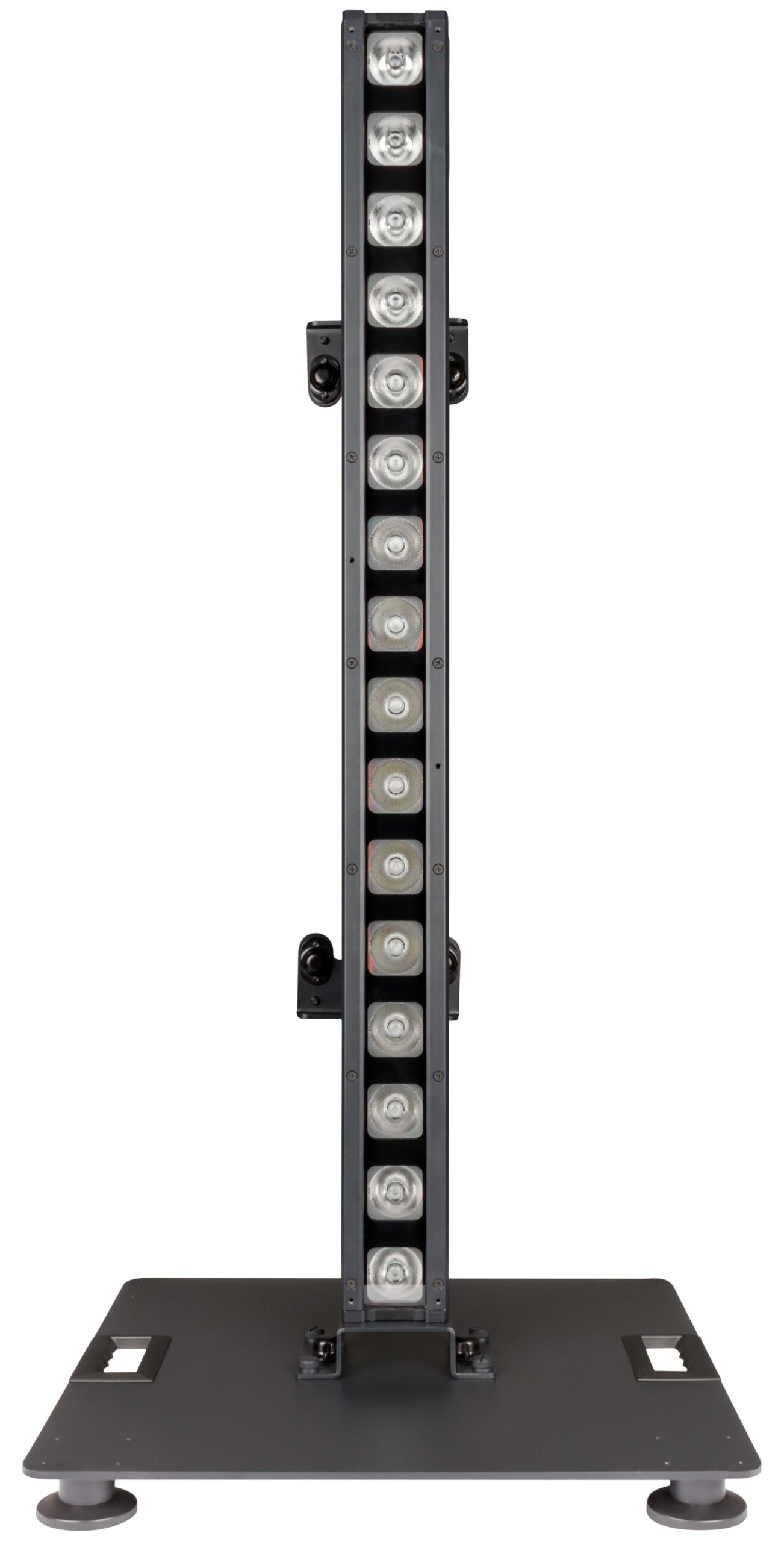

SG AQUBARBS
