| Light source | OSRAM Sirius HRI 420W Metal Halide Lamp Color temperature: 6600K |

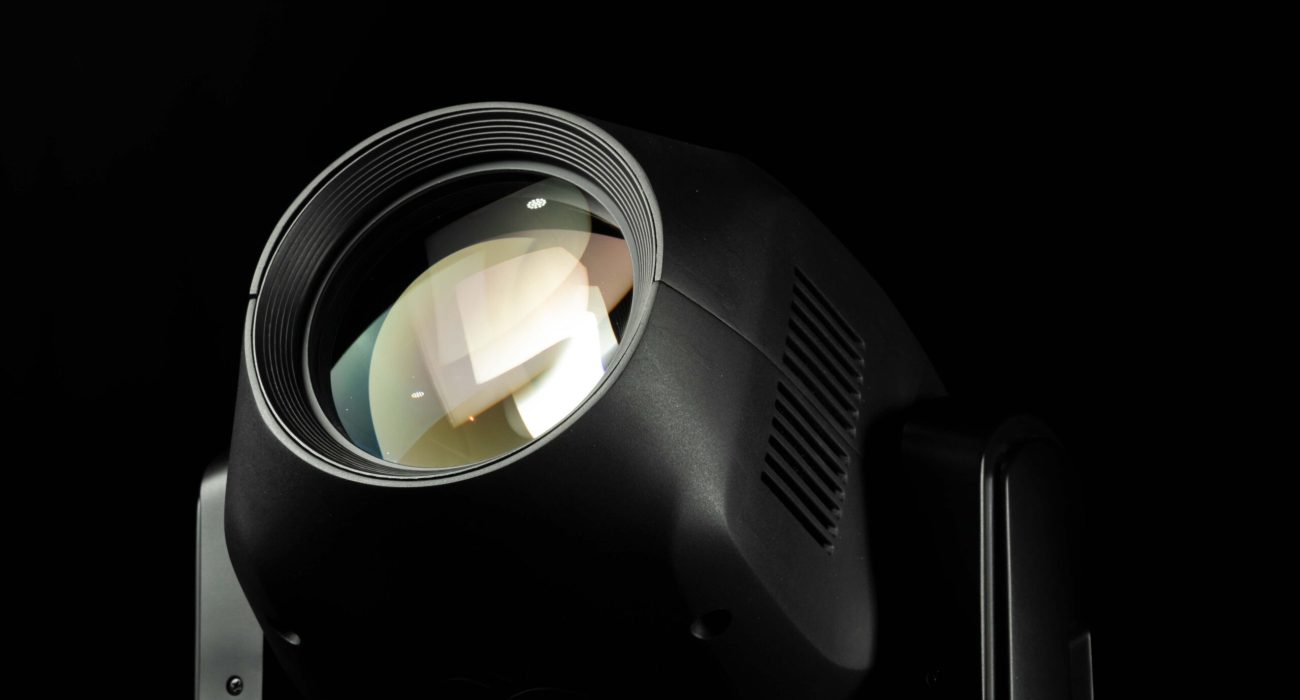

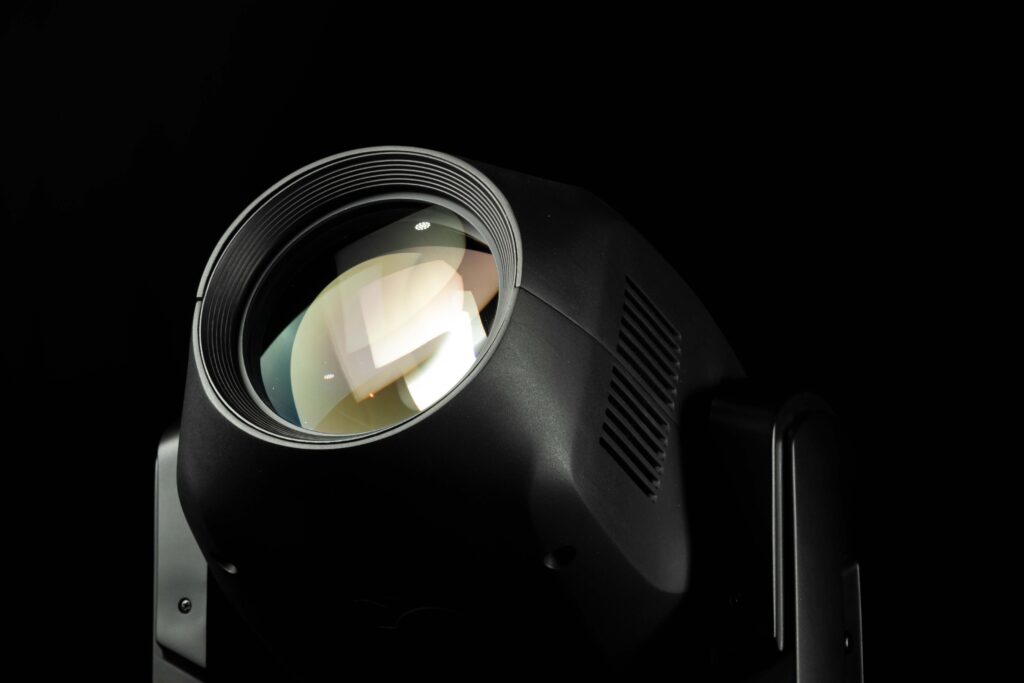

| Optic system | Projection angle: Beam mode angle 1.6° ~ 18° – Spot mode angle 3° ~ 41° Electronic focus Electronic zoom Illuminance: 531700 Lux @ 10m (1.6°) |
| Color system | Color wheel 13 dichroic filters + open |
| Effects | 16-bit dimmer High speed mechanic strobe Fixed gobo wheel with 13 gobos + open Rotating gobo wheel with 9 gobos + open with bidirectional rotation and indexable Gobo scroll effects at variable speed Circular prism 8 facet with bidirectional rotation and indexable Linear prism 6 facet with bidirectional rotation and indexable Linear frost filter |
| Control and programming | 2 DMX configurations available: 19/324 channels Control signal USITT DMX512, RDM, Art-Net, sACN Optional wireless DMX receiver (order code SG WECONUSB) 4 Dimmer curves: Linear, Square, I-Square, S-Curve 5 Dimmer mode: Standard, Stage, TV, Architectural, Theatre |

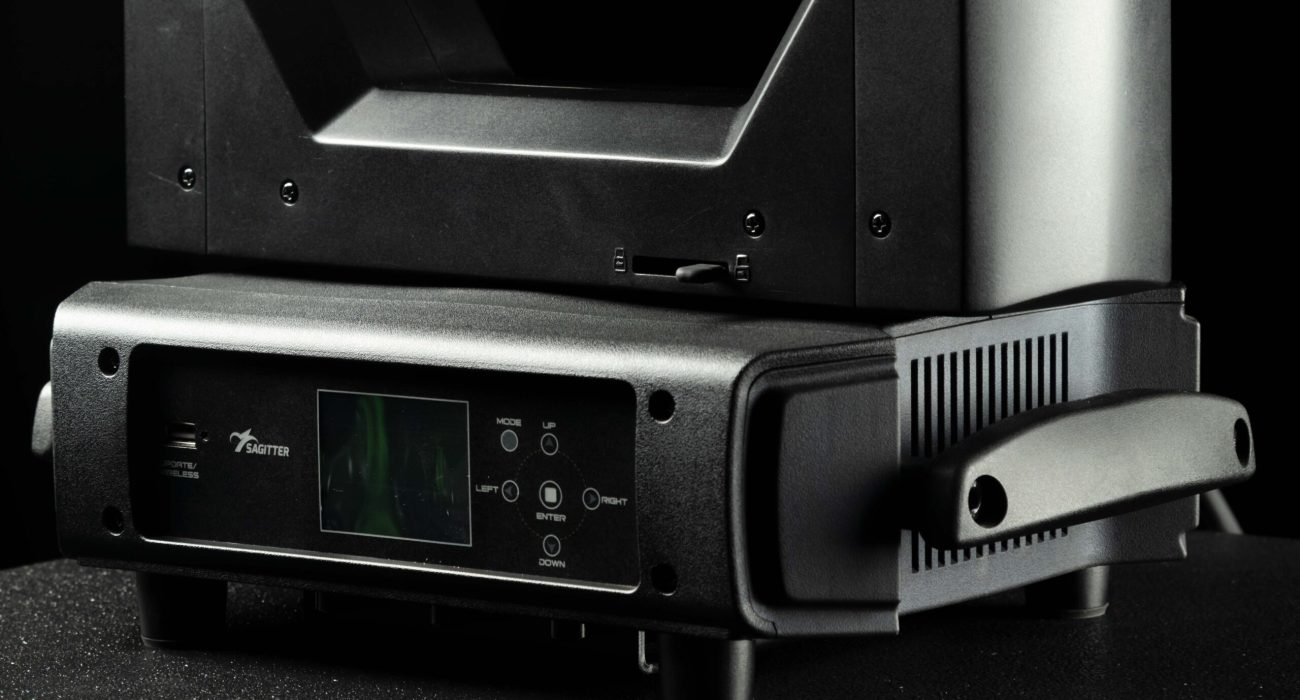

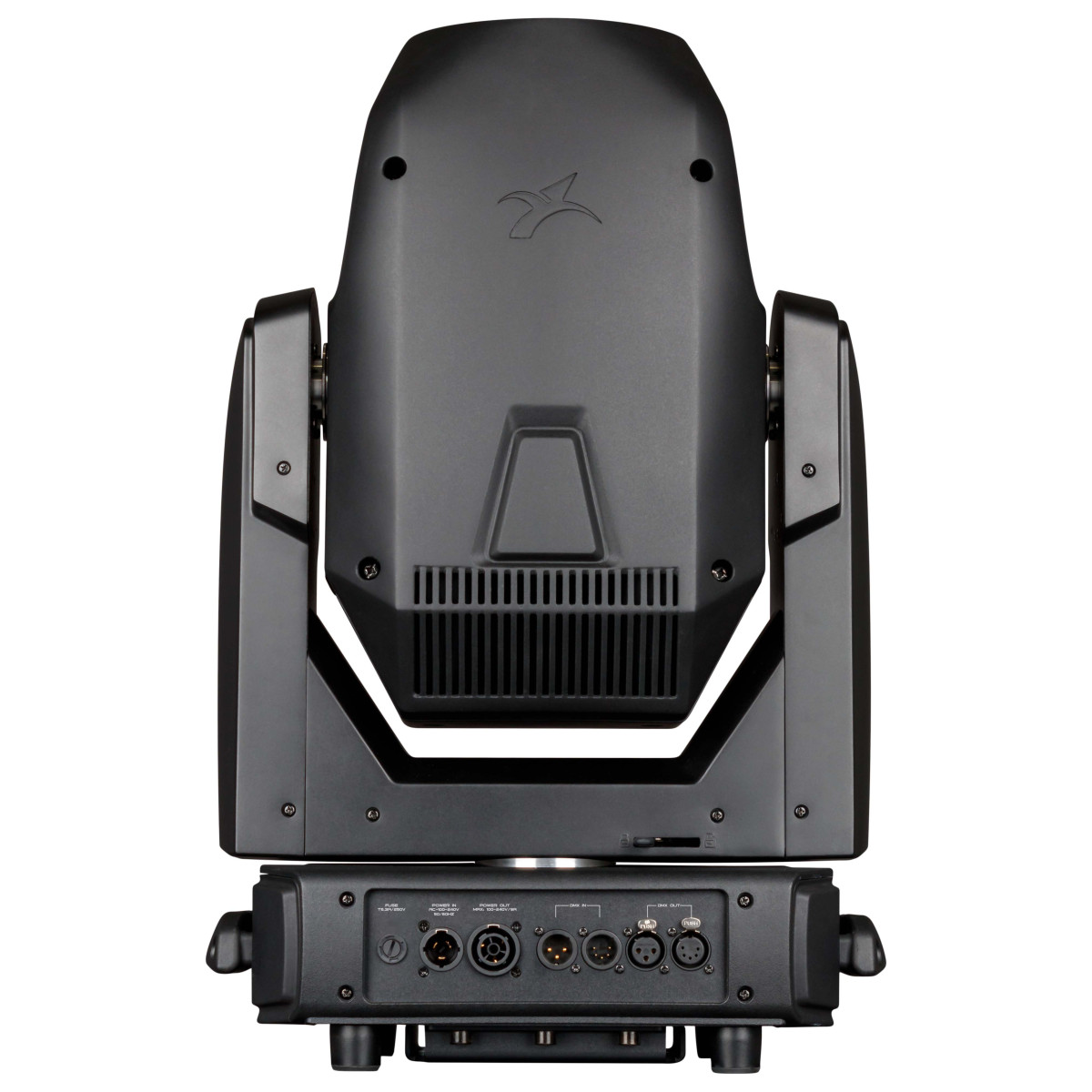

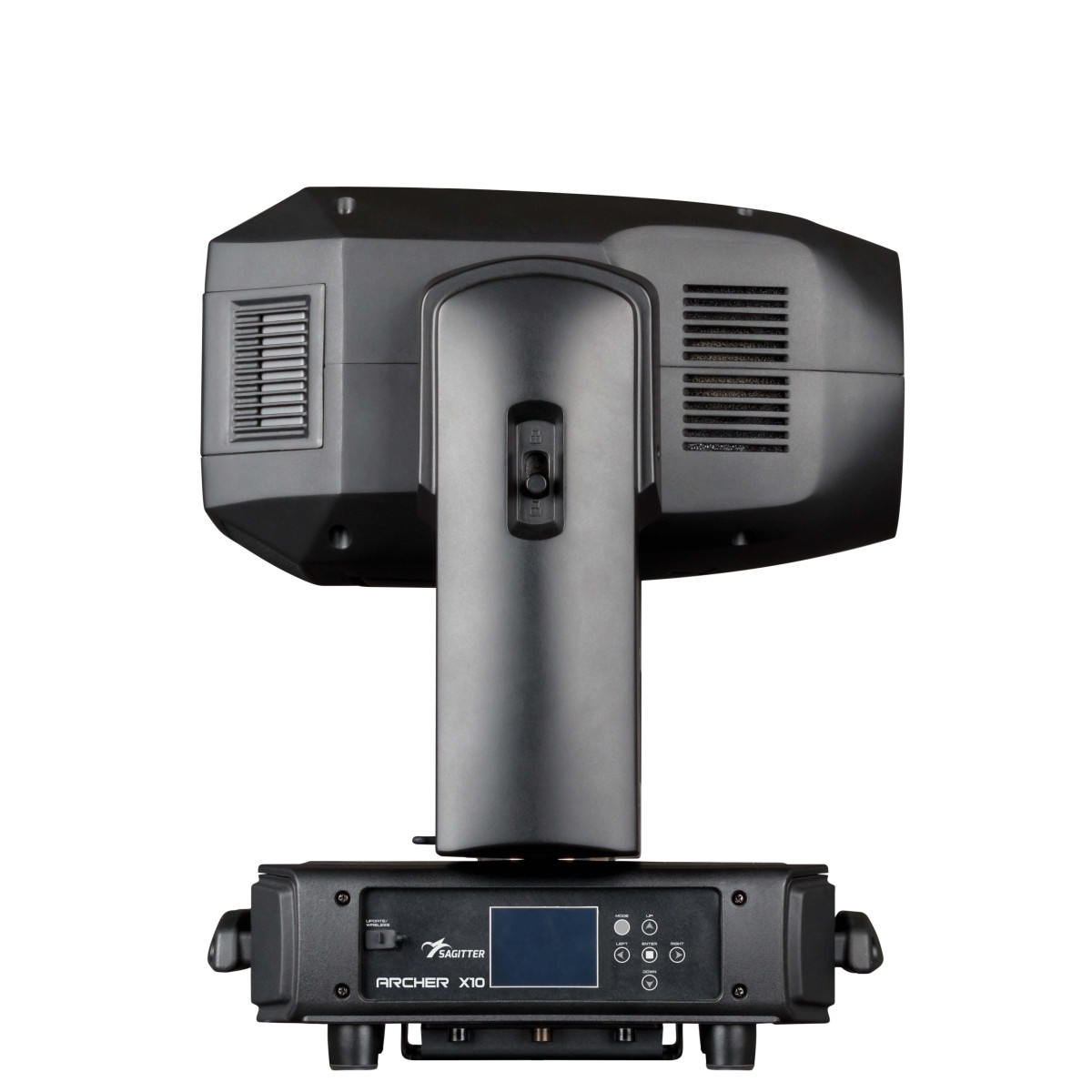

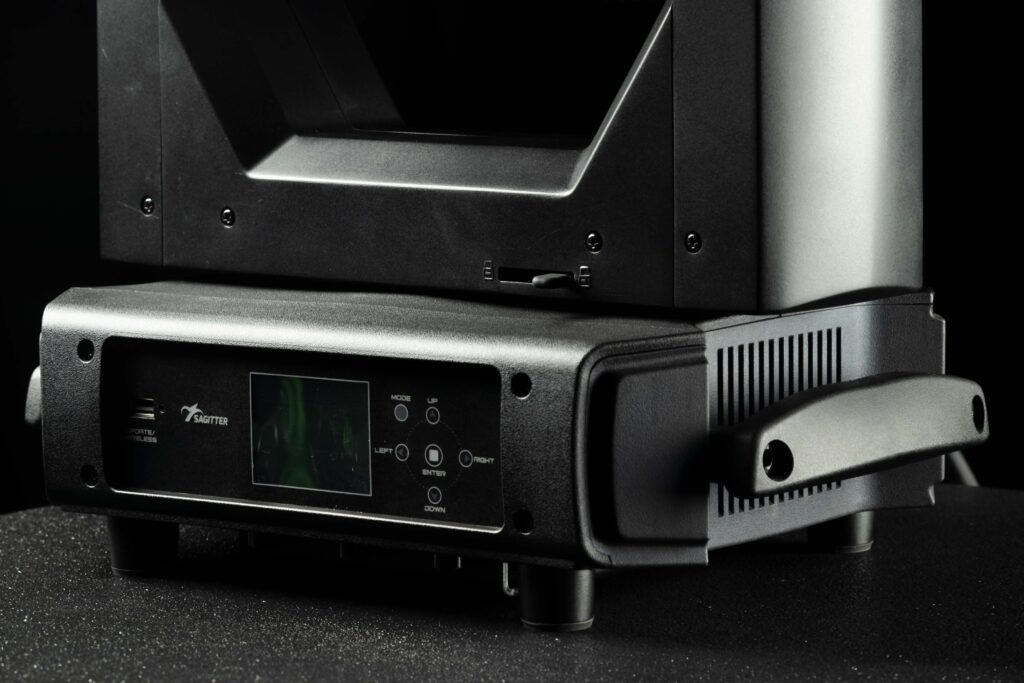

| Structure and cabinet | Aluminum internal structure with hi-resistance ABS cover High resolution LCD colour display Pan&Tilt three-phase motion motors Mounting points 2 pairs of 1/4-turn locks omega older Pan&Tilt movement lock system XLR 3-poles DMX IN/OUT connection XLR 5-poles DMX IN/OUT connection IP rating 20 Low-noise controlled cooling system Backup battery for user menu access without connecting to the main power |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Output Voltage: AC~100-240V, 50/60 Hz – Max 5A Switching power supply unit Max power: 550W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT |
| Weight and dimensions | Net weight: 22 kg Size: 397 × 265 × 616 mm |
| Light source | OSRAM Sirius HRI 420W Metal Halide Lamp Color temperature: 6600K |
| Optic system | Projection angle: Beam mode angle 1.6° ~ 18° – Spot mode angle 3° ~ 41° Electronic focus Electronic zoom Illuminance: 531700 Lux @ 10m (1.6°) |
| Color system | Color wheel 13 dichroic filters + open |
| Effects | 16-bit dimmer High speed mechanic strobe Fixed gobo wheel with 13 gobos + open Rotating gobo wheel with 9 gobos + open with bidirectional rotation and indexable Gobo scroll effects at variable speed Circular prism 8 facet with bidirectional rotation and indexable Linear prism 6 facet with bidirectional rotation and indexable Linear frost filter |
| Control and programming | 2 DMX configurations available: 19/324 channels Control signal USITT DMX512, RDM, Art-Net, sACN Optional wireless DMX receiver (order code SG WECONUSB) 4 Dimmer curves: Linear, Square, I-Square, S-Curve 5 Dimmer mode: Standard, Stage, TV, Architectural, Theatre |
| Structure and cabinet | Aluminum internal structure with hi-resistance ABS cover High resolution LCD colour display Pan&Tilt three-phase motion motors Mounting points 2 pairs of 1/4-turn locks omega older Pan&Tilt movement lock system XLR 3-poles DMX IN/OUT connection XLR 5-poles DMX IN/OUT connection IP rating 20 Low-noise controlled cooling system Backup battery for user menu access without connecting to the main power |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Output Voltage: AC~100-240V, 50/60 Hz – Max 5A Switching power supply unit Max power: 550W @ 230VAC Power connections: Seetronic X Series IP65 IN/OUT |
| Weight and dimensions | Net weight: 22 kg Size: 397 × 265 × 616 mm |
