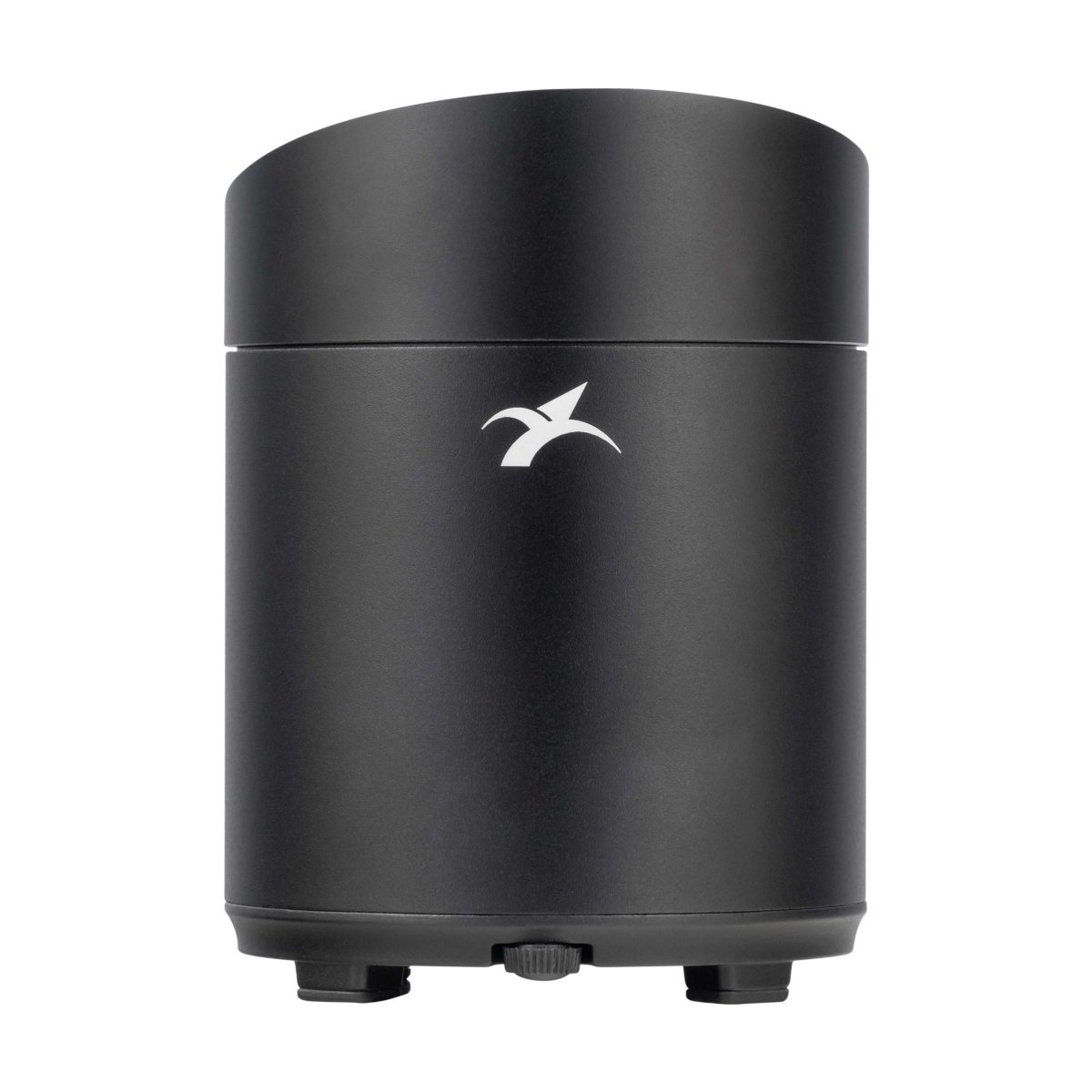

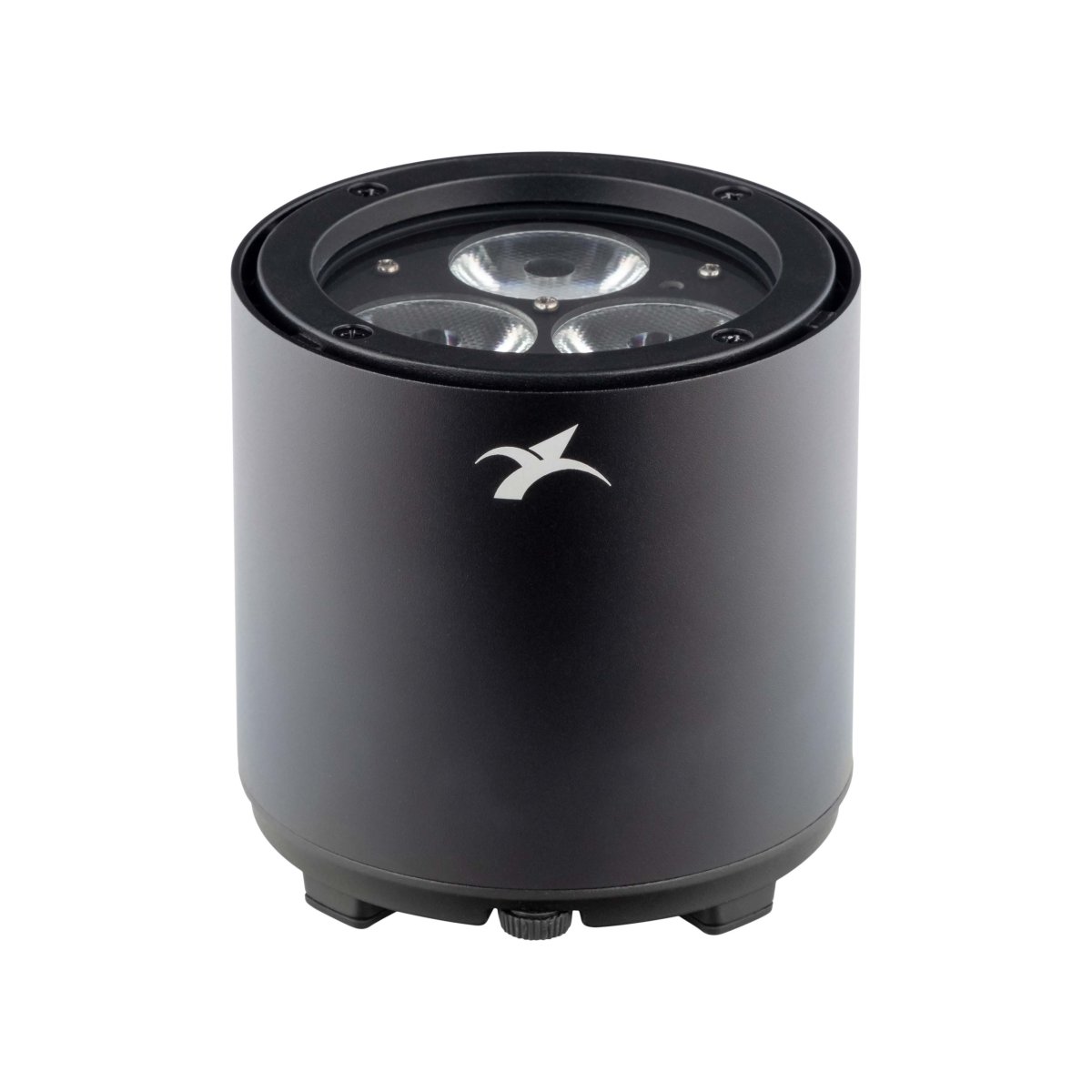

Floor BAT Plus

3x15W RGB+WW IP65 battery-powered projector

Description

The FloorBat Plus, a new cutting-edge product in our range of battery-powered projectors, represents the perfect combination of luminous power and versatility.

Designed to offer unlimited customization, this lighting design product is the key to transforming environments into unique scenarios.

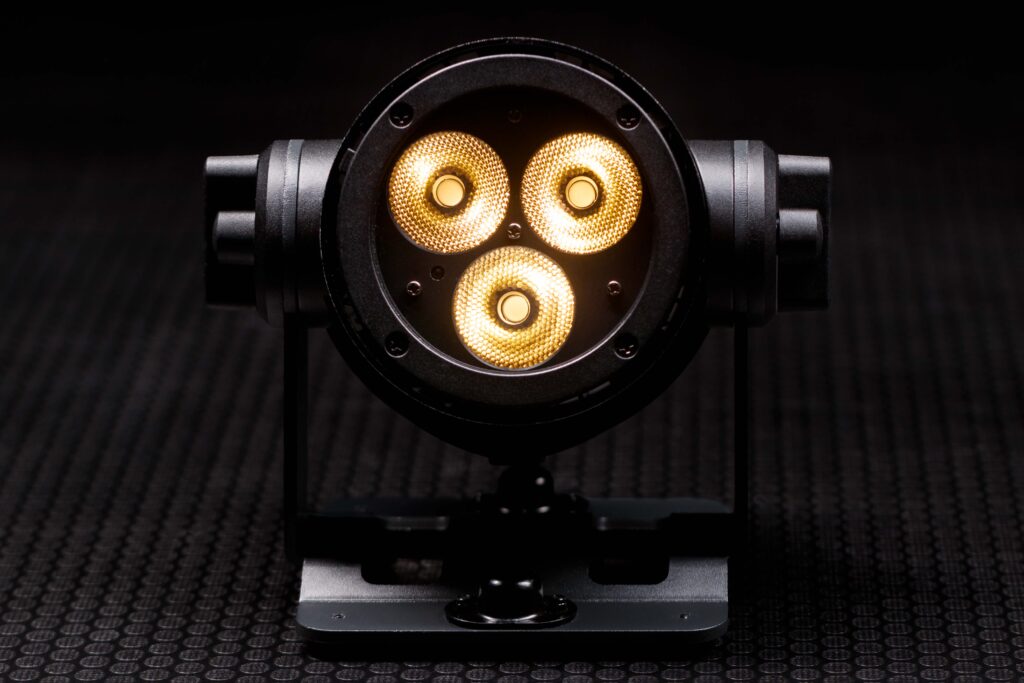

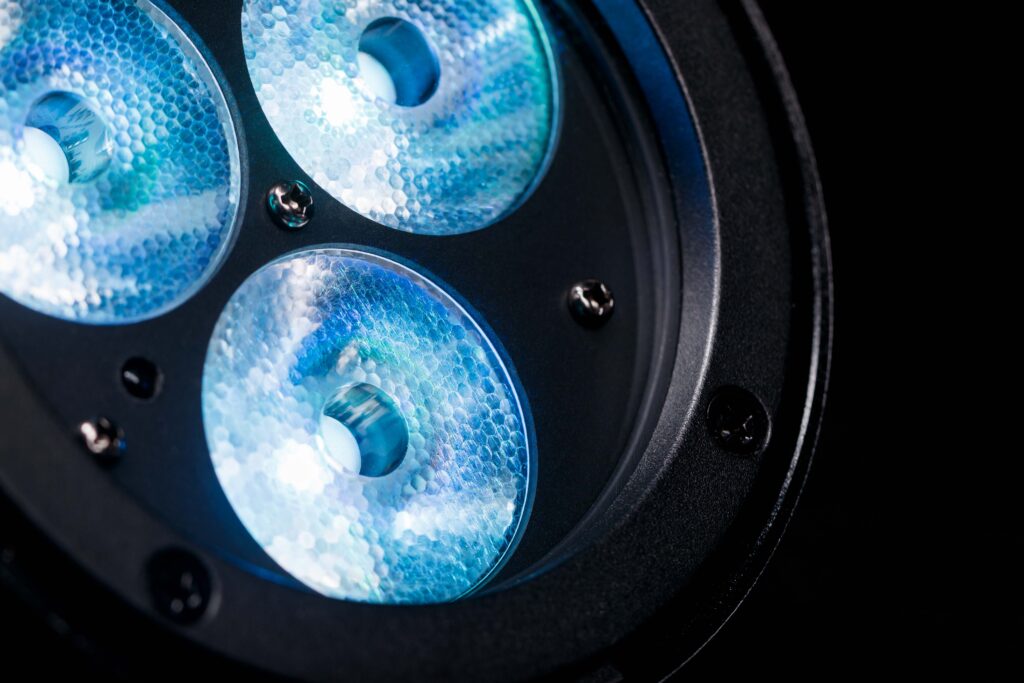

Thanks to its three 15-watt next-generation RGB+WW LED sources, it provides luminous and chromatic performance that is unparalleled in the market.

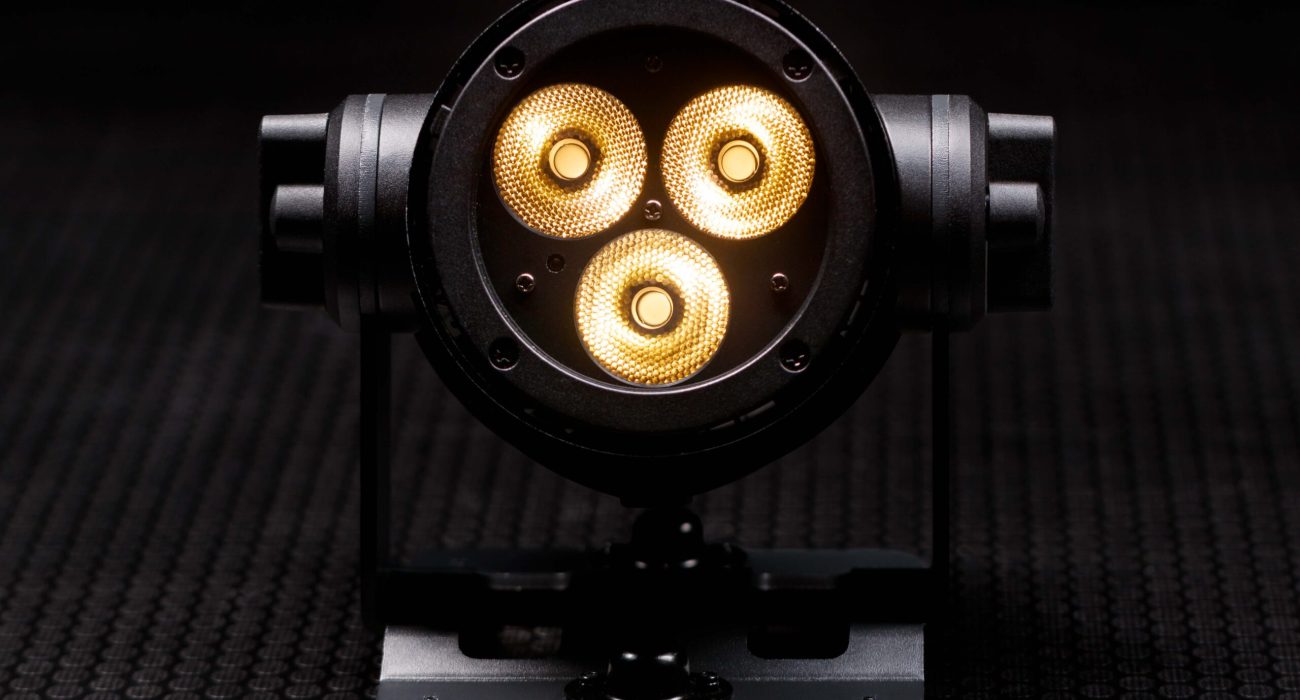

The LED sources of the FloorBat Plus offer a warm and enveloping tone, similar to the traditional light of incandescent lamps. This feature makes it ideal for the event industry, creating a welcoming and engaging atmosphere.

With its compact size and discreet design, the FloorBat Plus seamlessly integrates into any environment without compromising the overall aesthetics. Made with a special aluminum alloy, it guarantees high performance and durability over time.

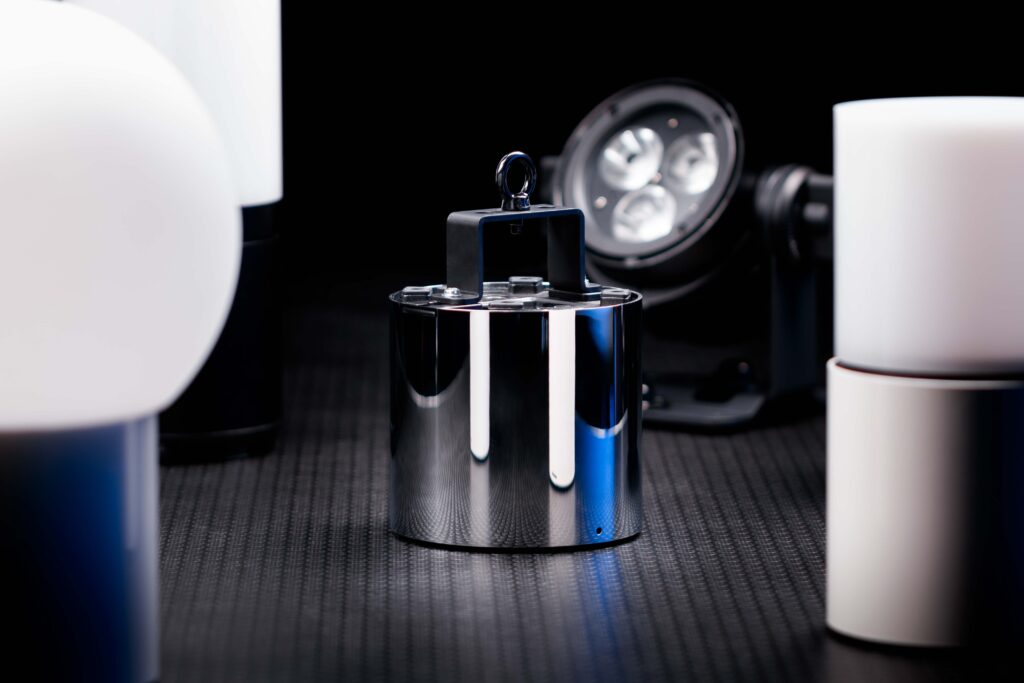

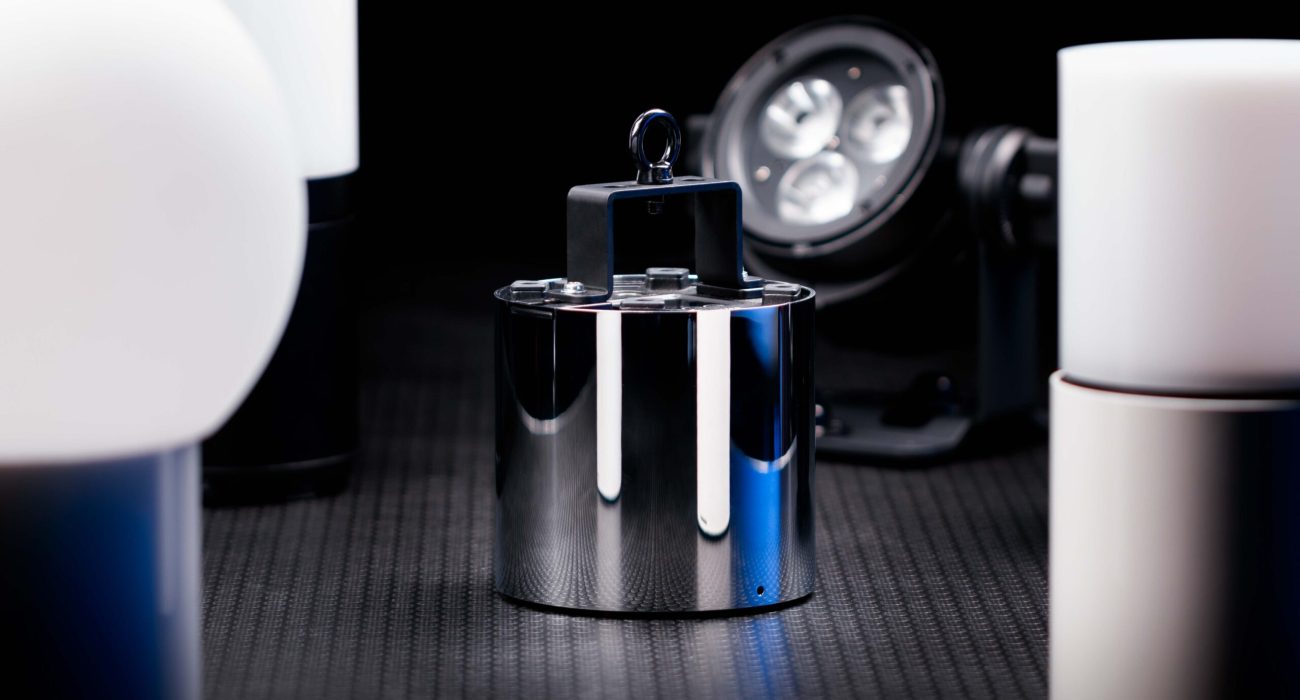

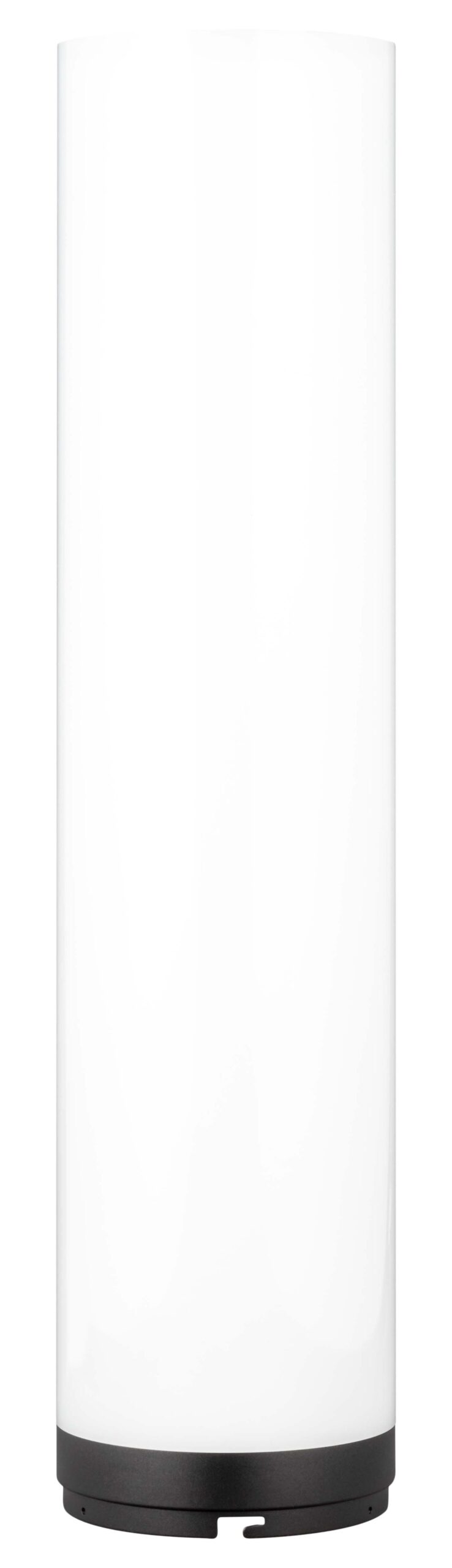

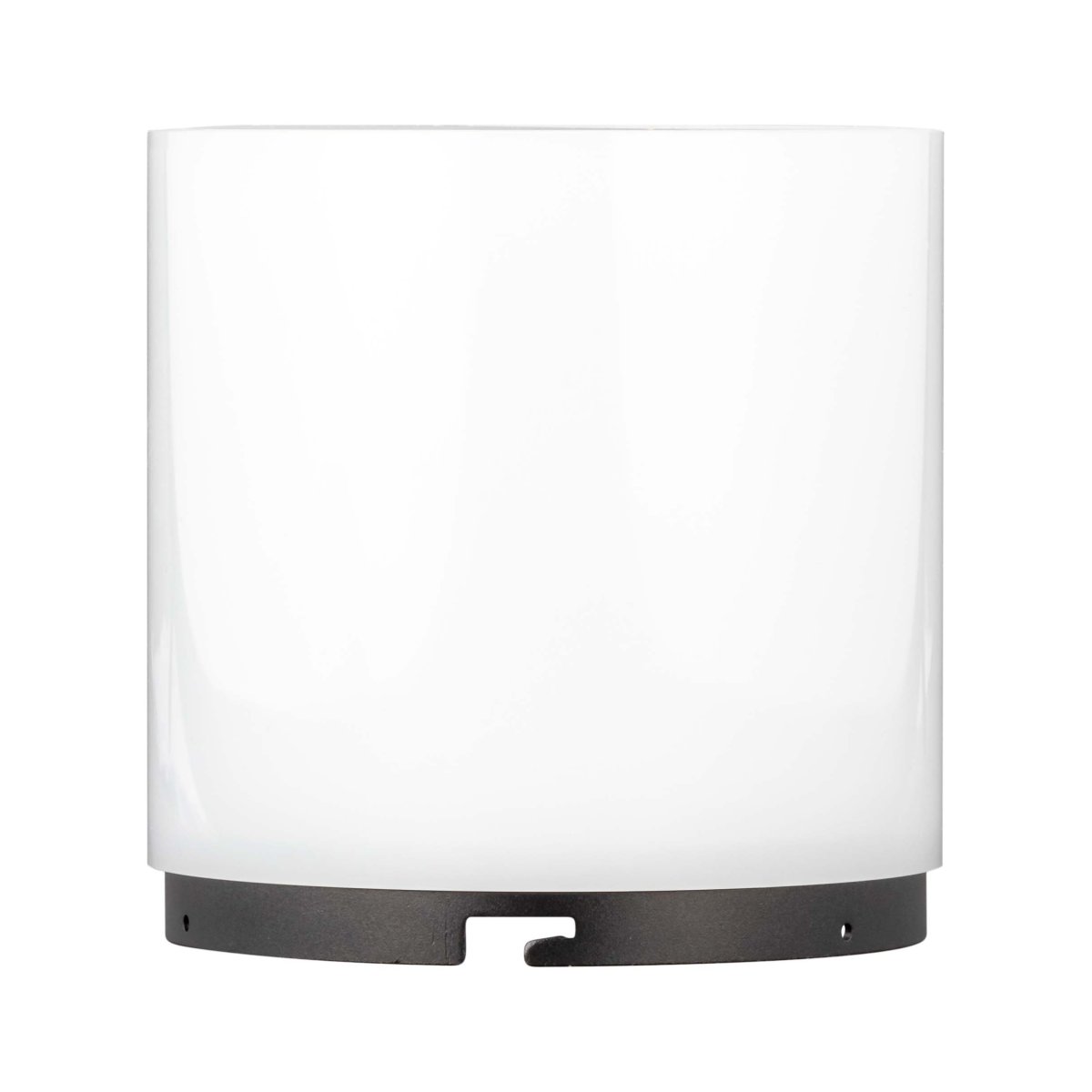

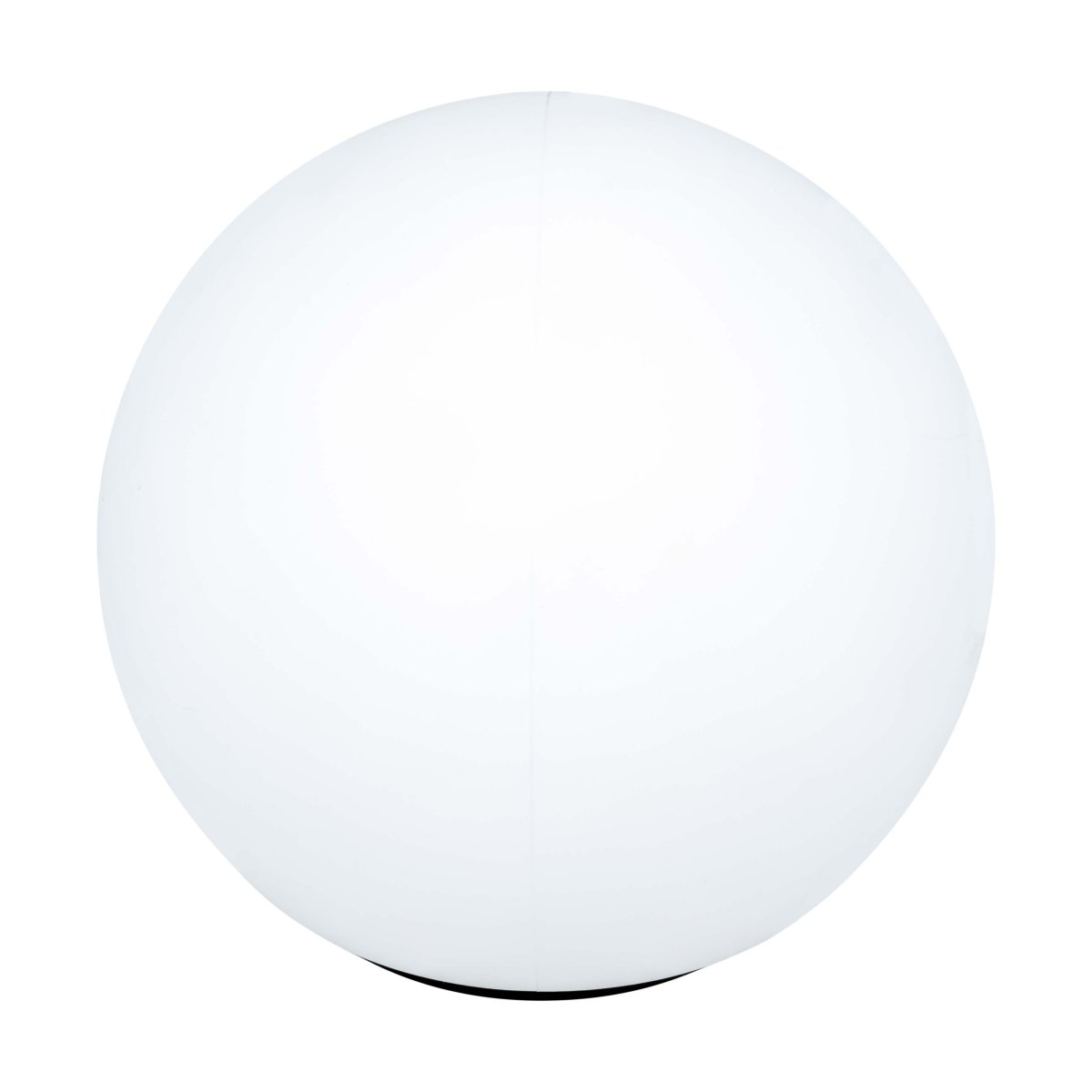

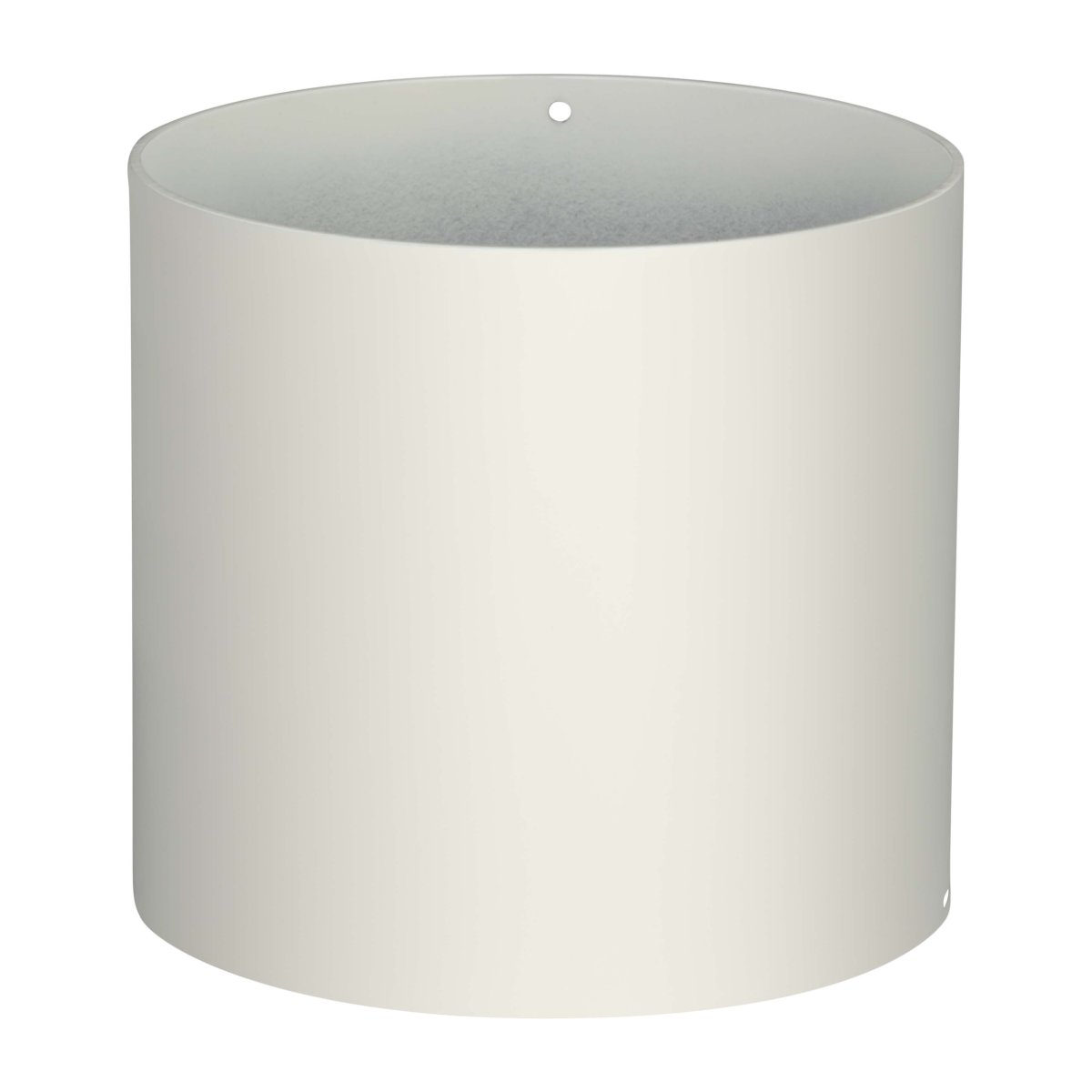

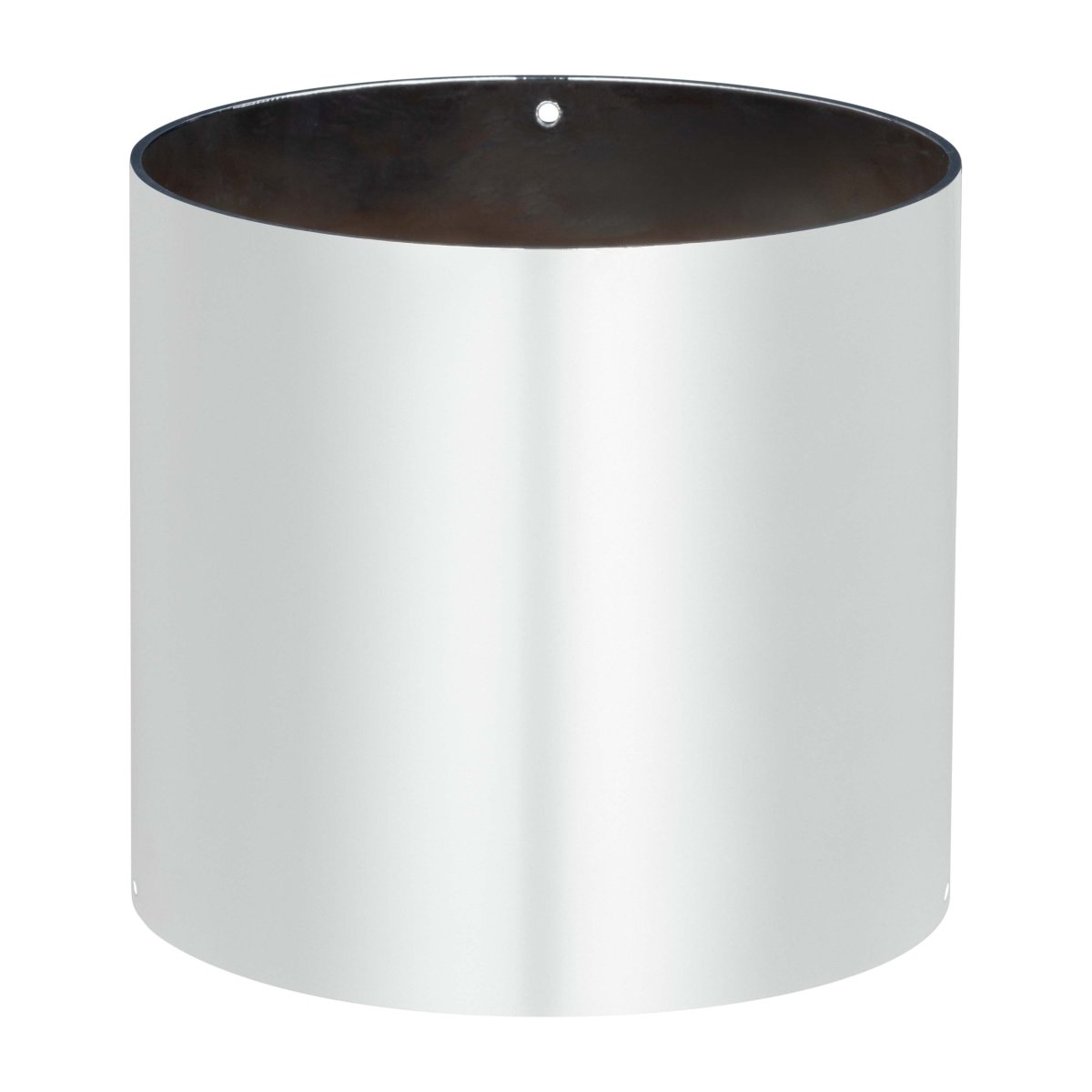

Numerous accessories are available to make environments unique and ever-changing. Experiment with the magic of shapes: Frost Filter, Antiglare Ring, Sphere, Decorative Tube, White and mirror Cover.

Every detail is designed to offer an unprecedented experience.

FLOORBAT PLUS: SO SMALL, SO BRILLIANT

SG FLBATPLUS

Technical Specifications

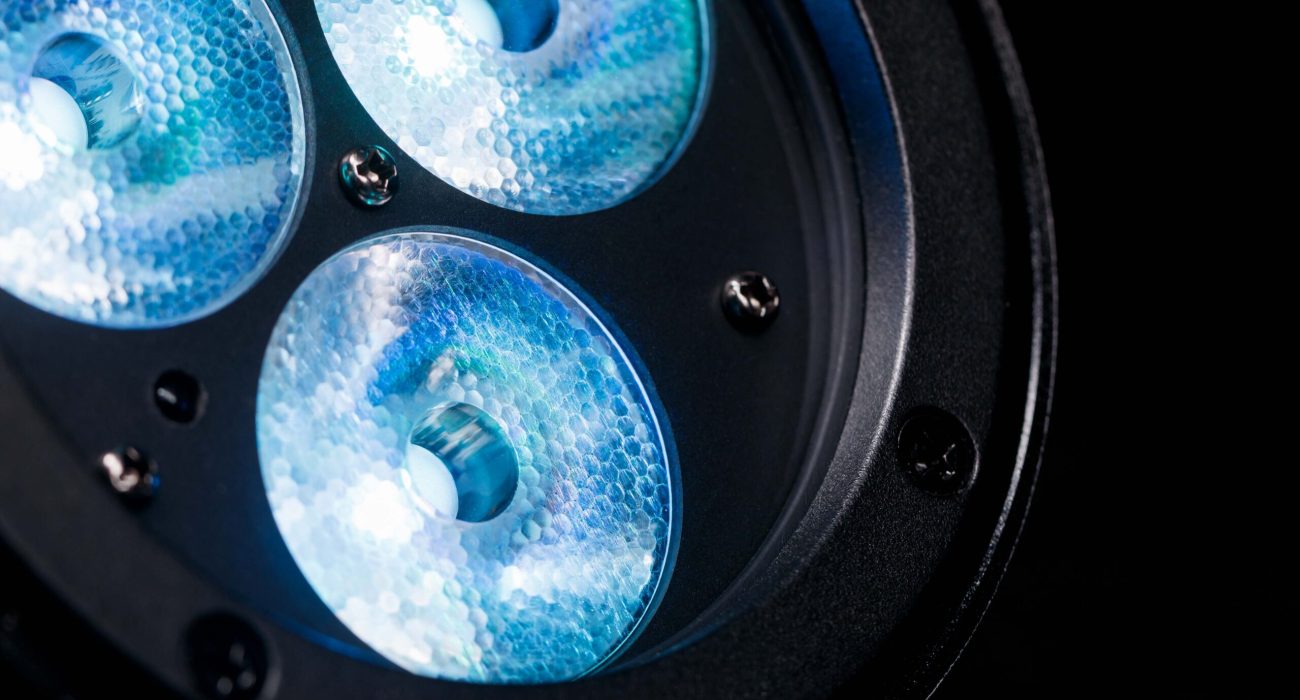

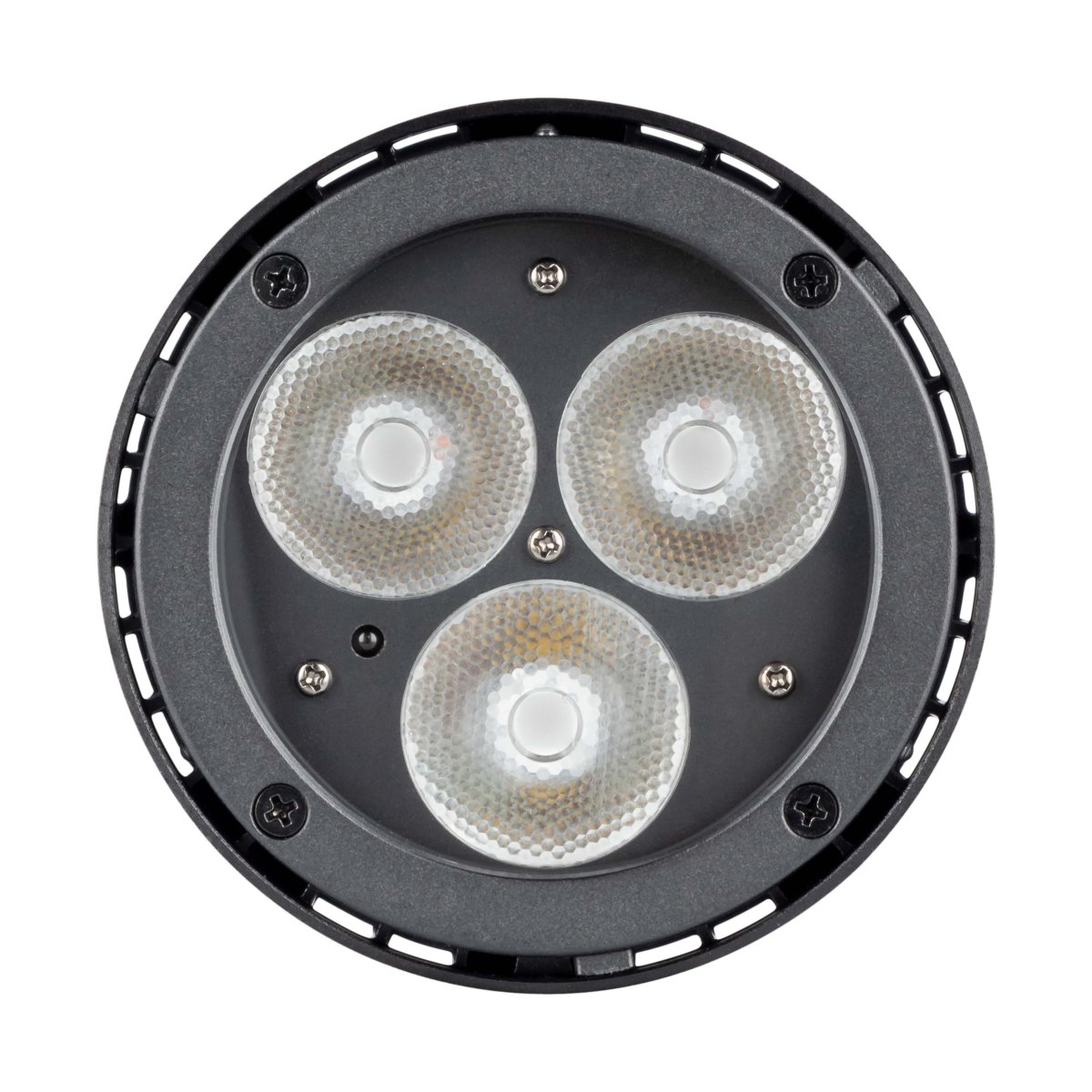

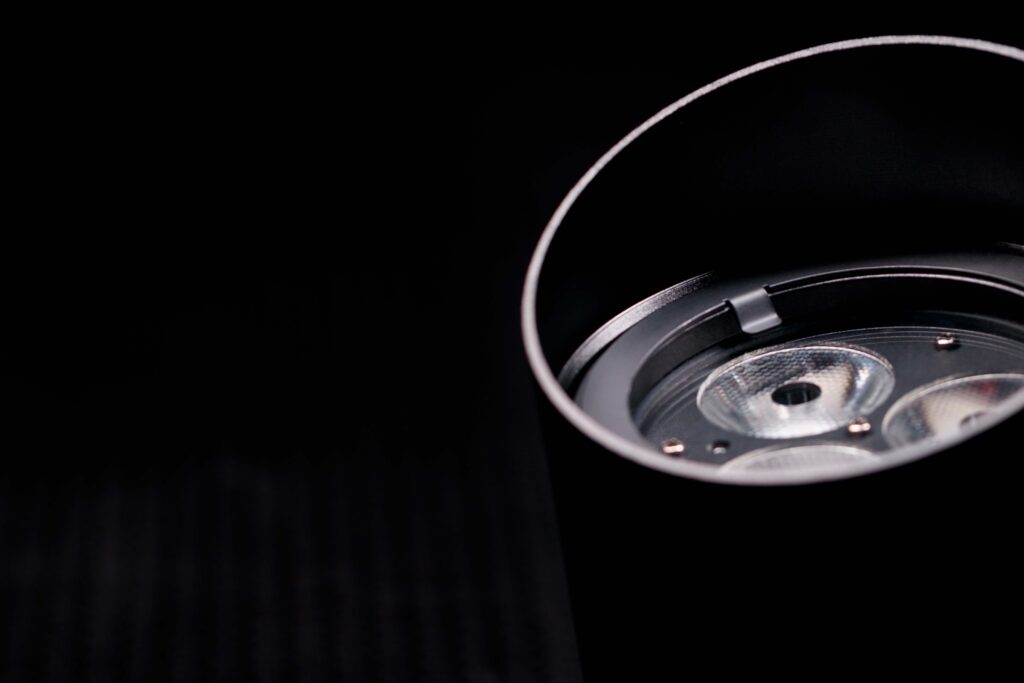

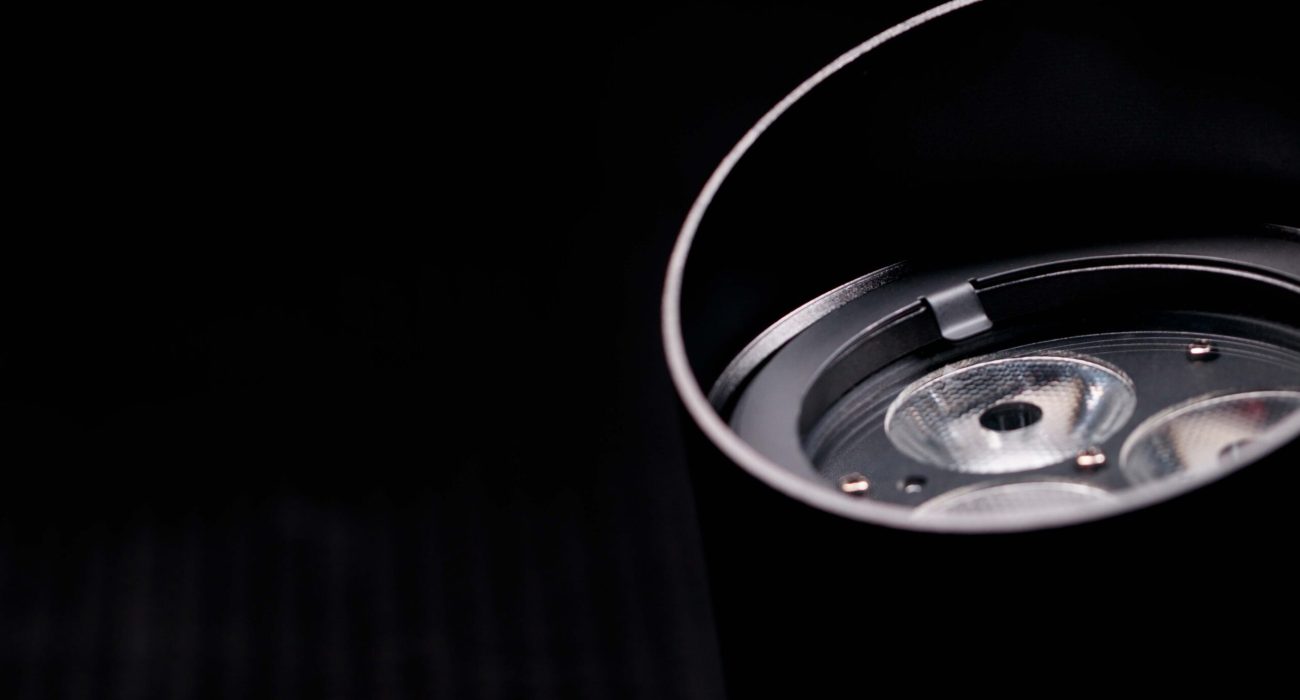

Light source 3x15W led RGB + Warm White – Full Color
LED lifespan: > 50.000h
LED refresh frequency: >  600Hz a 15 KHz flicker-free
Optic system Beam Angle: 10°
Illuminance: 875lux @ 5m (full on)
Color system RGB + Warm White – Full Color
Infinite chromatic possibilities
Effects Linear dimmer 0-100%
Electronic strobo, pulse, random
Color macros selectable via DMX
Auto mode with 8 programs selectable from the display
CCT: White presets with 11 macros
Color mode with 44 color macros
4 Dimmer curves: Linear, Exp, Log, S-Curve
Control and programming 4 DMX configurations available: 3/4/6/12 channels
Built-in wireless DMX transceiver
Reset function via DMX
“Find me” function (80 min approx.)
Structure and cabinet High resistance 6063 die cast aluminum housing

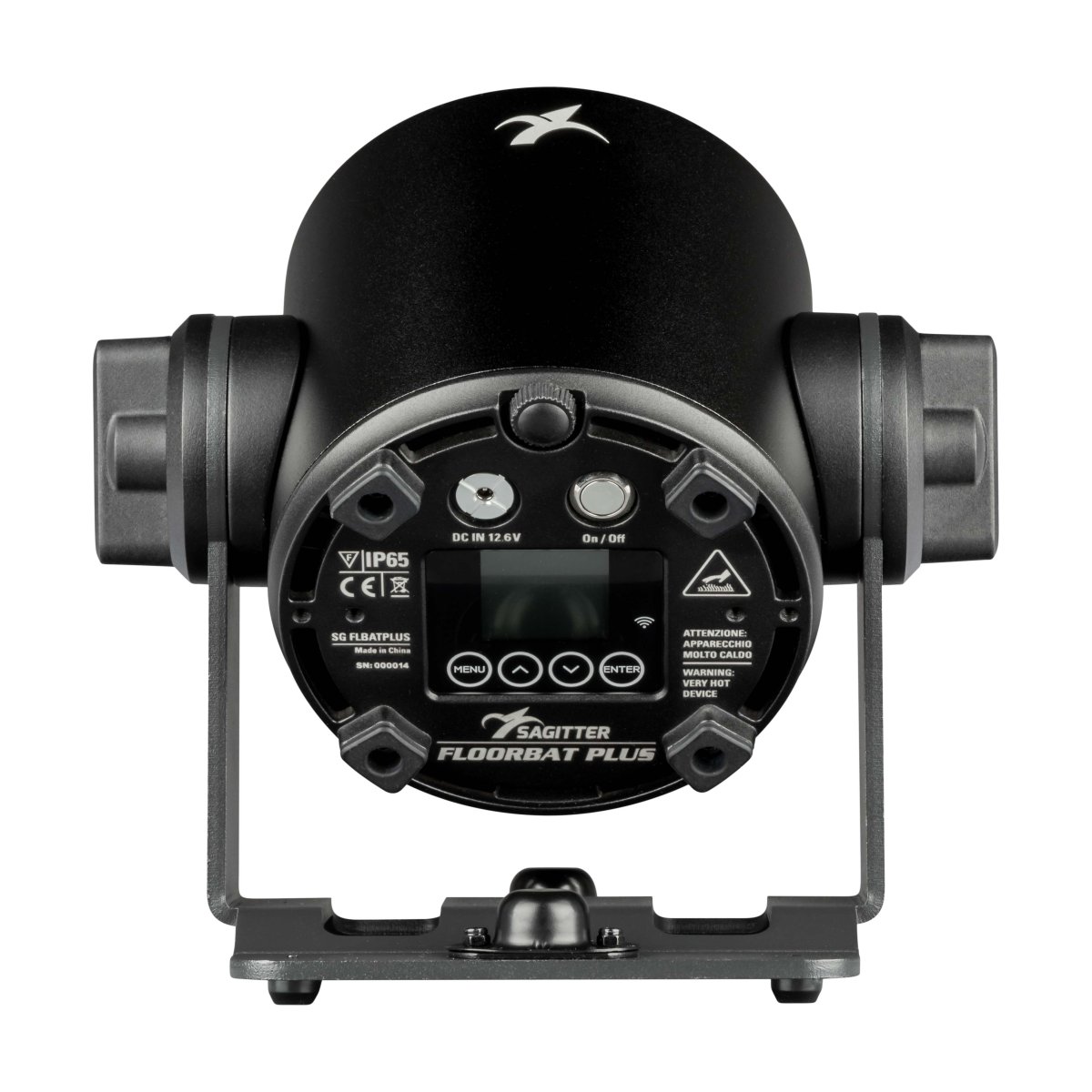

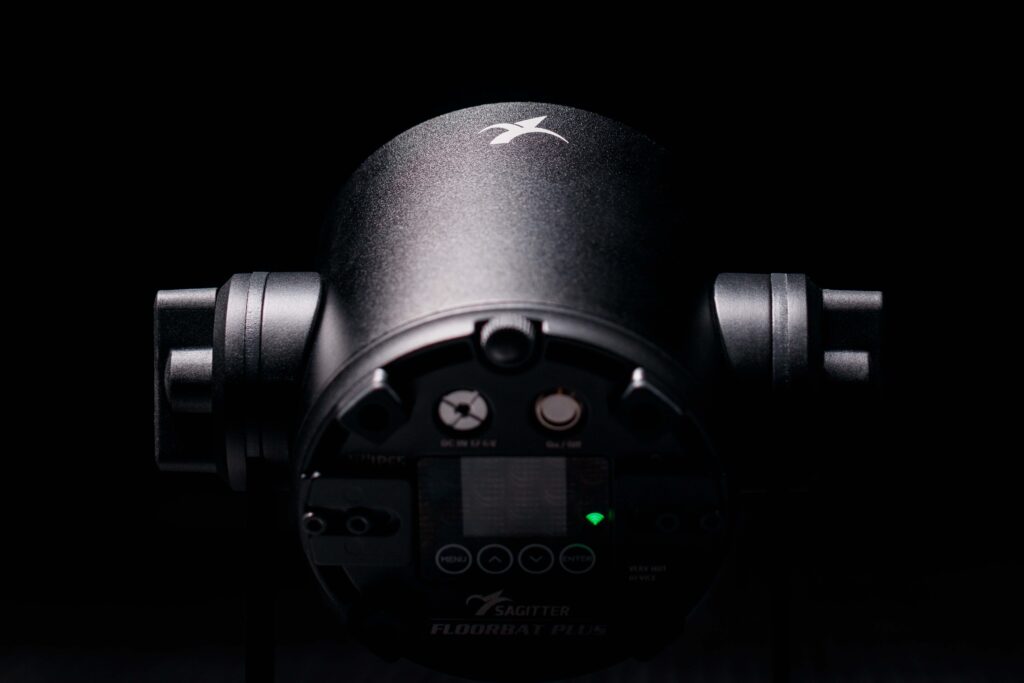

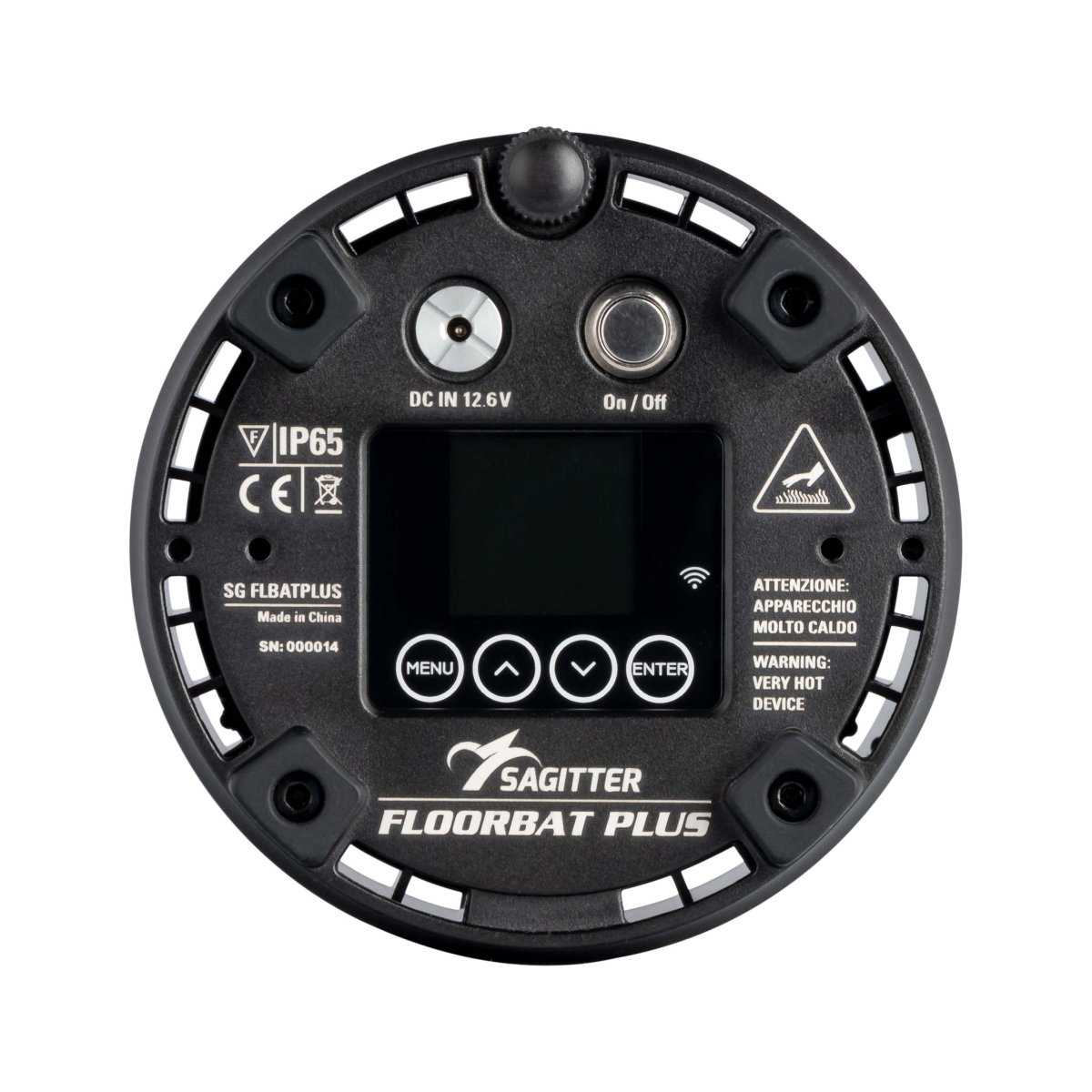

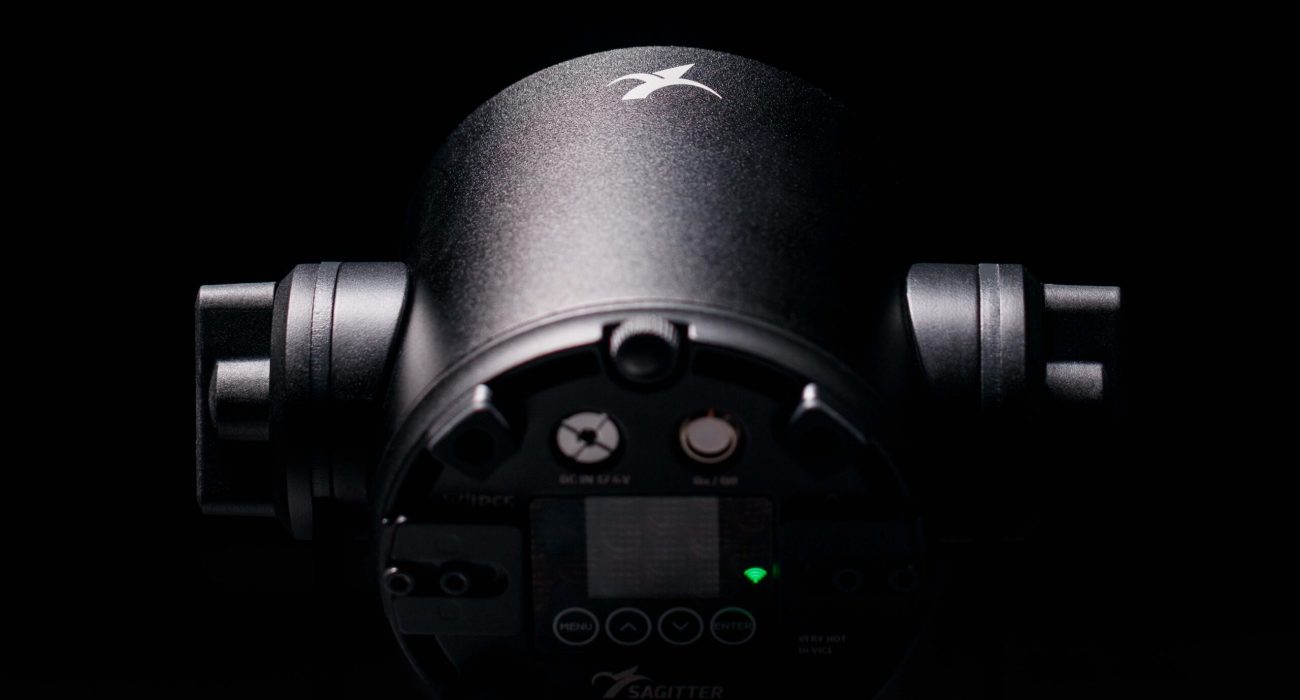

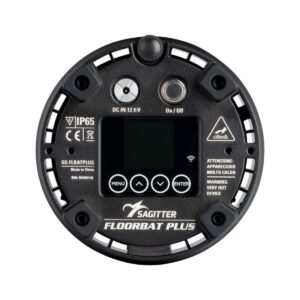

Graphic LCD color display with touch buttons
Front tempered glass

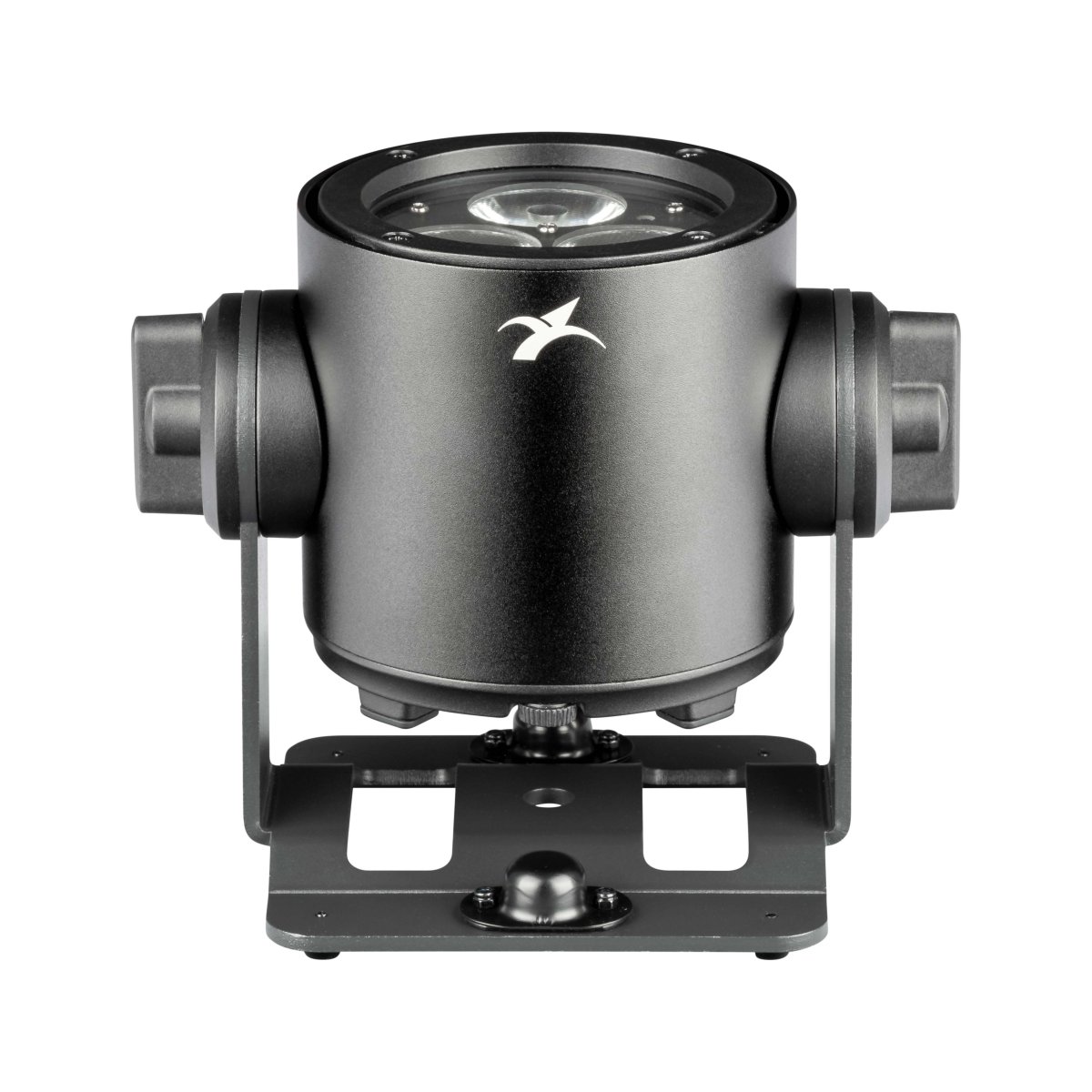

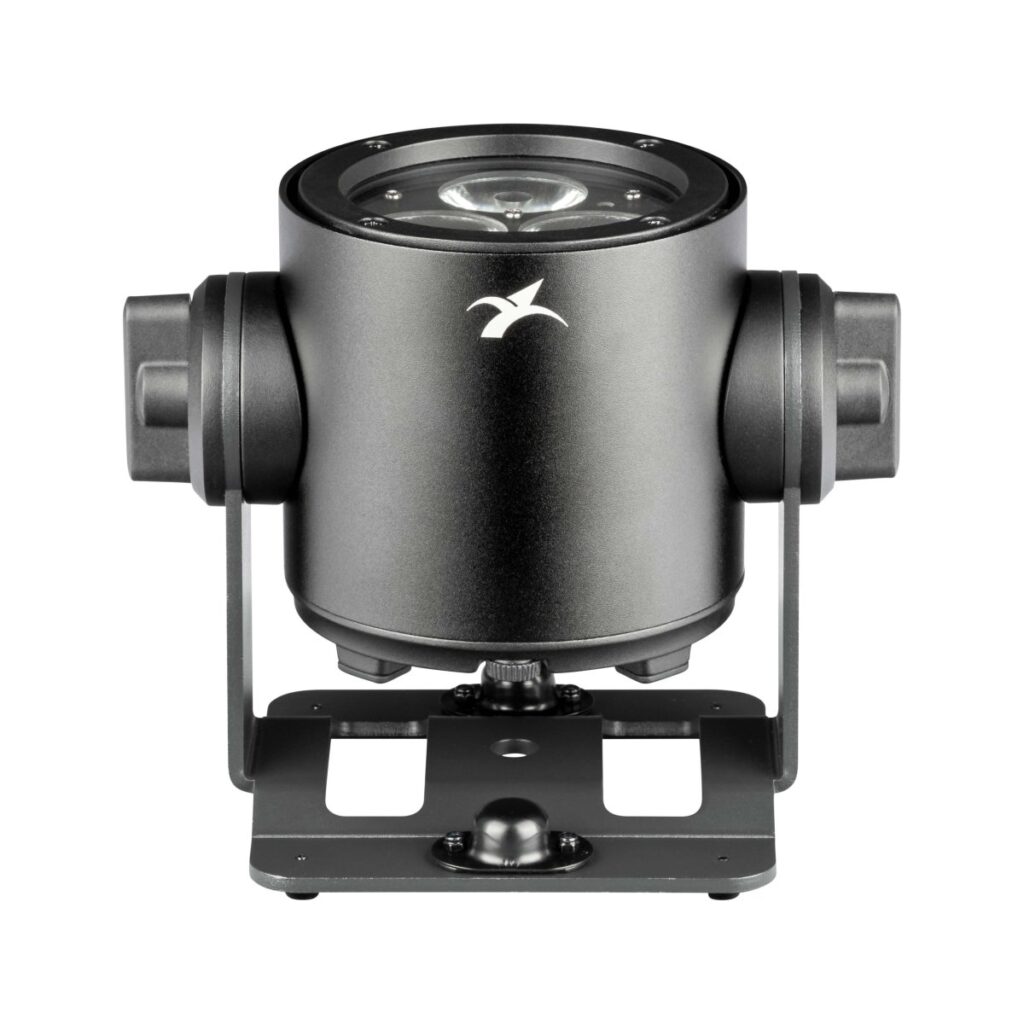

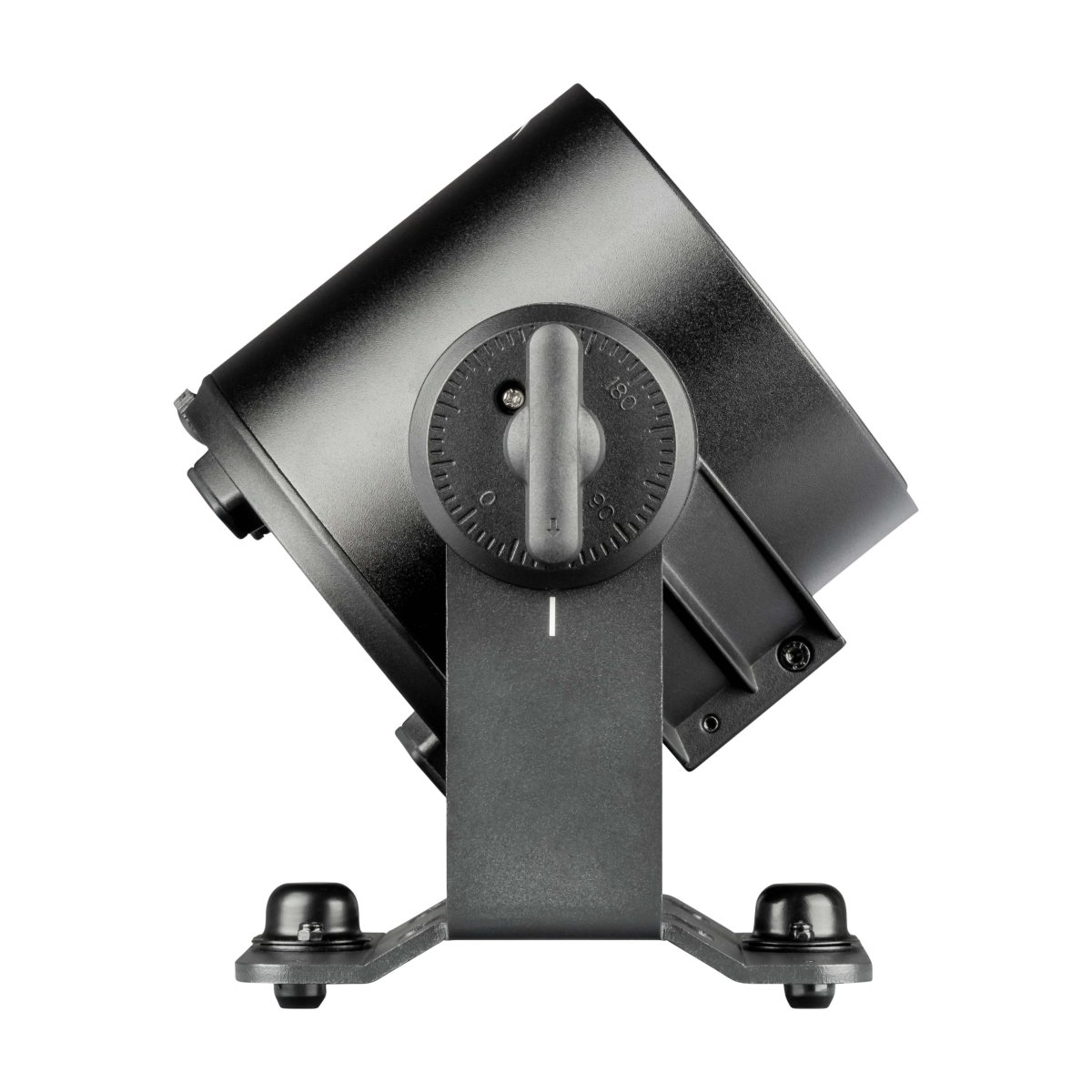

“Light up” positioning with adjustable angle
IP65 rating
Convection cooling system without fans
Frost filters included: 30°- 60°x10°

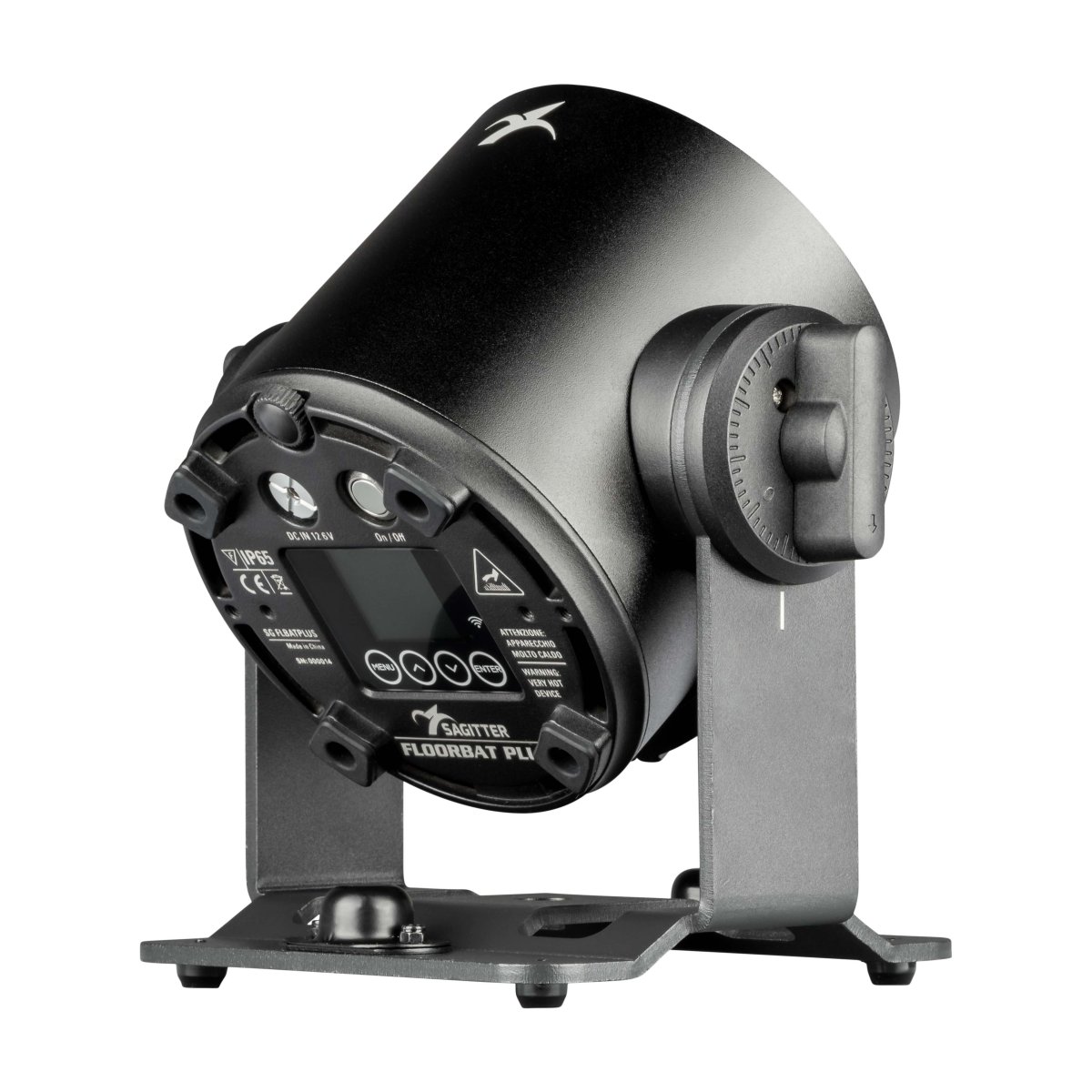

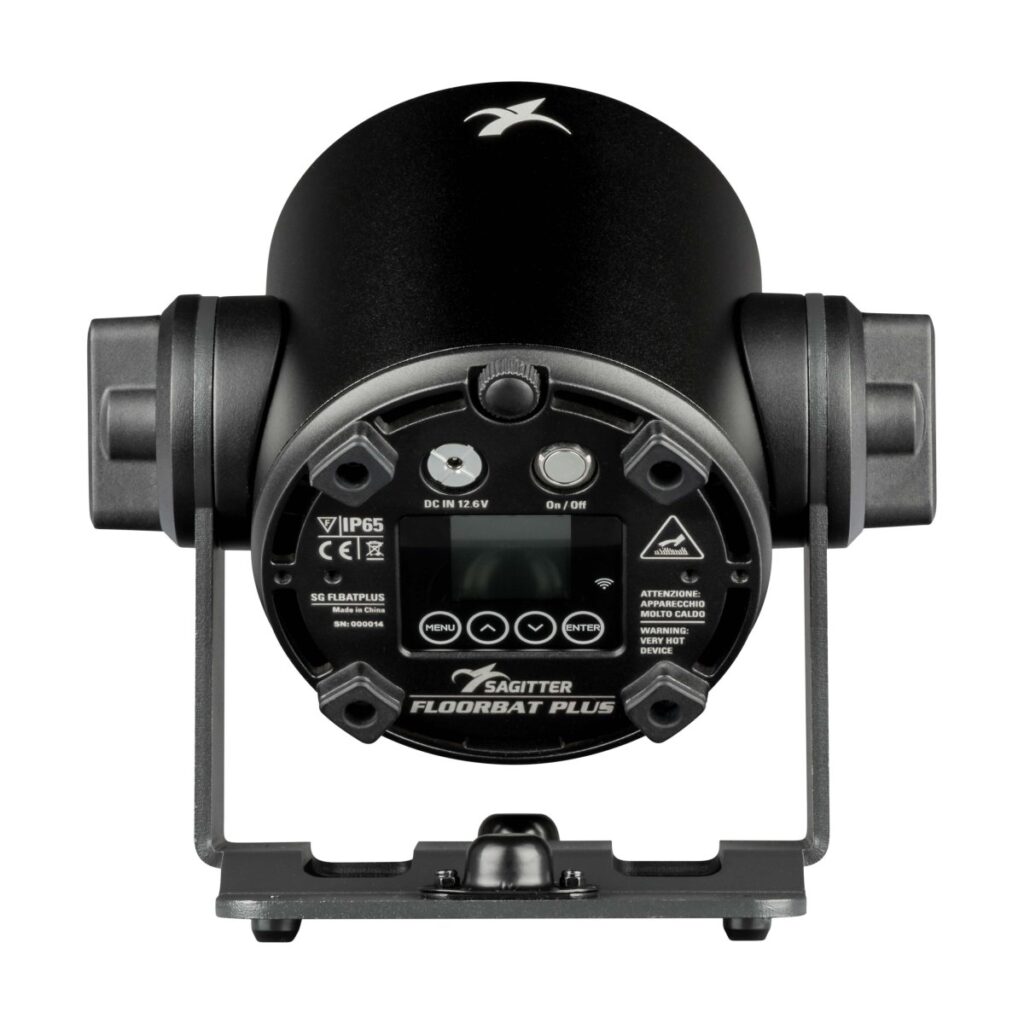

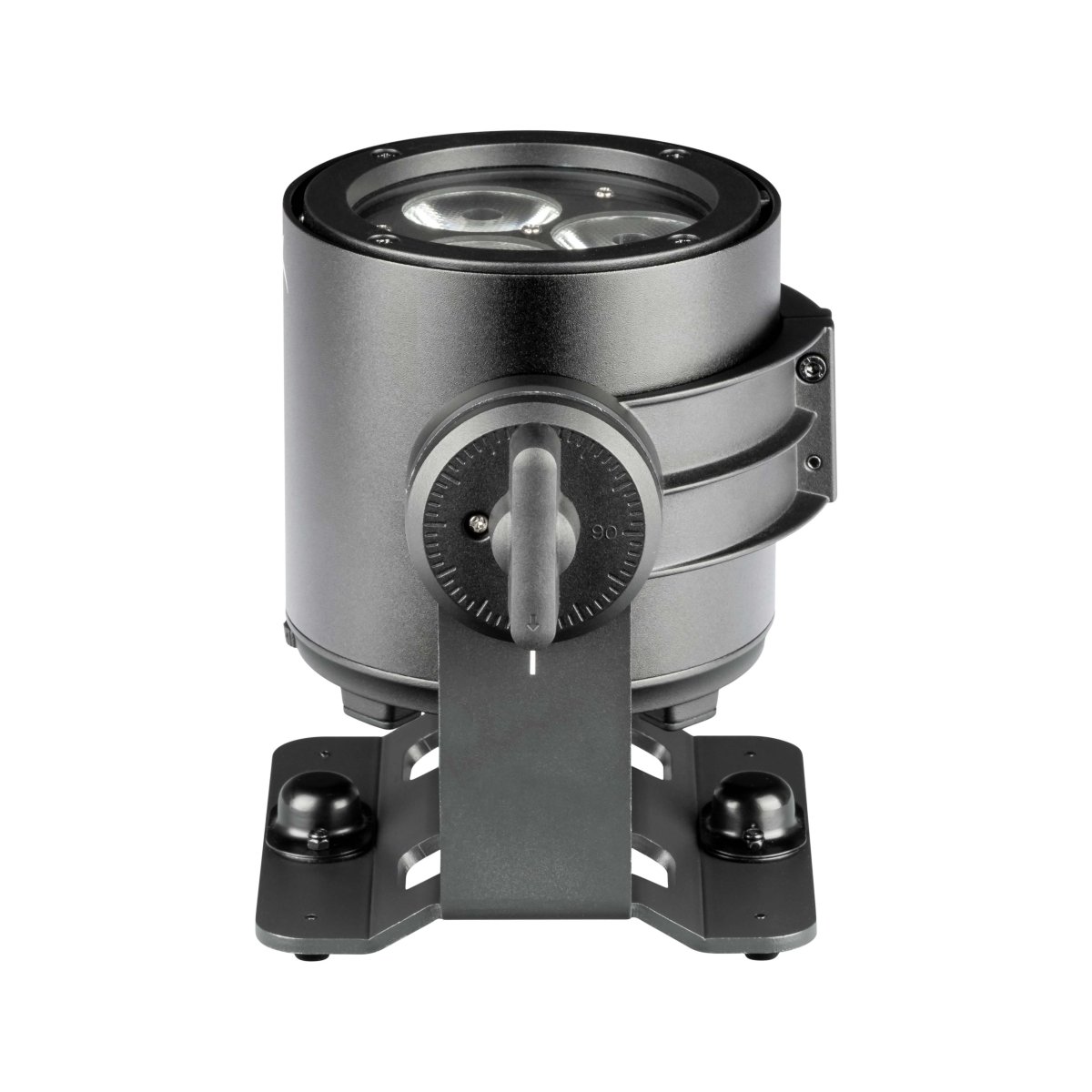

Floor and suspension bracket included
Antiglare ring inlcuded
Power supply Input Voltage: 12 VDC for standard use and battery recharge
Rechargeable internal Li-Ion battery: 12VDC – 6Ah
Runtime battery: ~ 2 hrs (full ON – Boost power mode)
Runtime battery: ~ 11 hrs (Color change – Boost power mode)
Charging cycle: ~ 5 hrs (Projector turned off)
Power adapter 12 VDC included
Weight and dimensions Net weight: 1,4 kg (accessories not included)
Dimensions: 119h x 120diam mm
