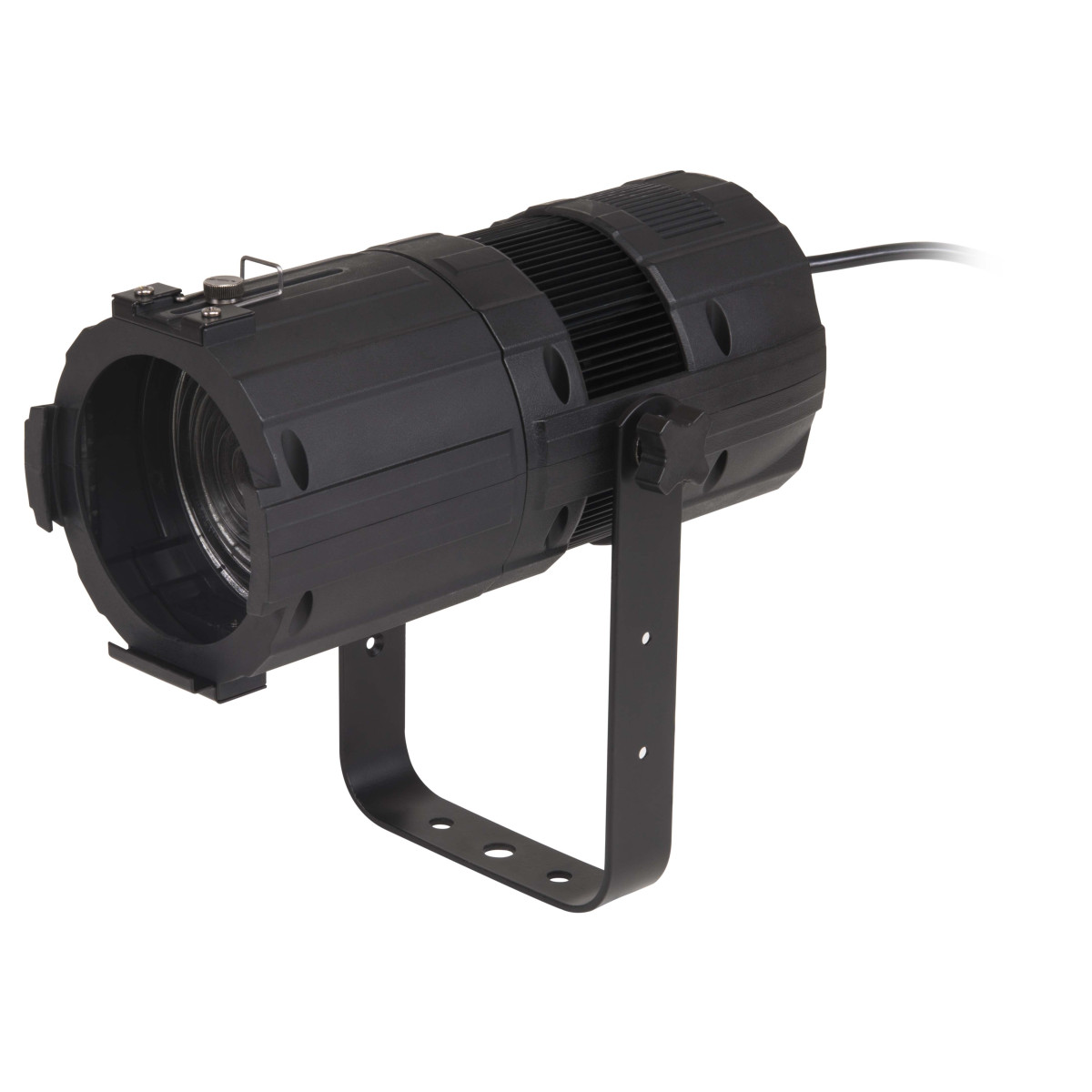

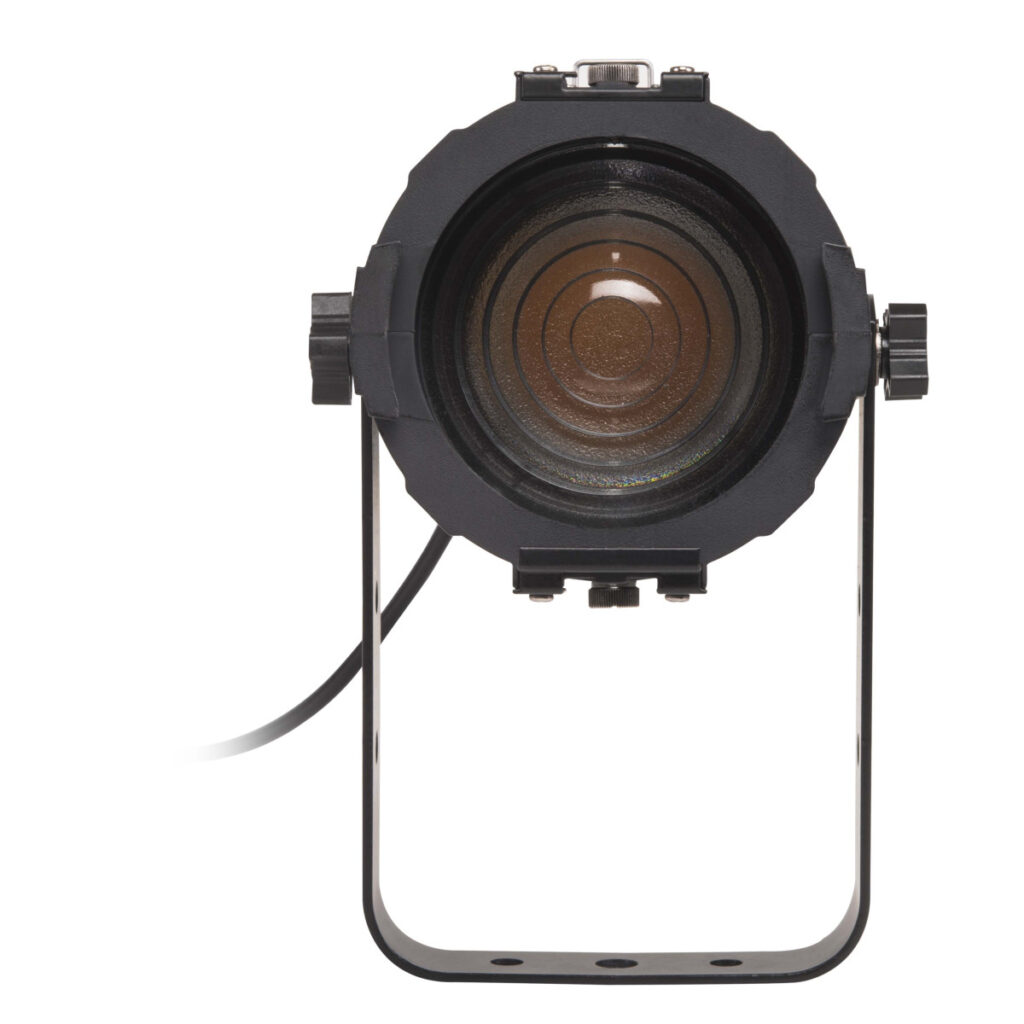

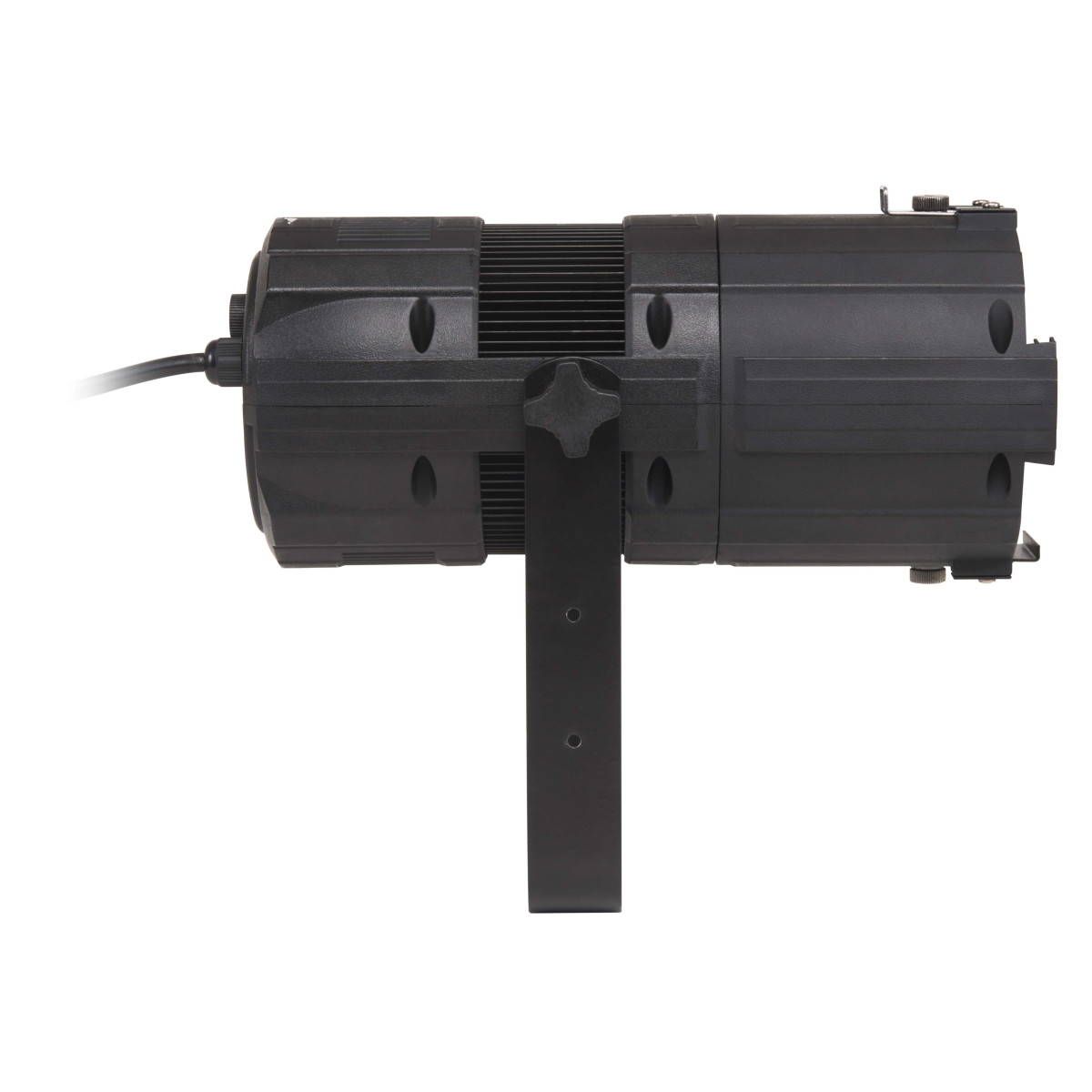

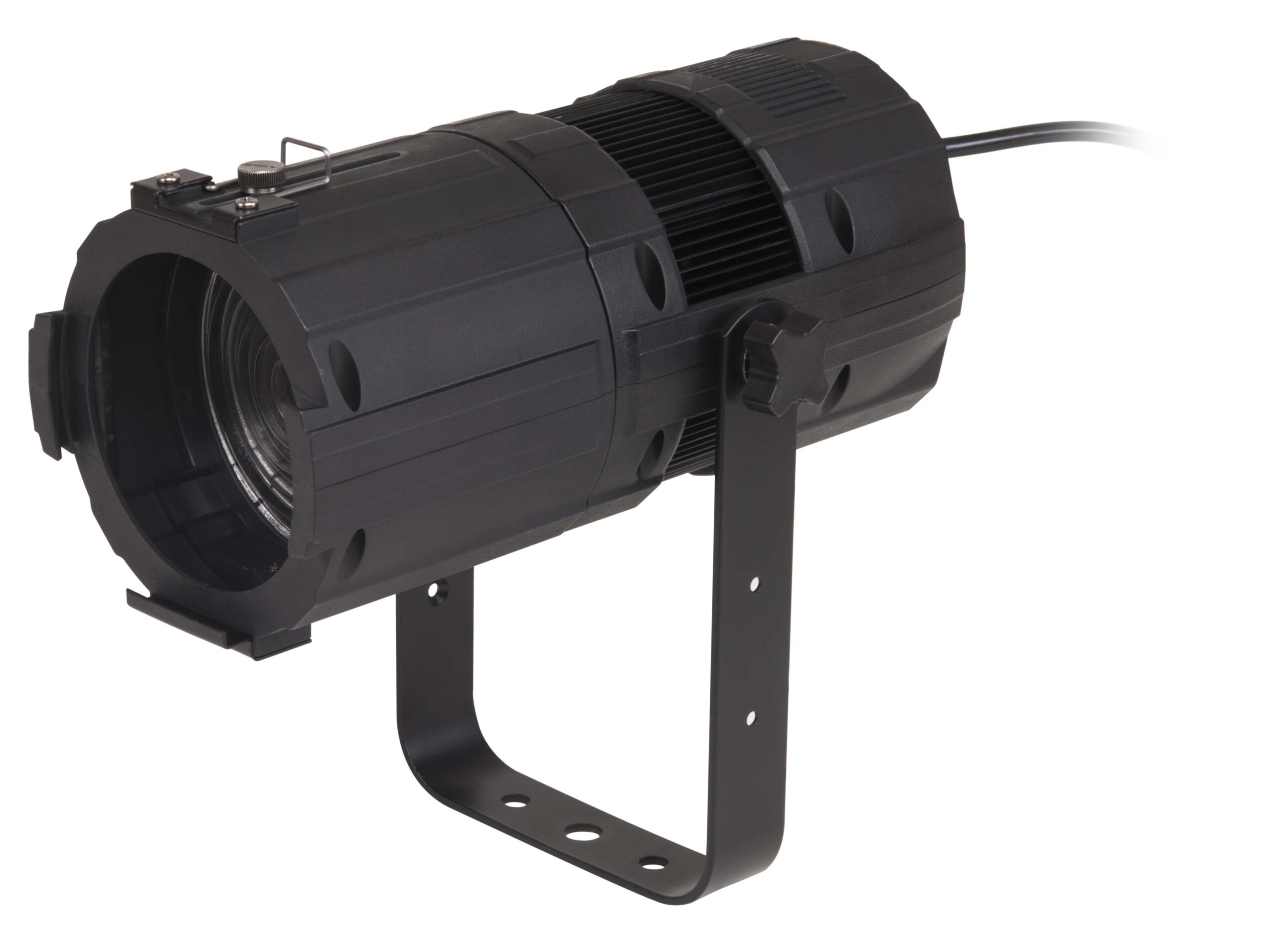

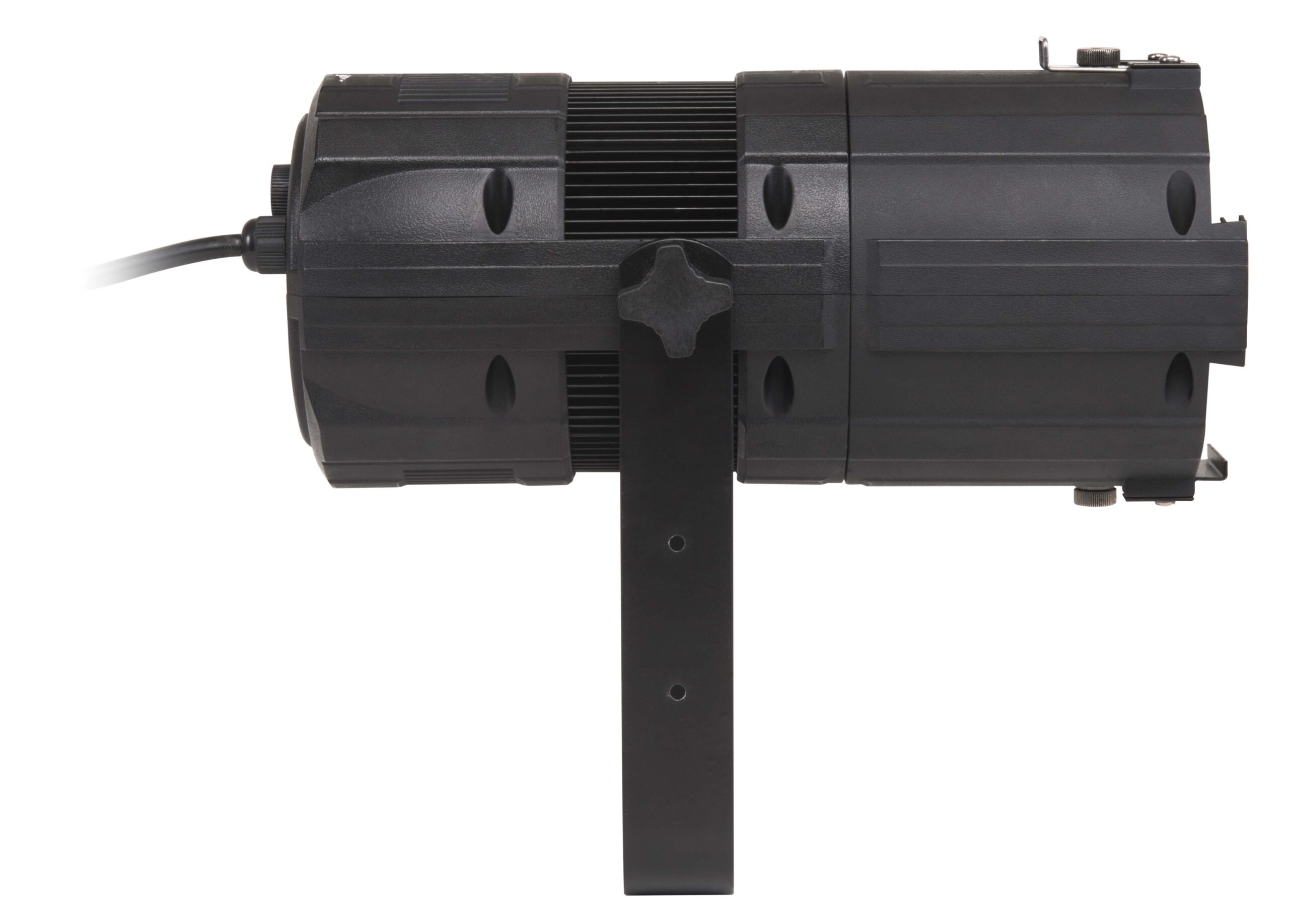

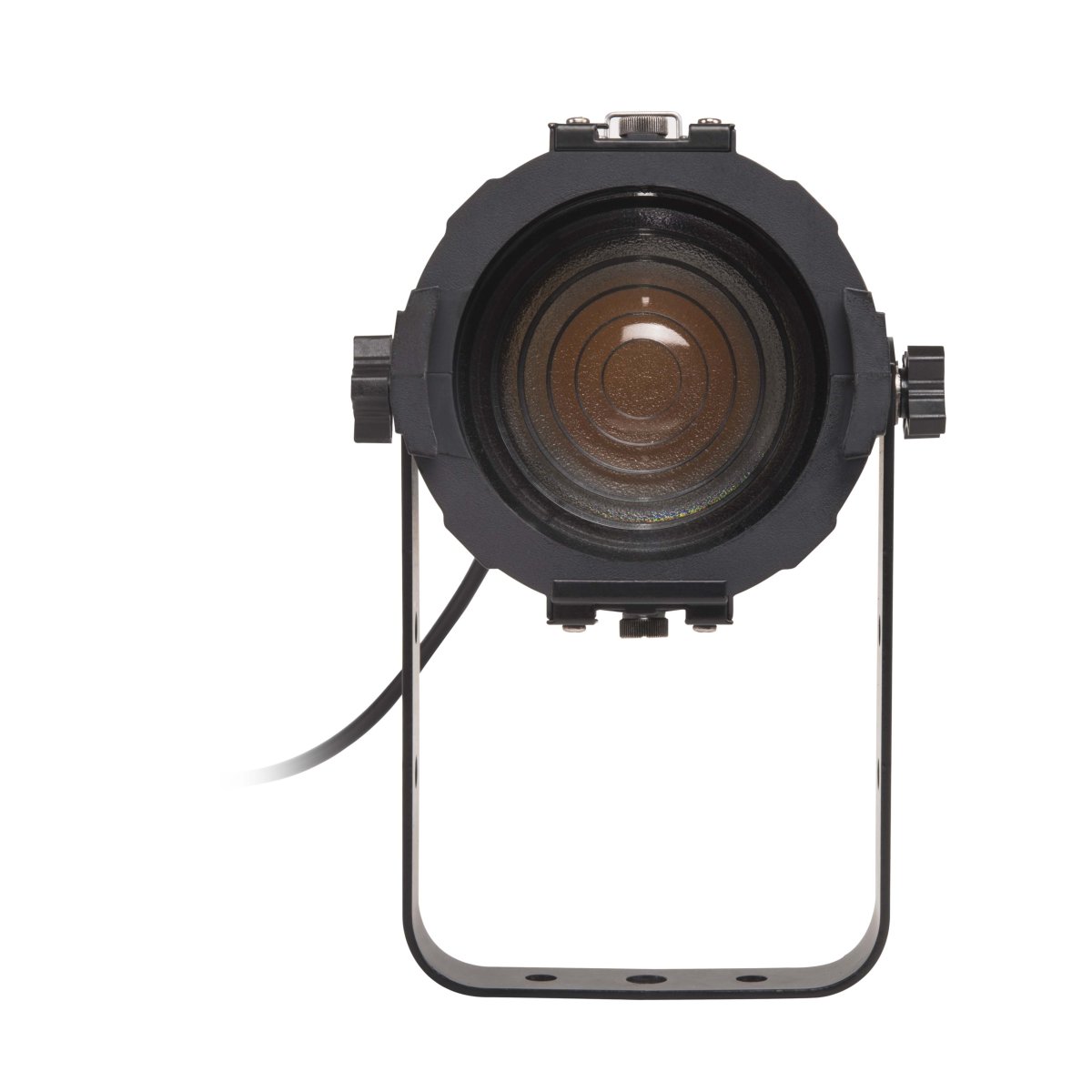

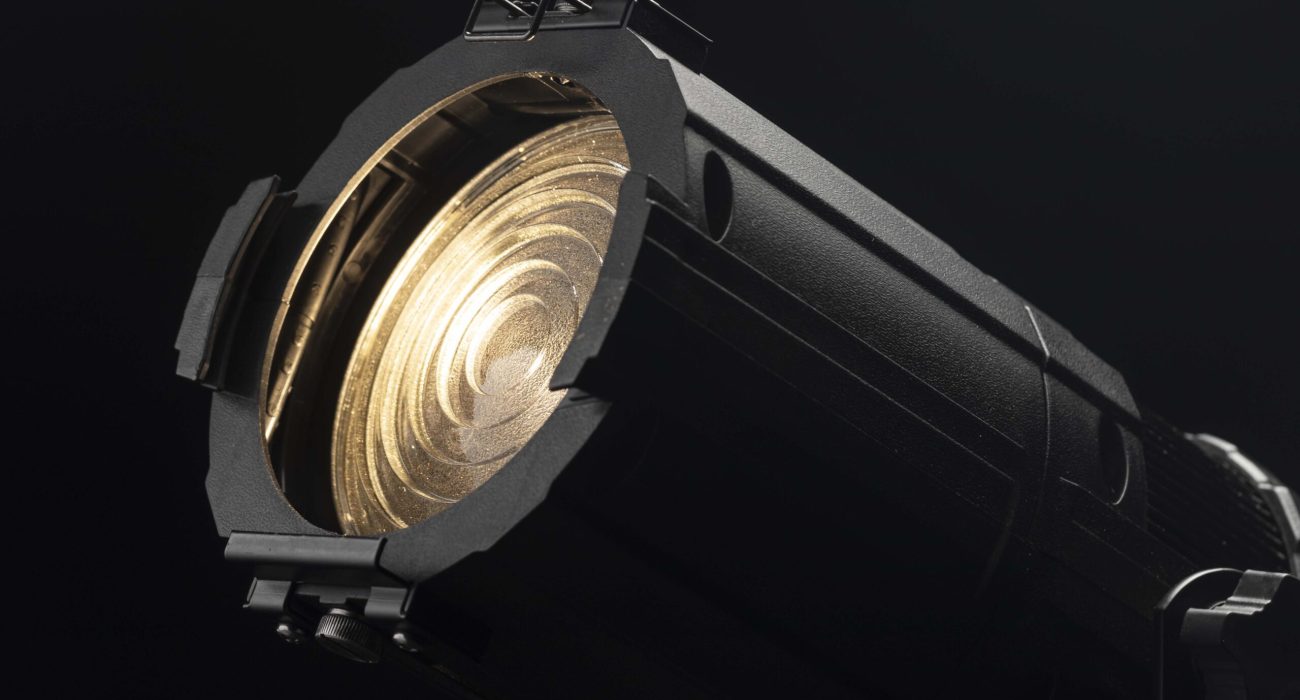

HALO Fresnel led series is the result of a Sagitter project, which can replace the most common incandescent theatre projectors with a product boasting low power consumption and the same lighting efficiency as the most common incandescent sources. The combination of a cutting edge power supply system and a next generation 3200K white COB LED source, makes the projector suitable for stages of any size. The optics equipment features the ability to manually modify the projection angle with a high precision zoom system.
| Light source | 1x60W Led COB warm white 3200K CRI ≥ 85Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |

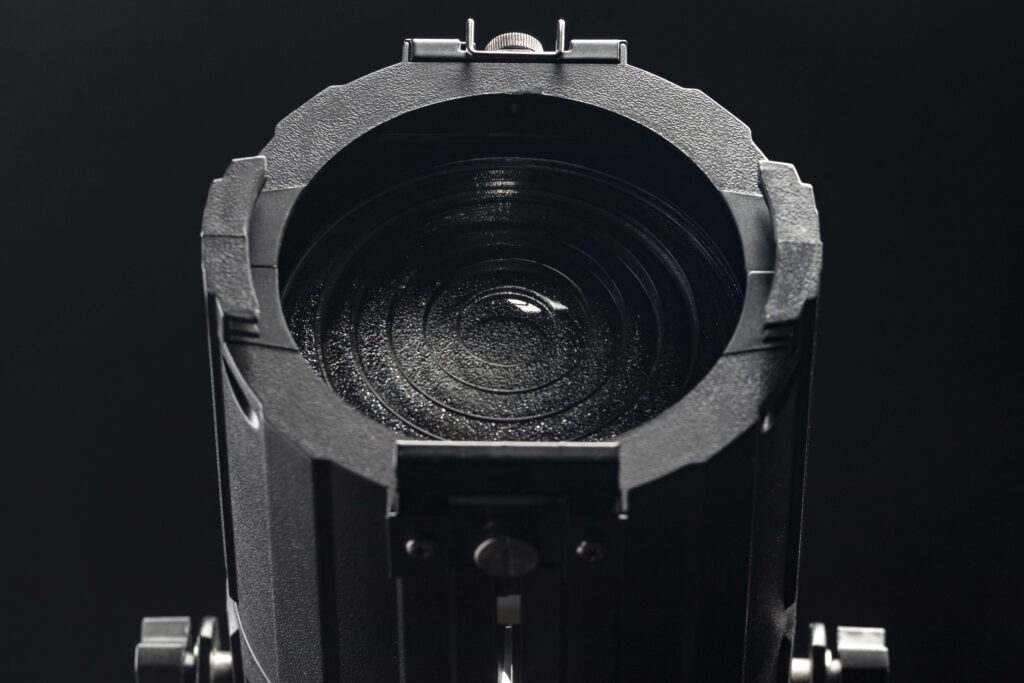

| Optic system | Beam Angle: manual zoom from 15° to 55° Illuminance: 1490lux @ 5mt (15°) / 530lux @ 5mt (55°) |
| Color system | Warm White 3200K COB Led |
| Effects | Linear dimmer 0-100% Strobe: electronic 1-20 flashes/s with adjustable speed |
| Control and programming | 1 DMX configurations available: 2 channels Protocol USITT DMX 512 Manual dimmer mode |

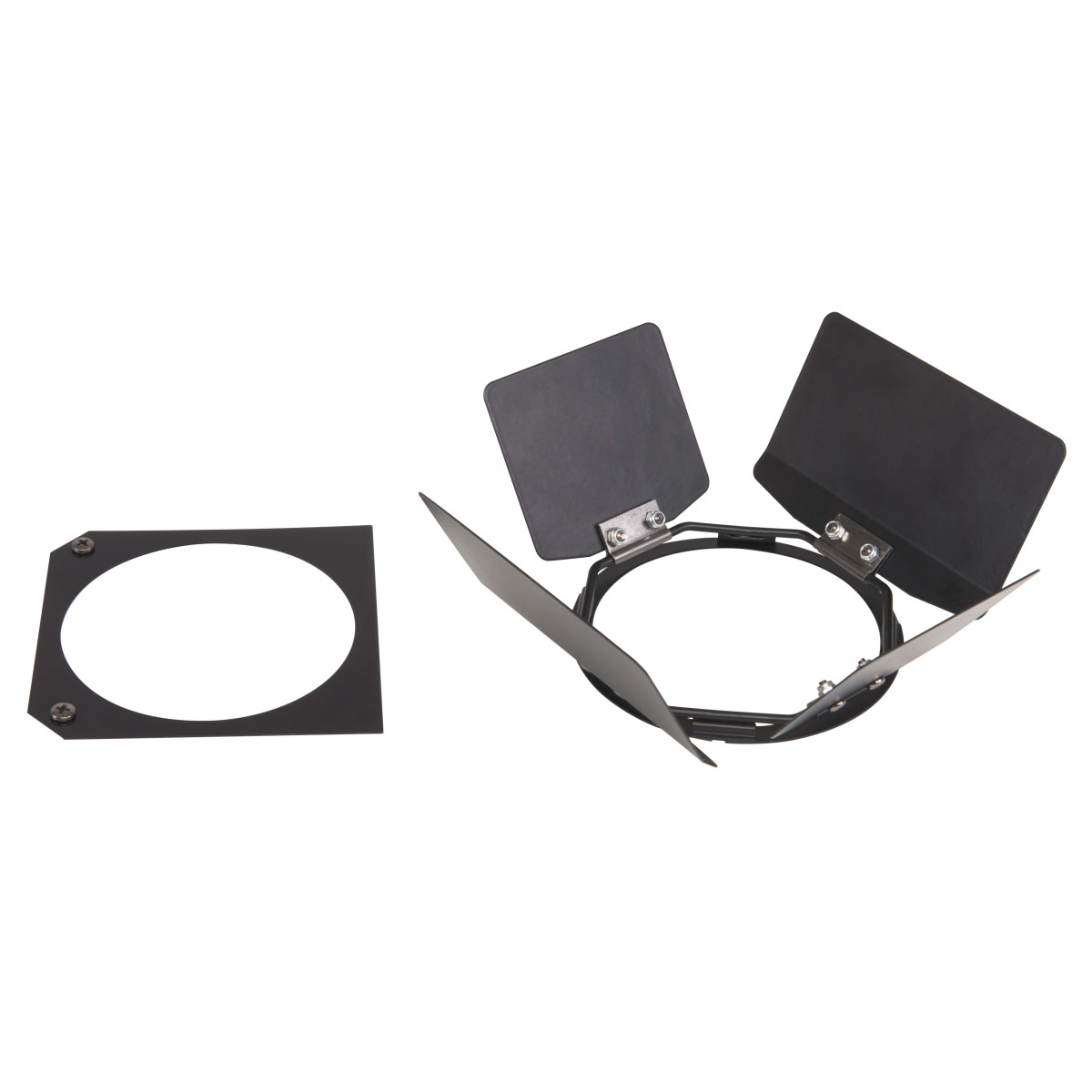

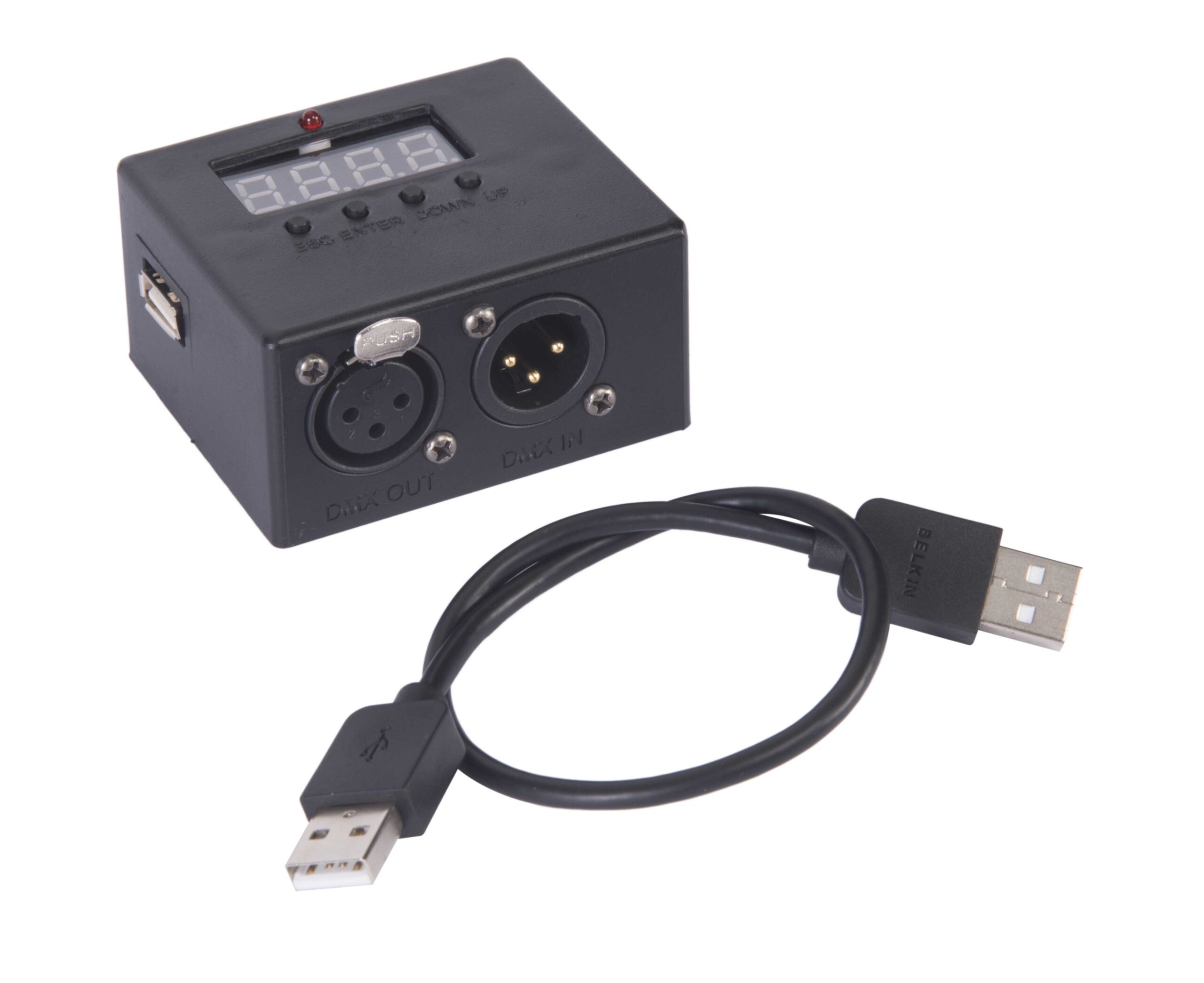

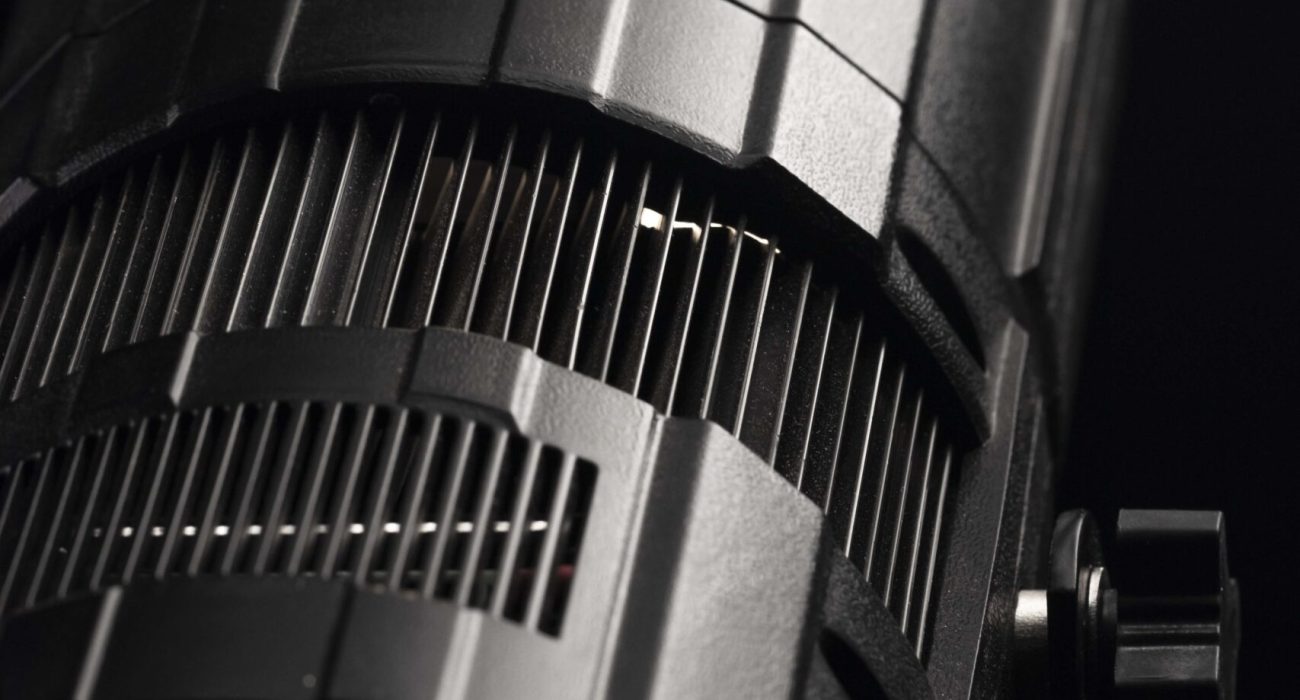

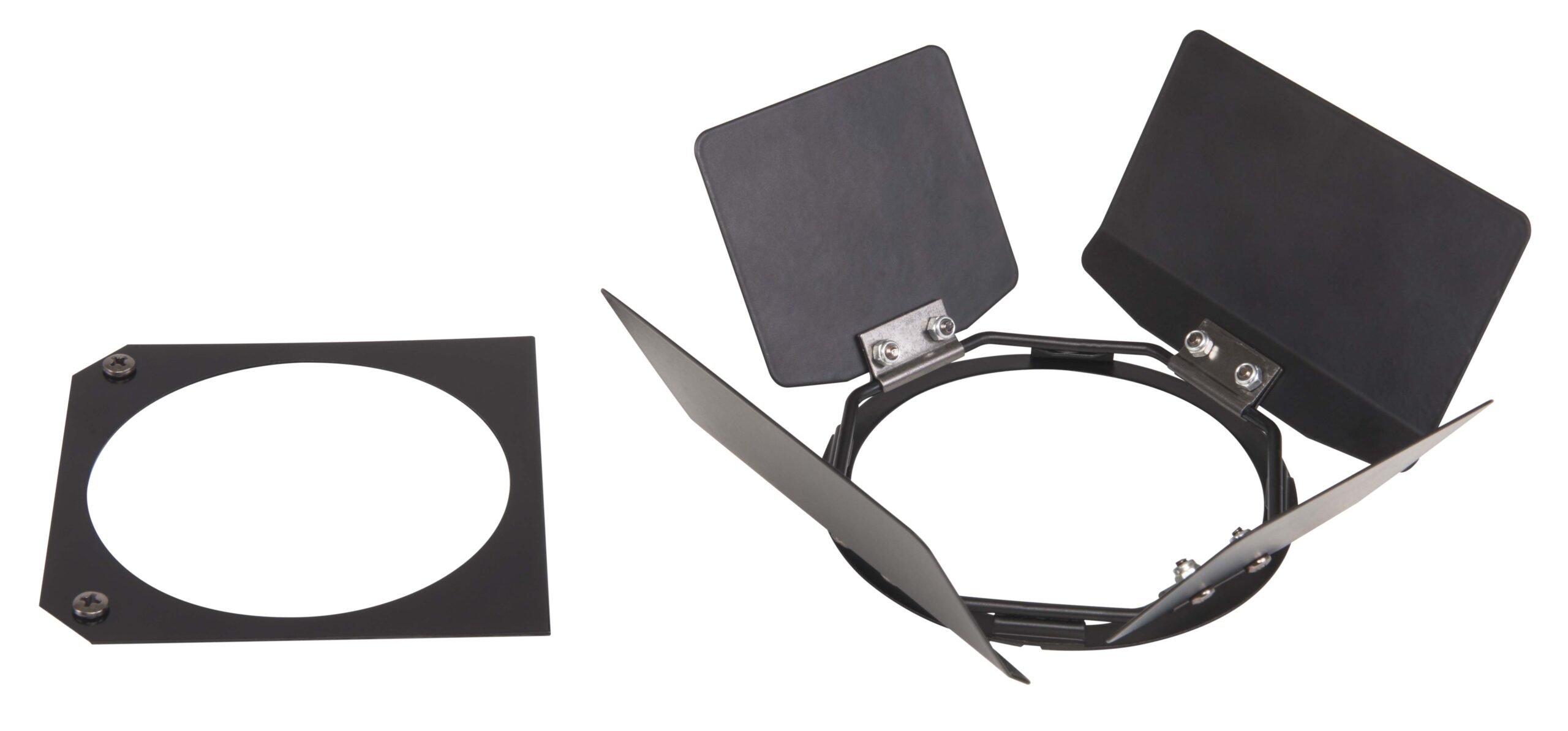

| Structure and cabinet | High resistance plastic housing Red LED display Mounting points: single bracket Rotating barndoor with “safety cable” included XLR 3-poles DMX IN/OUT connection with external USB box IP rating: IP20 Controlled forced air fan cooling system “low noise” |

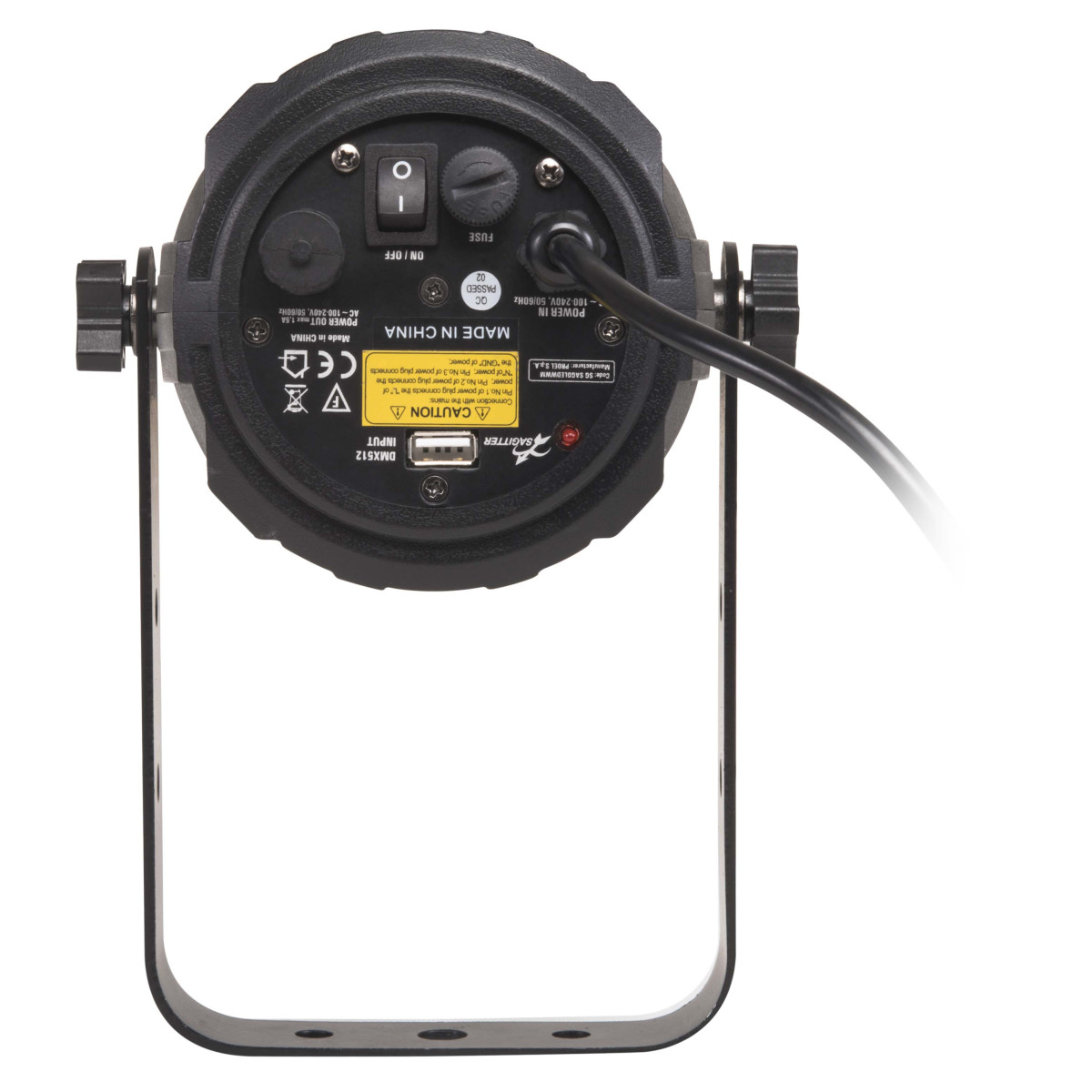

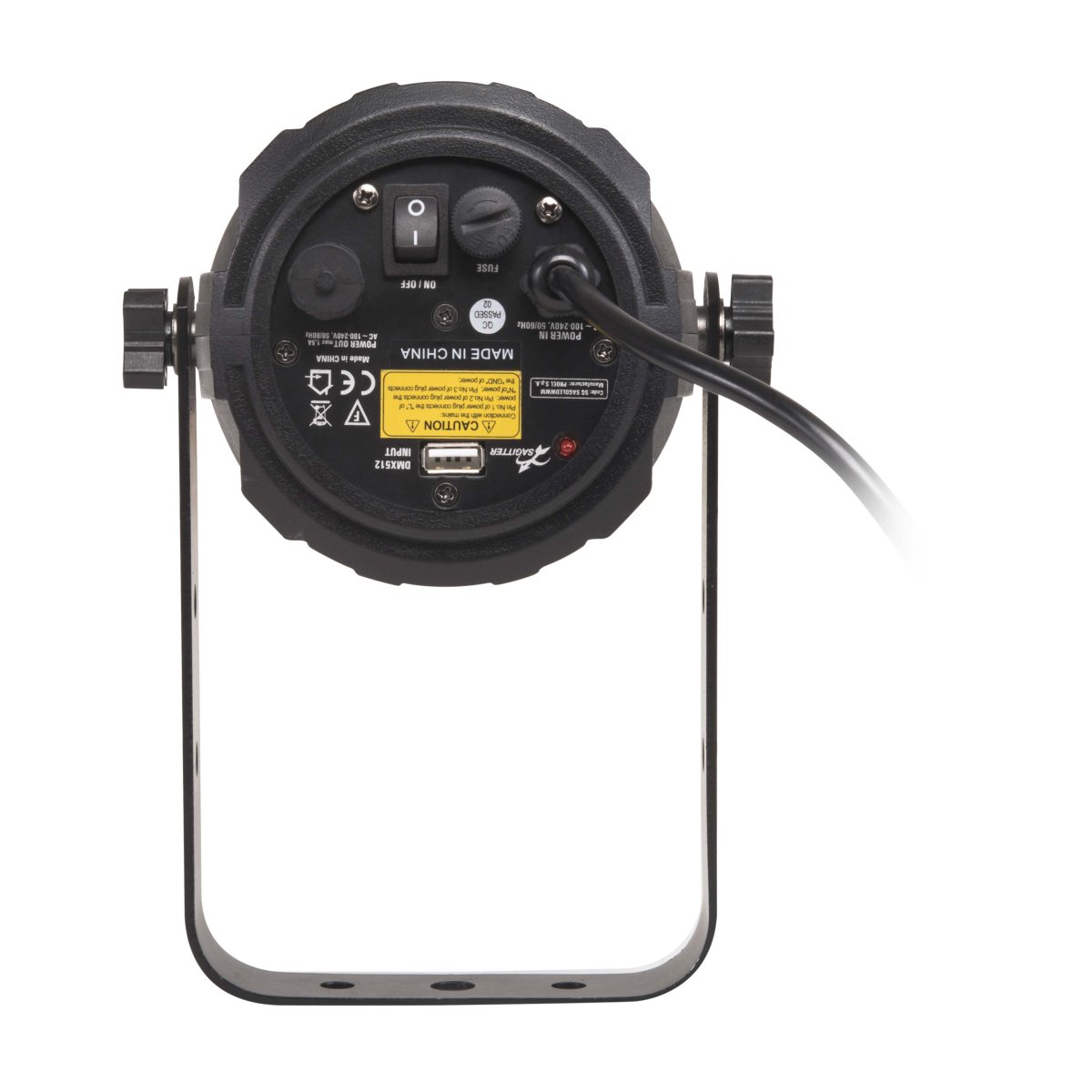

| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Power consumption: 70W IN/OUT power connection with PowerCON sockets Power supply cable 1mt included Max 4 pcs linkable @ 240V |
| Weight and dimensions | Net weight: 2 kg Dimensions: 165x260x230 mm (without barndoor) |
HALO Fresnel led series is the result of a Sagitter project, which can replace the most common incandescent theatre projectors with a product boasting low power consumption and the same lighting efficiency as the most common incandescent sources. The combination of a cutting edge power supply system and a next generation 3200K white COB LED source, makes the projector suitable for stages of any size. The optics equipment features the ability to manually modify the projection angle with a high precision zoom system.
| Light source | 1x60W Led COB warm white 3200K CRI ≥ 85Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: manual zoom from 15° to 55° Illuminance: 1490lux @ 5mt (15°) / 530lux @ 5mt (55°) |
| Color system | Warm White 3200K COB Led |
| Effects | Linear dimmer 0-100% Strobe: electronic 1-20 flashes/s with adjustable speed |
| Control and programming | 1 DMX configurations available: 2 channels Protocol USITT DMX 512 Manual dimmer mode |
| Structure and cabinet | High resistance plastic housing Red LED display Mounting points: single bracket Rotating barndoor with “safety cable” included XLR 3-poles DMX IN/OUT connection with external USB box IP rating: IP20 Controlled forced air fan cooling system “low noise” |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Power consumption: 70W IN/OUT power connection with PowerCON sockets Power supply cable 1mt included Max 4 pcs linkable @ 240V |
| Weight and dimensions | Net weight: 2 kg Dimensions: 165x260x230 mm (without barndoor) |
