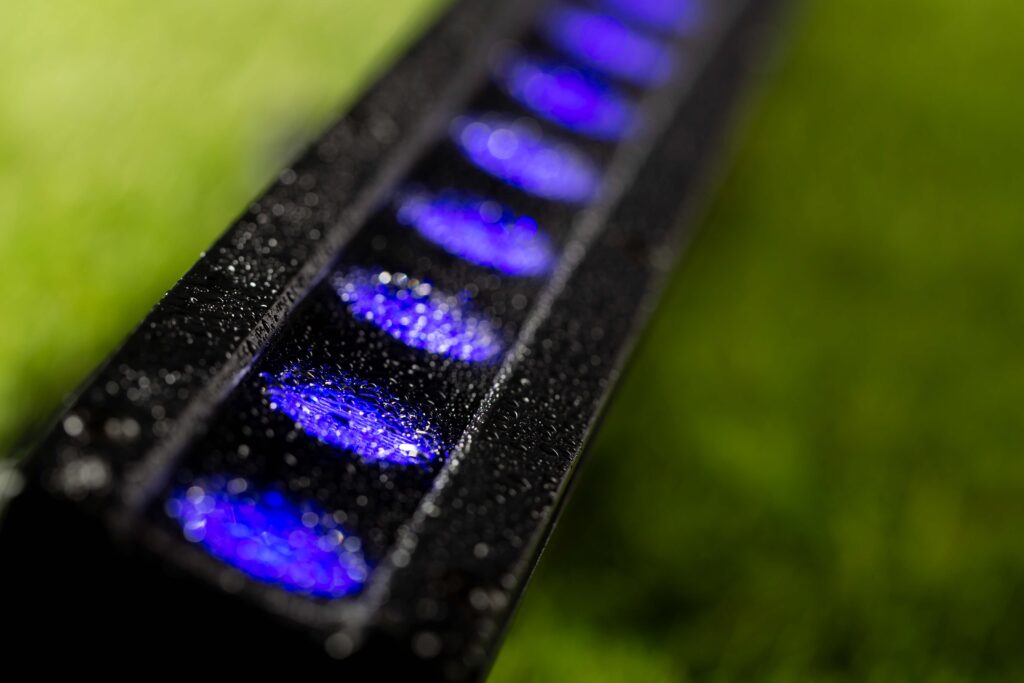

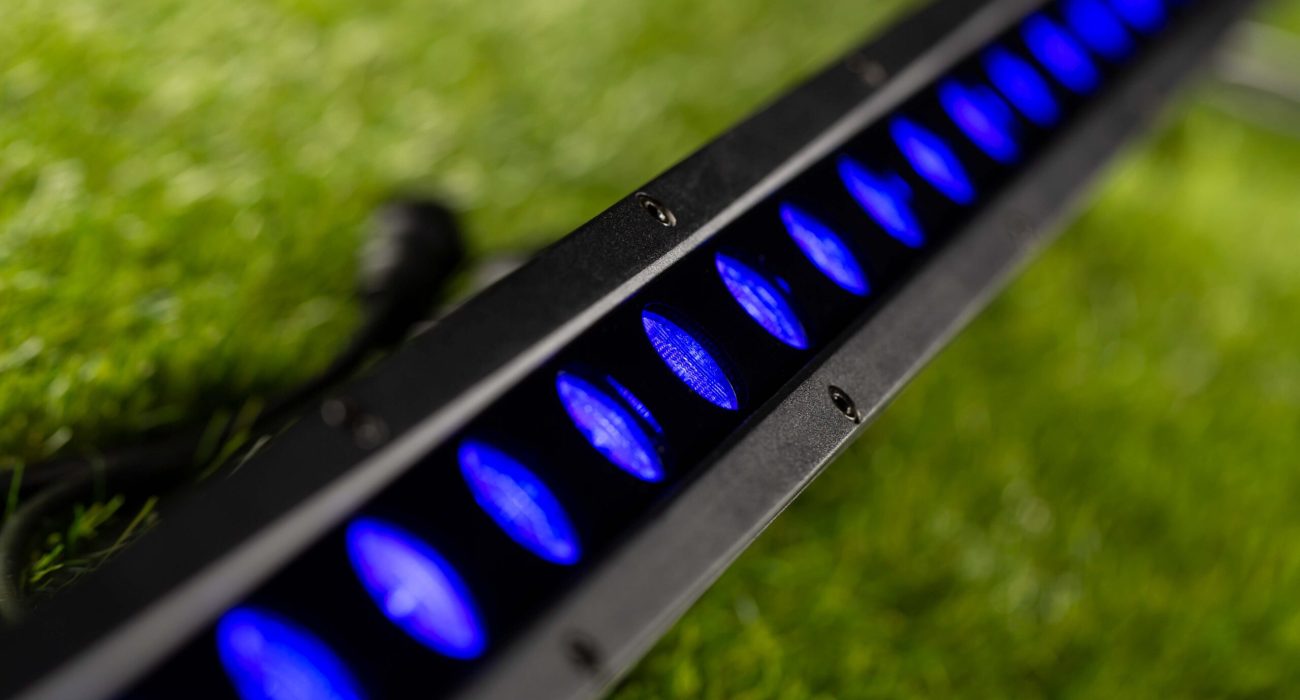

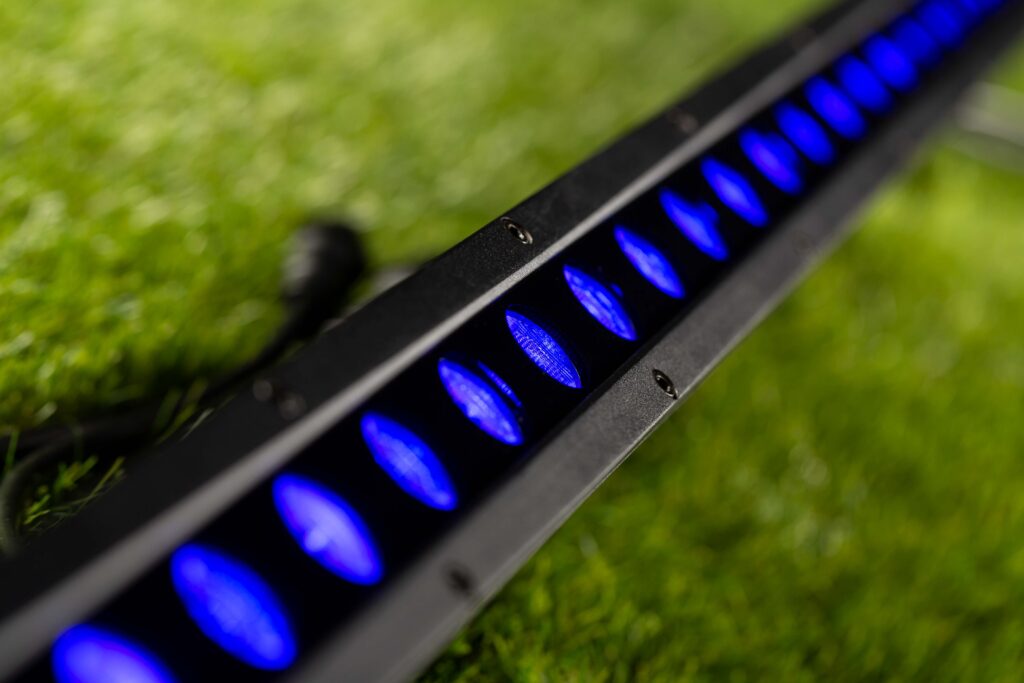

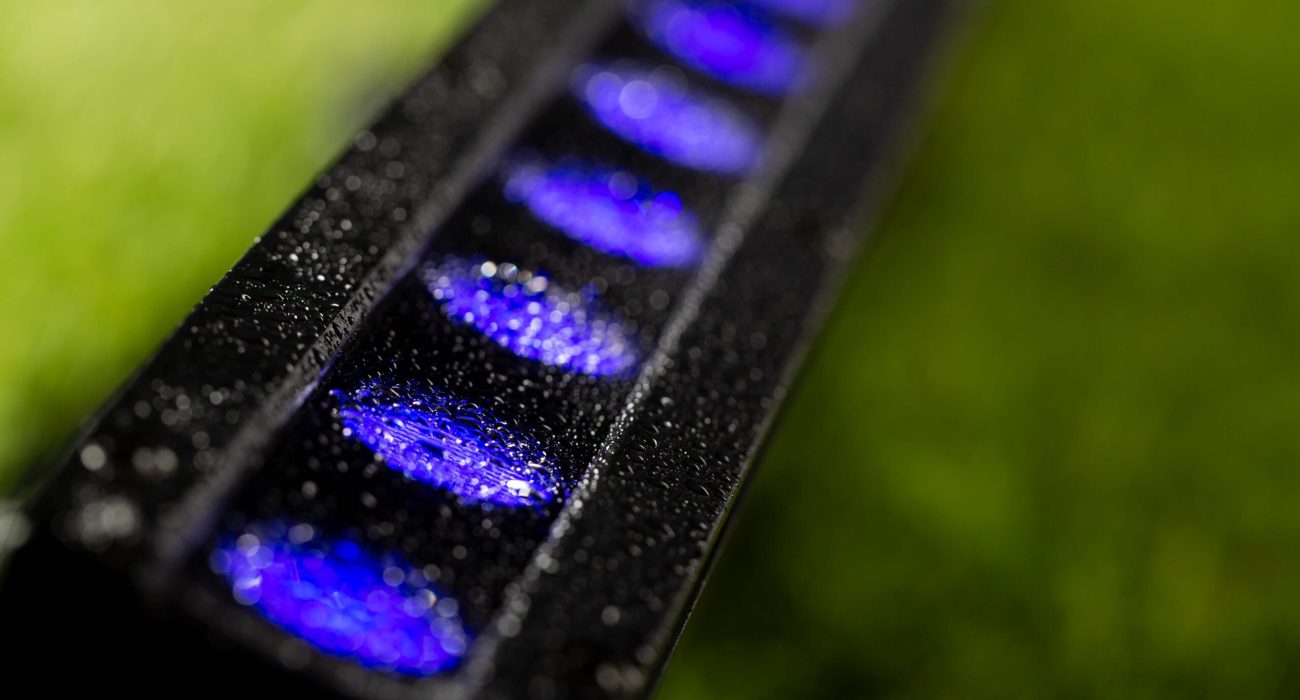

| Light source | 24x8W led RGBW Full Color LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 15° Illuminance: 1221lux @3mt |
| Color system | LED source RGBW Full color Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Color macros selectable via DMX 4 sector control system |
| Control and programming | 7 DMX configurations available: 3/4/7/8/10/16/20 channels Protocol USITT DMX 512 Master / Slave mode Static color mode Automatic mode with 5 different programs selectable from the display Effect mode with 8 different programs selectable from the display Color mode with 6 different programs selectable from the display 4 dimmer curve |

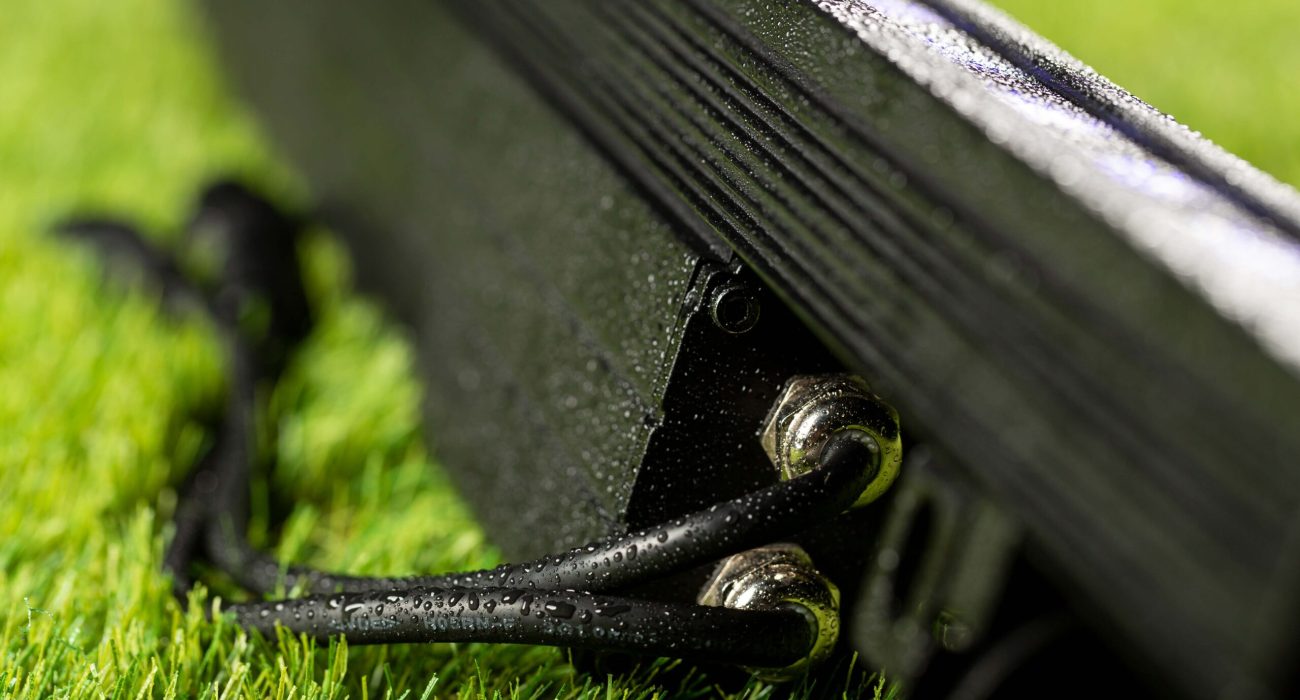

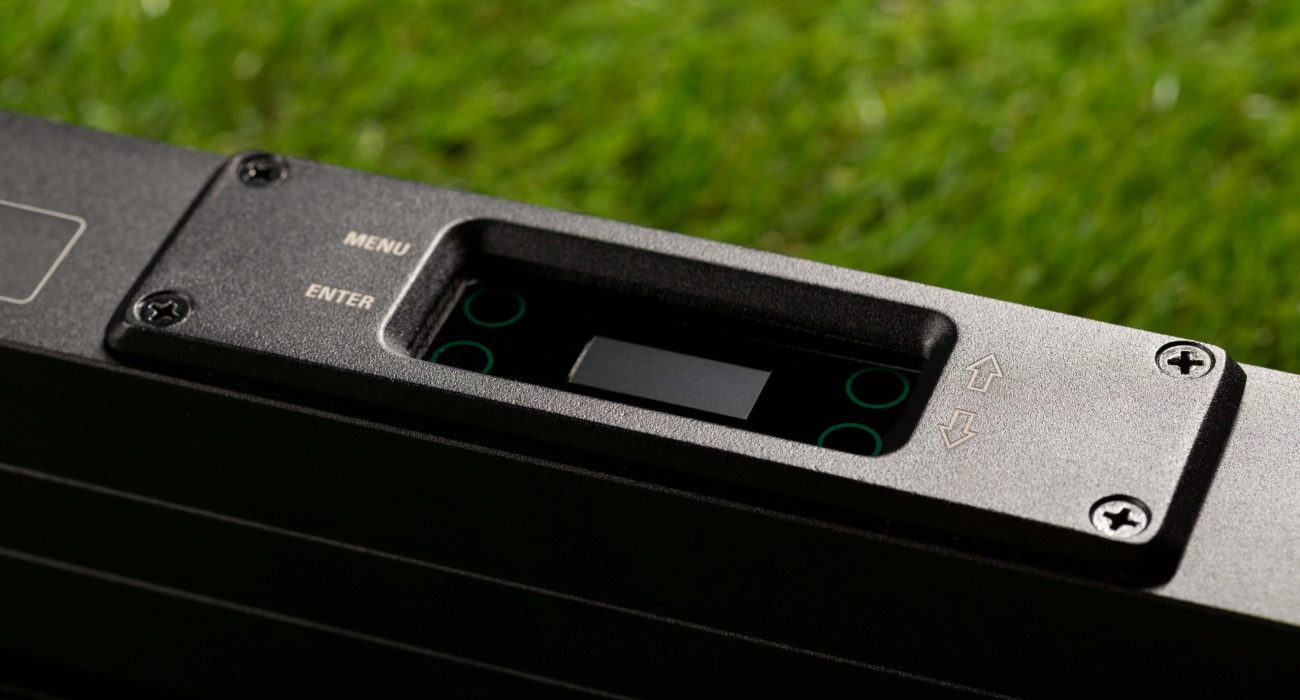

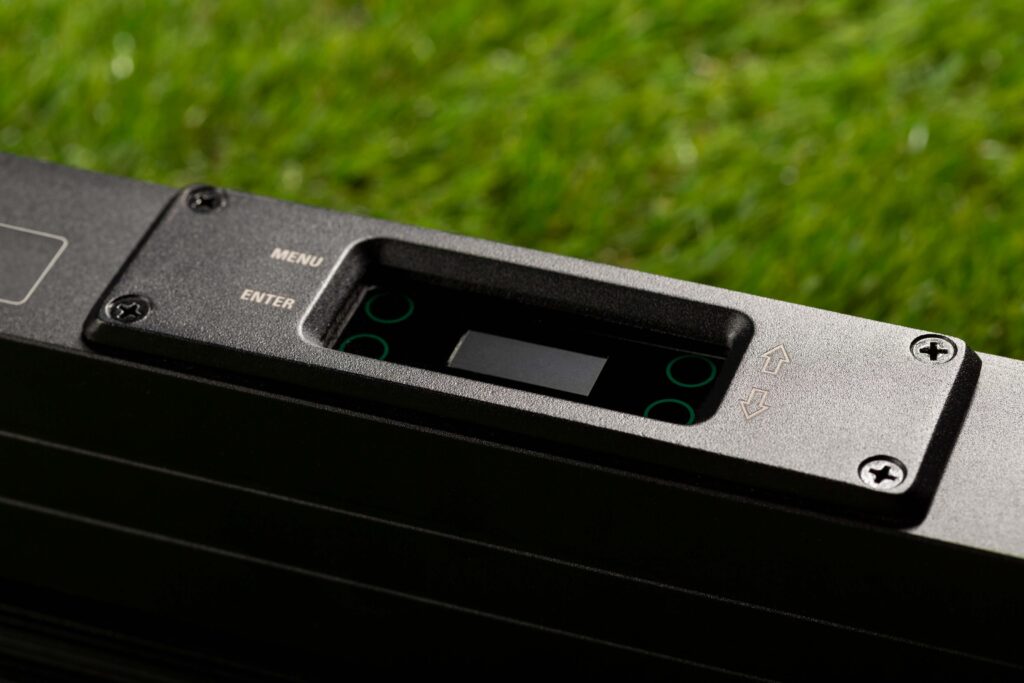

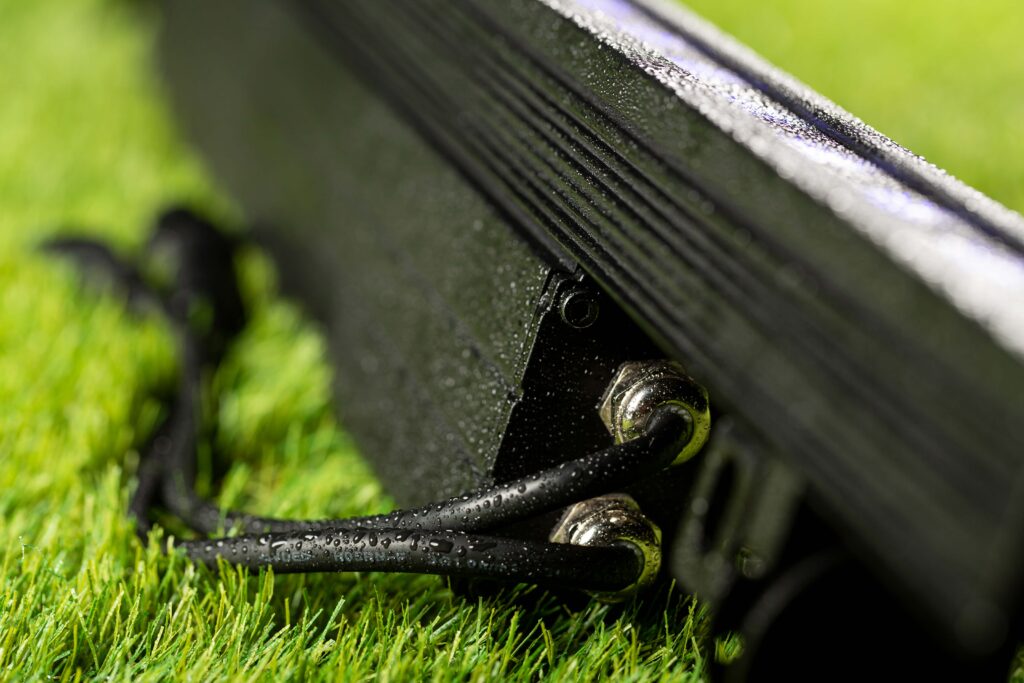

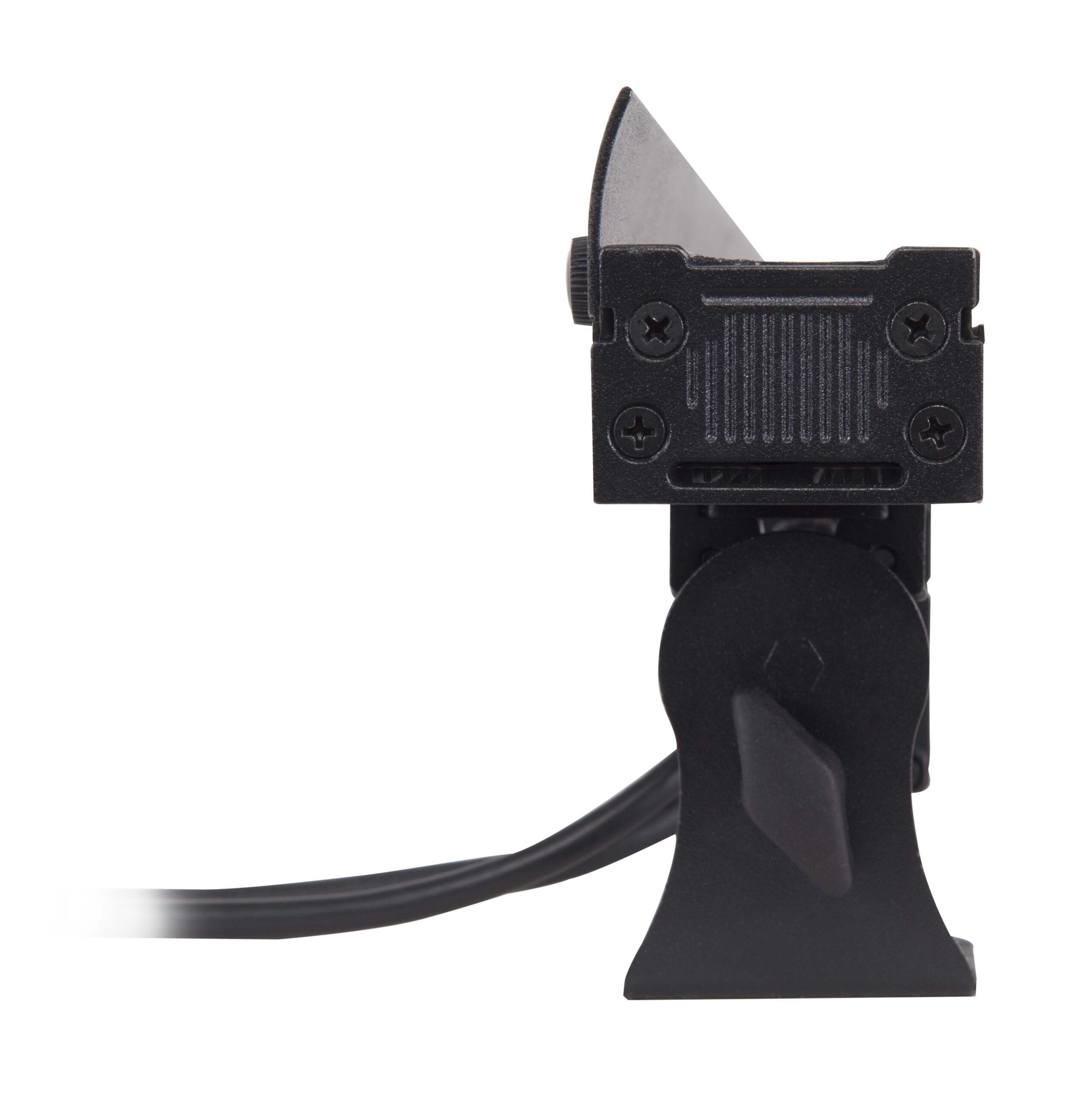

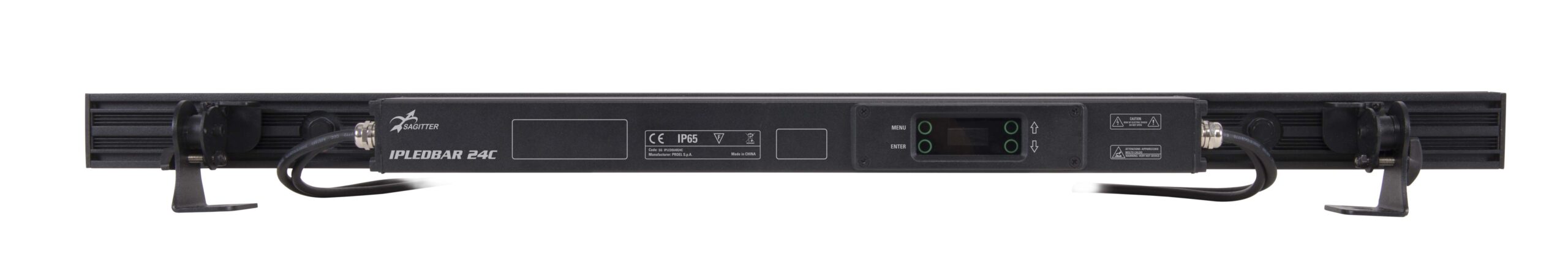

| Structure and cabinet | Die cast aluminium housing OLED display Soft touch button Front tempered glass Antiglare blade included “Light up” positioning with adjustable angle IP rating: IP65 DMX IN/OUT connectors IP65 Convection cooling system without fans |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 192W @ 230VAC IN/OUT power connection IP65 |
| Weight and dimensions | Net weight: 5,6 kg Dimensions: 965x60x135 mm |
