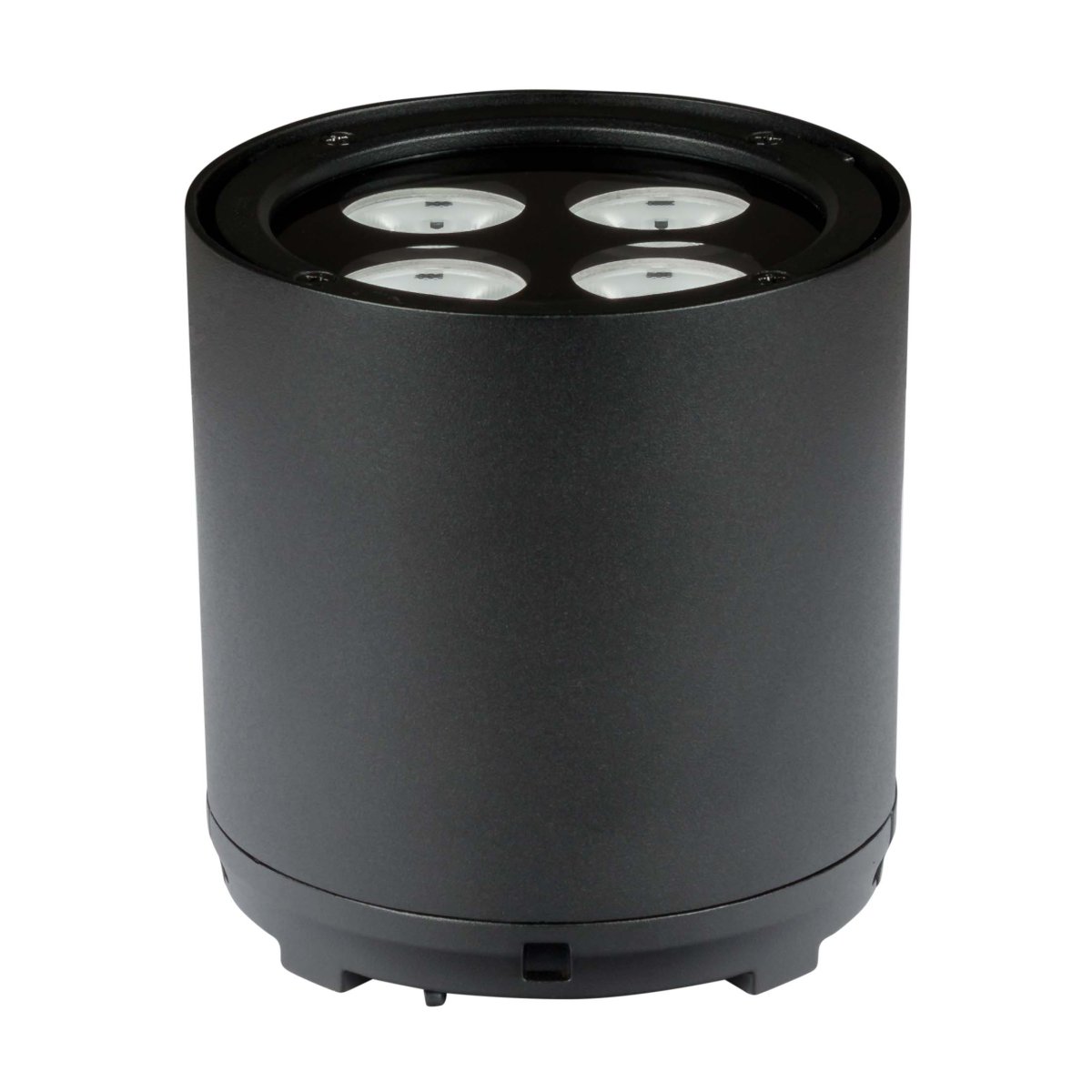

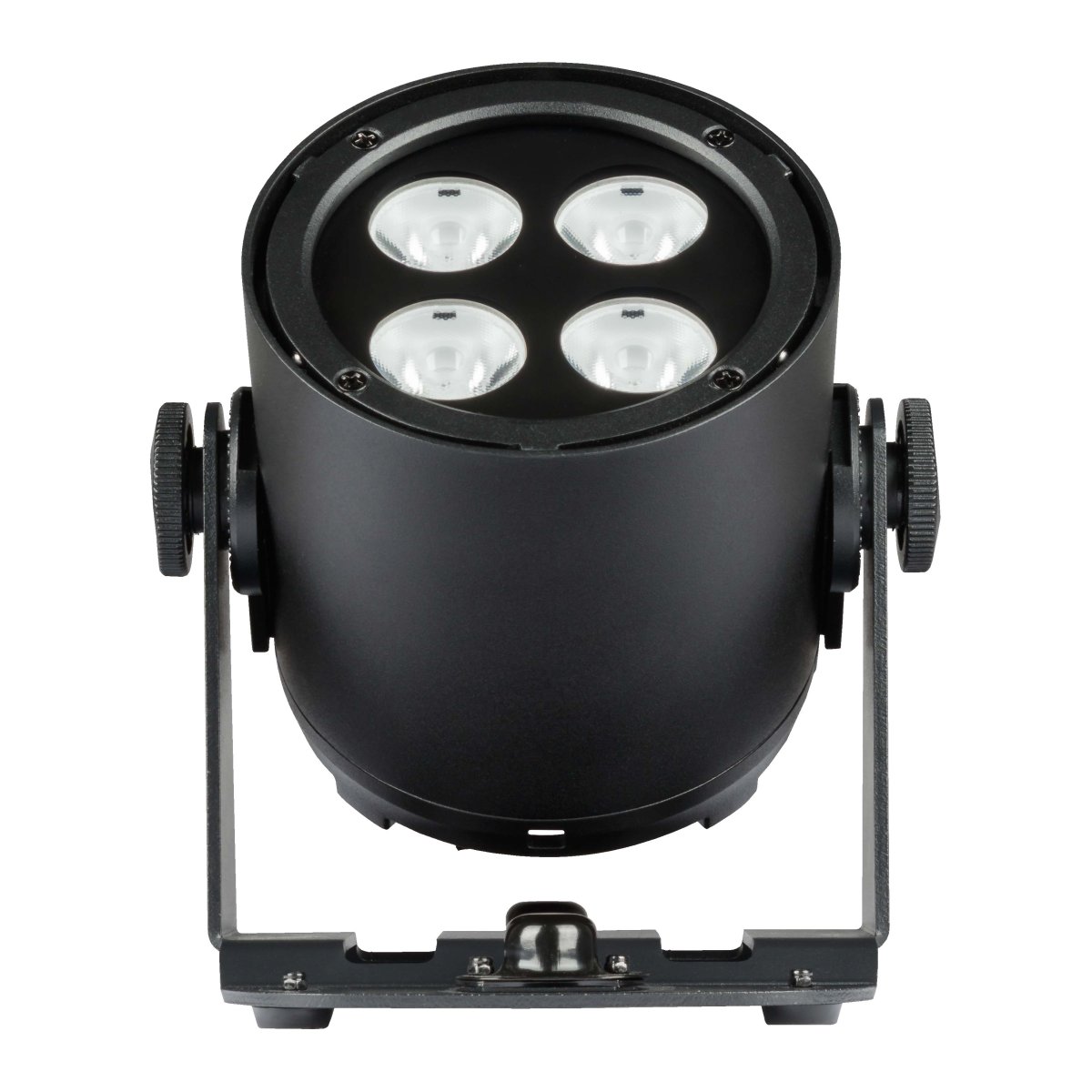

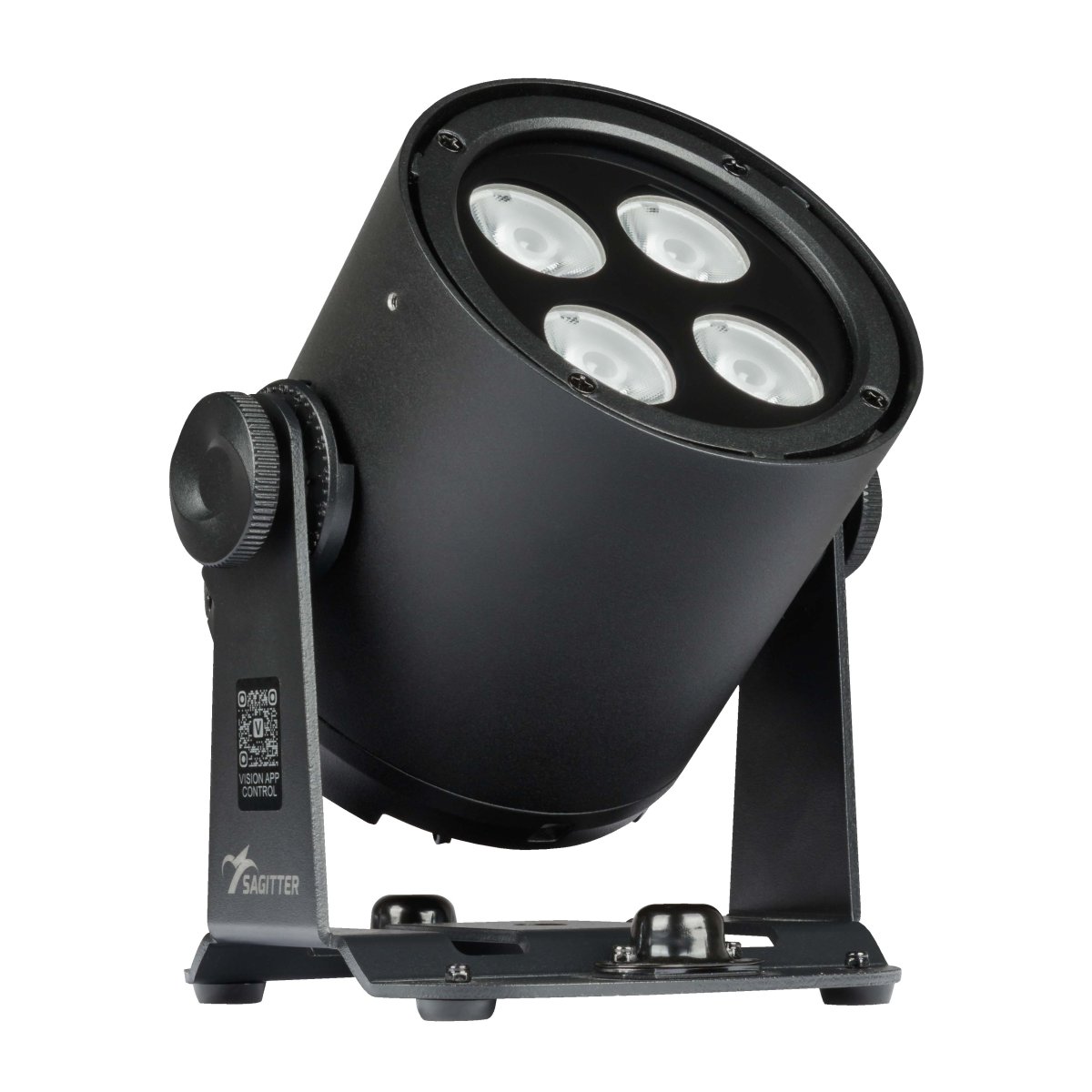

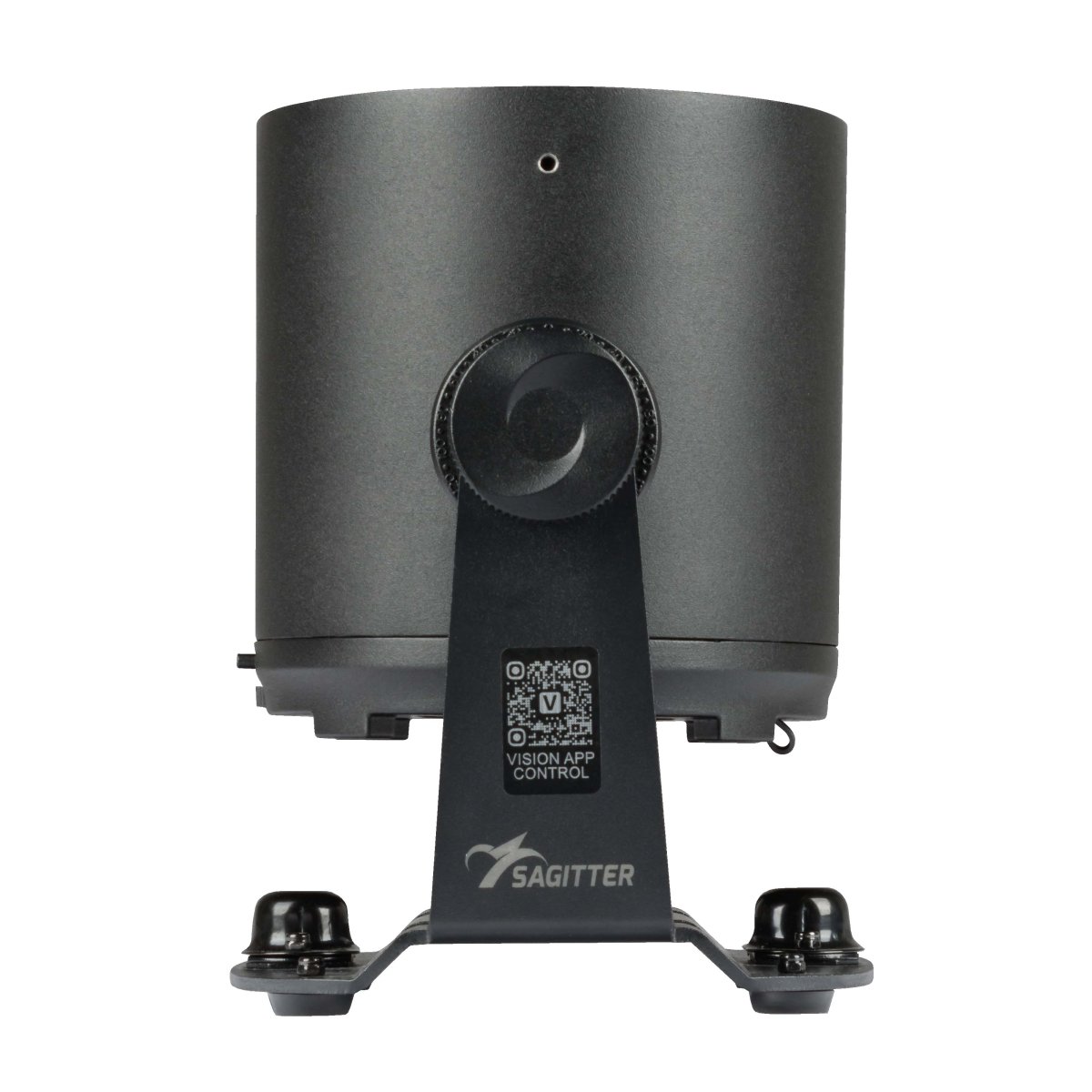

Nomad NANO

4x20W RGBL IP65 battery-powered projector IP65

Description

Nomad Nano is designed to deliver maximum creativefreedom in a compact and elegant form factor. Engineeredfor professional indoor and outdoor applications, itcombines powerful light output, advanced wirelesstechnology, and long-lasting battery operation within arefined and minimalist design.

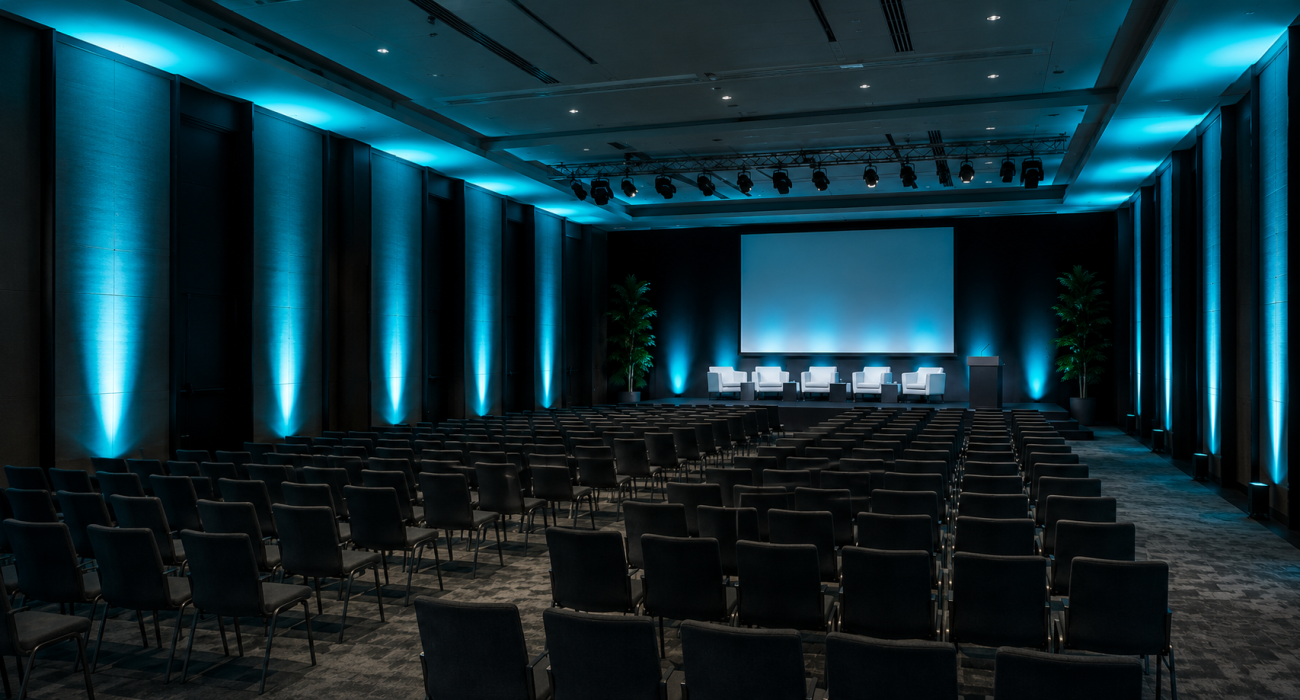

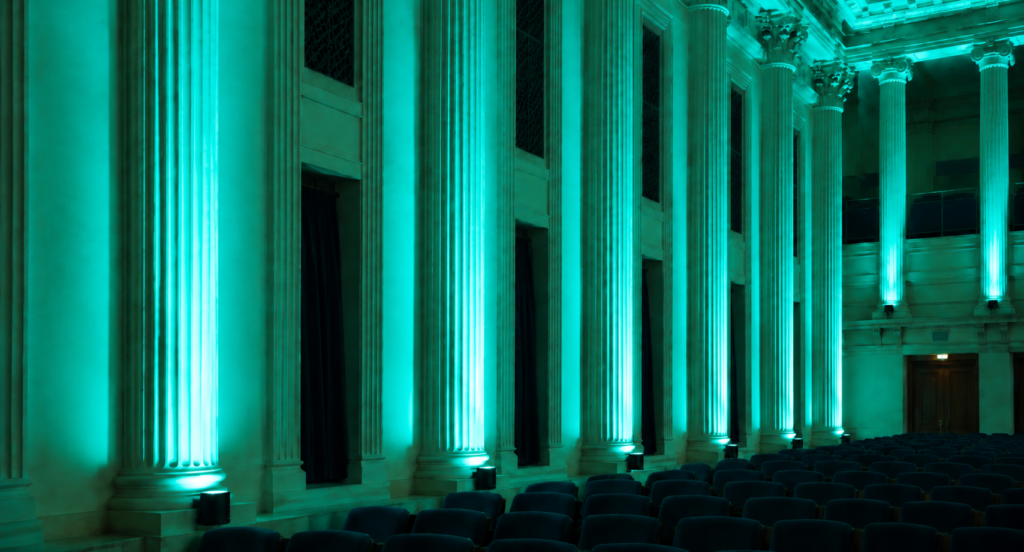

Featuring a high-performance RGBL full-colour lightsource, integrated CRMX wireless control, and an IP65-rated housing, Nomad Nano offers a versatile solution forevents, hospitality venues, architectural installations, andtemporary productions where reliability, fast deployment,and exceptional light quality are essential.

TOOL FREE SYSTEM

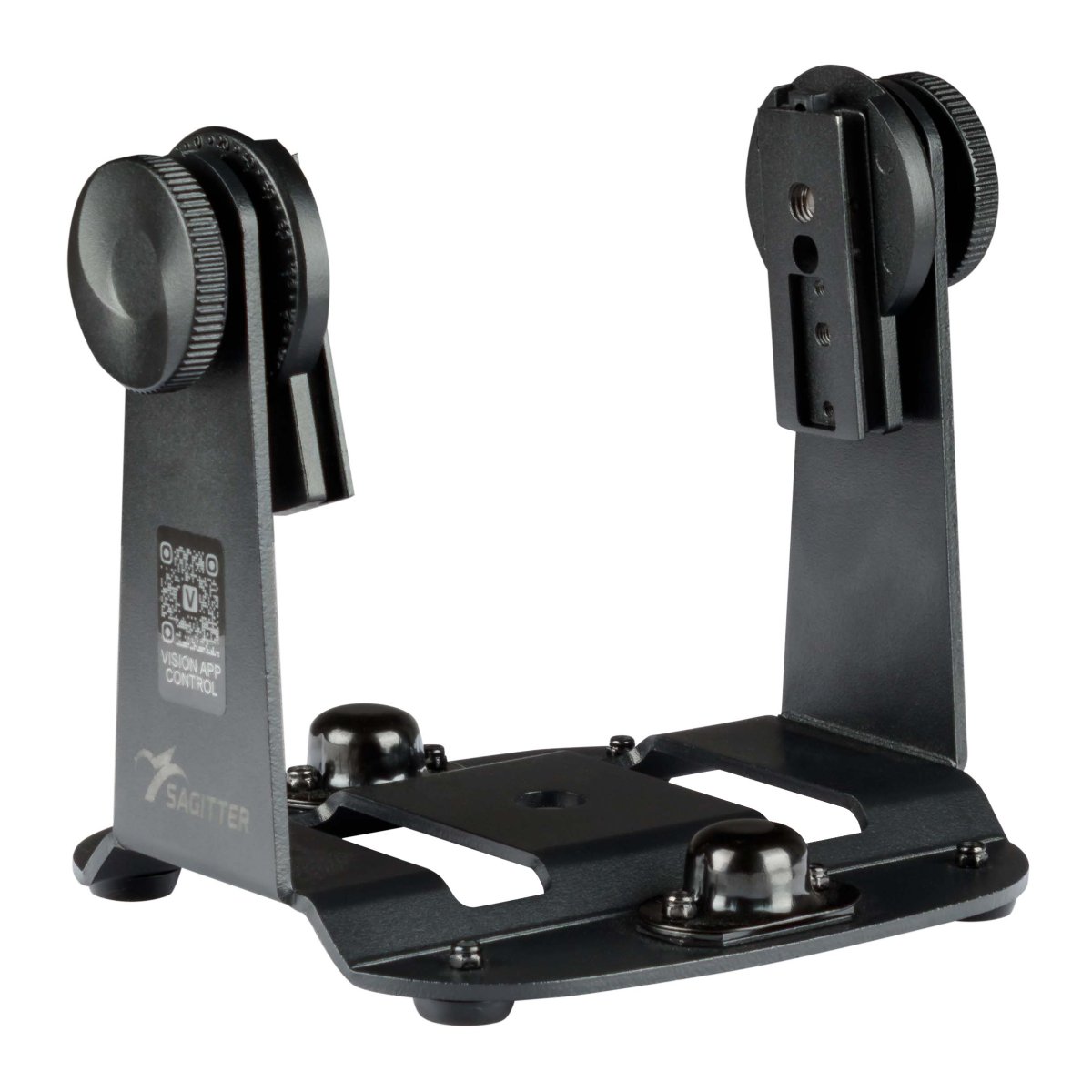

Nomad Nano introduces a new approach to accessory management, designed to simplify setup, reconfiguration, and teardown. Its innovative tool-free quick-lock system allows accessories to be installed or replaced in seconds, without screws, tools, or additional hardware. PAR brackets, pendant bracket, decorative covers, and other accessories can be quickly exchanged, enabling fast adaptation to different applications and event requirements. Designed for productions where speed and flexibility are essential, the system reduces setup time and simplifies on-site operations, giving lighting professionals more freedom to focus on creativity and design.

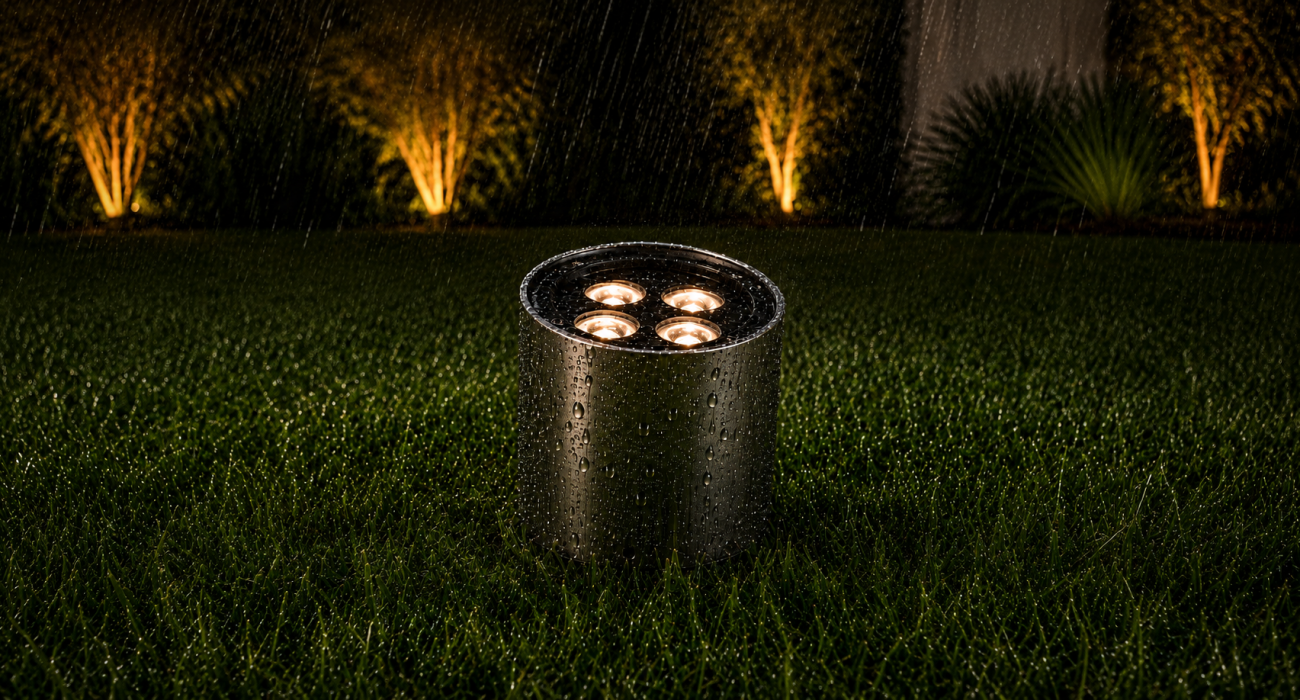

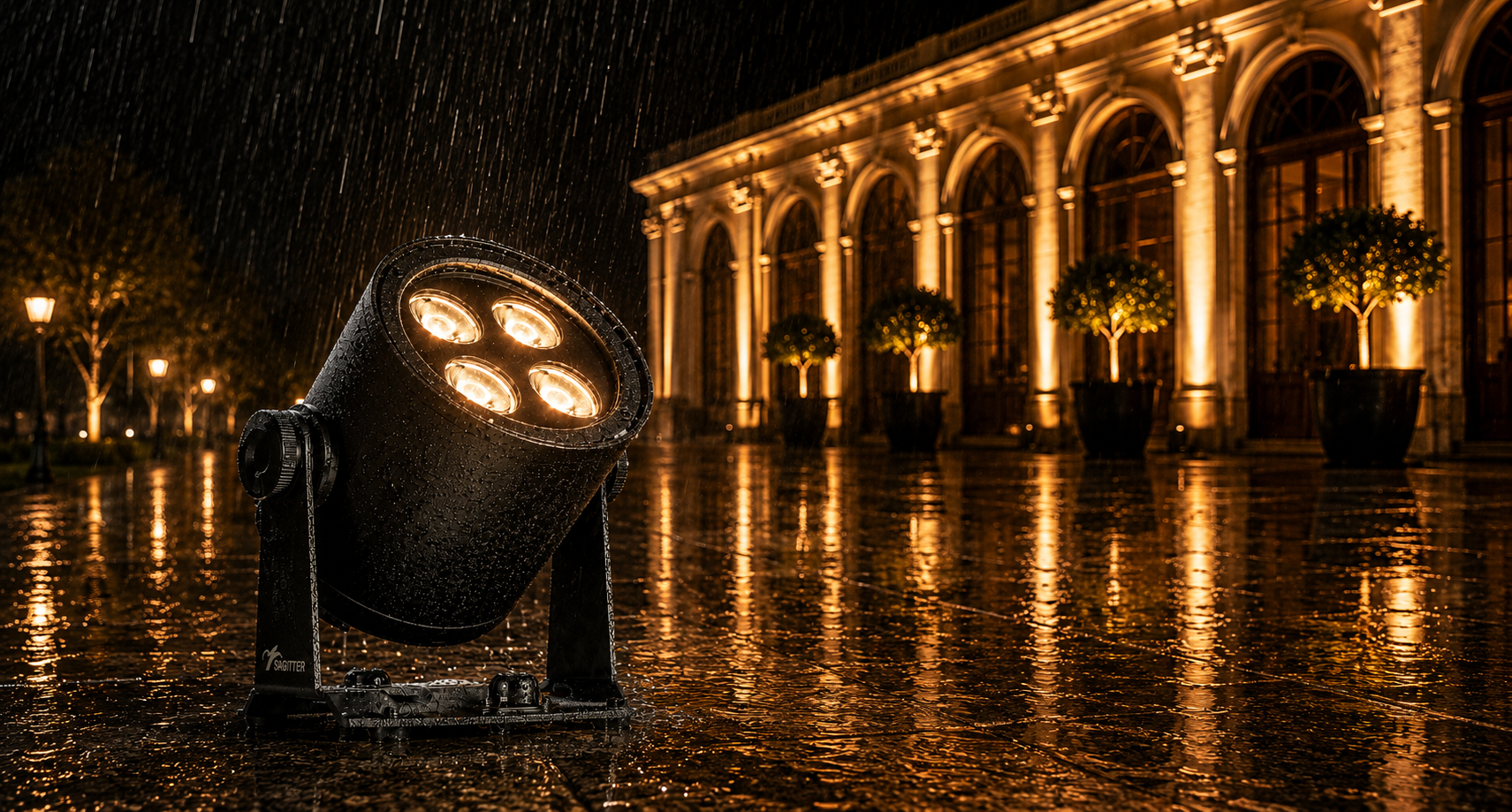

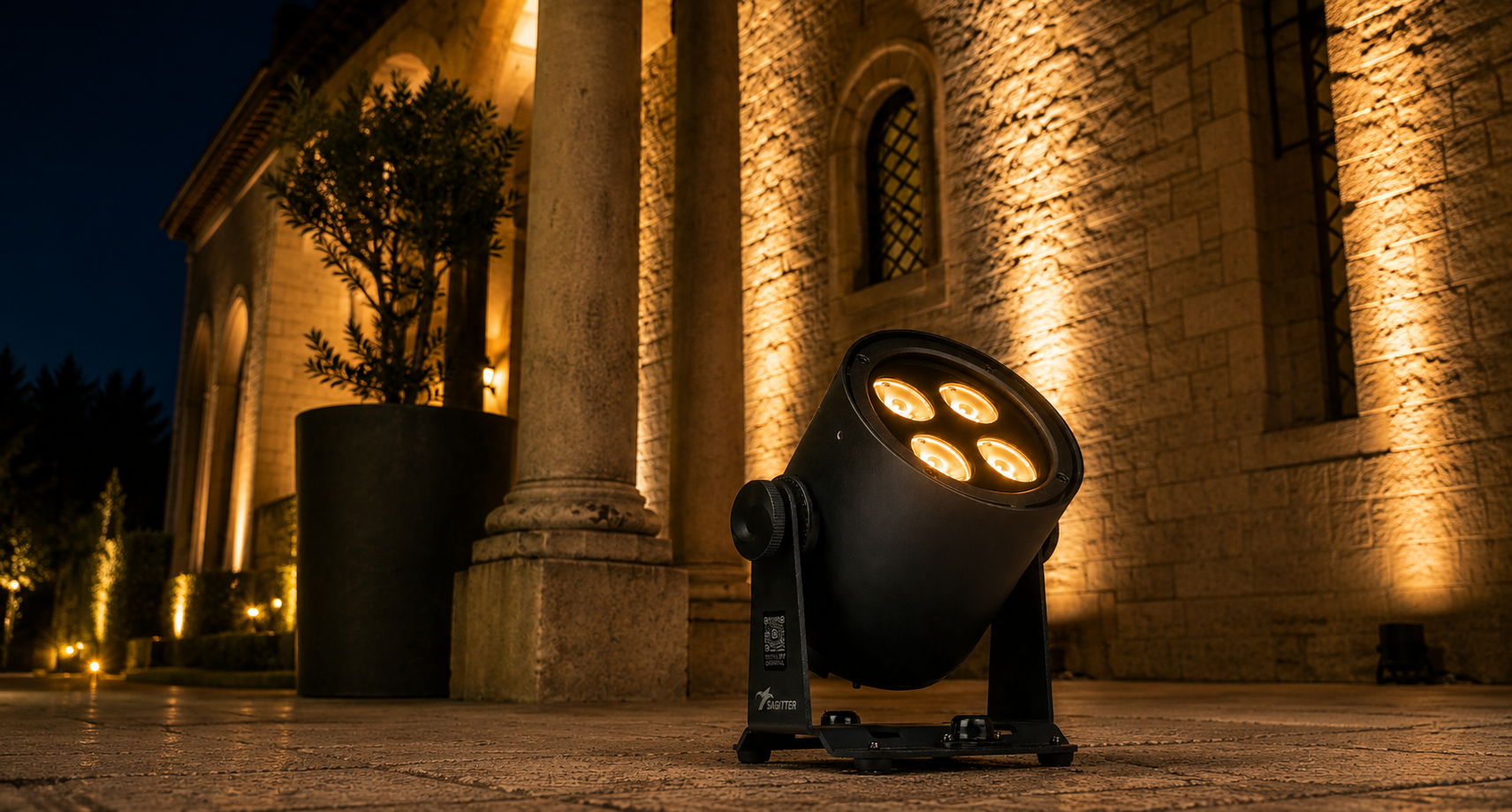

WATERPROOF PROTECTION

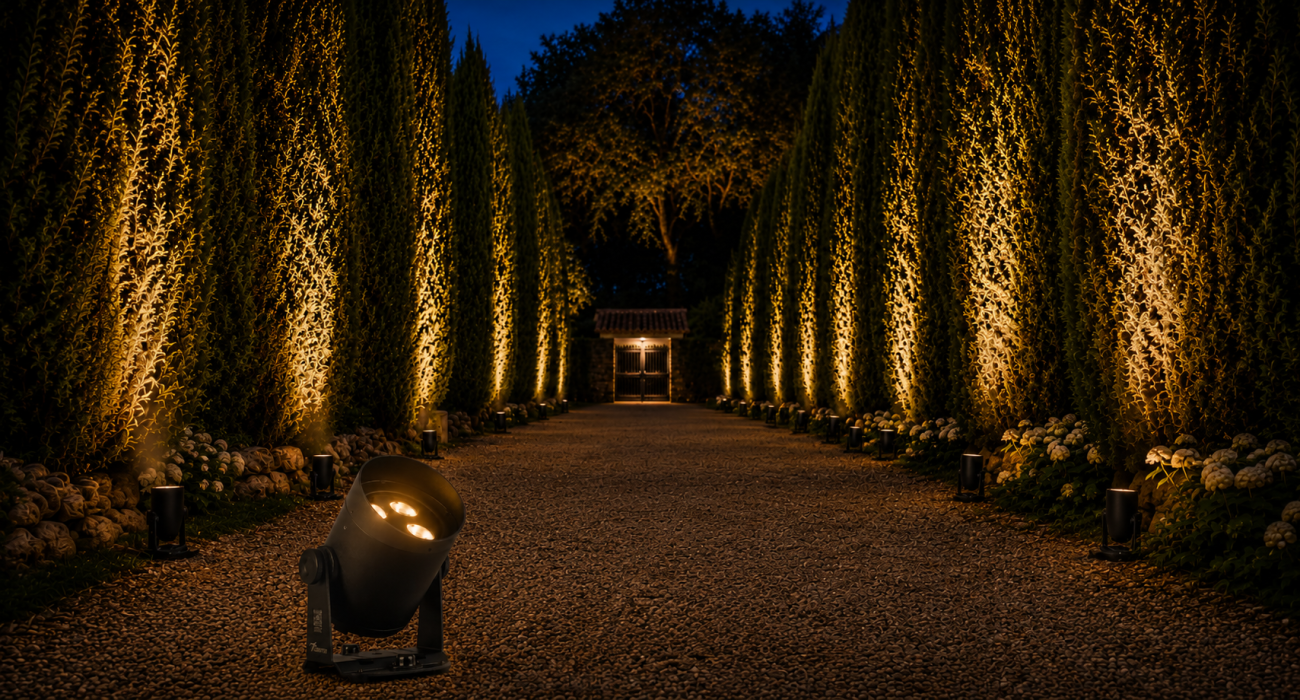

Nomad Nano is engineered with an IP65-rated housing, providing reliable protection against dust, rain, and water splashes from any direction. This weather-resistant design ensures dependable operation in both indoor and outdoor environments, even under challenging conditions

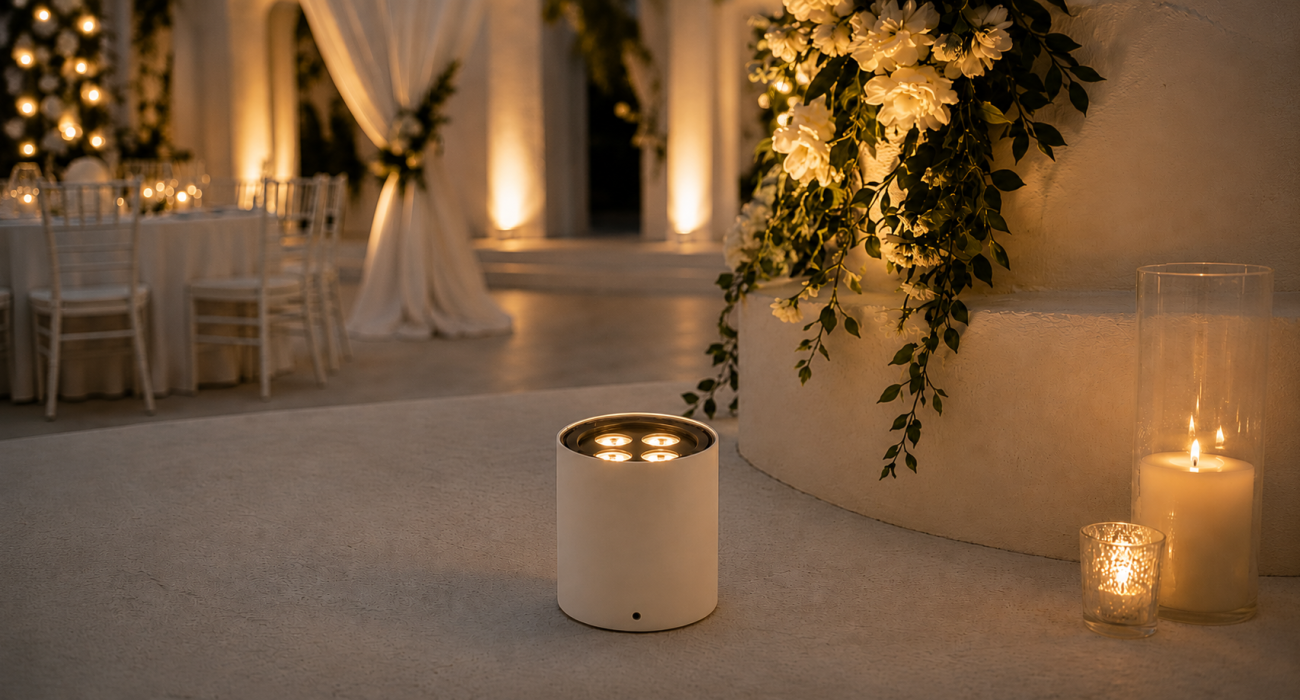

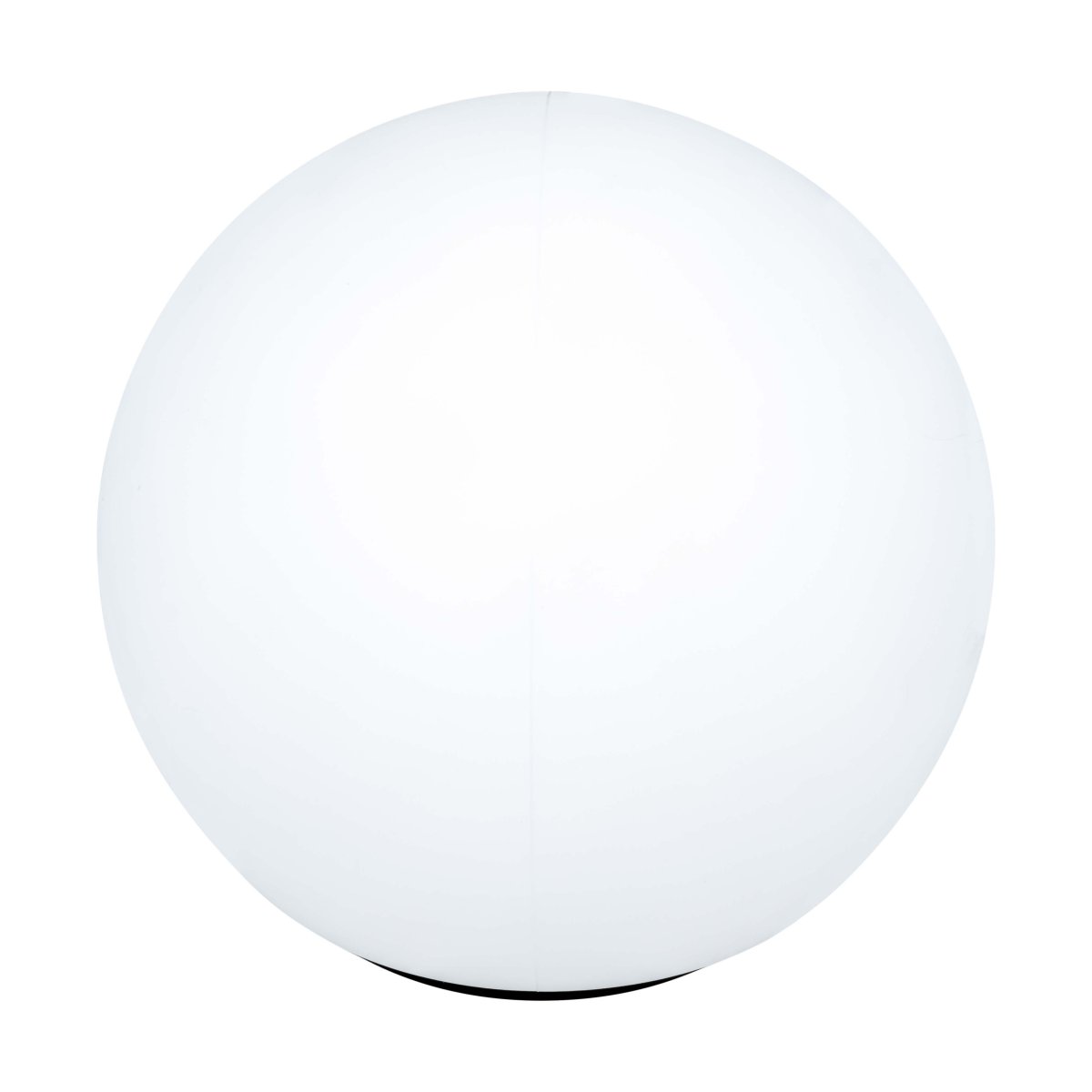

DECORATIVE SPHERE

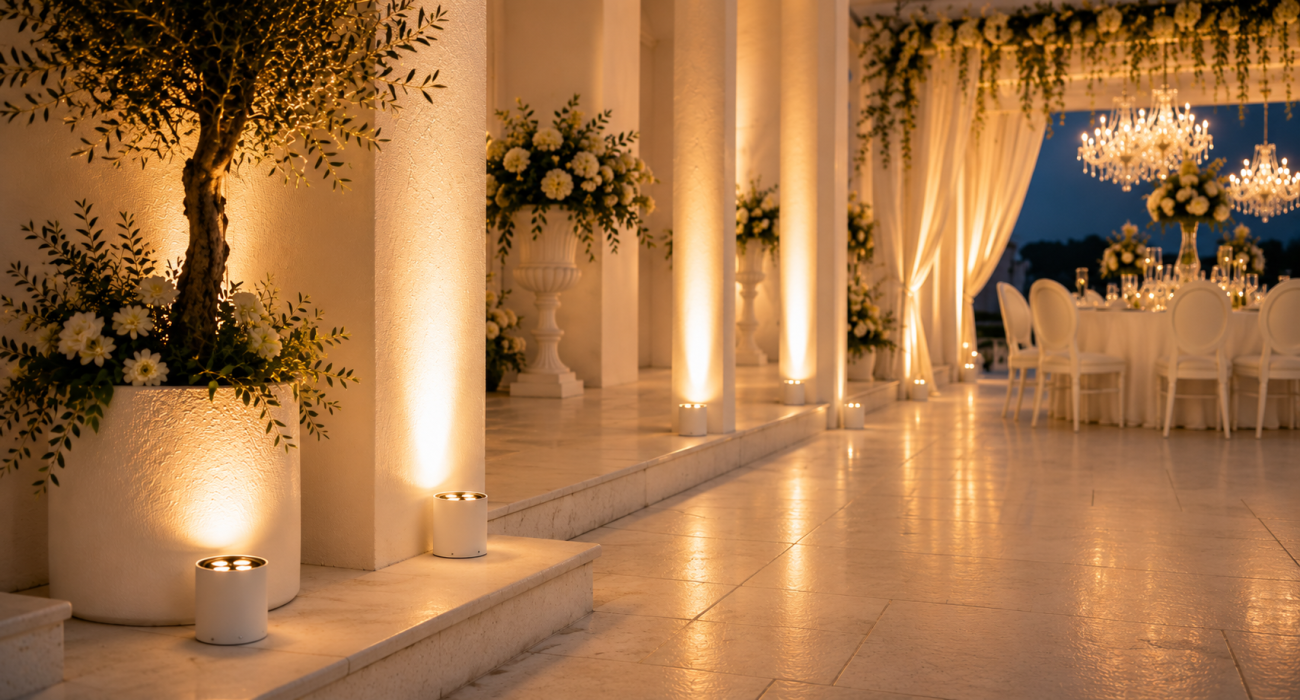

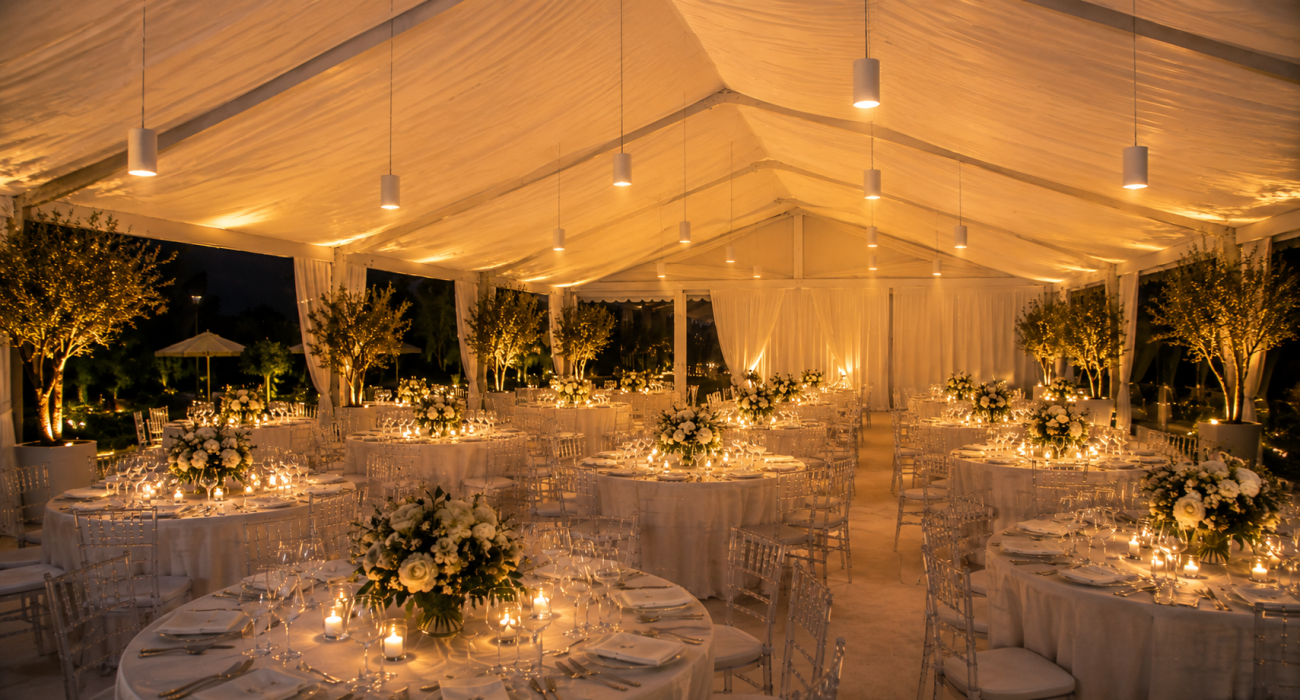

The optional Decorative Sphere transforms Nomad Nano into an elegant decorative lighting element, creating a soft and diffused glow ideal for weddings, hospitality venues, corporate events, and ambient lighting applications. Its spherical diffuser softens the light output, enhancing visual comfort and creating a welcoming atmosphere while preserving the fixture’s wireless flexibility and ease of deployment.

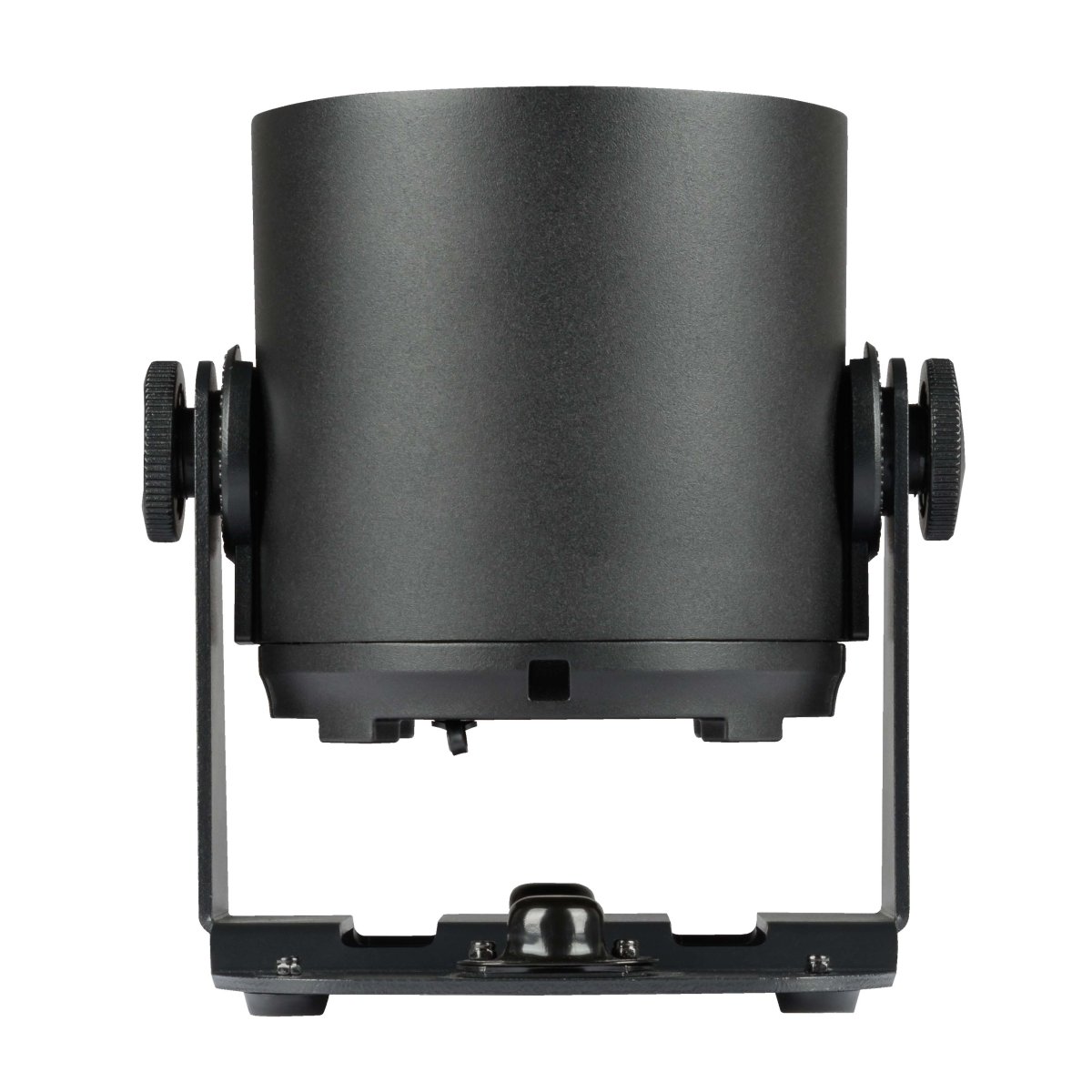

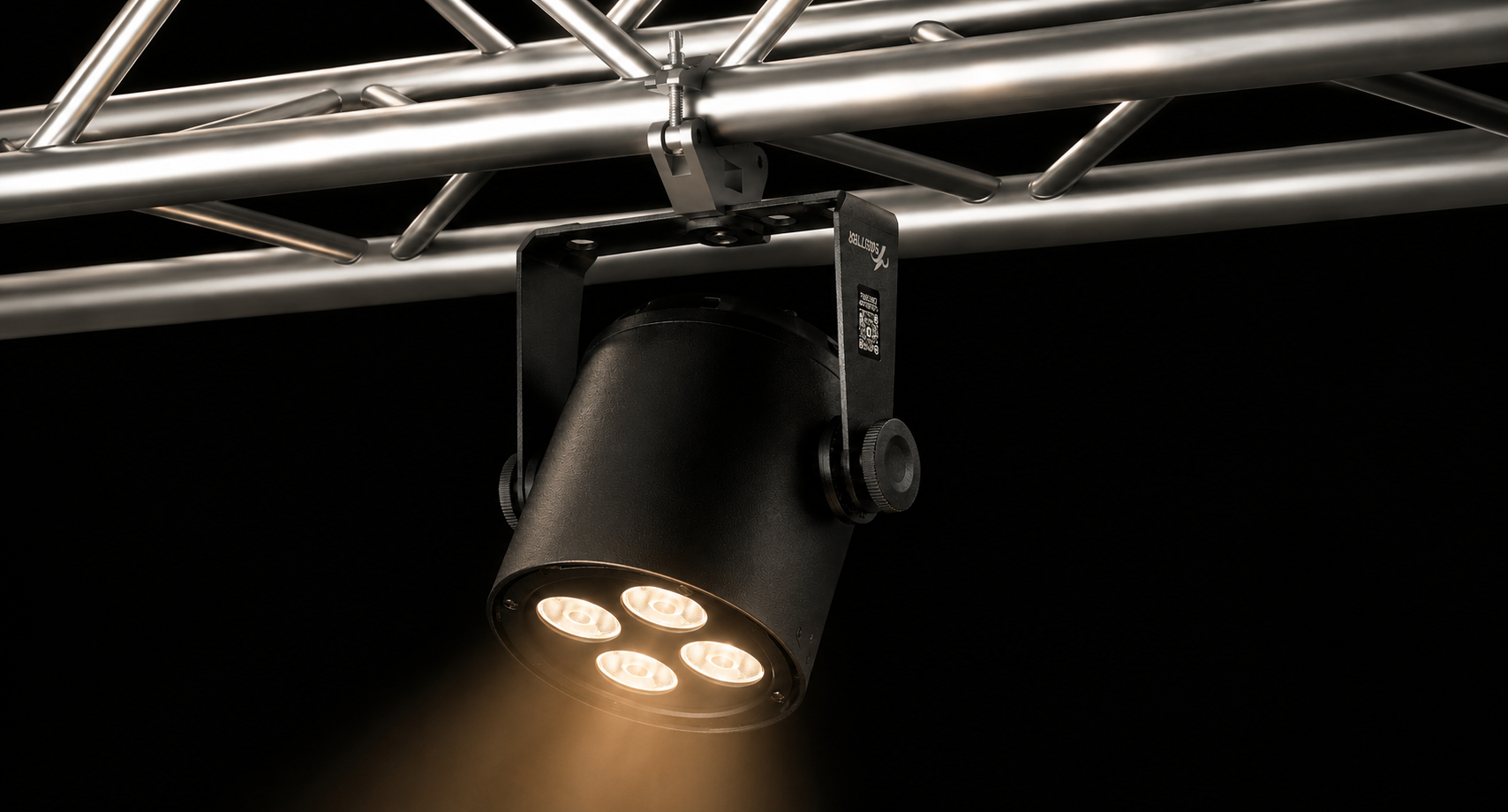

READY TO RIG

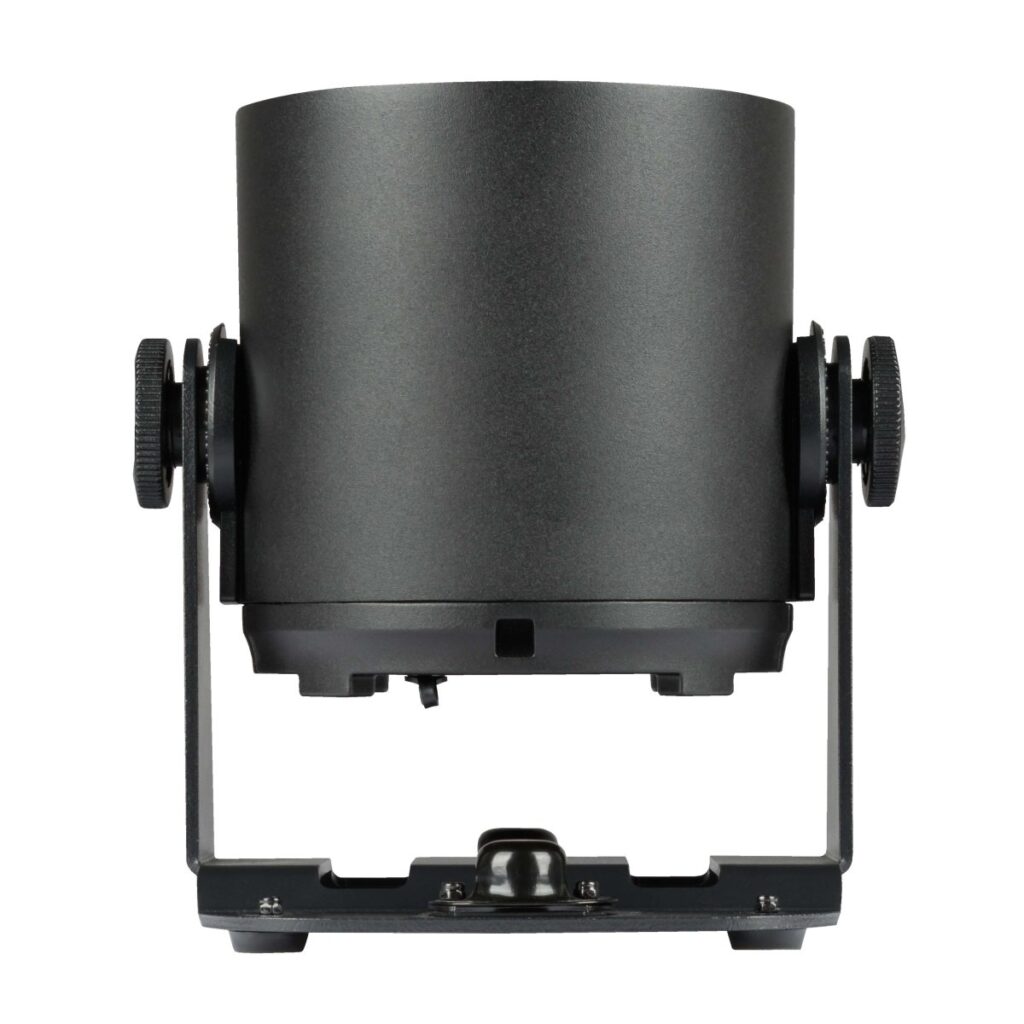

Nomad Nano is supplied with a standard Omega bracket, allowing quick and secure mounting on trusses, structures, and overhead installations. Combined with its compact design and integrated battery, it can be positioned exactly where needed without the constraints of power cabling, enabling clean and efficient lighting setups.

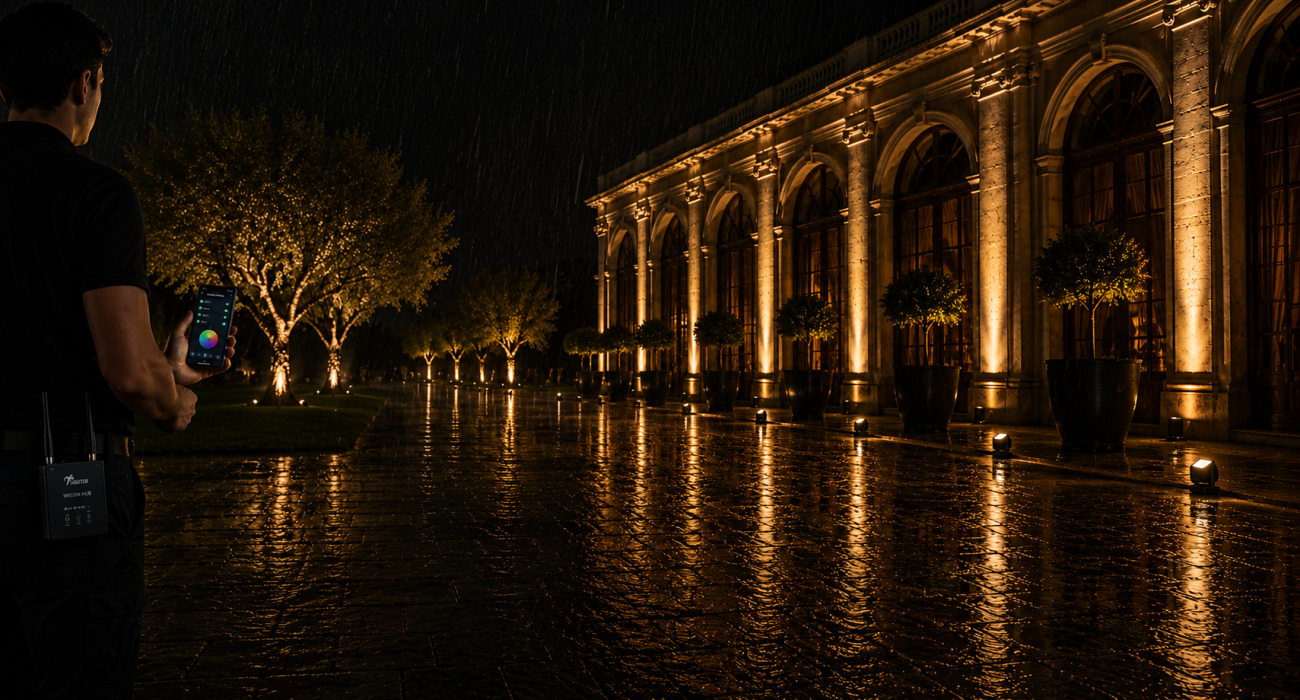

CONTROL & CONNECTIVITY

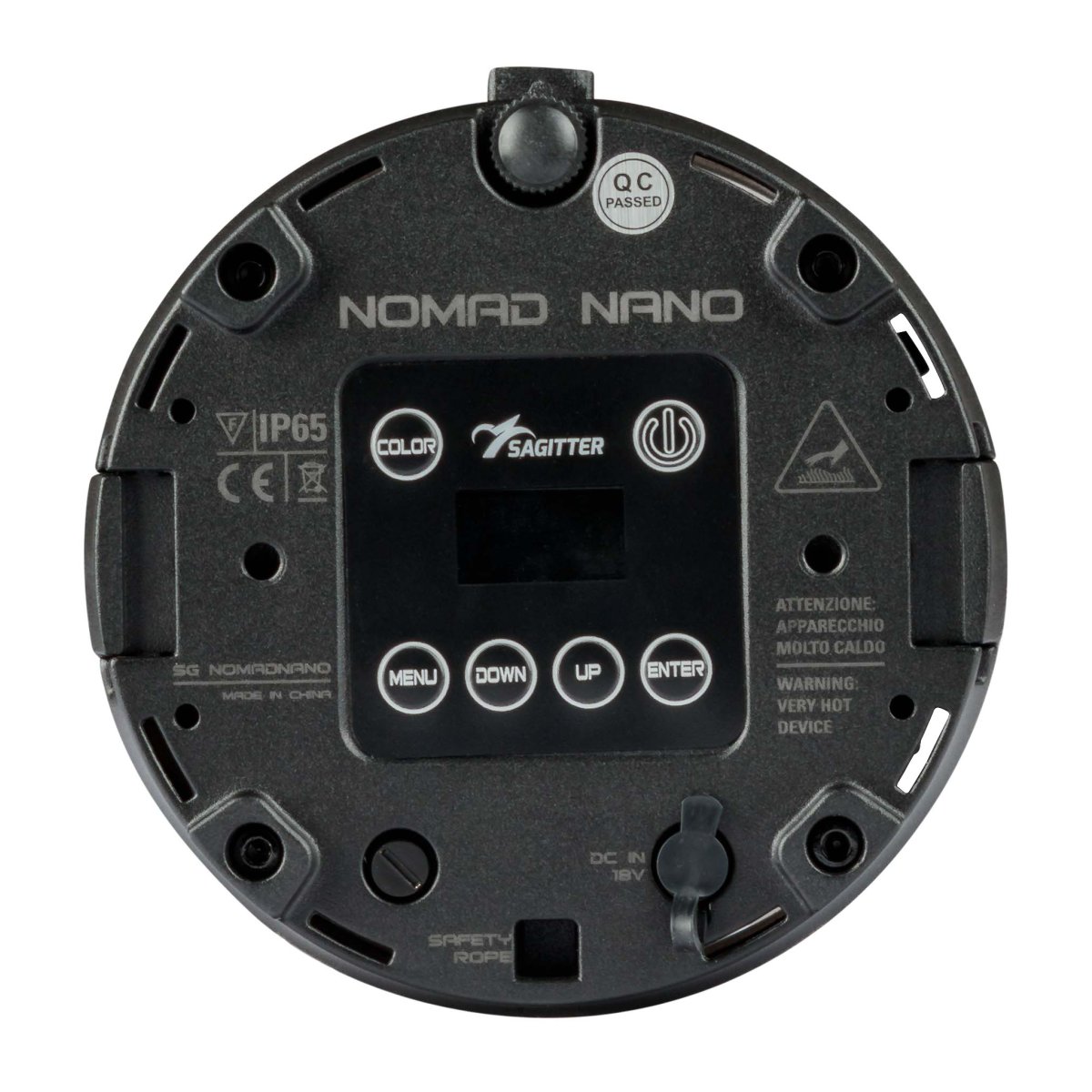

Nomad Nano can be controlled via CRMX by LumenRadio and BLE-based Vision Control technology, providing flexible control options for professional lighting applications. Fully integrated into the Vision Control ecosystem, the fixture can be controlled, monitored, and configured directly from a smartphone or tablet. Its intuitive interface makes it easyto create scenes, effects, groups, and custom programs while managing Nomad Nano alongside other compatible Sagitter fixtures through a single platform. An integrated NFC antenna, positioned on the upper section of the fixture near the LED sources, provides quick access to settings with a simple tap. Users can configure the DMX address and channel mode or use the progressive patching assistant to automatically assign sequential DMX addresses to multiple fixtures, simplifying system setup

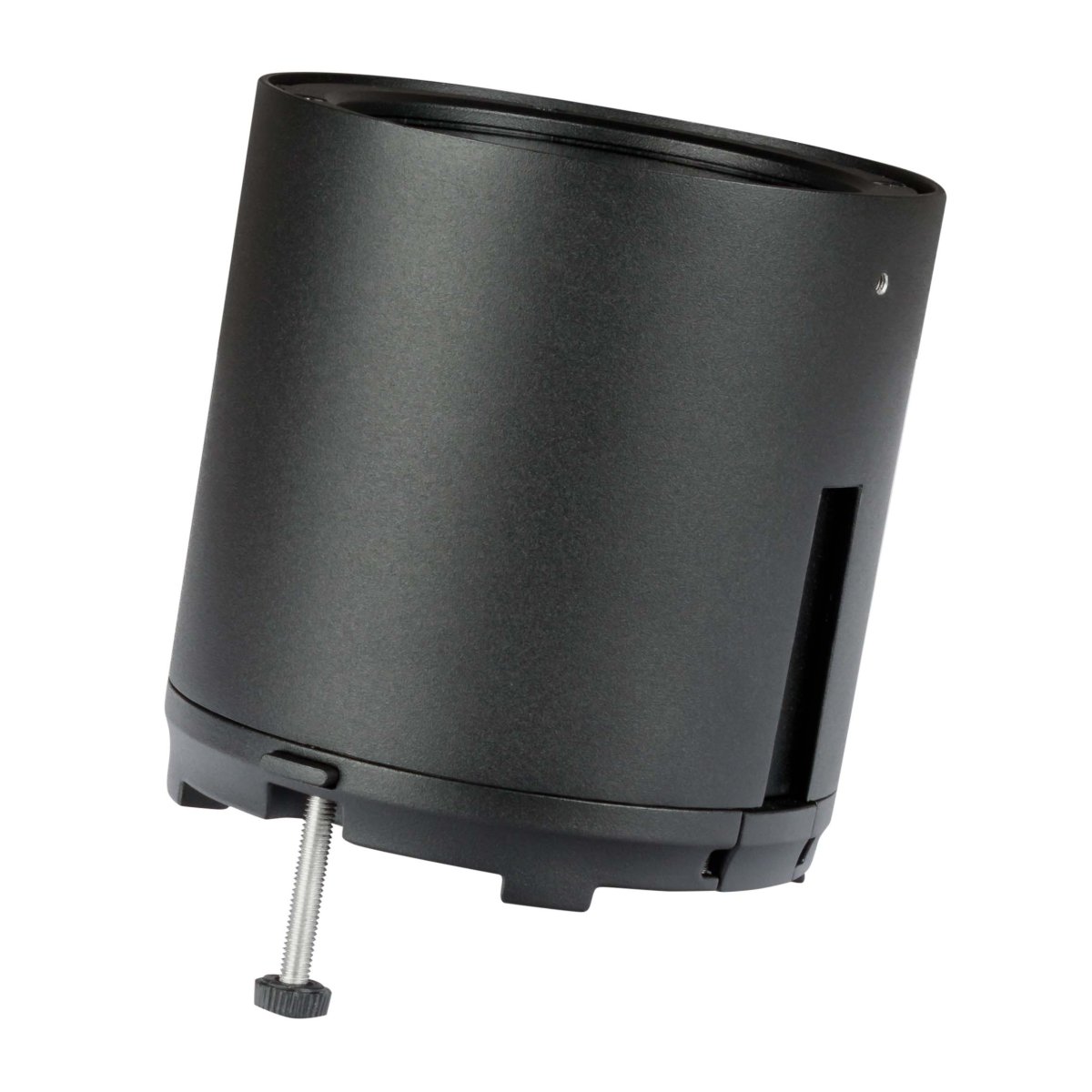

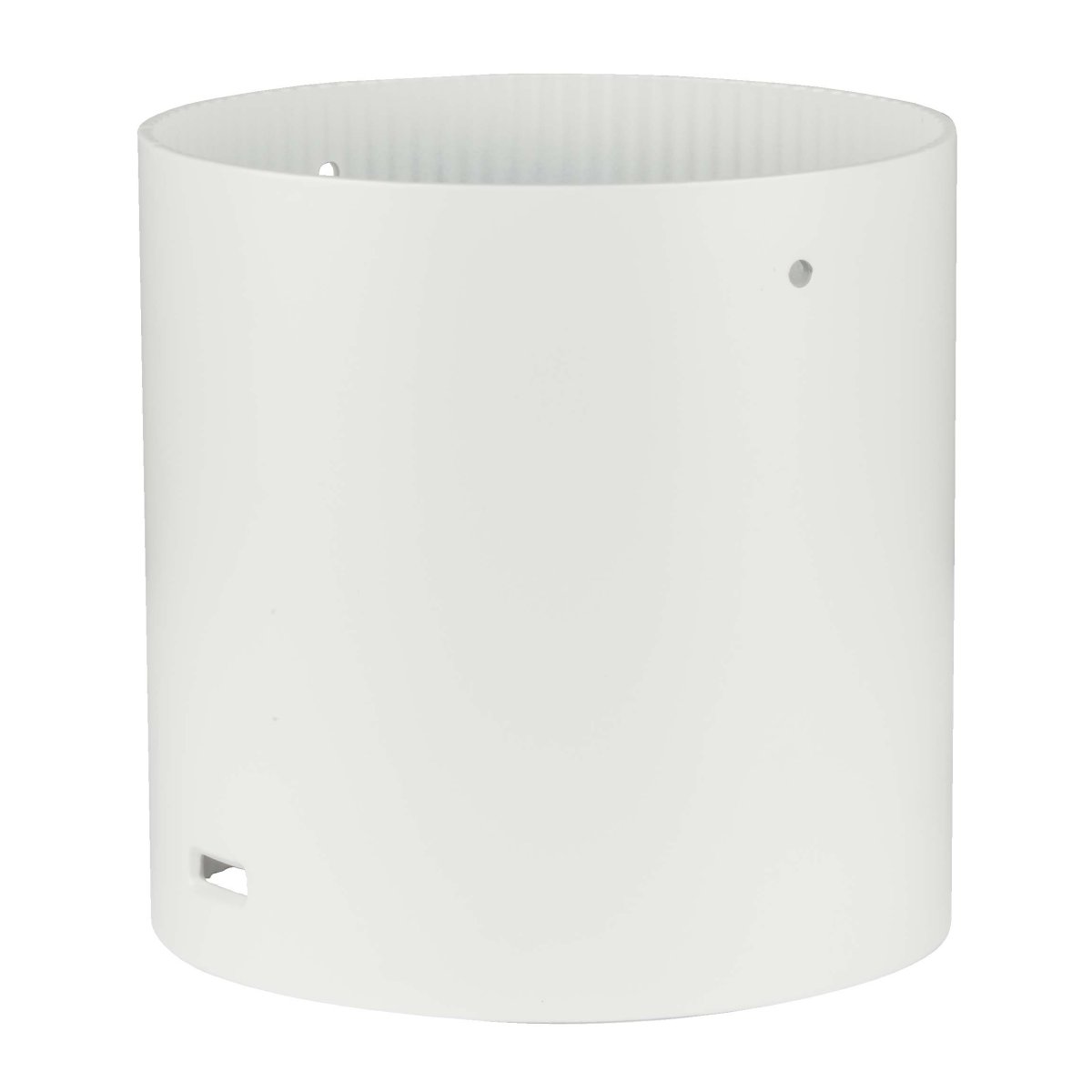

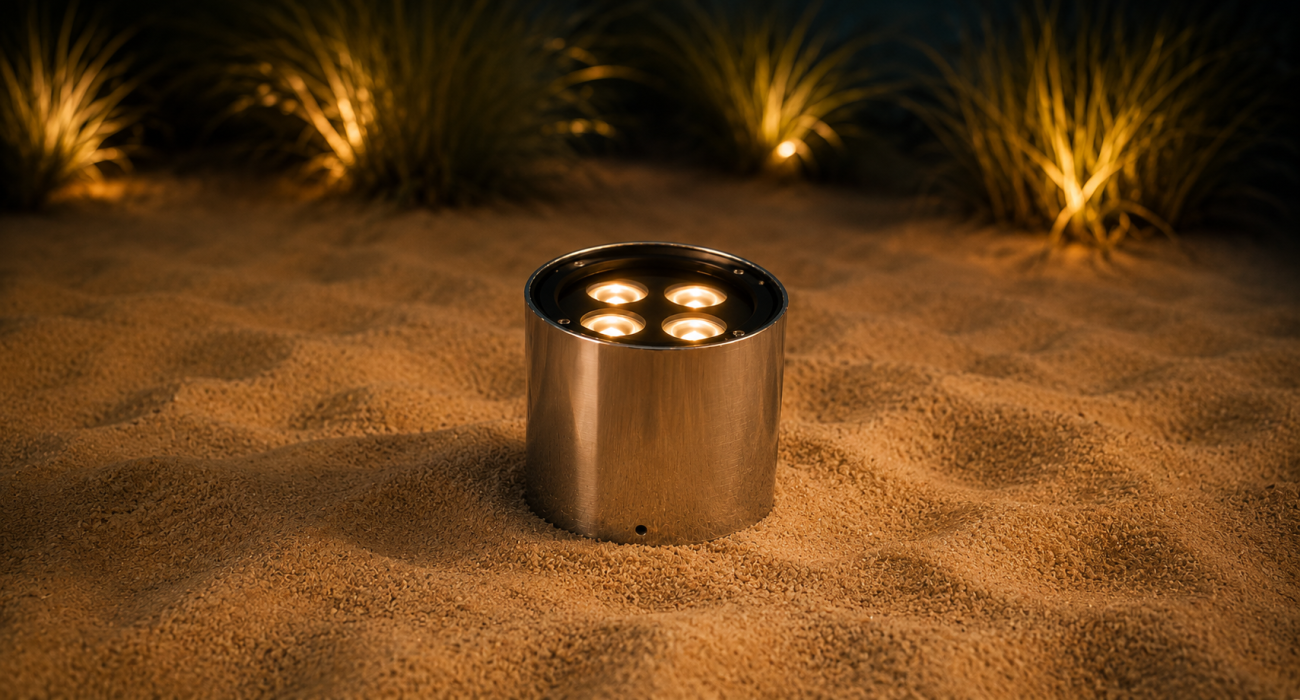

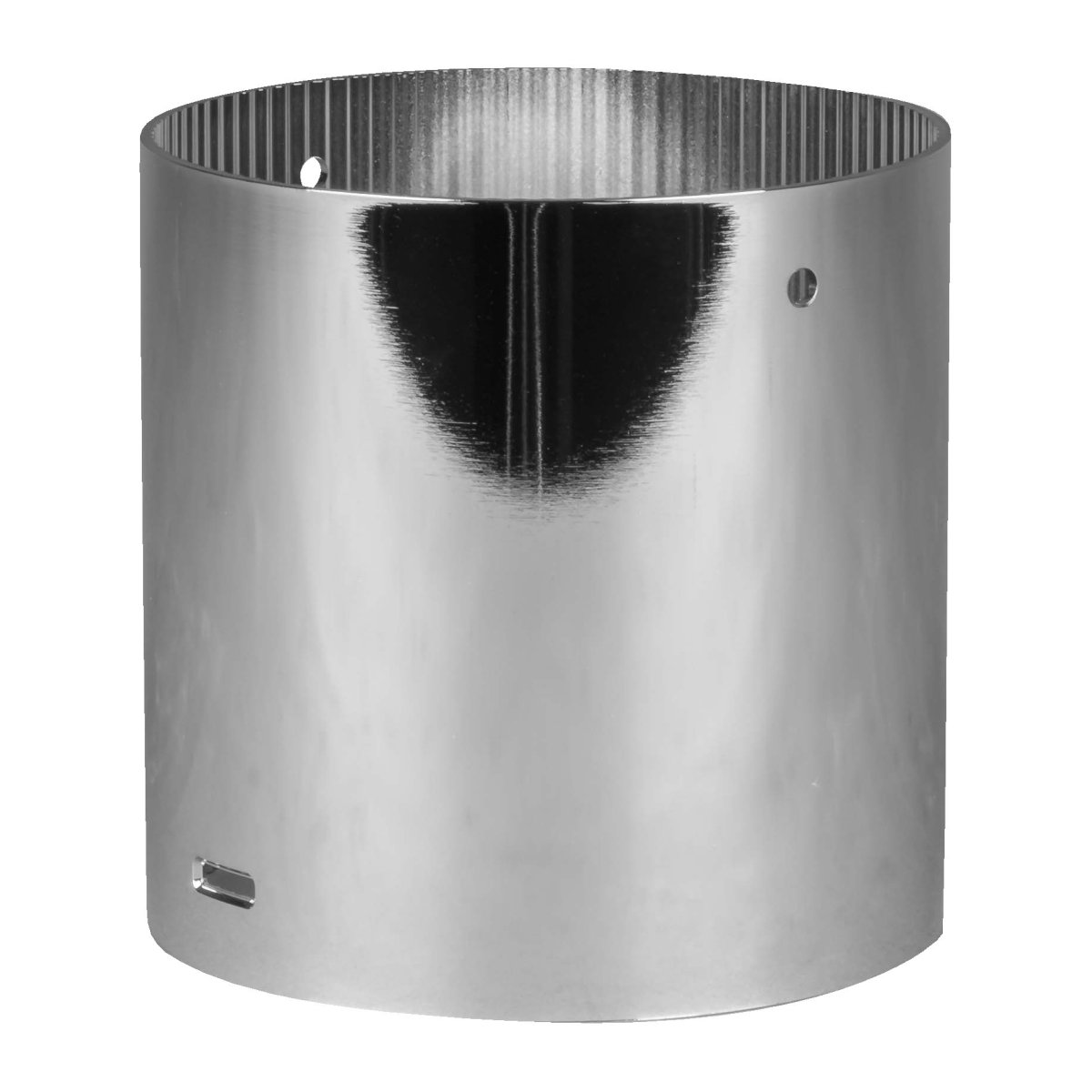

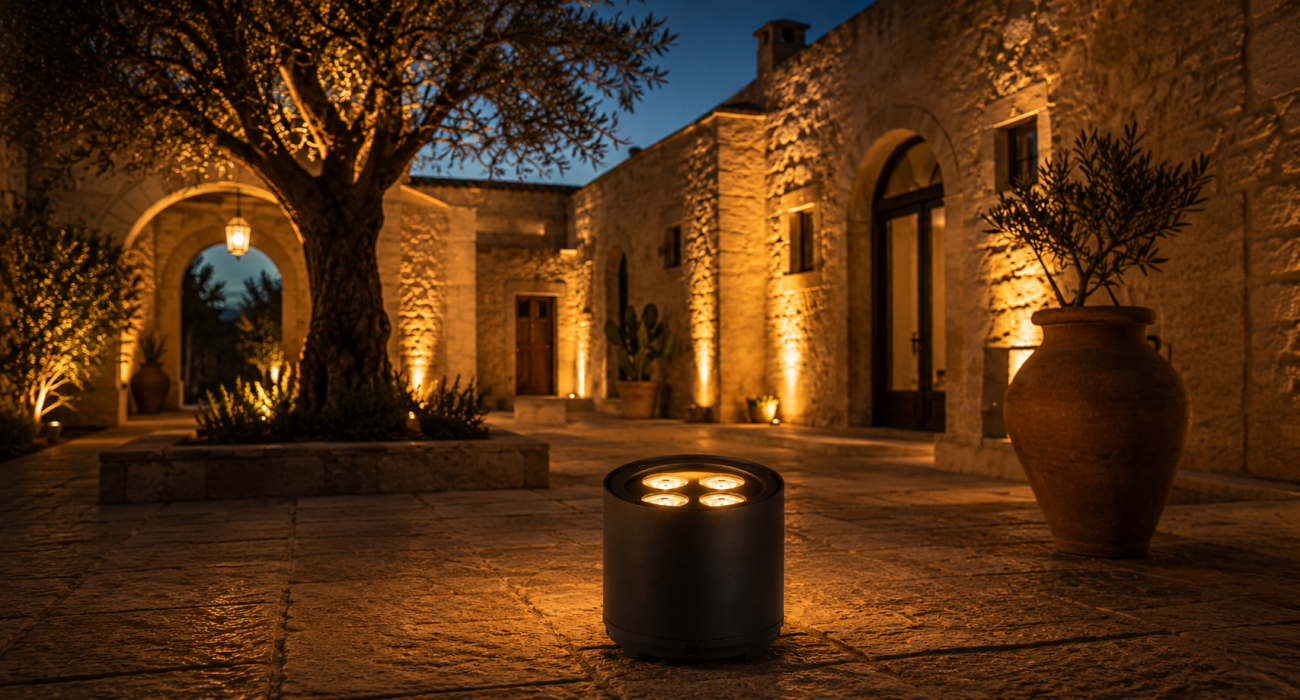

DECORATIVE COVERS

In professional lighting applications, fixtures should enhance the environment without becoming the centre of attention. For this reason, Nomad Nano has been developed alongside a range of dedicated decorative covers designed to blend seamlessly into the surrounding space, reducing the fixture’s visual impact and improving its integration within any architectural or event setting. Manufactured entirely from aluminium to ensure lightweight construction, durability, and quick installation.

SG NOMADNANO

Technical Specifications

Light source	4x20W led RGBL – Full Color LED lifespan: > 50.000h LED refresh frequency: > 600Hz to 15 KHz flicker-free
Optic system	Beam Angle: 12° Illuminance: 1985 lux @ 5m (full on)
Color system	RGBL Full color
Effects	Linear dimmer 0-100% Red Shift function for an authentic tungsten dim-to-warm effect
Control and programming	5 DMX configurations available: 2/3/4/5/11 channels Keypad lock password for display lock USITT DMX 512 protocol Integrated CRMX wireless DMX receiver Control via Vision Control APP Near Field Control (NFC) Electronic strobe, pulse, random Static color mode Auto mode with 15 programs CCT presets with 11 macros Linear CTC from 2,500 K to 10,000 K Virtual color wheel with 50 colors 4 dimming curves: Linear, Square, Inv-Square, S-Curve 4 dimming speeds Power management system Emergency light function

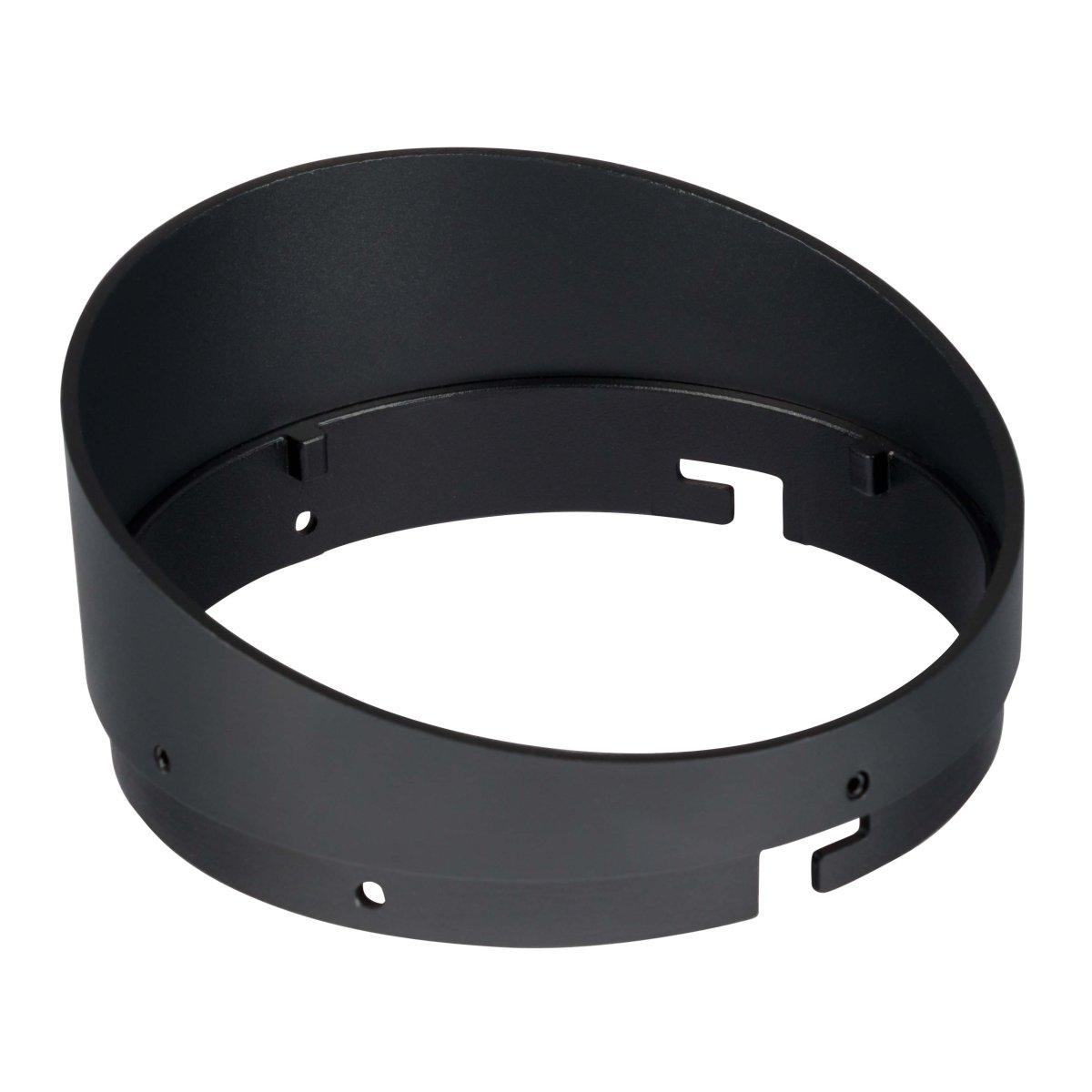

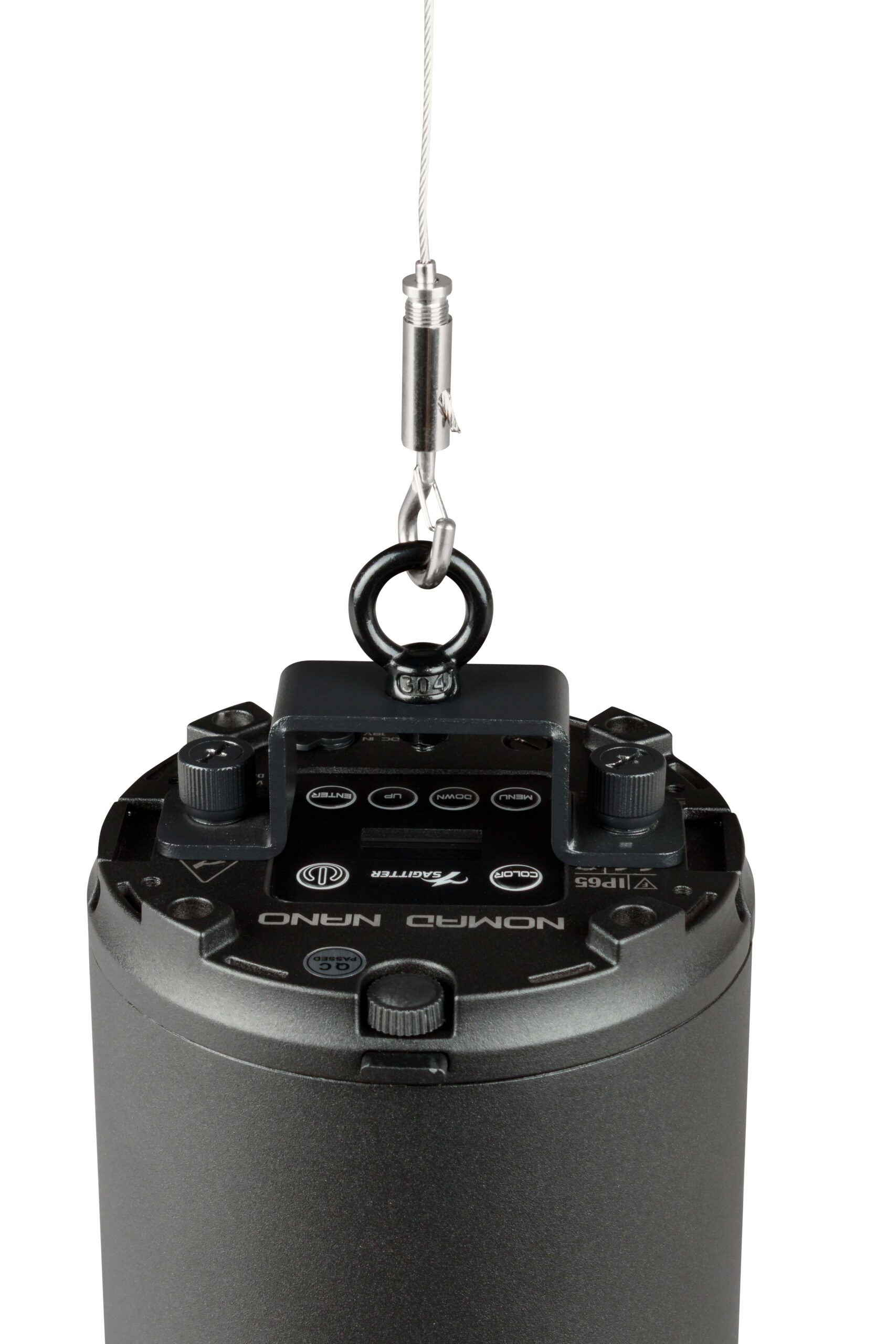

Structure and cabinet	High resistance 6063 die cast aluminum housing Graphic LCD color display Front tempered glass “Light up” positioning with adjustable angle IP65 rating Magnetic frost filters: Soft Diffusion Filter and Elliptical Diffusion Filter 60° × 10°(included) Par bracket with Fast Lock system (included) Pendant bracket (included) Antiglare ring (included) Mounting points: 2 pairs of 1/4-turn locks omega bracket
Power supply	Input Voltage: 18 VDC for standard use and battery recharge Rechargeable internal Li-Ion battery: 14,8VDC – 10,5Ah Runtime battery: ~ 4h:00m (full ON – Boost power mode) Runtime battery: ~ 9h:00m (Color change – Boost power mode) Charging cycle: ~ 6 hrs (Projector turned off) Power adapter 18 VDC – 5A included
Weight and dimensions	Net weight: 2,4 kg (accessories included) Dimensions: 195hx130Ø mm
