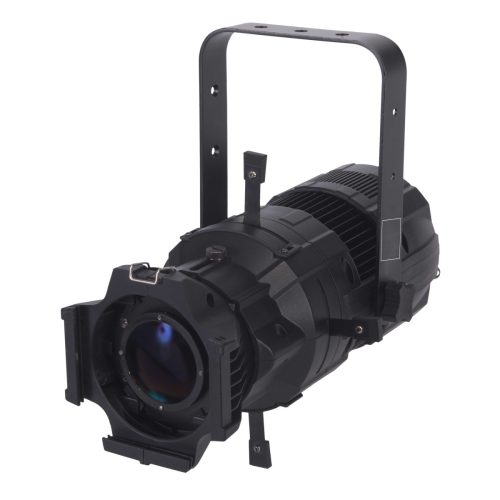

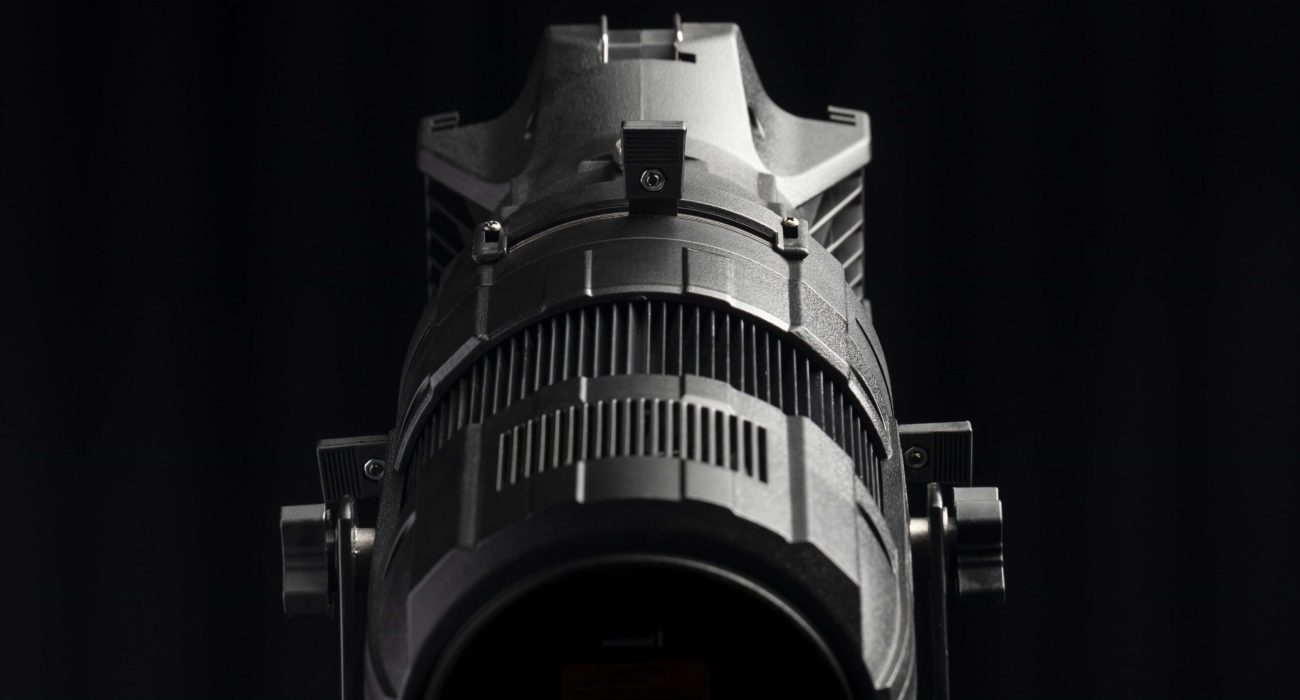

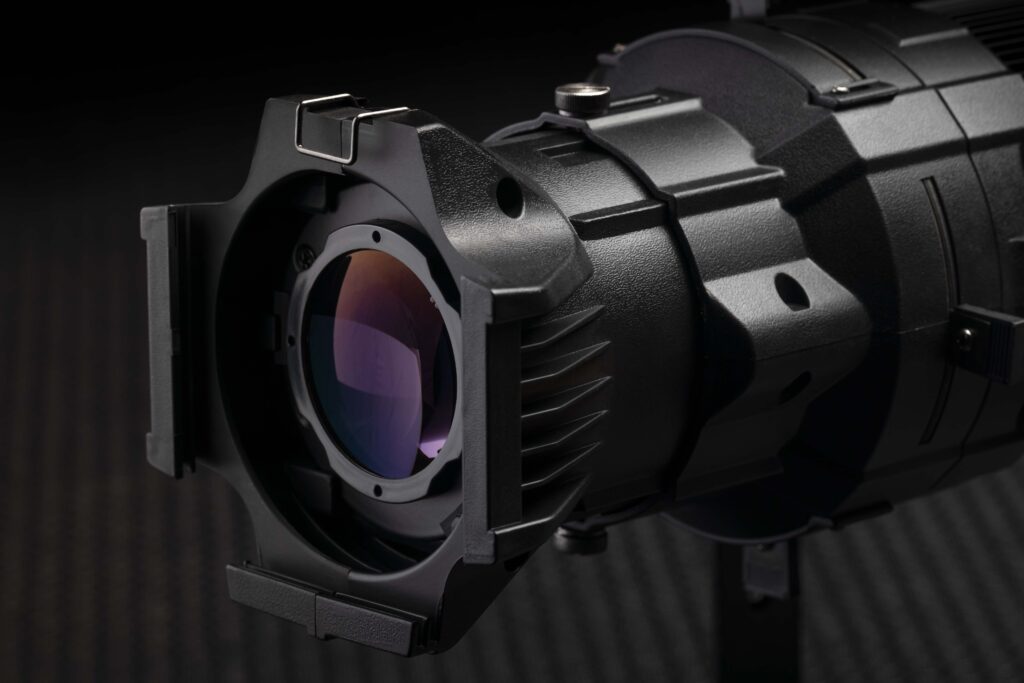

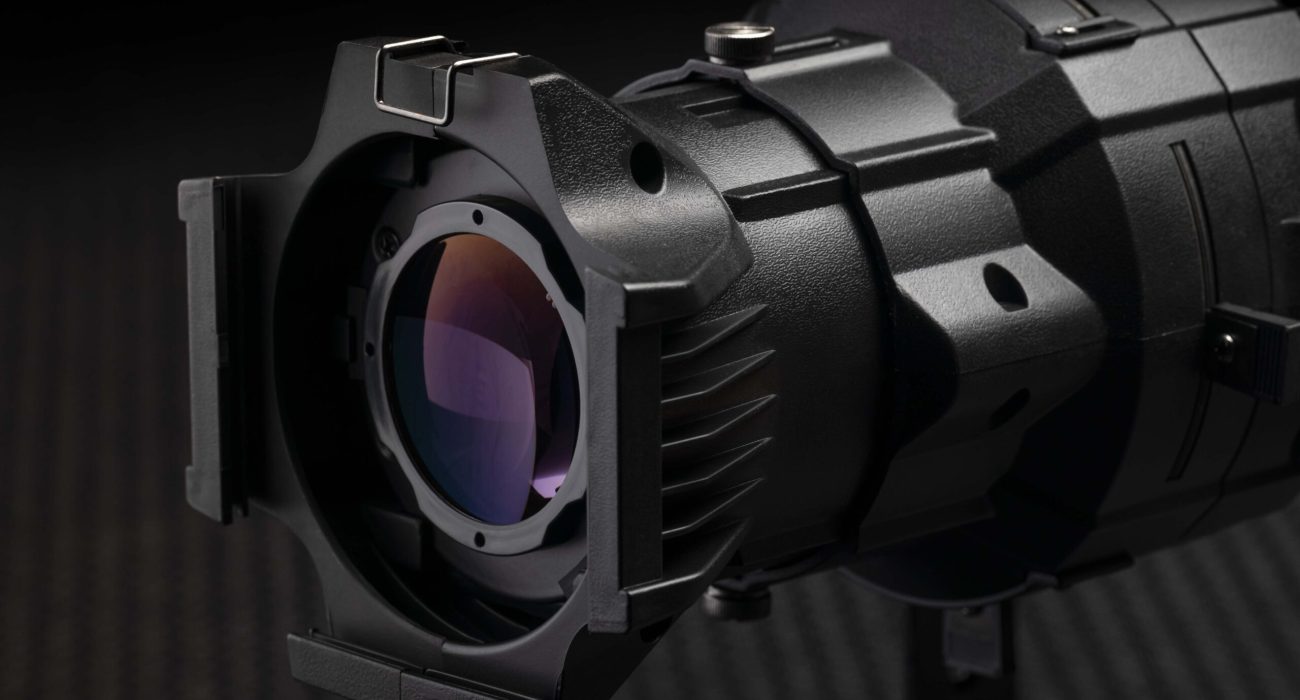

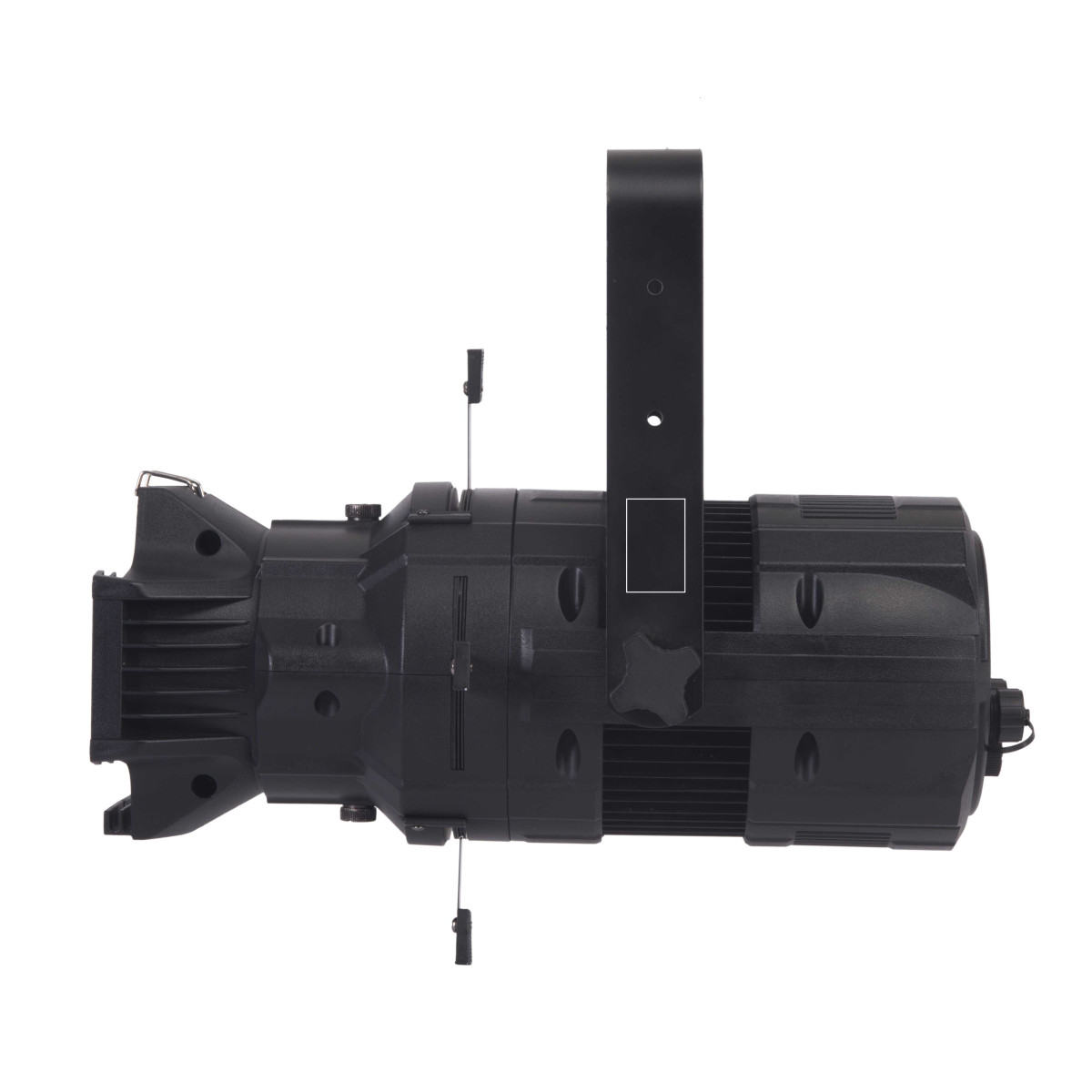

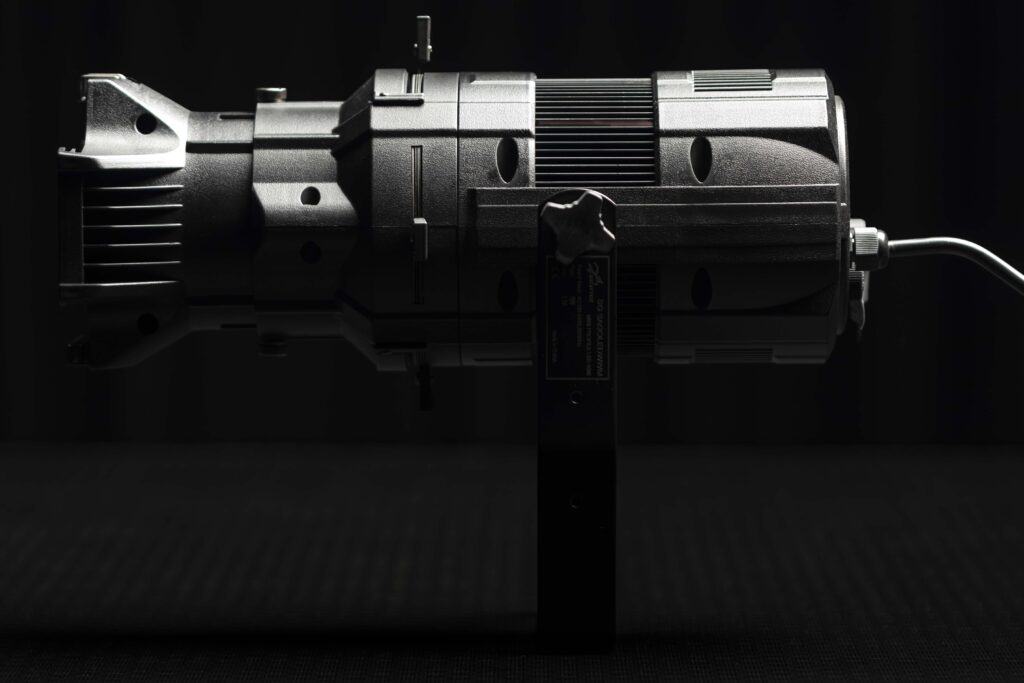

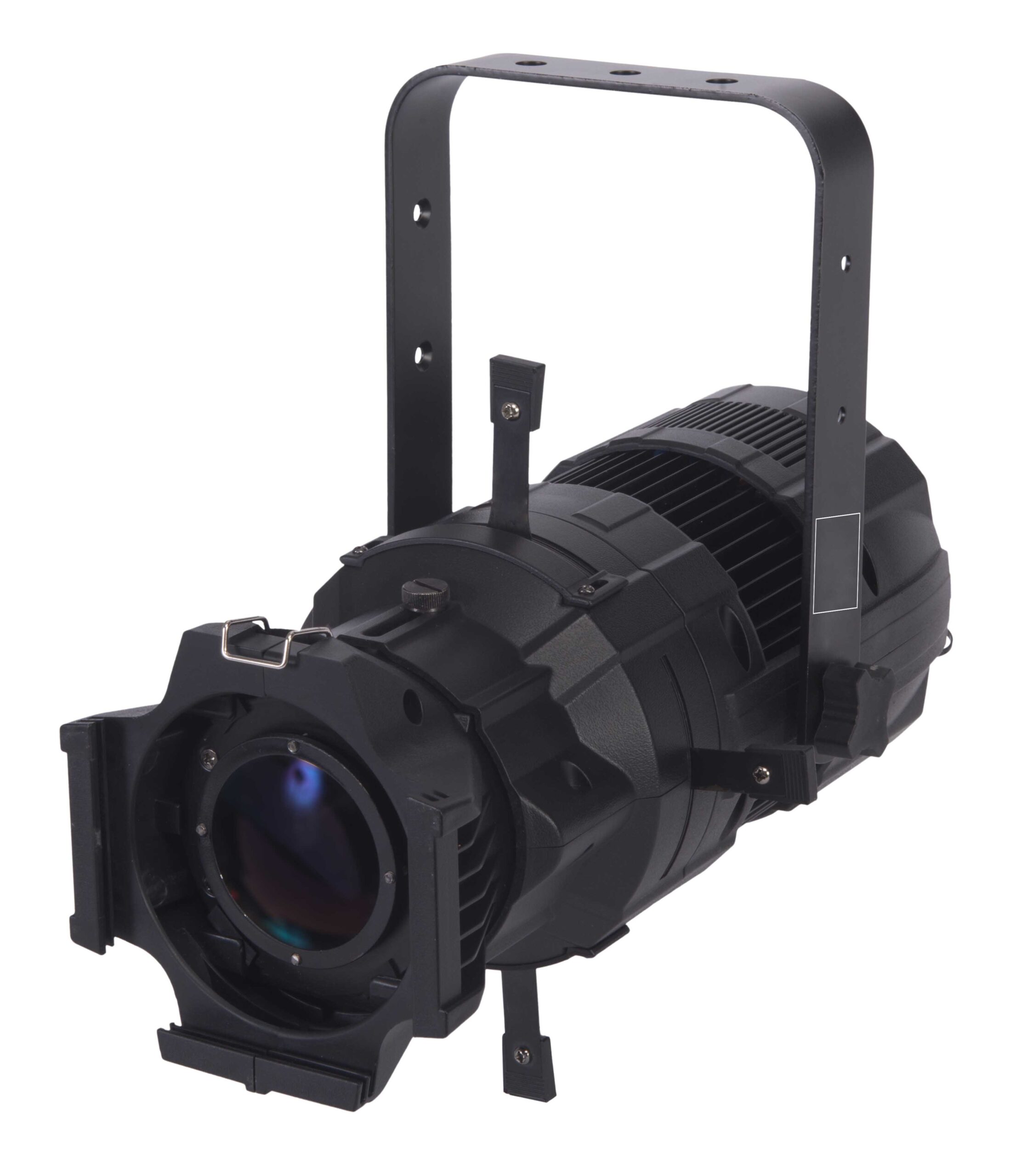

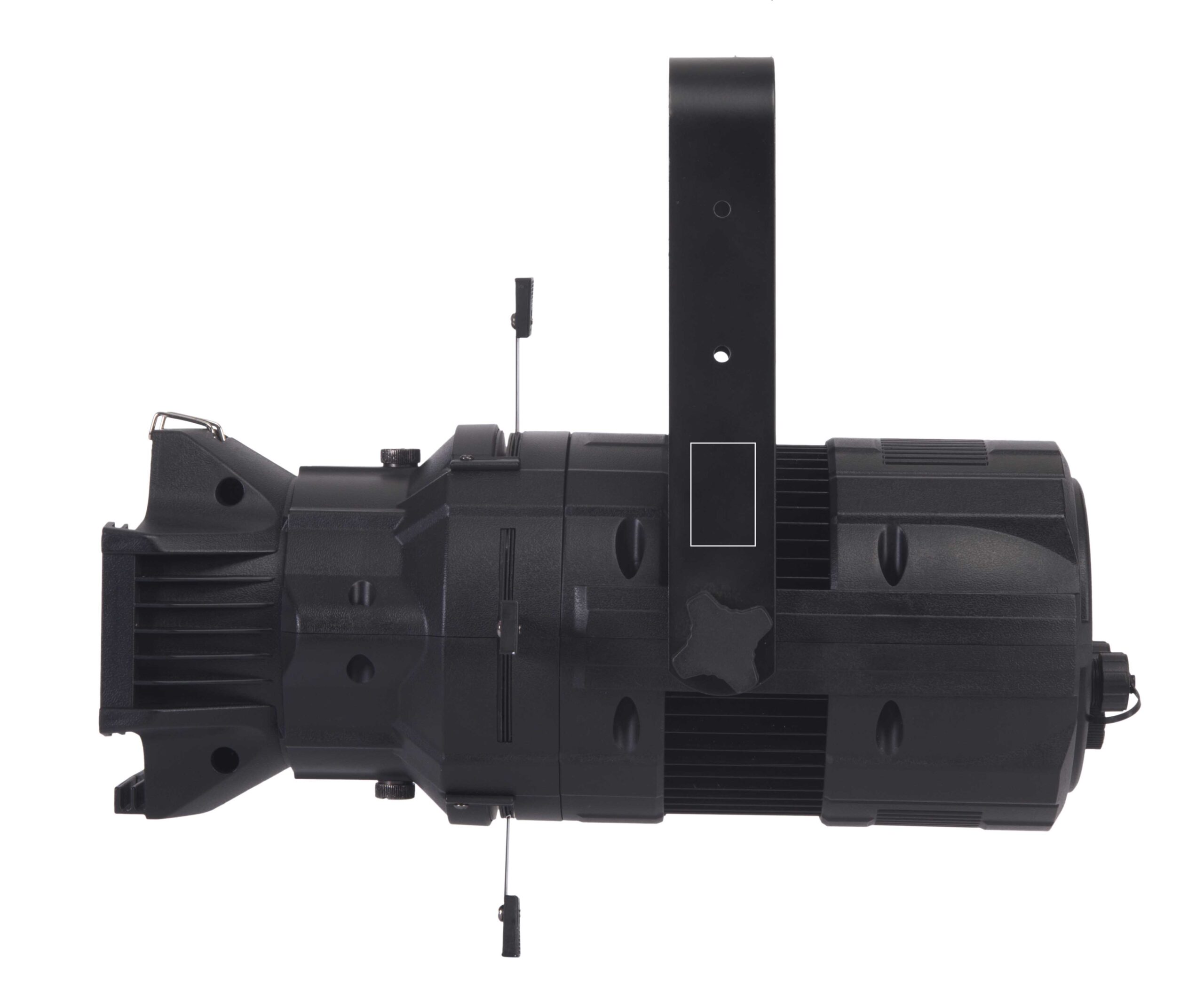

SAGOLED WW MINI is a LED Profile Spot with an “array” 60W white LED source with colour temperature 3200K. Thanks to its extreme lighting power, this projector is able to replace the normal Profiles with HPL lamp, offering lighter weight thanks to a sturdy black plastic cabinet. The projector is available with optics for Profile 19° (included) 26° – 30° – 50° (optional). Gobos holder included.
| Light source | 1x60W Led Warm white 3200K LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |

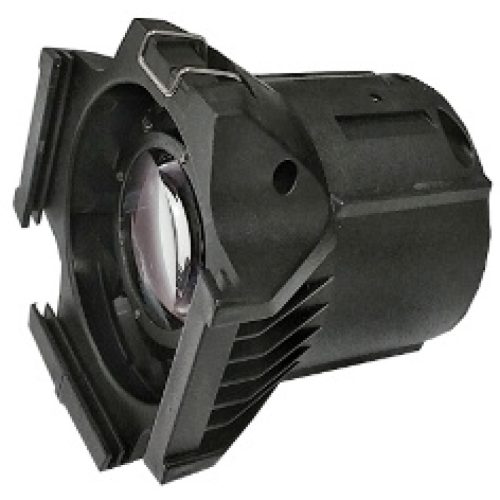

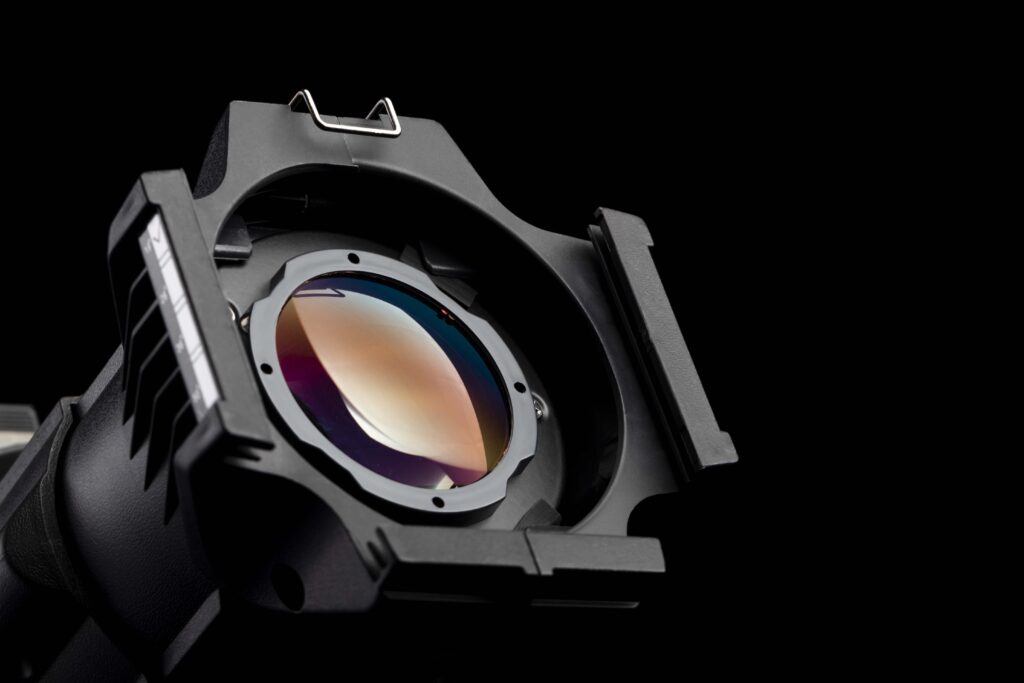

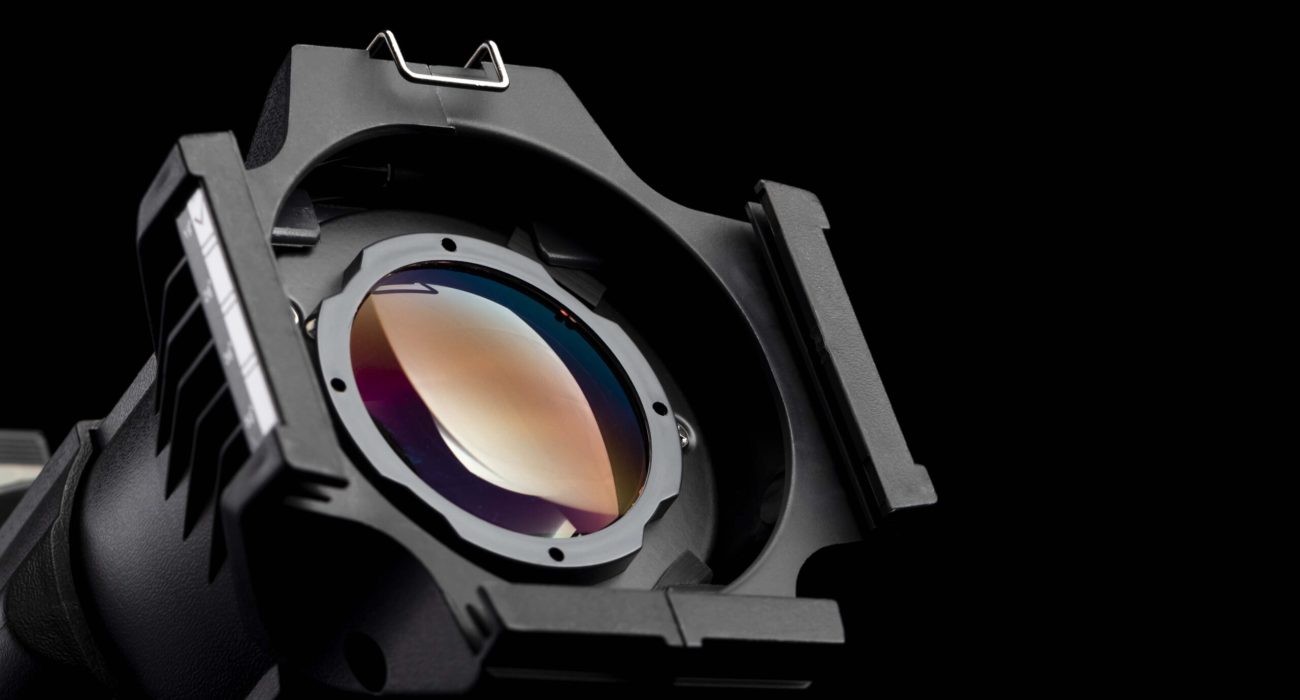

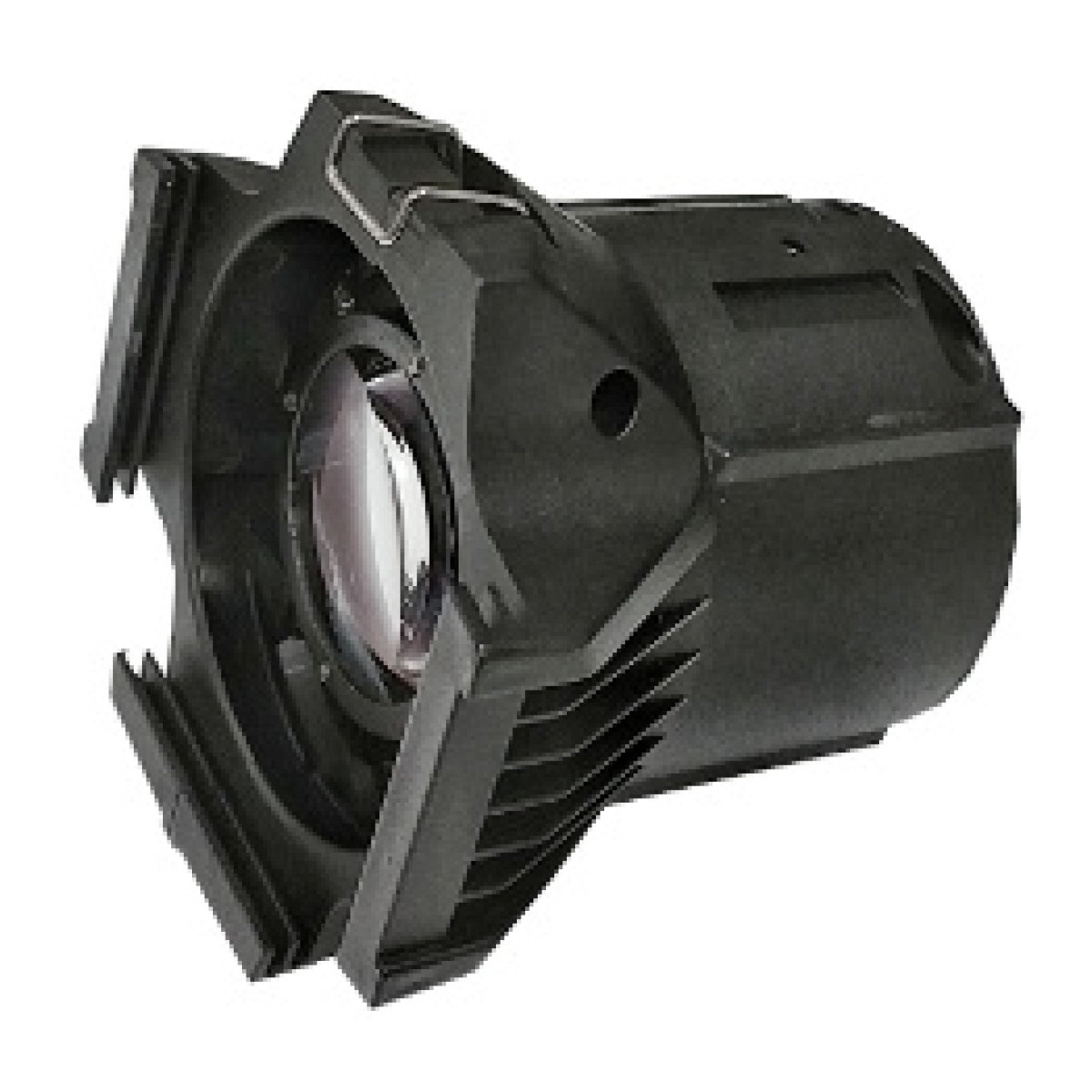

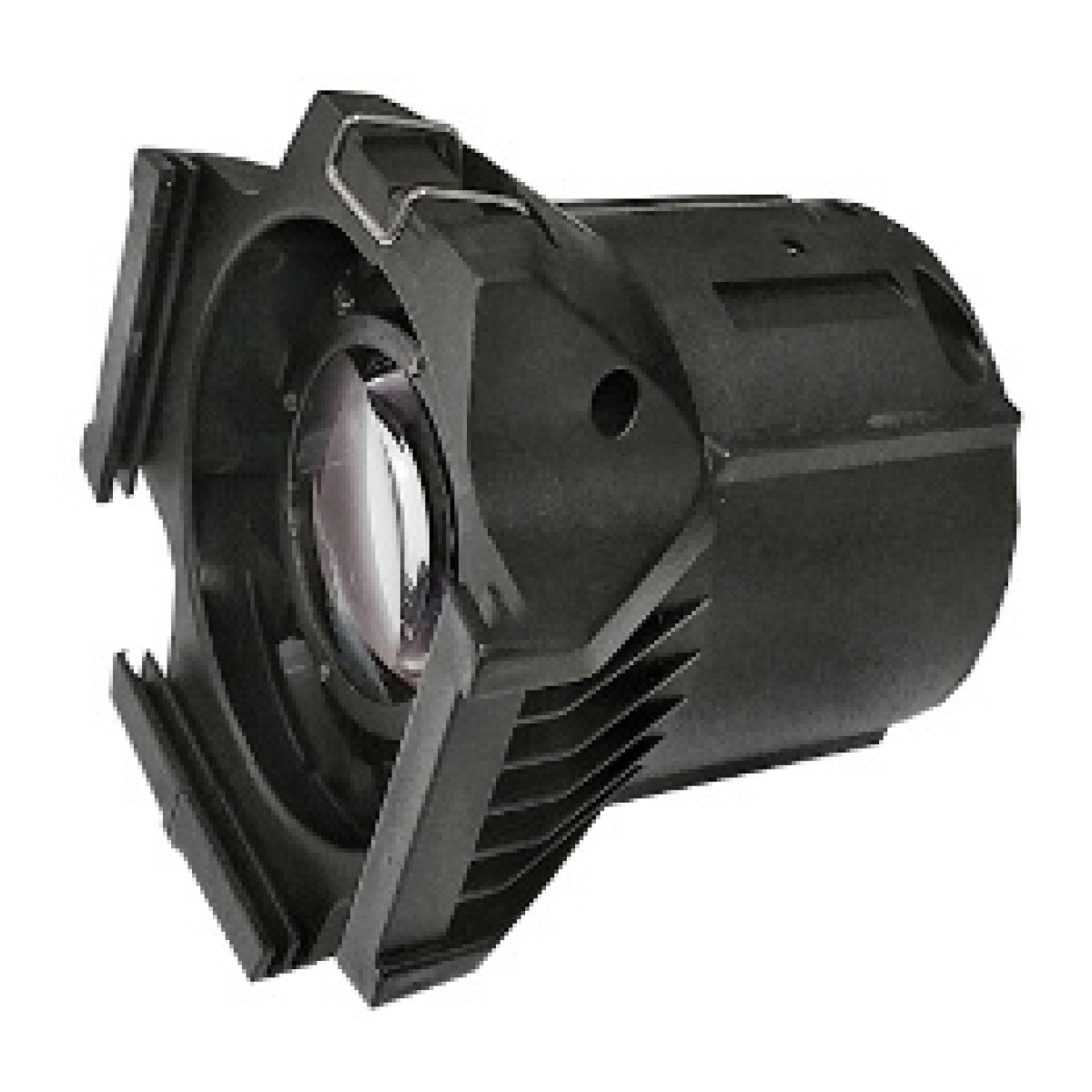

| Optic system | Beam Angle: 19° (included) Optional: 26° – 36° – 50° Illuminance: 907lux @ 5m (full on-19°) |
| Color system | LED source Warm White 3200K |
| Effects | Linear dimmer 0-100% Strobe: electronic 1-20 flashes/s with adjustable speed |
| Control and programming | 1 DMX configurations available: 2 channels Protocol USITT DMX 512 Master/Slave mode Auto mode: 2 programs can be selected from display |

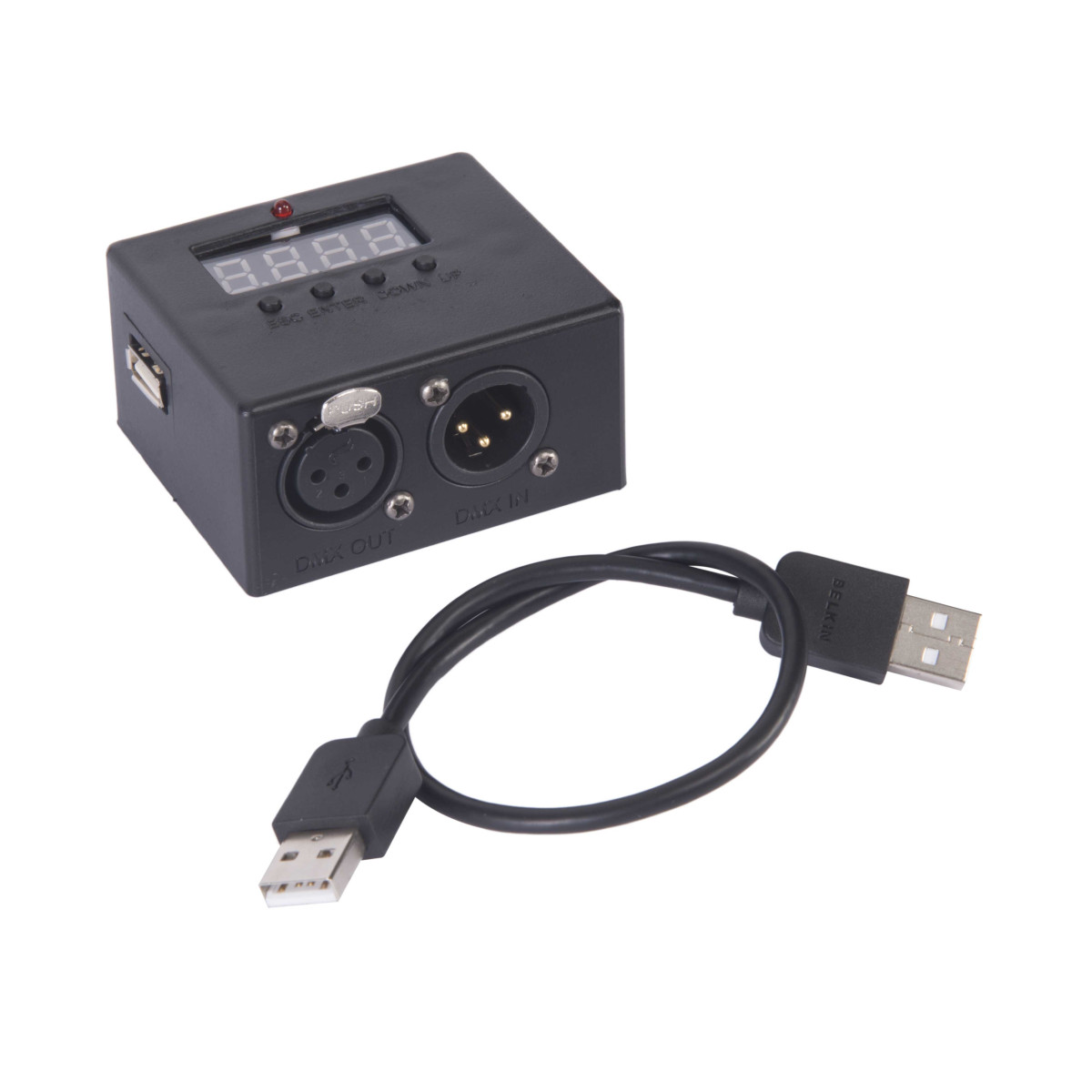

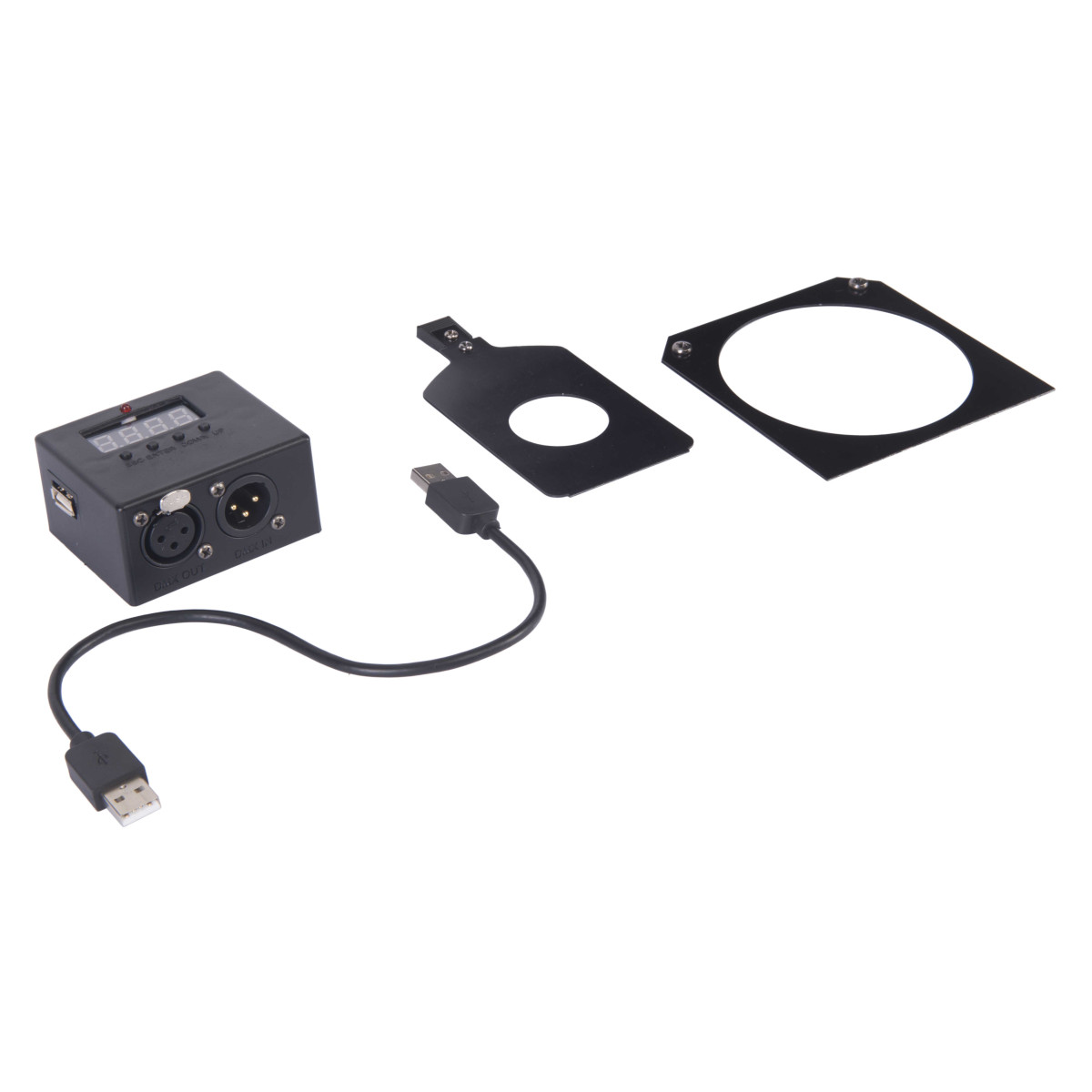

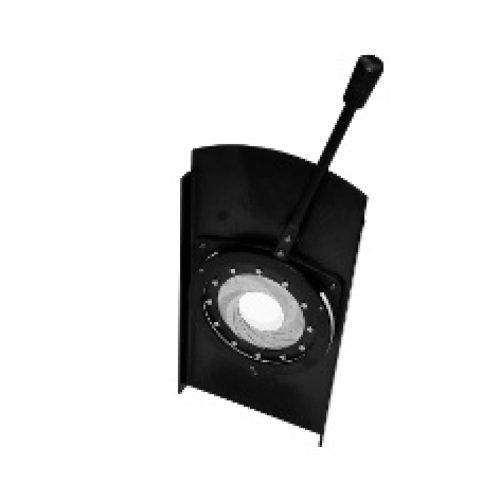

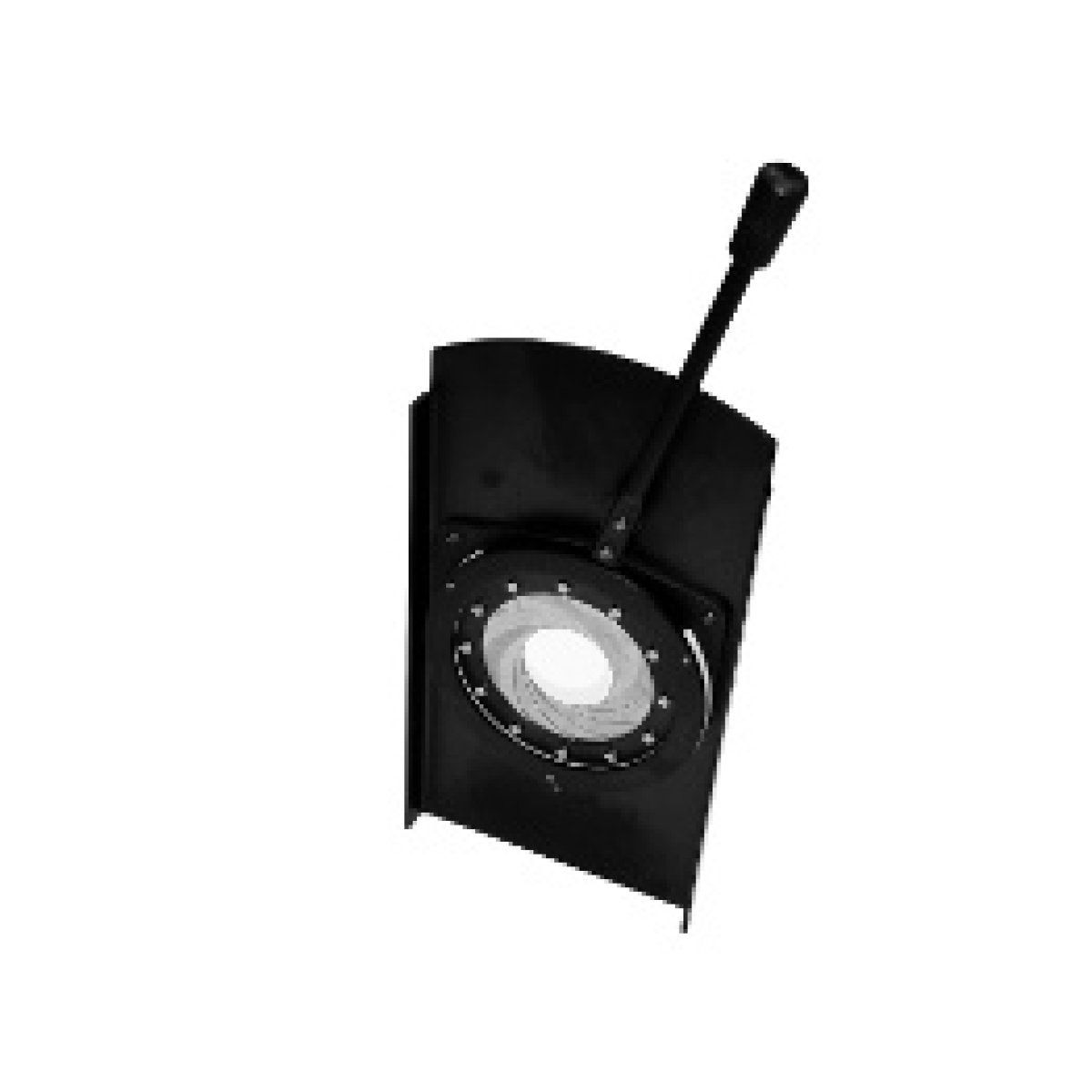

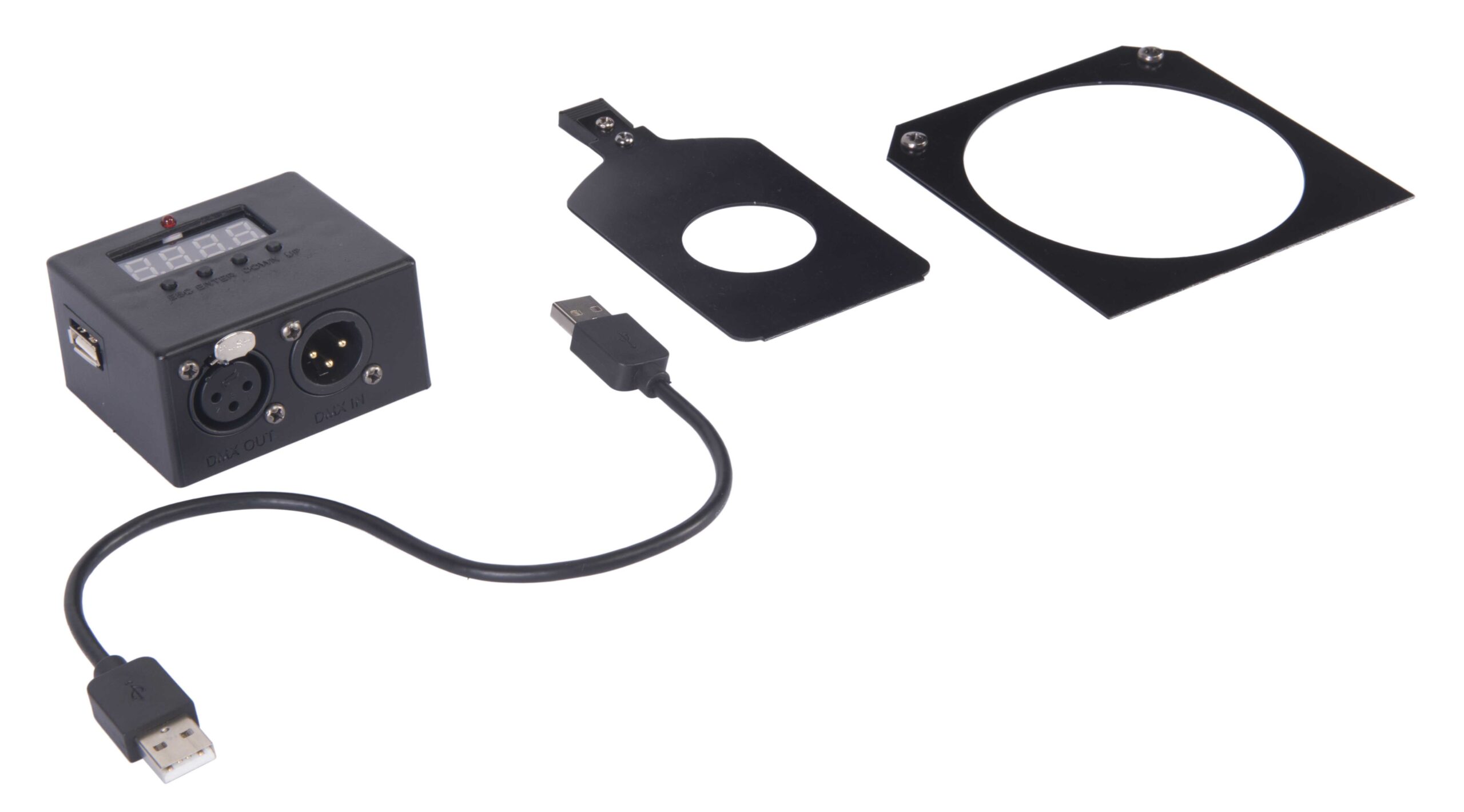

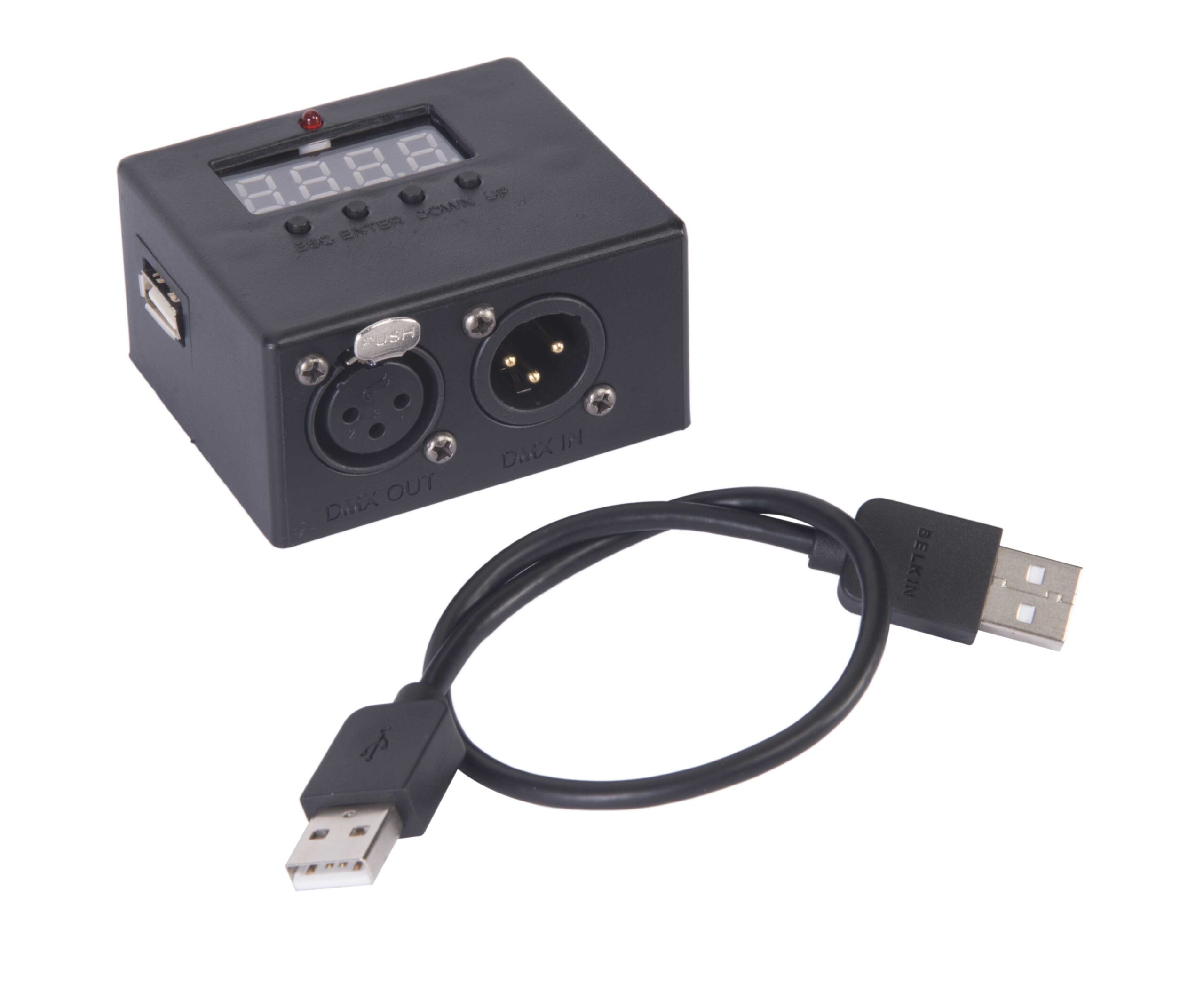

| Structure and cabinet | High resistance black plastic housing Red LED display Mounting points: single bracket Gel filter frame included Gobo holder included Iris not included (sold separately) XLR 3-poles DMX IN/OUT connection with external USB box IP rating: IP20 Controlled forced air fan cooling system “low noise” |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Power consumption: 70W IN/OUT power connection Power supply cable 1mt included Max 4 pcs linkable @ 240V |
| Weight and dimensions | Net weight: 2,2 kg Dimensions: 158x305x238 mm |
