| Technical Data | Wireless DMX & Vision APP TX+RX Receiving sensivity: -103dBm @BLE 125kbps Receiving sensivity: -95dBm @BLE (1M) Transming power: +8dBm -20dBm Wireless Range: WDMX: up to 400 m / Bluetooth: up to 100 m Number of DMX channels 512 channels DMX latency: <5 ms 2.4 GHz normal power mode: 100 mW 2.4 GHz maximum power mode: up to 450 mW W-DMX G3 & G4S FHSS: 1100 hops/sec Battery Voltage: 11.1 V Charging Time 6 hours Runtime Battery: up to 168 hours (App mode) up to 72 hours (W-DMX RX/TX mode) |

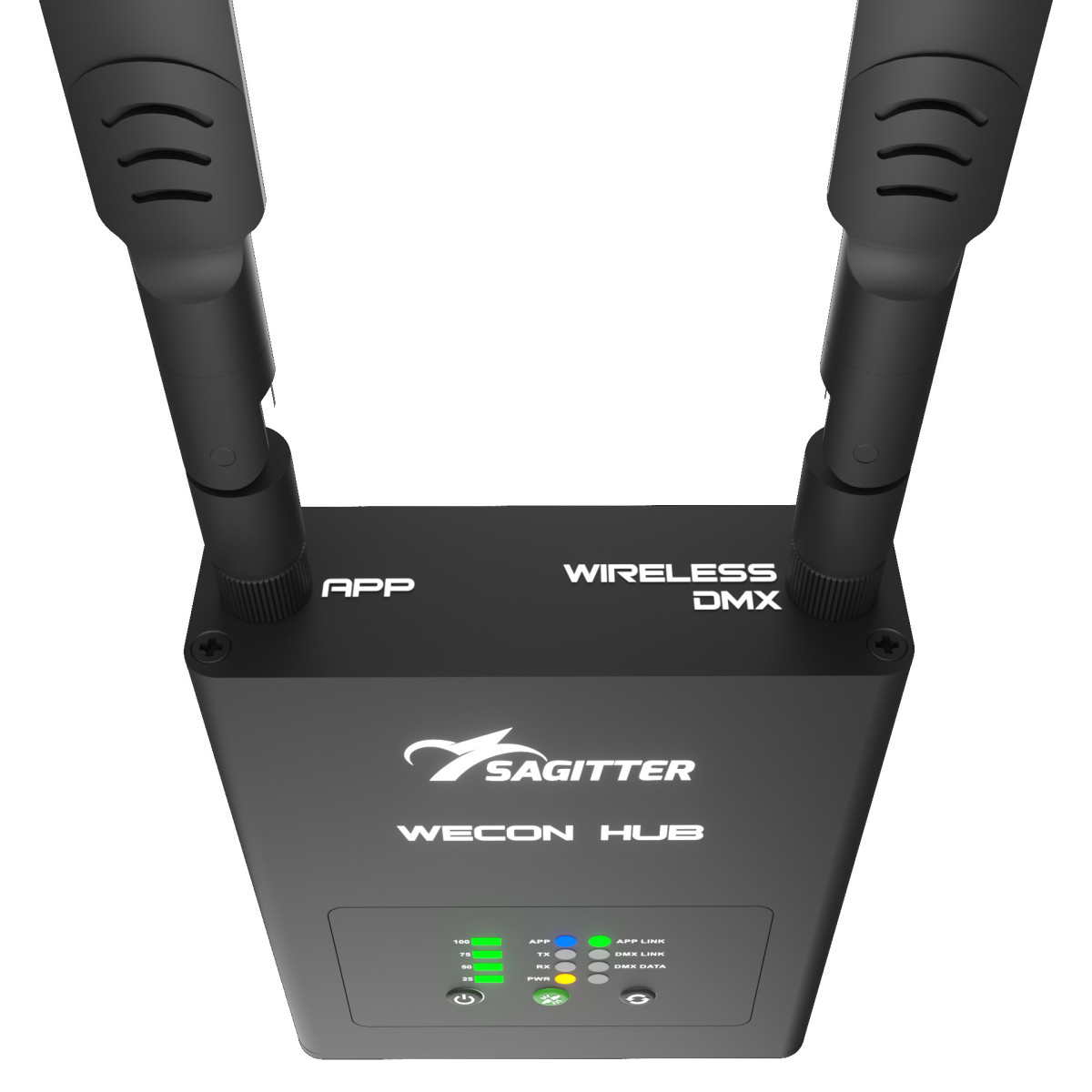

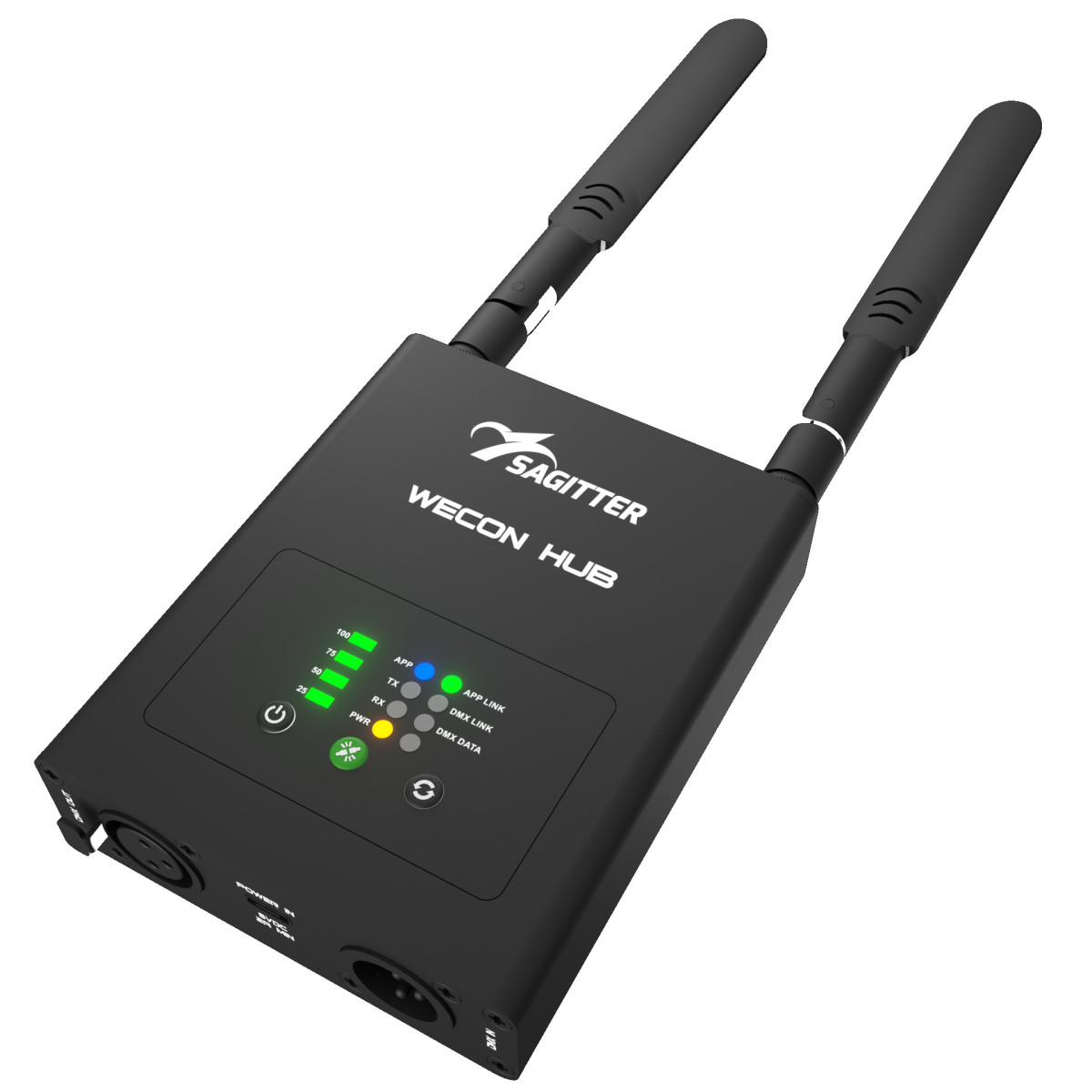

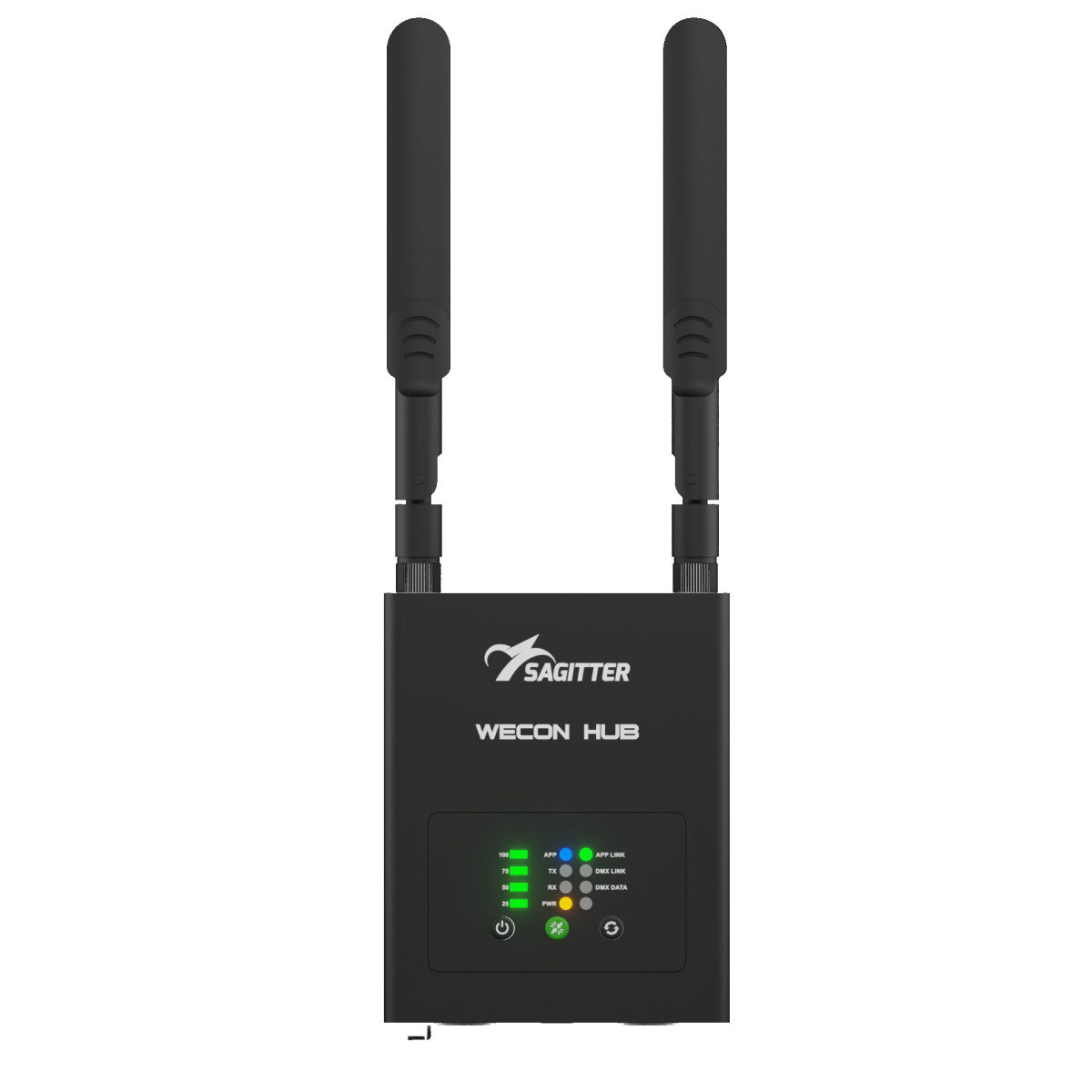

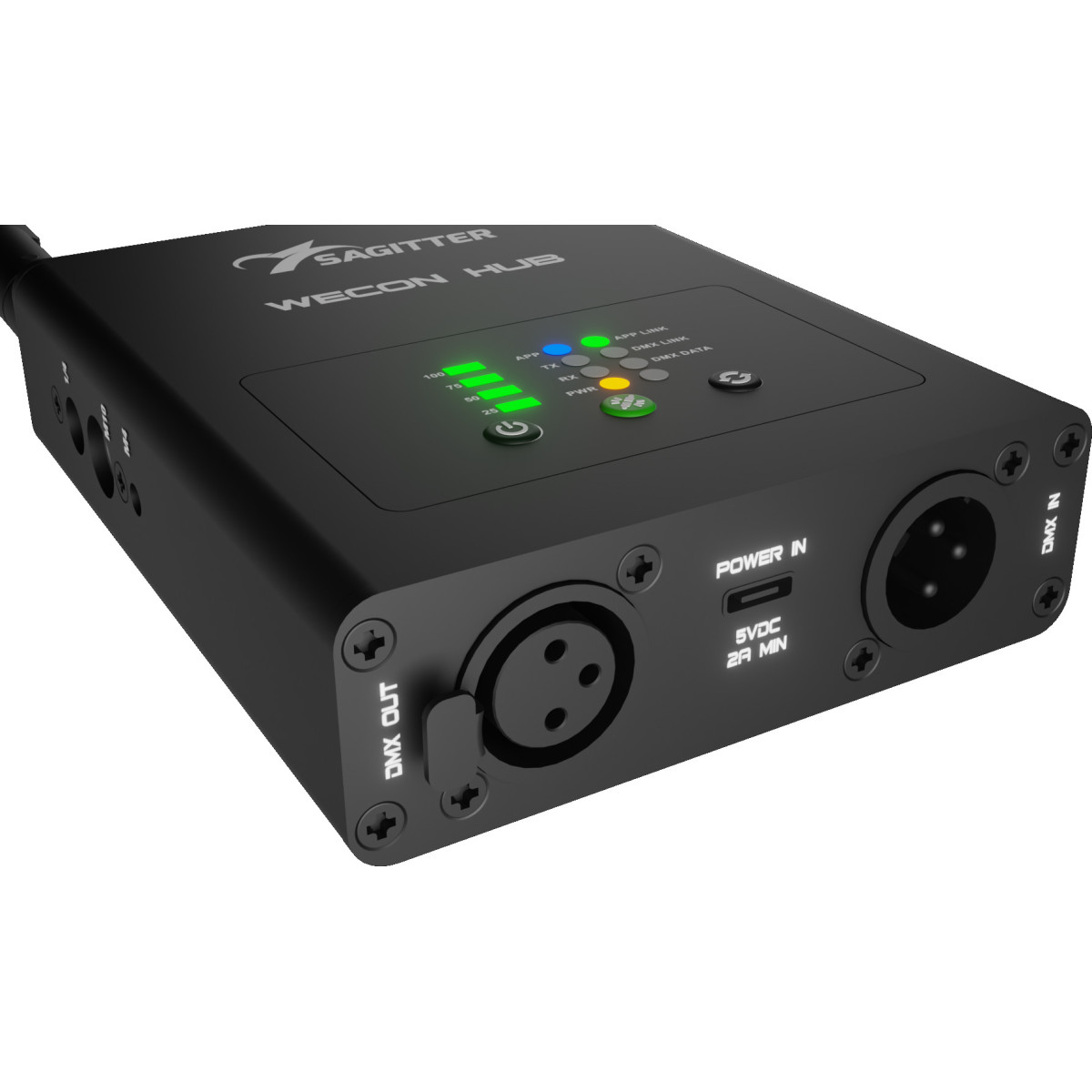

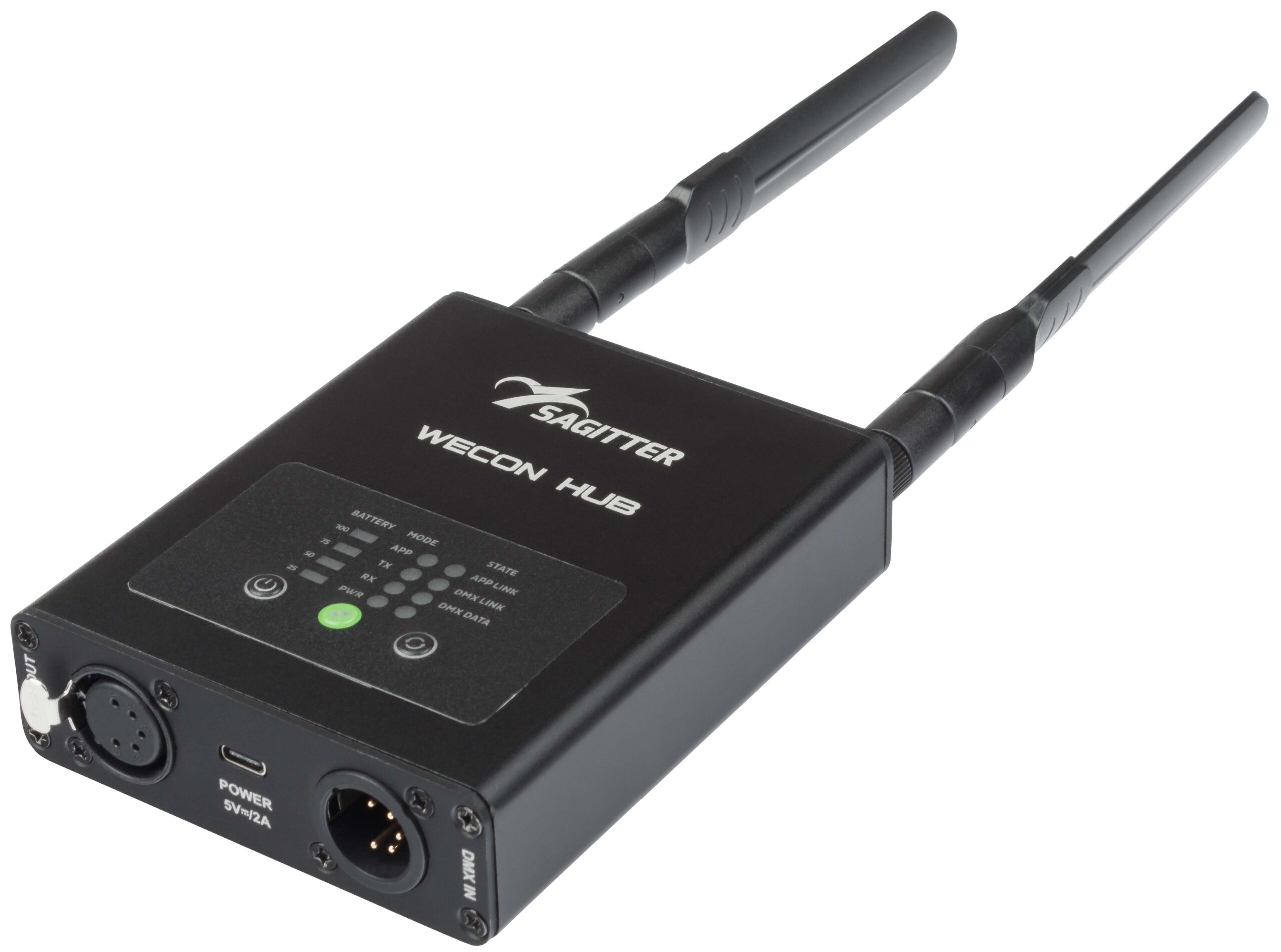

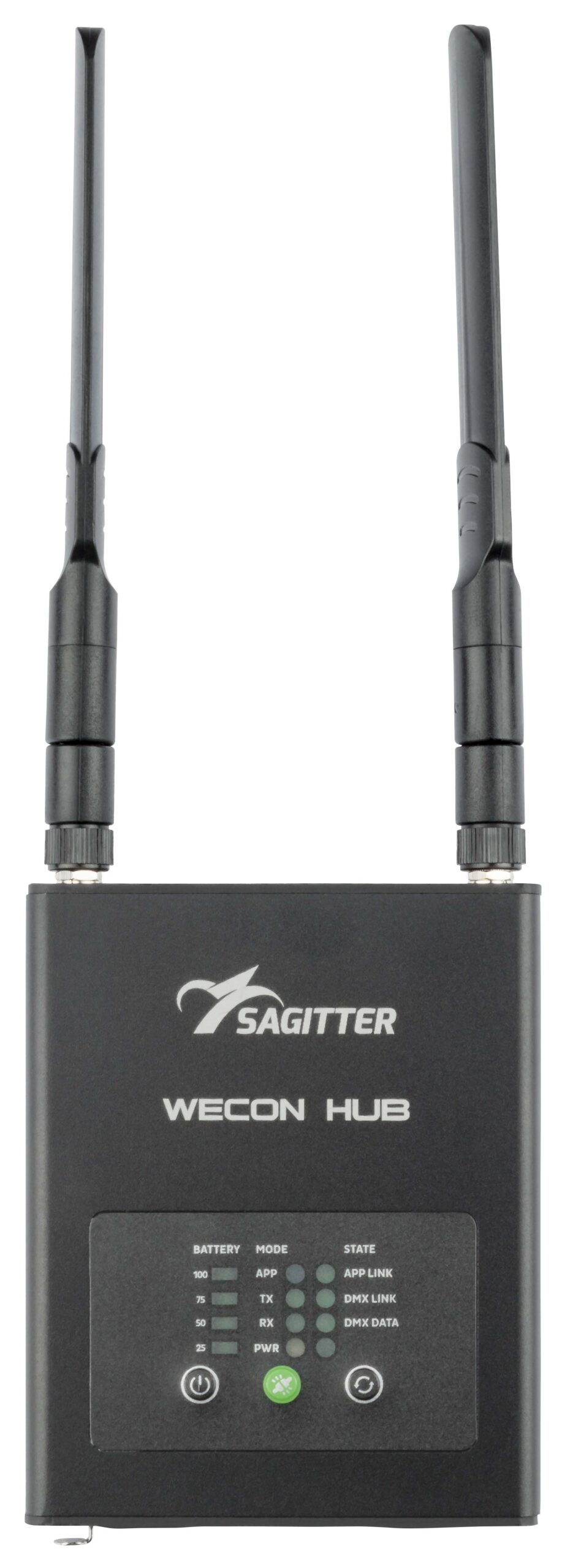

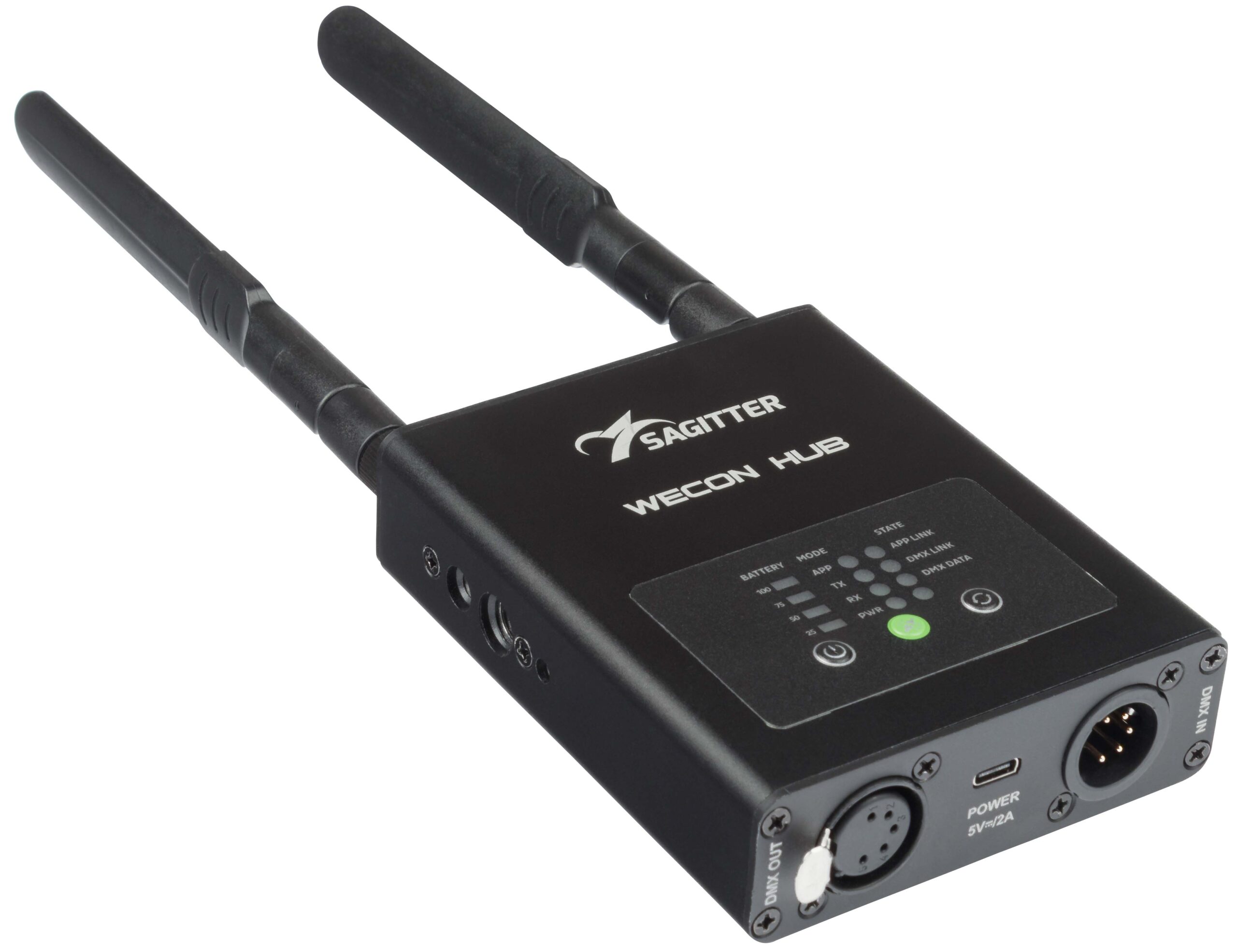

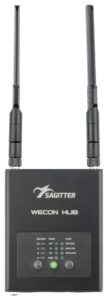

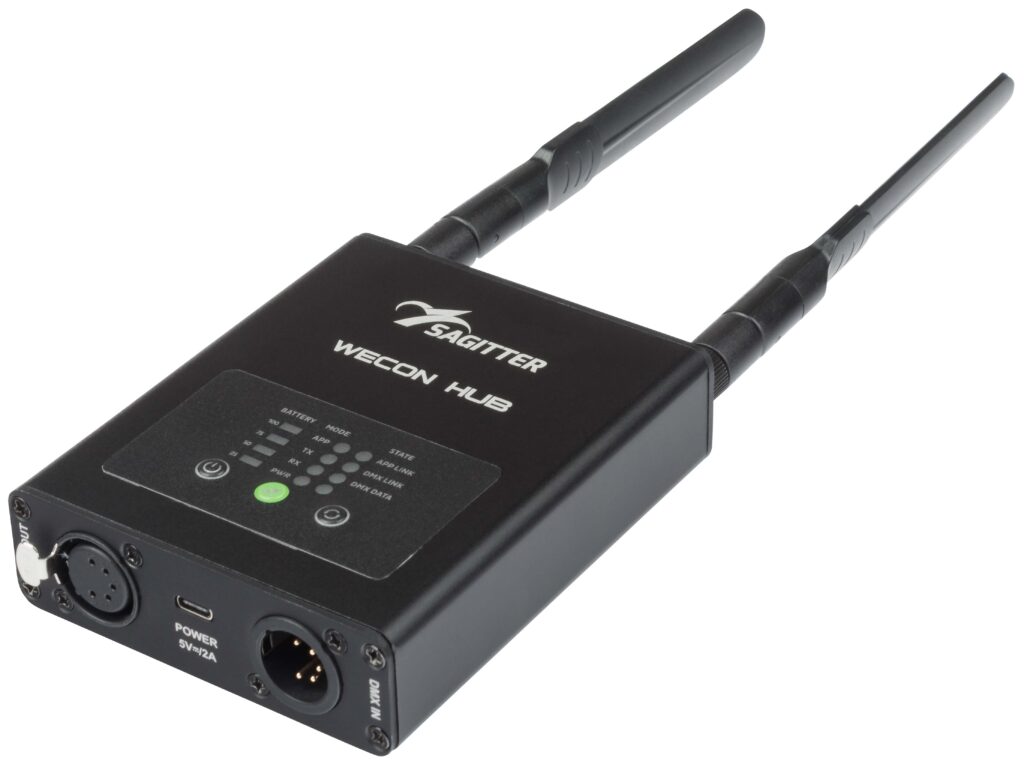

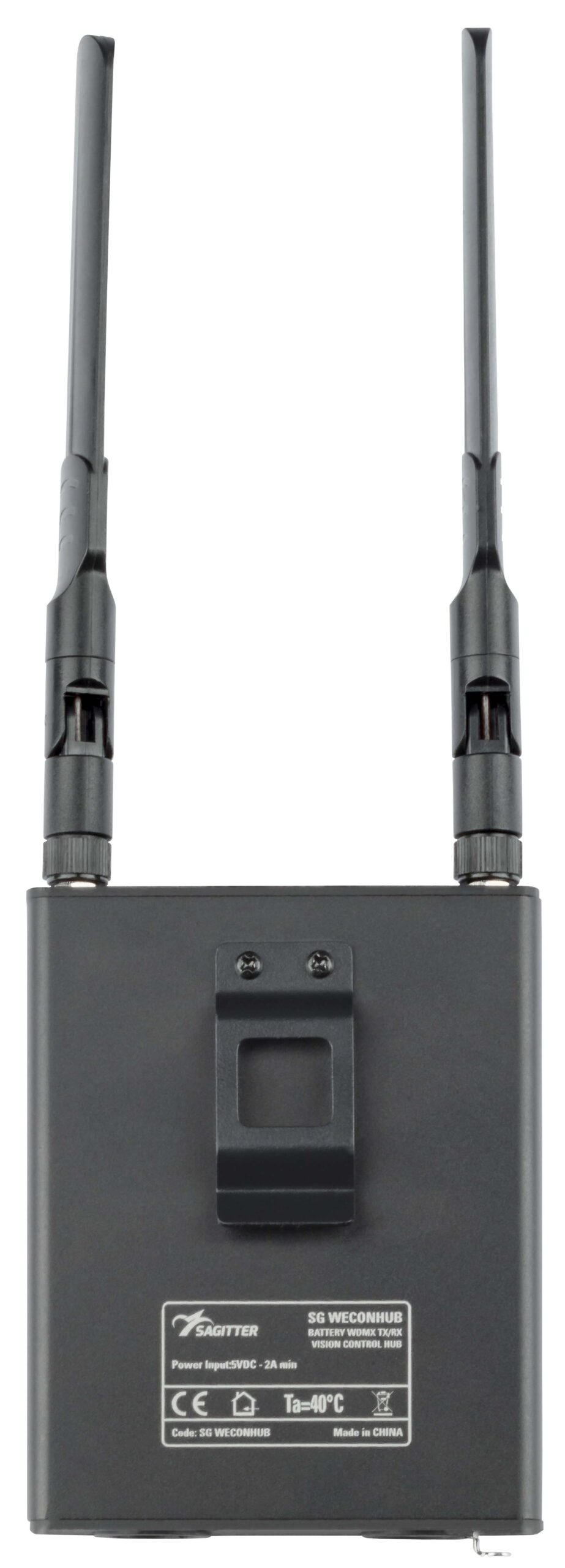

| Structure and cabinet | Aliminum housing, black color Control panel with LED indicators Wireless antenna: 5 dBi, black directional antenna Belt clip on the back 5-poles XLR IN/OUT connection Input/Output opto isolation DC Input:Type-C DC5V-2A Side inserts: 1/4″ 20 – M10 – M4 HUB Bridge interconnection kit for connecting 2 WECON HUBs (included) |
| Power supply | DC Input: 5V 2A DC 1 x Li-Ion battery 3,7VDC – 9000mAh |
| Weight and dimensions | Net weight: 0,42 kg Dimensions: 95x193x38 mm |
